Ant-design 源码分析之数据展示（九）Empty

2021SC@SDUSC

一、组件结构

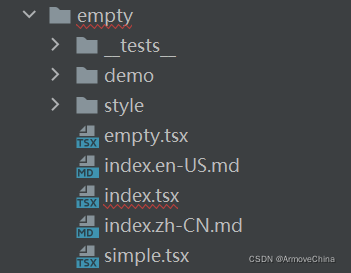

1、ant代码结构
在这里插入图片描述
2、组件结构

ant中Empty的index.tsx中引入了Empty和Simple。

二、antd组件调用关系

1、index.tsx
导入相应模块以及相应的ICON图标

import * as React from 'react';
import classNames from 'classnames';
import { ConfigContext } from '../config-provider';
import LocaleReceiver from '../locale-provider/LocaleReceiver';
import DefaultEmptyImg from './empty';
import SimpleEmptyImg from './simple';

const defaultEmptyImg = <DefaultEmptyImg />;
const simpleEmptyImg = <SimpleEmptyImg />;

声明EmptyProps接口

export interface TransferLocale {
  description: string;
}

export interface EmptyProps {
  prefixCls?: string;
  className?: string;
  style?: React.CSSProperties;
  /** @since 3.16.0 */
  imageStyle?: React.CSSProperties;
  image?: React.ReactNode;
  description?: React.ReactNode;
  children?: React.ReactNode;
}

description：自定义描述内容，类型为ReactNode
image：设置显示图片，为 string 时表示自定义图片地址。类型为ReactNode
imageStyle：图片样式，类型为CSSProperties

interface EmptyType extends React.FC<EmptyProps> {
  PRESENTED_IMAGE_DEFAULT: React.ReactNode;
  PRESENTED_IMAGE_SIMPLE: React.ReactNode;
}

const Empty: EmptyType = ({
  className,
  prefixCls: customizePrefixCls,
  image = defaultEmptyImg,
  description,
  children,
  imageStyle,
  ...restProps
}) => {
  const { getPrefixCls, direction } = React.useContext(ConfigContext);

  return (
    <LocaleReceiver componentName="Empty">
      {(locale: TransferLocale) => {
        const prefixCls = getPrefixCls('empty', customizePrefixCls);
        const des = typeof description !== 'undefined' ? description : locale.description;
        const alt = typeof des === 'string' ? des : 'empty';

        let imageNode: React.ReactNode = null;

        if (typeof image === 'string') {
          imageNode = <img alt={alt} src={image} />;
        } else {
          imageNode = image;
        }

        return (
          <div
            className={classNames(
              prefixCls,
              {
                [`${prefixCls}-normal`]: image === simpleEmptyImg,
                [`${prefixCls}-rtl`]: direction === 'rtl',
              },
              className,
            )}
            {...restProps}
          >
            <div className={`${prefixCls}-image`} style={imageStyle}>
              {imageNode}
            </div>
            {des && <div className={`${prefixCls}-description`}>{des}</div>}
            {children && <div className={`${prefixCls}-footer`}>{children}</div>}
          </div>
        );
      }}
    </LocaleReceiver>
  );
};
//内置图片的两种形态
Empty.PRESENTED_IMAGE_DEFAULT = defaultEmptyImg;
Empty.PRESENTED_IMAGE_SIMPLE = simpleEmptyImg;

export default Empty;

2、Row.tsx

导入相应模块以及相应的ICON图标

import * as React from 'react';
import { ConfigContext } from '../config-provider';

const Empty = () => {
  const { getPrefixCls } = React.useContext(ConfigContext);
  const prefixCls = getPrefixCls('empty-img-default');

  return (
    <svg
      className={prefixCls}
      width="184"
      height="152"
      viewBox="0 0 184 152"
      xmlns="http://www.w3.org/2000/svg"
    >
      <g fill="none" fillRule="evenodd">
        <g transform="translate(24 31.67)">
          <ellipse
            className={`${prefixCls}-ellipse`}
            cx="67.797"
            cy="106.89"
            rx="67.797"
            ry="12.668"
          />
          <path
            className={`${prefixCls}-path-1`}
            d="M122.034 69.674L98.109 40.229c-1.148-1.386-2.826-2.225-4.593-2.225h-51.44c-1.766 0-3.444.839-4.592 2.225L13.56 69.674v15.383h108.475V69.674z"
          />
          <path
            className={`${prefixCls}-path-2`}
            d="M101.537 86.214L80.63 61.102c-1.001-1.207-2.507-1.867-4.048-1.867H31.724c-1.54 0-3.047.66-4.048 1.867L6.769 86.214v13.792h94.768V86.214z"
            transform="translate(13.56)"
          />
          <path
            className={`${prefixCls}-path-3`}
            d="M33.83 0h67.933a4 4 0 0 1 4 4v93.344a4 4 0 0 1-4 4H33.83a4 4 0 0 1-4-4V4a4 4 0 0 1 4-4z"
          />
          <path
            className={`${prefixCls}-path-4`}
            d="M42.678 9.953h50.237a2 2 0 0 1 2 2V36.91a2 2 0 0 1-2 2H42.678a2 2 0 0 1-2-2V11.953a2 2 0 0 1 2-2zM42.94 49.767h49.713a2.262 2.262 0 1 1 0 4.524H42.94a2.262 2.262 0 0 1 0-4.524zM42.94 61.53h49.713a2.262 2.262 0 1 1 0 4.525H42.94a2.262 2.262 0 0 1 0-4.525zM121.813 105.032c-.775 3.071-3.497 5.36-6.735 5.36H20.515c-3.238 0-5.96-2.29-6.734-5.36a7.309 7.309 0 0 1-.222-1.79V69.675h26.318c2.907 0 5.25 2.448 5.25 5.42v.04c0 2.971 2.37 5.37 5.277 5.37h34.785c2.907 0 5.277-2.421 5.277-5.393V75.1c0-2.972 2.343-5.426 5.25-5.426h26.318v33.569c0 .617-.077 1.216-.221 1.789z"
          />
        </g>
        <path
          className={`${prefixCls}-path-5`}
          d="M149.121 33.292l-6.83 2.65a1 1 0 0 1-1.317-1.23l1.937-6.207c-2.589-2.944-4.109-6.534-4.109-10.408C138.802 8.102 148.92 0 161.402 0 173.881 0 184 8.102 184 18.097c0 9.995-10.118 18.097-22.599 18.097-4.528 0-8.744-1.066-12.28-2.902z"
        />
        <g className={`${prefixCls}-g`} transform="translate(149.65 15.383)">
          <ellipse cx="20.654" cy="3.167" rx="2.849" ry="2.815" />
          <path d="M5.698 5.63H0L2.898.704zM9.259.704h4.985V5.63H9.259z" />
        </g>
      </g>
    </svg>
  );
};

export default Empty;

2、Simple.tsx

导入相应模块以及相应的ICON图标

import * as React from 'react';
import { ConfigContext } from '../config-provider';

const Simple = () => {
  const { getPrefixCls } = React.useContext(ConfigContext);
  const prefixCls = getPrefixCls('empty-img-simple');
  return (
    <svg
      className={prefixCls}
      width="64"
      height="41"
      viewBox="0 0 64 41"
      xmlns="http://www.w3.org/2000/svg"
    >
      <g transform="translate(0 1)" fill="none" fillRule="evenodd">
        <ellipse className={`${prefixCls}-ellipse`} cx="32" cy="33" rx="32" ry="7" />
        <g className={`${prefixCls}-g`} fillRule="nonzero">
          <path d="M55 12.76L44.854 1.258C44.367.474 43.656 0 42.907 0H21.093c-.749 0-1.46.474-1.947 1.257L9 12.761V22h46v-9.24z" />
          <path
            d="M41.613 15.931c0-1.605.994-2.93 2.227-2.931H55v18.137C55 33.26 53.68 35 52.05 35h-40.1C10.32 35 9 33.259 9 31.137V13h11.16c1.233 0 2.227 1.323 2.227 2.928v.022c0 1.605 1.005 2.901 2.237 2.901h14.752c1.232 0 2.237-1.308 2.237-2.913v-.007z"
            className={`${prefixCls}-path`}
          />
        </g>
      </g>
    </svg>
  );
};

export default Simple;
