ESP32蓝牙开发笔记（五）

蓝牙广播包分析

1.定义广播数据

static uint8_t adv_raw_data[] = {
    0x02, ESP_BLE_AD_TYPE_FLAG, 0x06,
    0x11, ESP_BLE_AD_TYPE_NAME_CMPL, 'B', 'l', 'u', 'e', 'd', 'r', 'o', 'i', 'd', '_', 'B', 'e', 'a', 'c', 'o', 'n',
    0x02, ESP_BLE_AD_TYPE_TX_PWR, 0x09,
    0x03, ESP_BLE_AD_TYPE_APPEARANCE, 0x00,0x02,
    0x02, ESP_BLE_AD_TYPE_LE_ROLE, 0x00,
};

2.配置广播数据

ret = esp_ble_gap_config_adv_data_raw(adv_raw_data, sizeof(adv_raw_data));
if (ret) {
   ESP_LOGE(DEMO_TAG, "config adv data failed, error code = %x", ret);
   return;
}

3.广播参数配置

static esp_ble_adv_params_t adv_params = {
    .adv_int_min = 0x20,  // 20ms
    .adv_int_max = 0x20,  // 20ms
    .adv_type =  ADV_TYPE_NONCONN_IND,
    .own_addr_type = BLE_ADDR_TYPE_PUBLIC,
    .channel_map = ADV_CHNL_ALL,
    .adv_filter_policy = ADV_FILTER_ALLOW_SCAN_ANY_CON_ANY,
};

4.开始广播

esp_ble_gap_start_advertising(&adv_params);

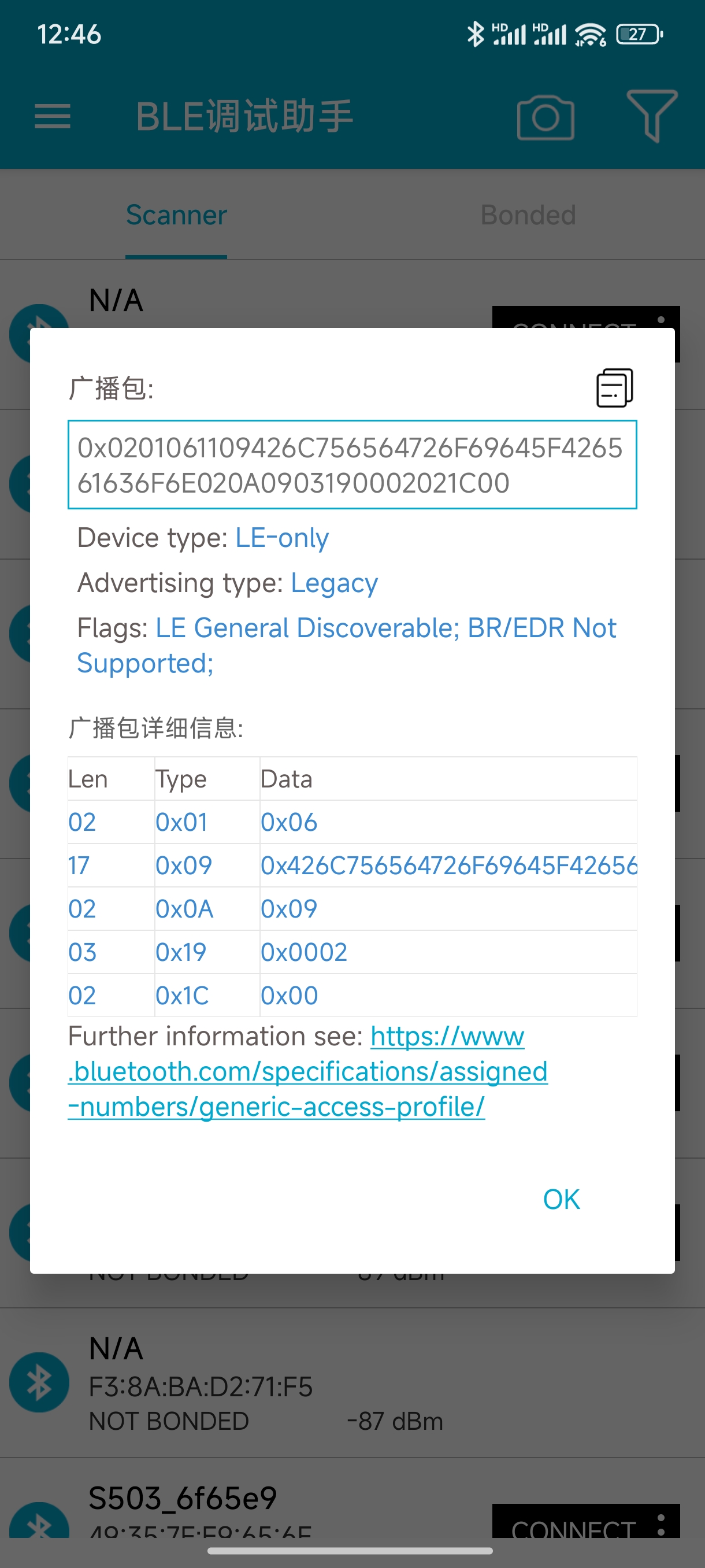

 5.抓包分析
