java基于RXTXcomm.jar的串口通信

1.下载RXTX包

https://download.csdn.net/download/qq_37778018/21422246?spm=1001.2014.3001.5501

下载后将rxtxSerial.dll，rxtxParallel.dll 拷贝到C:\Windows\System32目录

Copy rxtxSerial.dll ---> C:\Windows\System32

Copy rxtxParallel.dll --->C:\Windows\System32

将RXTXcomm.jar拷贝到jdk安装目录下的\jre\lib\ext

Copy RXTXcomm.jar ---> \jre\lib\ext

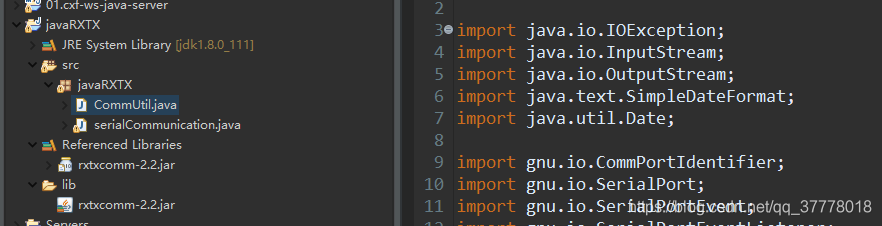

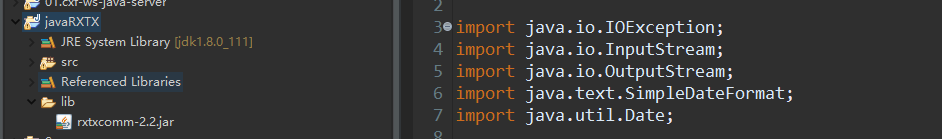

2.上面配置好后创建java项目，新建lib文件夹，

将RXTXcomm.jar复制到lib目录然后添加到build path

上代码

package javaRXTX;

import java.io.IOException;
import java.io.InputStream;
import java.io.OutputStream;
import java.text.SimpleDateFormat;
import java.util.Date;

import gnu.io.CommPortIdentifier;
import gnu.io.SerialPort;
import gnu.io.SerialPortEvent;
import gnu.io.SerialPortEventListener;

public class CommUtil implements SerialPortEventListener {

	private static final String PORT_NAME ="COM1" ;//根据自己串口情况定义
	private static final int BIT_RATE =9600;//根据自己产品波特率设置，不要设置错误。
	public static final int DATA_BITS = SerialPort.DATABITS_8;
	public static final int STOP_BIT = SerialPort.STOPBITS_1;
	public static final int PARITY_BIT = SerialPort.PARITY_NONE;

	private static SerialPort serialPort;
	private static InputStream in;
	private static OutputStream out;
	private static CommUtil commUtil;


	private CommUtil(){

	}

	public static CommUtil getInstance() {
		if (commUtil == null){
			commUtil = new CommUtil();
			commUtil.init();
		}
		return commUtil;
	}

	public void init(){
		try {
			CommPortIdentifier portIdentifier = CommPortIdentifier.getPortIdentifier(PORT_NAME);
			if (portIdentifier.isCurrentlyOwned()){
				System.out.println("Error: 当前端口已被占用");
			}else if (portIdentifier.getPortType() == 1){
				serialPort = (SerialPort) portIdentifier.open(PORT_NAME,1000);
				serialPort.setSerialPortParams(BIT_RATE,DATA_BITS,STOP_BIT,PARITY_BIT);
				in = serialPort.getInputStream();
				out = serialPort.getOutputStream();
				serialPort.addEventListener(this);
				serialPort.notifyOnDataAvailable(true);
			}else {
				System.out.println( "Error: Only serial ports are handled by this example.");
			}
		}catch (Exception e){
			e.printStackTrace();
		}
	}
	public void serialEvent(SerialPortEvent event) {
		switch (event.getEventType()) {
			case SerialPortEvent.DATA_AVAILABLE:
				receive();
				break;
		}
	}


	public String receive() {
		byte[] buffer = new byte[128];
		int data;
		String result = null;
		try {
			int len = 0;
			while ((data = in.read()) >-1){
				buffer[ len++] = (byte) data;
				}
			byte[] copyValue = new byte[ len];
			System.arraycopy(buffer, 0,copyValue,0,len);
			result = ByteArrayToString(copyValue);
			System.out.println(result);
		}catch ( IOException e) {
			e.printStackTrace();
		}
		return result;
	}

	public void close() {
		try {
			in.close();
			out.close();
			serialPort.notifyOnDataAvailable(false);
			serialPort.removeEventListener();
			serialPort.close();
		}catch(IOException e) {
			e.printStackTrace();
		}
	}

	public byte[] hexStrToByteArray(String str) {
		if (str == null) {
			return null;
		}
		if ( str.length() == 0){
			return new byte[0];
		}
		byte[] byteArray = new byte[str.length() / 2];
		for (int i = 0; i < byteArray. length; i++) {
			String substr = str. substring(2*i,2*i + 2);
			byteArray[i] = ((byte) Integer.parseInt(substr,16));
		}
		return byteArray;
	}

	public String ByteArrayToString(byte[ ] by) {
		String str = "";
		for (int i = 0; i < by . length; i++) {
			String hex = Integer.toHexString(by[i] & 0xFF);
			if (hex. length( ) == 1) {
				hex = "O" + hex;
			}
			str += hex.toUpperCase();
		}
		return str;
	}


	//转化十六进制编码为字符串
	public String toStringHex1(String s) {
		byte[ ] baKeyword = new byte[s.length() / 2];
		for (int i = 0; i < baKeyword . length; i++){
			try {
				baKeyword[i] = (byte)(0xff & Integer.parseInt(s.substring(i *2,i*2 + 2),16));
				System.out.println("=========================每一位开始===========");
				System.out.println(baKeyword[i]);
				System.out.println("***************每一位结束**************");
			}catch (Exception e) {
				e.printStackTrace();
			}
		}
		try {
			s = new String(baKeyword,"UTF-8");// UTF-16le:Not
		}catch (Exception e1) {
			e1.printStackTrace();
		}
		return s;
	}


	public static void main(String[ ] args) {
		//初始化，检测打开串口，将串口信息赋给流信息
		CommUtil commUtil = CommUtil.getInstance();
		System.out.println("开始程序");
		//解析流文件信息，接收信息
		String a = commUtil.receive();
		//将得到的解析数据转换（如将十六转字符串），得到结果
		String i=commUtil.toStringHex1(a);
		//关闭各种
		commUtil.close();




		int count=0;
		SimpleDateFormat df = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss");//设置日期格式
        //System.out.println();// new Date()为获取当前系统时间、
		count=count++;
		System.out.println("第"+count+"过磅");
		System.out.println("过磅数据："+i+"当前时间："+df.format(new Date()));
		System.out.println();
		System.out.println();
	}
}

源码下载

https://download.csdn.net/download/qq_37778018/21426630?spm=1001.2014.3001.5501
