概念：
AOP
AOP（Aspect Oriented Programming），即面向切面编程。简单说就是那些与业务无关，却为业务模块所共同调用的逻辑或责任封装起来，便于减少系统的重复代码，降低模块之间的耦合度，并有利于未来的可操作性和可维护性。
源码
@EnableAspectJAutoProxy
@EnableAspectJAutoProxyz这个是什么？

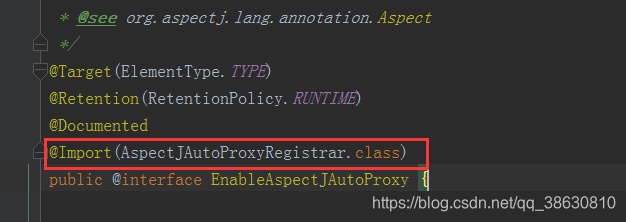

我们可以注意到，当我们要自己写一个切面的时候，在我们的配置类上面都会加上@EnableAspectJAutoProxy这个注解，那么这个注解是什么呢？这个注解的作用是让你自己写的切面起作用，那么他是怎么让我们的切面起作用的呢，下面来看一下这个注解如下图：
从这个注解中我们一眼就看出，他通过@Import注解引入了AspectJAutoProxyRegistrar这个类。
AspectJAutoProxyRegistrar这个类
AspectJAutoProxyRegistrar这个类是干什么的？

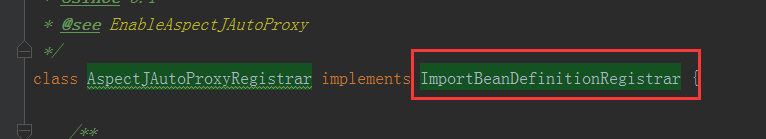

当我们进入到AspectJAutoProxyRegistrar这个类的时候，看到了他实现了ImportBeanDefinitionRegistrar这个类，ImportBeanDefinitionRegistrar这个有必要说一下，在我前几篇博客中提到过这个类，只要实现了ImportBeanDefinitionRegistrar，就可以往我们的容器中添加bean定义，那么他在这里的作用是什么呢？来看一下他的源码。
org.springframework.context.annotation.AspectJAutoProxyRegistrar#registerBeanDefinitions
org.springframework.aop.config.AopConfigUtils#registerAspectJAnnotationAutoProxyCreatorIfNecessary(org.springframework.beans.factory.support.BeanDefinitionRegistry)
org.springframework.aop.config.AopConfigUtils#registerAspectJAnnotationAutoProxyCreatorIfNecessary(org.springframework.beans.factory.support.BeanDefinitionRegistry, java.lang.Object)
@Nullable
public static BeanDefinition registerAspectJAnnotationAutoProxyCreatorIfNecessary(
BeanDefinitionRegistry registry, @Nullable Object source) {
//注册一个名称叫org.springframework.aop.config.internalAutoProxyCreator 类型是AnnotationAwareAspectJAutoProxyCreator的bean定义
return registerOrEscalateApcAsRequired(AnnotationAwareAspectJAutoProxyCreator.class, registry, source);
}AnnotationAwareAspectJAutoProxyCreator
AnnotationAwareAspectJAutoProxyCreator这个是类是干什么的呢？我们来看一下他的继承关系图
然后我们根据集成图，来看一下AnnotationAwareAspectJAutoProxyCreator干了些什么：
AnnotationAwareAspectJAutoProxyCreator实现了BeanFactoryAware接口
首先他实现了BeanFactoryAware接口，而我们看一下BeanFactoryAware源码，他到底是干什么的？
public interface BeanFactoryAware extends Aware {
void setBeanFactory(BeanFactory beanFactory) throws BeansException;
}BeanFactoryAware很简单，就一个setBeanFactory方法，AbstractAutoProxyCreator实现了BeanFactoryAware，一定会复写这个方法，然后我们看一下AbstractAutoProxyCreator的setBeanFactory方法：
org.springframework.aop.framework.autoproxy.AbstractAutoProxyCreator#setBeanFactory
org.springframework.aop.framework.autoproxy.AbstractAdvisorAutoProxyCreator#setBeanFactory
@Override
public void setBeanFactory(BeanFactory beanFactory) {
super.setBeanFactory(beanFactory);//调用父类的super.setBeanFactory(beanFactory);
if (!(beanFactory instanceof ConfigurableListableBeanFactory)) {
throw new IllegalArgumentException(
"AdvisorAutoProxyCreator requires a ConfigurableListableBeanFactory: " + beanFactory);
}
initBeanFactory((ConfigurableListableBeanFactory) beanFactory);//初始化bean工厂
}那么这个initBeanFactory（）是怎么实现的呢，来看一下他的源码
org.springframework.aop.framework.autoproxy.AbstractAdvisorAutoProxyCreator#initBeanFactory
org.springframework.aop.aspectj.annotation.AnnotationAwareAspectJAutoProxyCreator#initBeanFactory
@Override
protected void initBeanFactory(ConfigurableListableBeanFactory beanFactory) {
super.initBeanFactory(beanFactory); //1.调用父类的setBeanFactory
if (this.aspectJAdvisorFactory == null) {// 若 apsectj的Advisor（通知）工厂对象为空,我们就创建一个ReflectiveAspectJAdvisorFactory
this.aspectJAdvisorFactory = new ReflectiveAspectJAdvisorFactory(beanFactory);
}
//不为空 我们就把aspectJAdvisorFactory 包装为BeanFactoryAspectJAdvisorsBuilderAdapter
this.aspectJAdvisorsBuilder =
new BeanFactoryAspectJAdvisorsBuilderAdapter(beanFactory, this.aspectJAdvisorFactory);
}总结：实现BeanFactoryAware接口主要做了两件事：1.setBeanFactory 2.为aspectJAdvisorsBuilder的Advisor（通知）赋值
AnnotationAwareAspectJAutoProxyCreator实现BeanPostProcessor接口
我们先看看BeanPostProcessor这个接口的源码：
public interface BeanPostProcessor {
@Nullable
default Object postProcessBeforeInitialization(Object bean, String beanName) throws BeansException {
return bean;
}
@Nullable
default Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException {
return bean;
}这个接口有两个方法postProcessBeforeInitialization和postProcessAfterInitialization方法，但是AnnotationAwareAspectJAutoProxyCreator实现BeanPostProcessor接口主要是用它的postProcessAfterInitialization方法，我们来看一下AnnotationAwareAspectJAutoProxyCreator中的postProcessAfterInitialization方法源码
public Object postProcessAfterInitialization(@Nullable Object bean, String beanName) throws BeansException {
if (bean != null) {
Object cacheKey = getCacheKey(bean.getClass(), beanName);
if (this.earlyProxyReferences.remove(cacheKey) != bean) {
return wrapIfNecessary(bean, beanName, cacheKey); //包装bean 创建代理对象
}
}
return bean;
}AnnotationAwareAspectJAutoProxyCreator实现了InstantiationAwareBeanPostProcessor接口
AnnotationAwareAspectJAutoProxyCreator实现InstantiationAwareBeanPostProcessor接口主要是用它的postProcessBeforeInstantiation方法,看一下这个方法的源码：
org.springframework.aop.framework.autoproxy.AbstractAutoProxyCreator#postProcessBeforeInstantiation
@Override //找通知（advisor），放入缓存
public Object postProcessBeforeInstantiation(Class<?> beanClass, String beanName) throws BeansException {
Object cacheKey = getCacheKey(beanClass, beanName);
if (!StringUtils.hasLength(beanName) || !this.targetSourcedBeans.contains(beanName)) { //判断有没有处理过
if (this.advisedBeans.containsKey(cacheKey)) {
return null;
} //是不是一些基础的bean（Advice，Pointcut，Advisor，AopInfrastructureBean）||该不该跳过
if (isInfrastructureClass(beanClass) || shouldSkip(beanClass, beanName)) { //shouldSkip源码
this.advisedBeans.put(cacheKey, Boolean.FALSE);
return null;
}
}
TargetSource targetSource = getCustomTargetSource(beanClass, beanName);// 获取封装当前bean的TargetSource对象，如果不存在，则直接退出当前方法，
if (targetSource != null) { // 否则从TargetSource中获取当前bean对象，并且判断是否需要将切面逻辑应用在当前bean上。
if (StringUtils.hasLength(beanName)) {
this.targetSourcedBeans.add(beanName);
}
Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(beanClass, beanName, targetSource);
Object proxy = createProxy(beanClass, beanName, specificInterceptors, targetSource);
this.proxyTypes.put(cacheKey, proxy.getClass());
return proxy;
}
return null;
}创建代理对象
真正的创建代理对象是从BeanPostProcessor处理器的后置方法开始，看源码路径：
org.springframework.aop.framework.autoproxy.AbstractAutoProxyCreator#postProcessAfterInitialization
org.springframework.aop.framework.autoproxy.AbstractAutoProxyCreator#wrapIfNecessary
org.springframework.aop.framework.autoproxy.AbstractAdvisorAutoProxyCreator#getAdvicesAndAdvisorsForBean
org.springframework.aop.framework.autoproxy.AbstractAdvisorAutoProxyCreator#findEligibleAdvisors
org.springframework.aop.framework.autoproxy.AbstractAdvisorAutoProxyCreator#findAdvisorsThatCanApply
org.springframework.aop.framework.autoproxy.AbstractAutoProxyCreator#createProxy
然后我们分别来看一下他们的源码；
org.springframework.aop.framework.autoproxy.AbstractAutoProxyCreator#postProcessAfterInitialization
@Override //实例化之后
public Object postProcessAfterInitialization(@Nullable Object bean, String beanName) throws BeansException {
if (bean != null) {
Object cacheKey = getCacheKey(bean.getClass(), beanName); 通过传入的class 和beanName生成缓存key
if (this.earlyProxyReferences.remove(cacheKey) != bean) {
return wrapIfNecessary(bean, beanName, cacheKey); //有没有必要包装
}
}
return bean;
}org.springframework.aop.framework.autoproxy.AbstractAutoProxyCreator#wrapIfNecessary
protected Object wrapIfNecessary(Object bean, String beanName, Object cacheKey) {
if (StringUtils.hasLength(beanName) && this.targetSourcedBeans.contains(beanName)) { //有没有被代理过
return bean;
}
if (Boolean.FALSE.equals(this.advisedBeans.get(cacheKey))) { //不需要被通知的直接返回
return bean;
}
if (isInfrastructureClass(bean.getClass()) || shouldSkip(bean.getClass(), beanName)) { //是不是基础bean || 是否需要跳过
this.advisedBeans.put(cacheKey, Boolean.FALSE);
return bean;
}
// Create proxy if we have advice.
Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(bean.getClass(), beanName, null); //获取通知 源码
if (specificInterceptors != DO_NOT_PROXY) { //获取的不为空
this.advisedBeans.put(cacheKey, Boolean.TRUE);
Object proxy = createProxy( //创建代理对象 源码
bean.getClass(), beanName, specificInterceptors, new SingletonTargetSource(bean));
this.proxyTypes.put(cacheKey, proxy.getClass());
return proxy;
}
this.advisedBeans.put(cacheKey, Boolean.FALSE); //加入advisedBeans集合中
return bean;
}org.springframework.aop.framework.autoproxy.AbstractAdvisorAutoProxyCreator#getAdvicesAndAdvisorsForBean
protected Object[] getAdvicesAndAdvisorsForBean( //找到符合条件的通知
Class<?> beanClass, String beanName, @Nullable TargetSource targetSource) {
List<Advisor> advisors = findEligibleAdvisors(beanClass, beanName); //找到合适的通知
if (advisors.isEmpty()) {
return DO_NOT_PROXY;
}
return advisors.toArray();
}org.springframework.aop.framework.autoproxy.AbstractAdvisorAutoProxyCreator#findEligibleAdvisors
protected List<Advisor> findEligibleAdvisors(Class<?> beanClass, String beanName) {
List<Advisor> candidateAdvisors = findCandidateAdvisors(); //找候选的通知
List<Advisor> eligibleAdvisors = findAdvisorsThatCanApply(candidateAdvisors, beanClass, beanName); //找到能用的Advisor
extendAdvisors(eligibleAdvisors);
if (!eligibleAdvisors.isEmpty()) {
eligibleAdvisors = sortAdvisors(eligibleAdvisors);
}
return eligibleAdvisors;
}org.springframework.aop.aspectj.annotation.AnnotationAwareAspectJAutoProxyCreator#findCandidateAdvisors
org.springframework.aop.aspectj.annotation.AnnotationAwareAspectJAutoProxyCreator#findCandidateAdvisors
@Override
protected List<Advisor> findCandidateAdvisors() {
// Add all the Spring advisors found according to superclass rules.
List<Advisor> advisors = super.findCandidateAdvisors(); //找到事务的增强器
// Build Advisors for all AspectJ aspects in the bean factory.
if (this.aspectJAdvisorsBuilder != null) {
advisors.addAll(this.aspectJAdvisorsBuilder.buildAspectJAdvisors());//buildAspectJAdvisors 找AspectJ的增强器
}
return advisors;
}- 解析findCandidateAdvisors 步骤1.findAdvisorBeans
org.springframework.aop.framework.autoproxy.BeanFactoryAdvisorRetrievalHelper#findAdvisorBeans
public List<Advisor> findAdvisorBeans() {
String[] advisorNames = this.cachedAdvisorBeanNames; //去缓存中找通知
if (advisorNames == null) { //没有获取到
// Do not initialize FactoryBeans here: We need to leave all regular beans
// uninitialized to let the auto-proxy creator apply to them!
advisorNames = BeanFactoryUtils.beanNamesForTypeIncludingAncestors( //从IOC容器中找到所有实现Advisor的实现类的beanName
this.beanFactory, Advisor.class, true, false);
this.cachedAdvisorBeanNames = advisorNames; //赋值给增强器缓存
}
if (advisorNames.length == 0) { //在IOC容器中没有获取到直接返回
return new ArrayList<>();
}
List<Advisor> advisors = new ArrayList<>();
for (String name : advisorNames) { //遍历所有的通知（advisor）
if (isEligibleBean(name)) {
if (this.beanFactory.isCurrentlyInCreation(name)) { //忽略正在创建的advisor
if (logger.isDebugEnabled()) {
logger.debug("Skipping currently created advisor '" + name + "'");
}
}
else {
try { //通过getBean的形式创建通知（advisot） //并且将bean 添加到advisors中
advisors.add(this.beanFactory.getBean(name, Advisor.class));
}
catch (BeanCreationException ex) {
Throwable rootCause = ex.getMostSpecificCause();
if (rootCause instanceof BeanCurrentlyInCreationException) {
BeanCreationException bce = (BeanCreationException) rootCause;
String bceBeanName = bce.getBeanName();
if (bceBeanName != null && this.beanFactory.isCurrentlyInCreation(bceBeanName)) {
if (logger.isDebugEnabled()) {
logger.debug("Skipping advisor '" + name +
"' with dependency on currently created bean: " + ex.getMessage());
}
continue;
}
}
throw ex;
}
}
}
}
return advisors;
}- 解析findCandidateAdvisors 步骤 2.buildAspectJAdvisors
org.springframework.aop.aspectj.annotation.BeanFactoryAspectJAdvisorsBuilder#buildAspectJAdvisors
public List<Advisor> buildAspectJAdvisors() {
List<String> aspectNames = this.aspectBeanNames; //从缓存中获取
if (aspectNames == null) { //缓存中没有获取到
synchronized (this) {
aspectNames = this.aspectBeanNames; //再次冲缓存中获取
if (aspectNames == null) {
List<Advisor> advisors = new ArrayList<>();
aspectNames = new ArrayList<>();
String[] beanNames = BeanFactoryUtils.beanNamesForTypeIncludingAncestors( //找到所有的beanName
this.beanFactory, Object.class, true, false);
for (String beanName : beanNames) { //遍历beanNames
if (!isEligibleBean(beanName)) {
continue;
}
Class<?> beanType = this.beanFactory.getType(beanName); //获取bean的类型
if (beanType == null) {
continue;
}
if (this.advisorFactory.isAspect(beanType)) { //判断是不是切面 源码
aspectNames.add(beanName);
AspectMetadata amd = new AspectMetadata(beanType, beanName); //创建Aspect类的源信息对象
if (amd.getAjType().getPerClause().getKind() == PerClauseKind.SINGLETON) {
MetadataAwareAspectInstanceFactory factory =
new BeanFactoryAspectInstanceFactory(this.beanFactory, beanName);
List<Advisor> classAdvisors = this.advisorFactory.getAdvisors(factory);//从aspectj中获取通知（advisor） 源码
if (this.beanFactory.isSingleton(beanName)) {
this.advisorsCache.put(beanName, classAdvisors); //key 类名 value 通知（advisor）
}
else {
this.aspectFactoryCache.put(beanName, factory);
}
advisors.addAll(classAdvisors);
}
else {
// Per target or per this.
if (this.beanFactory.isSingleton(beanName)) {
throw new IllegalArgumentException("Bean with name '" + beanName +
"' is a singleton, but aspect instantiation model is not singleton");
}
MetadataAwareAspectInstanceFactory factory =
new PrototypeAspectInstanceFactory(this.beanFactory, beanName);
this.aspectFactoryCache.put(beanName, factory);
advisors.addAll(this.advisorFactory.getAdvisors(factory));
}
}
}
this.aspectBeanNames = aspectNames;
return advisors;
}
}
}
if (aspectNames.isEmpty()) {
return Collections.emptyList(); //没有，则返回空
}
List<Advisor> advisors = new ArrayList<>(); //缓存中有通知（Advisor） 从缓存中获取并返回
for (String aspectName : aspectNames) {
List<Advisor> cachedAdvisors = this.advisorsCache.get(aspectName);
if (cachedAdvisors != null) {
advisors.addAll(cachedAdvisors);
}
else {
MetadataAwareAspectInstanceFactory factory = this.aspectFactoryCache.get(aspectName);
advisors.addAll(this.advisorFactory.getAdvisors(factory));
}
}
return advisors;
}- 解析findCandidateAdvisors 步骤 3.getAdvisors
org.springframework.aop.aspectj.annotation.ReflectiveAspectJAdvisorFactory#getAdvisors
public List<Advisor> getAdvisors(MetadataAwareAspectInstanceFactory aspectInstanceFactory) {
Class<?> aspectClass = aspectInstanceFactory.getAspectMetadata().getAspectClass(); //获取标识了@AspectJ标志的切面类
String aspectName = aspectInstanceFactory.getAspectMetadata().getAspectName(); //获取切面的名称
validate(aspectClass);
MetadataAwareAspectInstanceFactory lazySingletonAspectInstanceFactory =
new LazySingletonAspectInstanceFactoryDecorator(aspectInstanceFactory);
List<Advisor> advisors = new ArrayList<>();
for (Method method : getAdvisorMethods(aspectClass)) { //获取切面类中的所有除了切点（@Pointcut注解）的方法，包括object方法
Advisor advisor = getAdvisor(method, lazySingletonAspectInstanceFactory, advisors.size(), aspectName);// 每个method获取通知（advisor） 源码
if (advisor != null) {
advisors.add(advisor);
}
}
if (!advisors.isEmpty() && lazySingletonAspectInstanceFactory.getAspectMetadata().isLazilyInstantiated()) {
Advisor instantiationAdvisor = new SyntheticInstantiationAdvisor(lazySingletonAspectInstanceFactory);
advisors.add(0, instantiationAdvisor);
}
// Find introduction fields.
for (Field field : aspectClass.getDeclaredFields()) {
Advisor advisor = getDeclareParentsAdvisor(field);
if (advisor != null) {
advisors.add(advisor);
}
}
return advisors;
}
//org.springframework.aop.aspectj.annotation.ReflectiveAspectJAdvisorFactory#getAdvisor
public Advisor getAdvisor(Method candidateAdviceMethod, MetadataAwareAspectInstanceFactory aspectInstanceFactory,
int declarationOrderInAspect, String aspectName) {
validate(aspectInstanceFactory.getAspectMetadata().getAspectClass());
//获取切点表达式 源码
AspectJExpressionPointcut expressionPointcut = getPointcut(
candidateAdviceMethod, aspectInstanceFactory.getAspectMetadata().getAspectClass());
if (expressionPointcut == null) {
return null;
}
//创建切面的实现类 源码
return new InstantiationModelAwarePointcutAdvisorImpl(expressionPointcut, candidateAdviceMethod,
this, aspectInstanceFactory, declarationOrderInAspect, aspectName);
}
//org.springframework.aop.aspectj.annotation.ReflectiveAspectJAdvisorFactory#getPointcut
private AspectJExpressionPointcut getPointcut(Method candidateAdviceMethod, Class<?> candidateAspectClass) {
AspectJAnnotation<?> aspectJAnnotation = //获取切面注解 @Before @After。。。。。。
AbstractAspectJAdvisorFactory.findAspectJAnnotationOnMethod(candidateAdviceMethod); //源码
if (aspectJAnnotation == null) {
return null;
}
//获取切点表达式对象
AspectJExpressionPointcut ajexp =
new AspectJExpressionPointcut(candidateAspectClass, new String[0], new Class<?>[0]);
ajexp.setExpression(aspectJAnnotation.getPointcutExpression()); //设置切点表达式
if (this.beanFactory != null) {
ajexp.setBeanFactory(this.beanFactory);
}
return ajexp;
}
/**
*org.springframework.aop.aspectj.annotation.InstantiationModelAwarePointcutAdvisorImpl#In*stantiationModelAwarePointcutAdvisorImpl
*/
public InstantiationModelAwarePointcutAdvisorImpl(AspectJExpressionPointcut declaredPointcut,
Method aspectJAdviceMethod, AspectJAdvisorFactory aspectJAdvisorFactory,
MetadataAwareAspectInstanceFactory aspectInstanceFactory, int declarationOrder, String aspectName) {
this.declaredPointcut = declaredPointcut;
this.declaringClass = aspectJAdviceMethod.getDeclaringClass();
this.methodName = aspectJAdviceMethod.getName();
this.parameterTypes = aspectJAdviceMethod.getParameterTypes();
this.aspectJAdviceMethod = aspectJAdviceMethod;
this.aspectJAdvisorFactory = aspectJAdvisorFactory;
this.aspectInstanceFactory = aspectInstanceFactory;
this.declarationOrder = declarationOrder;
this.aspectName = aspectName;
if (aspectInstanceFactory.getAspectMetadata().isLazilyInstantiated()) { //是不是懒加载
// Static part of the pointcut is a lazy type.
Pointcut preInstantiationPointcut = Pointcuts.union(
aspectInstanceFactory.getAspectMetadata().getPerClausePointcut(), this.declaredPointcut);
// Make it dynamic: must mutate from pre-instantiation to post-instantiation state.
// If it's not a dynamic pointcut, it may be optimized out
// by the Spring AOP infrastructure after the first evaluation.
this.pointcut = new PerTargetInstantiationModelPointcut(
this.declaredPointcut, preInstantiationPointcut, aspectInstanceFactory);
this.lazy = true;
}
else {
// A singleton aspect.
this.pointcut = this.declaredPointcut;
this.lazy = false;
this.instantiatedAdvice = instantiateAdvice(this.declaredPointcut); //实例化切面 源码
}
}
/**
*org.springframework.aop.aspectj.annotation.ReflectiveAspectJAdvisorFactory#getAdvice
*
*/
public Advice getAdvice(Method candidateAdviceMethod, AspectJExpressionPointcut expressionPointcut,
MetadataAwareAspectInstanceFactory aspectInstanceFactory, int declarationOrder, String aspectName) {
Class<?> candidateAspectClass = aspectInstanceFactory.getAspectMetadata().getAspectClass(); //1.找到候选的切面类
validate(candidateAspectClass);
AspectJAnnotation<?> aspectJAnnotation =
AbstractAspectJAdvisorFactory.findAspectJAnnotationOnMethod(candidateAdviceMethod);//找到方法上的注解
if (aspectJAnnotation == null) {
return null;
}
// If we get here, we know we have an AspectJ method.
// Check that it's an AspectJ-annotated class
if (!isAspect(candidateAspectClass)) {
throw new AopConfigException("Advice must be declared inside an aspect type: " +
"Offending method '" + candidateAdviceMethod + "' in class [" +
candidateAspectClass.getName() + "]");
}
if (logger.isDebugEnabled()) {
logger.debug("Found AspectJ method: " + candidateAdviceMethod);
}
AbstractAspectJAdvice springAdvice;
//判断注解的类型
switch (aspectJAnnotation.getAnnotationType()) {
case AtPointcut: //是切点的返回null
if (logger.isDebugEnabled()) {
logger.debug("Processing pointcut '" + candidateAdviceMethod.getName() + "'");
}
return null;
case AtAround: //是不是环绕通知
springAdvice = new AspectJAroundAdvice(
candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);
break;
case AtBefore: //是不是后置通知
springAdvice = new AspectJMethodBeforeAdvice(
candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);
break;
case AtAfter: //后置通知
springAdvice = new AspectJAfterAdvice(
candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);
break;
case AtAfterReturning: //返回通知
springAdvice = new AspectJAfterReturningAdvice(
candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);
AfterReturning afterReturningAnnotation = (AfterReturning) aspectJAnnotation.getAnnotation();
if (StringUtils.hasText(afterReturningAnnotation.returning())) {
springAdvice.setReturningName(afterReturningAnnotation.returning());
}
break;
case AtAfterThrowing: //是不是异常通知
springAdvice = new AspectJAfterThrowingAdvice(
candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);
AfterThrowing afterThrowingAnnotation = (AfterThrowing) aspectJAnnotation.getAnnotation();
if (StringUtils.hasText(afterThrowingAnnotation.throwing())) {
springAdvice.setThrowingName(afterThrowingAnnotation.throwing());
}
break;
default:
throw new UnsupportedOperationException(
"Unsupported advice type on method: " + candidateAdviceMethod);
}
// Now to configure the advice...
springAdvice.setAspectName(aspectName);
springAdvice.setDeclarationOrder(declarationOrder);
String[] argNames = this.parameterNameDiscoverer.getParameterNames(candidateAdviceMethod); //获取方法的参数列表名称
if (argNames != null) {
springAdvice.setArgumentNamesFromStringArray(argNames); //为切面设置参数
}
springAdvice.calculateArgumentBindings();
return springAdvice;
}org.springframework.aop.support.AopUtils#findAdvisorsThatCanApply
public static List<Advisor> findAdvisorsThatCanApply(List<Advisor> candidateAdvisors, Class<?> clazz) {
if (candidateAdvisors.isEmpty()) {
return candidateAdvisors;
}
List<Advisor> eligibleAdvisors = new ArrayList<>();
for (Advisor candidate : candidateAdvisors) { //遍历候选的通知 把他增加到eligibleAdvisors集合中返回
if (candidate instanceof IntroductionAdvisor && canApply(candidate, clazz)) { 判断是当前的通知是否能用 通过方法匹配来计算当前是否合适当前类的增强器 源码
eligibleAdvisors.add(candidate);
}
}
boolean hasIntroductions = !eligibleAdvisors.isEmpty();
for (Advisor candidate : candidateAdvisors) {
if (candidate instanceof IntroductionAdvisor) {
// already processed
continue;
}
if (canApply(candidate, clazz, hasIntroductions)) {
eligibleAdvisors.add(candidate);
}
}
return eligibleAdvisors;
}org.springframework.aop.framework.autoproxy.AbstractAutoProxyCreator#createProxy
protected Object createProxy(Class<?> beanClass, @Nullable String beanName,
@Nullable Object[] specificInterceptors, TargetSource targetSource) {
if (this.beanFactory instanceof ConfigurableListableBeanFactory) { //判断类型
AutoProxyUtils.exposeTargetClass((ConfigurableListableBeanFactory) this.beanFactory, beanName, beanClass);
}
ProxyFactory proxyFactory = new ProxyFactory(); //创建代理工厂
proxyFactory.copyFrom(this);
if (!proxyFactory.isProxyTargetClass()) { //proxyTargetClass 强制使用cglib代理
if (shouldProxyTargetClass(beanClass, beanName)) {
proxyFactory.setProxyTargetClass(true);
}
else {
evaluateProxyInterfaces(beanClass, proxyFactory);
}
}
Advisor[] advisors = buildAdvisors(beanName, specificInterceptors); 获取容器中的方法通知
proxyFactory.addAdvisors(advisors);
proxyFactory.setTargetSource(targetSource);
customizeProxyFactory(proxyFactory);
proxyFactory.setFrozen(this.freezeProxy);
if (advisorsPreFiltered()) {
proxyFactory.setPreFiltered(true);
}
return proxyFactory.getProxy(getProxyClassLoader()); //获取代理对象 源码
}
流程图
看了以上代码，我们画个加单的图来看一下aop创建代理对象的过程
1万+
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
