Tera Term使用说明

程序下载到开发板后,复位开始运行。通过TeraTerm可以看到程序执行过程中的信息。并且WIFI的用户名和密码也是通过Tera Term进行配置的。
第一次使用Tera Term时,请参考下面的步骤进行配置。
TeraTerm下载地址:
链接:https://pan.baidu.com/s/1QmglWPj2QDLElI9yeyco_A
提取码:1rg2

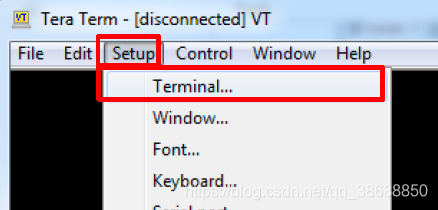

1.终端设置

在这里插入图片描述

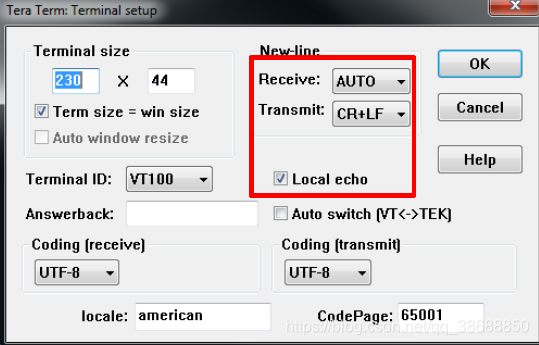

设置回显
在这里插入图片描述

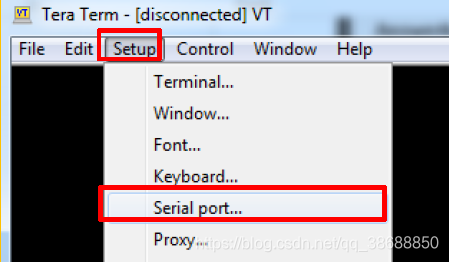

2.串口通信设置

串口配置为:115200波特率,8位数据位,无奇偶校验,1位停止位。
在这里插入图片描述
选择实际的端口号
在这里插入图片描述

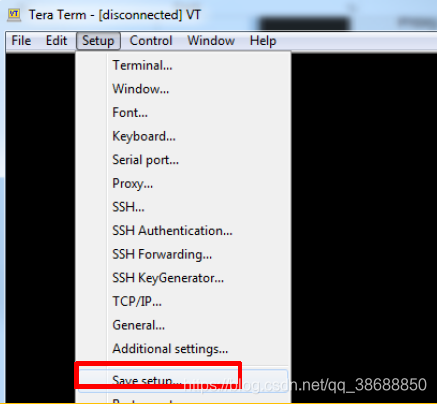

3.保存设置

不要忘记将前面的设置保存。
接下来就可以用了。
在这里插入图片描述

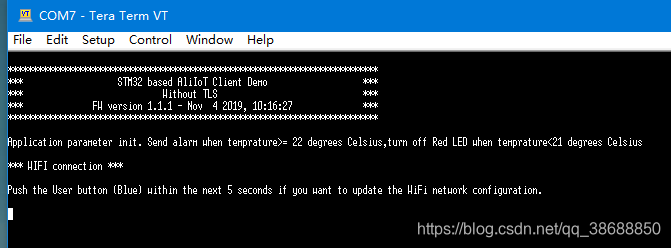

4.运行程序

将L4R5ZI开发板通过USB插到电脑,打开Tera Term(选择对应的COM口)。按黑色的按键复位开发板。
在看到提示“Push the User button (Blue) within the next 5 seconds if you want to update the configuration”后5秒内按下板子上蓝色的按键。(如果之前没有输入过wifi信息,会直接提示输入SSID等内容)
在这里插入图片描述
