γ、β

存在问题

在对输入做完标准化后，可能会出现以下情况：网络中间某一层学习到特征数据本身分布在sigmoid激活函数的两侧，标准化会强制把输入的均值限制为0、标准差限制为1，这样就把数据变换成分布在sigmoid激活函数的中间部分，即破坏了网络中间某一层所学习到的特征分布。

解决方法

变换重构，引入可学习参数γ、β，所有γ和所有β分别初始化为1和0，每一层中的每一个神经元都有自己的γ和β。前向传播时，要使用每个神经元自己的γ和β。在反向传播时，会计算所有γ和所有β的梯度，即dγ和dβ。在反向传播结束后，每一个γ和β就可以分别通过优化器（如SGD、Adam等）与对应的梯度dγ和dβ进行更新了。

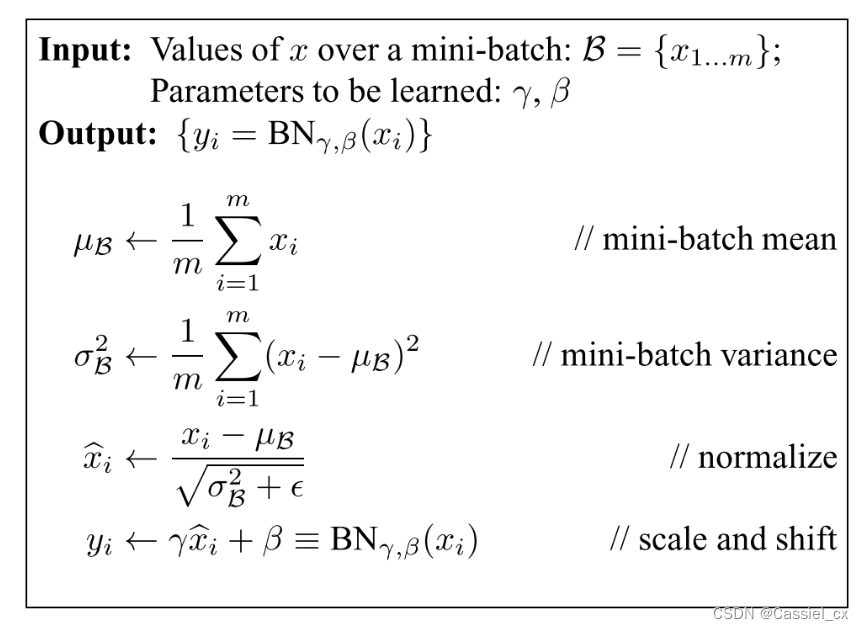

前向传播

import numpy as np


def batchnorm_forward(x, gamma, beta, bn_param):
    r"""
    args:
    - x: Data of shape (N, D)
    - gamma: Scale parameter of shape (D,)
    - beta: Shift paremeter of shape (D,)
    - bn_param: Dictionary with the following keys:
    Returns:
    - out: of shape (N, D)
    - cache: A tuple of values needed in the backward pass
    """
    mode = bn_param['mode']
    eps = bn_param.get('eps', 1e-5)
    momentum = bn_param.get('momentum', 0.9)
    N, D = x.shape
    running_mean = bn_param.get('running_mean', np.zeros(D, dtype=x.dtype))
    running_var = bn_param.get('running_var', np.zeros(D, dtype=x.dtype))
    out, cache = None, None

    if mode == 'train':
        sample_mean = np.mean(x, axis=0)
        sample_var = np.var(x, axis=0)
        out_ = (x - sample_mean) / np.sqrt(sample_var + eps)
        running_mean = momentum * running_mean + (1 - momentum) * sample_mean
        running_var = momentum * running_var + (1 - momentum) * sample_var
        out = gamma * out_ + beta
        cache = (out_, x, sample_var, sample_mean, eps, gamma, beta)

    elif mode == 'test':
        scale = gamma / np.sqrt(running_var + eps)
        out = x * scale + (beta - running_mean * scale)

    bn_param['running_mean'] = running_mean
    bn_param['running_var'] = running_var

    return out, cache

反向传播

import numpy as np


def batchnorm_backward(dout, cache):
    r"""
    args:
    - dout: Upstream derivatives, of shape (N, D)
    - cache: Variable of intermediates from batchnorm_forward.
    Returns:
    - dx: Gradient with respect to inputs x, of shape (N, D)
    - dgamma: Gradient with respect to scale parameter gamma, of shape (D,)
    - dbeta: Gradient with respect to shift parameter beta, of shape (D,)
    """
    dx, dgamma, dbeta = None, None, None
    out_, x, sample_var, sample_mean, eps, gamma, beta = cache
    N = x.shape[0]
    dout_ = gamma * dout
    dvar = np.sum(dout_ * (x - sample_mean) * -0.5 * (sample_var + eps) ** -1.5, axis=0)
    dx_ = 1 / np.sqrt(sample_var + eps)
    dvar_ = 2 * (x - sample_mean) / N

    di = dout_ * dx_ + dvar * dvar_
    dmean = -1 * np.sum(di, axis=0)
    dmean_ = np.ones_like(x) / N

    dx = di + dmean * dmean_
    dgamma = np.sum(dout * out_, axis=0)
    dbeta = np.sum(dout, axis=0)

    return dx, dgamma, dbeta
