与Dubbo整合

在这里插入图片描述

<dependencies>
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>javax.servlet-api</artifactId>
<version>3.1.0</version>
</dependency>
<dependency>
            <groupId>javax.annotation</groupId>
            <artifactId>javax.annotation-api</artifactId>
            <version>1.2</version>
</dependency>
<dependency>
<groupId>javax.ws.rs</groupId>
<artifactId>javax.ws.rs-api</artifactId>
<version>2.0</version>
</dependency>
<dependency>
            <groupId>org.codehaus.jackson</groupId>
            <artifactId>jackson-mapper-asl</artifactId>
            <version>1.9.12</version>
</dependency>
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>dubbo</artifactId>
<version>2.8.4</version>
</dependency>
<dependency>
<groupId>cn.tarena</groupId>
<artifactId>1509-jt-common</artifactId>
<version>0.0.1-SNAPSHOT</version>
</dependency>
  </dependencies>

3.添加对jt-common工程的依赖

4.完善工程结构，建立pojo包和sevice包如下图：
在这里插入图片描述
5.建立Cart（购物车）类和DubboCartRestService接口
注意：对象要被可序列化
代码示例：

@Table(name="tb_cart")
public class Cart extends BasePojo{
@Id
@GeneratedValue(strategy=GenerationType.IDENTITY)
private Long id;
private Long userId;
private Long itemId;
private String itemTitle;
private String itemImage;
private Long itemPrice;
private Integer num;

}

6.创建购物车的web工程
在这里插入图片描述
7.添加父工程以及对dubbo工程的依赖
此外注意：引入dubbo组件后，会导致maven的tomcat启动失败，所以，还需要再pom.xml里引入servlet的依赖：
javax.servlet：

<dependency>
<groupId>javax.servlet</groupId>
<artifactId>javax.servlet-api</artifactId>
<version>3.0.1</version>
<scope>provided</scope>
</dependency>

8.在pom.xml文件里添加tomcat插件，并配置端口

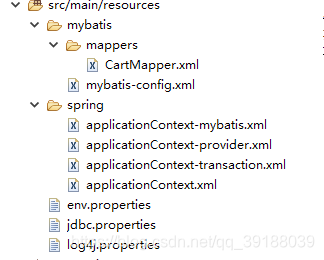

9.引入相关的配置文件
在这里插入图片描述
注意：重点修改applicationContext-provider.xml里的连接参数

10.引入购物车工程的web.xml（整合dubbo的启动）

11.建立CartMapper接口类
代码示例：
public interface CartMapper extends SysMapper{

}

12.建立dubbo 的服务实现类
代码示例：
public class DubboCartRestServiceImpl implements DubboCartRestService{
@Autowired
private CartMapper cartMapper;

}
最后的结构如下：

12.完善前台工程（jt-web）
添加对jt-dubbo工程的依赖

13.引入appliactionContext-consumer的配置文件
注意修改zookeeper的连接参数

14.建立CartController类
代码示例：

@Controller
@RequestMapping
public class CartController {
@Autowired
private DubboCartRestService dubboCartRestService;

}

15.启动dubbo环境，zookeeper环境，并对dubbo工程install后，启动前台和购物车工程测试整合是否成功

购物车页面显示

所在工程：jt-web

CartController类代码：

@Autowired
private DubboCartRestService dcrs;

@RequestMapping("/cart/show")
public String myCartList(Model model){
Long userId = 7L;
List<Cart> cartList = dcrs.myCartList(userId);
model.addAttribute("cartList", cartList);

return "cart";

}

所在工程：jt-dubbo
DubboCartRestService接口代码：

//给dubbo调用时注入，配置
@Path("cart")//http://cart.jt.com/cart/query/7
@Consumes({MediaType.APPLICATION_JSON, MediaType.TEXT_XML})
@Produces({ContentType.APPLICATION_JSON_UTF_8, ContentType.TEXT_XML_UTF_8})
public interface DubboCartRestService {
@GET
@Path("query")
public List<Cart> myCartList(@QueryParam(value="userId")Long userId);
}

所在工程：jt-cart
DubboCartRestServiceImpl实现类代码：

public class DubboCartRestServiceImpl implements DubboCartRestService{
@Autowired
private CartMapper cartMapper;

public List<Cart> myCartList(Long userId) {
Cart cart=new Cart();
cart.setUserId(userId);
List<Cart> cartList = cartMapper.select(cart);
return cartList;
}

购物车商品新增和保存

所在工程：jt-web

CartController类代码：

@Controller
public class CartController {

@Autowired
private DubboCartRestService dcrs;

@RequestMapping("/cart/show")
public String myCartList(Model model){
Long userId = 7L;
List<Cart> cartList = dcrs.myCartList(userId);
model.addAttribute("cartList", cartList);

return "cart";

}
@RequestMapping("/cart/add/{itemId}")
public String addCart(@PathVariable Long itemId, Integer num,
String itemTitle,String itemImage,Long itemPrice){
Long userId = 7L;
dcrs.addAndSave(userId,itemId,num,itemTitle,itemImage,itemPrice);

return "redirect:/cart/show.html";
}



}

所在工程：jt-dubbo
DubboCartRestService接口代码：

//给dubbo调用时注入，配置
@Path("cart")//http://cart.jt.com/cart/query/7
@Consumes({MediaType.APPLICATION_JSON, MediaType.TEXT_XML})
@Produces({ContentType.APPLICATION_JSON_UTF_8, ContentType.TEXT_XML_UTF_8})
public interface DubboCartRestService {

@GET
@Path("query")
public List<Cart> myCartList(@QueryParam(value="userId")Long userId);

@POST
@Path("save")
public void addAndSave(@QueryParam(value="userId")Long userId,
@QueryParam(value="itemId")Long itemId,
@QueryParam(value="num")Integer num,
@QueryParam(value="itemTitle")String itemTitle,
@QueryParam(value="itemImage")String itemImage,
@QueryParam(value="itemPrice")Long price);






}

所在工程：jt-cart
DubboCartRestServiceImpl实现类代码：

public class DubboCartRestServiceImpl implements DubboCartRestService{
@Autowired
private CartMapper cartMapper;

public List<Cart> myCartList(Long userId) {
Cart cart=new Cart();
cart.setUserId(userId);
List<Cart> cartList = cartMapper.select(cart);
return cartList;
}

@Override
public void addAndSave(Long userId, Long itemId, Integer num,String itemTitle,String itemImage,Long itemPrice) {
Cart cart=new Cart();
cart.setUserId(userId);
cart.setItemId(itemId);
//判断当前用户的购物车里是否有相同商品，如果有，则进行商品数量的累加
//int count=cartMapper.checkExist(cart);
int count=cartMapper.selectCount(cart);


if(count==1){
Cart db_cart=cartMapper.select(cart).get(0);
//商品数量累加
db_cart.setNum(db_cart.getNum()+num);
db_cart.setUpdated(new Date());
//修改完后，再存进数据库
cartMapper.updateByPrimaryKeySelective(db_cart);

}else{
//如果是新添加的商品，则需要根据商品id,
//查询出商品的标题，价格，和商品的第一张图片插入到购物车里
cart.setItemTitle(itemTitle);
cart.setItemImage(itemImage);
cart.setNum(num);
cart.setItemPrice(itemPrice);
cart.setCreated(new Date());
cart.setUpdated(cart.getCreated());

cartMapper.insert(cart);

}
}

}

购物车商品数量修改

所在工程：jt-web

CartController类代码：

@Controller
public class CartController {

@Autowired
private DubboCartRestService dcrs;

@RequestMapping("/cart/show")
public String myCartList(Model model){
Long userId = 7L;
List<Cart> cartList = dcrs.myCartList(userId);
model.addAttribute("cartList", cartList);

return "cart";

}
@RequestMapping("/cart/add/{itemId}")
public String addCart(@PathVariable Long itemId, Integer num,
String itemTitle,String itemImage,Long itemPrice){
Long userId = 7L;
dcrs.addAndSave(userId,itemId,num,itemTitle,itemImage,itemPrice);

return "redirect:/cart/show.html";
}

@RequestMapping("/cart/update/num/{itemId}/{num}")
public String updateNum(@PathVariable Long itemId,@PathVariable Integer num){
Long userId = 7L;
dcrs.updateNum(userId,itemId,num);
return "redirect:/cart/show.html";

}


}

所在工程：jt-dubbo
DubboCartRestService接口代码：

//给dubbo调用时注入，配置
@Path("cart")//http://cart.jt.com/cart/query/7
@Consumes({MediaType.APPLICATION_JSON, MediaType.TEXT_XML})
@Produces({ContentType.APPLICATION_JSON_UTF_8, ContentType.TEXT_XML_UTF_8})
public interface DubboCartRestService {

@GET
@Path("query")
public List<Cart> myCartList(@QueryParam(value="userId")Long userId);

@POST
@Path("save")
public void addAndSave(@QueryParam(value="userId")Long userId,
@QueryParam(value="itemId")Long itemId,
@QueryParam(value="num")Integer num,
@QueryParam(value="itemTitle")String itemTitle,
@QueryParam(value="itemImage")String itemImage,
@QueryParam(value="itemPrice")Long price);


@GET
@Path("update/num")
public void updateNum(
@QueryParam(value="userId")Long userId,
@QueryParam(value="itemId")Long itemId,
@QueryParam(value="num")Integer num);

}
所在工程：jt-cart
DubboCartRestServiceImpl实现类代码：
public class DubboCartRestServiceImpl implements DubboCartRestService{
@Autowired
private CartMapper cartMapper;

public List<Cart> myCartList(Long userId) {
Cart cart=new Cart();
cart.setUserId(userId);
List<Cart> cartList = cartMapper.select(cart);
return cartList;
}

@Override
public void addAndSave(Long userId, Long itemId, Integer num,String itemTitle,String itemImage,Long itemPrice) {
Cart cart=new Cart();
cart.setUserId(userId);
cart.setItemId(itemId);
//判断当前用户的购物车里是否有相同商品，如果有，则进行商品数量的累加
//int count=cartMapper.checkExist(cart);
int count=cartMapper.selectCount(cart);


if(count==1){
Cart db_cart=cartMapper.select(cart).get(0);
//商品数量累加
db_cart.setNum(db_cart.getNum()+num);
db_cart.setUpdated(new Date());
//修改完后，再存进数据库
cartMapper.updateByPrimaryKeySelective(db_cart);

}else{
//如果是新添加的商品，则需要根据商品id,
//查询出商品的标题，价格，和商品的第一张图片插入到购物车里
cart.setItemTitle(itemTitle);
cart.setItemImage(itemImage);
cart.setNum(num);
cart.setItemPrice(itemPrice);
cart.setCreated(new Date());
cart.setUpdated(cart.getCreated());

cartMapper.insert(cart);

}
}

@Override
public void updateNum(Long userId, Long itemId, Integer num) {
//自定义方法，根据用户id和商品id来修改购物车商品数量
Cart cart=new Cart();
cart.setUserId(userId);
cart.setItemId(itemId);
cart.setNum(num);
cart.setUpdated(new Date());
cartMapper.updateCart(cart);

}

}

CartMapper.xml代码：

<select id="updateCart" parameterType="Cart">
update tb_cart set num=#{num},updated=#{updated} where user_id=#{userId} and item_id=#{itemId}
</select>

购物车商品删除

所在工程：jt-web

CartController类代码：

@Controller
public class CartController {

@Autowired
private DubboCartRestService dcrs;

@RequestMapping("/cart/show")
public String myCartList(Model model){
Long userId = 7L;
List<Cart> cartList = dcrs.myCartList(userId);
model.addAttribute("cartList", cartList);

return "cart";

}
@RequestMapping("/cart/add/{itemId}")
public String addCart(@PathVariable Long itemId, Integer num,
String itemTitle,String itemImage,Long itemPrice){
Long userId = 7L;
dcrs.addAndSave(userId,itemId,num,itemTitle,itemImage,itemPrice);

return "redirect:/cart/show.html";
}

@RequestMapping("/cart/update/num/{itemId}/{num}")
public String updateNum(@PathVariable Long itemId,@PathVariable Integer num){
Long userId = 7L;
dcrs.updateNum(userId,itemId,num);
return "redirect:/cart/show.html";

}

@RequestMapping("/cart/delete/{itemId}")
public String delete(@PathVariable Long itemId){
Long userId=7L;
dcrs.delete(userId,itemId);
return "forward:/cart/show.html";

}


}

所在工程：jt-dubbo
DubboCartRestService接口代码：

//给dubbo调用时注入，配置
@Path("cart")//http://cart.jt.com/cart/query/7
@Consumes({MediaType.APPLICATION_JSON, MediaType.TEXT_XML})
@Produces({ContentType.APPLICATION_JSON_UTF_8, ContentType.TEXT_XML_UTF_8})
public interface DubboCartRestService {

@GET
@Path("query")
public List<Cart> myCartList(@QueryParam(value="userId")Long userId);

@POST
@Path("save")
public void addAndSave(@QueryParam(value="userId")Long userId,
@QueryParam(value="itemId")Long itemId,
@QueryParam(value="num")Integer num,
@QueryParam(value="itemTitle")String itemTitle,
@QueryParam(value="itemImage")String itemImage,
@QueryParam(value="itemPrice")Long price);


@GET
@Path("update/num")
public void updateNum(
@QueryParam(value="userId")Long userId,
@QueryParam(value="itemId")Long itemId,
@QueryParam(value="num")Integer num);

@GET
@Path("delete")
public void delete(
@QueryParam(value="userId") Long userId,
@QueryParam(value="itemId") Long itemId);

}

所在工程：jt-cart
DubboCartRestServiceImpl实现类代码：

public class DubboCartRestServiceImpl implements DubboCartRestService{
@Autowired
private CartMapper cartMapper;

public List<Cart> myCartList(Long userId) {
Cart cart=new Cart();
cart.setUserId(userId);
List<Cart> cartList = cartMapper.select(cart);
return cartList;
}

@Override
public void addAndSave(Long userId, Long itemId, Integer num,String itemTitle,String itemImage,Long itemPrice) {
Cart cart=new Cart();
cart.setUserId(userId);
cart.setItemId(itemId);
//判断当前用户的购物车里是否有相同商品，如果有，则进行商品数量的累加
//int count=cartMapper.checkExist(cart);
int count=cartMapper.selectCount(cart);


if(count==1){
Cart db_cart=cartMapper.select(cart).get(0);
//商品数量累加
db_cart.setNum(db_cart.getNum()+num);
db_cart.setUpdated(new Date());
//修改完后，再存进数据库
cartMapper.updateByPrimaryKeySelective(db_cart);

}else{
//如果是新添加的商品，则需要根据商品id,
//查询出商品的标题，价格，和商品的第一张图片插入到购物车里
cart.setItemTitle(itemTitle);
cart.setItemImage(itemImage);
cart.setNum(num);
cart.setItemPrice(itemPrice);
cart.setCreated(new Date());
cart.setUpdated(cart.getCreated());

cartMapper.insert(cart);

}
}

@Override
public void updateNum(Long userId, Long itemId, Integer num) {
//自定义方法，根据用户id和商品id来修改购物车商品数量
Cart cart=new Cart();
cart.setUserId(userId);
cart.setItemId(itemId);
cart.setNum(num);
cart.setUpdated(new Date());
cartMapper.updateCart(cart);

}
@Override
public void delete(Long userId, Long itemId) {
//根据用户id和商品id删除购物车里的商品
Cart cart=new Cart();
cart.setUserId(userId);
cart.setItemId(itemId);
cartMapper.delete(cart);

}

}

CartMapper.xml代码：

<select id="updateCart" parameterType="Cart">
update tb_cart set num=#{num},updated=#{updated} where user_id=#{userId} and item_id=#{itemId}
</select>

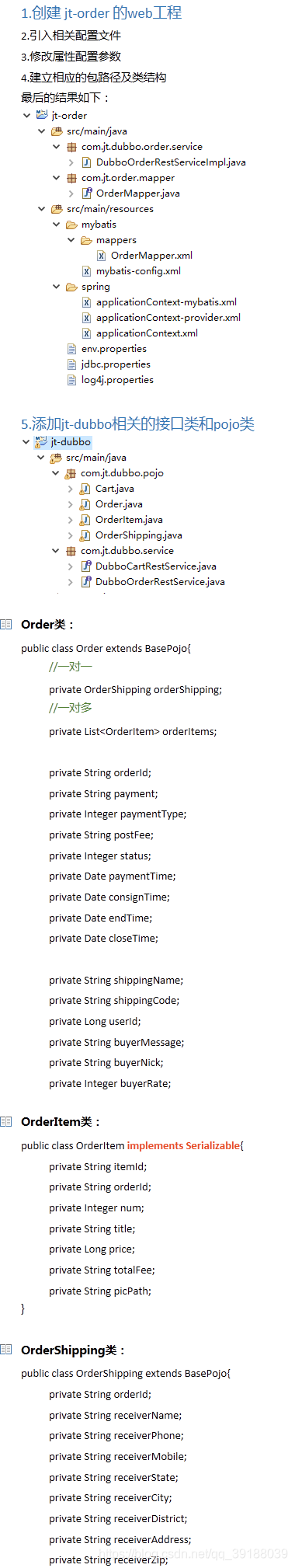

搭建Dubbo订单系统

在这里插入图片描述

订单生成

所在工程：jt-web工程

OrderController类代码：

@Controller
public class OrderController {

@Autowired
private DubboOrderRestService dubboOrderRestService;

@Autowired
private DubboCartRestService dubboCartRestService;

private static final ObjectMapper MAPPER=new ObjectMapper();

//转向订单结算页面，页面要求通过Model将List<Cart>传回页面，属性名是carts
@RequestMapping("/order/create")
public String create(Model model){
Long userId=7L;
List<Cart> cartList=dubboCartRestService.myCartList(userId);
model.addAttribute("carts",cartList);

return "order-cart";
}
//提交订单，页面要求返回SysResult.Ok（生成的OrderId）返回
//此外，前台会发起 /order/success 转向成功页面，并且将OrderId传给Controller
@RequestMapping("/order/submit")
@ResponseBody
public SysResult submit(Order order){
Long userId=7L;
order.setUserId(userId);

try {
String jsonOrder=MAPPER.writeValueAsString(order);
String orderId=dubboOrderRestService.saveOrder(jsonOrder);
return SysResult.oK(orderId);
} catch (Exception e) {
e.printStackTrace();
return SysResult.build(201, "订单生成失败");
}

}
//转向订单成功页面，我们要根据OrderId查询Order对象，并通过Model返回给前台
@RequestMapping("/order/success")
public String goSuccess(String id,Model model){
Order order=dubboOrderRestService.queryByOrderId(id);
model.addAttribute("order",order);
return "success";
}

}

所在工程：jt-dubbo工程

DubboOrderRestService 接口类代码：

@Path("order")
@Consumes({MediaType.APPLICATION_JSON, MediaType.TEXT_XML})
@Produces({ContentType.APPLICATION_JSON_UTF_8, ContentType.TEXT_XML_UTF_8})
public interface DubboOrderRestService {
//按orderId查询
@GET
@Path("query")
public Order queryByOrderId(@QueryParam(value="orderId")String orderId);

//下订单
@POST
@Path("create")
public void saveOrder(@QueryParam(value="jsonOrder")String jsonOrder);
}

所在工程：jt-order工程

DubboOrderRestServiceImpl类代码：

public class DubboOrderRestServiceImpl implements DubboOrderRestService{

@Autowired
private OrderMapper orderMapper;

private static final ObjectMapper MAPPER=new ObjectMapper();


@Override
public Order queryByOrderId(String orderId) {

return orderMapper.queryByOrderId(orderId);
}

@Override
public String saveOrder(String jsonOrder) {

try {
Order order=MAPPER.readValue(jsonOrder, Order.class);
String orderId=order.getUserId()+""+System.currentTimeMillis();
order.setCreated(new Date());
order.setOrderId(orderId);
order.setUpdated(order.getCreated());

orderMapper.orderAdd(order);
return orderId;

} catch (Exception e) {
e.printStackTrace();
return null;
}


}

}

OrderMapper接口类代码：

public interface OrderMapper{
public Order queryByOrderId(String orderId);
public void orderAdd(Order order);
}

OrderMapper.xml代码：

<mapper namespace="com.jt.order.mapper.OrderMapper">
<resultMap type="Order" id="orderRM" autoMapping="true">
<!-- 主键和对象关联的映射 -->
<id property="orderId" column="order_id"/>
<!-- 顺序要求，对一 -->
<association property="orderShipping" select="queryOrderShipping" javaType="OrderShipping" column="order_id">
</association>
<!-- 对多 -->
<collection property="orderItems" select="queryOrderItem" javaType="ArrayList" ofType="OrderItem" column="order_id">
</collection>
</resultMap>


<!-- 根据orderId查询，对象关联，一对一和一对多 -->
<select id="queryByOrderId" parameterType="string" resultMap="orderRM">
select * from tb_order where order_id=#{orderId}
</select>

<!-- 某个订单的物流信息 -->
<select id="queryOrderShipping" parameterType="string">
SELECT * FROM tb_order_shipping WHERE order_id=#{orderId}
</select>

<!-- 某个订单的商品信息 -->
<select id="queryOrderItem" parameterType="string">
SELECT * FROM tb_order_item WHERE order_id=#{orderId}
</select>


<insert id="orderAdd">
INSERT INTO tb_order VALUES (#{orderId},#{payment},#{paymentType},#{postFee},#{status},#{created},#{updated},#{paymentTime},#{consignTime},#{endTime},#{closeTime},#{shippingName},#{shippingCode},#{userId},#{buyerMessage},#{buyerNick},#{buyerRate});
INSERT INTO tb_order_item VALUES
<foreach collection="orderItems" item="item" separator=",">
(#{item.itemId},#{orderId},#{item.num},#{item.title},#{item.price},#{item.totalFee},#{item.picPath})
</foreach>
;
INSERT INTO tb_order_shipping VALUES (#{orderId},#{orderShipping.receiverName},#{orderShipping.receiverPhone},#{orderShipping.receiverMobile},#{orderShipping.receiverState},#{orderShipping.receiverCity},#{orderShipping.receiverDistrict},#{orderShipping.receiverAddress},#{orderShipping.receiverZip},NOW(),NOW());
</insert>

</mapper>
