在PYNQ-Z2上移植RISC-V

本文参考：https://github.com/drichmond/RISC-V-On-PYNQ

RISC-V On PYNQ

下载依赖包及配置环境

1：下载PYNQ-Z2的镜像：PYNQ-Z2 v2.4 PYNQ image

http://www.pynq.io/board.html?tdsourcetag=s_pcqq_aiomsg

2：烧写镜像到SD卡上，在MobaXterm用SSH方式连接PYNQ-Z2

3：通过命令行下载git工具：

$sudo apt-get update
$sudo apt-get install git

4:下载和安装依赖包：

apt -y install autoconf automake autotools-dev curl libmpc-dev libmpfr-dev libgmp-dev gawk build-essential bison flex texinfo gperf libtool patchutils bc zlib1g-dev git

5：下载两个源存储库：

git clone --recursive https://github.com/riscv/riscv-gnu-toolchain /home/xilinx/riscv-gnu-toolchain
git clone --recursive https://github.com/drichmond/RISC-V-On-PYNQ /home/xilinx/RISC-V-On-PYNQ

生成RISC-V处理器比特流

将RISC-V封装为Vivado IP

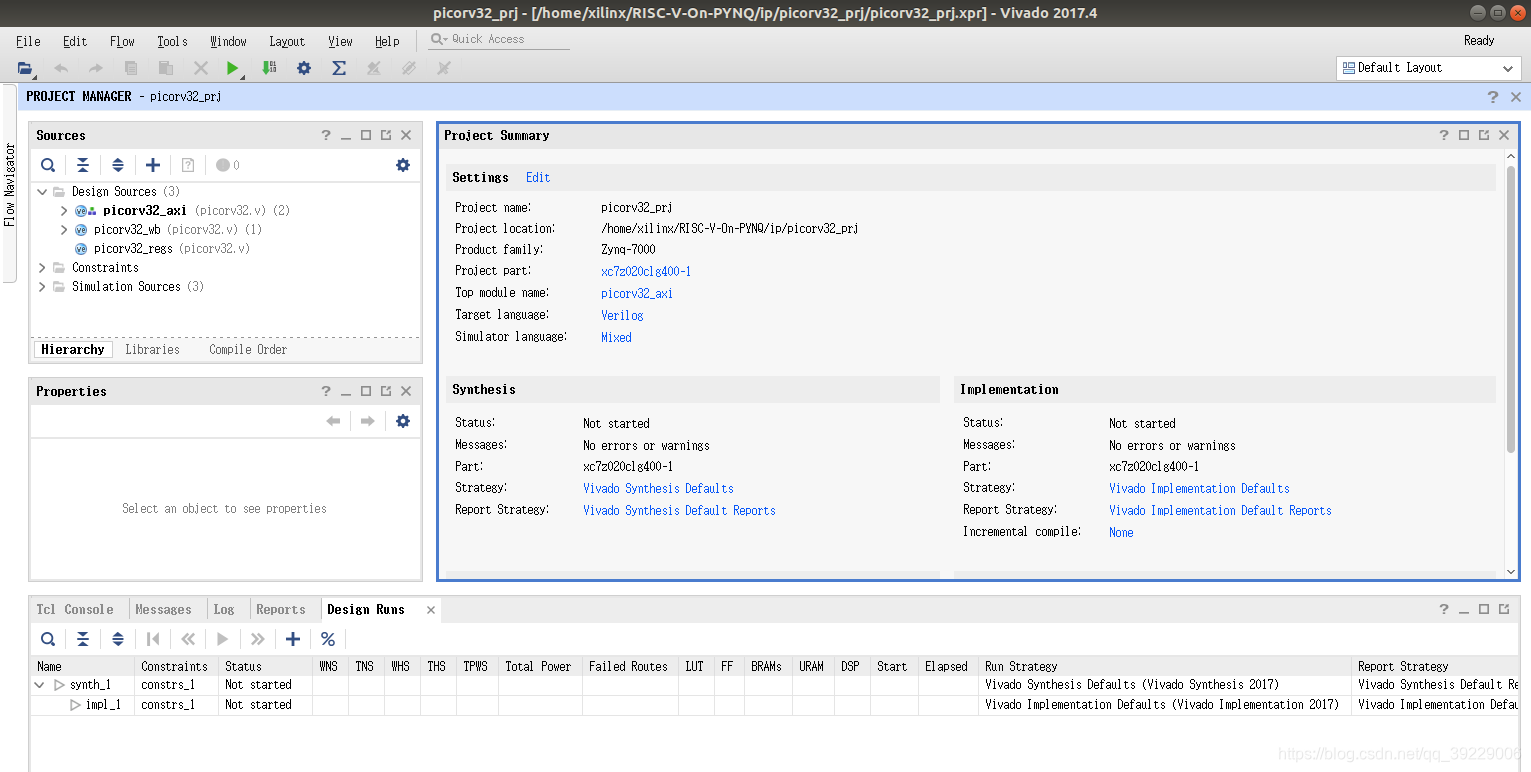

1：使用Vivado 2017.4创建一个工程：

Project name: picorv32_prj

Project location: /home/xilinx/RISC-V-On-PYNQ/ip/

Project Type: RTL Project

Source files: picorv32.v /home/xilinx/RISC-V-On-PYNQ/picorv32

Constraint files: None

parts: xc7z020clg400-1

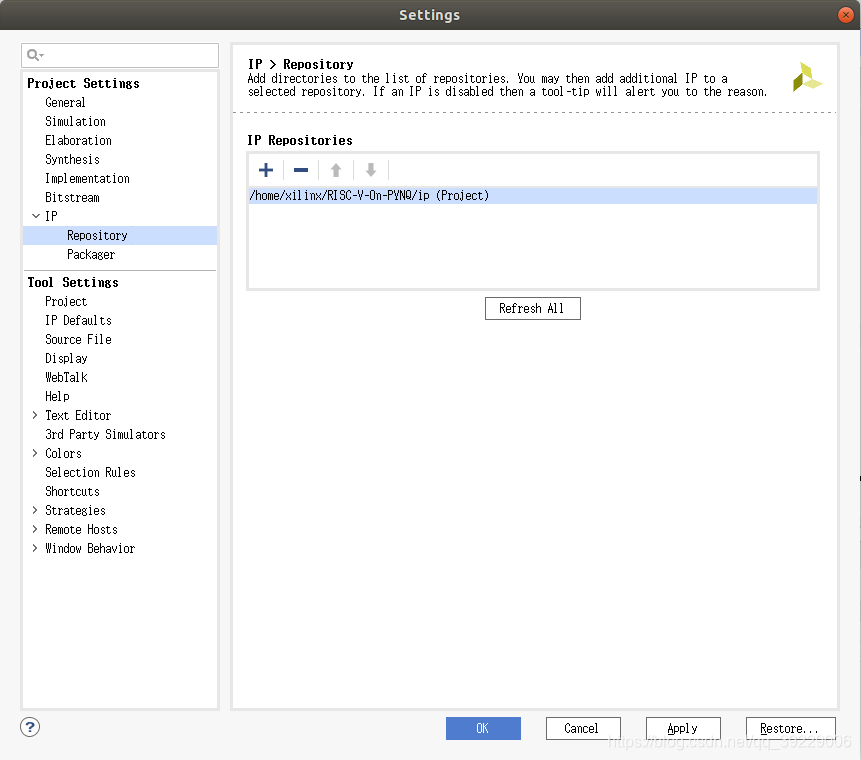

2:将自定义接口IP添加到Vivado工程：

Flow Navigator->PROJECT MANAGER->Settings

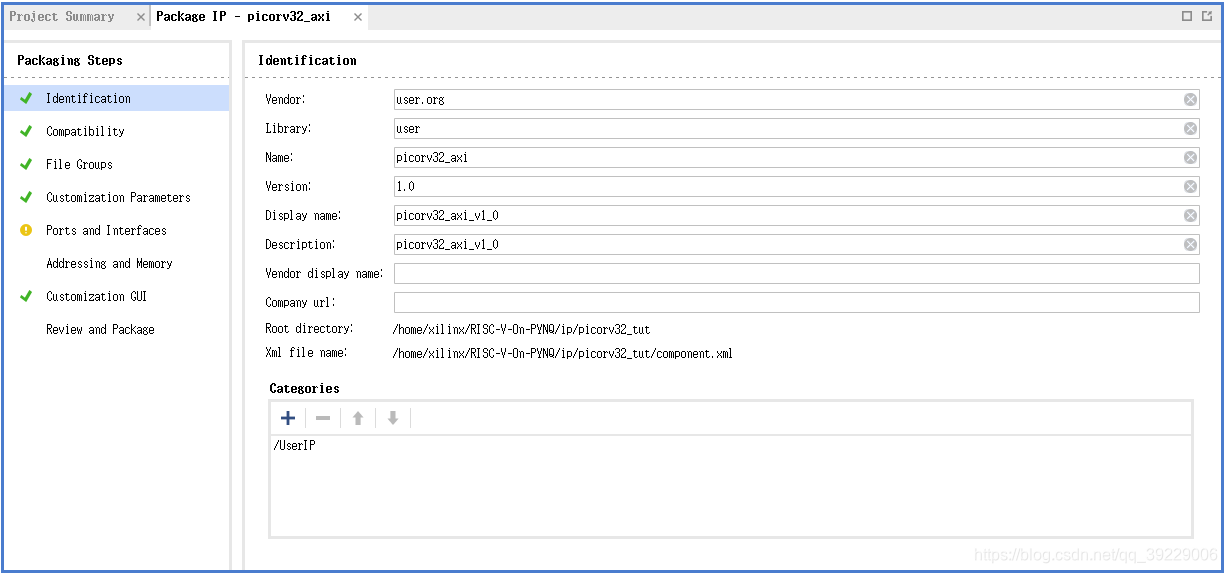

3:将picorv32 Vivado项目封装为IP：Tools -> Create and Package New IP…

Packaging Options: Package your current project

IP location: /home/xilinx/RISC-V-On-PYNQ/ip/picorv32_tut

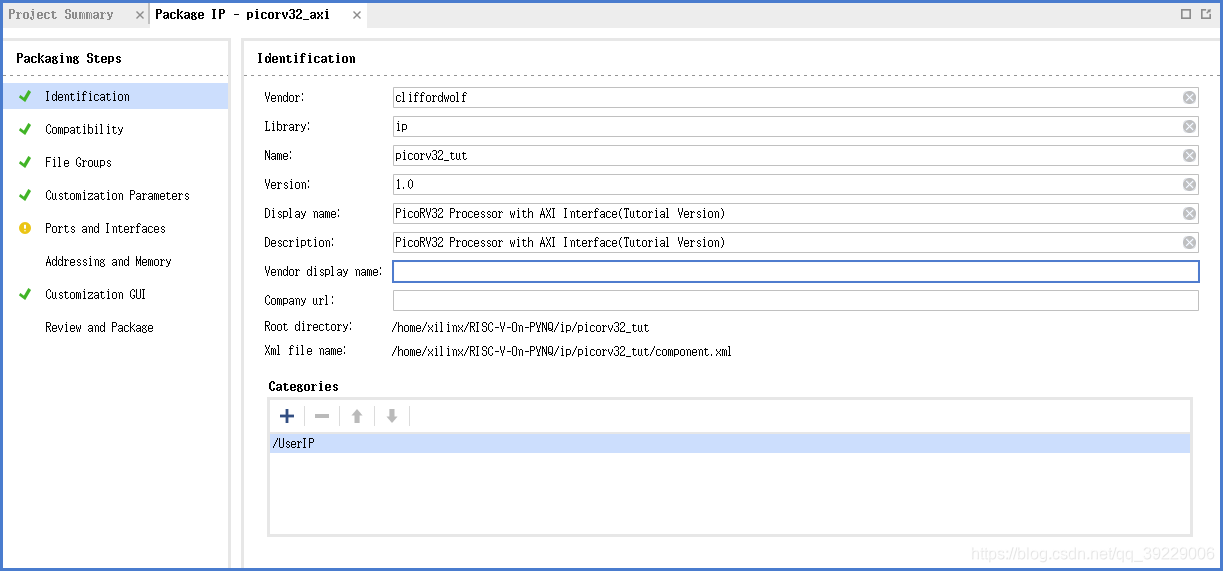

Identification

Vendor: cliffordwolf

Library: ip

Name: picorv32_tut

Display name: PicoRV32 Processor with AXI Interface(Tutorial Version)

Vendor display name: PicoRV32 Processor with AXI Interface(Tutorial Version)

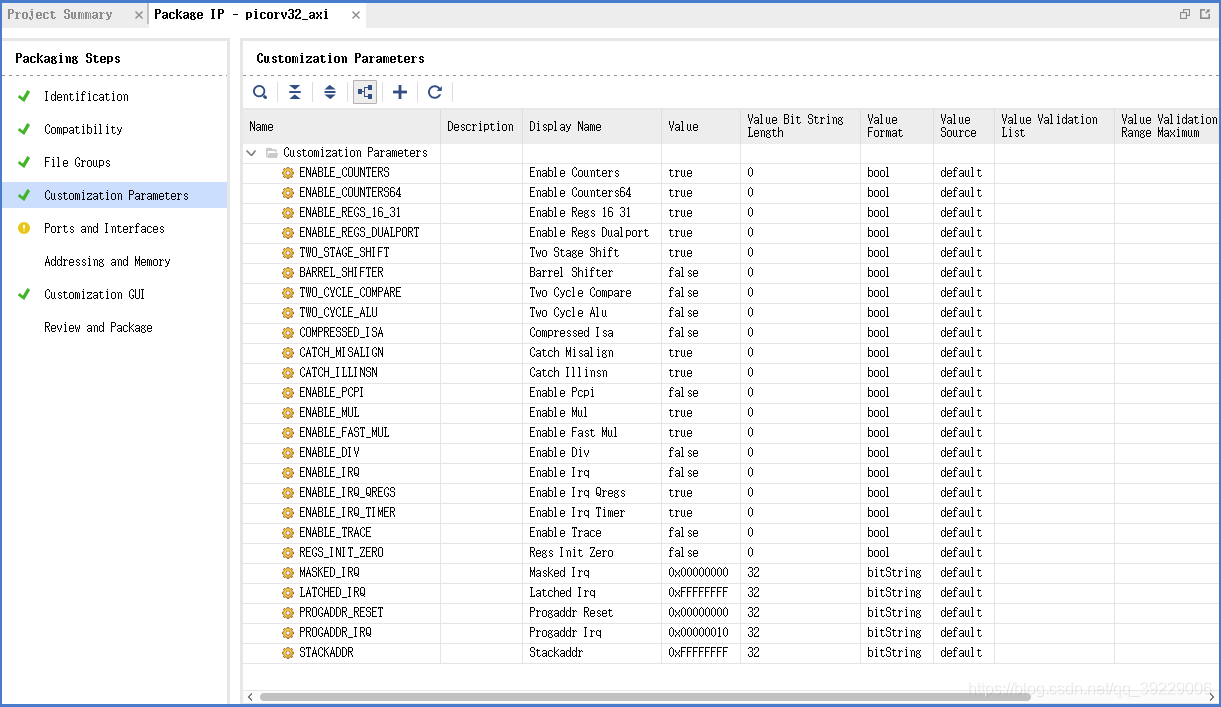

Customization Parameters

所有的参数值的格式都改为：bool

ENABLE_MUL Value: true

ENABLE_FAST_MUL Value: true

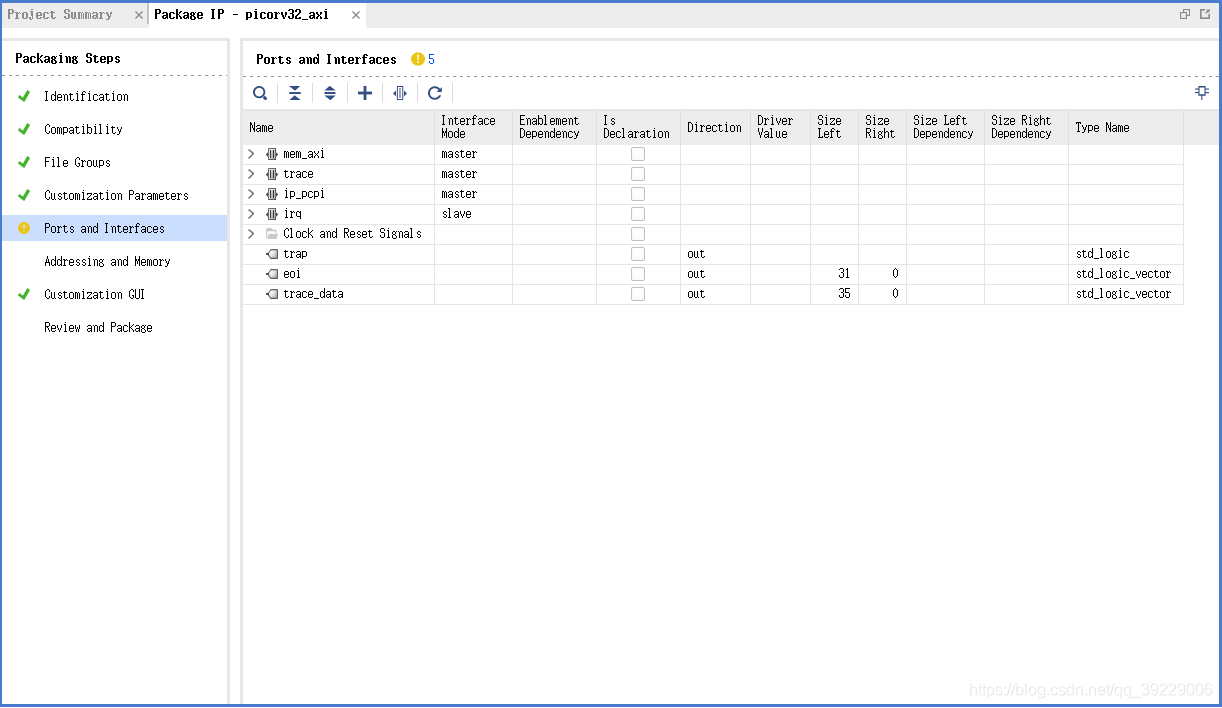

Ports and Interfaces

右键mem_axi->Edit Interface…

General:

​ Interface Definition: aximm_rtl

Port Mapping:

​ AWADDR - mem_axi_awaddr

​ AWPROT - mem_axi_awprot

​ AWVALID - mem_axi_awvalid

​ AWREADY - mem_axi_awready

​ WDATA - mem_axi_wdata

​ WSTRB - mem_axi_wstrb

​ WVALID - mem_axi_wvalid

​ WREADY - mem_axi_wready

​ BVALID - mem_axi_bvalid

​ BREADY - mem_axi_bready

​ ARADDR - mem_axi_araddr

​ ARPROT - mem_axi_arprot

​ ARVALID - mem_axi_arvalid

​ ARREADY - mem_axi_arready

​ RDATA - mem_axi_rdata

​ RVALID - mem_axi_rvalid

​ RREADY - mem_axi_rready

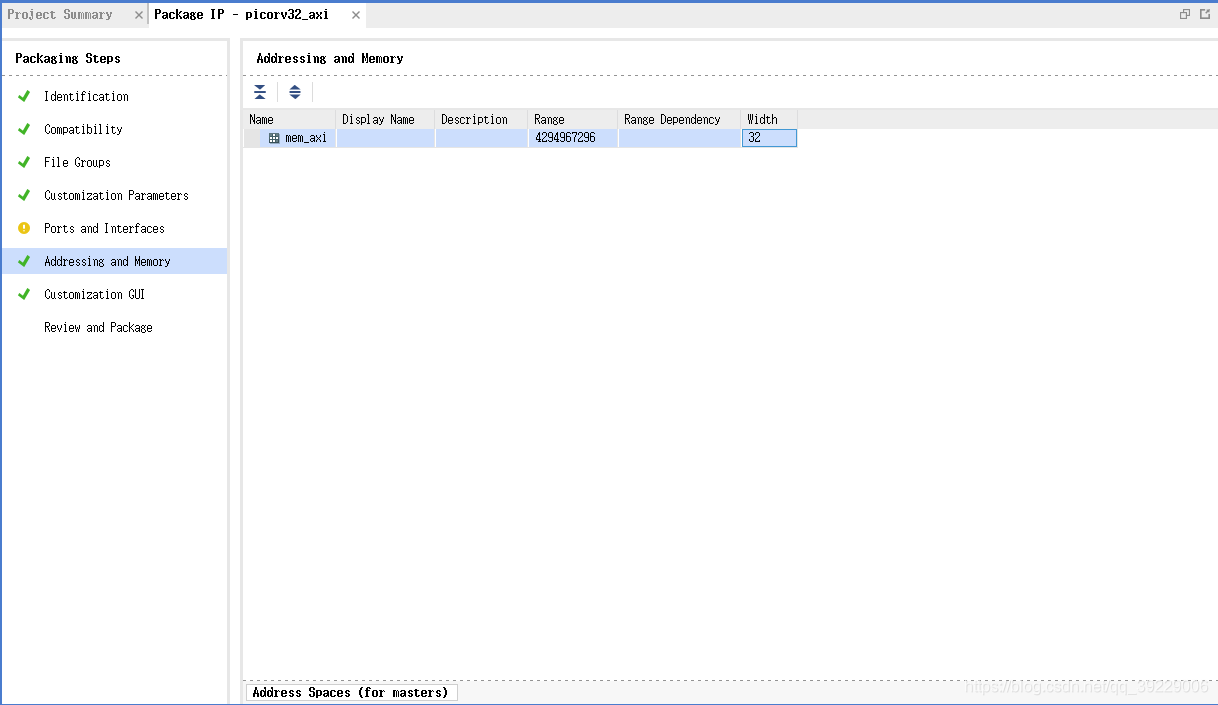

Addressing and Memory

运行Addressing and Memory Map Wizard:

IP Interface: mem_axi

mem_axi Range: 4294967296

mem_axi Width: 32

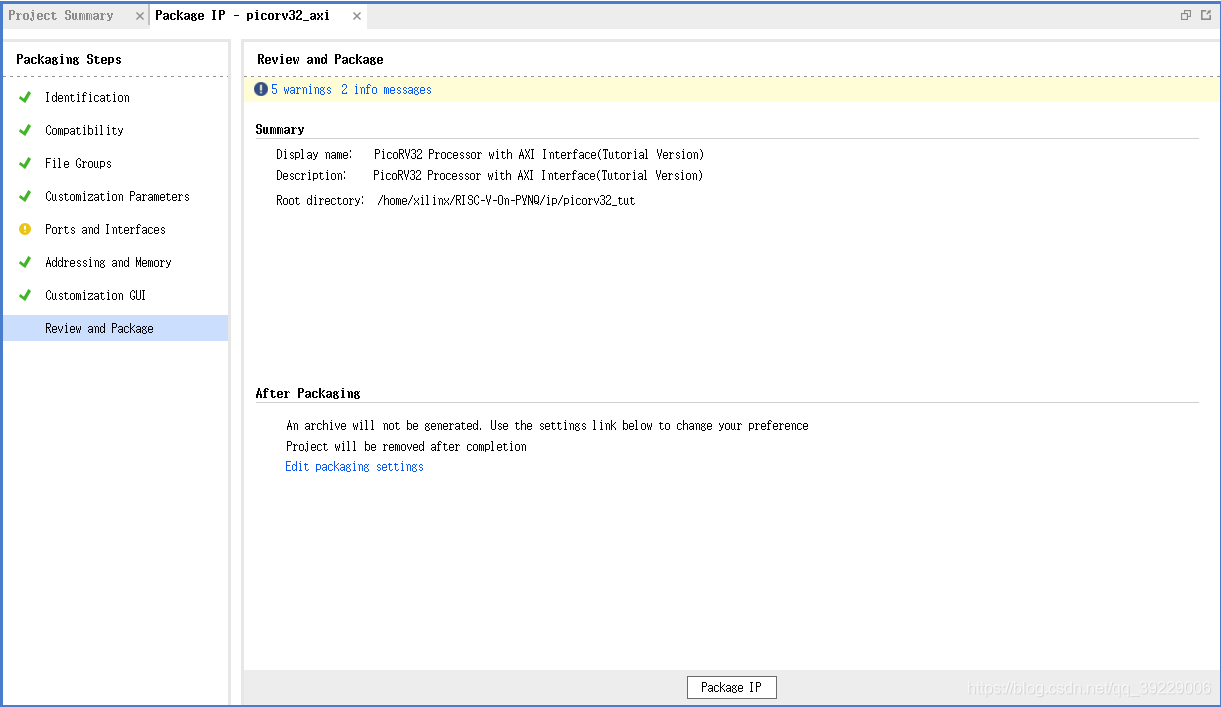

Review and Package

点击Package IP:

为PYNQ-Z2创建RISC-V比特流

将/home/xilinx/RISC-V-On-PYNQ/riscvonpynq/目录下的PYNQ-Z1.xdc文件的72,73行改为如下：

set_property -dict {PACKAGE_PIN P15 IOSTANDARD LVCMOS33} [get_ports arduino_iic_scl_io]
set_property -dict {PACKAGE_PIN P16 IOSTANDARD LVCMOS33} [get_ports arduino_iic_sda_io]

执行以下命令：

make -C /home/xilinx/RISC-V-On-PYNQ/riscvonpynq/picorv32/tut/ synth
vivado  tutorial/tutorial.xpr

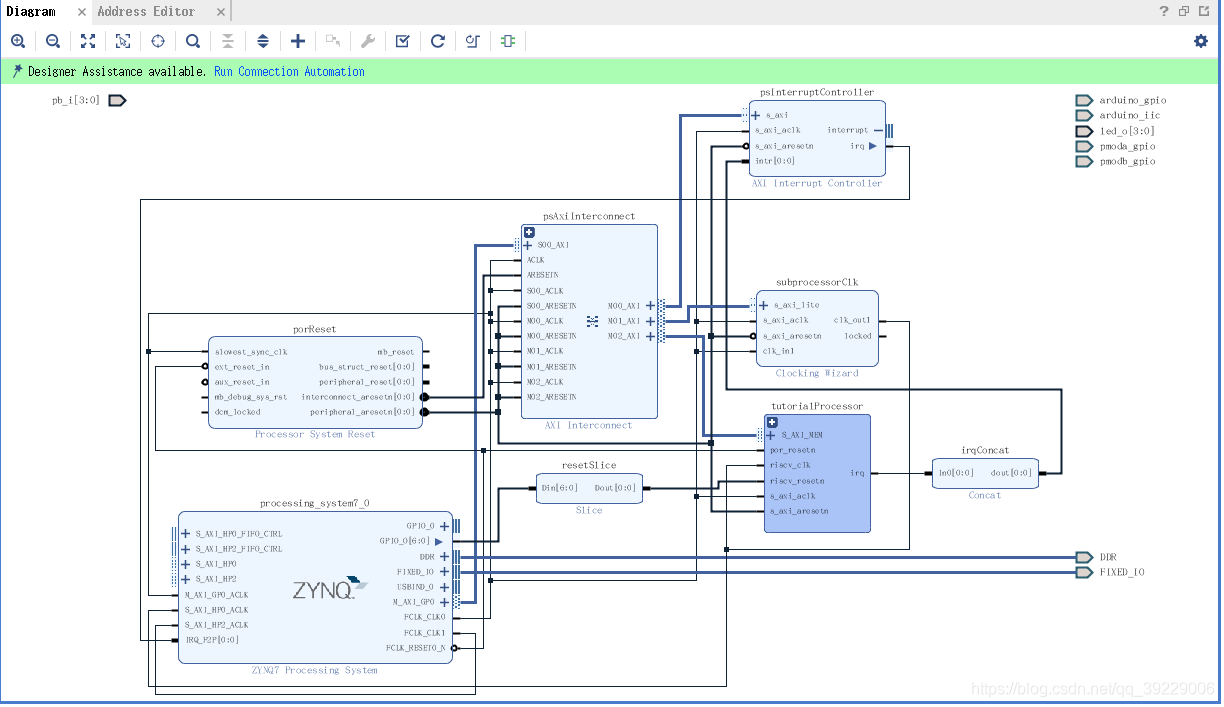

4：打开tutorial.bd文件

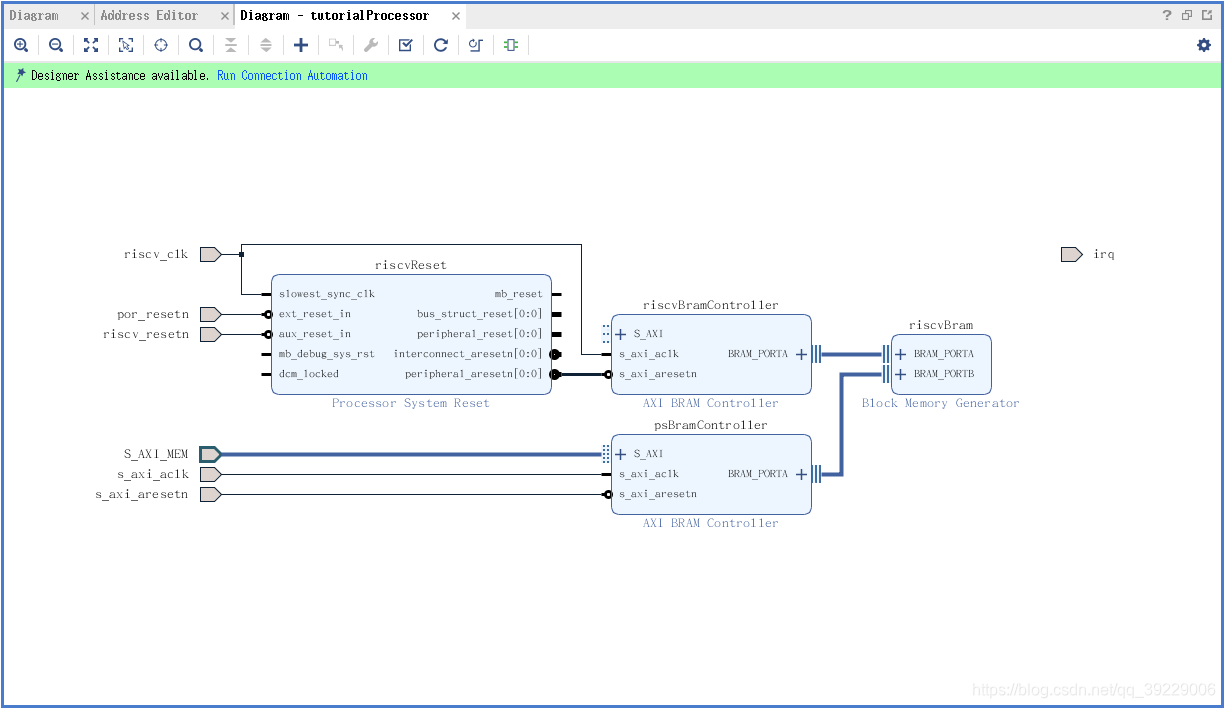

双击tutorialProcessor：
点击 + 号，将 PicoRV32 Processor with AXI Interface (Tutorial Version) IP添加进去：

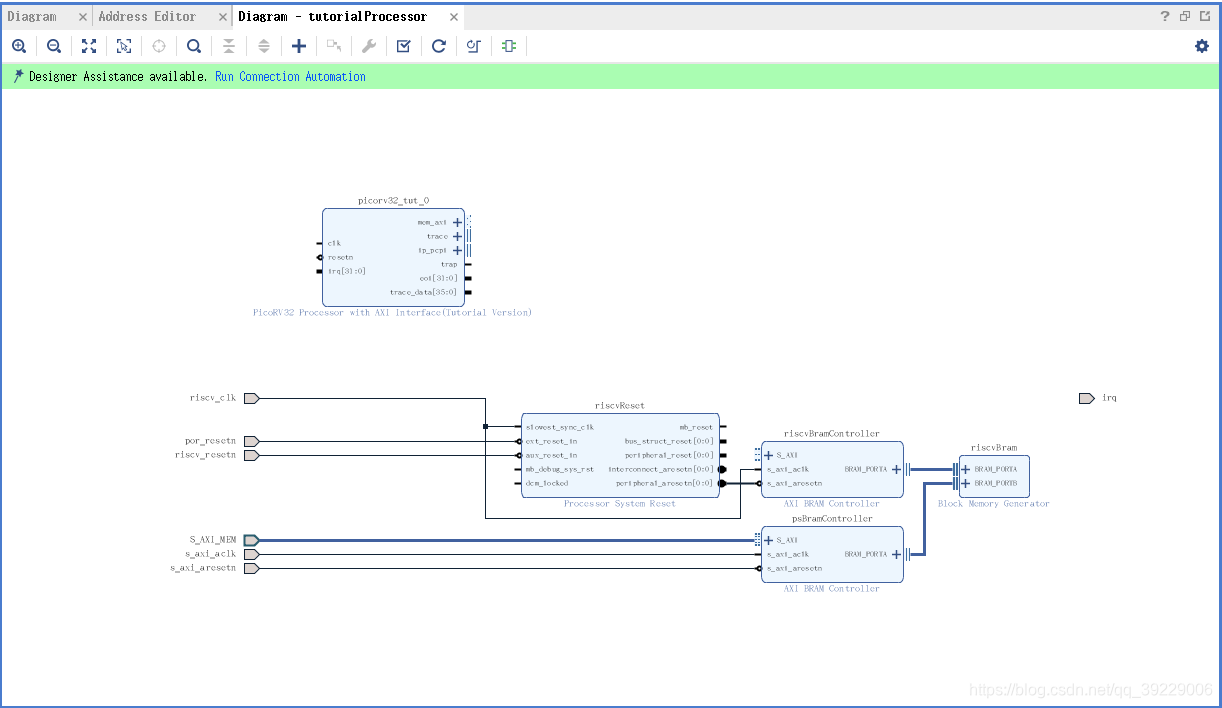

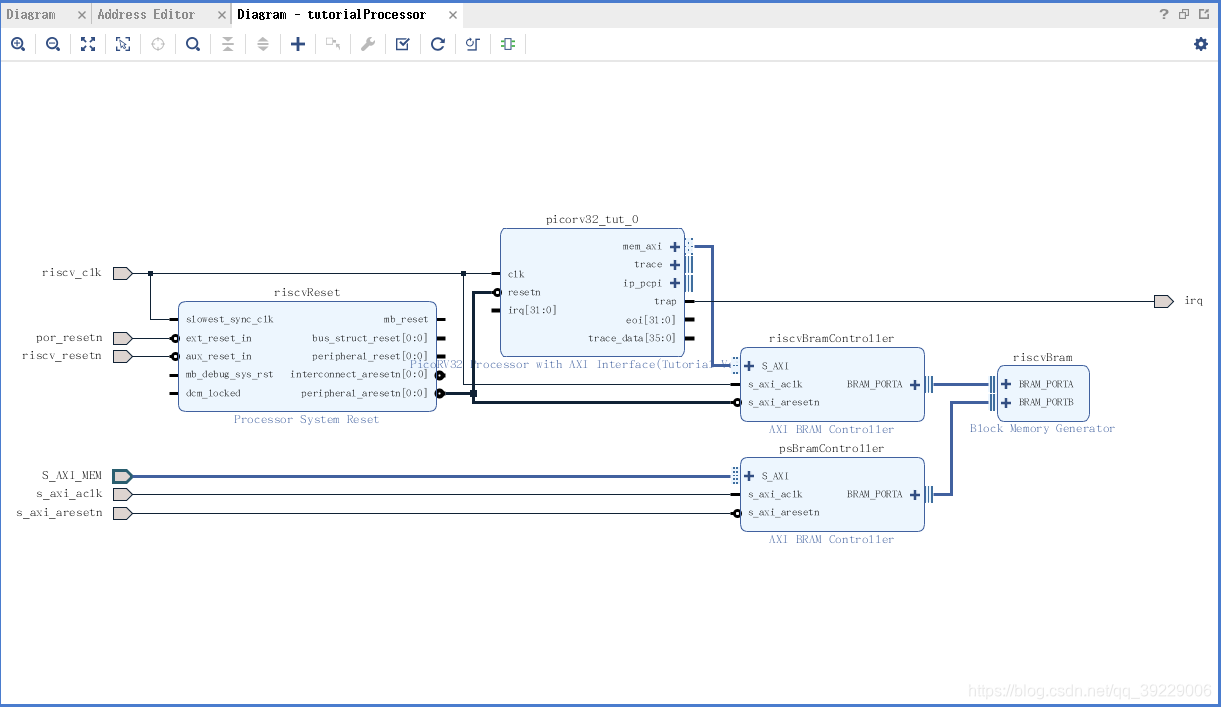

并按下图连线：

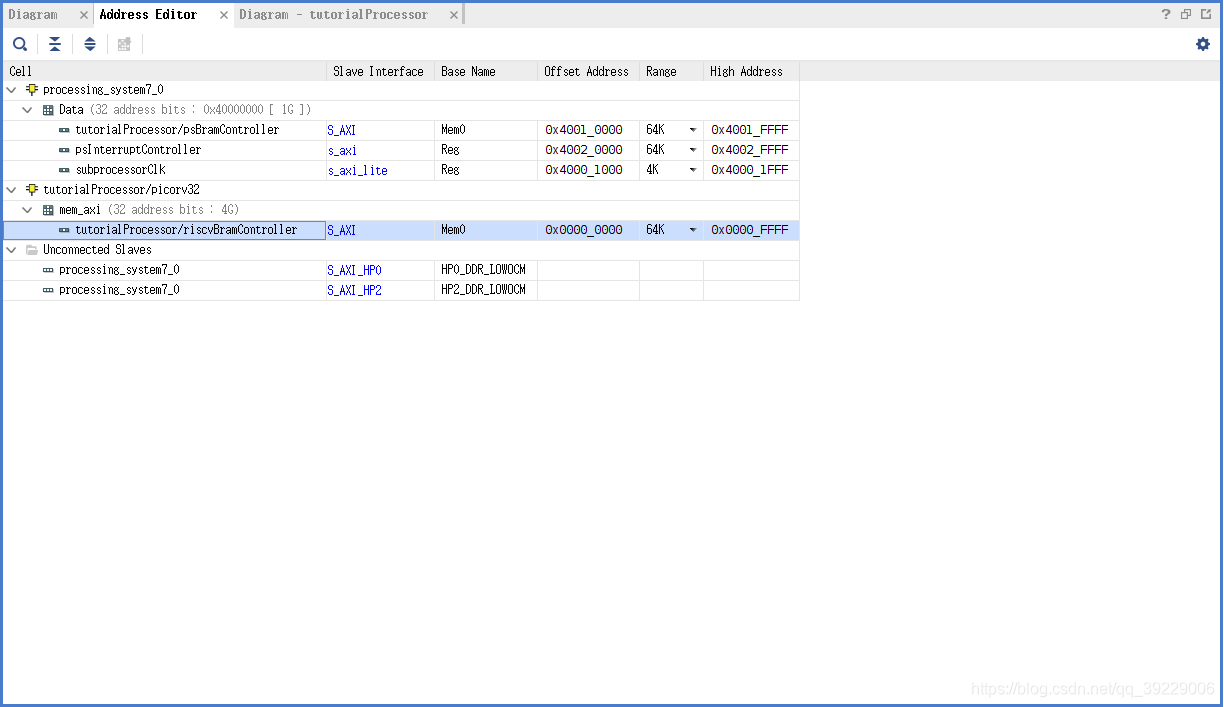

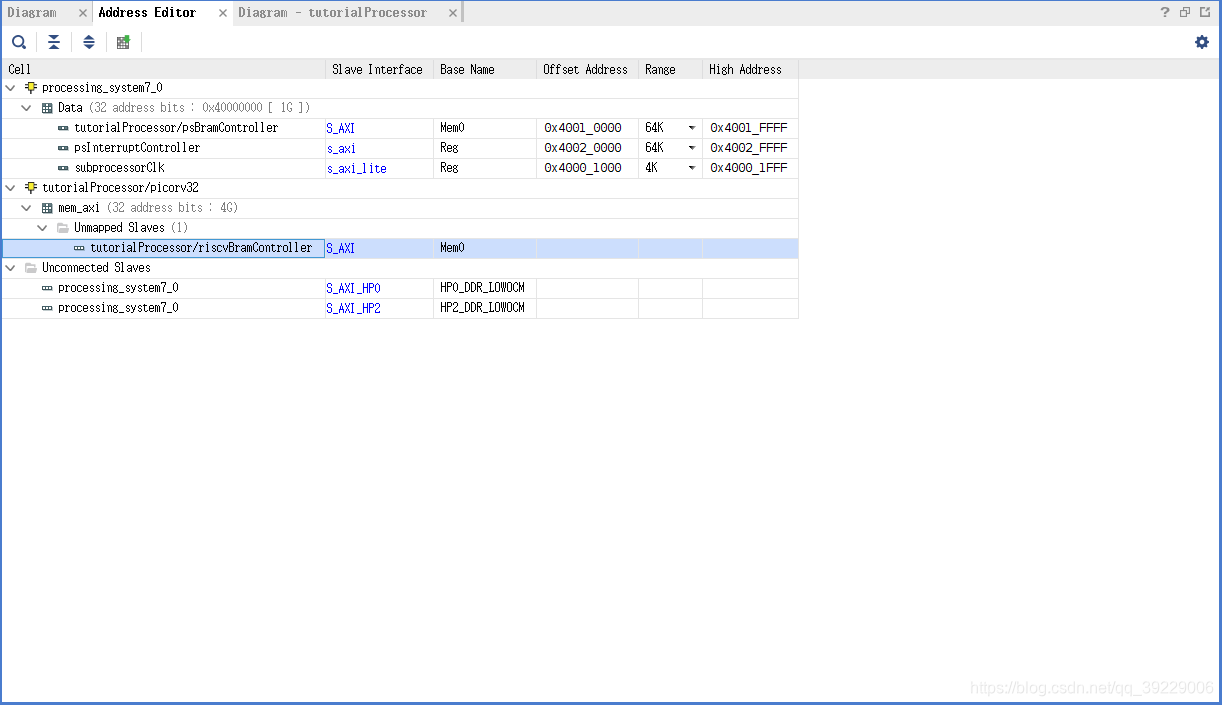

5：进入Address Editor窗口，分配地址映射：

右击tutorialProcessor/riscvBramController->Assign Address

Offset Address: 0x0000_0000

High Address: 0x0000_FFFF

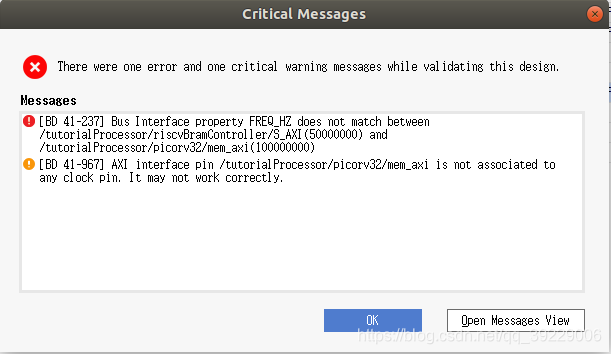

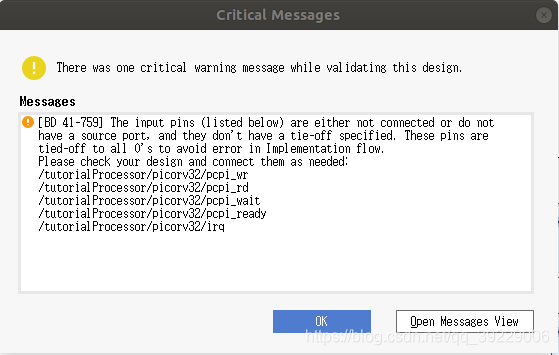

运行Tools->Validate Design:

将mem_axi频率改为50000000，再次运行：

6：生成比特流，点击Generate Bitstream，最后在/tut/tutorial/tutorial.runs/impl_1目录下生成一个tutorial_wrapper.bit文件，将该文件移动到tut目录下，并改名为tutorial.bit.

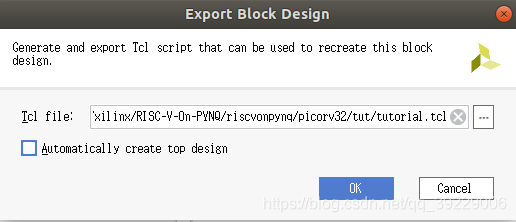

7:将设计导出到tcl文件中并覆盖之前的tcl文件，File->Exports…->Export Block Design,确保Automatically create top design没有被勾选

8：将上述tutorial.bit和tutorial.tcl文件通过SSH放到PYNQ-Z2的home/xilinx/RISC-V-On-PYNQ/riscvonpynq/picorv32/tut目录下

在PYNQ-Z2上编译RISC-V GCC工具链

1：通过MobaXterm以SSH方式连接PYNQ-Z2，在终端/home/xilinx/riscv-gnu-toolchain/目录下依次执行以下命令进行编译：

./configure --prefix=/opt/riscv32im --with-arch=rv32im
make

最后在/opt目录下生成riscv32im文件夹

2：将生成的/opt/riscv32im/bin配置到环境变量中，在Jupyter Notebooks中执行以下代码：

import os
path = os.environ['PATH'].split()
riscv_path = '/opt/riscv32im/bin'
if(riscv_path not in path):
    print('Updating /etc/environment file... ',end="")
    !sed -i 's/PATH=\"\(.*\)\"/PATH=\"\/opt\/riscv32im\/bin:\1\"/' /etc/environment
    print('done')
else:
    print("/etc/environment file already updated")

显示 Updating /etc/environment file… done 即配置完成

3：重启PYNQ-Z2：

!shutdown -r now

4：重启后确认RISC-V工具链已经成功安装：

!riscv32-unknown-elf-gcc --version

显示 riscv32-unknown-elf-gcc 版本号即已成功安装。

封装成一个Overlay

1、在home/xilinx/RISC-V-On-PYNQ/riscvonpynq/picorv32/tut/文件夹下新建tutorial.py文件，文件内容如下：

from pynq import Overlay, GPIO, Register
import os
import inspect
from riscvonpynq.Processor import BramProcessor
#--------
class TutorialOverlay(Overlay):
    """Overlay driver for the PicoRV32 bram Overlay

    Note
    ----
    This class definition must be co-located with the .tcl and .bit
    file for the overlay for the search path modifications in
    riscvonpynq.Overlay to work. __init__ in riscvonpynq.Overlay uses
    the path of this file to search for the .bit file using the
    inspect package.

    """
    pass

class TutorialProcessor(BramProcessor):
    """Hierarchy driver for the PicoRV32 BRAM Processor

    Note
    ----
    In order to be recognized as a RISC-V Processor hierarchy, three
    conditions must be met: First, there must be a PS-Memory-Mapped
    Block RAM Controller where the name matches the variable
    _bram. Second, the hierarchy name (fullpath) must equal the
    variable _name. Finally, there must be a GPIO port with the name
    _reset_name.

    Subclasses of this module are responsible for setting _name (The
    name of the Hierarchy), _bits (Processor bit-width), _proc
    (Processor Type Name)

    This class must be placed in a known location relative to the
    build files for this processor. The relative path can be modified
    in __get_path.

    """
    _name = 'tutorialProcessor'
    _proc = 'picorv32'
    _bits = 32

    @classmethod
    def checkhierarchy(cls, description):
        return super().checkhierarchy(description)

    def __get_path(self):
        """Get the directory path of this file, or the directory path of the
        class that inherits from this class.

        """
        # Get file path of the current class (i.e. /opt/python3.6/<...>/stream.py)
        file_path = os.path.abspath(inspect.getfile(inspect.getmodule(self)))
        # Get directory path of the current class (i.e. /opt/python3.6/<...>/stream/)
        return os.path.dirname(file_path)

    def __init__(self, description, *args):
        """Return a new Processor object.

        Parameters
        ----------
        description : dict
            Dictionary describing this processor.

        """
        build_path = os.path.join(self.__get_path(), "build")
        reset_value = 0
        super().__init__(build_path, reset_value, description, *args)

2、在/home/xilinx/RISC-V-On-PYNQ/riscvonpynq/picorv32/tut/创建 __init__.py文件，文件内容如下：

from . import tutorial
from . import build

3、将../bram/build拷贝到../tut/build中，具体jupyter命令如下

!cp /home/xilinx/RISC-V-On-PYNQ/riscvonpynq/picorv32/bram/build/ /home/xilinx/RISC-V-On-PYNQ/riscvonpynq/picorv32/tut/build

4、在jupyter中执行以下代码

import os
os.chdir("/home/xilinx/RISC-V-On-PYNQ/")
print(os.getcwd())

即设置当前工作路径为/home/xilinx/RISC-V-On-PYNQ。接着继续执行以下代码：

import sys
sys.path.insert(0, '/home/xilinx/RISC-V-On-PYNQ/riscvonpynq/picorv32/')

from tut.tutorial import TutorialOverlay

overlay = TutorialOverlay("/home/xilinx/RISC-V-On-PYNQ/riscvonpynq/picorv32/tut/tutorial.bit")

没有报错后继续执行以下代码，进行移植的测试

%%riscvc test overlay.tutorialProcessor

int main(int argc, char ** argv){
    unsigned int * arr = (unsigned int *)argv[1];
    return arr[2];
}

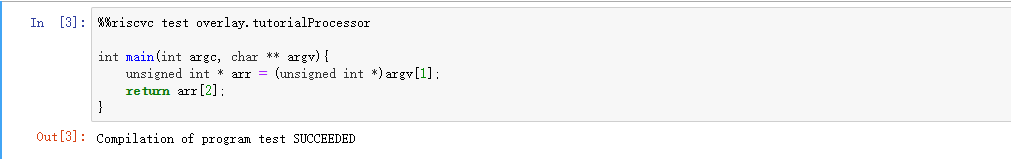

执行结果如下：

表示编译成功，被编译的是test.c文件，若此步骤出现问题，请检查riscv32-unknown-elf-gcc命令是否能够正确执行、/home/xilinx/RISC-V-On-PYNQ/ip/路径下的picorv32_axi是否存在。

5、接着运行编译出来的文件：在jupyter执行以下代码

import numpy as np
arg1 = np.array([4,2,3], np.uint32)

retval = overlay.tutorialProcessor.run(test, arg1)

if(retval != arg1[2]):
    print("Test failed!")
else:
    print("Test passed!")

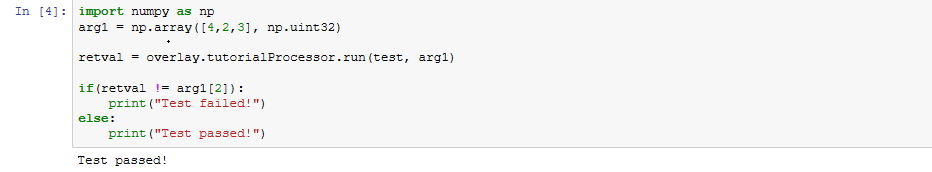

测试成功后将会看到输出如下：

若出现如下错误信息：

‘Unaligned write: data length must be multiple of 4.’

可将/usr/local/lib/python3.6/dist-packages/pynq/下的mmio.py文件的代码替换如下：

#   Copyright (c) 2016, Xilinx, Inc.
#   All rights reserved.
#
#   Redistribution and use in source and binary forms, with or without
#   modification, are permitted provided that the following conditions are met:
#
#   1.  Redistributions of source code must retain the above copyright notice,
#       this list of conditions and the following disclaimer.
#
#   2.  Redistributions in binary form must reproduce the above copyright
#       notice, this list of conditions and the following disclaimer in the
#       documentation and/or other materials provided with the distribution.
#
#   3.  Neither the name of the copyright holder nor the names of its
#       contributors may be used to endorse or promote products derived from
#       this software without specific prior written permission.
#
#   THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
#   AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO,
#   THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
#   PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR
#   CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
#   EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
#   PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS;
#   OR BUSINESS INTERRUPTION). HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
#   WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR
#   OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF
#   ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

import os
import mmap
import numpy as np

__author__ = "Yun Rock Qu"
__copyright__ = "Copyright 2016, Xilinx"
__email__ = "pynq_support@xilinx.com"
#add this function below
def modify_size(length):
    while(length%4):
      length=length+1
    return length

class MMIO:
    """ This class exposes API for MMIO read and write.

    Attributes
    ----------
    virt_base : int
        The address of the page for the MMIO base address.
    virt_offset : int
        The offset of the MMIO base address from the virt_base.
    base_addr : int
        The base address, not necessarily page aligned.
    length : int
        The length in bytes of the address range.
    debug : bool
        Turn on debug mode if it is True.
    mmap_file : file
        Underlying file object for MMIO mapping
    mem : mmap
        An mmap object created when mapping files to memory.
    array : numpy.ndarray
        A numpy view of the mapped range for efficient assignment

    """

    def __init__(self, base_addr, length=4, debug=False):
        """Return a new MMIO object.

        Parameters
        ----------
        base_addr : int
            The base address of the MMIO.
        length : int
            The length in bytes; default is 4.
        debug : bool
            Turn on debug mode if it is True; default is False.

        """
        if base_addr < 0 or length < 0:
            raise ValueError("Base address or length cannot be negative.")

        euid = os.geteuid()
        if euid != 0:
            raise EnvironmentError('Root permissions required.')

        # Align the base address with the pages
        self.virt_base = base_addr & ~(mmap.PAGESIZE - 1)

        # Calculate base address offset w.r.t the base address
        self.virt_offset = base_addr - self.virt_base

        # Storing the base address and length
        self.base_addr = base_addr
        self.length = length

        self.debug = debug
        self._debug('MMIO(address, size) = ({0:x}, {1:x} bytes).',
                    self.base_addr, self.length)

        # Open file and mmap
        self.mmap_file = os.open('/dev/mem',
                                 os.O_RDWR | os.O_SYNC)

        self.mem = mmap.mmap(self.mmap_file, self.length + self.virt_offset,
                             mmap.MAP_SHARED,
                             mmap.PROT_READ | mmap.PROT_WRITE,
                             offset=self.virt_base)

        self.array = np.frombuffer(self.mem, np.uint32,
                                   length >> 2, self.virt_offset)

    def __del__(self):
        """Destructor to ensure mmap file is closed
        """
        os.close(self.mmap_file)

    def read(self, offset=0, length=4):
        """The method to read data from MMIO.

        Parameters
        ----------
        offset : int
            The read offset from the MMIO base address.
        length : int
            The length of the data in bytes.

        Returns
        -------
        list
            A list of data read out from MMIO

        """
        if length != 4:
            raise ValueError("MMIO currently only supports 4-byte reads.")
        if offset < 0:
            raise ValueError("Offset cannot be negative.")
        idx = offset >> 2
        if offset % 4:
            raise MemoryError('Unaligned read: offset must be multiple of 4.')

        self._debug('Reading {0} bytes from offset {1:x}',
                    length, offset)

        # Read data out
        return int(self.array[idx])

    def write(self, offset, data):
        """The method to write data to MMIO.

        Parameters
        ----------
        offset : int
            The write offset from the MMIO base address.
        data : int / bytes
            The integer(s) to be written into MMIO.

        Returns
        -------
        None

        """
        if offset < 0:
            raise ValueError("Offset cannot be negative.")

        idx = offset >> 2
        if offset % 4:
            raise MemoryError('Unaligned write: offset must be multiple of 4.')

        if type(data) is int:
            self._debug('Writing 4 bytes to offset {0:x}: {1:x}',
                        offset, data)
            self.array[idx] = np.uint32(data)
        elif type(data) is bytes:
            length = len(data)
            num_words = length >> 2
            length=modify_size(length)
            if length % 4:
                raise MemoryError(
                    'Unaligned write: data length must be multiple of 4.')
            buf = np.frombuffer(data, np.uint32, num_words, 0)
            for i in range(len(buf)):
                self.array[idx + i] = buf[i]
        else:
            raise ValueError("Data type must be int or bytes.")

    def _debug(self, s, *args):
        """The method provides debug capabilities for this class.

        Parameters
        ----------
        s : str
            The debug information format string
        *args : any
            The arguments to be formatted

        Returns
        -------
        None

        """
        if self.debug:
            print('MMIO Debug: {}'.format(s.format(*args)))

6、测试成功后，为了安装资源到板子上，需运行下面的代码：

!pip3.6 install --upgrade /home/xilinx/RISC-V-On-PYNQ/

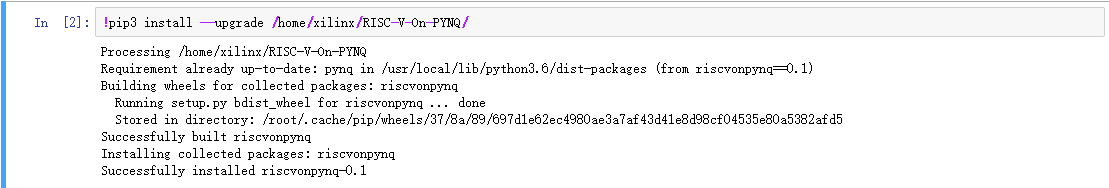

成功后出现如下信息：

成功安装资源后便可直接进行移植、编译、运行而不用修改系统变量了。

最后在/home/xilinx/RISC-V-On-PYNQ/riscvonpynq/picorv32/下的 __init__.py修改如下：

# ----------------------------------------------------------------------
# Copyright (c) 2018, The Regents of the University of California All
# rights reserved.
#
# Redistribution and use in source and binary forms, with or without
# modification, are permitted provided that the following conditions are
# met:
#
#     * Redistributions of source code must retain the above copyright
#       notice, this list of conditions and the following disclaimer.
#
#     * Redistributions in binary form must reproduce the above
#       copyright notice, this list of conditions and the following
#       disclaimer in the documentation and/or other materials provided
#       with the distribution.
#
#     * Neither the name of The Regents of the University of California
#       nor the names of its contributors may be used to endorse or
#       promote products derived from this software without specific
#       prior written permission.
#
# THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
# "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
# LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
# A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL REGENTS OF THE
# UNIVERSITY OF CALIFORNIA BE LIABLE FOR ANY DIRECT, INDIRECT,
# INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING,
# BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS
# OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND
# ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR
# TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE
# USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
# DAMAGE.
# ----------------------------------------------------------------------
from . import axi
from . import bram
from . import tut

即可直接运行以下代码：

from riscvonpynq.picorv32.tut.tutorial import TutorialOverlay

overlay = TutorialOverlay("/home/xilinx/RISC-V-On-PYNQ/riscvonpynq/picorv32/tut/tutorial.bit")

%%riscvc test overlay.tutorialProcessor

int main(int argc, char ** argv){
    unsigned int * arr = (unsigned int *)argv[1];
    return arr[2];
}

import numpy as np
arg1 = np.array([4,2,3], np.uint32)

retval = overlay.tutorialProcessor.run(test, arg1)

if(retval != arg1[2]):
    print("Test failed!")
else:
    print("Test passed!")

到此RISC-V在PYNQ-Z2的移植结束。
