JAVA rs232

全套项目资源环境都在我发布的资源里

环境

Configure Virtual Serial Port Driver 模拟串口

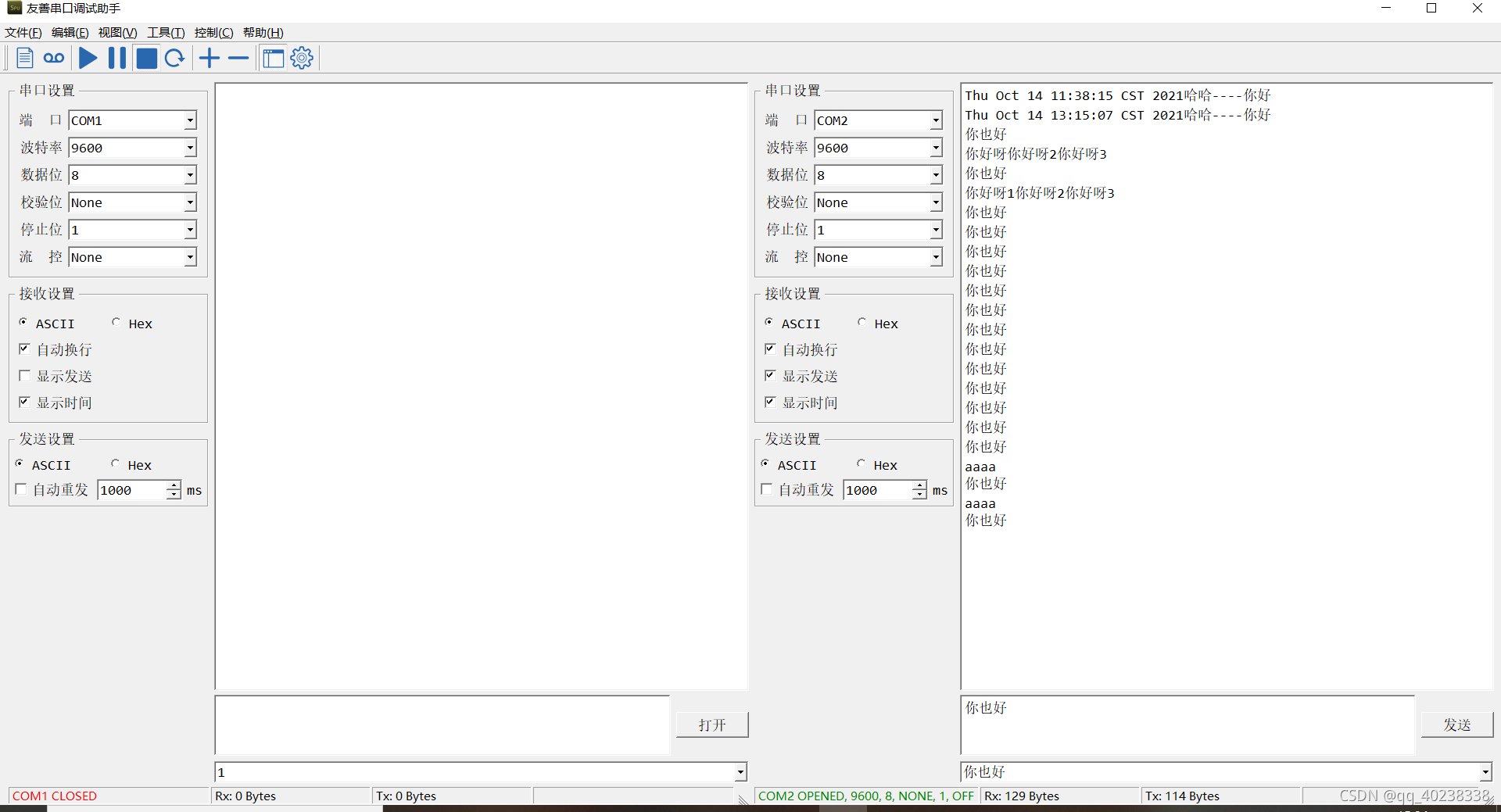

友善串口工具调试

MAVEN 依赖

        <dependency>
            <groupId>org.bidib.jbidib.org.qbang.rxtx</groupId>
            <artifactId>rxtxcomm</artifactId>
            <version>2.2</version>
        </dependency>

代码贴出

import com.runyao.vending.exception.CustomException;
import gnu.io.*;

import java.io.IOException;
import java.io.InputStream;
import java.io.OutputStream;
import java.util.Enumeration;
import java.util.TooManyListenersException;
import java.util.concurrent.BlockingQueue;
import java.util.concurrent.LinkedBlockingQueue;


public class RxtxUtil extends Thread implements SerialPortEventListener {

    private CommPortIdentifier portId; // 串口通信管理类
    private Enumeration<?> portList; // 有效连接上的端口的枚举
    private InputStream inputStream; // 从串口来的输入流
    private OutputStream outputStream;// 向串口输出的流
    private SerialPort serialPort; // 串口的引用
    // 堵塞队列用来存放读到的数据
    private BlockingQueue<String> msgQueue = new LinkedBlockingQueue<String>();


    public RxtxUtil(String portName, int baudRate) {
        this.startComPort(portName,baudRate);
        this.start();
    }

    /**
     * SerialPort EventListene 的方法,持续监听端口上是否有数据流
     */
    @Override
    public void serialEvent(SerialPortEvent event) {
        switch (event.getEventType()) {
            case SerialPortEvent.BI:
            case SerialPortEvent.OE:
            case SerialPortEvent.FE:
            case SerialPortEvent.PE:
            case SerialPortEvent.CD:
            case SerialPortEvent.CTS:
            case SerialPortEvent.DSR:
            case SerialPortEvent.RI:
            case SerialPortEvent.OUTPUT_BUFFER_EMPTY:
                break;
            case SerialPortEvent.DATA_AVAILABLE:// 当有可用数据时读取数据
                byte[] readBuffer = new byte[1024];
                try {
                    int numBytes = -1;
                    while (inputStream.available() > 0) {
                        numBytes = inputStream.read(readBuffer);
                        if (numBytes > 0) {
                            msgQueue.add(new String(readBuffer, "gbk"));
                            readBuffer = new byte[1024];// 重新构造缓冲对象，否则有可能会影响接下来接收的数据
                        }
                    }
                } catch (IOException e) {
                    e.printStackTrace();
                }
                break;
        }
    }


    /**
     * 通过程序打开串口，设置监听器以及相关的参数
     *
     * @return 返回1 表示端口打开成功，返回 0表示端口打开失败
     */
    private void startComPort(String portName,int baudRate) {
        // 通过串口通信管理类获得当前连接上的串口列表
        portList = CommPortIdentifier.getPortIdentifiers();
        // 记录是否含有指定串口
        boolean isExsist = false;
        while (portList.hasMoreElements()) {
            // 获取相应串口对象
            portId = (CommPortIdentifier) portList.nextElement();
            // 判断端口类型是否为串口
            if (portId.getPortType() == CommPortIdentifier.PORT_SERIAL) {
                // 判断如果COM7串口存在，就打开该串口
                if (portId.getName().equals(portName)) {
                    isExsist=true;
                    try {
                        // 打开串口,延迟为2毫秒
                        serialPort = (SerialPort) portId.open(portName, 2000);
                        // 设置当前串口的输入输出流
                        inputStream = serialPort.getInputStream();
                        outputStream = serialPort.getOutputStream();
                        // 给当前串口添加一个监听器
                        serialPort.addEventListener(this);
                        // 设置监听器生效，即：当有数据时通知
                        serialPort.notifyOnDataAvailable(true);
                        // 比特率、数据位、停止位、奇偶校验位
                        serialPort.setSerialPortParams(baudRate,
                                SerialPort.DATABITS_8, SerialPort.STOPBITS_1,
                                SerialPort.PARITY_EVEN);
                    } catch (PortInUseException e) {
                        throw new CustomException("端口被占用");
                    } catch (TooManyListenersException e) {
                        throw new CustomException("监听器过多");
                    } catch (UnsupportedCommOperationException e) {
                        throw new CustomException("不支持的COMM端口操作异常");
                    } catch (IOException e) {
                        throw new CustomException("获取流异常");
                    }
                }
            }
        }
        // 若不存在该串口则抛出异常
        if (!isExsist) {
            throw new CustomException("不存在该串口！");
        }
    }

    /**
     * 发送信息
     * @param message
     */
    public void sendMessage(String message) {
        try {
            outputStream.write(message.getBytes("gbk"));
            outputStream.flush();
        } catch (NullPointerException e) {
            throw new CustomException("找不到串口。");
        } catch (IOException e) {
            throw new CustomException("发送信息到串口时发生IO异常");
        }
    }

    /**
     * 关闭串口
     */
    public void closeSerialPort() {
        if (serialPort != null) {
            serialPort.notifyOnDataAvailable(false);
            serialPort.removeEventListener();
            if (inputStream != null) {
                try {
                    inputStream.close();
                    inputStream = null;
                } catch (IOException e) {
                    throw new CustomException("关闭输入流时发生IO异常");
                }
            }
            if (outputStream != null) {
                try {
                    outputStream.close();
                    outputStream = null;
                } catch (IOException e) {
                    throw new CustomException("关闭输出流时发生IO异常");
                }
            }
            serialPort.close();
            serialPort = null;
        }
    }

    //处理返回后的消息
    @Override
    public void run() {
        try {
            System.out.println("--------------任务处理线程运行了--------------");
            while (true) {
                // 如果堵塞队列中存在数据就将其输出
                if (msgQueue.size() > 0) {
                    System.out.println(msgQueue.take());
                }
            }
        } catch (InterruptedException e) {
            e.printStackTrace();
        }
    }

}

发送消息

        RxtxUtil com1 = new RxtxUtil("COM1", 9600);
        com1.sendMessage("aaaa");
