【MySQL】python下操作数据库，合并显示追踪与船名

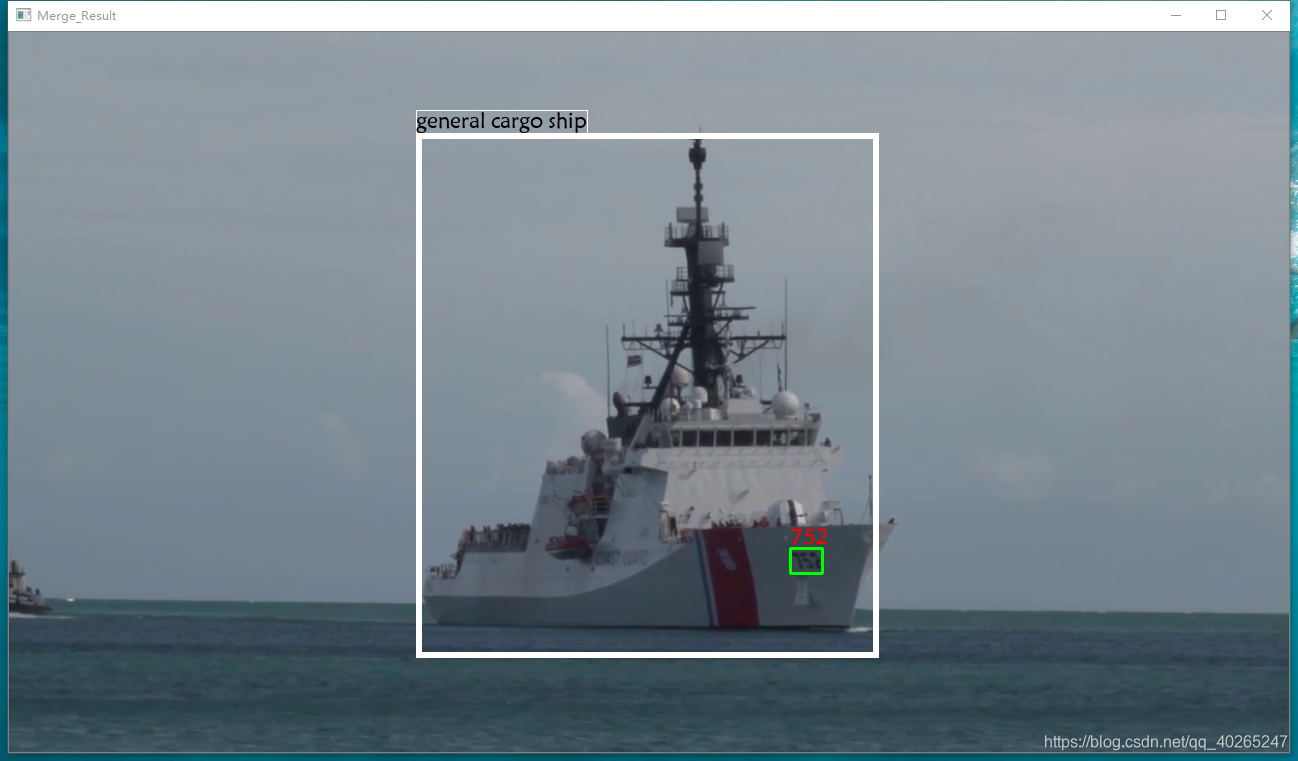

这个是合并显示的代码：showMerge.py，这里获取的数据是之前跟踪模型与OCR模型保存的结果。

from DAO import *
import os
import cv2
from PIL import Image, ImageFont, ImageDraw
import numpy as np
import math
import textwrap

import sys,getopt

def fetchFromTrack(videoFile,imageName):
    RectBoxTable.videoFile = videoFile
    RectBoxTable.imageFile = imageName
    rectsInfoByName = RectBoxTable.find()
    trackInfos = []
    for rectInfo in rectsInfoByName:
        trackInfos.append([rectInfo.x0,rectInfo.y0,rectInfo.x1,rectInfo.y1,rectInfo.label])

    return trackInfos

def drawRects(trackInfo,image):
    font = ImageFont.truetype("model/STXINWEI.TTF", size=np.floor(3e-2 * image.size[1] + 0.5).astype('int32'), encoding='utf-8')
    thickness = (image.size[0] + image.size[1]) // 300

    [left, top,right, bottom,label] = trackInfo

    draw = ImageDraw.Draw(image)
    label_size = draw.textsize(label, font)

    # print(label, (left, top), (right, bottom))

    if top - label_size[1] >= 0:
        text_origin = np.array([left, top - label_size[1]])
    else:
        text_origin = np.array([left, top + 1])

    # My kingdom for a good redistributable image drawing library.
    for i in range(thickness):
        draw.rectangle(
            [left + i, top + i, right - i, bottom - i])
    draw.rectangle(
        [tuple(text_origin), tuple(text_origin + label_size)])
    draw.text(text_origin, label, fill=(0, 0, 0), font=font)
    del draw

#-------------------------------------------------------------------------------------
def order_points(pts):
    def centeroidpython(pts):
        x, y = zip(*pts)
        l = len(x)
        return sum(x) / l, sum(y) / l

    centroid_x, centroid_y = centeroidpython(pts)
    pts_sorted = sorted(pts, key=lambda x: math.atan2((x[1] - centroid_y), (x[0] - centroid_x)))
    return pts_sorted

def fetchFromOCR(videoFile,imageName):
    TextBoxTable.videoFile = videoFile
    TextBoxTable.imageFile = imageName
    polygonsInfoByName = TextBoxTable.find()

    ocrInfos = []
    for polygonInfo in polygonsInfoByName:
        ocrInfos.append([polygonInfo.x0,polygonInfo.y0,polygonInfo.x1,polygonInfo.y1,
        polygonInfo.x2,polygonInfo.y2,polygonInfo.x3,polygonInfo.y3,polygonInfo.label
        ])

    return ocrInfos


def drawOCR(ocrInfo,frame):


    points = ocrInfo[:-1]
    label = ocrInfo[-1]

    points = np.asarray(points)
    points = np.reshape(points, [-1, 2])
    cv2.polylines(frame, np.int32([points]), 1, (0, 255, 0), 2)


    image = Image.fromarray(frame)

    font_size = np.floor(3e-2 * image.size[1] + 0.5).astype('int32')
    font = ImageFont.truetype("model/STXINWEI.TTF", size=font_size, encoding='utf-8')
    thickness = (image.size[0] + image.size[1]) // 300

    DRAW = ImageDraw.Draw(image)
    points = order_points(points)

    # lines = textwrap.wrap(label, width=1)
    # y_text = points[0][1]
    # for line in lines:
    #     width, height = font.getsize(line)
    #     DRAW.text((max(points[0][0] - font_size, 0), y_text), line, (0,0,255), font=font)
    #     y_text += height
    DRAW.text((points[0][0], max(points[0][1] - font_size, 0)), label, (0,0,255), font=font)
    del DRAW

    return image

#---------------------------------------------------------------------------------------------------------

def showVideo(videoFile):

    # 1.读视频帧
    capture = cv2.VideoCapture(os.path.join(r"static\video",videoFile))
    imageName = 1
    while True:
        ret, frame = capture.read()
        # print(type(frame))
        time = capture.get(0) / 1000.0  # 时间戳，并转换为秒
        print("帧时间戳{:.2f}秒".format(time))
        if not ret:
            print('ret is False')
            # g.videoState = "end"
            break

        image = None

        # 3.1获取保存的OCR数据
        ocrInfos = fetchFromOCR(videoFile,imageName)
        # 3.2画
        if len(ocrInfos)>0:
            for ocrInfo in ocrInfos:
                image = drawOCR(ocrInfo,frame)
        else:
            image = Image.fromarray(frame)  # 由于没有OCR的框 所以image这里的人为赋值


        # 2.1获取保存的Track框与标签
        trackInfos = fetchFromTrack(videoFile,imageName)

        # 2.2画Track框与标签
        if len(trackInfos)>0:
            for trackInfo in trackInfos:
                drawRects(trackInfo,image)


        # 显示
        # img = 255 * np.array(image).astype('uint8')
        img = np.array(image)
        # img = cv2.cvtColor(np.array(img), cv2.COLOR_RGB2BGR)  # PIL转cv2
        cv2.imshow("Merge_Result",img)
        cv2.waitKey(30)


        imageName +=1

def main(argv):
    videoFile = ""
    try:
        opts, args = getopt.getopt(argv,"hv:",["videoName="])
    except getopt.GetoptError:
        print("Error:usage -v <videoName>")
        sys.exit(2)
    for opt, arg in opts:
        if opt=="-h":
            print("usage -v <videoName>")
        elif opt in ("-v","--videoName"):
            videoFile = arg
    if videoFile!="":
        showVideo(videoFile)

if __name__ == '__main__':
    main(sys.argv[1:])
    # showVideo("boat1.mp4")

看完上面的代码你肯定很懵圈，因为表单的类结构还没有给你。下面我们来看看它俩

# 导入模块
from flask import Flask
from flask_sqlalchemy import SQLAlchemy  #ORM框架 依赖pymysql才能操作数据库
import pymysql

# 创建flask对象
app = Flask(__name__)

app.secret_key = 'asdfasdf'

def getDb():
    # 配置flask配置对象中键：SQLALCHEMY_DATABASE_URI

    app.config['SQLALCHEMY_DATABASE_URI'] = "mysql+pymysql://root:root@127.0.0.1:3306/labelSoft"

    # 配置flask配置对象中键：SQLALCHEMY_COMMIT_TEARDOWN,设置为True,应用会自动在每次请求结束后提交数据库中变动

    app.config['SQLALCHEMY_COMMIT_TEARDOWN'] = True
    app.config['SQLALCHEMY_TRACK_MODIFICATIONS'] = True
    app.config['SQLALCHEMY_COMMIT_ON_TEARDOWN'] = True

    # 获取SQLAlchemy实例对象，接下来就可以使用对象调用数据

    db = SQLAlchemy(app)

    return db

db = getDb()

class TextBoxTable(db.Model):
    __tablename__ = 'TextBoxInfo'
    id = db.Column(db.Integer, primary_key=True, autoincrement=True)
    videoName = db.Column(db.String(25))  # 是单张图片就为空
    imageName = db.Column(db.String(25), nullable=False)
    # imageId = db.Column(db.Integer)
    label = db.Column(db.String(100), nullable=False)
    x0 = db.Column(db.FLOAT(8, 2), nullable=False)
    y0 = db.Column(db.FLOAT(8, 2), nullable=False)
    x1 = db.Column(db.FLOAT(8, 2), nullable=False)
    y1 = db.Column(db.FLOAT(8, 2), nullable=False)
    x2 = db.Column(db.FLOAT(8, 2), nullable=False)
    y2 = db.Column(db.FLOAT(8, 2), nullable=False)
    x3 = db.Column(db.FLOAT(8, 2), nullable=False)
    y3 = db.Column(db.FLOAT(8, 2), nullable=False)

    videoFile = "null"
    imageFile = "image1.jpg"  # 类变量 通过类名.imageName = "..." 修改

    def __init__(self, label, x0, y0, x1, y1, x2, y2, x3, y3, image, video="null"):
        self.videoName = video
        self.imageName = image
        self.label = label  # 这个是实例变量，也就是对象变量
        self.x0 = x0
        self.y0 = y0
        self.x1 = x1
        self.y1 = y1
        self.x2 = x2
        self.y2 = y2
        self.x3 = x3
        self.y3 = y3

    def __repr__(self):
        return '<BoxTable %r>' % self.label  # 类似重写了java中的toString方法

    def save(self):  # 增
        db.session.add(self)
        db.session.commit()

    @classmethod  # 类方法
    def find(cls): # 查
        recsByName = TextBoxTable.query.filter(
            cls.imageName == cls.imageFile, cls.videoName == cls.videoFile).all()  # 返回的是对象列表  不加.all()只是sql语句
        return recsByName

    def delete(self): # 删
        db.session.delete(self)
        db.session.commit()
        # print("删除框：")
        # print(self)


class RectBoxTable(db.Model):
    __tablename__ = 'RectBoxInfo'
    id = db.Column(db.Integer, primary_key=True, autoincrement=True)
    videoName = db.Column(db.String(25))  # 是单张图片就为空
    imageName = db.Column(db.String(25), nullable=False)
    label = db.Column(db.String(25), nullable=False)
    x0 = db.Column(db.FLOAT(8, 2), nullable=False)
    y0 = db.Column(db.FLOAT(8, 2), nullable=False)
    x1 = db.Column(db.FLOAT(8, 2), nullable=False)
    y1 = db.Column(db.FLOAT(8, 2), nullable=False)

    videoFile = "null"
    imageFile = "image1.jpg"  # 类变量 通过类名.imageName = "..." 修改

    def __init__(self, label, x0, y0, x1, y1, image, video="null"):
        self.videoName = video
        self.imageName = image
        self.label = label  # 这个是实例变量，也就是对象变量
        self.x0 = x0
        self.y0 = y0
        self.x1 = x1
        self.y1 = y1

    def __repr__(self):
        return '<BoxTable %r>' % self.label  # 类似重写了java中的toString方法

    def save(self): #增
        db.session.add(self)
        db.session.commit()

    @classmethod  # 类方法
    def find(cls): # 查
        recsByName = RectBoxTable.query.filter(
            cls.imageName == cls.imageFile, cls.videoName == cls.videoFile).all()  # 返回的是对象列表  不加.all()只是sql语句
        return recsByName

    def delete(self): # 删
        db.session.delete(self)
        db.session.commit()
        # print("删除框：")
        # print(self)


if __name__ == '__main__':
    db.create_all()  # 创建表

补充：

    # 1.获得图片帧总数（剔除重复
    sql = 'select DISTINCT imageName from TextBoxInfo WHERE videoname <=>"%s"' % TextBoxTable.videoFile
    data_query = db.session.execute(sql)
    frameList = []
    for data in data_query.fetchall():
        frameList.append(data[0])

PS：SQLAlchemy下的操作参考link
