物理外挂-水排序谜题

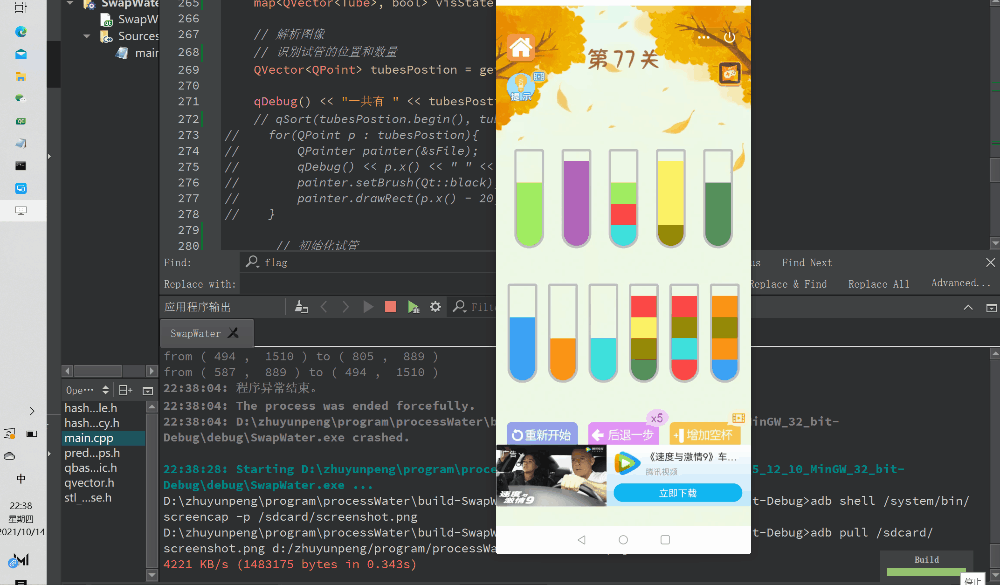

效果演示

代码

#include <QCoreApplication>
#include <QGuiApplication>
#include <QPixmap>
#include <QVector>
#include <QImage>
#include <QSet>
#include <QQueue>
#include <QPainter>
#include <QMap>
#include <QHash>
#include <QThread>
#include <QProcess>

#include <iostream>
#include <map>
#include <unordered_map>

#include <QDebug>

using namespace  std;

#define SCREENSHOT_PATH "D:/zhuyunpeng/program/processWater/screenshot.png"
#define OUTFILE_PATH "D:/zhuyunpeng/program/processWater/test.png"

#define TUBE_COLOR QColor(192, 192, 192, 255)
#define VIS_TUBE_COLOR QColor(0, 0, 0, 255)
#define DEFAULE_BACKGROUND_COLOR QColor(239, 250, 229, 255)

struct Tube{
    int id;                     // 试管编号
    unsigned int color[4];      // 试管存放的各颜色的液体
    int size;                   // 试管当前的存放的液体数量
    QPoint position;            // 试管在图像上的位置

    bool operator <(const Tube &t)const{
        return size < t.size;
    }
};

struct Step{
    QPoint click1;              // 第一次点击的位置
    QPoint click2;              // 第二次点击的位置
};

bool cmpQPoint(const QPoint a, const QPoint b){
    if(a.x() == b.x()) return a.y() < b.y();
    return a.x() < b.x();
}

// 打印所有试管数据
void printTubes(const QVector<Tube> tubes)
{
    for(const Tube &tube : tubes)
    {
        for(int i = 0;i < tube.size; i++)
        {
            std::cout << tube.color[i] << " ";
        }
        std::cout << std::endl;
    }

    printf("\n\n\n");
}

/*!
 * \brief 获取试管的中心
 * \details 根据试管的颜色进行搜索，计算试管的位置
 * \return  各个试管外接矩形的中心
 */
QVector<QPoint> getTubeCenter(QImage &image)
{
    QVector<QPoint> res;
    int w = image.width();
    int h = image.height();
    int dx[4] = {0, -1, 0, 1};
    int dy[4] = {-1, 0, 1, 0};

    for(int i = 0;i < w; ++i)
    {
        for(int j = 0;j < h; ++j)
        {
            QColor pColor = image.pixelColor(i, j);
            int cnt = 1;
            if(pColor == TUBE_COLOR)
            {
                QPoint leftTop(i, j);
                QPoint rightButtom(i, j);
                QQueue<QPoint> que;
                que.push_back(QPoint(i, j));
                image.setPixelColor(i, j, VIS_TUBE_COLOR);
                while(que.count()){
                    // qDebug() << que.count() << endl;
                    QPoint p = que.front();
                    que.pop_front();

                    // qDebug() << image.pixelColor(p).blue();
                    for(int d = 0; d < 4; ++d)
                    {
                        int xx = p.x() + dx[d];
                        int yy = p.y() + dy[d];
                        QColor tc = image.pixelColor(xx, yy);
                        if(xx < 0 || yy < 0 || xx >= w || yy >= h || !(tc == TUBE_COLOR)) continue;
                        que.push_back(QPoint(xx, yy));
                        leftTop.setX(qMin(leftTop.x(), xx));
                        leftTop.setY(qMin(leftTop.y(), yy));
                        rightButtom.setX(qMax(rightButtom.x(), xx));
                        rightButtom.setY(qMax(rightButtom.y(), yy));
                        image.setPixelColor(xx, yy, VIS_TUBE_COLOR);
                        cnt++;
                    }
                }
                if(cnt > 200)
                {
                    res.push_back(QPoint((leftTop.x() + rightButtom.x()) / 2,
                                         (leftTop.y() + rightButtom.y()) / 2));
                }
            }
        }
    }
    return res;
}

/*!
 * \brief 从(i,j)开始搜索，将相同颜色归类，目的是确定矩形色块的位置
 * \return 所有和（i，j）处相连，且是统一颜色的像素的位置
 */
QVector<QPoint> findColor(QImage image, int i, int j)
{
    int w = image.width();
    int h = image.height();
    int dx[4] = {0, -1, 0, 1};
    int dy[4] = {-1, 0, 1, 0};
    QVector<QPoint> res;
    QColor flagColor = image.pixelColor(i, j);
    QColor visColor(255-flagColor.red(), 255-flagColor.green(), 255-flagColor.blue(), 255);
    QQueue<QPoint> que;
    que.push_back({i, j});
    image.setPixelColor(i, j, visColor);
    res.push_back({i, j});
    while(que.size())
    {
        QPoint p = que.front();
        que.pop_front();
        for(int d = 0;d < 4; ++d)
        {
            int xx = p.x() + dx[d];
            int yy = p.y() + dy[d];
            if(xx < 0 || yy < 0 || xx >= w || yy >= h
                    || image.pixelColor(xx, yy) != flagColor) continue;
            image.setPixelColor(xx, yy, visColor);
            que.push_back({xx, yy});
            res.push_back({xx, yy});
        }
    }
    return res;
}

QVector<QPoint> findColor(QImage image, QPoint p)
{
    return findColor(image, p.x(), p.y());
}
/*!
 * \brief 判断是否已经结束倒水
 */
bool isEnd(const QVector<Tube> &tubes)
{
    for(const Tube &tube : tubes)
    {
        if(tube.size > 0 && tube.size < 4)
            return false;
        if(tube.size == 0)
            continue;
        if(tube.size == 4)
        {
            if(tube.color[0] == tube.color[1]
                    && tube.color[1] == tube.color[2]
                    && tube.color[2] == tube.color[3])
                continue;
            else
                return false;

        }
    }
    return true;
}

// 将试管1的水倒入试管2
void pushWater(Tube &t1, Tube &t2)
{
    if(t2.size == 4 || t1.size == 0) return;
    if(t2.size == 0 || t2.color[t2.size - 1] == t1.color[t1.size - 1])
    {
        t2.color[t2.size] = t1.color[t1.size - 1];
        t2.size++;
        t1.size--;
        pushWater(t1, t2);
    }
}

/*!
 * \brief 深搜寻找解
 */
bool findSteps(QVector<Tube> &tubes, map<QVector<Tube>, bool> &vis, QVector<Step> &steps, int deep)
{
    if(deep > 500) return false;
    if(isEnd(tubes))
        return true;
    if(vis.find(tubes) != vis.end()) return false;
    vis[tubes] = true;

    for(int i = 0;i < tubes.size(); ++i)
    {
        if(tubes[i].size == 0) continue;
        bool colorOver1 = false; // 是否超过1种颜色
        for(int k = 1;k < tubes[i].size; ++k)
        {
            if(tubes[i].color[k] != tubes[i].color[k - 1])
                colorOver1 = true;
        }

        for(int j = 0;j < tubes.size(); ++j)
        {
            if(i == j) continue;
            if(tubes[j].size == 4) continue;
            // 如果试管中的颜色只有一种，则不允许与一个空试管进行交换
            if(tubes[j].size == 0 && !colorOver1) continue;
            if(tubes[j].size == 0 ||
                    tubes[j].color[tubes[j].size - 1] == tubes[i].color[tubes[i].size - 1])
            {

                Tube tubei = tubes[i];
                Tube tubej = tubes[j];

                steps.push_back({tubes[i].position, tubes[j].position});
                pushWater(tubes[i], tubes[j]);

                // 剪枝：强制同颜色的水倒完
                bool flag = true;
                flag = (tubes[i].size > 0 &&
                        tubes[i].color[tubes[i].size - 1] != tubes[j].color[tubes[j].size - 1])
                        || tubes[i].size == 0;
                if(flag && findSteps(tubes, vis, steps, deep + 1))
                {
                    return true;
                }
                steps.pop_back();
                tubes[i] = tubei;
                tubes[j] = tubej;
            }
        }
    }
    return false;
}

int main(int argc, char *argv[])
{
    //获取手机屏幕
    system("D:/zhuyunpeng/program/processWater/screenshot.bat");
    QThread::sleep(3);

    QGuiApplication a(argc, argv);
    QImage sFile(SCREENSHOT_PATH);

    // test
    // QPainter painter(&sFile);

    // 数据存储
    QVector<Tube> tubes;
    map<QVector<Tube>, bool> visState;

    // 解析图像
    // 识别试管的位置和数量
    QVector<QPoint> tubesPostion = getTubeCenter(sFile);

    qDebug() << "一共有 " << tubesPostion.size() << " 个试管";
       // 初始化试管
    for(int i = 0;i < tubesPostion.size(); ++i)
    {
        Tube tube;
        tube.id = i;
        tube.position = tubesPostion[i];
        // 解析试管中的颜色和容量
        QPoint keyPoints[4] = {
            {tube.position.x(), tube.position.y() + 165},
            {tube.position.x(), tube.position.y() + 75},
            {tube.position.x(), tube.position.y() - 25},
            {tube.position.x(), tube.position.y() - 120}
        };

        tube.size = 0;
        for(int j = 0;j < 4; ++j)
        {
            QPoint keyPoint = keyPoints[j];
            QColor pColor = sFile.pixelColor(keyPoint);
            QVector<QPoint> points = findColor(sFile, keyPoint);

            // 认为大于9000的色块是有效试管颜色
            if(points.size() >= 9000)
            {
                tube.color[tube.size++] = (unsigned int)pColor.rgba();
            }else{
                break;
            }
        }

        tubes.push_back(tube);
    }

    // 输出各个试管内的颜色情况
    for(int i = 0;i < tubes.size(); ++i){
        Tube &tube = tubes[i];
        qDebug() << "第" << i <<"个试管内的情况: "
                 << "position=(" << tube.position.x() << ", " << tube.position.y() << ") "
                 << "size = " << tube.size;
        for(int j = tube.size - 1;j >= 0; --j){
            qDebug() << tube.color[j] << " ";
        }
    }

    // sFile.save(OUTFILE_PATH);
    // 生成试管倒水的移动方案
    QVector<Step> steps;
    if(findSteps(tubes, visState, steps, 1))
    {
        qDebug() << "已找到解决方案! 步骤数=" << steps.size();
    }else{
        qDebug() << "未找到解决方案! 步骤数=" << steps.size();
    }

    // 执行方案
    // 将互不影响的试管方案并发执行
    QVector<Step> runSteps;

    for(int i = 0;i < steps.size(); ++i){
        Step &step = steps[i];
        if(runSteps.size())
        {
            bool canRun = true;
            for(Step &s : runSteps){
                // 将互不影响的方案并发执行
                if(s.click1 == steps[i].click1
                        || s.click1 == steps[i].click2
                        || s.click2 == steps[i].click1)
                {
                    canRun = false;
                    break;
                }
            }
            if(!canRun){
                runSteps.clear();
                QThread::sleep(3);
            }
        }
        runSteps.push_back(steps[i]);
        qDebug() << "from (" << step.click1.x() << ", " << step.click1.y() << ")"
                 << "to (" << step.click2.x() << ", " << step.click2.y() << ")";
        QString cmd1 = QString("adb shell input tap %1 %2")
                .arg(step.click1.x()).arg(step.click1.y());
        system(cmd1.toStdString().c_str());
        QThread::msleep(100);

        QString cmd2 = QString("adb shell input tap %1 %2")
                .arg(step.click2.x()).arg(step.click2.y());
        system(cmd2.toStdString().c_str());
        // QThread::sleep(3);
    }

    return 0;
}
