2.HTML Viewer

          通过cl_gui_html_viewer类显示url链接或者显示HTML页面。

       1.创建cl_gui_html_viewer类对象，调用show_url显示url对应网页；

       2.调用load_html_document方法加载Tcode:SMW0的html；

上传html文檔：

<HTML>
<HEAD>
<TITLE>SAP HTML Page</TITLE>
</HEAD>
<BODY>
<H1>
<IMG SRC=SAPLOGO.GIF ALIGN=MIDDLE> SAP HTML Header
</H1>
<P>
<H2>SAP HTML Post Form</H2>
<FORM method=post action=SAPEVENT:POST>
          <INPUT TYPE=text NAME=FirstName VALUE=John>
          <INPUT TYPE=submit VALUE="Submit input using POST method">
</FORM>
</P>
<P>
<H2>SAP HTML Get Form</H2>
<FORM method=get action="SAPEVENT:GET">
<INPUT TYPE=text NAME=FirstName VALUE=king>
<INPUT TYPE=submit VALUE="Submit input using GET method">
</FORM>
</P>
</BODY>
</HTML>

Tcode:SMW0,上传html文件

示例1：ABAP显示html获取post,get表单信息

"html viewer事件
CLASS c1_event DEFINITION.
  PUBLIC SECTION.
    CLASS-METHODS:m_sapevent FOR EVENT sapevent OF cl_gui_html_viewer
      IMPORTING action frame getdata postdata query_table.
ENDCLASS.
CLASS c1_event IMPLEMENTATION.
  METHOD m_sapevent.
    DATA:lv_str TYPE string.
    DATA:lt_postdata TYPE cnht_post_data_tab.
    DATA:ls_postdata LIKE LINE OF lt_postdata.
    DATA:lt_edquery TYPE cnht_query_table.
    DATA:ls_edquery LIKE LINE OF lt_edquery.
    lv_str = 'action:' && action
      && ';frame' && frame
      && ';getdata' && getdata.
    lt_postdata = postdata.
    lt_edquery = query_table.
    IF lt_postdata IS NOT INITIAL.
      READ TABLE lt_postdata INTO ls_postdata INDEX 1.
    ENDIF.
    lv_str = lv_str && ';' && ls_postdata.
    LOOP AT lt_edquery INTO ls_edquery.
      lv_str = lv_str && ';name='
        && ls_edquery-name
        && '-'
        && ls_edquery-value.
    ENDLOOP.
    MESSAGE lv_str TYPE 'I'.
  ENDMETHOD.
ENDCLASS.

"cl_gui_html_viewer
"html显示
CLASS c1 DEFINITION.
  PUBLIC SECTION.
    DATA:lo_html_viewer TYPE REF TO cl_gui_html_viewer.
    METHODS:m_html_init.
    METHODS:m_html_viewer IMPORTING iv_url TYPE string.
    METHODS:m_html_load.
ENDCLASS.
CLASS c1 IMPLEMENTATION.
  METHOD m_html_init.
    DATA:lt_events TYPE cntl_simple_events.
    DATA:ls_events LIKE LINE OF lt_events.

    CREATE OBJECT lo_html_viewer
      EXPORTING
        parent = cl_gui_container=>default_screen.
    "设置event
    ls_events-eventid = lo_html_viewer->m_id_sapevent.
    ls_events-appl_event = 'X'.
    APPEND ls_events TO lt_events.
    lo_html_viewer->set_registered_events( events = lt_events ).
    SET HANDLER c1_event=>m_sapevent FOR lo_html_viewer.
  ENDMETHOD.
  METHOD m_html_viewer.
    DATA:lv_url TYPE C LENGTH 200.
    lv_url = iv_url.
    CREATE OBJECT lo_html_viewer
      EXPORTING
        parent = cl_gui_container=>default_screen.
    "使用GUI显示html
    lo_html_viewer->show_url( url = lv_url ).
    "使用默认浏览器打开url
    "lo_html_viewer->detach_url_in_browser( url = lv_url ).
    "lo_html_viewer->show_url_in_browser( url = lv_url ).
  ENDMETHOD.
  "加载html,Tcode:smw0,文檔
  METHOD m_html_load.
    DATA:lv_url TYPE C LENGTH 200.
    "加载图片
    lo_html_viewer->load_mime_object(
      EXPORTING
        object_id = 'HTMLCNTL_TESTHTM2_SAPLOGO'
        object_url = 'SAPLOGO.GIF'
    ).
    "加载html
    lo_html_viewer->load_html_document(
      EXPORTING
        document_id = 'ZTOM_HTML'
      IMPORTING
        assigned_url = lv_url
     ).
    lo_html_viewer->show_url( url = lv_url ).
  ENDMETHOD.
ENDCLASS.

START-OF-SELECTION.
  PERFORM f_show_html.

FORM f_show_html.
   DATA:lv_url TYPE string VALUE 'https://www.runoob.com/'.
   DATA:lo_c1 TYPE REF TO c1.
   "生成一个默认屏幕
   WRITE:/ '1'.
   CREATE OBJECT lo_c1.
   lo_c1->m_html_init( ).
   "lo_c1->m_html_viewer( iv_url = lv_url ).
   lo_c1->m_html_load( ).
ENDFORM.

示例2：html多个页面切换

"html viewer事件
CLASS c1_event DEFINITION.
  PUBLIC SECTION.
    CLASS-METHODS:m_sapevent FOR EVENT sapevent OF cl_gui_html_viewer
      IMPORTING action frame getdata postdata query_table.
ENDCLASS.
CLASS c1_event IMPLEMENTATION.
  METHOD m_sapevent.
    DATA:lv_str TYPE string.
    DATA:lt_postdata TYPE cnht_post_data_tab.
    DATA:ls_postdata LIKE LINE OF lt_postdata.
    DATA:lt_edquery TYPE cnht_query_table.
    DATA:ls_edquery LIKE LINE OF lt_edquery.
    lv_str = 'action:' && action
      && ';frame' && frame
      && ';getdata' && getdata.
    lt_postdata = postdata.
    lt_edquery = query_table.
    IF lt_postdata IS NOT INITIAL.
      READ TABLE lt_postdata INTO ls_postdata INDEX 1.
    ENDIF.
    LOOP AT lt_edquery INTO ls_edquery.
      lv_str = 'name:' && ls_edquery-name
       && 'value:' && ls_edquery-value && ';'.
    ENDLOOP.
    MESSAGE lv_str TYPE 'I'.
  ENDMETHOD.
ENDCLASS.

"cl_gui_html_viewer
"html显示
CLASS c1 DEFINITION.
  PUBLIC SECTION.
    DATA:lo_html_viewer TYPE REF TO cl_gui_html_viewer.
    METHODS:m_html_init.
    METHODS:m_html_viewer IMPORTING iv_url TYPE string.
    METHODS:m_html_load.
ENDCLASS.
CLASS c1 IMPLEMENTATION.
  METHOD m_html_init.
    DATA:lt_events TYPE cntl_simple_events.
    DATA:ls_events LIKE LINE OF lt_events.
    CREATE OBJECT lo_html_viewer
      EXPORTING
        parent = cl_gui_container=>default_screen.
    "设置event
    ls_events-eventid = lo_html_viewer->m_id_sapevent.
    ls_events-appl_event = 'X'.
    APPEND ls_events TO lt_events.
    lo_html_viewer->set_registered_events( events = lt_events ).
    SET HANDLER c1_event=>m_sapevent FOR lo_html_viewer.
  ENDMETHOD.
  METHOD m_html_viewer.
    DATA:lv_url TYPE C LENGTH 200.
    lv_url = iv_url.
    "使用GUI显示html
    lo_html_viewer->show_url( url = lv_url ).
    "使用默认浏览器打开url
    "lo_html_viewer->detach_url_in_browser( url = lv_url ).
    "lo_html_viewer->show_url_in_browser( url = lv_url ).
  ENDMETHOD.
  "加载html,Tcode:smw0,文檔
  METHOD m_html_load.
    DATA:lv_url TYPE C LENGTH 200.
    "加载图片资源
    lo_html_viewer->load_mime_object(
      EXPORTING
        object_id = 'HTMLCNTL_TESTHTM2_SAPLOGO'
        object_url = 'SAPLOGO.GIF'
    ).
    "加载页面资源
    lo_html_viewer->load_html_document(
      EXPORTING
        document_id = 'ZTOM_HTML1'
        document_url = 'ZTOM_HTML1.htm'
     ).
    "加载页面资源
    lo_html_viewer->load_html_document(
      EXPORTING
        document_id = 'ZTOM_HTML2'
        document_url = 'ZTOM_HTML2.htm'
     ).
    "获取页面url
    lo_html_viewer->load_html_document(
      EXPORTING
        document_id = 'ZTOM_HTML1'
      IMPORTING
        assigned_url = lv_url
     ).
    lo_html_viewer->show_url( url = lv_url ).
  ENDMETHOD.
ENDCLASS.

START-OF-SELECTION.
  PERFORM f_show_html.

FORM f_show_html.
   DATA:lv_url TYPE string VALUE 'https://www.runoob.com/'.
   DATA:lo_c1 TYPE REF TO c1.
   "生成一个默认屏幕
   WRITE:/ '1'.
   CREATE OBJECT lo_c1.
   lo_c1->m_html_init( ).
   "显示url对应页面
   "lo_c1->m_html_viewer( iv_url = lv_url ).
   "加载多个页面
   lo_c1->m_html_load( ).
ENDFORM.

html页面源代码：

ztom_html1.html页面代码，其中link到page3,page4下一个例子有使用到实现。

<!DOCTYPE html>
<html>
<head>
  <meta charset="utf-8">
  <meta name="viewport" content="width=device-width, initial-scale=1">
  <link rel="stylesheet" href="https://cdn.staticfile.org/twitter-bootstrap/4.3.1/css/bootstrap.min.css">
  <script src="https://cdn.staticfile.org/jquery/3.2.1/jquery.min.js"></script>
  <script src="https://cdn.staticfile.org/popper.js/1.15.0/umd/popper.min.js"></script>
  <script src="https://cdn.staticfile.org/twitter-bootstrap/4.3.1/js/bootstrap.min.js"></script>
  <script src="https://cdn.staticfile.org/jquery/1.10.2/jquery.min.js"></script>
</head>

<body>
<div class="container">
  <ul class="nav nav-pills">
    <li class="nav-item">
      <a class="nav-link active" href="ztom_html1.htm">首頁</a>
    </li>
    <li class="nav-item">
      <a class="nav-link" href="ztom_html2.htm">Page2</a>
    </li>
    <li class="nav-item">
      <a class="nav-link" href="ztom_html3.htm">Page3</a>
    </li>
    <li class = "nav-item">
      <a class="nav-link" href = "ztom_html4.htm">Page4</a>
    </li>
  </ul>
</div>

<div class="container">
 <h2>POST表#</h2>
  <form method=POST action="SAPEVENT:POST_FORM">
    <div class="form-group">
        <label for="email">Email:</label>
        <input type="email" class="form-control" placeholder="Enter email" name = "email">
    </div>
    <div class="form-group">
        <label for="pwd">Password:</label>
        <input type="password" class="form-control" placeholder="Enter password" name = "pwd">
    </div>
    <button type="submit" class="btn btn-primary">Submit Post</button>
  </form>
  <h2>GET表#</h2>
  <form method=GET action="SAPEVENT:GET_FORM">
    <div class="form-group">
      <label for="email">Email:</label>
      <input type="email" class="form-control" name="email" placeholder="Enter email">
    </div>
    <div class="form-group">
      <label for="pwd">Password:</label>
      <input type="password" class="form-control" name="pwd" placeholder="Enter password">
    </div>
    <button type="submit" class="btn btn-primary">Submit Get</button>
  </form>
  <h2>POST Parameter表#</h2>
  <form method=POST action="SAPEVENT:POST_FORM?MY_PARAMETER">
    <div class="form-group">
      <label for="email">Email:</label>
      <input type="email" class="form-control" name="email" placeholder="Enter email">
    </div>
    <div class="form-group">
      <label for="pwd">Password:</label>
      <input type="password" class="form-control" name="pwd" placeholder="Enter password">
    </div>
    <button type="submit" class="btn btn-primary">Submit PARAMETER</button>
  </form>
</div>

</body>
</html>

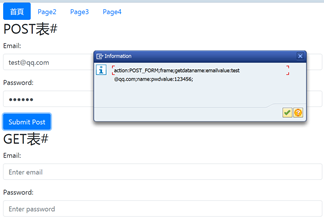

显示效果：通过Submit Post提交，触发sapevent事件

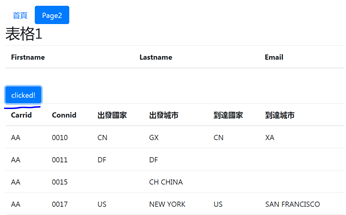

ztom_html2.htm页面代码，其中可以通过script，Ajax调用系统提供service，获取数据然后渲染动态显示。

Tcode:SICF,创建一个Service,获取spfli数据。

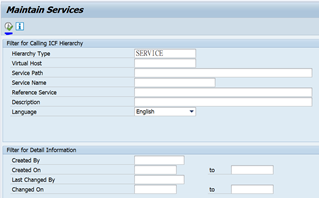

选择Maintain Services页面，点击执行。

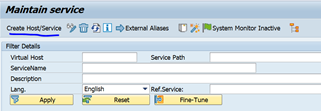

选择Create Service

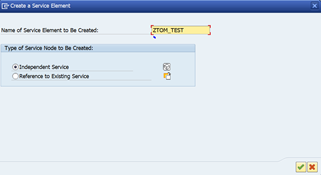

设置Service名，ZTOM_TEST

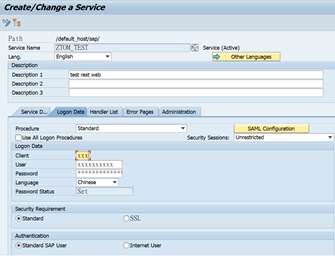

输入clien,user,password。表示Service仅对当前user生效。其余配置请参考Service的配置说明文件。

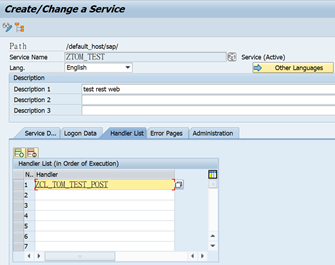

 最主要的是Handler List,这里函数提供Service返回数据逻辑。

这里ZCL_TOM_TEST_POST类处理逻辑

创建Class:ZCL_TOM_TEST_POST,实现接口IF_HTTP_EXTENSION



实现接口方法HANDLE_REQUEST



 代码示例：

*    DATA: lo_json_ser TYPE REF TO cl_trex_json_serializer,
*          lo_json_des TYPE REF TO cl_trex_json_deserializer.
    DATA: lv_json_string TYPE string.
    DATA: lt_spfli TYPE TABLE OF spfli.
    DATA: lv_input_json TYPE string .
    DATA: lt_header TYPE TIHTTPNVP.
    DATA: ls_header TYPE IHTTPNVP.

    DATA: lo_json_writer TYPE REF TO cl_sxml_string_writer.
    DATA:lv_json_x TYPE xstring.

    "跨域訪問header
    ls_header-name = 'Access-Control-Allow-Origin'.
    ls_header-value = '*'.
    APPEND ls_header TO lt_header.
    ls_header-name = 'Access-Control-Allow-Methods'.
    ls_header-value = 'POST'.
    APPEND ls_header TO lt_header.
    ls_header-name = 'Access-Control-Allow-Headers'.
    ls_header-value = 'x-requested-with,content-type'.
    APPEND ls_header TO lt_header.

    "获取传入的json 内容
    lv_input_json = server->request->if_http_entity~get_cdata( )."獲取傳入內容

    "设置返回数据格式
    CALL METHOD server->response->if_http_entity~set_content_type
      EXPORTING
        content_type = 'application/json'.
    "查询数据
    SELECT * INTO TABLE lt_spfli FROM spfli UP TO 20 ROWS.

    lo_json_writer = cl_sxml_string_writer=>create( type = if_sxml=>co_xt_json ).
    CALL TRANSFORMATION ID
    SOURCE
      detail = lt_spfli
    RESULT XML lo_json_writer.
    lv_json_x = lo_json_writer->get_output( ).

    "abap to json
    CALL FUNCTION 'ECATT_CONV_XSTRING_TO_STRING'
      EXPORTING
        im_xstring  = lv_json_x
        im_encoding = 'UTF-8'
      IMPORTING
        ex_string   = lv_json_string.

*    "将数据转换为json格式
*    CREATE OBJECT lo_json_ser
*      EXPORTING
*        data = lt_spfli[].
*
*    "固定写法
*    CALL METHOD lo_json_ser->serialize.
*
*    "获得转换后数据并输出
*    CALL METHOD lo_json_ser->get_data
*      RECEIVING
*        rval = lv_json_string.

    server->response->set_header_fields(
        fields = lt_header
    ).
    server->response->set_cdata(
      EXPORTING
        data   = lv_json_string    " Character data
    ).

当Service创建完成后，选择创建的Service,右键->Test Service，可以获取链接。根据提示输入账号密码，测试是否能够获取到spfli表数据。

可以获取到url链接格式：http(s)://<host.domain>:<port>/sap/ztom_test?client=xxx

 Html2页面源码:

<!DOCTYPE html>
<html>
<head>
  <meta charset="utf-8">
  <meta name="viewport" content="width=device-width, initial-scale=1">
  <link rel="stylesheet" href="https://cdn.staticfile.org/twitter-bootstrap/4.3.1/css/bootstrap.min.css">
  <script src="https://cdn.staticfile.org/jquery/3.2.1/jquery.min.js"></script>
  <script src="https://cdn.staticfile.org/popper.js/1.15.0/umd/popper.min.js"></script>
  <script src="https://cdn.staticfile.org/twitter-bootstrap/4.3.1/js/bootstrap.min.js"></script>
</head>

<body>
<OBJECT data=data.htm height=1 id=data width=1></OBJECT>
<div class="container">
  <ul class="nav nav-pills">
    <li class="nav-item">
      <a class="nav-link" href="ztom_html1.htm">首頁</a>
    </li>
    <li class="nav-item">
      <a id="page2" class="nav-link active" href="ztom_html2.htm" data-toggle="tooltip" title="提示page2">Page2</a>
    </li>
  </ul>
</div>

<div class="container">
    <h2>表格1</h2>
    <table class="table table-hover">
        <thead>
          <tr>
            <th>Firstname</th>
            <th>Lastname</th>
            <th>Email</th>
          </tr>
        </thead>
        <tbody>
          <tr>
            <td id="Firstname" DATASRC=#data DATAFLD="Firstname"></td>
            <td id="Lastname" DATASRC=#data DATAFLD="Lastname"></td>
            <td id="Email" DATASRC=#data DATAFLD="Email"></td>
          </tr>
        </tbody>
    </table>
</div>
<div class="container">
    <button id="btn1" type="button" class="btn btn-primary">Search</button>
    <table class="table table-hover">
        <thead>
          <tr>
            <th>Carrid</th>
            <th>Connid</th>
            <th>出發國家</th>
            <th>出發城市</th>
            <th>到達國家</th>
            <th>到達城市</th>
          </tr>
        </thead>
        <tbody id="table">
        </tbody>
    </table>


<div class="container" id="con1">
    <button id="btn2" type="button" class="btn btn-primary">Show</button>

<div>

<script>
    $(document).ready(function(){
        $('[data-toggle="tooltip"]').tooltip();
    });
    $("#btn1").click(function(){
        $('#btn1').text("clicked!");
        $.ajax({
            url:"xxxxxxxxxxxxxxxxxxxxxxxxxxxxx",
            data:"",
            Type:"post",
            dataType:"json",
            success:function(res){
                $.each(res.DETAIL,function(key,item){
                    var lv_html = "<tr>";
                    lv_html = lv_html + "<td>" + item.CARRID + "</td>";
                    lv_html = lv_html + "<td>" + item.CONNID + "</td>";
                    lv_html = lv_html + "<td>" + item.COUNTRYFR + "</td>";
                    lv_html = lv_html + "<td>" + item.CITYFROM + "</td>";
                    lv_html = lv_html + "<td>" + item.COUNTRYTO + "</td>";
                    lv_html = lv_html + "<td>" + item.CITYTO + "</td>";
                    lv_html = lv_html + "</tr>";
                    $("#table").append(lv_html);
                });
            },
            error:function(err){
                alert("error");
            }
        })
    });
    $("#btn2").click(function(){
        $('#btn2').text("clicked!");
        $.get("ztom_html3.htm",function(data){
            $('#con1').html(data);
        })
    });
</script>

</body>
</html>

显示效果：点击按钮，触发Ajax调用Service查询Spfli获取数据显示，注意：js中btn2点击加载ztom_html3.htm页面失败了。

示例3：ABAP生成HTML页面显示

"cl_gui_html_viewer
"html显示
CLASS c1 DEFINITION INHERITING FROM cl_gui_html_viewer.
  PUBLIC SECTION.
    METHODS:constructor IMPORTING VALUE(parent) TYPE REF TO cl_gui_container.
    METHODS:m_set_script IMPORTING VALUE(script) TYPE STANDARD TABLE.
ENDCLASS.
CLASS c1 IMPLEMENTATION.
  METHOD:constructor.
    CALL METHOD super->constructor
      EXPORTING
        parent   = parent
        saphtmlp = 'X'
        uiflag   = cl_gui_html_viewer=>uiflag_noiemenu.
  ENDMETHOD.
  METHOD:m_set_script.
    CALL METHOD me->set_script
      EXPORTING
        script = script.
    CALL METHOD me->execute_script.
  ENDMETHOD.
ENDCLASS.

DATA:lo_c1 TYPE REF TO c1.
TYPES:s_html_line TYPE C LENGTH 255.
DATA:lt_datasrc TYPE TABLE OF s_html_line.
DATA:ls_datasrc TYPE s_html_line.
DATA:lv_doc_url TYPE sbdst_url.

"html viewer事件
CLASS c1_event DEFINITION.
  PUBLIC SECTION.
    CLASS-METHODS:m_sapevent FOR EVENT sapevent OF cl_gui_html_viewer
      IMPORTING action frame getdata postdata query_table.
    CLASS-METHODS:m_ctxmenu_request FOR EVENT ctxmenu_request OF cl_gui_html_viewer.
    CLASS-METHODS:m_ctxmenu_selected FOR EVENT ctxmenu_selected OF cl_gui_html_viewer
      IMPORTING fcode.
ENDCLASS.
CLASS c1_event IMPLEMENTATION.
  "窗体事件
  METHOD m_sapevent.
    DATA:lv_str TYPE string.
    DATA:lt_postdata TYPE cnht_post_data_tab.
    DATA:ls_postdata LIKE LINE OF lt_postdata.
    DATA:lt_edquery TYPE cnht_query_table.
    DATA:ls_edquery LIKE LINE OF lt_edquery.
    lv_str = 'action:' && action
      && ';frame' && frame
      && ';getdata' && getdata.
    lt_postdata = postdata.
    lt_edquery = query_table.
    IF lt_postdata IS NOT INITIAL.
      READ TABLE lt_postdata INTO ls_postdata INDEX 1.
    ENDIF.
    LOOP AT lt_edquery INTO ls_edquery.
      lv_str = lv_str && 'name:' && ls_edquery-name
       && 'value:' && ls_edquery-value && ';'.
    ENDLOOP.
    MESSAGE lv_str TYPE 'I'.
  ENDMETHOD.
  "右键菜单
  METHOD m_ctxmenu_request.
    DATA:my_ctxmenu TYPE REF TO cl_ctmenu.
    CREATE OBJECT my_ctxmenu.
    my_ctxmenu->add_function(
        EXPORTING
          fcode = 'script'
          text  = 'excute script' ).
    my_ctxmenu->add_function(
        EXPORTING
          fcode = 'back'
          text  = 'back' ).
    my_ctxmenu->add_function(
        EXPORTING
          fcode = 'forward'
          text  = 'forward' ).
    lo_c1->track_context_menu(
      EXPORTING
         ctxmenu = my_ctxmenu
    ).
  ENDMETHOD.
  METHOD m_ctxmenu_selected.
    IF fcode = 'script'.
      "设置field
      TYPES:BEGIN OF s_tab,
        field_name TYPE C LENGTH 30,
        field_value TYPE C LENGTH 30,
           END OF s_tab.
      DATA:lt_tab TYPE TABLE OF s_tab.
      DATA:ls_tab LIKE LINE OF lt_tab.

      ls_tab-field_name = 'Firstname'.
      ls_tab-field_value = 'chai'.
      APPEND ls_tab TO lt_tab.
      ls_tab-field_name = 'Lastname'.
      ls_tab-field_value = 'Li'.
      APPEND ls_tab TO lt_tab.
      ls_tab-field_name = 'Email'.
      ls_tab-field_value = 'lie@222.com'.
      APPEND ls_tab TO lt_tab.

      CLEAR lt_datasrc[].
      LOOP AT lt_tab INTO ls_tab.
        ls_datasrc = ls_tab-field_name && '.innerText = "'
        && ls_tab-field_value && '";'.
        APPEND ls_datasrc TO lt_datasrc.
      ENDLOOP.
      lo_c1->m_set_script( lt_datasrc ).
    ENDIF.

    IF fcode = 'back'.
      lo_c1->go_back( ).
    ENDIF.

    IF fcode = 'forward'.
      lo_c1->go_forward( ).
    ENDIF.
  ENDMETHOD.
ENDCLASS.

CLASS c_main DEFINITION.
  PUBLIC SECTION.
    METHODS:m_init_view.
    METHODS:m_set_event.
    METHODS:m_load_data.
    METHODS:m_creat_page.
    METHODS:m_creat_page1.
    METHODS:m_load_page.

ENDCLASS.
CLASS c_main IMPLEMENTATION.
  METHOD m_init_view.
    "初始化
    CREATE OBJECT lo_c1
      EXPORTING parent = cl_gui_container=>default_screen.
    "设置事件
    me->m_set_event( ).
    "加载数据
    me->m_load_data( ).
    "加载页面
    me->m_creat_page( ).
    me->m_creat_page1( ).
    "加载页面显示
    me->m_load_page( ).
  ENDMETHOD.
  "设置事件
  METHOD m_set_event.
    DATA:lt_events TYPE cntl_simple_events.
    DATA:ls_events LIKE LINE OF lt_events.
    "设置event
    ls_events-eventid = lo_c1->m_id_sapevent.
    ls_events-appl_event = 'X'.
    APPEND ls_events TO lt_events.
    ls_events-appl_event = ''.
    ls_events-eventid = lo_c1->m_id_ctxmenu_request.
    APPEND ls_events TO lt_events.
    ls_events-eventid = lo_c1->m_id_ctxmenu_selected.
    APPEND ls_events TO lt_events.

    lo_c1->set_registered_events( events = lt_events ).
    SET HANDLER c1_event=>m_sapevent FOR lo_c1.
    SET HANDLER c1_event=>m_ctxmenu_request FOR lo_c1.
    SET HANDLER c1_event=>m_ctxmenu_selected FOR lo_c1.
  ENDMETHOD.
  "加载数据
  METHOD m_load_data.
    TYPES:BEGIN OF s_tab,
      field_name TYPE C LENGTH 30,
      field_value TYPE C LENGTH 30,
         END OF s_tab.
    DATA:lt_tab TYPE TABLE OF s_tab.
    DATA:ls_tab LIKE LINE OF lt_tab.
    ls_tab-field_name = 'Firstname'.
    ls_tab-field_value = 'tom'.
    APPEND ls_tab TO lt_tab.
    ls_tab-field_name = 'Lastname'.
    ls_tab-field_value = 'tomas'.
    APPEND ls_tab TO lt_tab.
    ls_tab-field_name = 'Email'.
    ls_tab-field_value = 'tomas@222.com'.
    APPEND ls_tab TO lt_tab.

    CLEAR lt_datasrc[].
    ls_datasrc = '<HTML><HEAD>'
    && '<META NAME="data" CONTENT="DSO">'
    && '</HEAD><BODY>'.
    APPEND ls_datasrc TO lt_datasrc.
    LOOP AT lt_tab INTO ls_tab.
      ls_datasrc = '<SPAN ID=' && ls_tab-field_name
      && '>' && ls_tab-field_value && ' </SPAN>'.
    ENDLOOP.
    ls_datasrc = '</BODY></HTML>'.
    APPEND ls_datasrc TO lt_datasrc.

    lo_c1->load_data(
      EXPORTING
        url = 'data.htm'
        type = 'text'
        subtype = 'html'
      IMPORTING
        assigned_url = lv_doc_url
      CHANGING
        data_table = lt_datasrc
      ).

  ENDMETHOD.
  METHOD m_load_page.
   lo_c1->load_html_document(
    EXPORTING
      document_id  = 'ZTOM_HTML1'
      document_url = 'ztom_html1.htm'
    IMPORTING
      assigned_url = lv_doc_url
   ).
   lo_c1->load_html_document(
    EXPORTING
      document_id  = 'ZTOM_HTML2'
      document_url = 'ztom_html2.htm'
   ).
   "显示url
   lo_c1->show_url( lv_doc_url ).
  ENDMETHOD.

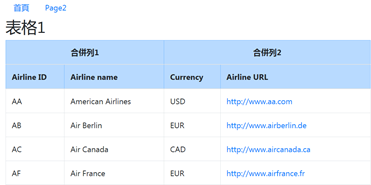

  "创建ztom_html3.htm页面，显示表格
  METHOD m_creat_page.
    DATA:lt_scarr TYPE TABLE OF scarr.
    DATA:ls_scarr LIKE LINE OF lt_scarr.
    DATA:lt_html TYPE TABLE OF s_html_line.
    DATA:ls_html LIKE LINE OF lt_html.

    "查询数据
    SELECT * INTO TABLE lt_scarr FROM scarr.

    ls_html = '<!DOCTYPE html><html><head>'.
    APPEND ls_html TO lt_html.
    ls_html = '<meta charset="utf-8">'.
    APPEND ls_html TO lt_html.
    ls_html = '<meta name="viewport" content="width=device-width, initial-scale=1">'.
    APPEND ls_html TO lt_html.
    ls_html = '<link rel="stylesheet" href="https://cdn.staticfile.org/twitter-bootstrap/4.3.1/css/bootstrap.min.css">'.
    APPEND ls_html TO lt_html.
    ls_html = '<script src="https://cdn.staticfile.org/jquery/3.2.1/jquery.min.js"></script>'.
    APPEND ls_html TO lt_html.
    ls_html = '<script src="https://cdn.staticfile.org/popper.js/1.15.0/umd/popper.min.js"></script>'.
    APPEND ls_html TO lt_html.
    ls_html = '<script src="https://cdn.staticfile.org/twitter-bootstrap/4.3.1/js/bootstrap.min.js"></script>'.
    APPEND ls_html TO lt_html.
    ls_html = '</head><body>'.
    APPEND ls_html TO lt_html.
    ls_html = '<div class="container"><ul class="nav nav-pills">'.
    APPEND ls_html TO lt_html.
    ls_html = '<li class="nav-item"><a class="nav-link" href="ztom_html1.htm">首页</a></li>'.
    APPEND ls_html TO lt_html.
    ls_html = '<li class="nav-item"><a class="nav-link" href="ztom_html2.htm">Page2</a></li></ul></div>'.
    APPEND ls_html TO lt_html.
    ls_html = '<div class="container"><h2>表格1</h2>'.
    APPEND ls_html TO lt_html.
    ls_html = '<table class="table table-hover table-bordered"><thead class="table-primary">'.
    APPEND ls_html TO lt_html.
    ls_html = '<tr><th colspan = "2" style="text-align:center">合并列1</th><th colspan = "2" style="text-align:center">合并列2</th></tr>'.
    APPEND ls_html TO lt_html.
    ls_html = '<tr><th>Airline ID</th><th>Airline name</th>'.
    APPEND ls_html TO lt_html.
    ls_html = '<th>Currency</th><th>Airline URL</th></tr></thead>'.
    APPEND ls_html TO lt_html.
    ls_html = '<tbody>'.
    APPEND ls_html TO lt_html.
    LOOP AT lt_scarr INTO ls_scarr.
      ls_html = '<tr><td>' && ls_scarr-carrid && '</td>'.
      APPEND ls_html TO lt_html.
      ls_html = '<td>' && ls_scarr-carrname && '</td>'.
      APPEND ls_html TO lt_html.
      ls_html = '<td>' && ls_scarr-currcode && '</td>'.
      APPEND ls_html TO lt_html.
      ls_html = '<td><a href="' && ls_scarr-url && '">' && ls_scarr-url && '</a></td></tr>'.
      APPEND ls_html TO lt_html.
    ENDLOOP.
    ls_html = '</tbody></table></div>'.
    APPEND ls_html TO lt_html.
    ls_html = '</body></html>'.
    APPEND ls_html TO lt_html.

    lo_c1->load_data(
      EXPORTING
        url = 'ztom_html3.htm'
        type = 'text'
        subtype = 'html'
      IMPORTING
        assigned_url = lv_doc_url
      CHANGING
        data_table = lt_html
      ).
  ENDMETHOD.

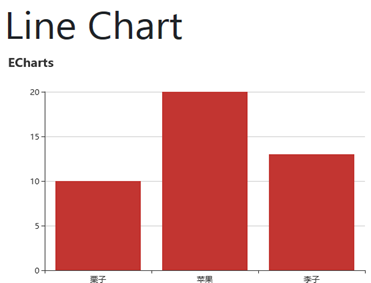

  "创建ztom_html4.htm,使用echarts显示图表
  METHOD m_creat_page1.
    DATA:lt_html TYPE TABLE OF s_html_line.
    DATA:ls_html LIKE LINE OF lt_html.
    TYPES:BEGIN OF s_item,
        name TYPE string,
        number TYPE I,
          END OF s_item.
    DATA:lt_item_data TYPE TABLE OF s_item.
    DATA:ls_item_data LIKE LINE OF lt_item_data.

    "json数据
    DATA:lo_json_writer TYPE REF TO cl_sxml_string_writer.
    DATA:lv_json_x TYPE xstring.
    DATA:lv_json TYPE string.

    ls_item_data-name = '"栗子"'.
    ls_item_data-number = 10.
    APPEND ls_item_data TO lt_item_data.
    ls_item_data-name = '"苹果"'.
    ls_item_data-number = 20.
    APPEND ls_item_data TO lt_item_data.
    ls_item_data-name = '"李子"'.
    ls_item_data-number = 13.
    APPEND ls_item_data TO lt_item_data.

    ls_html = '<!DOCTYPE html><html><head>'.
    APPEND ls_html TO lt_html.
    ls_html = '<meta charset="utf-8">'.
    APPEND ls_html TO lt_html.
    ls_html = '<meta name="viewport" content="width=device-width, initial-scale=1">'.
    APPEND ls_html TO lt_html.
    ls_html = '<link rel="stylesheet" href="https://cdn.staticfile.org/twitter-bootstrap/4.3.1/css/bootstrap.min.css">'.
    APPEND ls_html TO lt_html.
    ls_html = '<script src="https://cdn.staticfile.org/jquery/3.2.1/jquery.min.js"></script>'.
    APPEND ls_html TO lt_html.
    ls_html = '<script src="https://cdn.staticfile.org/popper.js/1.15.0/umd/popper.min.js"></script>'.
    APPEND ls_html TO lt_html.
    ls_html = '<script src="https://cdn.staticfile.org/twitter-bootstrap/4.3.1/js/bootstrap.min.js"></script>'.
    APPEND ls_html TO lt_html.
    ls_html = '<script src="https://cdn.staticfile.org/echarts/4.7.0/echarts.min.js"></script>'.
    APPEND ls_html TO lt_html.
    ls_html = '</head>'.
    APPEND ls_html TO lt_html.
    ls_html = '<body><div class="container"><h1>Line Chart</h1><div id="myChart" style="width:600px;height:400px;"></div></div>'.
    APPEND ls_html TO lt_html.
    "script部分
    ls_html = '<script>$(document).ready(function(){ var container1 = document.getElementById("myChart");'.
    APPEND ls_html TO lt_html.
    ls_html = 'var myChart = echarts.init(container1);'.
    APPEND ls_html TO lt_html.
    ls_html = 'var options = {title: {text: "ECharts"},tooltip: {},'.
    APPEND ls_html TO lt_html.
    ls_html = 'xAxis: { data: ['.
    LOOP AT lt_item_data INTO ls_item_data.
      IF sy-tabix = 1.
        ls_html = ls_html && ls_item_data-name.
      ELSE.
        ls_html = ls_html && ',' && ls_item_data-name.
      ENDIF.
    ENDLOOP.
    ls_html = ls_html && ']},'.
    APPEND ls_html TO lt_html.
    ls_html = 'yAxis: {},series: [{ name:"销量",type:"bar",data: ['.
    LOOP AT lt_item_data INTO ls_item_data.
      IF sy-tabix = 1.
        ls_html = ls_html && ls_item_data-number.
      ELSE.
        ls_html = ls_html && ',' && ls_item_data-number.
      ENDIF.
    ENDLOOP.
    ls_html = ls_html  && ']}]};'.
    APPEND ls_html TO lt_html.
    ls_html = 'myChart.setOption(options);})</script>'.
    APPEND ls_html TO lt_html.
    ls_html = '</body></html>'.
    APPEND ls_html TO lt_html.

    lo_c1->load_data(
      EXPORTING
        url = 'ztom_html4.htm'
        type = 'text'
        subtype = 'html'
      IMPORTING
        assigned_url = lv_doc_url
      CHANGING
        data_table = lt_html
      ).
  ENDMETHOD.

ENDCLASS.


START-OF-SELECTION.
  PERFORM f_show_html.

FORM f_show_html.
  DATA:lo_main TYPE REF TO c_main.
  CREATE OBJECT lo_main.
  WRITE:/ '1'.
  lo_main->m_init_view( ).
ENDFORM.

ztom_html3.htm页面效果：

 ztom_html4.htm页面效果：

偶是不器
关注
  • 0
    点赞
  • 踩
  • 2
    收藏
    觉得还不错? 一键收藏
  • 打赏
    打赏
  • 0
    评论
ABAP学习(28）：HTML内容生成
偶是不器的博客
03-19 153
ABAP生成HTML 使用类：cl_wd_html_writer，实现html内容生成。 注意:add_style方法生成的元素有问题，建议使用add_attribute,name='style' value='border:1px;padding:5px;font:"Microsoft YaHei"' 示例: "一般使用字符串拼接生成html，容易出錯，不方便檢查 "使用if_wd_html...
cl_gui_html_viewer缓存,HTML viewer in ABAP
weixin_39777497的博客
07-17 386
By Ankit Doshi, TCSThis is a simple tutorialwhich shows how to use the html text viewer to display the HTML contents on thescreen.HTMLviewer can be used to display the preview of the HTML emails that ...
cl_gui_html_viewer缓存,sap类 cl_gui_html_viewer
weixin_39860108的博客
06-18 360
DATA:gt_events TYPE cntl_simple_events,wa_eventTYPE cntl_simple_event.IF html_view IS INITIAL.CREATE OBJECT html_viewEXPORTINGparent = cl_gui_container=>default_screen.IF sy-subrc &lt...
ABAP显示html
Joker's blog
05-27 871
*&---------------------------------------------------------------------* *& Report YHTML_ABAP_NOT_SHOW_URL *&---------------------------------------------------------------------* *& *&---------------------------------------------------
cl_gui_html_viewer缓存,javascript - How can I identify if my page is rendered in a normal browser or S...
weixin_31785177的博客
06-18 124
I'm working on a demonstration that simulates a mobile device with touch events, so pinch zoom, or scroll events on a desktop browser's touch events. So far I've got it working in Chrome, IE, and Fire...
cl_gui_html_viewer缓存,基于Chrome开源提取的界面开发框架开篇
weixin_29607637的博客
07-17 180
2012-01-01 17:15 | 贝壳1>------ 已启动生成: 项目: gfx, 配置: Debug Win32 ------2>------ 已启动生成: 项目: view_framework, 配置: Debug Win32 ------1>正在编译...2>正在编译...1>native_theme_win.cpp2>dialog_client_...
ABAP-Swagger:使用Swaggeropenapi规范公开ABAP REST服务
05-18
使用公共方法在ABAP中开发课程2：实现接口ZIF_SWAG_HANDLER，并注册公共方法（示例 ） 3：现在可以通过rest访问这些方法（） 4：可以通过REST服务的基本目录中的swagger.html访问安装和要求通过安装需要本地JSON支持...
abap2xlsx:从ABAP生成专业的Excel电子表格
05-14
abap2xlsx-使用ABAP读取并生成Excel电子表格有关一般信息，请参阅博客系列和。 请参阅官方Wiki以获取。讨论板我们使用作为讨论板。 您可以在发布新问题之前。 您还可以来限制搜索。 当您要时，请使用此链接，标签...
ZDE_HTML.rar_abap_abap html_abap html
09-24
标题中的"ZDE_HTML.rar_abap_abap html_abap html"表明这是一个关于ABAP（一种用于SAP系统的编程语言）与HTML交互的资源压缩包。这个压缩包可能包含了将ABAP程序产生的数据转换为HTML格式的相关教程或代码示例。 ...
ABAP-Library:有用的ABAP代码段
05-29
ABAP库 该存储库代表我的个人可重用ABAP代码库。 随意使用或贡献！ 为了组织起见，文件位于干净的子文件夹中。 这里的许多类还表示示例实现。 这些文件都不包含任何公司特定的功能逻辑-因此没有“机密”被泄露。 ...
HTML四大手册（chm）
05-25
内容：压缩包包括四个CHM教程，从基础和语法开始，有示例代码<br>操作简单方便。<br>提示：推荐新手下载<br>
ABAP_DOCU_HTML.rar_ABAP_DOCU_HTML
09-24
2. **ABAP语句**：如REPORT、FORM、MODULE、FUNCTION模块等，这些都是ABAP程序的基本组成部分。 3. **ABAP表和数据库交互**：如何使用SELECT、INSERT、UPDATE、DELETE语句操作数据库，以及使用透明表、视图、内表等...
cl_gui_html_viewer缓存,pywebview: pywebview 是一个轻量级跨平台的 HTML 浏览器控件，可以在 GUI 应用中显示 HTML 内容...
weixin_42356349的博客
06-18 313
pywebview is a lightweight cross-platform wrapper around a webview component that allows to display HTML content in its own native GUI window. It gives you power of web technologies in your deskto...
cl_gui_html_viewer缓存,Displaying Custom HTML in CL_GUI_HTML_VIEWER
weixin_35974411的博客
06-18 162
呈现代码宏出错: 参数'com.atlassian.confluence.ext.code.render.InvalidValueException'的值无效*** cl_gui_html_viewer instanceDATA : gr_browser TYPE REF TO cl_gui_html_viewer.*** Data definitions HTML ContentDATA : g...
SAP 备份ABAP程序为html网页（程序非原创）
Catzcoin Official Helper 流落街头干 ABAP
09-04 644
SAP 备份ABAP程序为html网页（程序非原创）
cl_gui_html_viewer缓存,How to refresh HTML container from HTML button in CL_GUI_HTML_VIEWER?
weixin_39751769的博客
06-18 150
Hello experts,I want to refresh my HTML container from the button in HTML. I am having 2 methods 1 is to print HTML in container and another is ON_HTML_EVENT in which i call the first method to refres...
ABAP实验笔记：生成HTML
偶是不器的博客
11-10 451
使用类：cl_wd_html_writer，实现html内容生成。 "一般使用字符串拼接生成html，容易出错，不方便检查 "使用if_wd_html_writer,生成html,更加方便检查 FORM f_create_html. DATA:lo_html TYPE REF TO if_wd_html_writer. DATA:lo_exception TYPE REF TO cx_root. DATA:lv_msg TYPE string. DATA:lv_html TYPE st.
处理SAP打印预览DUMP CL-GUI-HTML-VIEWER============CP
最新发布
L1985Z的博客
03-15 489
ABAP程序： CL_PDF_VIEWER=================CP。错误分析 CL_GUI_HTML_VIEWER============CP。运行时错误：RAISE_EXCEPTION。应用程序组件：BC-SRV-SSF。执行SAP的打印预览。
ArcIMS学习之 定制HTML VIEWER笔记
黄为的专栏
09-16 1724
一、HTML VIEWER简介： 1。默认的HTML VIEWER由一组HTML页和JS文件(JavaScript)组成，这些HTML页和JS文件由ArcIMS Designer定制生成。 2。对于HTML Viewer，我们所做的功能扩展可以包括：   * 改变框架布局   * 修改工具条   * 增加自己的功能   * 改变图形外观   * 插入自己的图标  3。ArcIMS Designer
abap开发基础知识：
09-20
ABAP是Advanced Business Application Programming的简写，是SAP自有的一种高级商业应用程序设计语言。在ABAP开发中，常用的开发对象包括表、程序、函数、类、Dialog（对话屏幕）、Smartform、BDC、增强和接口（如IDOC、WebService、RFC等）。所有ABAP开发对象的名称必须以Z或Y开头，一般正式项目的开发对象都以Z开头。 在ABAP开发中，可以使用开发类（Development Class）将相关对象存储在一起，方便进行管理和查询。开发类可以翻译为包（Package），它用于存储SAP系统开发过程中的相关对象，如表结构定义、程序、系统数据类型等。通过包，可以实现在不同服务器之间的批量传输开发对象。不属于任何开发类的开发对象可以分配本地开发类$TMP，但这些开发对象不能进行系统间传输，主要用于测试。 在ABAP开发中，可以使用目录访问方式来访问开发对象。目录访问方式是一种基于目录结构的访问方式，可以通过目录路径来访问开发对象。

“相关推荐”对你有帮助么？

  • 非常没帮助
  • 没帮助
  • 一般
  • 有帮助
  • 非常有帮助
提交
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包

打赏作者

偶是不器

你的鼓励将是我创作的最大动力

¥1 ¥2 ¥4 ¥6 ¥10 ¥20
扫码支付：¥1
获取中
扫码支付

您的余额不足，请更换扫码支付或充值

打赏作者

实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
