伪代码的书写

伪代码的书写

在线生成Latex网站链接

pdf转svg网站地址

代码如下

\def\SetClass{article}
\documentclass{standalone}
\usepackage[linesnumbered,ruled,vlined]{algorithm2e}
\begin{document}
{\tiny
\begin{minipage}{8cm}
\renewcommand{\thealgocf}{3}
\begin{algorithm}[H]
  \SetAlgoLined
  \KwIn{$N$ data sources provide data, contradicts constraint $C$, Data source reliability $W_k$}
  \KwOut{Truth table $\chi^*$}
    {Initialize reliability list $S$, number of conflicts list $E$, conflicts ratio list $G$\;}
    \While{Convergence condition is not met}
    {
         \For(\tcp{number of data source records $N$}) {p = 1 to P}
        {
            \For {q = 1 to Q}
            {
                Calculate $\widehat{v_{pq}^*}$ according to formula (18)\\
                \eIf{$\widehat{v_{pq}}$does not satisfy formula (13)}
                {Update $\widehat{v_{pq}^*}$ according to formula (18)}
                {Update ${v_{pq}^*}=\widehat{v_{pq}^*}$}
            }
        }
        \For {n = 1 to N}
        {Update $w_k$ according to formula (10)}
    }
    \Return{$\chi^*$}
  \caption{FTD}
\end{algorithm}
\end{minipage}
}
\end{document}

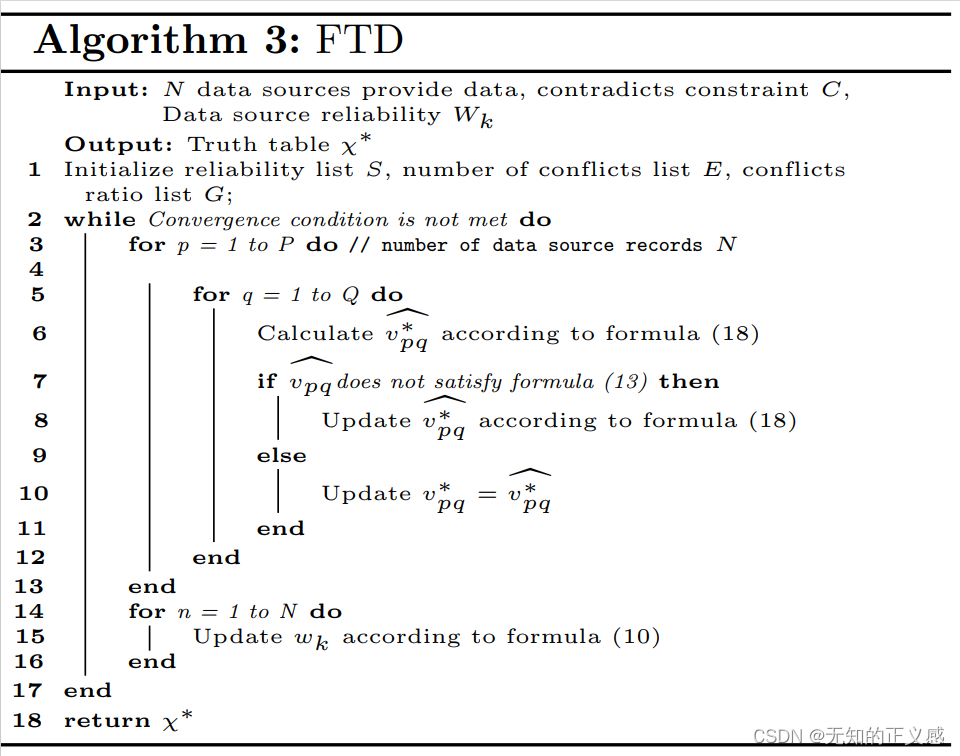

运行结果

输入输出

\KwIn{输入内容描述}
\KwOut{输出结果描述}

for循环

\For(\tcp{单行注释内容}) {循环条件}
{循环内容}

while循环

\While{循环条件}
    {循环内容}

if语句

\If{判断条件}{执行内容}

带有else的if

\eIf{判断条件}{执行内容}{else内容}

设置算法编号

\renewcommand{\thealgocf}{3}

普通语句

{Initialize reliability list\;Data source reliability\;}

加\;换行，可用于所有执行内容大括号

{Initialize reliability list\;Data source reliability\;}

加\;换行，可用于所有执行内容大括号
