概述
TCP传输协议是面向连接的,面向流提供高可靠的服务。收发两端(服务端和客户端)都要有一一成对的socket,因此,发送端为了将多个发给接收端的包,更有效地发给对方,使用了优化算法(Nagle算法),将多次间隔时间较小且数据较小的数据包,合成一个大的数据块,然后进行封包,这样做虽然提高了传输的效率,但是这样接收端就难以分辨出一个个完整的包的大小了,因为面向流的通信时无消息保护边界的。
由于TCP无消息保护边界,需要在接收端处理消息边界问题,也就是粘包、拆包问题。

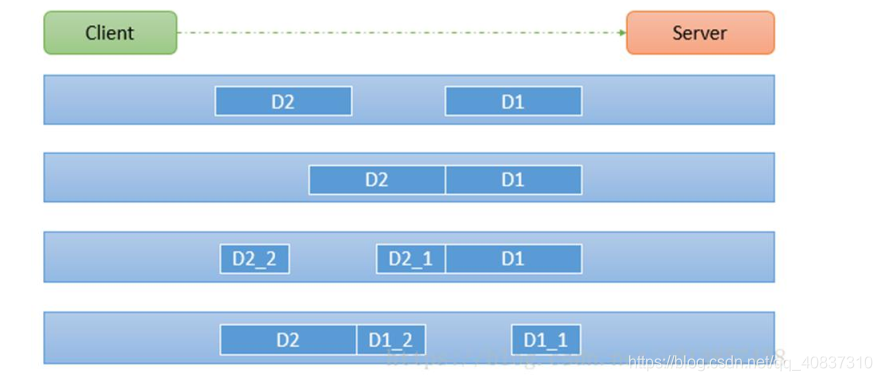

示意图:
说明:
- 服务端给客户端发送D1、D2两个数据包。
- 第一种情况是服务端两次都读取到的是两个独立的数据包,无拆包粘包问题,可以正常解析。
- 第二种情况D1、D2包合并在一起一次发送,服务端一次性接收了两个数据包,分别是D1、D2,我们称之为粘包,因为不知道边界,所以服务端不知如何拆出来解析。
- 第三种情况,服务端第一次接收到了完整D1包和部分D2包,第二次接收到了剩余的D2包,D2包被拆开来分多次发送了,我们称之为拆包。
- 第四种情况,服务端第一次接收到了部分D1包,第二次接收到了剩余部分D1包和完整D2包,也称之为拆包。
总的来说拆包和粘包问题,因为没有边界,最终会在正常情况下导致接收方无法分辨出一个一个包。
粘包实例
以下实例证实了粘包的存在:
服务端及服务端的Handler:
public class NettyTcpServer {
private int port;
public NettyTcpServer(int port){
this.port = port;
}
public void start() throws InterruptedException {
NioEventLoopGroup bossGroup = new NioEventLoopGroup();
NioEventLoopGroup workerGroup = new NioEventLoopGroup();
ServerBootstrap serverBootstrap = new ServerBootstrap();
serverBootstrap.group(bossGroup,workerGroup)
.channel(NioServerSocketChannel.class)
.childHandler(new ChannelInitializer<SocketChannel>() {
@Override
protected void initChannel(SocketChannel ch) throws Exception {
ChannelPipeline pipeline = ch.pipeline();
pipeline.addLast(new NettyTcpServerChannelHandler());
}
});
ChannelFuture channelFuture = serverBootstrap.bind(port);
channelFuture.channel().closeFuture().sync();
}
public static void main(String[] args) throws InterruptedException {
NettyTcpServer nettyTcpServer = new NettyTcpServer(8989);
nettyTcpServer.start();
}
}
public class NettyTcpServerChannelHandler extends ChannelInboundHandlerAdapter {
private int count;
@Override
public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {
ByteBuf byteBuf = (ByteBuf) msg;
System.out.println("数据是:" + byteBuf.toString(CharsetUtil.UTF_8));
System.out.println("count = " + (++count));
super.channelRead(ctx, msg);
}
}
客户端及客户端的Handler
public class NettyTcpClient {
private int serverPort;
public NettyTcpClient(int serverPort){
this.serverPort = serverPort;
}
public void start() throws InterruptedException {
NioEventLoopGroup worker = new NioEventLoopGroup();
Bootstrap bootstrap = new Bootstrap();
bootstrap.group(worker)
.channel(NioSocketChannel.class)
.handler(new ChannelInitializer<SocketChannel>() {
@Override
protected void initChannel(SocketChannel ch) throws Exception {
ChannelPipeline pipeline = ch.pipeline();
pipeline.addLast(new NettyTcpClientChannelHandler());
}
});
ChannelFuture connect = bootstrap.connect("127.0.0.1", serverPort);
connect.channel().closeFuture().sync();
}
public static void main(String[] args) throws InterruptedException {
NettyTcpClient nettyTcpClient = new NettyTcpClient(8989);
nettyTcpClient.start();
}
}
public class NettyTcpClientChannelHandler extends ChannelInboundHandlerAdapter {
@Override
public void channelActive(ChannelHandlerContext ctx) throws Exception {
//发生这个事件代表通道已经顺利连接到远端,可以收发数据。我们就在这里发送数据、
//分十次发送
for (int i = 0;i<10;i++){
ctx.channel().writeAndFlush(Unpooled.copiedBuffer("Hello I am John;", CharsetUtil.UTF_8));
}
ctx.fireChannelActive();
}
}
执行结果:
这个是服务端的输出结果,如果是没有拆包粘包的话,客户端分十次发送了数据,那么服务端也应该分十次接收,count应该等于10,但是此时count=1,然后数据一次性显示出来了 ,说明客户端的数据时把十次合并成一个数据包发送的,数据粘包现象。
拆包演示
将一次发送的数据量弄大一点,比mss大,就会发生拆包现象。
上面粘包演示的客户端和服务端不变,把两个Handler修改一下。
@Override
public void channelActive(ChannelHandlerContext ctx) throws Exception {
//发生这个事件代表通道已经顺利连接到远端,可以收发数据。我们就在这里发送数据、
//分十次发送
//一次发送102400字节数据
byte[] bytes = new byte[102400];
Arrays.fill(bytes, (byte) 10);
for (int i = 0;i<10;i++){
ctx.channel().writeAndFlush(Unpooled.copiedBuffer(bytes));
}
ctx.fireChannelActive();
}
@Override
public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {
ByteBuf byteBuf = (ByteBuf) msg;
System.out.println("长度是:" + byteBuf.readableBytes());
System.out.println("count = " + (++count));
super.channelRead(ctx, msg);
}

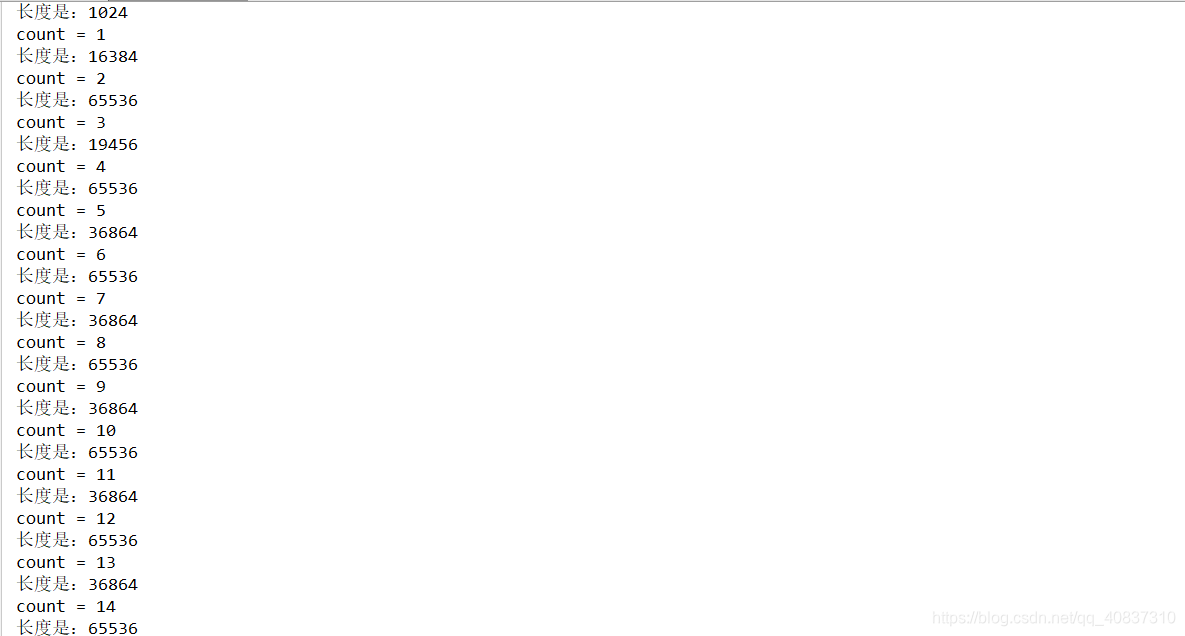

执行结果:
每次发送的数据长度都小于102400,并且发送次数count>10次,所以发生了拆包。
解决方案
使用自定义协议加编码解码器来解决。
需要对Netty的解码编码机制有一定的理解。
关键就是定义每一个数据包的边界,让服务端知道如何对粘包进行拆分和对拆包进行拆分和组合,从而避免拆包粘包问题。
服务端代码
public class NettyTcpServer {
private int port;
public NettyTcpServer(int port){
this.port = port;
}
public void start() throws InterruptedException {
NioEventLoopGroup bossGroup = new NioEventLoopGroup();
NioEventLoopGroup workerGroup = new NioEventLoopGroup();
ServerBootstrap serverBootstrap = new ServerBootstrap();
serverBootstrap.group(bossGroup,workerGroup)
.channel(NioServerSocketChannel.class)
.childHandler(new ChannelInitializer<SocketChannel>() {
@Override
protected void initChannel(SocketChannel ch) throws Exception {
ChannelPipeline pipeline = ch.pipeline();
//这里添加一个解码器,顺序必须在业务处理的Handler前面。
//因为要对数据先解码了才能进行业务处理。
pipeline.addLast(new MessageProtocolDecoder());
pipeline.addLast(new NettyTcpServerChannelHandler());
}
});
ChannelFuture channelFuture = serverBootstrap.bind(port);
channelFuture.channel().closeFuture().sync();
}
public static void main(String[] args) throws InterruptedException {
NettyTcpServer nettyTcpServer = new NettyTcpServer(8989);
nettyTcpServer.start();
}
}
客户端:
public class NettyTcpClient {
private int serverPort;
public NettyTcpClient(int serverPort){
this.serverPort = serverPort;
}
public void start() throws InterruptedException {
NioEventLoopGroup worker = new NioEventLoopGroup();
Bootstrap bootstrap = new Bootstrap();
bootstrap.group(worker)
.channel(NioSocketChannel.class)
.handler(new ChannelInitializer<SocketChannel>() {
@Override
protected void initChannel(SocketChannel ch) throws Exception {
ChannelPipeline pipeline = ch.pipeline();
pipeline.addLast(new NettyTcpClientChannelHandler());
//这里添加一个编码器,对发送的数据进行编码,因为编码器属于出站的Handler。
//而上面的业务逻辑Handler:NettyTcpClientChannelHandler属于入站Handler,所以添加顺序在这里暂时还没所谓。
pipeline.addLast(new MessageProtocolEncode());
}
});
ChannelFuture connect = bootstrap.connect("127.0.0.1", serverPort);
connect.channel().closeFuture().sync();
}
public static void main(String[] args) throws InterruptedException {
NettyTcpClient nettyTcpClient = new NettyTcpClient(8989);
nettyTcpClient.start();
}
}
协议类:
@Data
public class MessageProtocol {
//内容
private byte[] content;
//长度
private int len;
public MessageProtocol(byte[] content){
this.content = content;
//计算出长度并赋值
this.len = content.length;
}
}
服务端的业务处理Handler:
public class NettyTcpServerChannelHandler extends ChannelInboundHandlerAdapter {
private int count;
@Override
public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {
MessageProtocol messageProtocol = (MessageProtocol) msg;
System.out.println("数据是:" + new String(messageProtocol.getContent(),CharsetUtil.UTF_8) + ",长度是:" + messageProtocol.getLen());
System.out.println("count = " + (++count));
super.channelRead(ctx, msg);
}
}
客户端的业务处理类:
//由原来的直接发送字符串,修改成现在使用协议对象来发送
public class NettyTcpClientChannelHandler extends ChannelInboundHandlerAdapter {
@Override
public void channelActive(ChannelHandlerContext ctx) throws Exception {
//发生这个事件代表通道已经顺利连接到远端,可以收发数据。我们就在这里发送数据、
//分十次发送
for (int i = 0;i<10;i++){
byte[] content = "Hello I am John;".getBytes(CharsetUtil.UTF_8);
//创建协议对象
MessageProtocol message = new MessageProtocol(content);
//发送
ctx.channel().writeAndFlush(message);
}
super.channelActive(ctx);
}
}
服务端的解码器:
public class MessageProtocolDecoder extends ByteToMessageDecoder {
@Override
protected void decode(ChannelHandlerContext ctx, ByteBuf in, List<Object> out) throws Exception {
//记录初始的读偏移量,用于拆包情况下的偏移量回滚
int beginReadIndex = in.readerIndex();
//首先读数据的长度出来先
int len = in.readInt();
if (in.readableBytes() < len){
//这种情况下就是发生了拆包问题,因读取的数据长度没有len长,这个包还有数据没有到达。
//重置读偏移量,等待下次重新读写
in.readerIndex(beginReadIndex);
//直接返回,等待下次
return;
}
//能到这里,就证明包是完整的
//读数据
byte[] data = new byte[len];
in.readBytes(data);
MessageProtocol messageProtocol = new MessageProtocol(data);
//写出给下一个Handler处理。
out.add(messageProtocol);
}
}
客户端的编码器:
public class MessageProtocolEncode extends MessageToByteEncoder<MessageProtocol> {
@Override
protected void encode(ChannelHandlerContext ctx, MessageProtocol msg, ByteBuf out) throws Exception {
//对协议的编码时,把数据的前4个字节固定为数据的长度,跟着就是数据的内容
int len = msg.getLen();
//先写数据的长度
out.writeInt(len);
//再写数据的内容
out.writeBytes(msg.getContent());
}
}

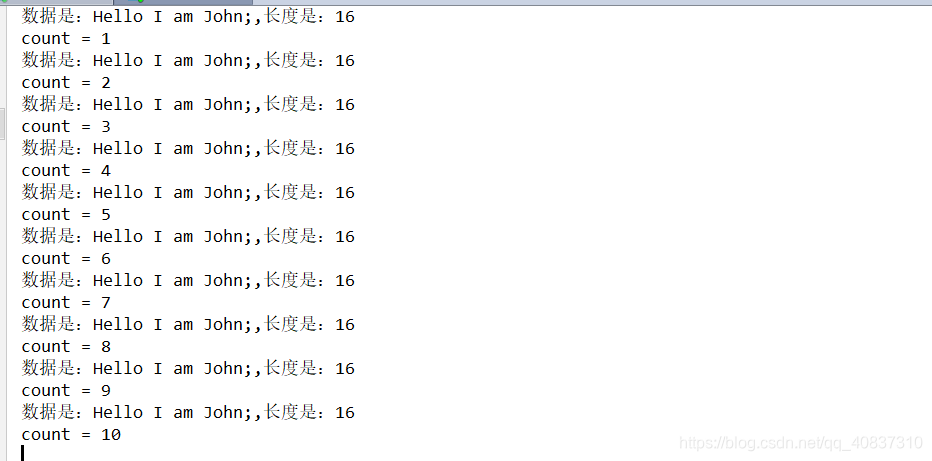

结果:
由上图可见,解决了粘包问题。
下面来测试是否解决了拆包问题。发送的数据使用上面的拆包演示代码,修改一下成用协议即可。
修改后的业务逻辑处理Handler
//客户端
@Override
public void channelActive(ChannelHandlerContext ctx) throws Exception {
//发生这个事件代表通道已经顺利连接到远端,可以收发数据。我们就在这里发送数据、
//分十次发送
//一次发送102400字节数据
byte[] bytes = new byte[102400];
Arrays.fill(bytes, (byte) 10);
for (int i = 0;i<10;i++){
MessageProtocol messageProtocol = new MessageProtocol(bytes);
ctx.channel().writeAndFlush(messageProtocol);
}
ctx.fireChannelActive();
}
//服务端
@Override
public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {
MessageProtocol messageProtocol = (MessageProtocol) msg;
System.out.println("长度是:" + messageProtocol.getLen());
System.out.println("count = " + (++count));
super.channelRead(ctx, msg);
}

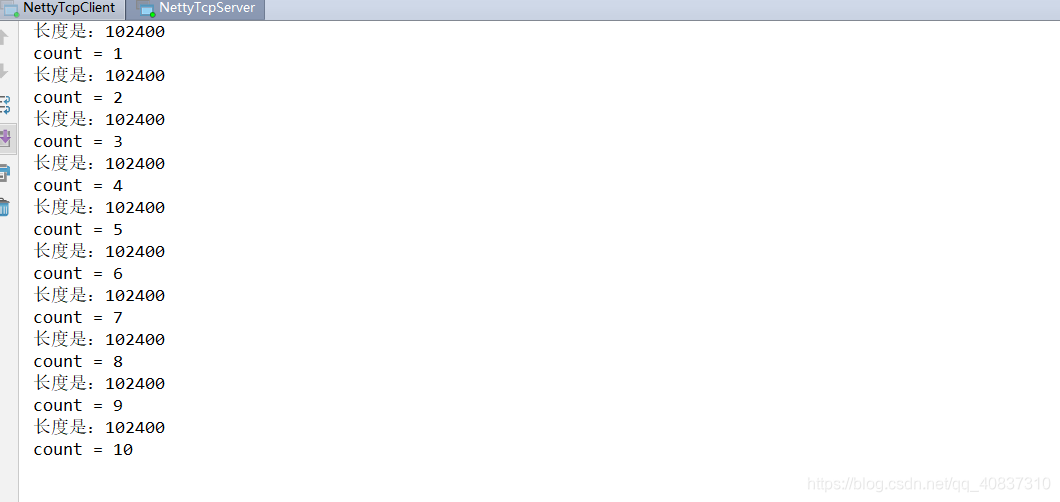

运行结果:
由上图可知拆包问题已经解决,每次读取的数据都为102400.这里就只打印长度了,因为数据太大,就不打印了。
至此,完毕。
