【android】configuration

1，概述

当configuration发生变化后，Activity方法onConfigurationChange会被调用，在此具体记录configuration更新在Framework中的调用过程，直至传入Activity；

2，源码

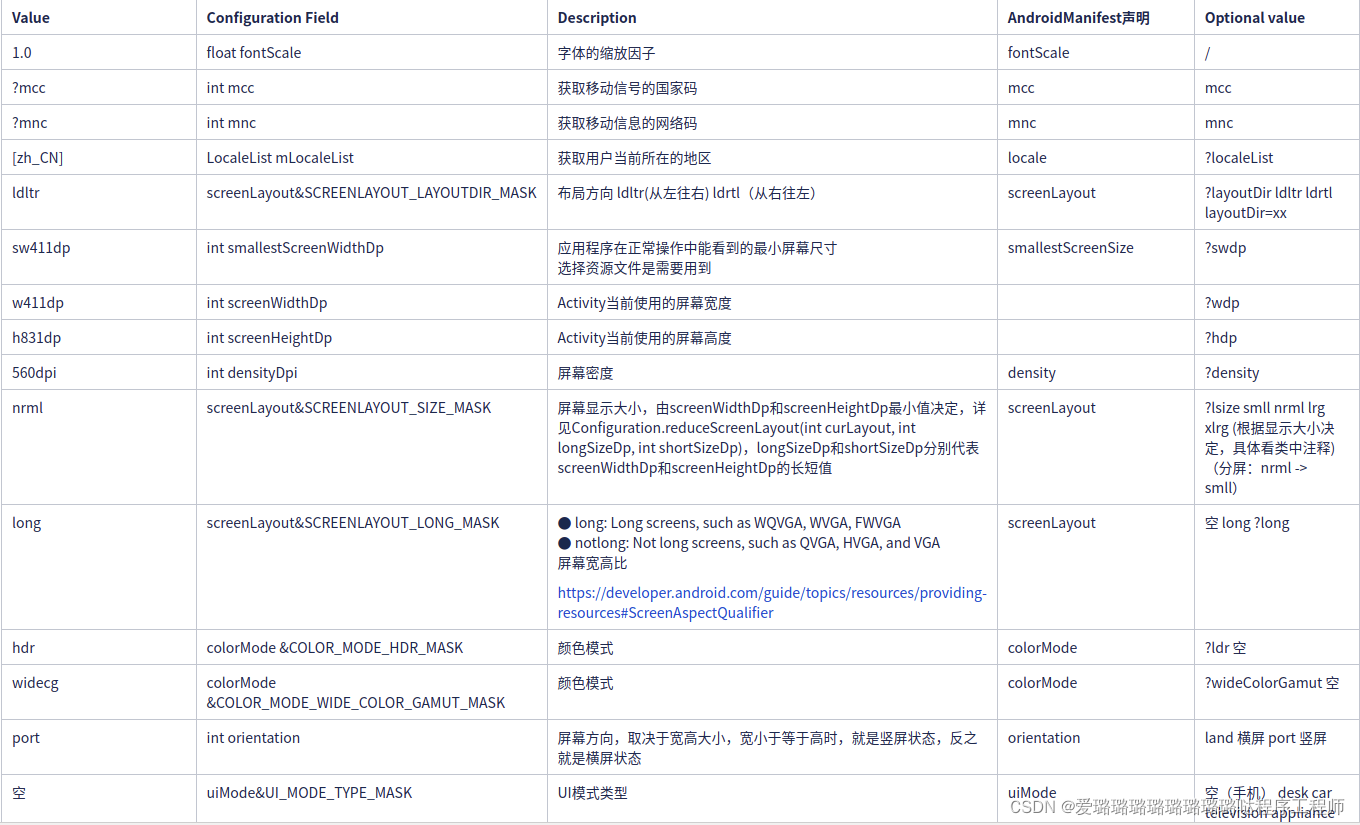

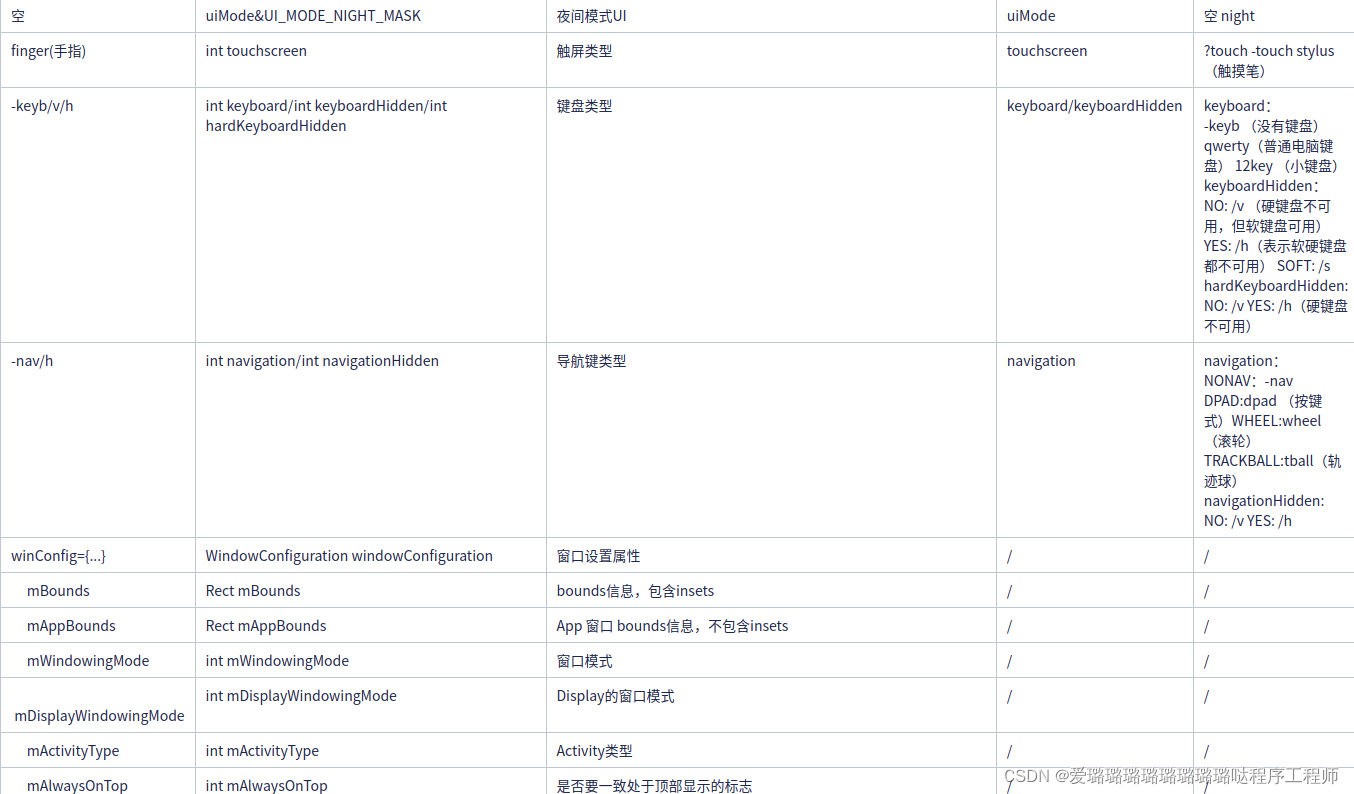

configuration包含一个应用对手机配置的感知，比如窗口大小、重力方向、手机模式等，可以查看具体成员，



 ok，包含配置文件的容器是ConfigurationContainer类，主要成员如下：

    /**
     * Contains requested override configuration settings applied to this configuration container.
     */
    private Configuration mRequestedOverrideConfiguration = new Configuration();

    /**
     * Contains the requested override configuration with parent and policy constraints applied.
     * This is the set of overrides that gets applied to the full and merged configurations.
     */
    private Configuration mResolvedOverrideConfiguration = new Configuration();

    /** True if mRequestedOverrideConfiguration is not empty */
    private boolean mHasOverrideConfiguration;

    /**
     * Contains full configuration applied to this configuration container. Corresponds to full
     * parent's config with applied {@link #mResolvedOverrideConfiguration}.
     */
    private Configuration mFullConfiguration = new Configuration();

    /**
     * Contains merged override configuration settings from the top of the hierarchy down to this
     * particular instance. It is different from {@link #mFullConfiguration} because it starts from
     * topmost container's override config instead of global config.
     */
    private Configuration mMergedOverrideConfiguration = new Configuration();

mRequestedOverrideConfiguration是原始request，container简单将新配置用它保存；mResolvedOverrideConfiguration是特殊处理后的configuration，子类可以通过重写resolveOverrideConfiguration方法修改其中的配置，达到特殊化，父类只是简单将原始request保存到它，并未改写；

mFullConfiguration是实际更新后configuration的最终状态；

mMergedOverrideConfiguration是具备继承效应的configuration，即container改变configuration后，子类将继承此改变，以此类推；

具体，咱们看ConfigurationContainer.onConfiguration方法，

public void onConfigurationChanged(Configuration newParentConfig) {
        //临时configuration变量，保存更新之前的mResolvedOverrideConfiguration
        mResolvedTmpConfig.setTo(mResolvedOverrideConfiguration);
        //更新mResolvedOverrideConfiguration，可重写此方法增添特殊配置
        resolveOverrideConfiguration(newParentConfig);
        mFullConfiguration.setTo(newParentConfig);
        //根据差异更新最终状态:mFullConfiguration
        mFullConfiguration.updateFrom(mResolvedOverrideConfiguration);
        //合并此次修改，保存至mMergedOverrideConfiguration
        onMergedOverrideConfigurationChanged();
        if (!mResolvedTmpConfig.equals(mResolvedOverrideConfiguration)) {
            //进入此分支，代表特殊配置修改，通知监听者，
            // This depends on the assumption that change-listeners don't do
            // their own override resolution. This way, dependent hierarchies
            // can stay properly synced-up with a primary hierarchy's constraints.
            // Since the hierarchies will be merged, this whole thing will go away
            // before the assumption will be broken.
            // Inform listeners of the change.
            for (int i = mChangeListeners.size() - 1; i >= 0; --i) {
                mChangeListeners.get(i).onRequestedOverrideConfigurationChanged(
                        mResolvedOverrideConfiguration);
            }
        }
        for (int i = mChangeListeners.size() - 1; i >= 0; --i) {
            //通知监听者，已经合并父配置修改
            mChangeListeners.get(i).onMergedOverrideConfigurationChanged(
                    mMergedOverrideConfiguration);
        }
        for (int i = getChildCount() - 1; i >= 0; --i) {
            //传达configuration最终状态到子类
            final ConfigurationContainer child = getChildAt(i);
            child.onConfigurationChanged(mFullConfiguration);
        }
    }

查看onRequestedOverrideConfigurationChanged方法，当有配置request到达，调用onConfigurationChanged完成上一步；

public void onRequestedOverrideConfigurationChanged(Configuration overrideConfiguration) {
        // Pre-compute this here, so we don't need to go through the entire Configuration when
        // writing to proto (which has significant cost if we write a lot of empty configurations).
        mHasOverrideConfiguration = !Configuration.EMPTY.equals(overrideConfiguration);
        mRequestedOverrideConfiguration.setTo(overrideConfiguration);
        // Update full configuration of this container and all its children.
        final ConfigurationContainer parent = getParent();
        onConfigurationChanged(parent != null ? parent.getConfiguration() : Configuration.EMPTY);
    }

进入下一步，Activity如何感知到配置的改变？这是一个binder过程，先从Activity生命周期说起；

配置改变后通过binder调用IApplicationThread.scheduleTransaction方法，

public void schedule() throws RemoteException {
        mClient.scheduleTransaction(this);
    }

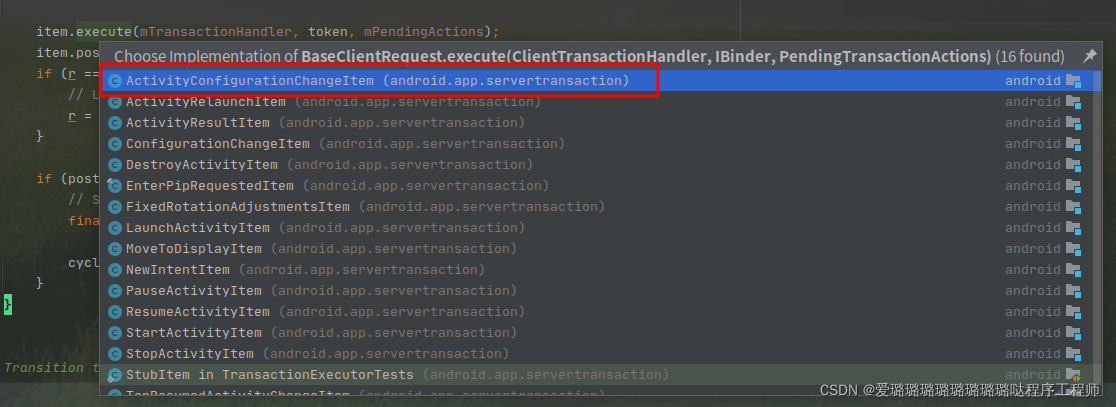

然后配置改变消息会进入应用进程，经过ActivityThread.H发送消息，执行Transaction，进入TransactionExecutor.executeCallbacks方法，

 这个ClientTransactionItem.execute方法如下，

 @Override
    public void execute(ClientTransactionHandler client, IBinder token,
            PendingTransactionActions pendingActions) {
        // TODO(lifecycler): detect if PIP or multi-window mode changed and report it here.
        Trace.traceBegin(TRACE_TAG_ACTIVITY_MANAGER, "activityConfigChanged");
        client.handleActivityConfigurationChanged(token, mConfiguration, INVALID_DISPLAY);
        Trace.traceEnd(TRACE_TAG_ACTIVITY_MANAGER);
    }

最终调用到performActivityConfigurationChanged方法，执行如下分支，回调Activity.onConfiguration方法，完成应用进程回调；

        if (shouldReportChange) {
            activity.mCalled = false;
            activity.onConfigurationChanged(configToReport);
            if (!activity.mCalled) {
                throw new SuperNotCalledException("Activity " + activity.getLocalClassName() +
                                " did not call through to super.onConfigurationChanged()");
            }
        }

那么系统进程如何传送配置信息到应用进程？这个还得从配置改变说起；

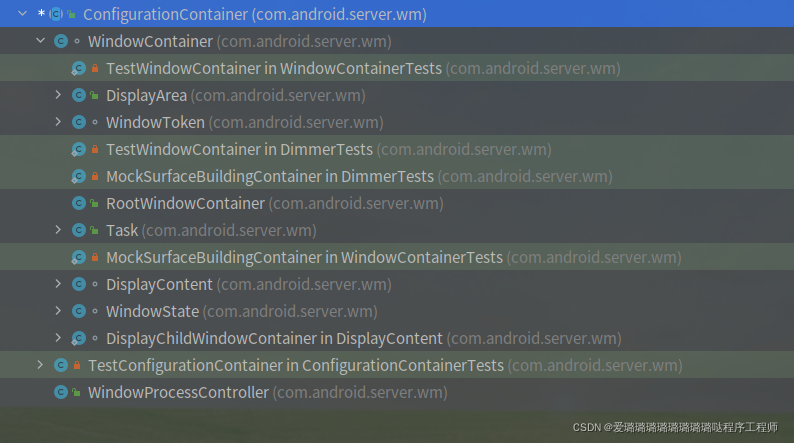

ConfigurationContainer是一个抽象类，直接子类是WindowContainer

WindowContainer是应用Window容器，所有顶层WindowContainer的容器是RootWindowContainer类，当configuration更新后，wms会调用setDisplayOverrideConfigurationIfNeed方法，然后通过ConfigurationContainer前文介绍的方法依次通知children配置update信息；

void setNewDisplayOverrideConfiguration(Configuration overrideConfig,
            @NonNull DisplayContent dc) {
        if (dc.mWaitingForConfig) {
            dc.mWaitingForConfig = false;
            mLastFinishedFreezeSource = "new-config";
        }

        mRoot.setDisplayOverrideConfigurationIfNeeded(overrideConfig, dc);
    }

于是乎，通过children调用至ActivityStack.onConfiguration，它继承WindowContainer，

该方法末尾，调用resize方法，再调用ensureVisibleActivitiesConfiguration方法;

void ensureVisibleActivitiesConfiguration(ActivityRecord start, boolean preserveWindow) {
        mEnsureVisibleActivitiesConfigHelper.process(start, preserveWindow);
    }

process方法内，会更新配置，然后更新焦距中的Activity

 final PooledFunction f = PooledLambda.obtainFunction(
                    EnsureVisibleActivitiesConfigHelper::processActivity, this,
                    PooledLambda.__(ActivityRecord.class));
            forAllActivities(f, start, true /*includeBoundary*/, true /*traverseTopToBottom*/);
            f.recycle();

            if (mUpdateConfig) {
                // Ensure the resumed state of the focus activity if we updated the configuration of
                // any activity.
                mRootWindowContainer.resumeFocusedStacksTopActivities();
            }

进一步查看processActivity方法，

boolean processActivity(ActivityRecord r) {
            mUpdateConfig |= r.ensureActivityConfiguration(0 /*globalChanges*/, mPreserveWindow);
            mBehindFullscreen |= r.occludesParent();
            return mBehindFullscreen;
        }

跟进ensureActivityConfiguration，在ActivityRecord.ensureActivityConfiguration方法中，有如下代码，

if (changes == 0 && !forceNewConfig) {
            if (DEBUG_SWITCH || DEBUG_CONFIGURATION) Slog.v(TAG_CONFIGURATION,
                    "Configuration no differences in " + this);
            // There are no significant differences, so we won't relaunch but should still deliver
            // the new configuration to the client process.
            if (displayChanged) {
                scheduleActivityMovedToDisplay(newDisplayId, newMergedOverrideConfig);
            } else {
                scheduleConfigurationChanged(newMergedOverrideConfig);
            }
            return true;
        }

displayChanged未改变的前提下，走scheduleConfigurationChange，通知应用进程，

private void scheduleConfigurationChanged(Configuration config) {
        if (!attachedToProcess()) {
            if (DEBUG_CONFIGURATION) Slog.w(TAG,
                    "Can't report activity configuration update - client not running"
                            + ", activityRecord=" + this);
            return;
        }
        try {
            if (DEBUG_CONFIGURATION) Slog.v(TAG, "Sending new config to " + this + ", config: "
                    + config);

            mAtmService.getLifecycleManager().scheduleTransaction(app.getThread(), appToken,
                    ActivityConfigurationChangeItem.obtain(config));
        } catch (RemoteException e) {
            // If process died, whatever.
        }
    }

至此，应用进程可以根据新配置更新布局等信息。
