使用mybatis-generator插件生成postgresql数据库

pom文件配置插件

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>org.example</groupId>
  <artifactId>generation</artifactId>
  <packaging>war</packaging>
  <version>1.0-SNAPSHOT</version>
  <name>generation Maven Webapp</name>
  <url>http://maven.apache.org</url>


  <parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>2.2.4.RELEASE</version>
  </parent>

  <build>
    <finalName>generation</finalName>
    <plugins>
      <!-- mybatis generator 自动生成代码插件 -->
      <plugin>
        <groupId>org.mybatis.generator</groupId>
        <artifactId>mybatis-generator-maven-plugin</artifactId>
        <version>1.3.2</version>
        <configuration>
          <configurationFile>${basedir}/src/main/resources/generator/generatorConfig.xml</configurationFile>
          <overwrite>true</overwrite>
          <verbose>true</verbose>
        </configuration>
        <!-- 配置数据库链接及mybatis generator core依赖 生成mapper时使用 -->
        <dependencies>
          <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
          </dependency>

          <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>2.2.2</version>
          </dependency>

          <dependency>
            <groupId>org.mybatis.generator</groupId>
            <artifactId>mybatis-generator-core</artifactId>
            <version>1.4.0</version>
          </dependency>



          <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>3.8.1</version>
            <scope>test</scope>
          </dependency>

          <dependency>
            <groupId>org.postgresql</groupId>
            <artifactId>postgresql</artifactId>
            <version>42.2.20</version>
          </dependency>

        </dependencies>
      </plugin>

    </plugins>
  </build>
</project>

generator配置文件

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
        PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
        "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">
<!-- 配置生成器 -->
<generatorConfiguration>
    <context id="DB2Tables" targetRuntime="MyBatis3">

        <commentGenerator>
            <property name="suppressDate" value="true"/>
            <!-- 是否去除自动生成的注释 true：是 ： false:否 -->
            <property name="suppressAllComments" value="true"/>
        </commentGenerator>

        <!-- 数据库链接URL，用户名、密码 -->
        <jdbcConnection driverClass="org.postgresql.Driver"
                        connectionURL="jdbc:postgresql://x.xxx.xx.xxx:5432/utscs_platform"
                        userId="xxxxx"
                        password="xxxxxxx">
        </jdbcConnection>

        <!-- 类型转换 -->
        <javaTypeResolver>
            <!-- 是否使用BigDecimals，false可自动转化以下类型(Long Integer Short等) -->
            <property name="forceBigDecimals" value="false"/>
        </javaTypeResolver>

        <!-- 生成模型的包名和位置-->
        <javaModelGenerator targetPackage="com.lets.utscs.platform.web.entity" targetProject="src/main/java">
            <property name="enableSubPackages" value="true"/>
            <property name="trimStrings" value="true"/>
        </javaModelGenerator>

        <!-- 生成映射文件的包名和位置-->
        <sqlMapGenerator targetPackage="mappers" targetProject="src/main/resources">
            <property name="enableSubPackages" value="true"/>
        </sqlMapGenerator>

        <!-- 生成DAO的包名和位置 -->
        <javaClientGenerator type="XMLMAPPER" targetPackage="com.lets.utscs.platform.web.mapper" targetProject="src/main/java">
            <property name="enableSubPackages" value="true"/>
        </javaClientGenerator>

        <!-- 要生成的表 tableName是数据库中的表名或视图名 domainObjectName是实体类名-->

        <table tableName="sys_alarm_data" domainObjectName="SysAlarmData" enableCountByExample="false"
               enableUpdateByExample="false" enableDeleteByExample="false" enableSelectByExample="false"
               selectByExampleQueryId="false"></table>
        <table tableName="sys_center_control" domainObjectName="SysCenterControl" enableCountByExample="false"
               enableUpdateByExample="false" enableDeleteByExample="false" enableSelectByExample="false"
               selectByExampleQueryId="false"></table>
        <table tableName="sys_date_schedule" domainObjectName="SysDateSchedule" enableCountByExample="false"
               enableUpdateByExample="false" enableDeleteByExample="false" enableSelectByExample="false"
               selectByExampleQueryId="false"></table>
        <table tableName="sys_dept" domainObjectName="SysDept" enableCountByExample="false"
               enableUpdateByExample="false" enableDeleteByExample="false" enableSelectByExample="false"
               selectByExampleQueryId="false"></table>

    </context>

</generatorConfiguration>

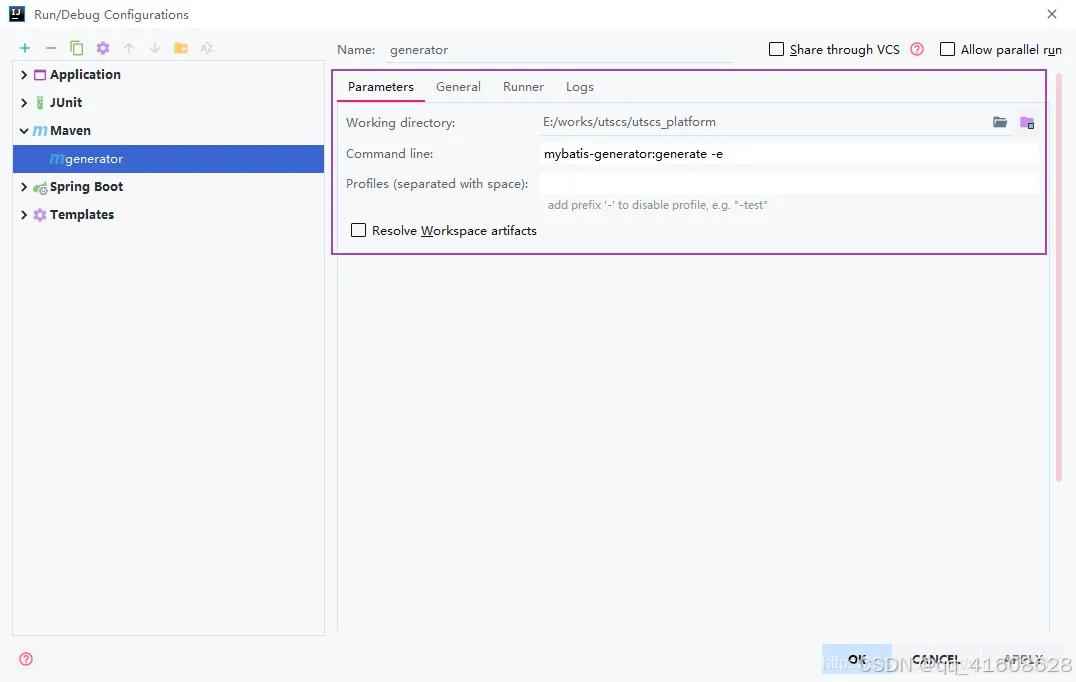

配置maven启动

mybatis-generator:generate -e
