nacos连接mysql数据库并使用sm4加密数据库密码

最新推荐文章于 2025-03-27 19:39:00 发布

qq_41747412

最新推荐文章于 2025-03-27 19:39:00 发布

阅读量3.4k

点赞数 2

文章标签：数据库 mysql java

本文链接：https://blog.csdn.net/qq_41747412/article/details/129986045

版权

本文详细介绍了如何修改Nacos2.1.0的源码，实现数据库连接配置中密码的加密处理，包括修改`ExternalDataSourceProperties`类以支持解密，添加国密SM4加密工具类，以及在MySQL数据库中添加Nacos依赖的表。此外，还提供了在`application.properties`中配置加密密码的方法。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

参考：
1、https://blog.csdn.net/footless_bird/article/details/118928743
2、https://blog.csdn.net/taolin0/article/details/129557711
3、官方手册：https://nacos.io/zh-cn/docs/v2/quickstart/quick-start.html

修改源码

下载源码

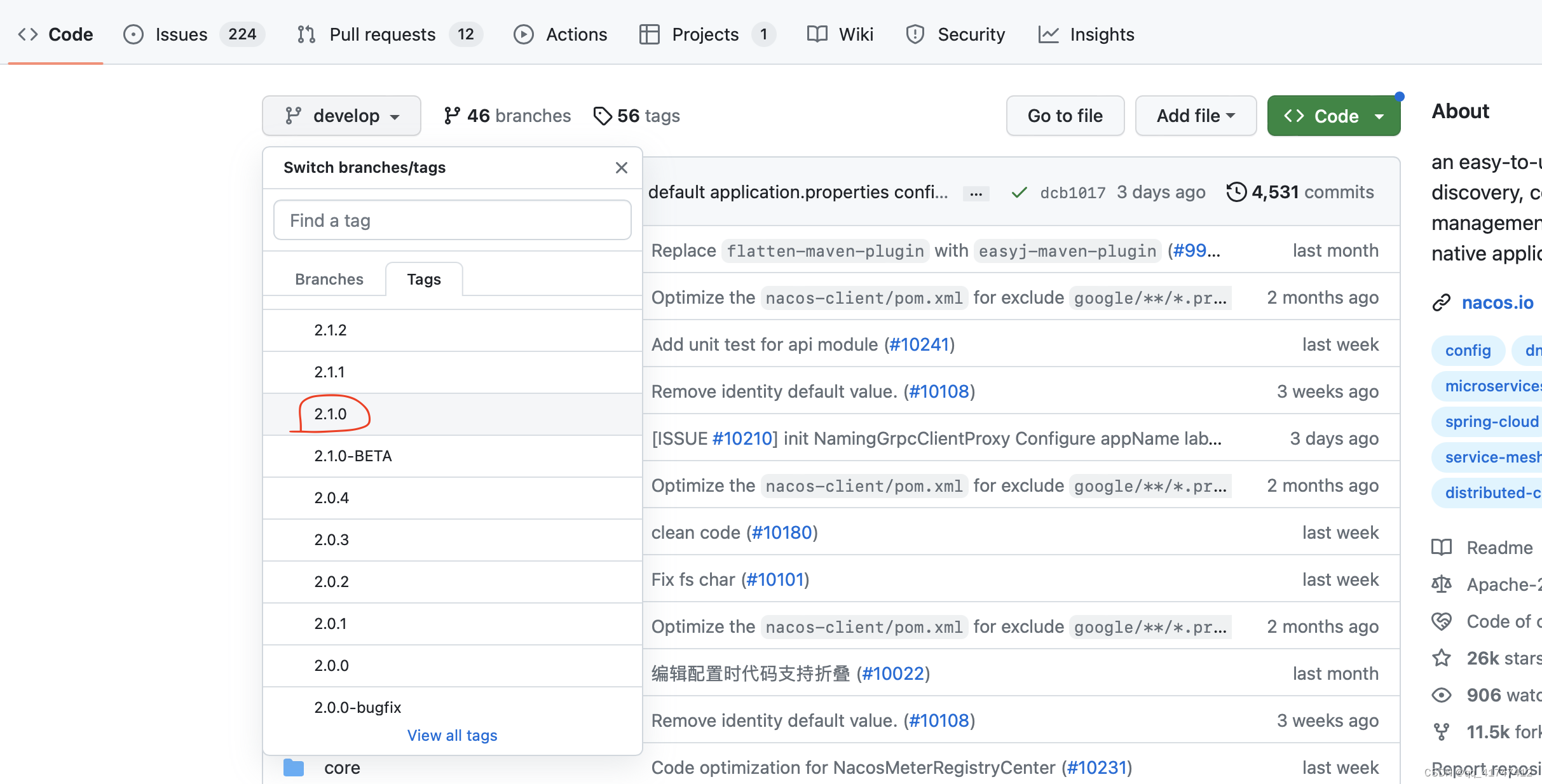

使用的nacos源码是2.1.0版本的
下载地址：https://github.com/alibaba/nacos
在这里插入图片描述

修改代码

1、修改源码类

修改config模块下的“ExternalDataSourceProperties”类，具体路径如下：

nacos-2.1.0/config/src/main/java/com/alibaba/nacos/config/server/service/datasource/ExternalDataSourceProperties.java

具体代码如下：

/*
 * Copyright 1999-2018 Alibaba Group Holding Ltd.
 *
 * Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with
 * the License. You may obtain a copy of the License at
 *
 * http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on
 * an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the
 * specific language governing permissions and limitations under the License.
 */

package com.alibaba.nacos.config.server.service.datasource;

import com.alibaba.nacos.common.utils.Preconditions;
import com.alibaba.nacos.config.server.utils.Sm4Util;
import com.zaxxer.hikari.HikariDataSource;
import org.apache.commons.collections.CollectionUtils;
import org.springframework.boot.context.properties.bind.Bindable;
import org.springframework.boot.context.properties.bind.Binder;
import org.springframework.core.env.Environment;

import java.util.ArrayList;
import java.util.List;
import java.util.Objects;
import java.util.concurrent.TimeUnit;

import static com.alibaba.nacos.common.utils.CollectionUtils.getOrDefault;

/**
 * Properties of external DataSource.
 *
 * @author Nacos
 */
public class ExternalDataSourceProperties {

    private static final String JDBC_DRIVER_NAME = "com.mysql.cj.jdbc.Driver";

    private static final String TEST_QUERY = "SELECT 1";

    private Integer num;

    private List<String> url = new ArrayList<>();

    private List<String> user = new ArrayList<>();

    private List<String> password = new ArrayList<>();

    private List<String> sm4Key = new ArrayList<>();

    public void setNum(Integer num) {
        this.num = num;
    }

    public void setUrl(List<String> url) {
        this.url = url;
    }

    public void setUser(List<String> user) {
        this.user = user;
    }

    public void setPassword(List<String> password) {
        this.password = password;
    }

    public void setSm4Key(List<String> sm4Key) {
        this.sm4Key = sm4Key;
    }

    /**
     * Build serveral HikariDataSource.
     *
     * @param environment {@link Environment}
     * @param callback    Callback function when constructing data source
     * @return List of {@link HikariDataSource}
     */
    List<HikariDataSource> build(Environment environment, Callback<HikariDataSource> callback) {
        List<HikariDataSource> dataSources = new ArrayList<>();
        Binder.get(environment).bind("db", Bindable.ofInstance(this));
        Preconditions.checkArgument(Objects.nonNull(num), "db.num is null");
        Preconditions.checkArgument(CollectionUtils.isNotEmpty(user), "db.user or db.user.[index] is null");
        Preconditions.checkArgument(CollectionUtils.isNotEmpty(password), "db.password or db.password.[index] is null");
        for (int index = 0; index < num; index++) {
            int currentSize = index + 1;
            Preconditions.checkArgument(url.size() >= currentSize, "db.url.%s is null", index);
            DataSourcePoolProperties poolProperties = DataSourcePoolProperties.build(environment);
            poolProperties.setDriverClassName(JDBC_DRIVER_NAME);
            poolProperties.setJdbcUrl(url.get(index).trim());
            // poolProperties.setUsername(getOrDefault(user, index, user.get(0)).trim());
            // poolProperties.setPassword(getOrDefault(password, index, password.get(0)).trim());

            //---------------------------------------------------------------------------------------
            // 在这里可以自定义密码的解密规则，此处采用sm4加密为例，可以替换成自己的解密类
            if(sm4Key.size() == 0){
                sm4Key.add("86C63180C2806ED1F47B859DE501215B");
            }
            String split = "DECRYPT@";

            String key = getOrDefault(sm4Key, index, sm4Key.get(0)).trim();
            String reallyUserName = "";
            String reallyPassword = "";

            try {
                String userNameEn = getOrDefault(user, index, user.get(0)).trim();
                String passwordEn = getOrDefault(password, index, password.get(0)).trim();

                if(userNameEn.startsWith(split)){
                    userNameEn = userNameEn.replace(split, "");
                    //解密用户名
                    reallyUserName = Sm4Util.decryptEcb(key, userNameEn);
                } else {
                    reallyUserName = userNameEn;
                }

                if(passwordEn.startsWith(split)){
                    passwordEn = passwordEn.replace(split, "");
                    //解密密码
                    reallyPassword = Sm4Util.decryptEcb(key, passwordEn);
                } else {
                    reallyPassword = passwordEn;
                }
            } catch (Exception e){

            }
            poolProperties.setUsername(reallyUserName);
            poolProperties.setPassword(reallyPassword);
            //-------------------------------------------------------------------------------------------

            HikariDataSource ds = poolProperties.getDataSource();
            ds.setConnectionTestQuery(TEST_QUERY);
            ds.setIdleTimeout(TimeUnit.MINUTES.toMillis(10L));
            ds.setConnectionTimeout(TimeUnit.SECONDS.toMillis(3L));
            dataSources.add(ds);
            callback.accept(ds);
        }
        Preconditions.checkArgument(CollectionUtils.isNotEmpty(dataSources), "no datasource available");
        return dataSources;
    }

    interface Callback<D> {

        /**
         * Perform custom logic.
         *
         * @param datasource dataSource.
         */
        void accept(D datasource);
    }
}

注意点：
- 为了兼容可以使用不加密的数据库密码，在加密的密文前面加上“DECRYPT@”

2、国密sm4加解密工具类

config模块添加依赖

        <!--sm4加密算法-->
        <dependency>
            <groupId>org.bouncycastle</groupId>
            <artifactId>bcprov-jdk15on</artifactId>
            <version>1.66</version>
        </dependency>

sm4加密工具类

/*
 * Copyright 1999-2018 Alibaba Group Holding Ltd.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package com.alibaba.nacos.config.server.utils;

import org.bouncycastle.jce.provider.BouncyCastleProvider;
import org.bouncycastle.pqc.math.linearalgebra.ByteUtils;

import javax.crypto.Cipher;
import javax.crypto.KeyGenerator;
import javax.crypto.spec.SecretKeySpec;
import java.security.Key;
import java.security.SecureRandom;
import java.security.Security;
import java.util.Arrays;

@SuppressWarnings("all")	// nacos一键打包时跳过检查，不加可能会报错
public class Sm4Util {
    static {
        Security.addProvider(new BouncyCastleProvider());
    }

    private static final String ENCODING = "UTF-8";
    public static final String ALGORITHM_NAME = "SM4";

    //加密算法/分组加密模式/分组填充方式
    //PKCS5Padding-以8个字节为一组分组加密
    //定义分组加密模式使用：PKCS5Padding
    public static final String ALGORITHM_NAME_ECB_PADDING = "SM4/ECB/PKCS5Padding";

    //128-32位16进制;256-64位16进制

    public static final int DEFAULT_KEY_SIZE = 128;

    /**
     * 生成ECB暗号
     *
     * @param algorithmName 算法名称
     * @param mode          模式
     * @param key
     * @return
     * @throws Exception
     * @explain ECB模式（电子密码本模式：Electronic codebook）
     */
    private static Cipher generateEcbCipher(String algorithmName, int mode, byte[] key) throws Exception {
        Cipher cipher = Cipher.getInstance(algorithmName, BouncyCastleProvider.PROVIDER_NAME);
        Key sm4Key = new SecretKeySpec(key, ALGORITHM_NAME);
        cipher.init(mode, sm4Key);
        return cipher;
    }

    /**
     * 生成默认长度的Key
     * @return byte字节数组
     * @throws Exception
     */
    public static byte[] generateKey() throws Exception {
        return generateKey(DEFAULT_KEY_SIZE);
    }

    /**
     * 生成指定长度的Key
     * @param keySize
     * @return byte字节数组
     * @throws Exception
     */
    public static byte[] generateKey(int keySize) throws Exception {
        KeyGenerator kg = KeyGenerator.getInstance(ALGORITHM_NAME, BouncyCastleProvider.PROVIDER_NAME);
        kg.init(keySize, new SecureRandom());
        return kg.generateKey().getEncoded();
    }

    /**
     * sm4加密
     *
     * @param hexKey   16进制秘钥（忽略大小写）
     * @param paramStr 待加密字符串
     * @return 返回16进制的加密字符串
     * @throws Exception
     */
    public static String encryptEcb(String hexKey, String paramStr) throws Exception {
        String cipherText = "";
        // 16进制字符串-->byte[]
        byte[] keyData = ByteUtils.fromHexString(hexKey);
        // String-->byte[]
        byte[] srcData = paramStr.getBytes(ENCODING);
        // 加密后的数组
        byte[] cipherArray = encrypt_Ecb_Padding(keyData, srcData);
        // byte[]-->hexString
        cipherText = ByteUtils.toHexString(cipherArray);
        return cipherText;
    }

    /**
     * 加密模式之Ecb
     *
     * @param key
     * @param data
     * @return
     * @throws Exception
     * @explain
     */
    public static byte[] encrypt_Ecb_Padding(byte[] key, byte[] data) throws Exception {
        Cipher cipher = generateEcbCipher(ALGORITHM_NAME_ECB_PADDING, Cipher.ENCRYPT_MODE, key);
        return cipher.doFinal(data);
    }

    /**
     * sm4解密
     *
     * @param hexKey     16进制密钥
     * @param cipherText 16进制的加密字符串（忽略大小写）
     * @return 解密后的字符串
     * @throws Exception
     * @explain 解密模式：采用ECB
     */
    public static String decryptEcb(String hexKey, String cipherText) throws Exception {
        // 用于接收解密后的字符串
        String decryptStr = "";
        // hexString-->byte[]
        byte[] keyData = ByteUtils.fromHexString(hexKey);
        // hexString-->byte[]
        byte[] cipherData = ByteUtils.fromHexString(cipherText);
        // 解密
        byte[] srcData = decrypt_Ecb_Padding(keyData, cipherData);
        // byte[]-->String
        decryptStr = new String(srcData, ENCODING);
        return decryptStr;
    }

    /**
     * @param key
     * @param cipherText
     * @return
     * @throws Exception
     */
    public static byte[] decrypt_Ecb_Padding(byte[] key, byte[] cipherText) throws Exception {

        Cipher cipher = generateEcbCipher(ALGORITHM_NAME_ECB_PADDING, Cipher.DECRYPT_MODE, key);
        return cipher.doFinal(cipherText);
    }

    /**
     * 校验加密前后的字符串是否为同一数据
     *
     * @param hexKey     16进制密钥（忽略大小写）
     * @param cipherText 16进制加密后的字符串
     * @param paramStr   加密前的字符串
     * @return 是否为同一数据
     * @throws Exception
     * @explain
     */
    public static boolean verifyEcb(String hexKey, String cipherText, String paramStr) throws Exception{
        // 用于接收校验结果
        boolean flag = false;
        // hexString-->byte[]
        byte[] keyData = ByteUtils.fromHexString(hexKey);
        // 将16进制字符串转换成数组
        byte[] cipherData = ByteUtils.fromHexString(cipherText);
        // 解密
        byte[] decryptData = decrypt_Ecb_Padding(keyData, cipherData);
        // 将原字符串转换成byte[]
        byte[] srcData = paramStr.getBytes(ENCODING);
        // 判断2个数组是否一致
        flag = Arrays.equals(decryptData, srcData);
        return flag;
    }
}

注意：文件头的注释必须加上，否则打包的时候回出问题，提示“新增文件没有经过Lisence权限认证”，具体提示如下：

[ERROR] Failed to execute goal org.apache.rat:apache-rat-plugin:0.12:check (default) on project nacos-config: Too many files with unapproved license: 10 See RAT report in: D:\IdeaProject\nacos-2.0.3\config\target\rat.txt -> [Help 1]
[ERROR]
[ERROR] To see the full stack trace of the errors, re-run Maven with the -e switch.
[ERROR] Re-run Maven using the -X switch to enable full debug logging.
[ERROR]
[ERROR] For more information about the errors and possible solutions, please read the following articles:
[ERROR] [Help 1] http://cwiki.apache.org/confluence/display/MAVEN/MojoFailureException
[ERROR]
[ERROR] After correcting the problems, you can resume the build with the command
[ERROR]   mvn <args> -rf :nacos-config

3、在mysql数据库中添加nacos依赖的表：

数据库脚本位置：


/*
 * Copyright 1999-2018 Alibaba Group Holding Ltd.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

/******************************************/
/*   数据库全名 = nacos_config   */
/*   表名称 = config_info   */
/******************************************/
CREATE TABLE `config_info` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'id',
  `data_id` varchar(255) NOT NULL COMMENT 'data_id',
  `group_id` varchar(255) DEFAULT NULL,
  `content` longtext NOT NULL COMMENT 'content',
  `md5` varchar(32) DEFAULT NULL COMMENT 'md5',
  `gmt_create` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `gmt_modified` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '修改时间',
  `src_user` text COMMENT 'source user',
  `src_ip` varchar(50) DEFAULT NULL COMMENT 'source ip',
  `app_name` varchar(128) DEFAULT NULL,
  `tenant_id` varchar(128) DEFAULT '' COMMENT '租户字段',
  `c_desc` varchar(256) DEFAULT NULL,
  `c_use` varchar(64) DEFAULT NULL,
  `effect` varchar(64) DEFAULT NULL,
  `type` varchar(64) DEFAULT NULL,
  `c_schema` text,
  `encrypted_data_key` text NOT NULL COMMENT '秘钥',
  PRIMARY KEY (`id`),
  UNIQUE KEY `uk_configinfo_datagrouptenant` (`data_id`,`group_id`,`tenant_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='config_info';

/******************************************/
/*   数据库全名 = nacos_config   */
/*   表名称 = config_info_aggr   */
/******************************************/
CREATE TABLE `config_info_aggr` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'id',
  `data_id` varchar(255) NOT NULL COMMENT 'data_id',
  `group_id` varchar(255) NOT NULL COMMENT 'group_id',
  `datum_id` varchar(255) NOT NULL COMMENT 'datum_id',
  `content` longtext NOT NULL COMMENT '内容',
  `gmt_modified` datetime NOT NULL COMMENT '修改时间',
  `app_name` varchar(128) DEFAULT NULL,
  `tenant_id` varchar(128) DEFAULT '' COMMENT '租户字段',
  PRIMARY KEY (`id`),
  UNIQUE KEY `uk_configinfoaggr_datagrouptenantdatum` (`data_id`,`group_id`,`tenant_id`,`datum_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='增加租户字段';


/******************************************/
/*   数据库全名 = nacos_config   */
/*   表名称 = config_info_beta   */
/******************************************/
CREATE TABLE `config_info_beta` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'id',
  `data_id` varchar(255) NOT NULL COMMENT 'data_id',
  `group_id` varchar(128) NOT NULL COMMENT 'group_id',
  `app_name` varchar(128) DEFAULT NULL COMMENT 'app_name',
  `content` longtext NOT NULL COMMENT 'content',
  `beta_ips` varchar(1024) DEFAULT NULL COMMENT 'betaIps',
  `md5` varchar(32) DEFAULT NULL COMMENT 'md5',
  `gmt_create` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `gmt_modified` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '修改时间',
  `src_user` text COMMENT 'source user',
  `src_ip` varchar(50) DEFAULT NULL COMMENT 'source ip',
  `tenant_id` varchar(128) DEFAULT '' COMMENT '租户字段',
  `encrypted_data_key` text NOT NULL COMMENT '秘钥',
  PRIMARY KEY (`id`),
  UNIQUE KEY `uk_configinfobeta_datagrouptenant` (`data_id`,`group_id`,`tenant_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='config_info_beta';

/******************************************/
/*   数据库全名 = nacos_config   */
/*   表名称 = config_info_tag   */
/******************************************/
CREATE TABLE `config_info_tag` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'id',
  `data_id` varchar(255) NOT NULL COMMENT 'data_id',
  `group_id` varchar(128) NOT NULL COMMENT 'group_id',
  `tenant_id` varchar(128) DEFAULT '' COMMENT 'tenant_id',
  `tag_id` varchar(128) NOT NULL COMMENT 'tag_id',
  `app_name` varchar(128) DEFAULT NULL COMMENT 'app_name',
  `content` longtext NOT NULL COMMENT 'content',
  `md5` varchar(32) DEFAULT NULL COMMENT 'md5',
  `gmt_create` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `gmt_modified` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '修改时间',
  `src_user` text COMMENT 'source user',
  `src_ip` varchar(50) DEFAULT NULL COMMENT 'source ip',
  PRIMARY KEY (`id`),
  UNIQUE KEY `uk_configinfotag_datagrouptenanttag` (`data_id`,`group_id`,`tenant_id`,`tag_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='config_info_tag';

/******************************************/
/*   数据库全名 = nacos_config   */
/*   表名称 = config_tags_relation   */
/******************************************/
CREATE TABLE `config_tags_relation` (
  `id` bigint(20) NOT NULL COMMENT 'id',
  `tag_name` varchar(128) NOT NULL COMMENT 'tag_name',
  `tag_type` varchar(64) DEFAULT NULL COMMENT 'tag_type',
  `data_id` varchar(255) NOT NULL COMMENT 'data_id',
  `group_id` varchar(128) NOT NULL COMMENT 'group_id',
  `tenant_id` varchar(128) DEFAULT '' COMMENT 'tenant_id',
  `nid` bigint(20) NOT NULL AUTO_INCREMENT,
  PRIMARY KEY (`nid`),
  UNIQUE KEY `uk_configtagrelation_configidtag` (`id`,`tag_name`,`tag_type`),
  KEY `idx_tenant_id` (`tenant_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='config_tag_relation';

/******************************************/
/*   数据库全名 = nacos_config   */
/*   表名称 = group_capacity   */
/******************************************/
CREATE TABLE `group_capacity` (
  `id` bigint(20) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键ID',
  `group_id` varchar(128) NOT NULL DEFAULT '' COMMENT 'Group ID，空字符表示整个集群',
  `quota` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '配额，0表示使用默认值',
  `usage` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '使用量',
  `max_size` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '单个配置大小上限，单位为字节，0表示使用默认值',
  `max_aggr_count` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '聚合子配置最大个数，，0表示使用默认值',
  `max_aggr_size` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '单个聚合数据的子配置大小上限，单位为字节，0表示使用默认值',
  `max_history_count` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '最大变更历史数量',
  `gmt_create` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `gmt_modified` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '修改时间',
  PRIMARY KEY (`id`),
  UNIQUE KEY `uk_group_id` (`group_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='集群、各Group容量信息表';

/******************************************/
/*   数据库全名 = nacos_config   */
/*   表名称 = his_config_info   */
/******************************************/
CREATE TABLE `his_config_info` (
  `id` bigint(64) unsigned NOT NULL,
  `nid` bigint(20) unsigned NOT NULL AUTO_INCREMENT,
  `data_id` varchar(255) NOT NULL,
  `group_id` varchar(128) NOT NULL,
  `app_name` varchar(128) DEFAULT NULL COMMENT 'app_name',
  `content` longtext NOT NULL,
  `md5` varchar(32) DEFAULT NULL,
  `gmt_create` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP,
  `gmt_modified` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP,
  `src_user` text,
  `src_ip` varchar(50) DEFAULT NULL,
  `op_type` char(10) DEFAULT NULL,
  `tenant_id` varchar(128) DEFAULT '' COMMENT '租户字段',
  `encrypted_data_key` text NOT NULL COMMENT '秘钥',
  PRIMARY KEY (`nid`),
  KEY `idx_gmt_create` (`gmt_create`),
  KEY `idx_gmt_modified` (`gmt_modified`),
  KEY `idx_did` (`data_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='多租户改造';


/******************************************/
/*   数据库全名 = nacos_config   */
/*   表名称 = tenant_capacity   */
/******************************************/
CREATE TABLE `tenant_capacity` (
  `id` bigint(20) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键ID',
  `tenant_id` varchar(128) NOT NULL DEFAULT '' COMMENT 'Tenant ID',
  `quota` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '配额，0表示使用默认值',
  `usage` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '使用量',
  `max_size` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '单个配置大小上限，单位为字节，0表示使用默认值',
  `max_aggr_count` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '聚合子配置最大个数',
  `max_aggr_size` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '单个聚合数据的子配置大小上限，单位为字节，0表示使用默认值',
  `max_history_count` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '最大变更历史数量',
  `gmt_create` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `gmt_modified` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '修改时间',
  PRIMARY KEY (`id`),
  UNIQUE KEY `uk_tenant_id` (`tenant_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='租户容量信息表';


CREATE TABLE `tenant_info` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'id',
  `kp` varchar(128) NOT NULL COMMENT 'kp',
  `tenant_id` varchar(128) default '' COMMENT 'tenant_id',
  `tenant_name` varchar(128) default '' COMMENT 'tenant_name',
  `tenant_desc` varchar(256) DEFAULT NULL COMMENT 'tenant_desc',
  `create_source` varchar(32) DEFAULT NULL COMMENT 'create_source',
  `gmt_create` bigint(20) NOT NULL COMMENT '创建时间',
  `gmt_modified` bigint(20) NOT NULL COMMENT '修改时间',
  PRIMARY KEY (`id`),
  UNIQUE KEY `uk_tenant_info_kptenantid` (`kp`,`tenant_id`),
  KEY `idx_tenant_id` (`tenant_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='tenant_info';

CREATE TABLE `users` (
	`username` varchar(50) NOT NULL PRIMARY KEY,
	`password` varchar(500) NOT NULL,
	`enabled` boolean NOT NULL
);

CREATE TABLE `roles` (
	`username` varchar(50) NOT NULL,
	`role` varchar(50) NOT NULL,
	UNIQUE INDEX `idx_user_role` (`username` ASC, `role` ASC) USING BTREE
);

CREATE TABLE `permissions` (
    `role` varchar(50) NOT NULL,
    `resource` varchar(255) NOT NULL,
    `action` varchar(8) NOT NULL,
    UNIQUE INDEX `uk_role_permission` (`role`,`resource`,`action`) USING BTREE
);

INSERT INTO users (username, password, enabled) VALUES ('nacos', '$2a$10$EuWPZHzz32dJN7jexM34MOeYirDdFAZm2kuWj7VEOJhhZkDrxfvUu', TRUE);

INSERT INTO roles (username, role) VALUES ('nacos', 'ROLE_ADMIN');

4、在“application.properties”配置文件中，将数据库用户名和密码替换为加密密文

该配置文件路径：

nacos-2.1.0/console/src/main/resources/application.properties

修改内容如下：

#*************** Config Module Related Configurations ***************#
### If use MySQL as datasource:
 spring.datasource.platform=mysql

### Count of DB:
 db.num=1

### Connect URL of DB:
 db.url.0=jdbc:mysql://127.0.0.1:3306/nacos?characterEncoding=utf8&connectTimeout=1000&socketTimeout=3000&autoReconnect=true&useUnicode=true&useSSL=false&serverTimezone=UTC
# db.user.0=root
# db.password.0=mysql

 db.user.0=DECRYPT@b916909c4b06919ed4435b0d4873ecd1
 db.password.0=DECRYPT@1b72015439fb8e098edda1ae64c400ef
 db.sm4Key.0=86C63180C2806ED1F47B859DE501215B

注意：“db.sm4Key.0”是后加的，源码中不存在，表示加密密钥，通过编写的工具类生成：

    public static void main(String[] args) throws Exception {
        byte[] genKeyBs = Sm4Util.generateKey();
        System.out.println(genKeyBs);
        String genKeyStr = ByteUtils.toHexString(genKeyBs);
        System.out.println("密钥：" + genKeyStr);
    }
}

5、启动测试

启动类：nacos-2.1.0/console/src/main/java/com/alibaba/nacos/Nacos.java
在这里插入图片描述

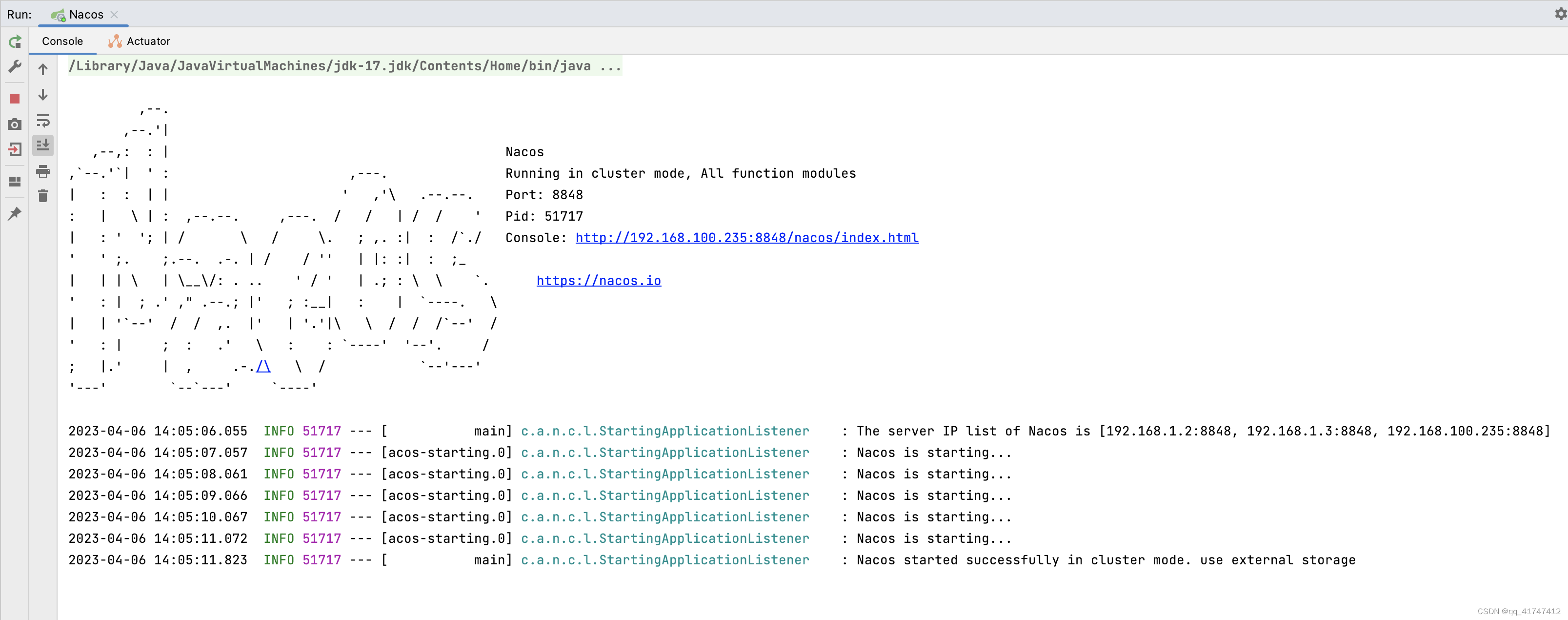

启动成功：

浏览器输入请求路径：

打包

mvn -Prelease-nacos -Dmaven.test.skip=true -Dpmd.skip=true -Dcheckstyle.skip=true clean install -U

注意：
1. 使用idea命令行进行打包
2. 使用jdk17进行打包，否则会出现下面的打包失败的问题：

[INFO] ------------------------------------------------------------------------
[INFO] Reactor Summary for Alibaba NACOS 2.1.0 2.1.0:
[INFO]
[INFO] Alibaba NACOS 2.1.0 ................................ SUCCESS [  2.795 s]
[INFO] nacos-api 2.1.0 .................................... SUCCESS [  5.703 s]
[INFO] nacos-common 2.1.0 ................................. SUCCESS [  1.575 s]
[INFO] nacos-consistency 2.1.0 ............................ SUCCESS [  3.654 s]
[INFO] nacos-plugin 2.1.0 ................................. SUCCESS [  0.100 s]
[INFO] nacos-auth-plugin 2.1.0 ............................ SUCCESS [  0.342 s]
[INFO] nacos-sys 2.1.0 .................................... SUCCESS [  0.635 s]
[INFO] nacos-auth 2.1.0 ................................... SUCCESS [  0.492 s]
[INFO] nacos-core 2.1.0 ................................... SUCCESS [  2.236 s]
[INFO] nacos-encryption-plugin 2.1.0 ...................... SUCCESS [  0.288 s]
[INFO] nacos-config 2.1.0 ................................. SUCCESS [  3.081 s]
[INFO] nacos-cmdb 2.1.0 ................................... SUCCESS [  0.547 s]
[INFO] nacos-naming 2.1.0 ................................. SUCCESS [  3.722 s]
[INFO] nacos-address 2.1.0 ................................ SUCCESS [  0.561 s]
[INFO] nacos-client 2.1.0 ................................. SUCCESS [ 19.637 s]
[INFO] nacos-plugin-default-impl 2.1.0 .................... SUCCESS [  0.794 s]
[INFO] nacos-istio 2.1.0 .................................. SUCCESS [  8.572 s]
[INFO] nacos-console 2.1.0 ................................ FAILURE [  2.748 s]
[INFO] nacos-test 2.1.0 ................................... SKIPPED
[INFO] nacos-config-test 2.1.0 ............................ SKIPPED
[INFO] nacos-naming-test 2.1.0 ............................ SKIPPED
[INFO] nacos-core-test 2.1.0 .............................. SKIPPED
[INFO] nacos-example 2.1.0 ................................ SKIPPED
[INFO] nacos-distribution 2.1.0 ........................... SKIPPED
[INFO] ------------------------------------------------------------------------
[INFO] BUILD FAILURE
[INFO] ------------------------------------------------------------------------
[INFO] Total time:  57.939 s
[INFO] Finished at: 2023-04-06T11:30:45+08:00
[INFO] ------------------------------------------------------------------------
[ERROR] Failed to execute goal org.springframework.boot:spring-boot-maven-plugin:3.0.5:repackage (default) on project nacos-console: Execution default of goal org.springframework.boot:spring-boot-maven-plugin:3.0.5:repackage failed: Unable to load the mojo 'repackage' in the plugin 'org.springframework.boot:spring-boot-maven-plugin:3.0.5' due to an API incompatibility: org.codehaus.plexus.component.repository.exception.ComponentLookupException: org/springframework/boot/maven/RepackageMojo has been compiled by a more recent version of the Java Runtime (class file version 61.0), this version of the Java Runtime only recognizes class file versions up to 55.0
[ERROR] -----------------------------------------------------
[ERROR] realm =    plugin>org.springframework.boot:spring-boot-maven-plugin:3.0.5
[ERROR] strategy = org.codehaus.plexus.classworlds.strategy.SelfFirstStrategy
[ERROR] urls[0] = file:/Users/xxx/Documents/repository/org/springframework/boot/spring-boot-maven-plugin/3.0.5/spring-boot-maven-plugin-3.0.5.jar
[ERROR] urls[1] = file:/Users/xxx/Documents/repository/org/springframework/spring-context/6.0.7/spring-context-6.0.7.jar
[ERROR] urls[2] = file:/Users/xxx/Documents/repository/org/springframework/spring-aop/6.0.7/spring-aop-6.0.7.jar
[ERROR] urls[3] = file:/Users/xxx/Documents/repository/org/springframework/spring-beans/6.0.7/spring-beans-6.0.7.jar
[ERROR] urls[4] = file:/Users/xxx/Documents/repository/org/springframework/spring-core/6.0.7/spring-core-6.0.7.jar
[ERROR] urls[5] = file:/Users/xxx/Documents/repository/org/springframework/spring-jcl/6.0.7/spring-jcl-6.0.7.jar
[ERROR] urls[6] = file:/Users/xxx/Documents/repository/org/springframework/spring-expression/6.0.7/spring-expression-6.0.7.jar
[ERROR] urls[7] = file:/Users/xxx/Documents/repository/org/springframework/boot/spring-boot-buildpack-platform/3.0.5/spring-boot-buildpack-platform-3.0.5.jar
[ERROR] urls[8] = file:/Users/xxx/Documents/repository/com/fasterxml/jackson/core/jackson-databind/2.14.2/jackson-databind-2.14.2.jar
[ERROR] urls[9] = file:/Users/xxx/Documents/repository/com/fasterxml/jackson/core/jackson-annotations/2.14.2/jackson-annotations-2.14.2.jar
[ERROR] urls[10] = file:/Users/xxx/Documents/repository/com/fasterxml/jackson/core/jackson-core/2.14.2/jackson-core-2.14.2.jar
[ERROR] urls[11] = file:/Users/xxx/Documents/repository/com/fasterxml/jackson/module/jackson-module-parameter-names/2.14.2/jackson-module-parameter-names-2.14.2.jar
[ERROR] urls[12] = file:/Users/xxx/Documents/repository/net/java/dev/jna/jna-platform/5.7.0/jna-platform-5.7.0.jar
[ERROR] urls[13] = file:/Users/xxx/Documents/repository/net/java/dev/jna/jna/5.7.0/jna-5.7.0.jar
[ERROR] urls[14] = file:/Users/xxx/Documents/repository/org/apache/commons/commons-compress/1.21/commons-compress-1.21.jar
[ERROR] urls[15] = file:/Users/xxx/Documents/repository/org/apache/httpcomponents/httpclient/4.5.14/httpclient-4.5.14.jar
[ERROR] urls[16] = file:/Users/xxx/Documents/repository/org/apache/httpcomponents/httpcore/4.4.16/httpcore-4.4.16.jar
[ERROR] urls[17] = file:/Users/xxx/Documents/repository/commons-codec/commons-codec/1.11/commons-codec-1.11.jar
[ERROR] urls[18] = file:/Users/xxx/Documents/repository/org/tomlj/tomlj/1.0.0/tomlj-1.0.0.jar
[ERROR] urls[19] = file:/Users/xxx/Documents/repository/org/antlr/antlr4-runtime/4.7.2/antlr4-runtime-4.7.2.jar
[ERROR] urls[20] = file:/Users/xxx/Documents/repository/com/google/code/findbugs/jsr305/3.0.2/jsr305-3.0.2.jar
[ERROR] urls[21] = file:/Users/xxx/Documents/repository/org/springframework/boot/spring-boot-loader-tools/3.0.5/spring-boot-loader-tools-3.0.5.jar
[ERROR] urls[22] = file:/Users/xxx/Documents/repository/org/sonatype/plexus/plexus-build-api/0.0.7/plexus-build-api-0.0.7.jar
[ERROR] urls[23] = file:/Users/xxx/Documents/repository/org/codehaus/plexus/plexus-utils/1.5.8/plexus-utils-1.5.8.jar
[ERROR] urls[24] = file:/Users/xxx/Documents/repository/org/apache/maven/plugins/maven-shade-plugin/3.2.4/maven-shade-plugin-3.2.4.jar
[ERROR] urls[25] = file:/Users/xxx/Documents/repository/org/sonatype/sisu/sisu-inject-bean/1.4.2/sisu-inject-bean-1.4.2.jar
[ERROR] urls[26] = file:/Users/xxx/Documents/repository/org/sonatype/sisu/sisu-guice/2.1.7/sisu-guice-2.1.7-noaop.jar
[ERROR] urls[27] = file:/Users/xxx/Documents/repository/org/sonatype/aether/aether-util/1.7/aether-util-1.7.jar
[ERROR] urls[28] = file:/Users/xxx/Documents/repository/org/codehaus/plexus/plexus-interpolation/1.14/plexus-interpolation-1.14.jar
[ERROR] urls[29] = file:/Users/xxx/Documents/repository/org/codehaus/plexus/plexus-component-annotations/1.5.5/plexus-component-annotations-1.5.5.jar
[ERROR] urls[30] = file:/Users/xxx/Documents/repository/org/sonatype/plexus/plexus-sec-dispatcher/1.3/plexus-sec-dispatcher-1.3.jar
[ERROR] urls[31] = file:/Users/xxx/Documents/repository/org/sonatype/plexus/plexus-cipher/1.4/plexus-cipher-1.4.jar
[ERROR] urls[32] = file:/Users/xxx/Documents/repository/org/apache/maven/shared/maven-artifact-transfer/0.12.0/maven-artifact-transfer-0.12.0.jar
[ERROR] urls[33] = file:/Users/xxx/Documents/repository/org/apache/maven/shared/maven-common-artifact-filters/3.0.1/maven-common-artifact-filters-3.0.1.jar
[ERROR] urls[34] = file:/Users/xxx/Documents/repository/org/apache/maven/shared/maven-shared-utils/3.1.0/maven-shared-utils-3.1.0.jar
[ERROR] urls[35] = file:/Users/xxx/Documents/repository/org/ow2/asm/asm/8.0/asm-8.0.jar
[ERROR] urls[36] = file:/Users/xxx/Documents/repository/org/ow2/asm/asm-commons/8.0/asm-commons-8.0.jar
[ERROR] urls[37] = file:/Users/xxx/Documents/repository/org/ow2/asm/asm-tree/8.0/asm-tree-8.0.jar
[ERROR] urls[38] = file:/Users/xxx/Documents/repository/org/ow2/asm/asm-analysis/8.0/asm-analysis-8.0.jar
[ERROR] urls[39] = file:/Users/xxx/Documents/repository/org/jdom/jdom2/2.0.6/jdom2-2.0.6.jar
[ERROR] urls[40] = file:/Users/xxx/Documents/repository/org/apache/maven/shared/maven-dependency-tree/3.0.1/maven-dependency-tree-3.0.1.jar
[ERROR] urls[41] = file:/Users/xxx/Documents/repository/org/eclipse/aether/aether-util/0.9.0.M2/aether-util-0.9.0.M2.jar
[ERROR] urls[42] = file:/Users/xxx/Documents/repository/commons-io/commons-io/2.6/commons-io-2.6.jar
[ERROR] urls[43] = file:/Users/xxx/Documents/repository/org/vafer/jdependency/2.4.0/jdependency-2.4.0.jar
[ERROR] urls[44] = file:/Users/xxx/Documents/repository/org/ow2/asm/asm-util/8.0/asm-util-8.0.jar
[ERROR] urls[45] = file:/Users/xxx/Documents/repository/com/google/guava/guava/28.2-android/guava-28.2-android.jar
[ERROR] urls[46] = file:/Users/xxx/Documents/repository/com/google/guava/failureaccess/1.0.1/failureaccess-1.0.1.jar
[ERROR] urls[47] = file:/Users/xxx/Documents/repository/com/google/guava/listenablefuture/9999.0-empty-to-avoid-conflict-with-guava/listenablefuture-9999.0-empty-to-avoid-conflict-with-guava.jar
[ERROR] urls[48] = file:/Users/xxx/Documents/repository/org/checkerframework/checker-compat-qual/2.5.5/checker-compat-qual-2.5.5.jar
[ERROR] urls[49] = file:/Users/xxx/Documents/repository/com/google/errorprone/error_prone_annotations/2.3.4/error_prone_annotations-2.3.4.jar
[ERROR] urls[50] = file:/Users/xxx/Documents/repository/com/google/j2objc/j2objc-annotations/1.3/j2objc-annotations-1.3.jar
[ERROR] urls[51] = file:/Users/xxx/Documents/repository/org/apache/commons/commons-lang3/3.7/commons-lang3-3.7.jar
[ERROR] Number of foreign imports: 1
[ERROR] import: Entry[import  from realm ClassRealm[maven.api, parent: null]]
[ERROR]
[ERROR] -----------------------------------------------------
[ERROR]
[ERROR] -> [Help 1]
[ERROR]
[ERROR] To see the full stack trace of the errors, re-run Maven with the -e switch.
[ERROR] Re-run Maven using the -X switch to enable full debug logging.
[ERROR]
[ERROR] For more information about the errors and possible solutions, please read the following articles:
[ERROR] [Help 1] http://cwiki.apache.org/confluence/display/MAVEN/PluginContainerException
[ERROR]
[ERROR] After correcting the problems, you can resume the build with the command
[ERROR]   mvn <args> -rf :nacos-console
