本文链接：https://blog.csdn.net/qq_41928621/article/details/131273901

该文详细介绍了双向认证的过程，涉及六个关键证书文件：server.crt,server.key,root.crt,client.crt,client.key,client.p12。并提供了生成根证书、服务器端证书和客户端证书的openssl命令行步骤。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

https://help.aliyun.com/document_detail/160093.html

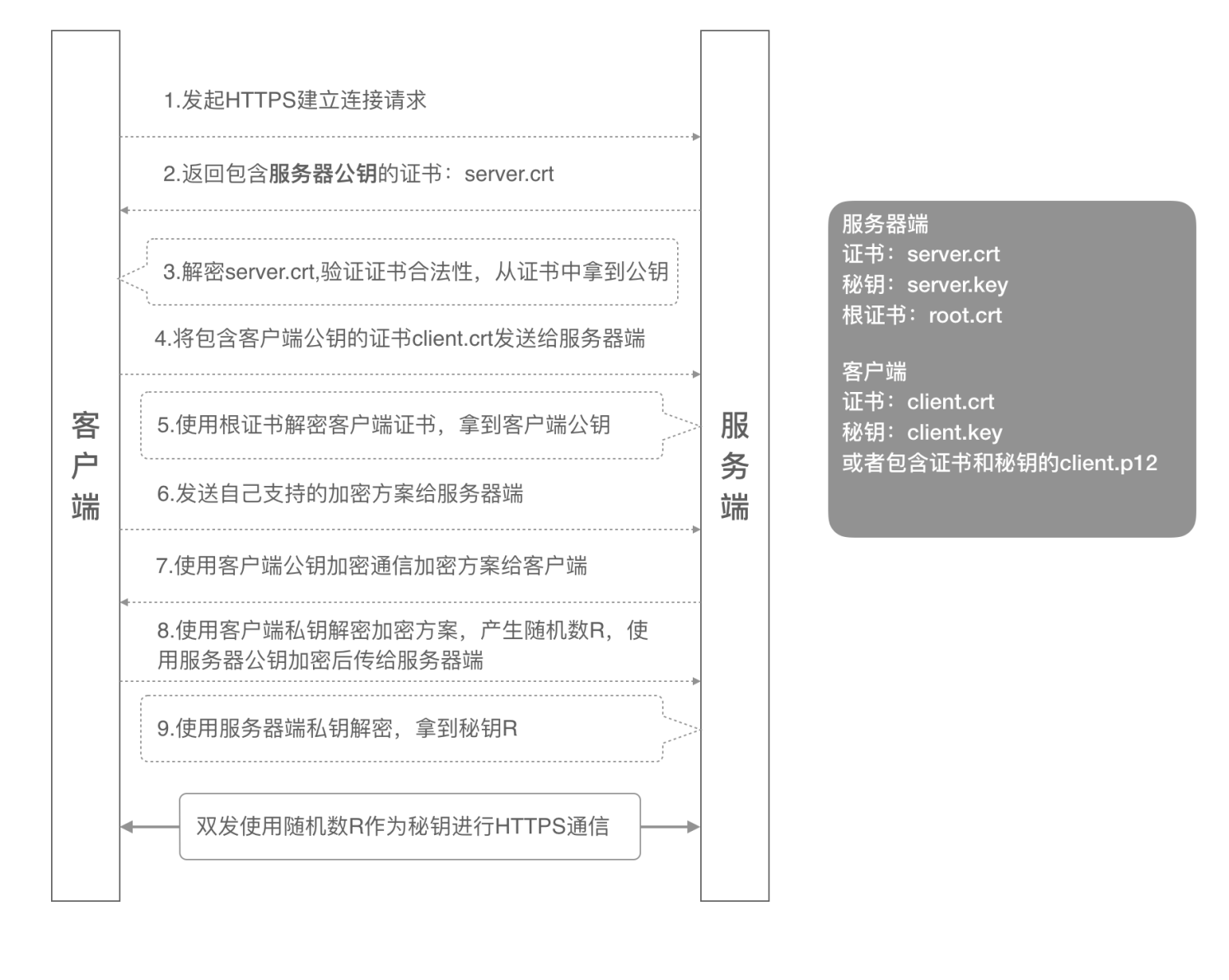

1双向认证过程：

从图中可知，整个双向认证的流程需要六个证书文件：

服务器端公钥证书：server.crt
服务器端私钥文件：server.key
根证书：root.crt
客户端公钥证书：client.crt
客户端私钥文件：client.key
客户端集成证书（包括公钥和私钥，用于浏览器访问场景）：client.p12

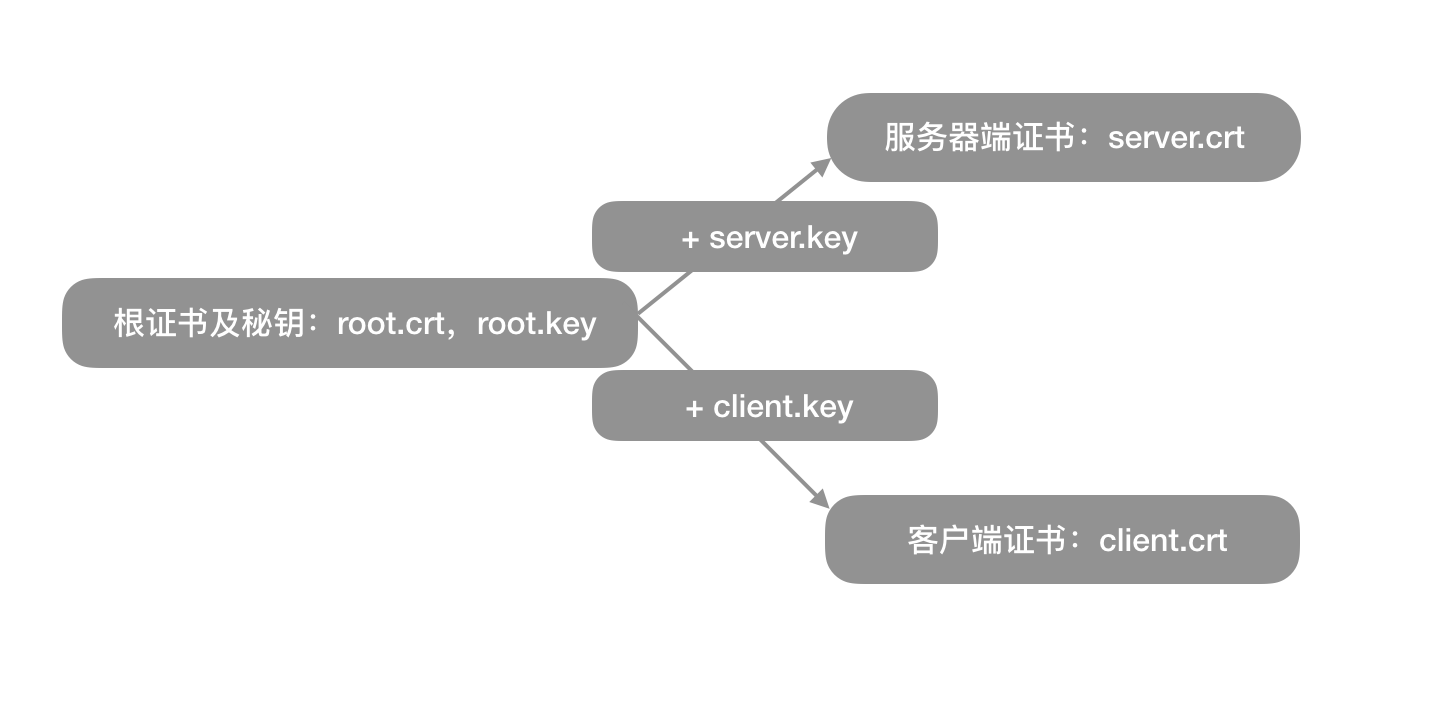

证书生成的内在逻辑示意图：

2、证书生成流程

以下是相对与自签证书
===生成根证书===
生成根私钥
openssl genrsa -out root.key 3072

生成根的csr文件
openssl req -new -out root.csr -key root.key

Country Name (2 letter code) [XX]:CN
State or Province Name (full name) []:Guangdong
Locality Name (eg, city) [Default City]:Shenzhen
Organization Name (eg, company) [Default Company Ltd]:3w
Organizational Unit Name (eg, section) []:Dev
Common Name (eg, your name or your servers hostname) []:root
Email Address []:123@qq.com
A challenge password []:
An optional company name []:

根据csr文件和私钥生成证书
openssl x509 -req -in root.csr -out root.crt -signkey root.key -CAcreateserial -days 3650


=================================================================================



=============================server============================================
===生成服务端证书===
openssl genrsa -out server.key 3072



openssl req -new -out server.csr -key server.key

Country Name (2 letter code) [XX]:CN
State or Province Name (full name) []:Guangdong
Locality Name (eg, city) [Default City]:Shenzhen
Organization Name (eg, company) [Default Company Ltd]:3w
Organizational Unit Name (eg, section) []:Dev
Common Name (eg, your name or your servers hostname) []:server
Email Address []:123@qq.com
A challenge password []:
An optional company name []:

//服务端证书 使用根证书进行签名认证
openssl x509 -req -in server.csr -out server.crt -signkey server.key -CA root.crt -CAkey root.key -CAcreateserial -days 3650

=================================================================================




=============================client============================================
===生成客户端证书===
openssl genrsa -out client.key 3072



openssl req -new -out client.csr -key client.key

Country Name (2 letter code) [XX]:CN
State or Province Name (full name) []:Guangdong
Locality Name (eg, city) [Default City]:Shenzhen
Organization Name (eg, company) [Default Company Ltd]:3w
Organizational Unit Name (eg, section) []:Dev
Common Name (eg, your name or your servers hostname) []:client
Email Address []:123@qq.com
A challenge password []:
An optional company name []:

//客户端证书 使用根证书进行签名认证
openssl x509 -req -in client.csr -out client.crt -signkey client.key -CA root.crt -CAkey root.key -CAcreateserial -days 3650

=================================================================================


生成pfx文件：
openssl pkcs12 -export -in test.pem -inkey server.key -out test.pfx -passout pass:123456

PS：

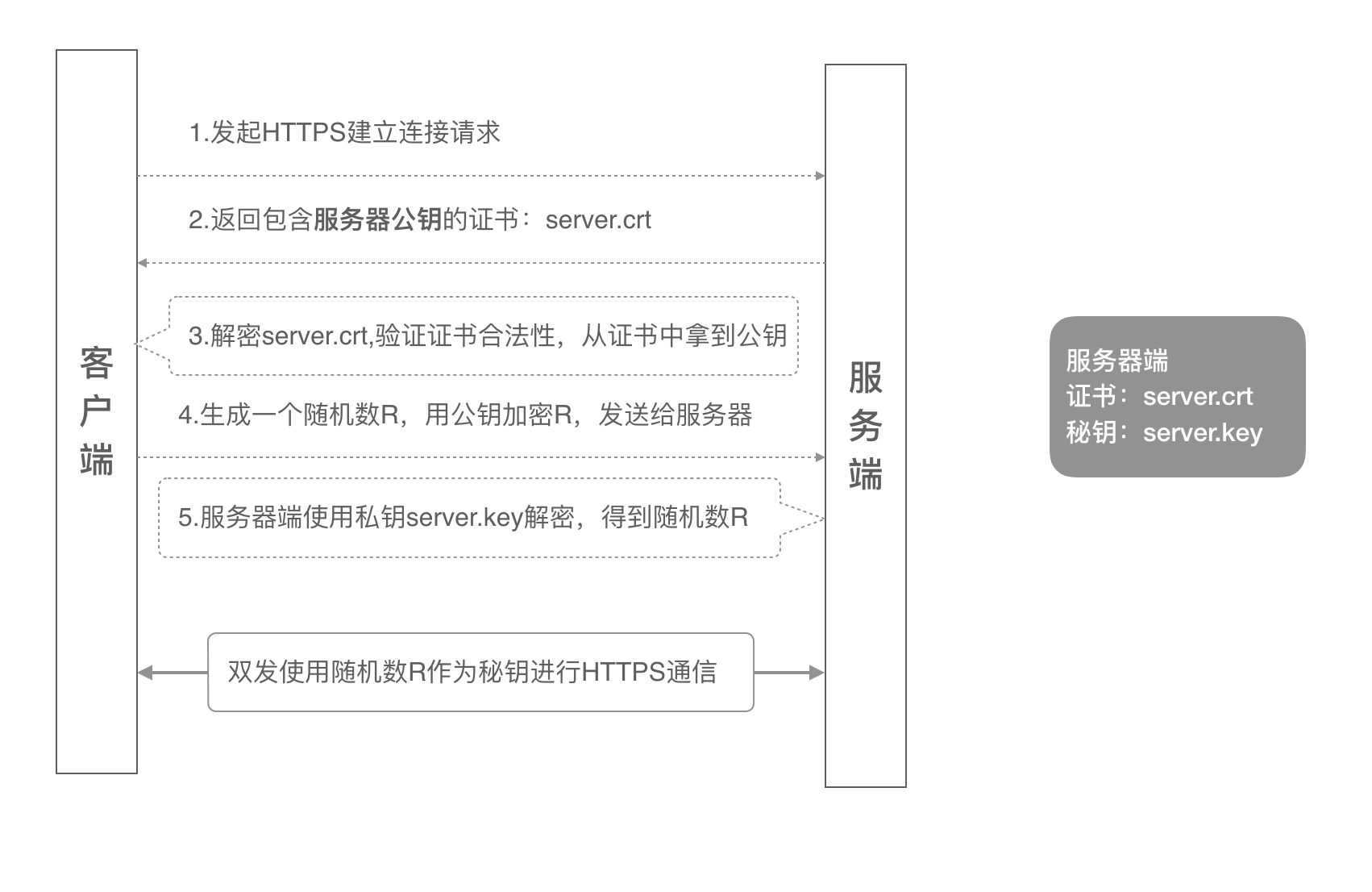

单向认证流程中，服务器端保存着公钥证书和私钥两个文件，整个握手过程如下：
