java使用Modbus RTU /ASC 模式 学习笔记

引入jar包

        <!--modbus4j-->
        <dependency>
            <groupId>com.infiniteautomation</groupId>
            <artifactId>modbus4j</artifactId>
            <version>3.0.3</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.clojars.frozenlock/sero-utils -->
        <dependency>
            <groupId>org.clojars.frozenlock</groupId>
            <artifactId>sero-utils</artifactId>
            <version>1.1.5</version>
        </dependency>

SerialInputStream.java

package com.docmgr.workstation.communication.protocol.modbus;

import jssc.SerialPort;

import java.io.IOException;
import java.io.InputStream;

/**
 * Class that wraps a {@link SerialPort} to provide {@link InputStream}
 * functionality. This stream also provides support for performing blocking
 * reads with timeouts.
 * <br>
 * It is instantiated by passing the constructor a {@link SerialPort} instance.
 * Do not create multiple streams for the same serial port unless you implement
 * your own synchronization.
 *
 * @author Charles Hache <chalz@member.fsf.org>
 *
 * Attribution: https://github.com/therealchalz/java-simple-serial-connector
 *
 */
public class SerialInputStream extends InputStream {

    private SerialPort serialPort;
    private int defaultTimeout = 0;

    /**
     * Instantiates a SerialInputStream for the given {@link SerialPort} Do not
     * create multiple streams for the same serial port unless you implement
     * your own synchronization.
     *
     * @param sp The serial port to stream.
     */
    public SerialInputStream(SerialPort sp) {
        serialPort = sp;
    }

    /**
     * Set the default timeout (ms) of this SerialInputStream. This affects
     * subsequent calls to {@link #read()}, {@link #(int[])}, and
     * {@link #(int[], int, int)} The default timeout can be 'unset'
     * by setting it to 0.
     *
     * @param time The timeout in milliseconds.
     */
    public void setTimeout(int time) {
        defaultTimeout = time;
    }

    /**
     * Reads the next byte from the port. If the timeout of this stream has been
     * set, then this method blocks until data is available or until the timeout
     * has been hit. If the timeout is not set or has been set to 0, then this
     * method blocks indefinitely.
     */
    @Override
    public int read() throws IOException {
        return read(defaultTimeout);
    }

    /**
     * The same contract as {@link #read()}, except overrides this stream's
     * default timeout with the given timeout in milliseconds.
     *
     * @param timeout The timeout in milliseconds.
     * @return The read byte.
     * @throws IOException On serial port error or timeout
     */
    public int read(int timeout) throws IOException {
        byte[] buf = new byte[1];
        try {
            if (timeout > 0) {
                buf = serialPort.readBytes(1, timeout);
            } else {
                buf = serialPort.readBytes(1);
            }
            return buf[0];
        } catch (Exception e) {
            throw new IOException(e);
        }
    }

    /**
     * Non-blocking read of up to buf.length bytes from the stream. This call
     * behaves as read(buf, 0, buf.length) would.
     *
     * @param buf The buffer to fill.
     * @return The number of bytes read, which can be 0.
     * @throws IOException on error.
     */
    @Override
    public int read(byte[] buf) throws IOException {
        return read(buf, 0, buf.length);
    }

    /**
     * Non-blocking read of up to length bytes from the stream. This method
     * returns what is immediately available in the input buffer.
     *
     * @param buf The buffer to fill.
     * @param offset The offset into the buffer to start copying data.
     * @param length The maximum number of bytes to read.
     * @return The actual number of bytes read, which can be 0.
     * @throws IOException on error.
     */
    @Override
    public int read(byte[] buf, int offset, int length) throws IOException {

        if (buf.length < offset + length) {
            length = buf.length - offset;
        }

        int available = this.available();

        if (available > length) {
            available = length;
        }

        try {
            byte[] readBuf = serialPort.readBytes(available);
            System.arraycopy(readBuf, 0, buf, offset, length);
            return readBuf.length;
        } catch (Exception e) {
            throw new IOException(e);
        }
    }

    /**
     * Blocks until buf.length bytes are read, an error occurs, or the default
     * timeout is hit (if specified). This behaves as blockingRead(buf, 0,
     * buf.length) would.
     *
     * @param buf The buffer to fill with data.
     * @return The number of bytes read.
     * @throws IOException On error or timeout.
     */
    public int blockingRead(byte[] buf) throws IOException {
        return blockingRead(buf, 0, buf.length, defaultTimeout);
    }

    /**
     * The same contract as {@link #blockingRead(byte[])} except overrides this
     * stream's default timeout with the given one.
     *
     * @param buf The buffer to fill.
     * @param timeout The timeout in milliseconds.
     * @return The number of bytes read.
     * @throws IOException On error or timeout.
     */
    public int blockingRead(byte[] buf, int timeout) throws IOException {
        return blockingRead(buf, 0, buf.length, timeout);
    }

    /**
     * Blocks until length bytes are read, an error occurs, or the default
     * timeout is hit (if specified). Saves the data into the given buffer at
     * the specified offset. If the stream's timeout is not set, behaves as
     * {@link #read(byte[], int, int)} would.
     *
     * @param buf The buffer to fill.
     * @param offset The offset in buffer to save the data.
     * @param length The number of bytes to read.
     * @return the number of bytes read.
     * @throws IOException on error or timeout.
     */
    public int blockingRead(byte[] buf, int offset, int length) throws IOException {
        return blockingRead(buf, offset, length, defaultTimeout);
    }

    /**
     * The same contract as {@link #blockingRead(byte[], int, int)} except
     * overrides this stream's default timeout with the given one.
     *
     * @param buf The buffer to fill.
     * @param offset Offset in the buffer to start saving data.
     * @param length The number of bytes to read.
     * @param timeout The timeout in milliseconds.
     * @return The number of bytes read.
     * @throws IOException On error or timeout.
     */
    public int blockingRead(byte[] buf, int offset, int length, int timeout) throws IOException {
        if (buf.length < offset + length) {
            throw new IOException("Not enough buffer space for serial data");
        }

        if (timeout < 1) {
            return read(buf, offset, length);
        }

        try {
            byte[] readBuf = serialPort.readBytes(length, timeout);
            System.arraycopy(readBuf, 0, buf, offset, length);
            return readBuf.length;
        } catch (Exception e) {
            throw new IOException(e);
        }
    }

    @Override
    public int available() throws IOException {
        int ret;
        try {
            ret = serialPort.getInputBufferBytesCount();
            if (ret >= 0) {
                return ret;
            }
            throw new IOException("Error checking available bytes from the serial port.");
        } catch (Exception e) {
            throw new IOException("Error checking available bytes from the serial port.");
        }
    }

}

SerialOutputStream.java

package com.docmgr.workstation.communication.protocol.modbus; /**
 *
 * Copyright (c) 2009-2020 Freedomotic Team http://www.freedomotic-iot.com
 *
 * This file is part of Freedomotic
 *
 * This Program is free software; you can redistribute it and/or modify it under
 * the terms of the GNU General Public License as published by the Free Software
 * Foundation; either version 2, or (at your option) any later version.
 *
 * This Program is distributed in the hope that it will be useful, but WITHOUT
 * ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS
 * FOR A PARTICULAR PURPOSE. See the GNU General Public License for more
 * details.
 *
 * You should have received a copy of the GNU General Public License along with
 * Freedomotic; see the file COPYING. If not, see
 * <http://www.gnu.org/licenses/>.
 */


import jssc.SerialPort;
import jssc.SerialPortException;

import java.io.IOException;
import java.io.OutputStream;

/**
 * Class that wraps a {@link SerialPort} to provide {@link OutputStream}
 * functionality.
 * <br>
 * It is instantiated by passing the constructor a {@link SerialPort} instance.
 * Do not create multiple streams for the same serial port unless you implement
 * your own synchronization.
 *
 * @author Charles Hache <chalz@member.fsf.org>
 *
 * Attribution: https://github.com/therealchalz/java-simple-serial-connector
 *
 */
public class SerialOutputStream extends OutputStream {

    SerialPort serialPort;

    /**
     * Instantiates a SerialOutputStream for the given {@link SerialPort} Do not
     * create multiple streams for the same serial port unless you implement
     * your own synchronization.
     *
     * @param sp The serial port to stream.
     */
    public SerialOutputStream(SerialPort sp) {
        serialPort = sp;
    }

    @Override
    public void write(int b) throws IOException {
        try {
            serialPort.writeInt(b);
        } catch (SerialPortException e) {
            throw new IOException(e);
        }
    }

    @Override
    public void write(byte[] b) throws IOException {
        write(b, 0, b.length);

    }

    @Override
    public void write(byte[] b, int off, int len) throws IOException {
        byte[] buffer = new byte[len];
        System.arraycopy(b, off, buffer, 0, len);
        try {
            serialPort.writeBytes(buffer);
        } catch (SerialPortException e) {
            throw new IOException(e);
        }
    }
}

需要实现SerialPortWrapper接口，进行接口参数配置

SerialPortWrapperImp.java

package com.docmgr.workstation.communication.protocol.modbus;

import com.serotonin.io.serial.SerialParameters;
import com.serotonin.modbus4j.serial.SerialPortWrapper;
import jssc.SerialPort;
import jssc.SerialPortException;

import java.io.InputStream;
import java.io.OutputStream;

/**
 * @author Administrator
 * @title: TestSerialPortWrapper
 * @projectName workstation_yh
 * @description: TODO
 * @date 2021/06/04 000416:13
 */
public class SerialPortWrapperImp implements SerialPortWrapper {
    private SerialPort port;
    private String commPortId;
    private int baudRate;
    private int flowControlIn;
    private int flowControlOut;
    private int dataBits;
    private int stopBits;
    private int parity;

    public SerialPortWrapperImp(String commPortId, int baudRate, int flowControlIn,
                                int flowControlOut, int dataBits, int stopBits, int parity){
        this.commPortId = commPortId;
        this.baudRate = baudRate;
        this.flowControlIn = flowControlIn;
        this.flowControlOut = flowControlOut;
        this.dataBits = dataBits;
        this.stopBits = stopBits;
        this.parity = parity;

        port = new SerialPort(this.commPortId);

    }

    /* (non-Javadoc)
     * @see com.serotonin.modbus4j.serial.SerialPortWrapper#close()
     */
    @Override
    public void close() throws Exception {
        port.closePort();
        // TODO Auto-generated method stub

    }

    /* (non-Javadoc)
     * @see com.serotonin.modbus4j.serial.SerialPortWrapper#open()
     */
    @Override
    public void open() throws Exception {
        try {
            port.openPort();
            port.setParams(this.getBaudRate(), this.getDataBits(), this.getStopBits(), this.getParity());
            port.setFlowControlMode(this.getFlowControlIn() | this.getFlowControlOut());

            //listeners.forEach(PortConnectionListener::opened);
            //LOG.debug("Serial port {} opened", port.getPortName());
        } catch (SerialPortException ex) {
            //LOG.error("Error opening port : {} for {} ", port.getPortName(), ex);
        }
        // TODO Auto-generated method stub

    }



    /* (non-Javadoc)
     * @see com.serotonin.modbus4j.serial.SerialPortWrapper#getInputStream()
     */
    @Override
    public InputStream getInputStream() {
        // TODO Auto-generated method stub
        return new SerialInputStream(port);
    }

    /* (non-Javadoc)
     * @see com.serotonin.modbus4j.serial.SerialPortWrapper#getOutputStream()
     */
    @Override
    public OutputStream getOutputStream() {
        // TODO Auto-generated method stub
        return new SerialOutputStream(port);
    }

    /* (non-Javadoc)
     * @see com.serotonin.modbus4j.serial.SerialPortWrapper#getBaudRate()
     */
    @Override
    public int getBaudRate() {
        // TODO Auto-generated method stub
        return baudRate;
    }


    public int getFlowControlIn() {
        return flowControlIn;
        //return SerialPort.FLOWCONTROL_NONE;
    }

    public int getFlowControlOut() {
        return flowControlOut;
        //return SerialPort.FLOWCONTROL_NONE;
    }


    /* (non-Javadoc)
     * @see com.serotonin.modbus4j.serial.SerialPortWrapper#getStopBits()
     */
    @Override
    public int getStopBits() {
        // TODO Auto-generated method stub
        return stopBits;
    }

    /* (non-Javadoc)
     * @see com.serotonin.modbus4j.serial.SerialPortWrapper#getParity()
     */
    @Override
    public int getParity() {
        // TODO Auto-generated method stub
        return parity;
    }

    /* (non-Javadoc)
     * @see com.serotonin.modbus4j.serial.SerialPortWrapper#getDataBits()
     */
    @Override
    public int getDataBits() {
        // TODO Auto-generated method stub
        return dataBits;
    }


}

测试类

Test.java

 modbusFactory.createAsciiMaster(wrapper);是采用了modbus的asc模式进行发送

 modbusFactory.createRtuMaster(wrapper); 采用了modbus的rtu模式进行发送

package com.docmgr.workstation.communication.protocol.modbus;

import com.serotonin.modbus4j.ModbusFactory;
import com.serotonin.modbus4j.ModbusMaster;
import com.serotonin.modbus4j.exception.ModbusInitException;
import com.serotonin.modbus4j.exception.ModbusTransportException;
import com.serotonin.modbus4j.msg.*;

import java.util.Arrays;

/**
 * @author Administrator
 * @title: Test
 * @projectName workstation_yh
 * @description: TODO
 * @date 2021/06/03 000316:45
 */
public class Test {
    public static void main(String[] args) throws ModbusInitException {
        String commPortId = "COM7";
        int baudRate = 9600;
        int flowControlIn = 0;
        int flowControlOut = 0;
        int dataBits = 7;
        int stopBits = 1;
        int parity = 0;


        first(commPortId, baudRate, flowControlIn, flowControlOut, dataBits, stopBits, parity);
        second(commPortId, baudRate, flowControlIn, flowControlOut, dataBits, stopBits, parity);

       // SerialPortWrapperImp wrapper = new SerialPortWrapperImp(commPortId, baudRate, flowControlIn, flowControlOut, dataBits, stopBits, parity);
/*
        //IpParameters ipParameters = new IpParameters();
        //ipParameters.setHost("localhost");

        ModbusFactory modbusFactory = new ModbusFactory();

        ModbusMaster master = modbusFactory.createAsciiMaster(wrapper);
        // ModbusMaster master = modbusFactory.createAsciiMaster(wrapper);
        //ModbusMaster master = modbusFactory.createTcpMaster(ipParameters, false);
        // ModbusMaster master = modbusFactory.createUdpMaster(ipParameters);

        try {
            master.init();
            int slaveId = 1;

            // readCoil(master, slaveId, 0, 10);
            // readCoil(master, slaveId, 99, 200);
            // readDiscreteInput(master, slaveId, 1, 10);
            // readDiscreteInput(master, slaveId, 449, 72);
            *//*
                //This is Success
                //读取保持寄存器
                readHoldingRegisters(master, slaveId, 9, 125);
            *//*
            // readHoldingRegisters(master, slaveId, 9, 120);
            // readInputRegisters(master, slaveId, 0, 1);
            // readInputRegisters(master, slaveId, 14, 8);
            // writeCoil(master, slaveId, 1, true);
            // writeCoil(master, slaveId, 110, true);
            *//*
                //This is Success
                //写单个寄存器
                writeRegister(master, slaveId, 0, 1);
            *//*
            // writeRegister(master, slaveId, 14, 12345);
            // readExceptionStatus(master, slaveId);
            // reportSlaveId(master, slaveId);
            // writeCoils(master, slaveId, 50, new boolean[] {true, false, false, true, false});
            // writeCoils(master, slaveId, 115, new boolean[] {true, false, false, true, false});

            //This is Success
            //写多个寄存器
//            writeRegisters(master, slaveId, 300, new short[] {1, 10, 100, 1000, 10000, (short)65535});

            // writeRegisters(master, slaveId, 21, new short[] {1, 10, 100, 1000, 10000, (short)65535});

            //This is Success
            // writeMaskRegister(master, slaveId, 26, 0xf2, 0x25);

            // readCoil(master, slaveId, 9, 5);
            // readCoil(master, slaveId, 10, 5);
            // readDiscreteInput(master, slaveId, 10, 6);
            // readDiscreteInput(master, slaveId, 10, 5);
            // readHoldingRegisters(master, slaveId, 9, 7);
            // readHoldingRegisters(master, slaveId, 10, 5);
            // readInputRegisters(master, slaveId, 0, 1);
            // readInputRegisters(master, slaveId, 10, 5);
           writeCoil(master, slaveId, 2088, true);

             //writeCoil(master, slaveId, 2088, false);
           // writeRegistert(master, slaveId, 4108, 10);
            // writeRegister(master, slaveId, 14, 12345);
            // readExceptionStatus(master, slaveId);
            // reportSlaveId(master, slaveId);
            // writeCoils(master, slaveId, 11, new boolean[] {false, true, false, false, true});
            // writeCoils(master, slaveId, 10, new boolean[] {false, true, false, false, true});
            // writeRegisters(master, slaveId, 11, new short[] {(short)65535, 1000, 100, 10, 1});
            // writeRegisters(master, slaveId, 10, new short[] {(short)65535, 1000, 100, 10, 1});
            // writeMaskRegister(master, slaveId, 9, 0xf2, 0x25);
            // writeMaskRegister(master, slaveId, 10, 0xf2, 0x25);

            // Automatic WriteMaskRegister failover test
            // ModbusLocator locator = new ModbusLocator(slaveId, RegisterRange.HOLDING_REGISTER, 15, (byte)2);
            // System.out.println(master.getValue(locator));
            // master.setValue(locator, true);
            // System.out.println(master.getValue(locator));
            // master.setValue(locator, false);
            // System.out.println(master.getValue(locator));

            // BatchRead<String> batch = new BatchRead<String>();
            // batch.addLocator("hr1", new ModbusLocator(31, RegisterRange.HOLDING_REGISTER, 80,
            // DataType.TWO_BYTE_BCD));
            // batch.addLocator("hr2", new ModbusLocator(31, RegisterRange.HOLDING_REGISTER, 81,
            // DataType.FOUR_BYTE_BCD));
            // BatchResults<String> results = master.send(batch);
            // System.out.println(results.getValue("hr1"));
            // System.out.println(results.getValue("hr2"));

            // This's Successful Way to set Reg Data
            // BaseLocator<Number> locator = BaseLocator.holdingRegister(slaveId, 10, DataType.EIGHT_BYTE_INT_UNSIGNED);
            // master.setValue(locator, 10000000);
            // System.out.println(master.getValue(locator));
        } finally {
            master.destroy();
        }*/
    }

    public static void first(String commPortId, int baudRate, int flowControlIn, int flowControlOut, int dataBits, int stopBits, int parity) {
        SerialPortWrapperImp wrapper = new SerialPortWrapperImp(commPortId, baudRate, flowControlIn, flowControlOut, dataBits, stopBits, parity);
        ModbusFactory modbusFactory = new ModbusFactory();
        ModbusMaster master = modbusFactory.createAsciiMaster(wrapper);
        try {
            master.init();
            int slaveId = 0;
            writeCoil(master, slaveId, 2088, true);
        } catch (ModbusInitException e) {
            e.printStackTrace();
        } finally {
            master.destroy();
        }

    }

    public static void second(String commPortId, int baudRate, int flowControlIn, int flowControlOut, int dataBits, int stopBits, int parity) {
        SerialPortWrapperImp wrapper = new SerialPortWrapperImp(commPortId, baudRate, flowControlIn, flowControlOut, dataBits, stopBits, parity);
        ModbusFactory modbusFactory = new ModbusFactory();
        ModbusMaster master = modbusFactory.createAsciiMaster(wrapper);
        try {
            master.init();
            int slaveId = 0;
            writeCoil(master, slaveId, 2088, false);
        } catch (ModbusInitException e) {
            e.printStackTrace();
        } finally {
            master.destroy();
        }

    }

    /**
     * code 1
     *
     * @param master
     * @param slaveId
     * @param start
     * @param len
     */

    public static void readCoil(ModbusMaster master, int slaveId, int start, int len) {
        try {
            ReadCoilsRequest request = new ReadCoilsRequest(slaveId, start, len);
            ReadCoilsResponse response = (ReadCoilsResponse) master.send(request);

            if (response.isException())
                System.out.println("Exception response: message=" + response.getExceptionMessage());
            else
                System.out.println(Arrays.toString(response.getBooleanData()));
        } catch (ModbusTransportException e) {
            e.printStackTrace();
        }
    }

    /**
     * code  2
     *
     * @param master
     * @param slaveId
     * @param start
     * @param len
     */
    public static void readDiscreteInput(ModbusMaster master, int slaveId, int start, int len) {
        try {
            ReadDiscreteInputsRequest request = new ReadDiscreteInputsRequest(slaveId, start, len);
            ReadDiscreteInputsResponse response = (ReadDiscreteInputsResponse) master.send(request);

            if (response.isException())
                System.out.println("Exception response: message=" + response.getExceptionMessage());
            else
                System.out.println(Arrays.toString(response.getBooleanData()));
        } catch (ModbusTransportException e) {
            e.printStackTrace();
        }
    }

    /**
     * code   3
     *
     * @param master
     * @param slaveId
     * @param start
     * @param len
     */
    public static void readHoldingRegisters(ModbusMaster master, int slaveId, int start, int len) {
        try {
            ReadHoldingRegistersRequest request = new ReadHoldingRegistersRequest(slaveId, start, len);
            ReadHoldingRegistersResponse response = (ReadHoldingRegistersResponse) master.send(request);

            if (response.isException())
                System.out.println("Exception response: message=" + response.getExceptionMessage());
            else
                System.out.println(Arrays.toString(response.getShortData()));
        } catch (ModbusTransportException e) {
            e.printStackTrace();
        }
    }

    /**
     * code 4
     *
     * @param master
     * @param slaveId
     * @param start
     * @param len
     */
    public static void readInputRegisters(ModbusMaster master, int slaveId, int start, int len) {
        try {
            ReadInputRegistersRequest request = new ReadInputRegistersRequest(slaveId, start, len);
            ReadInputRegistersResponse response = (ReadInputRegistersResponse) master.send(request);

            if (response.isException()) {
                System.out.println("Exception response: message=" + response.getExceptionMessage());
            } else {
                System.out.println(Arrays.toString(response.getShortData()));
            }
        } catch (ModbusTransportException e) {
            e.printStackTrace();
        }
    }

    /**
     * code  5
     *
     * @param master
     * @param slaveId
     * @param offset
     * @param value
     */
    public static void writeCoil(ModbusMaster master, int slaveId, int offset, boolean value) {
        System.err.println("进入接口-------");
        try {
            WriteCoilRequest request = new WriteCoilRequest(slaveId, offset, value);
            WriteCoilResponse response = (WriteCoilResponse) master.send(request);

            if (response.isException()) {
                System.out.println("Exception response: message=" + response.getExceptionMessage());
            } else {
                System.out.println("Success");
            }
        } catch (ModbusTransportException e) {
            e.printStackTrace();
        } catch (Exception e) {

        }
    }

    /**
     * code  6
     *
     * @param master
     * @param slaveId
     * @param offset
     * @param value
     */
    public static void writeRegister(ModbusMaster master, int slaveId, int offset, int value) {
        try {
            WriteRegisterRequest request = new WriteRegisterRequest(slaveId, offset, value);
            WriteRegisterResponse response = (WriteRegisterResponse) master.send(request);

            if (response.isException()) {
                System.out.println("Exception response: message=" + response.getExceptionMessage());
            } else {
                System.out.println("Success");
            }
        } catch (ModbusTransportException e) {
            e.printStackTrace();
        }
    }

    /**
     * code  7
     *
     * @param master
     * @param slaveId
     */
    public static void readExceptionStatus(ModbusMaster master, int slaveId) {
        try {
            ReadExceptionStatusRequest request = new ReadExceptionStatusRequest(slaveId);
            ReadExceptionStatusResponse response = (ReadExceptionStatusResponse) master.send(request);

            if (response.isException()) {
                System.out.println("Exception response: message=" + response.getExceptionMessage());
            } else {
                System.out.println(response.getExceptionStatus());
            }
        } catch (ModbusTransportException e) {
            e.printStackTrace();
        }
    }

    /**
     * code  17
     *
     * @param master
     * @param slaveId
     */
    public static void reportSlaveId(ModbusMaster master, int slaveId) {
        try {
            ReportSlaveIdRequest request = new ReportSlaveIdRequest(slaveId);
            ReportSlaveIdResponse response = (ReportSlaveIdResponse) master.send(request);

            if (response.isException()) {
                System.out.println("Exception response: message=" + response.getExceptionMessage());
            } else {
                System.out.println(Arrays.toString(response.getData()));
            }
        } catch (ModbusTransportException e) {
            e.printStackTrace();
        }
    }

    /**
     * code  15
     *
     * @param master
     * @param slaveId
     * @param start
     * @param values
     */
    public static void writeCoils(ModbusMaster master, int slaveId, int start, boolean[] values) {
        try {
            WriteCoilsRequest request = new WriteCoilsRequest(slaveId, start, values);
            WriteCoilsResponse response = (WriteCoilsResponse) master.send(request);

            if (response.isException()) {
                System.out.println("Exception response: message=" + response.getExceptionMessage());
            } else {
                System.out.println("Success");
            }
        } catch (ModbusTransportException e) {
            e.printStackTrace();
        }
    }

    /**
     * code  16
     *
     * @param master
     * @param slaveId
     * @param start
     * @param values
     */
    public static void writeRegisters(ModbusMaster master, int slaveId, int start, short[] values) {
        try {
            WriteRegistersRequest request = new WriteRegistersRequest(slaveId, start, values);
            WriteRegistersResponse response = (WriteRegistersResponse) master.send(request);

            if (response.isException()) {
                System.out.println("Exception response: message=" + response.getExceptionMessage());
            } else {
                System.out.println("Success");
            }
        } catch (ModbusTransportException e) {
            e.printStackTrace();
        }
    }

    /**
     * code 22
     *
     * @param master
     * @param slaveId
     * @param offset
     * @param and
     * @param or
     */
    public static void writeMaskRegister(ModbusMaster master, int slaveId, int offset, int and, int or) {
        try {
            WriteMaskRegisterRequest request = new WriteMaskRegisterRequest(slaveId, offset, and, or);
            WriteMaskRegisterResponse response = (WriteMaskRegisterResponse) master.send(request);

            if (response.isException()) {
                System.out.println("Exception response: message=" + response.getExceptionMessage());
            } else {
                System.out.println("Success");
            }
        } catch (ModbusTransportException e) {
            e.printStackTrace();
        }
    }


}

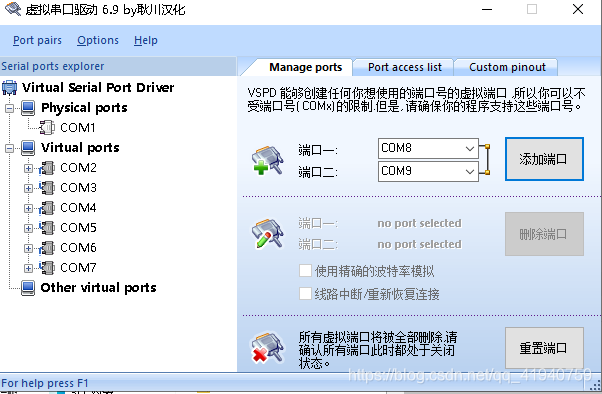

可以使用虚拟串口工具

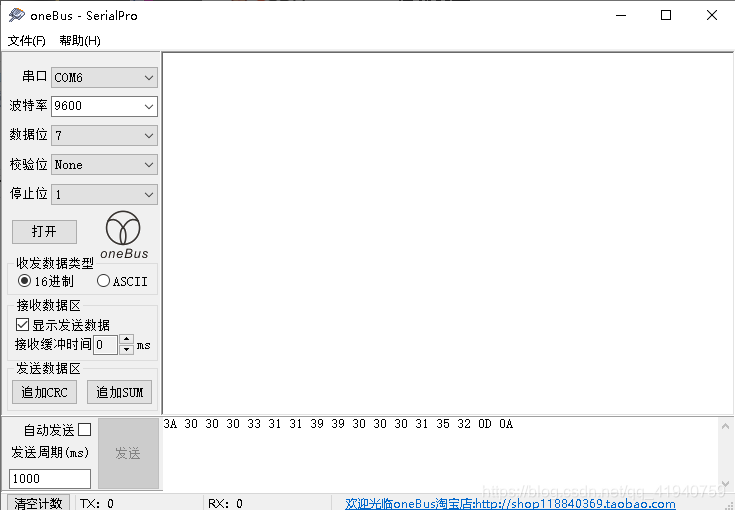

配合SerialPro串口调试工具

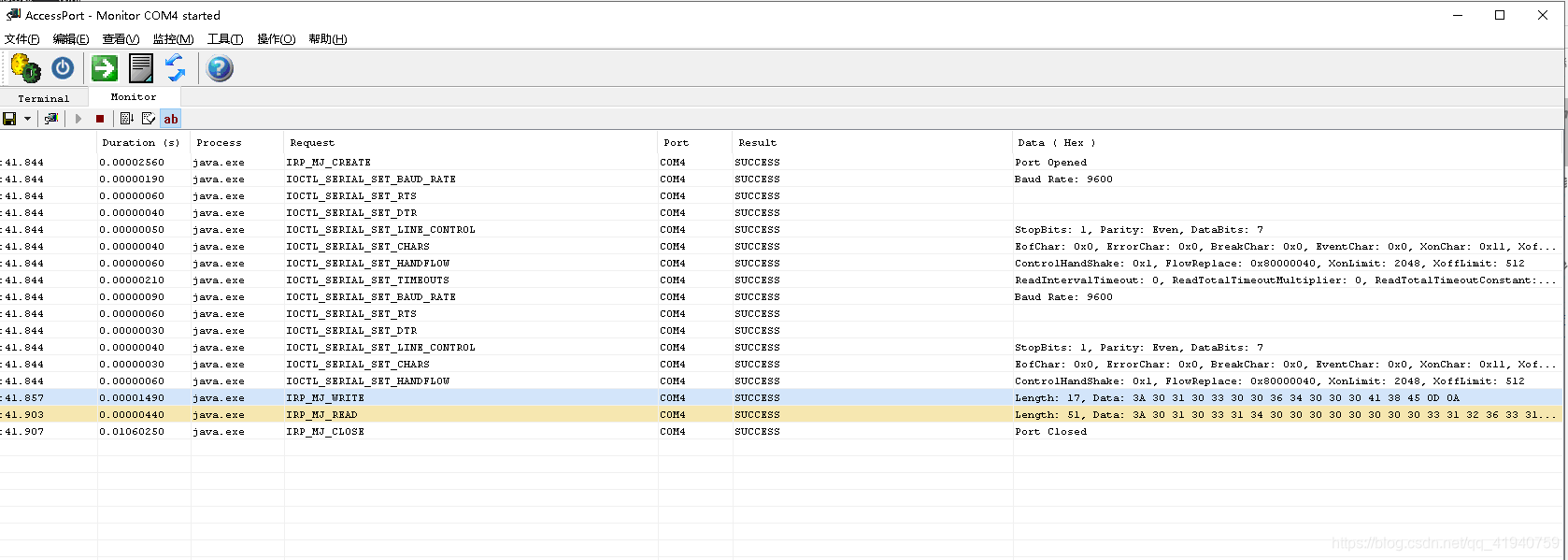

或者串口监视工具AccessPort 进行对串口发送相关数据进行监视
