springDataJpa的概述
Spring Data JPA 是 Spring 基于 ORM 框架、JPA 规范的基础上封装的一套JPA应用框架,可使开发者用极简的代码即可实现对数据库的访问和操作。它提供了包括增删改查等在内的常用功能,且易于扩展!学习并使用 Spring Data JPA 可以极大提高开发效率!
Spring Data JPA 让我们解脱了DAO层的操作,基本上所有CRUD都可以依赖于它来实现,在实际的工作工程中,推荐使用Spring Data JPA + ORM(如:hibernate)完成操作,这样在切换不同的ORM框架时提供了极大的方便,同时也使数据库层操作更加简单,方便解耦
springDataJpa的入门操作
案例:客户的基本CRUD
i.搭建环境
创建工程导入坐标
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>cn.kt</groupId>
<artifactId>springdata_jpa</artifactId>
<version>1.0-SNAPSHOT</version>
<properties>
<spring.version>4.2.4.RELEASE</spring.version>
<hibernate.version>5.0.7.Final</hibernate.version>
<slf4j.version>1.6.6</slf4j.version>
<log4j.version>1.2.12</log4j.version>
<c3p0.version>0.9.1.2</c3p0.version>
<mysql.version>5.1.6</mysql.version>
</properties>
<dependencies>
<!-- junit单元测试 -->
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>4.9</version>
<scope>test</scope>
</dependency>
<!-- spring beg -->
<dependency>
<groupId>org.aspectj</groupId>
<artifactId>aspectjweaver</artifactId>
<version>1.6.8</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-aop</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-context</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-context-support</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-orm</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-beans</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-core</artifactId>
<version>${spring.version}</version>
</dependency>
<!-- spring end -->
<!-- hibernate beg -->
<dependency>
<groupId>org.hibernate</groupId>
<artifactId>hibernate-core</artifactId>
<version>${hibernate.version}</version>
</dependency>
<dependency>
<groupId>org.hibernate</groupId>
<artifactId>hibernate-entitymanager</artifactId>
<version>${hibernate.version}</version>
</dependency>
<dependency>
<groupId>org.hibernate</groupId>
<artifactId>hibernate-validator</artifactId>
<version>5.2.1.Final</version>
</dependency>
<!-- hibernate end -->
<!-- c3p0 beg -->
<dependency>
<groupId>c3p0</groupId>
<artifactId>c3p0</artifactId>
<version>${c3p0.version}</version>
</dependency>
<!-- c3p0 end -->
<!-- log end -->
<dependency>
<groupId>log4j</groupId>
<artifactId>log4j</artifactId>
<version>${log4j.version}</version>
</dependency>
<dependency>
<groupId>org.slf4j</groupId>
<artifactId>slf4j-api</artifactId>
<version>${slf4j.version}</version>
</dependency>
<dependency>
<groupId>org.slf4j</groupId>
<artifactId>slf4j-log4j12</artifactId>
<version>${slf4j.version}</version>
</dependency>
<!-- log end -->
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>${mysql.version}</version>
</dependency>
<dependency>
<groupId>org.springframework.data</groupId>
<artifactId>spring-data-jpa</artifactId>
<version>1.9.0.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-test</artifactId>
<version>4.2.4.RELEASE</version>
</dependency>
<!-- el beg 使用spring data jpa 必须引入 -->
<dependency>
<groupId>javax.el</groupId>
<artifactId>javax.el-api</artifactId>
<version>2.2.4</version>
</dependency>
<dependency>
<groupId>org.glassfish.web</groupId>
<artifactId>javax.el</artifactId>
<version>2.2.4</version>
</dependency>
<!-- el end -->
</dependencies>
</project>
配置spring的配置文件(applicationContext.xml配置spring Data jpa的整合)
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:aop="http://www.springframework.org/schema/aop"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:jdbc="http://www.springframework.org/schema/jdbc" xmlns:tx="http://www.springframework.org/schema/tx"
xmlns:jpa="http://www.springframework.org/schema/data/jpa" xmlns:task="http://www.springframework.org/schema/task"
xsi:schemaLocation="
http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd
http://www.springframework.org/schema/jdbc http://www.springframework.org/schema/jdbc/spring-jdbc.xsd
http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd
http://www.springframework.org/schema/data/jpa
http://www.springframework.org/schema/data/jpa/spring-jpa.xsd">
<!-- 1.dataSource 配置数据库连接池-->
<bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
<property name="driverClass" value="com.mysql.jdbc.Driver"/>
<property name="jdbcUrl" value="jdbc:mysql://localhost:3306/jpa"/>
<property name="user" value="root"/>
<property name="password" value="root"/>
</bean>
<!-- 2.配置entityManagerFactory -->
<bean id="entityManagerFactory" class="org.springframework.orm.jpa.LocalContainerEntityManagerFactoryBean">
<property name="dataSource" ref="dataSource"/>
<property name="packagesToScan" value="cn.kt.domain"/>
<property name="persistenceProvider">
<bean class="org.hibernate.jpa.HibernatePersistenceProvider"/>
</property>
<!--JPA的供应商适配器-->
<property name="jpaVendorAdapter">
<bean class="org.springframework.orm.jpa.vendor.HibernateJpaVendorAdapter">
<!--配置是否创建数据库表-->
<property name="generateDdl" value="false"/>
<!--指定数据库类型-->
<property name="database" value="MYSQL"/>
<!--数据库方言,支持特有的语法-->
<property name="databasePlatform" value="org.hibernate.dialect.MySQLDialect"/>
<!--是否显示sql语句-->
<property name="showSql" value="true"/>
</bean>
</property>
<!--jpa的方言,高级的特性-->
<property name="jpaDialect">
<bean class="org.springframework.orm.jpa.vendor.HibernateJpaDialect"/>
</property>
</bean>
<!-- 整合spring data jpa-->
<jpa:repositories base-package="cn.kt.dao"
transaction-manager-ref="transactionManager"
entity-manager-factory-ref="entityManagerFactory"></jpa:repositories>
<!-- 3.事务管理器-->
<!-- JPA事务管理器 -->
<bean id="transactionManager" class="org.springframework.orm.jpa.JpaTransactionManager">
<property name="entityManagerFactory" ref="entityManagerFactory"/>
</bean>
<!-- 4.txAdvice-->
<tx:advice id="txAdvice" transaction-manager="transactionManager">
<tx:attributes>
<tx:method name="save*" propagation="REQUIRED"/>
<tx:method name="insert*" propagation="REQUIRED"/>
<tx:method name="update*" propagation="REQUIRED"/>
<tx:method name="delete*" propagation="REQUIRED"/>
<tx:method name="get*" read-only="true"/>
<tx:method name="find*" read-only="true"/>
<tx:method name="*" propagation="REQUIRED"/>
</tx:attributes>
</tx:advice>
<!-- 5.aop-->
<aop:config>
<aop:pointcut id="pointcut" expression="execution(* cn.kt.service.*.*(..))"/>
<aop:advisor advice-ref="txAdvice" pointcut-ref="pointcut"/>
</aop:config>
<!--配置包扫描-->
<context:component-scan base-package="cn.kt "></context:component-scan>
<!--组装其它 配置文件-->
</beans>
编写实体类(Customer),使用jpa注解配置映射关系
package cn.kt.domain;/*
*Created by tao on 2020-05-04.
*/
import javax.persistence.*;
import java.io.Serializable;
@Entity //声明实体类
@Table(name = "cst_customer") //建立实体类和表的映射关系
public class Customer implements Serializable {
@Id//声明当前私有属性为主键
@GeneratedValue(strategy = GenerationType.IDENTITY) //配置主键的生成策略
@Column(name = "cust_id") //指定和表中cust_id字段的映射关系
private Long custId;
@Column(name = "cust_name") //指定和表中cust_name字段的映射关系
private String custName;
@Column(name = "cust_source")//指定和表中cust_source字段的映射关系
private String custSource;
@Column(name = "cust_industry")//指定和表中cust_industry字段的映射关系
private String custIndustry;
@Column(name = "cust_level")//指定和表中cust_level字段的映射关系
private String custLevel;
@Column(name = "cust_address")//指定和表中cust_address字段的映射关系
private String custAddress;
@Column(name = "cust_phone")//指定和表中cust_phone字段的映射关系
private String custPhone;
public Long getCustId() {
return custId;
}
public void setCustId(Long custId) {
this.custId = custId;
}
public String getCustName() {
return custName;
}
public void setCustName(String custName) {
this.custName = custName;
}
public String getCustSource() {
return custSource;
}
public void setCustSource(String custSource) {
this.custSource = custSource;
}
public String getCustIndustry() {
return custIndustry;
}
public void setCustIndustry(String custIndustry) {
this.custIndustry = custIndustry;
}
public String getCustLevel() {
return custLevel;
}
public void setCustLevel(String custLevel) {
this.custLevel = custLevel;
}
public String getCustAddress() {
return custAddress;
}
public void setCustAddress(String custAddress) {
this.custAddress = custAddress;
}
public String getCustPhone() {
return custPhone;
}
public void setCustPhone(String custPhone) {
this.custPhone = custPhone;
}
@Override
public String toString() {
return "Customer{" +
"custId=" + custId +
", custName='" + custName + '\'' +
", custSource='" + custSource + '\'' +
", custIndustry='" + custIndustry + '\'' +
", custLevel='" + custLevel + '\'' +
", custAddress='" + custAddress + '\'' +
", custPhone='" + custPhone + '\'' +
'}';
}
}
ii.编写一个符合springDataJpa的dao层接口
- 只需要编写dao层接口,不需要编写dao层接口的实现类
- dao层接口规范
1.需要继承两个接口(JpaRepository,JpaSpecificationExecutor)
2.需要提供响应的泛型
findOne(id) :根据id查询
save(customer):保存或者更新(依据:传递的实体类对象中,是否包含id属性)
delete(id) :根据id删除
findAll() : 查询全部
- CustomerDao.java
package cn.kt.dao;/*
*Created by tao on 2020-05-04.
*/
import cn.kt.domain.Customer;
import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.data.jpa.repository.JpaSpecificationExecutor;
/*
* 符合Springdata jpa的dao层接口规范
* JpaRepository<操作的实体类类型>,<实体类中主键属性的类型>
* 封住了基本的CRUD操作
* JpaSpecificationExecutor<操作实体类的类型>
* 封装了复杂查询的操作(分页)
**/
public interface CustomerDao extends JpaRepository<Customer,Long>, JpaSpecificationExecutor<Customer> {
}
- CustomerTest.java(测试类)
package cn.kt.test;/*
*Created by tao on 2020-05-04.
*/
import cn.kt.dao.CustomerDao;
import cn.kt.domain.Customer;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;
import java.util.List;
@RunWith(SpringJUnit4ClassRunner.class) //声明单元测试
@ContextConfiguration(locations = "classpath:applicationContext.xml")
public class CustomerTest {
@Autowired
private CustomerDao customerDao;
/*
* 查询所有
* */
@Test
public void testFindAll() {
List<Customer> all = customerDao.findAll();
for (Customer customer : all) {
System.out.println(customer);
}
}
/*
* 根据id查询
* */
@Test
public void testFindOne() {
Customer one = customerDao.findOne(3l);
System.out.println(one);
}
/**
* 保存客户:调用save(obj)方法
* 对于save方法的解释:如果执行此方法是对象中存在id属性,即为更新操作会先根据id查询,再更新
* 如果执行此方法中对象中不存在id属性,即为保存操作
*/
@Test
public void testSave() {
Customer c = new Customer();
c.setCustName("妮可罗宾");
customerDao.save(c);
}
@Test
public void testUpdate() {
/*不会覆盖的修改*/
//根据id查询id为1的客户
Customer customer = customerDao.findOne(10l);
//修改客户
customer.setCustIndustry("One Piece");
customer.setCustAddress("海贼王");
//更新
customerDao.save(customer);
/*覆盖的修改*/
/*Customer customer = new Customer();
customer.setCustId(10l);
customer.setCustIndustry("One Piece");
customerDao.save(customer);*/
}
/**
* 根据id删除:调用delete(id)方法
*/
@Test
public void testDelete() {
customerDao.delete(9l);
}
}

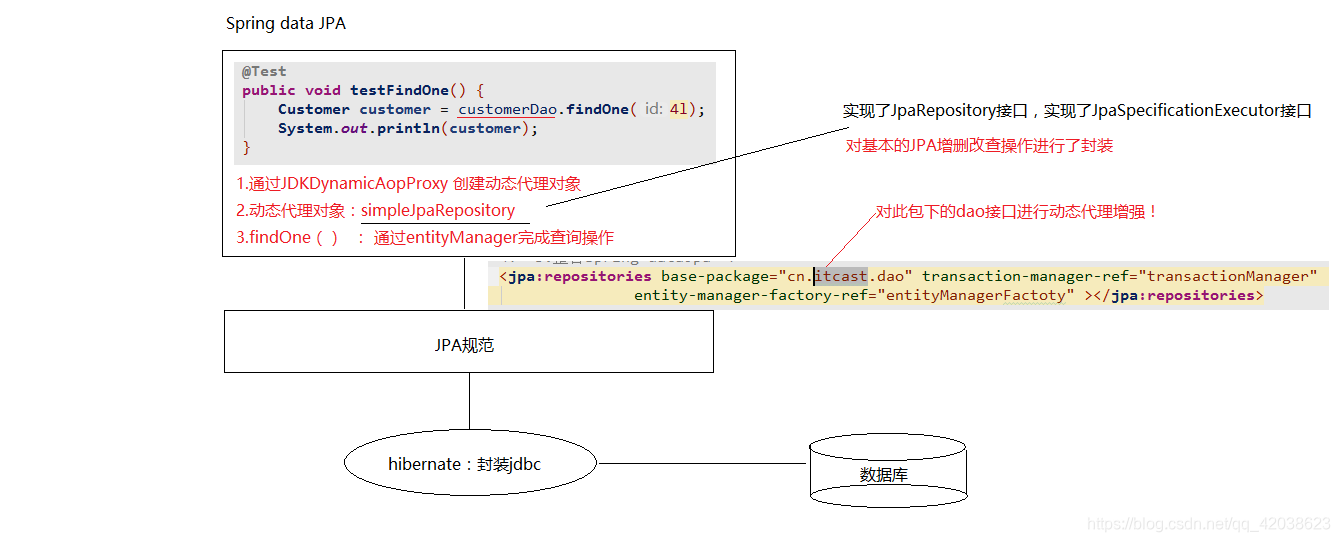

springDataJpa的运行过程和原理剖析
1.通过JdkDynamicAopProxy的invoke方法创建了一个动态代理对象
2.SimpleJpaRepository当中封装了JPA的操作(借助JPA的api完成数据库的CRUD)
3.通过hibernate完成数据库操作(封装了jdbc)
复杂查询
i.借助接口中的定义好的方法完成查询
findOne(id):根据id查询,立即加载
getOne(id):根据id查询,延迟加载
testCount():查询客户的总数量
testExists():判断id为4的客户是否存在
/*
*测试统计查询,查询客户的总数量
* */
@Test
public void testCount(){
long count = customerDao.count();
System.out.println(count);
}
/*
*测试判断id为4的客户是否存在
* */
@Test
public void testExists(){
boolean exists = customerDao.exists(4l);
System.out.println("id为4的客户是否存在:"+exists);
}
/*
* findOne()
*
* 立即加载
* @Transactional 保证getOne正常运行
* getOne()
* 延迟加载
* 什么时候用,什么时候加载
* */
@Test
@Transactional
public void testGetOne(){
Customer one = customerDao.getOne(2l);
System.out.println(one);
}
ii.jpql的查询方式
jpql : jpa query language (jpq查询语言)
特点:语法或关键字和sql语句类似
查询的是类和类中的属性
需要将JPQL语句配置到接口方法上
1.特有的查询:需要在dao接口上配置方法
2.在新添加的方法上,使用注解的形式配置jpql查询语句
3.注解 : @Query
iii.sql语句的查询
1.特有的查询:需要在dao接口上配置方法
2.在新添加的方法上,使用注解的形式配置sql查询语句
3.注解 : @Query
value :jpql语句 | sql语句
nativeQuery :false(使用jpql查询) | true(使用本地查询:sql查询)
是否使用本地查询

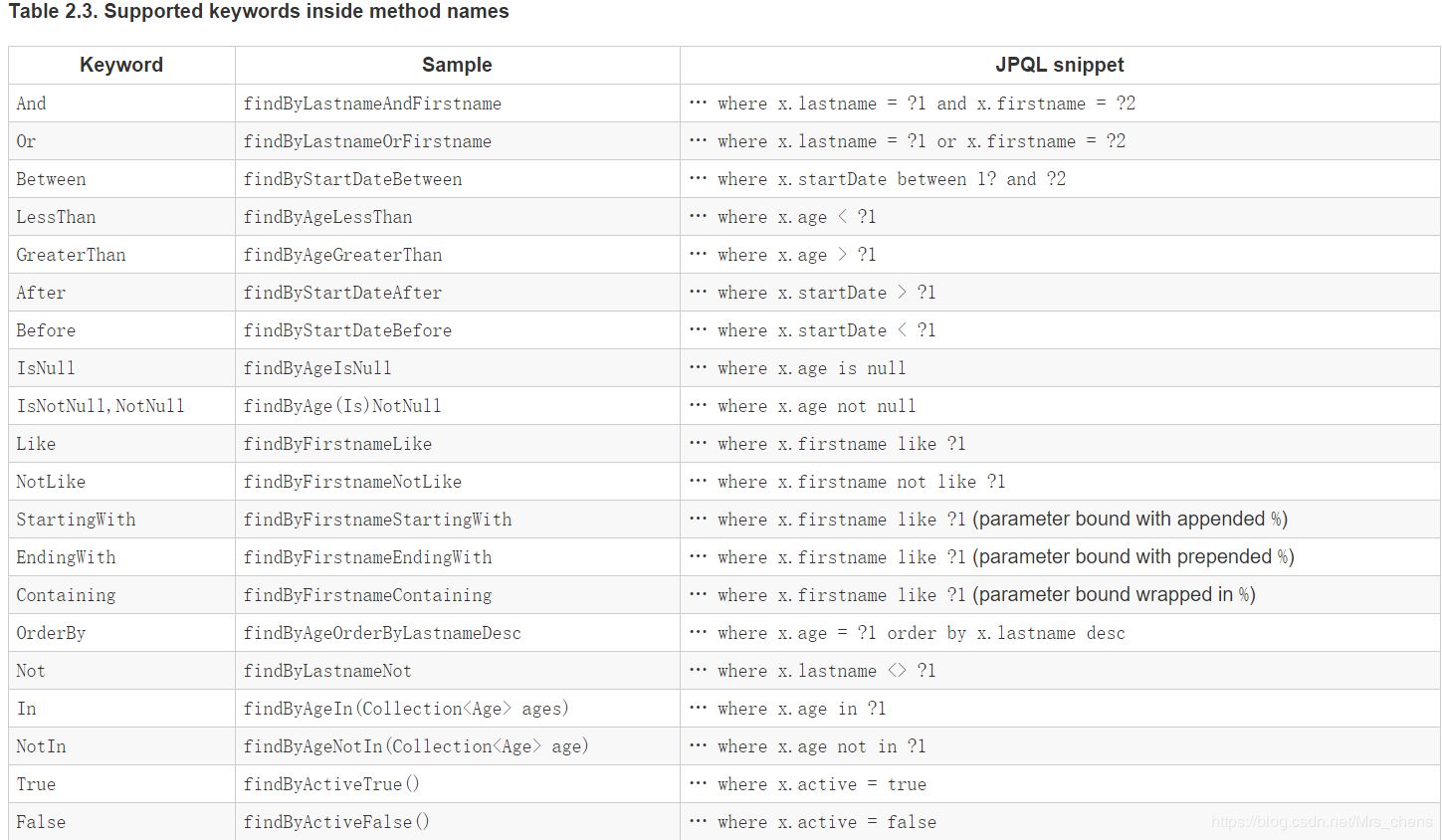

iiii.方法名称规则查询
- 是对jpq1查询,更加深入的一层封装,
- 我们只需要按照SpringDataJpa提供的方法名称规则定义方法,不需要再去配置jpql语句,完成查询
- findBy开头:代表查询
对象中属性的名称(首字母大写)
含义:根据属性名称进行查询
- findBy + 属性名称(根据属性名称进行完成匹配的查询=)
- findBy +属性名称+“查询方式(Like| isnull)
findByCustNameLike - 多条件查询
findBy +属性名+ “查询方式”+ “多条件的连接符(and|or)” +属性名+“查询方式”
复制查询测试
CustomerDao.java(接口)
package cn.kt.dao;/*
*Created by tao on 2020-05-04.
*/
import cn.kt.domain.Customer;
import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.data.jpa.repository.JpaSpecificationExecutor;
import org.springframework.data.jpa.repository.Modifying;
import org.springframework.data.jpa.repository.Query;
import java.util.List;
/*
* 符合Springdata jpa的dao层接口规范
* JpaRepository<操作的实体类类型>,<实体类中主键属性的类型>
* 封住了基本的CRUD操作
* JpaSpecificationExecutor<操作实体类的类型>
* 封装了复杂查询的操作(分页)
**/
public interface CustomerDao extends JpaRepository<Customer, Long>, JpaSpecificationExecutor<Customer> {
//@Query 使用jpql的方式查询。?1代表参数的占位符,其中1对应方法中的参数索引
@Query(value = "from Customer where custName like %?1%")
public Customer findCustomer(String custName);
/*
* 对于多个占位符
* 默认情况下,占位符的位置要和参数的位置保持一致
* 可以自己指定占位符的位置
* 在 ?数字 来指定占位取值来源
* */
@Query(value = "from Customer where custName = ?2 and custId = ?1")
public Customer findCustIdName(Long id, String name);
//修改需要在使用 @Query 的同时,用 @Modifying 来将该操作标识为修改查询
@Query(value = "update Customer set custName = ?1 where custId = ?2")
@Modifying
public void updateCustomer(String custName, Long custId);
/**
* sql查询
* nativeQuery : 使用本地sql的方式查询
*/
@Query(value = "select * from cst_customer", nativeQuery = true)
public List<Customer> findSql();
/**
* sql查询:模糊查询
* 注意:占位符
*/
@Query(value = "select * from cst_customer where cust_name like %?1%", nativeQuery = true)
public List<Customer> findSqlByCustName(String name);
/*
* 方法名的约定
* findBy:查询
* 对象名中的属性名(首字母大写):查询条件
* custName
* 默认的情况下使用等于的方式进行查询
* 特殊的查询方式
* 在springDataJpa的运行阶段:
* 会根据方法名称进行解析 findBy from xxx(实体类)
*
* 1. findBy + 属性名称(根据属性名称进行完成匹配的查询=)
* 2. findBy +属性名称+“查询方式(Like| isnull)
* findByCustNameLike
* 3. 多条件查询
* findBy +属性名+ "查询方式"+ "多条件的连接符(and|or)" +属性名+"查询方式"
* */
public Customer findByCustName(String custName);
public List<Customer> findByCustNameLike(String custName);
//使用用户名称模糊匹配和用户地址精准匹配
public List<Customer> findByCustNameLikeAndCustAddress(String custName,String custAddress);
}
JpqlTest.java(测试代码)
package cn.kt.test;/*
*Created by tao on 2020-05-04.
*/
import cn.kt.dao.CustomerDao;
import cn.kt.domain.Customer;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.test.annotation.Rollback;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;
import org.springframework.transaction.annotation.Transactional;
import java.util.List;
@RunWith(SpringJUnit4ClassRunner.class) //声明单元测试
@ContextConfiguration(locations = "classpath:applicationContext.xml")
public class JpqlTest {
@Autowired
private CustomerDao customerDao;
@Test
public void TestFindCustomer() {
Customer customer = customerDao.findCustomer("左眼");
System.out.println(customer);
}
@Test
public void TestFindCustIdName() {
Customer customer = customerDao.findCustIdName(2l, "Nick");
System.out.println(customer);
}
/*
* 测试jpq1的更新操作
* springDataJpa中 使用jpq1完成更新/删除操作
* 注意:需要手动添加事务的支持
* 默认会执行结束之后,回滚事务
@Rollback :设置是否自动回滚
false| true
* */
@Test
@Transactional
@Rollback
public void TestUpdateCustomer() {
customerDao.updateCustomer("红发香克斯", 8l);
}
@Test
public void TestFindSql() {
List<Customer> sql = customerDao.findSql();
for (Customer customer : sql) {
System.out.println(customer);
}
}
@Test
public void TestFindSqlByCustName() {
List<Customer> customers = customerDao.findSqlByCustName("左眼");
for (Customer customer : customers) {
System.out.println(customer);
}
}
/*测试命名规则的查询*/
@Test
public void TestFindByCustName() {
Customer nick = customerDao.findByCustName("Nick");
System.out.println(nick);
}
/*测试命名规则的模糊查询*/
@Test
public void TestFindByCustNameLike() {
List<Customer> byCustNameLike = customerDao.findByCustNameLike("左眼%");
for (Customer customer : byCustNameLike) {
System.out.println(customer);
}
}/*测试命名规则的模糊查询*/
@Test
public void TestFindByCustNameLikeAndCustAddress() {
List<Customer> customers = customerDao.findByCustNameLikeAndCustAddress("左眼%","江西赣州");
for (Customer customer : customers) {
System.out.println(customer);
}
}
}
以上有三种方法可以实现复杂的查询,这其中Jpql语句必须掌握,因为这种方法最具有面向对象的思想
