一、Swagger简介
现在我们常用的前后端分离框架 Vue + springboot 技术。
Swagger 是一个用于生成、描述和调用 RESTful 接口的 Web 服务。通俗的来讲,Swagger 就是将项目中所有(想要暴露的)接口展现在页面上,并且可以进行接口调用和测试的服务。
swagger 号称世界上最牛逼的 Api框架。
可以直接在线测试 后端 Api 接口
官网:https://swagger.io/
二、Swagger 2.9.2 的使用分为以下 4 步:
1. 添加依赖 : 去 maven仓库(https://mvnrepository.com/)中,搜索springfox,复制springfox-swagger2,springfox-swagger-ui 两个依赖。添加到 pom文件中(在3.0以上版本,只需添加springfox这个总依赖即可)
注意:springboot 的版本 出现不兼容 Swagger版本问题,如果采用 2.6版本springboot,就会报错。
<!--使用swagger必须导入依赖,不然报红-->
<dependency>
<groupId>io.springfox</groupId>
<artifactId>springfox-swagger2</artifactId>
<version>2.9.2</version>
</dependency>
<!-- https://mvnrepository.com/artifact/io.springfox/springfox-swagger-ui -->
<dependency>
<groupId>io.springfox</groupId>
<artifactId>springfox-swagger-ui</artifactId>
<version>2.9.2</version>
</dependency>
springboot版本:
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.1.7.RELEASE</version>
<relativePath/> <!-- lookup parent from repository -->
</parent>
2. 开启 Swagger :(在3.0以上版本中,开启用@EnableOpenApi)
**在 Spring Boot 的启动类或配置类中添加 @EnableSwagger2 注释,开启 Swagger,部分核心代码如下:
** @Configuration @EnableSwagger2 // 开启swagger
html访问页面:http://localhost:8081/swagger-ui.html
(1)swagger的首页页面的相关信息 修改为与自己项目相关
(2)配置swagger 扫描的包
.select()
//RequestHandlerSelectors.basePackage(“com.swagger.swagger.controller”) 指定扫描的包
//RequestHandlerSelectors.any 表示全部扫描,一般都是指定扫描包
//RequestHandlerSelectors.none 表示都不扫描
.apis(RequestHandlerSelectors.basePackage(“com.swagger.swagger.controller”))
//路径过滤
//.paths(PathSelectors.ant("/swagger/**"))
.build();
package com.swagger.swagger.config;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Profile;
import org.springframework.core.env.Environment;
import org.springframework.core.env.Profiles;
import springfox.documentation.RequestHandler;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spi.service.RequestHandlerProvider;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;
import java.util.ArrayList;
/**
* @Author Janson
* @Date 2022/3/5 15:27
* @Version 1.0
*/
@Configuration
@EnableSwagger2 // 开启swagger ,也可以把该注解放在 SwaggerApplication 启动类上方
//如果放在此处出现无法访问,可以尝试放在启动类上方
public class SwaggerConfig {
//docket1 和 docket 两个类的对象,主要 是对api进行分组,各个分组负责自己的api
@Bean
public Docket docket1(){
return new Docket(DocumentationType.SWAGGER_2).groupName("小葵花");
}
@Bean
public Docket docket(Environment environment){
//获取 环境变量
//设置要显示的swagger 环境
Profiles profiles = Profiles.of("dev");
boolean flag = environment.acceptsProfiles(profiles);
return new Docket(DocumentationType.SWAGGER_2)
.apiInfo(apiInfo())
//是否启动swagger
.enable(flag)
.groupName("大太阳")
.select()
//RequestHandlerSelectors.basePackage("com.swagger.swagger.controller") 指定扫描的包
//RequestHandlerSelectors.any 表示全部扫描,一般都是指定扫描包
//RequestHandlerSelectors.none 表示都不扫描
.apis(RequestHandlerSelectors.basePackage("com.swagger.swagger.controller"))
//路径过滤
//.paths(PathSelectors.ant("/swagger/**"))
.build();
}
private ApiInfo apiInfo(){
Contact DEFAULT_CONTACT = new Contact("Janson", "http://www.baidu.com", "12242qq.com");
return new ApiInfo("dongGod",
"我要好好写代码",
"1.0",
"http://www.baidu.com",
DEFAULT_CONTACT,
"Apache 2.0",
"http://www.apache.org/licenses/LICENSE-2.0",
new ArrayList());
}
}
3. 功能 配置 Swagger 扫描接口
我只希望我的swagger 在生产环境用,在发布的时候不使用。该如何解决?
- 判断是不是生产环境 flag
- 注入 enable(flag)
public class SwaggerConfig {
@Bean
public Docket docket(Environment environment){
//获取 环境变量
//设置要显示的swagger 环境
Profiles profiles = Profiles.of("dev");
boolean flag = environment.acceptsProfiles(profiles);
}
Docket.select()
4.配置api分组,通过创建多个Docket类的对象,对api文档实现分组
groupname();
5.实体类: 只要我们的接口中,存在返回值实体类,他就会扫描到swagger 中
package com.swagger.swagger.controller;
import ch.qos.logback.classic.spi.STEUtil;
import com.swagger.swagger.entity.Student;
import io.swagger.annotations.ApiOperation;
import io.swagger.annotations.ApiParam;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
/**
* @Author Janson
* @Date 2022/3/5 20:01
* @Version 1.0
*/
//给接口加api注释
@RestController
public class Students {
//只要我们的接口中,存在返回值实体类,他就会扫描到swagger 中
//Operation给方法加注释
@ApiOperation("控制了接口")
@GetMapping("/student")
public Student student(String name, String password){
Student student = new Student();
student.name = name;
student.password = password;
return student;
}
}
package com.swagger.swagger.entity;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiModel;
import io.swagger.annotations.ApiModelProperty;
/**
* @Author Janson
* @Date 2022/3/5 19:57
* @Version 1.0
*/
//加中文注释
@ApiModel("学生实体类")
public class Student {
@ApiModelProperty("用户名")
public String name;
@ApiModelProperty("密码")
public String password;
}

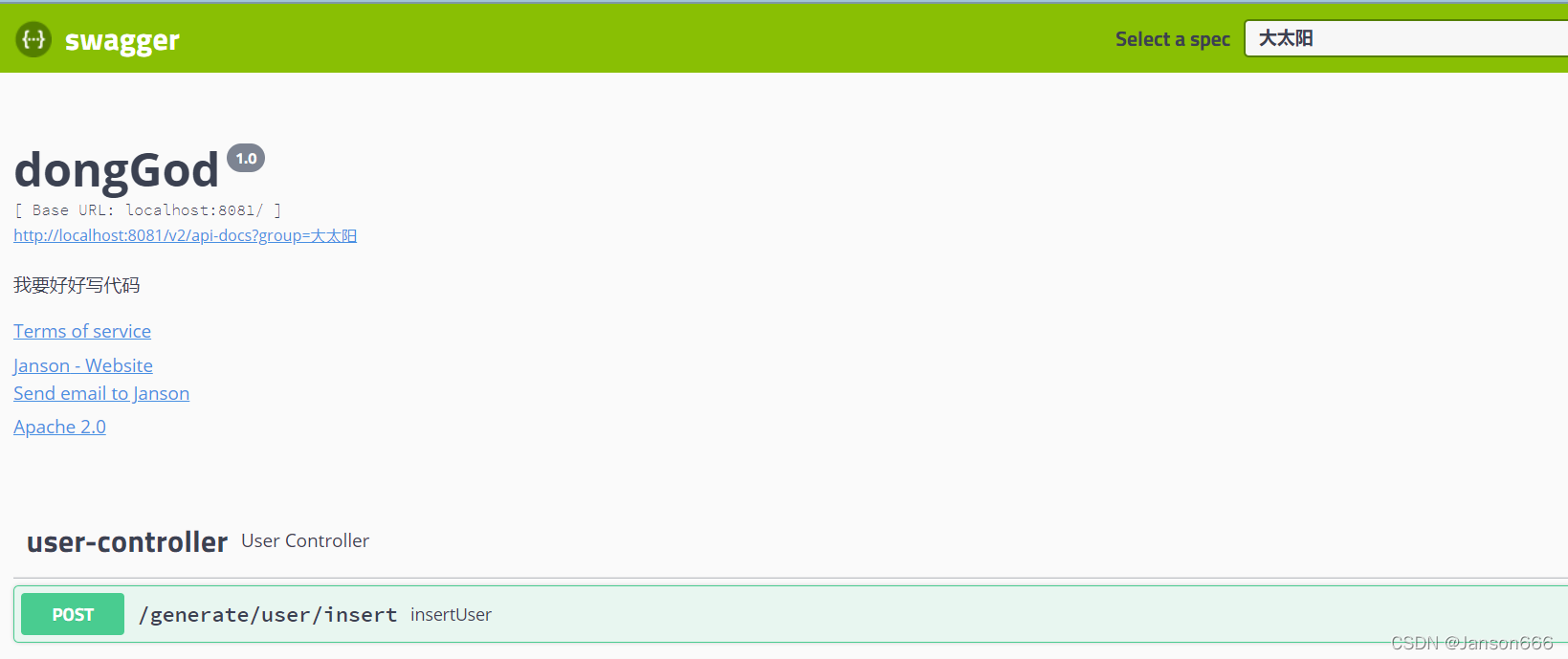

启动成功访问前端:
html访问页面:http://localhost:8081/swagger-ui.html
6.总结:
- 我们可以通过swagger 给一些比较难理解的属性或者接口,增加注释属性
- 接口文档实时更新
- 可以在线测试
【注意点】:在正式发布的时候,要关闭swagger,出于安全考虑,并提高程序执行效率
