【Spring07】Spring事件的发布监听及原理

一、Spring事件发布监听的使用

ApplicationContext 通过 ApplicationEvent 类和 ApplicationListener 接口进行事件处理。 如果将实现 ApplicationListener 接口的 bean 注入到上下文中，则每次使用 ApplicationContext 发布 ApplicationEvent 时，都会通知该 bean。

Spring的事件（ApplicationEvent）其实就是一个观察者设计模式，一个 Bean 处理完成任务后希望通知其它 Bean 或者说 一个Bean 想观察监听另一个Bean的行为。

Spring事件只需要以下几步：

• 自定义事件，继承 ApplicationEvent
• 定义监听器，实现 ApplicationListener 或者通过 @EventListener 注解到方法上
• 定义发布者，通过 ApplicationEventPublisher发布事件

自定义事件

@Getter
public class Extend_ApplicationEvent extends ApplicationEvent {

    String msg;

    public Extend_ApplicationEvent(Object source, String msg) {
        super(source);
        this.msg = msg;
    }
}

定义监听器

实现 ApplicationListener

@Component
public class Extend_ApplicationListener implements ApplicationListener<ApplicationEvent> {

    @Override
    public void onApplicationEvent(ApplicationEvent event) {
        System.out.println("收到事件：" + event);
    }
}

@EventListener 注解

@Component
public class Extend_EventListener {

    @EventListener(classes = {ApplicationEvent.class})
    public void listener(ApplicationEvent event) {
        System.out.println("注解事件监听..." + event);
    }
}

定义发布者

ApplicationEventPublisher发布

@Component
public class Extend_ApplicationEventPublisher {
    @Autowired
    ApplicationEventPublisher applicationEventPublisher;

    public void publishEvent(ApplicationEvent event) {
        applicationEventPublisher.publishEvent(event);
    }
}

ApplicationContext发布

@Test
public void test01() {
    AnnotationConfigApplicationContext applicationContext = new AnnotationConfigApplicationContext(Extend_Config.class);

    Extend_ApplicationEventPublisher applicationEventPublisher = applicationContext.getBean(Extend_ApplicationEventPublisher.class);

    // 发布自定义事件
    applicationContext.publishEvent(new Extend_ApplicationEvent("applicationContext事件","wei"));
    //
    applicationEventPublisher.publishEvent(new Extend_ApplicationEvent("applicationEventPublisher事件","wei2"));

    applicationContext.close();
}

示例输出：

收到事件：org.springframework.context.event.ContextRefreshedEvent[source=org.springframework.context.annotation.AnnotationConfigApplicationContext@327471b5, started on Thu Aug 31 17:34:44 CST 2023]
注解事件监听...org.springframework.context.event.ContextRefreshedEvent[source=org.springframework.context.annotation.AnnotationConfigApplicationContext@327471b5, started on Thu Aug 31 17:34:44 CST 2023]
收到事件：com.wei.spring.extend_07.Extend_ApplicationEvent[source=applicationContext事件]
注解事件监听...com.wei.spring.extend_07.Extend_ApplicationEvent[source=applicationContext事件]
收到事件：com.wei.spring.extend_07.Extend_ApplicationEvent[source=applicationEventPublisher事件]
注解事件监听...com.wei.spring.extend_07.Extend_ApplicationEvent[source=applicationEventPublisher事件]
收到事件：org.springframework.context.event.ContextClosedEvent[source=org.springframework.context.annotation.AnnotationConfigApplicationContext@327471b5, started on Thu Aug 31 17:34:44 CST 2023]
注解事件监听...org.springframework.context.event.ContextClosedEvent[source=org.springframework.context.annotation.AnnotationConfigApplicationContext@327471b5, started on Thu Aug 31 17:34:44 CST 2023]

看到有4个事件被监听消费，ContextRefreshedEvent、两个自定义Extend_ApplicationEvent、ContextClosedEvent事件。

事件的创建顺序和时机如下：

1）ContextRefreshedEvent：

容器创建时，finishRefresh() 后容器刷新完成会发布 ContextRefreshedEvent

2）自定义事件

3）ContextClosedEvent：

容器关闭会创建 ContextClosedEvent

二、事件发布监听的原理

2.1 事件发布的流程

发布自定义事件
applicationContext.publishEvent(new Extend_ApplicationEvent(“applicationContext事件”,“wei”));

void publishEvent(Object event, @Nullable ResolvableType eventType) {
    getApplicationEventMulticaster().multicastEvent(applicationEvent, eventType);
}

1）获取事件的多播器（派发器）：getApplicationEventMulticaster()

2）multicastEvent() 派发事件

public void multicastEvent(final ApplicationEvent event, @Nullable ResolvableType eventType) {
    ResolvableType type = (eventType != null ? eventType : resolveDefaultEventType(event));
    Executor executor = getTaskExecutor();
    // 获取该事件对应的所有的 ApplicationListener
    for (ApplicationListener<?> listener : getApplicationListeners(event, type)) {
        // 存在 Executor 则异步执行，否则同步执行
        if (executor != null) {
            executor.execute(() -> invokeListener(listener, event));
        }
        else {
            invokeListener(listener, event);
        }
    }
}

invokeListener()方法即为执行listener.onApplicationEvent()方法;

invokeListener(listener, event); -> doInvokeListener(listener, event); -> listener.onApplicationEvent(event);

2.2 事件的多播器

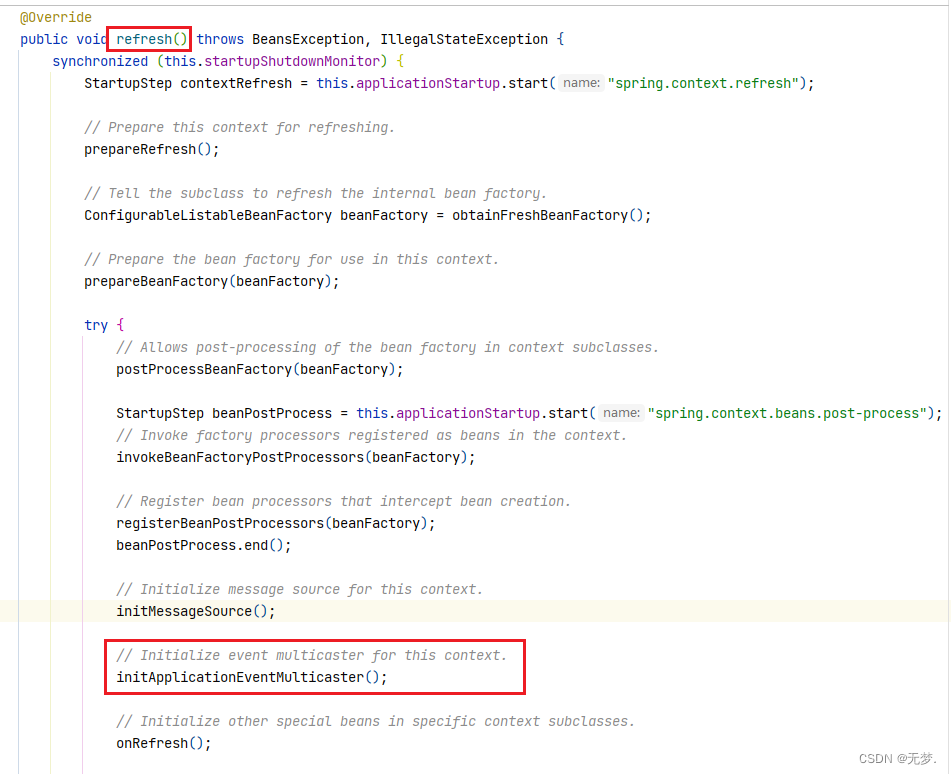

容器创建的refresh() ——> initApplicationEventMulticaster(); 初始化事件多播器

1）先去容器中查找ID为 “applicationEventMulticaster” 的组件

2）如果没有这初始化创建多播器 ，并加到容器中，就可以在其他组件需要派发事件时，自动注入这个 applicationEventMulticaster

​ this.applicationEventMulticaster = new SimpleApplicationEventMulticaster(beanFactory);

protected void initApplicationEventMulticaster() {
    ConfigurableListableBeanFactory beanFactory = getBeanFactory();
    // 容器中查找ID为 "applicationEventMulticaster" 的组件
    if (beanFactory.containsLocalBean(APPLICATION_EVENT_MULTICASTER_BEAN_NAME)) {
        this.applicationEventMulticaster =
            beanFactory.getBean(APPLICATION_EVENT_MULTICASTER_BEAN_NAME, ApplicationEventMulticaster.class);
        if (logger.isTraceEnabled()) {
            logger.trace("Using ApplicationEventMulticaster [" + this.applicationEventMulticaster + "]");
        }
    }
    else {
        // 没有这初始化创建多播器
        this.applicationEventMulticaster = new SimpleApplicationEventMulticaster(beanFactory);
        // 注册到容器中，ID为 applicationEventMulticaster
        beanFactory.registerSingleton(APPLICATION_EVENT_MULTICASTER_BEAN_NAME, this.applicationEventMulticaster);
        if (logger.isTraceEnabled()) {
            logger.trace("No '" + APPLICATION_EVENT_MULTICASTER_BEAN_NAME + "' bean, using " +
                         "[" + this.applicationEventMulticaster.getClass().getSimpleName() + "]");
        }
    }
}

2.3 容器中的监听器

容器创建的refresh() -> registerListeners(); 注册监听器

1）从容器中拿到所有的监听器 ApplicationListener.class
2）把他们注册到 applicationEventMulticaster （事件多播器）中

protected void registerListeners() {
    // Register statically specified listeners first.
    // 首先注册 applicationListeners 中的监听器
    for (ApplicationListener<?> listener : getApplicationListeners()) {
        getApplicationEventMulticaster().addApplicationListener(listener);
    }

    // Do not initialize FactoryBeans here: We need to leave all regular beans
    // uninitialized to let post-processors apply to them!
    // 从容器中拿到所有的监听器 ApplicationListener.class
    String[] listenerBeanNames = getBeanNamesForType(ApplicationListener.class, true, false);
    for (String listenerBeanName : listenerBeanNames) {
        // 2）把他们注册到 applicationEventMulticaster （事件多播器）中
        getApplicationEventMulticaster().addApplicationListenerBean(listenerBeanName);
    }

    // Publish early application events now that we finally have a multicaster...
    // 发布一些前置事件
    Set<ApplicationEvent> earlyEventsToProcess = this.earlyApplicationEvents;
    this.earlyApplicationEvents = null;
    if (!CollectionUtils.isEmpty(earlyEventsToProcess)) {
        for (ApplicationEvent earlyEvent : earlyEventsToProcess) {
            getApplicationEventMulticaster().multicastEvent(earlyEvent);
        }
    }
}

2.4 @EventListener 事件监听注解

使用 @EventListener 事件监听注解，是未实现 ApplicationListener 接口的，那他是如何实现事件的监听呢？

Spring采用了一个后置处理器来处理事件监听注解，使用 EventListenerMethodProcessor 处理器来解析方法上的 @EventListener

public class EventListenerMethodProcessor
		implements SmartInitializingSingleton, ApplicationContextAware, BeanFactoryPostProcessor {}

其实现了三个接口，ApplicationContextAware, BeanFactoryPostProcessor对于applicationContext和beanFactory信息的设置，【重点】在于其重写的 SmartInitializingSingleton afterSingletonsInstantiated()方法。

ps：其执行阶段在单例预实例化阶段结束时调用，并保证所有常规单例bean都已创建;

SmartInitializingSingleton 的执行原理及时机

1）refresh() -> finishBeanFactoryInitialization(beanFactory);
2）beanFactory.preInstantiateSingletons();
	1）getBean(); 创建好所有的单实例bean
	2）循环判断所有的bean 是否有属于 SmartInitializingSingleton 的子类
	3）如果是则调用：smartSingleton.afterSingletonsInstantiated();
3）finishRefresh(); 容器刷新完成

然后来看一下EventListenerMethodProcessor 的 SmartInitializingSingleton afterSingletonsInstantiated()方法做了什么？

afterSingletonsInstantiated() ——> processBean(beanName, type);

processBean(beanName, type)的源码：

1）获取到所有 注解EventListener 的方法

2）如果注解EventListener 的方法不为空，则遍历将其转换为 ApplicationListener

3）将ApplicationListener添加至容器中

private void processBean(final String beanName, final Class<?> targetType) {
    if (!this.nonAnnotatedClasses.contains(targetType) &&
        AnnotationUtils.isCandidateClass(targetType, EventListener.class) &&
        !isSpringContainerClass(targetType)) {

        Map<Method, EventListener> annotatedMethods = null;
        try {
            // 获取到所有 注解EventListener 的方法
            annotatedMethods = MethodIntrospector.selectMethods(targetType,
                                                                (MethodIntrospector.MetadataLookup<EventListener>) method ->
                                                                AnnotatedElementUtils.findMergedAnnotation(method, EventListener.class));
        }
        catch (Throwable ex) {
            // An unresolvable type in a method signature, probably from a lazy bean - let's ignore it.
            if (logger.isDebugEnabled()) {
                logger.debug("Could not resolve methods for bean with name '" + beanName + "'", ex);
            }
        }

        // 为空
        if (CollectionUtils.isEmpty(annotatedMethods)) {
            this.nonAnnotatedClasses.add(targetType);
            if (logger.isTraceEnabled()) {
                logger.trace("No @EventListener annotations found on bean class: " + targetType.getName());
            }
        }
        else {
            // 注解EventListener 的方法 不为空
            // Non-empty set of methods
            ConfigurableApplicationContext context = this.applicationContext;
            Assert.state(context != null, "No ApplicationContext set");
            List<EventListenerFactory> factories = this.eventListenerFactories;
            Assert.state(factories != null, "EventListenerFactory List not initialized");
            // 遍历所有的 注解EventListener方法
            for (Method method : annotatedMethods.keySet()) {
                for (EventListenerFactory factory : factories) {
                    if (factory.supportsMethod(method)) {
                        Method methodToUse = AopUtils.selectInvocableMethod(method, context.getType(beanName));
                        // 转换创建 ApplicationListener
                        ApplicationListener<?> applicationListener =
                            factory.createApplicationListener(beanName, targetType, methodToUse);
                        if (applicationListener instanceof ApplicationListenerMethodAdapter) {
                            ((ApplicationListenerMethodAdapter) applicationListener).init(context, this.evaluator);
                        }
                        context.addApplicationListener(applicationListener);
                        break;
                    }
                }
            }
            if (logger.isDebugEnabled()) {
                logger.debug(annotatedMethods.size() + " @EventListener methods processed on bean '" +
                             beanName + "': " + annotatedMethods);
            }
        }
    }
}
