Elasticsearch+Kibana集群部署（3节点）

$l in d or - - 良民笔记$

文章目录

Elasticsearch+Kibana集群部署（3节点）

前言

仅作为笔记并记录elk搭建过程和搭建中遇到的问题，转载请注明出处，目前该章节只讲述了 elasticsearch+Kibana 的安装过程，以及安装中的一些简单报错；适合有适当基础的同学，理论表的比较少。

‍

项目地址：

elastic官网地址：https://www.elastic.co/cn/

elastic产品地址：https://www.elastic.co/cn/elastic-stack

清华大学yum源地址：https://mirrors.tuna.tsinghua.edu.cn/elasticstack/

‍

准备工具：

ELK版本：elasticsearch-7.7.1-x86_64.rpm
Filebeat版本：filebeat-7.7.1-x86_64.rpm
Kibana版本：kibana-7.7.1-x86_64.rpm
JDK版本：java-1.8.0-openjdk
Logstash版本：logstash-8.5.0-linux-x86_64.rpm

‍

节点分布：

IP	节点类型	部署应用
10.0.0.1	es-master	elasticsearch,kibana,filebeat,logstash
10.0.0.2	es-nodes1	elasticsearch
10.0.0.3	es-nodes2	elasticsearch

‍

一、Elasticsearch部署

只展示单台ES节点，其他ES节点步骤一致

安装JDK

1.安装
[root@localhost ~]# yum -y install java-1.8.0-openjdk

2.验证
root@localhost ~]# java -version
openjdk version "1.8.0_352"
OpenJDK Runtime Environment (build 1.8.0_352-b08)
OpenJDK 64-Bit Server VM (build 25.352-b08, mixed mode)

> yum安装的jdk 不用配置环境变量。手动下载linux的包需要配置环境变量

安装Elasticsearch

我这里提前上传到了/root/ 目录下，直接本地安装即可。下载可参考项目地址[^1]

1.安装
创建elk用户并授权elk文件夹权限
[root@localhost ~]# ls
elasticsearch-7.7.1-x86_64.rpm

[root@localhost ~]# adduser elasticsearch    #创建elasticsearch用户
[root@localhost ~]# yum -y localinstall elasticsearch-7.7.1-x86_64.rpm    #安装elasticsearch
[root@localhost ~]# chown -R elasticsearch:elasticsearch /usr/share/elasticsearch/   #授权所有权给elasticsearch用户
[root@localhost ~]# mkdir -p /home/elasticsearch/{data,logs}     #创建data/log文件夹
[root@localhost ~]# chown -R elasticsearch:elasticsearch /home/elasticsearch    #授权文件夹所属用户为elasticsearch
[root@localhost ~]# su elasticsearch         					#切换elasticsearch用户
[root@localhost ~]# /usr/share/elasticsearch/bin/elasticsearch 			#前台启动查看是否报错


2.elasticsearch安装路径
[root@localhost ~]# whereis elasticsearch
elasticsearch: /etc/elasticsearch /usr/share/elasticsearch
配置文件路径：/etc/elasticsearch
安装程序路径：/usr/share/elasticsearch

‍

Elasticsearch 系统优化

优化默认软限制或硬限制参考：https://access.redhat.com/solutions/406663

在/etc/security/limits.d/20-nproc.conf 下添加如下配置
优化配置：
[root@localhost limits.d]# vim /etc/security/limits.d/20-nproc.conf

elasticsearch    soft    nofile    65535   #elasticsearch  代表你创建的es用户我这里是elasticsearch
elasticsearch    hard    nofile    65535

elasticsearch    soft    nproc    4096
elasticsearch    hard    nproc    4096

elasticsearch    soft    memlock    unlimited
elasticsearch    hard    memlock    unlimited
‍

Elasticsearch节点配置

一共3个节点分别是 master、node1、node2，我这里用IP命名

主要配置文件在：/etc/elasticsearch/elasticsearch.yml

master

[root@localhost ~]# grep -Ev "^$|^[#;]"  /etc/elasticsearch/elasticsearch.yml
path.data: /var/log/elasticsearch/data
path.logs: /var/log/elasticsearch/logs
cluster.name: els
node.name: 10.0.0.1
network.host: 10.0.0.1
node.master: true   #抢占master
http.port: 9200
http.cors.enabled: true
http.cors.allow-origin: '*'
discovery.seed_hosts: ['10.0.0.1', '10.0.0.2','10.0.0.3']
cluster.initial_master_nodes: ['10.0.0.1', '10.0.0.2','10.0.0.3']
discovery.zen.minimum_master_nodes: 3
indices.memory.index_buffer_size: 20%
indices.query.bool.max_clause_count: 100000000
xpack.security.enabled: true
xpack.security.transport.ssl.enabled: true
xpack.security.transport.ssl.verification_mode: certificate
xpack.security.transport.ssl.client_authentication: required
xpack.security.transport.ssl.keystore.path: /etc/elasticsearch/elastic-certificates.p12	  #证书配置
xpack.security.transport.ssl.truststore.path: /etc/elasticsearch/elastic-certificates.p12  #证书配置

node1

[root@localhost ~]# grep -Ev "^$|^[#;]"  /etc/elasticsearch/elasticsearch.yml
path.data: /var/log/elasticsearch/data
path.logs: /var/log/elasticsearch/logs
cluster.name: els
node.name: 192.168.169.40
network.host: 192.168.169.40
node.master: true   #抢占master
http.port: 9200
http.cors.enabled: true
http.cors.allow-origin: '*'
discovery.seed_hosts: ['10.0.0.1', '10.0.0.2','10.0.0.3']
cluster.initial_master_nodes: ['10.0.0.1', '10.0.0.2','10.0.0.3']
discovery.zen.minimum_master_nodes: 3
indices.memory.index_buffer_size: 20%
indices.query.bool.max_clause_count: 100000000
xpack.security.enabled: true
xpack.security.transport.ssl.enabled: true
xpack.security.transport.ssl.verification_mode: certificate
xpack.security.transport.ssl.client_authentication: required
xpack.security.transport.ssl.keystore.path: /etc/elasticsearch/elastic-certificates.p12	  #证书配置
xpack.security.transport.ssl.truststore.path: /etc/elasticsearch/elastic-certificates.p12  #证书配置

node2

[root@localhost ~]# grep -Ev "^$|^[#;]"  /etc/elasticsearch/elasticsearch.yml
path.data: /var/log/elasticsearch/data
path.logs: /var/log/elasticsearch/logs
cluster.name: els
node.name: 10.0.0.3
network.host: 10.0.0.3
node.master: true   #抢占master
http.port: 9200
http.cors.enabled: true
http.cors.allow-origin: '*'
discovery.seed_hosts: ['10.0.0.1', '10.0.0.2','10.0.0.3']
cluster.initial_master_nodes: ['10.0.0.1', '10.0.0.2','10.0.0.3']
discovery.zen.minimum_master_nodes: 3
indices.memory.index_buffer_size: 20%
indices.query.bool.max_clause_count: 100000000
xpack.security.enabled: true
xpack.security.transport.ssl.enabled: true
xpack.security.transport.ssl.verification_mode: certificate
xpack.security.transport.ssl.client_authentication: required
xpack.security.transport.ssl.keystore.path: /etc/elasticsearch/elastic-certificates.p12   #证书配置
xpack.security.transport.ssl.truststore.path: /etc/elasticsearch/elastic-certificates.p12   #证书配置

注：在没做好基础配置前，安装好后先切换到ES用户前台启动一次，看看是否报错。然后在做好基础配置后，一定要切换到ES用户，前台启动看看是否报错等，在接着往下

Elasticsearch 设置证书和密钥

在/etc/elasticsearch/elasticsearch.yml下添加如下配置

xpack.security.enabled: true
xpack.security.transport.ssl.keystore.path: /etc/elasticsearch/elastic-certificates.p12   #证书配置
xpack.security.transport.ssl.truststore.path: /etc/elasticsearch/elastic-certificates.p12   #证书配置

生成如下证书，并赋予证书权限，有疑问请跳转到报错篇

#生成证书和证书密钥，证书生成后默认路径在/usr/share/elasticsearch/下
[root@localhost ~]# sh /usr/share/elasticsearch/bin/elasticsearch-certutil ca  #生成证书，直接全部回车到最后
[root@localhost ~]# sh /usr/share/elasticsearch/bin/elasticsearch-certutil cert --ca elastic-stack-ca.p12   #生成证书对应的密钥，在将密钥分发到/etc/elasticsearch/
[root@localhost ~]# ls /usr/share/elasticsearch/
bin  elastic-certificates.p12  elastic-stack-ca.p12  jdk  lib  LICENSE.txt  modules  NOTICE.txt  plugins  README.asciidoc

#拷贝证书到/etc/elasticsearch/下，和配置文件对应，并授权
[root@localhost ~]# cp /usr/share/elasticsearch/elastic-certificates.p12  /etc/elasticsearch/
[root@localhost ~]# chomd 777 /etc/elasticsearch/elastic-certificates.p12
[root@localhost ~]# chown -R elasticsearch:elasticsearch /etc/elasticsearch/elastic-certificates.p12
[root@localhost ~]# ls /etc/elasticsearch/
elastic-certificates.p12  elasticsearch.yml  jvm.options.d      role_mapping.yml  users
elasticsearch.keystore    jvm.options        log4j2.properties  roles.yml         users_roles

注：设置证书在集群没起来的时候就可以配置，配置完证书后**把密钥证书 elastic-certificates.p12 **分发证书到各个节点的/etc/elasticsearch/下，路径可自定义。

‍

Elasticsearch 生成密码

常见的生成密码有两种，我只展示第一种；

Plan A：随机生成所有密码

Plan B：自定义生成密码

随机生成密码如下：

命令：
sh /usr/share/elasticsearch/bin/elasticsearch-setup-passwords auto

演示：
[root@localhost bin]# sh /usr/share/elasticsearch/bin/elasticsearch-setup-passwords auto
Initiating the setup of passwords for reserved users elastic,apm_system,kibana,logstash_system,beats_system,remote_monitoring_user.
The passwords will be randomly generated and printed to the console.
Please confirm that you would like to continue [y/N] y


Changed password for user apm_system
PASSWORD apm_system = sMZg4sW5bBbfL1fRjDPP

Changed password for user kibana
PASSWORD kibana = qZjB60sGzxfBcPrTxdQT

Changed password for user logstash_system
PASSWORD logstash_system = raxBaIRutgxxwRqe63c1

Changed password for user beats_system
PASSWORD beats_system = 86NyKgnMkaDrb9gBSyr4

Changed password for user remote_monitoring_user
PASSWORD remote_monitoring_user = sSQycnFqnTeEuxBZN7HS

Changed password for user elastic
PASSWORD elastic = Y3NpRblUxipGz9YCN6gg

[root@localhost bin]#

注：生成密钥后需要做好保存，在集群没起来前，生成密钥时会报错。集群起来后在master节点生成密码即可；

Elasticsearch验证

通过curl的方式，查看每个节点的状态是否正常和集群是否正常
http://10.0.0.1:9200

{
  "name" : "10.0.0.1",
  "cluster_name" : "els",
  "cluster_uuid" : "rCoR2r6oTzmcozBuUImupA",
  "version" : {
    "number" : "7.7.1",
    "build_flavor" : "default",
    "build_type" : "rpm",
    "build_hash" : "ad56dce891c901a492bb1ee393f12dfff473a423",
    "build_date" : "2020-05-28T16:30:01.040088Z",
    "build_snapshot" : false,
    "lucene_version" : "8.5.1",
    "minimum_wire_compatibility_version" : "6.8.0",
    "minimum_index_compatibility_version" : "6.0.0-beta1"
  },
  "tagline" : "You Know, for Search"
}

http://10.0.0.2:9200

{
  "name" : "10.0.0.2",
  "cluster_name" : "els",
  "cluster_uuid" : "rCoR2r6oTzmcozBuUImupA",
  "version" : {
    "number" : "7.7.1",
    "build_flavor" : "default",
    "build_type" : "rpm",
    "build_hash" : "ad56dce891c901a492bb1ee393f12dfff473a423",
    "build_date" : "2020-05-28T16:30:01.040088Z",
    "build_snapshot" : false,
    "lucene_version" : "8.5.1",
    "minimum_wire_compatibility_version" : "6.8.0",
    "minimum_index_compatibility_version" : "6.0.0-beta1"
  },
  "tagline" : "You Know, for Search"
}

http://10.0.0.3:9200

 {
   "name" : "10.0.0.3",
   "cluster_name" : "els",
   "cluster_uuid" : "rCoR2r6oTzmcozBuUImupA",
   "version" : {
     "number" : "7.7.1",
     "build_flavor" : "default",
     "build_type" : "rpm",
     "build_hash" : "ad56dce891c901a492bb1ee393f12dfff473a423",
     "build_date" : "2020-05-28T16:30:01.040088Z",
     "build_snapshot" : false,
     "lucene_version" : "8.5.1",
     "minimum_wire_compatibility_version" : "6.8.0",
     "minimum_index_compatibility_version" : "6.0.0-beta1"
   },
   "tagline" : "You Know, for Search"
 }

基本正常，接下来查看集群状态
http://10.0.0.1:9200/_cluster/health?pretty

{
  "cluster_name" : "els",  	#集群名称
  "status" : "green",     	#集群状态，green表示所有主分片和副本分片%100可用（属于正常）
  "timed_out" : false,		#超时
  "number_of_nodes" : 3,	#集群节点3个
  "number_of_data_nodes" : 3,
  "active_primary_shards" : 70,
  "active_shards" : 140,
  "relocating_shards" : 2,
  "initializing_shards" : 0,
  "unassigned_shards" : 0,
  "delayed_unassigned_shards" : 0,
  "number_of_pending_tasks" : 0,
  "number_of_in_flight_fetch" : 0,
  "task_max_waiting_in_queue_millis" : 0,
  "active_shards_percent_as_number" : 100.0
}

检查端口是否正常

[root@localhost ~]# netstat -anpt
[root@localhost ~]# lsof -i:9200

测试各个节点正常，集群正常，端口正常，自此es集群部署完毕

‍

Elasticsearch报错

配置好证书后，切换elasticsearch用户启动ES时，收到如下报错

[ERROR][o.e.b.ElasticsearchUncaughtExceptionHandler] [192.168.169.12] uncaught exception in thread [main]
org.elasticsearch.bootstrap.StartupException: ElasticsearchSecurityException[failed to load SSL configuration [xpack.security.transport.ssl]]; nested: ElasticsearchException[failed to initialize SSL TrustManager - not permitted to read truststore file [/etc/elasticsearch/elastic-certificates.p12]]; nested: AccessDeniedException[/etc/elasticsearch/elastic-certificates.p12];

#报错原因：无法加载/etc/elasticsearch/elastic-certificates.p12证书

#因为是直接生成的证书，未改动权限，直接copy到/etc/elasticsearch目录下，查看了下权限，无法执行，不属于elasticsearch用户。
#解决办法：授权给elasticsearch用户，加权到777在更改。
chomd 777 /etc/elasticsearch/elastic-certificates.p12
chown -R elasticsearch:elasticsearch /etc/elasticsearch/elastic-certificates.p12
#再启动时问题解决

‍

二、kibana部署

kibana安装

依旧是提前下载好了并上传到了10.0.0.1的/root/下

[root@localhost ~]# ls
kibana-7.7.1-x86_64.rpm

#直接本地安装
[root@localhost ~]# yum -y localinstall kibana-7.7.1-x86_64.rpm

#文件路径
[root@localhost ~]# whereis kibana
kibana: /etc/kibana /usr/share/kibana

#配置文件路径：/etc/kibana
#安装程序路径：/usr/share/kibana

kibana配置

配置文件是 /etc/kibana/kibana.yml 直接编辑找到相关配置更改即可，参考如下

[root@localhost kibana]# grep -Ev "^$|^[#;]" /etc/kibana/kibana.yml
server.port: 5601
server.host: "0.0.0.0"
server.maxPayloadBytes: 10485760
elasticsearch.hosts: ["http://192.168.169.41:9200","http://192.168.169.40:9200","http://192.168.169.39:9200"]
#kibana.index: ".kibana"      //参考kibana报错，可解决
elasticsearch.username: "elastic"
elasticsearch.password: "Y3NpRblUxipGz9YCN6gg"
i18n.locale: "zh-CN"       #编码改为中国

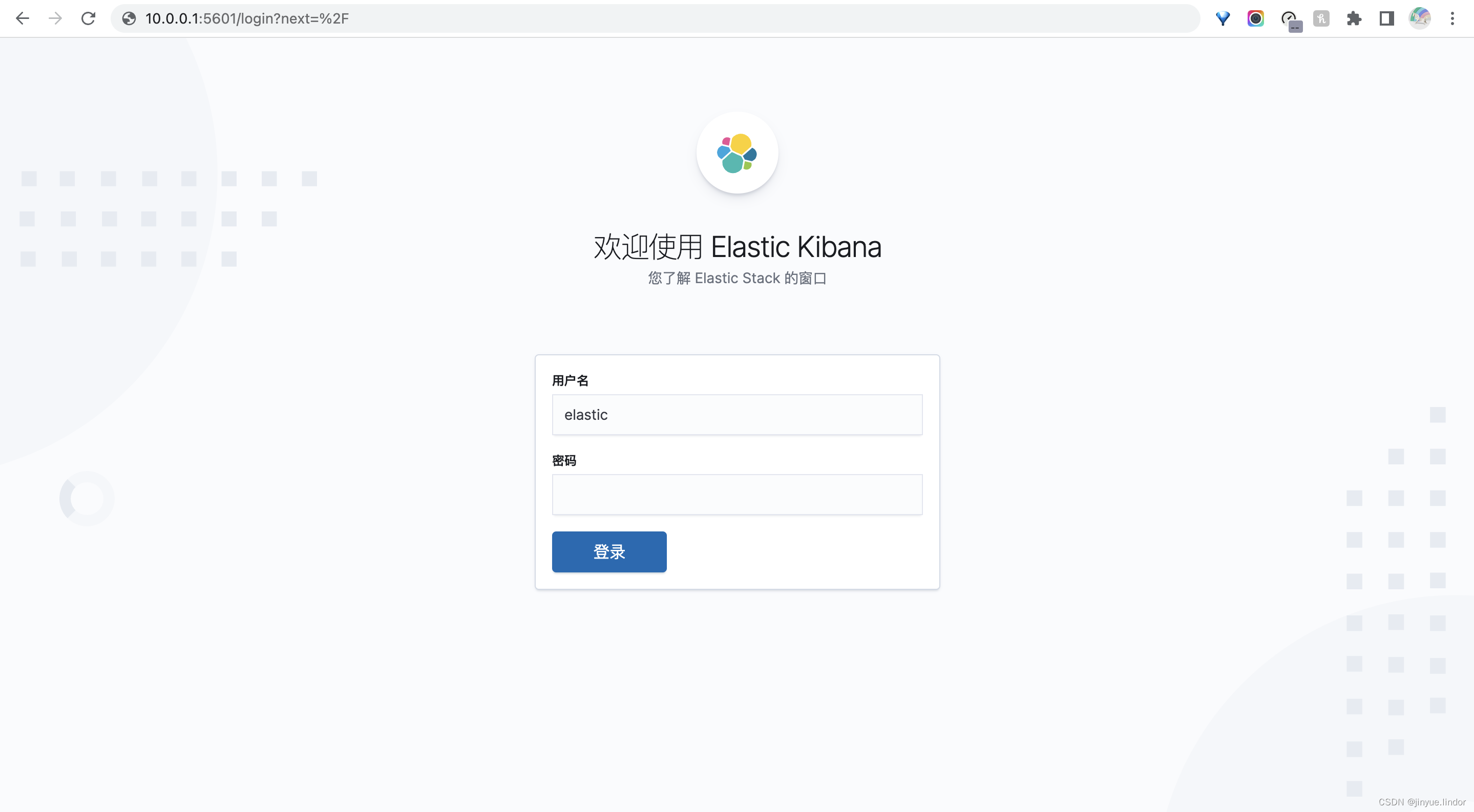

启动kibana，进入web界面
```
启动命令如下;比较粗暴直接在root下启动
[root@localhost ~]# sh /usr/share/kibana/bin/kibana --allow-root

没有报错，直接系统启动
[root@localhost ~]# systemctl start kibana
```
自此kibana安装完毕，安装完毕还没有数据，需要配合filebeat、logstash或者auditbeat,推送日志数据到es中，然后建立索引，并配合面板进行展示即可

kibana报错

基础配置做好时启动报如下错误

[root@localhost ~]# sh /usr/share/kibana/bin/kibana --allow-root
  log   [07:47:48.360] [warning][plugins-discovery] Expect plugin "id" in camelCase, but found: apm_oss
  log   [07:47:48.368] [warning][plugins-discovery] Expect plugin "id" in camelCase, but found: file_upload
  log   [07:47:48.369] [warning][plugins-discovery] Expect plugin "id" in camelCase, but found: triggers_actions_ui
  log   [07:47:53.145] [warning][config][deprecation] Setting [elasticsearch.username] to "elastic" is deprecated. You should use the "kibana" user instead.
  log   [07:47:53.145] [warning][config][deprecation] Setting [monitoring.username] to "elastic" is deprecated. You should use the "kibana" user instead.
  log   [07:47:53.148] [fatal][root] { Error: Unknown configuration key(s): "index". Check for spelling errors and ensure that expected plugins are installed.
    at ensureValidConfiguration (/usr/share/kibana/src/core/server/legacy/config/ensure_valid_configuration.js:46:11) code: 'InvalidConfig', processExitCode: 64, cause: undefined }

 FATAL  Error: Unknown configuration key(s): "index". Check for spelling errors and ensure that expected plugins are installed.

报错原因：Unknown configuration key(s): "index"，是因为此项配置错误导致，官网8.0版本的kibana中 已经没有使用该配置，所以删除该配置即可。
参考：https://discuss.elastic.co/t/kibana-8-0-0-unknown-configuration-key-s-kibana-index/299228/1

jinyue.lindor

关注

3
点赞
踩
3

收藏

觉得还不错? 一键收藏
1
评论
Elasticsearch+Kibana集群部署(3节点)

仅作为笔记并记录elk搭建过程和搭建中遇到的问题，转载请注明出处，目前该章节只讲述了 elasticsearch+Kibana 的安装过程，以及安装中的一些简单报错；适合有适当基础的同学，理论表的比较少。‍。
复制链接

扫一扫
