Activiti7.X支持达梦数据库

最近公司将项目国产化，用到了达梦数据库，Activiti一直都没有官方支持国内的各大数据库，所以得自己改源码，最开始楼主也是借鉴了别的解决方案，没有一个合适的，经历3天以来的修改终于把项目成功部署。

为了使Activiti可以适配达梦数据库，需要修改其部分源代码。将activiti.engine-7.X（源码链接Activiti）中相关的源代码拷贝到工程src目录下，保持包路径不变。方便修改后编译的时候覆盖jar中的class文件，具体的修改如下：

1.1 在org.activiti.engine.impl.cfg.ProcessEngineConfigurationImpl，增加成员变量。

  public static final String DATABASE_TYPE_DM = "dm";//达梦
  public static final String DATABASE_TYPE_H2 = "h2";
  public static final String DATABASE_TYPE_HSQL = "hsql";
  public static final String DATABASE_TYPE_MYSQL = "mysql";
  public static final String DATABASE_TYPE_ORACLE = "oracle";
  public static final String DATABASE_TYPE_POSTGRES = "postgres";
  public static final String DATABASE_TYPE_MSSQL = "mssql";
  public static final String DATABASE_TYPE_DB2 = "db2";

1.2 修改org.activiti.engine.impl.cfg.ProcessEngineConfigurationImpl 类的getDefaultDatabaseTypeMappings()方法

public static Properties getDefaultDatabaseTypeMappings() {
        Properties databaseTypeMappings = new Properties();
        databaseTypeMappings.setProperty("DM DBMS", DATABASE_TYPE_DM);// 适配达梦数据库
        databaseTypeMappings.setProperty("H2", DATABASE_TYPE_H2);
        databaseTypeMappings.setProperty("HSQL Database Engine", DATABASE_TYPE_HSQL);
        databaseTypeMappings.setProperty("MySQL", DATABASE_TYPE_MYSQL);
        databaseTypeMappings.setProperty("Oracle", DATABASE_TYPE_ORACLE);
        databaseTypeMappings.setProperty("PostgreSQL", DATABASE_TYPE_POSTGRES);
        ...省略部分适配
}

1.3 修改org.activiti.engine.impl.db.DbSqlSessionFactory 类的 initBulkInsertEnabledMap(String databaseType)方法

  protected void initBulkInsertEnabledMap(String databaseType) {
  	bulkInsertableMap = new HashMap<Class<? extends Entity>, Boolean>();

  	for (Class<? extends Entity> clazz : EntityDependencyOrder.INSERT_ORDER) {
  		bulkInsertableMap.put(clazz, Boolean.TRUE);
  	}

  	// Only Oracle is making a fuss in one specific case right now
		/*if ("oracle".equals(databaseType)) {
			bulkInsertableMap.put(EventLogEntryEntityImpl.class, Boolean.FALSE);
		}*/
      if ("oracle".equals(databaseType) || "dm".equals(databaseType)) {//达梦支持
          bulkInsertableMap.put(EventLogEntryEntityImpl.class, Boolean.FALSE);
      }
  }

1.4 修改org.activiti.engine.impl.AbstractQuery 类的 addOrder(String column, String sortOrder, NullHandlingOnOrder nullHandlingOnOrder)方法

 if (nullHandlingOnOrder.equals(NullHandlingOnOrder.NULLS_FIRST)) {
                if (ProcessEngineConfigurationImpl.DATABASE_TYPE_H2.equals(databaseType)
                    || ProcessEngineConfigurationImpl.DATABASE_TYPE_HSQL.equals(databaseType)
                    || ProcessEngineConfigurationImpl.DATABASE_TYPE_POSTGRES.equals(databaseType)
                    || ProcessEngineConfigurationImpl.DATABASE_TYPE_ORACLE.equals(databaseType)
                    || ProcessEngineConfigurationImpl.DATABASE_TYPE_DM.equals(databaseType)) // 适配达梦数据库
                {
                   	orderBy = orderBy + defaultOrderByClause + " NULLS FIRST";
                } else if (ProcessEngineConfigurationImpl.DATABASE_TYPE_MYSQL.equals(databaseType)) {
                    orderBy = orderBy + "isnull(" + column + ") desc," + defaultOrderByClause;
                } else if (ProcessEngineConfigurationImpl.DATABASE_TYPE_DB2.equals(databaseType)
                           || ProcessEngineConfigurationImpl.DATABASE_TYPE_MSSQL.equals(databaseType)) {
                    orderBy = orderBy + "case when " + column + " is null then 0 else 1 end," + defaultOrderByClause;
                } else {
                    orderBy = orderBy + defaultOrderByClause;
                }

            } else if (nullHandlingOnOrder.equals(NullHandlingOnOrder.NULLS_LAST)) {
                if (ProcessEngineConfigurationImpl.DATABASE_TYPE_H2.equals(databaseType)
                    || ProcessEngineConfigurationImpl.DATABASE_TYPE_HSQL.equals(databaseType)
                    || ProcessEngineConfigurationImpl.DATABASE_TYPE_POSTGRES.equals(databaseType)
                    || ProcessEngineConfigurationImpl.DATABASE_TYPE_ORACLE.equals(databaseType)
                    || ProcessEngineConfigurationImpl.DATABASE_TYPE_DM.equals(databaseType)) // 适配达梦数据库
                {
                    orderBy = orderBy + column + " " + sortOrder + " NULLS LAST";
                } else if (ProcessEngineConfigurationImpl.DATABASE_TYPE_MYSQL.equals(databaseType)) {
                    orderBy = orderBy + "isnull(" + column + ") asc," + defaultOrderByClause;
                } else if (ProcessEngineConfigurationImpl.DATABASE_TYPE_DB2.equals(databaseType)
                           || ProcessEngineConfigurationImpl.DATABASE_TYPE_MSSQL.equals(databaseType)) {
                    orderBy = orderBy + "case when " + column + " is null then 1 else 0 end," + defaultOrderByClause;
                } else {
                    orderBy = orderBy + defaultOrderByClause;
                }

            }

增加DM数据库脚本

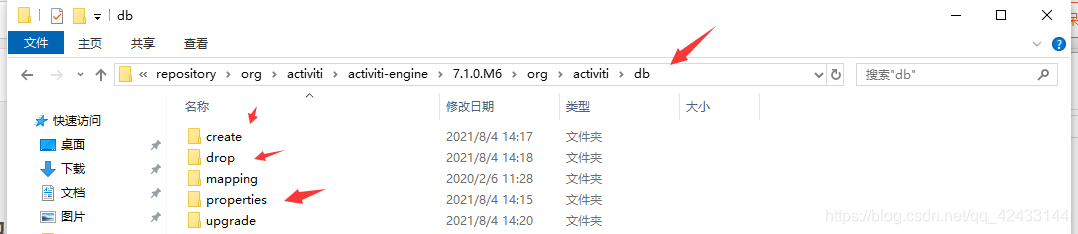

2.1 找到相关路径由于楼主是采用maven的方式引入的jar包所以直接到本地maven中找到相应版本的activiti-engine-7.X.jar 将jar包解压缩得到2个文件夹

在这里插入图片描述

这时我们前往相应文件夹位置

2.2 在create文件夹下创建数据库表相关的文件。

activiti.dm.create.engine.sql

create table ACT_GE_PROPERTY (
    NAME_ NVARCHAR2(64),
    VALUE_ NVARCHAR2(300),
    REV_ INTEGER,
    primary key (NAME_)
);

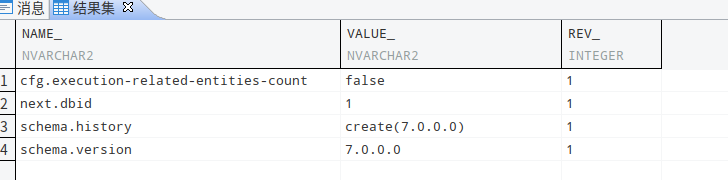

insert into ACT_GE_PROPERTY
values ('schema.version', '7.0.0.0', 1);

insert into ACT_GE_PROPERTY
values ('schema.history', 'create(7.0.0.0)', 1);

insert into ACT_GE_PROPERTY
values ('next.dbid', '1', 1);

create table ACT_GE_BYTEARRAY (
    ID_ NVARCHAR2(64),
    REV_ INTEGER,
    NAME_ NVARCHAR2(255),
    DEPLOYMENT_ID_ NVARCHAR2(64),
    BYTES_ BLOB,
    GENERATED_ NUMBER(1,0) CHECK (GENERATED_ IN (1,0)),
    primary key (ID_)
);

create table ACT_RE_DEPLOYMENT (
    ID_ NVARCHAR2(64),
    NAME_ NVARCHAR2(255),
    CATEGORY_ NVARCHAR2(255),
    KEY_ NVARCHAR2(255),
    TENANT_ID_ NVARCHAR2(255) DEFAULT '',
    DEPLOY_TIME_ TIMESTAMP(6),
    ENGINE_VERSION_ NVARCHAR2(255),
    VERSION_ INTEGER DEFAULT 1,
    PROJECT_RELEASE_VERSION_ NVARCHAR2(255),
    primary key (ID_)
);

create table ACT_RE_MODEL (
    ID_ NVARCHAR2(64) not null,
    REV_ INTEGER,
    NAME_ NVARCHAR2(255),
    KEY_ NVARCHAR2(255),
    CATEGORY_ NVARCHAR2(255),
    CREATE_TIME_ TIMESTAMP(6),
    LAST_UPDATE_TIME_ TIMESTAMP(6),
    VERSION_ INTEGER,
    META_INFO_ NVARCHAR2(2000),
    DEPLOYMENT_ID_ NVARCHAR2(64),
    EDITOR_SOURCE_VALUE_ID_ NVARCHAR2(64),
    EDITOR_SOURCE_EXTRA_VALUE_ID_ NVARCHAR2(64),
    TENANT_ID_ NVARCHAR2(255) DEFAULT '',
    primary key (ID_)
);

create table ACT_RU_EXECUTION (
    ID_ NVARCHAR2(64),
    REV_ INTEGER,
    PROC_INST_ID_ NVARCHAR2(64),
    BUSINESS_KEY_ NVARCHAR2(255),
    PARENT_ID_ NVARCHAR2(64),
    PROC_DEF_ID_ NVARCHAR2(64),
    SUPER_EXEC_ NVARCHAR2(64),
    ROOT_PROC_INST_ID_ NVARCHAR2(64),
    ACT_ID_ NVARCHAR2(255),
    IS_ACTIVE_ NUMBER(1,0) CHECK (IS_ACTIVE_ IN (1,0)),
    IS_CONCURRENT_ NUMBER(1,0) CHECK (IS_CONCURRENT_ IN (1,0)),
    IS_SCOPE_ NUMBER(1,0) CHECK (IS_SCOPE_ IN (1,0)),
    IS_EVENT_SCOPE_ NUMBER(1,0) CHECK (IS_EVENT_SCOPE_ IN (1,0)),
    IS_MI_ROOT_ NUMBER(1,0) CHECK (IS_MI_ROOT_ IN (1,0)),
    SUSPENSION_STATE_ INTEGER,
    CACHED_ENT_STATE_ INTEGER,
    TENANT_ID_ NVARCHAR2(255) DEFAULT '',
    NAME_ NVARCHAR2(255),
    START_TIME_ TIMESTAMP(6),
    START_USER_ID_ NVARCHAR2(255),
    LOCK_TIME_ TIMESTAMP(6),
    IS_COUNT_ENABLED_ NUMBER(1,0) CHECK (IS_COUNT_ENABLED_ IN (1,0)),
    EVT_SUBSCR_COUNT_ INTEGER,
    TASK_COUNT_ INTEGER,
    JOB_COUNT_ INTEGER,
    TIMER_JOB_COUNT_ INTEGER,
    SUSP_JOB_COUNT_ INTEGER,
    DEADLETTER_JOB_COUNT_ INTEGER,
    VAR_COUNT_ INTEGER,
    ID_LINK_COUNT_ INTEGER,
    APP_VERSION_ INTEGER,
    primary key (ID_)
);

create table ACT_RU_JOB (
    ID_ NVARCHAR2(64) NOT NULL,
    REV_ INTEGER,
    TYPE_ NVARCHAR2(255) NOT NULL,
    LOCK_EXP_TIME_ TIMESTAMP(6),
    LOCK_OWNER_ NVARCHAR2(255),
    EXCLUSIVE_ NUMBER(1,0) CHECK (EXCLUSIVE_ IN (1,0)),
    EXECUTION_ID_ NVARCHAR2(64),
    PROCESS_INSTANCE_ID_ NVARCHAR2(64),
    PROC_DEF_ID_ NVARCHAR2(64),
    RETRIES_ INTEGER,
    EXCEPTION_STACK_ID_ NVARCHAR2(64),
    EXCEPTION_MSG_ NVARCHAR2(2000),
    DUEDATE_ TIMESTAMP(6),
    REPEAT_ NVARCHAR2(255),
    HANDLER_TYPE_ NVARCHAR2(255),
    HANDLER_CFG_ NVARCHAR2(2000),
    TENANT_ID_ NVARCHAR2(255) DEFAULT '',
    primary key (ID_)
);

create table ACT_RU_TIMER_JOB (
    ID_ NVARCHAR2(64) NOT NULL,
    REV_ INTEGER,
    TYPE_ NVARCHAR2(255) NOT NULL,
    LOCK_EXP_TIME_ TIMESTAMP(6),
    LOCK_OWNER_ NVARCHAR2(255),
    EXCLUSIVE_ NUMBER(1,0) CHECK (EXCLUSIVE_ IN (1,0)),
    EXECUTION_ID_ NVARCHAR2(64),
    PROCESS_INSTANCE_ID_ NVARCHAR2(64),
    PROC_DEF_ID_ NVARCHAR2(64),
    RETRIES_ INTEGER,
    EXCEPTION_STACK_ID_ NVARCHAR2(64),
    EXCEPTION_MSG_ NVARCHAR2(2000),
    DUEDATE_ TIMESTAMP(6),
    REPEAT_ NVARCHAR2(255),
    HANDLER_TYPE_ NVARCHAR2(255),
    HANDLER_CFG_ NVARCHAR2(2000),
    TENANT_ID_ NVARCHAR2(255) DEFAULT '',
    primary key (ID_)
);

create table ACT_RU_SUSPENDED_JOB (
    ID_ NVARCHAR2(64) NOT NULL,
    REV_ INTEGER,
    TYPE_ NVARCHAR2(255) NOT NULL,
    EXCLUSIVE_ NUMBER(1,0) CHECK (EXCLUSIVE_ IN (1,0)),
    EXECUTION_ID_ NVARCHAR2(64),
    PROCESS_INSTANCE_ID_ NVARCHAR2(64),
    PROC_DEF_ID_ NVARCHAR2(64),
    RETRIES_ INTEGER,
    EXCEPTION_STACK_ID_ NVARCHAR2(64),
    EXCEPTION_MSG_ NVARCHAR2(2000),
    DUEDATE_ TIMESTAMP(6),
    REPEAT_ NVARCHAR2(255),
    HANDLER_TYPE_ NVARCHAR2(255),
    HANDLER_CFG_ NVARCHAR2(2000),
    TENANT_ID_ NVARCHAR2(255) DEFAULT '',
    primary key (ID_)
);

create table ACT_RU_DEADLETTER_JOB (
    ID_ NVARCHAR2(64) NOT NULL,
    REV_ INTEGER,
    TYPE_ NVARCHAR2(255) NOT NULL,
    EXCLUSIVE_ NUMBER(1,0) CHECK (EXCLUSIVE_ IN (1,0)),
    EXECUTION_ID_ NVARCHAR2(64),
    PROCESS_INSTANCE_ID_ NVARCHAR2(64),
    PROC_DEF_ID_ NVARCHAR2(64),
    EXCEPTION_STACK_ID_ NVARCHAR2(64),
    EXCEPTION_MSG_ NVARCHAR2(2000),
    DUEDATE_ TIMESTAMP(6),
    REPEAT_ NVARCHAR2(255),
    HANDLER_TYPE_ NVARCHAR2(255),
    HANDLER_CFG_ NVARCHAR2(2000),
    TENANT_ID_ NVARCHAR2(255) DEFAULT '',
    primary key (ID_)
);

create table ACT_RE_PROCDEF (
    ID_ NVARCHAR2(64) NOT NULL,
    REV_ INTEGER,
    CATEGORY_ NVARCHAR2(255),
    NAME_ NVARCHAR2(255),
    KEY_ NVARCHAR2(255) NOT NULL,
    VERSION_ INTEGER NOT NULL,
    DEPLOYMENT_ID_ NVARCHAR2(64),
    RESOURCE_NAME_ NVARCHAR2(2000),
    DGRM_RESOURCE_NAME_ varchar(4000),
    DESCRIPTION_ NVARCHAR2(2000),
    HAS_START_FORM_KEY_ NUMBER(1,0) CHECK (HAS_START_FORM_KEY_ IN (1,0)),
    HAS_GRAPHICAL_NOTATION_ NUMBER(1,0) CHECK (HAS_GRAPHICAL_NOTATION_ IN (1,0)),
    SUSPENSION_STATE_ INTEGER,
    TENANT_ID_ NVARCHAR2(255) DEFAULT '',
    ENGINE_VERSION_ NVARCHAR2(255),
    APP_VERSION_ INTEGER,
    primary key (ID_)
);

create table ACT_RU_TASK (
    ID_ NVARCHAR2(64),
    REV_ INTEGER,
    EXECUTION_ID_ NVARCHAR2(64),
    PROC_INST_ID_ NVARCHAR2(64),
    PROC_DEF_ID_ NVARCHAR2(64),
    NAME_ NVARCHAR2(255),
    BUSINESS_KEY_ varchar(255),
    PARENT_TASK_ID_ NVARCHAR2(64),
    DESCRIPTION_ NVARCHAR2(2000),
    TASK_DEF_KEY_ NVARCHAR2(255),
    OWNER_ NVARCHAR2(255),
    ASSIGNEE_ NVARCHAR2(255),
    DELEGATION_ NVARCHAR2(64),
    PRIORITY_ INTEGER,
    CREATE_TIME_ TIMESTAMP(6),
    DUE_DATE_ TIMESTAMP(6),
    CATEGORY_ NVARCHAR2(255),
    SUSPENSION_STATE_ INTEGER,
    TENANT_ID_ NVARCHAR2(255) DEFAULT '',
    FORM_KEY_ NVARCHAR2(255),
    CLAIM_TIME_ TIMESTAMP(6),
    APP_VERSION_ INTEGER,
    primary key (ID_)
);

create table ACT_RU_IDENTITYLINK (
    ID_ NVARCHAR2(64),
    REV_ INTEGER,
    GROUP_ID_ NVARCHAR2(255),
    TYPE_ NVARCHAR2(255),
    USER_ID_ NVARCHAR2(255),
    TASK_ID_ NVARCHAR2(64),
    PROC_INST_ID_ NVARCHAR2(64),
    PROC_DEF_ID_ NVARCHAR2(64),
    primary key (ID_)
);

create table ACT_RU_VARIABLE (
    ID_ NVARCHAR2(64) not null,
    REV_ INTEGER,
    TYPE_ NVARCHAR2(255) not null,
    NAME_ NVARCHAR2(255) not null,
    EXECUTION_ID_ NVARCHAR2(64),
    PROC_INST_ID_ NVARCHAR2(64),
    TASK_ID_ NVARCHAR2(64),
    BYTEARRAY_ID_ NVARCHAR2(64),
    DOUBLE_ NUMBER(*,10),
    LONG_ NUMBER(19,0),
    TEXT_ NVARCHAR2(2000),
    TEXT2_ NVARCHAR2(2000),
    primary key (ID_)
);

create table ACT_RU_EVENT_SUBSCR (
    ID_ NVARCHAR2(64) not null,
    REV_ integer,
    EVENT_TYPE_ NVARCHAR2(255) not null,
    EVENT_NAME_ NVARCHAR2(255),
    EXECUTION_ID_ NVARCHAR2(64),
    PROC_INST_ID_ NVARCHAR2(64),
    ACTIVITY_ID_ NVARCHAR2(64),
    CONFIGURATION_ NVARCHAR2(255),
    CREATED_ TIMESTAMP(6) not null,
    PROC_DEF_ID_ NVARCHAR2(64),
    TENANT_ID_ NVARCHAR2(255) DEFAULT '',
    primary key (ID_)
);

create table ACT_EVT_LOG (
    LOG_NR_ NUMBER(19),
    TYPE_ NVARCHAR2(64),
    PROC_DEF_ID_ NVARCHAR2(64),
    PROC_INST_ID_ NVARCHAR2(64),
    EXECUTION_ID_ NVARCHAR2(64),
    TASK_ID_ NVARCHAR2(64),
    TIME_STAMP_ TIMESTAMP(6) not null,
    USER_ID_ NVARCHAR2(255),
    DATA_ BLOB,
    LOCK_OWNER_ NVARCHAR2(255),
    LOCK_TIME_ TIMESTAMP(6) null,
    IS_PROCESSED_ NUMBER(3) default 0,
    primary key (LOG_NR_)
);

create sequence act_evt_log_seq;

create table ACT_PROCDEF_INFO (
	ID_ NVARCHAR2(64) not null,
    PROC_DEF_ID_ NVARCHAR2(64) not null,
    REV_ integer,
    INFO_JSON_ID_ NVARCHAR2(64),
    primary key (ID_)
);

create table ACT_RU_INTEGRATION (
    ID_ NVARCHAR2(64) not null,
    EXECUTION_ID_ NVARCHAR2(64),
    PROCESS_INSTANCE_ID_ NVARCHAR2(64),
    PROC_DEF_ID_ NVARCHAR2(64),
    FLOW_NODE_ID_ NVARCHAR2(64),
    CREATED_DATE_ TIMESTAMP(6),
    primary key (ID_)
);

create index ACT_IDX_EXEC_BUSKEY on ACT_RU_EXECUTION(BUSINESS_KEY_);
create index ACT_IDX_EXEC_ROOT on ACT_RU_EXECUTION(ROOT_PROC_INST_ID_);
create index ACT_IDX_TASK_CREATE on ACT_RU_TASK(CREATE_TIME_);
create index ACT_IDX_IDENT_LNK_USER on ACT_RU_IDENTITYLINK(USER_ID_);
create index ACT_IDX_IDENT_LNK_GROUP on ACT_RU_IDENTITYLINK(GROUP_ID_);
create index ACT_IDX_EVENT_SUBSCR_CONFIG_ on ACT_RU_EVENT_SUBSCR(CONFIGURATION_);
create index ACT_IDX_VARIABLE_TASK_ID on ACT_RU_VARIABLE(TASK_ID_);

create index ACT_IDX_BYTEAR_DEPL on ACT_GE_BYTEARRAY(DEPLOYMENT_ID_);
alter table ACT_GE_BYTEARRAY
    add constraint ACT_FK_BYTEARR_DEPL
    foreign key (DEPLOYMENT_ID_)
    references ACT_RE_DEPLOYMENT (ID_);

alter table ACT_RE_PROCDEF
    add constraint ACT_UNIQ_PROCDEF
    unique (KEY_,VERSION_, TENANT_ID_);

create index ACT_IDX_EXE_PROCINST on ACT_RU_EXECUTION(PROC_INST_ID_);
alter table ACT_RU_EXECUTION
    add constraint ACT_FK_EXE_PROCINST
    foreign key (PROC_INST_ID_)
    references ACT_RU_EXECUTION (ID_);

create index ACT_IDX_EXE_PARENT on ACT_RU_EXECUTION(PARENT_ID_);
alter table ACT_RU_EXECUTION
    add constraint ACT_FK_EXE_PARENT
    foreign key (PARENT_ID_)
    references ACT_RU_EXECUTION (ID_);

create index ACT_IDX_EXE_SUPER on ACT_RU_EXECUTION(SUPER_EXEC_);
alter table ACT_RU_EXECUTION
    add constraint ACT_FK_EXE_SUPER
    foreign key (SUPER_EXEC_)
    references ACT_RU_EXECUTION (ID_);

create index ACT_IDX_EXE_PROCDEF on ACT_RU_EXECUTION(PROC_DEF_ID_);
alter table ACT_RU_EXECUTION
    add constraint ACT_FK_EXE_PROCDEF
    foreign key (PROC_DEF_ID_)
    references ACT_RE_PROCDEF (ID_);

create index ACT_IDX_TSKASS_TASK on ACT_RU_IDENTITYLINK(TASK_ID_);
alter table ACT_RU_IDENTITYLINK
    add constraint ACT_FK_TSKASS_TASK
    foreign key (TASK_ID_)
    references ACT_RU_TASK (ID_);

create index ACT_IDX_ATHRZ_PROCEDEF  on ACT_RU_IDENTITYLINK(PROC_DEF_ID_);
alter table ACT_RU_IDENTITYLINK
    add constraint ACT_FK_ATHRZ_PROCEDEF
    foreign key (PROC_DEF_ID_)
    references ACT_RE_PROCDEF (ID_);

create index ACT_IDX_IDL_PROCINST on ACT_RU_IDENTITYLINK(PROC_INST_ID_);
alter table ACT_RU_IDENTITYLINK
    add constraint ACT_FK_IDL_PROCINST
    foreign key (PROC_INST_ID_)
    references ACT_RU_EXECUTION (ID_);

create index ACT_IDX_TASK_EXEC on ACT_RU_TASK(EXECUTION_ID_);
alter table ACT_RU_TASK
    add constraint ACT_FK_TASK_EXE
    foreign key (EXECUTION_ID_)
    references ACT_RU_EXECUTION (ID_);

create index ACT_IDX_TASK_PROCINST on ACT_RU_TASK(PROC_INST_ID_);
alter table ACT_RU_TASK
    add constraint ACT_FK_TASK_PROCINST
    foreign key (PROC_INST_ID_)
    references ACT_RU_EXECUTION (ID_);

create index ACT_IDX_TASK_PROCDEF on ACT_RU_TASK(PROC_DEF_ID_);
alter table ACT_RU_TASK
  add constraint ACT_FK_TASK_PROCDEF
  foreign key (PROC_DEF_ID_)
  references ACT_RE_PROCDEF (ID_);

create index ACT_IDX_VAR_EXE on ACT_RU_VARIABLE(EXECUTION_ID_);
alter table ACT_RU_VARIABLE
    add constraint ACT_FK_VAR_EXE
    foreign key (EXECUTION_ID_)
    references ACT_RU_EXECUTION (ID_);

create index ACT_IDX_VAR_PROCINST on ACT_RU_VARIABLE(PROC_INST_ID_);
alter table ACT_RU_VARIABLE
    add constraint ACT_FK_VAR_PROCINST
    foreign key (PROC_INST_ID_)
    references ACT_RU_EXECUTION(ID_);

create index ACT_IDX_VAR_BYTEARRAY on ACT_RU_VARIABLE(BYTEARRAY_ID_);
alter table ACT_RU_VARIABLE
    add constraint ACT_FK_VAR_BYTEARRAY
    foreign key (BYTEARRAY_ID_)
    references ACT_GE_BYTEARRAY (ID_);

create index ACT_IDX_JOB_EXECUTION_ID on ACT_RU_JOB(EXECUTION_ID_);
alter table ACT_RU_JOB
    add constraint ACT_FK_JOB_EXECUTION
    foreign key (EXECUTION_ID_)
    references ACT_RU_EXECUTION (ID_);

create index ACT_IDX_JOB_PROC_INST_ID on ACT_RU_JOB(PROCESS_INSTANCE_ID_);
alter table ACT_RU_JOB
    add constraint ACT_FK_JOB_PROCESS_INSTANCE
    foreign key (PROCESS_INSTANCE_ID_)
    references ACT_RU_EXECUTION (ID_);

create index ACT_IDX_JOB_PROC_DEF_ID on ACT_RU_JOB(PROC_DEF_ID_);
alter table ACT_RU_JOB
    add constraint ACT_FK_JOB_PROC_DEF
    foreign key (PROC_DEF_ID_)
    references ACT_RE_PROCDEF (ID_);

create index ACT_IDX_JOB_EXCEPTION on ACT_RU_JOB(EXCEPTION_STACK_ID_);
alter table ACT_RU_JOB
    add constraint ACT_FK_JOB_EXCEPTION
    foreign key (EXCEPTION_STACK_ID_)
    references ACT_GE_BYTEARRAY (ID_);

create index ACT_IDX_TJOB_EXECUTION_ID on ACT_RU_TIMER_JOB(EXECUTION_ID_);
alter table ACT_RU_TIMER_JOB
    add constraint ACT_FK_TJOB_EXECUTION
    foreign key (EXECUTION_ID_)
    references ACT_RU_EXECUTION (ID_);

create index ACT_IDX_TJOB_PROC_INST_ID on ACT_RU_TIMER_JOB(PROCESS_INSTANCE_ID_);
alter table ACT_RU_TIMER_JOB
    add constraint ACT_FK_TJOB_PROCESS_INSTANCE
    foreign key (PROCESS_INSTANCE_ID_)
    references ACT_RU_EXECUTION (ID_);

create index ACT_IDX_TJOB_PROC_DEF_ID on ACT_RU_TIMER_JOB(PROC_DEF_ID_);
alter table ACT_RU_TIMER_JOB
    add constraint ACT_FK_TJOB_PROC_DEF
    foreign key (PROC_DEF_ID_)
    references ACT_RE_PROCDEF (ID_);

create index ACT_IDX_TJOB_EXCEPTION on ACT_RU_TIMER_JOB(EXCEPTION_STACK_ID_);
alter table ACT_RU_TIMER_JOB
    add constraint ACT_FK_TJOB_EXCEPTION
    foreign key (EXCEPTION_STACK_ID_)
    references ACT_GE_BYTEARRAY (ID_);

create index ACT_IDX_SJOB_EXECUTION_ID on ACT_RU_SUSPENDED_JOB(EXECUTION_ID_);
alter table ACT_RU_SUSPENDED_JOB
    add constraint ACT_FK_SJOB_EXECUTION
    foreign key (EXECUTION_ID_)
    references ACT_RU_EXECUTION (ID_);

create index ACT_IDX_SJOB_PROC_INST_ID on ACT_RU_SUSPENDED_JOB(PROCESS_INSTANCE_ID_);
alter table ACT_RU_SUSPENDED_JOB
    add constraint ACT_FK_SJOB_PROCESS_INSTANCE
    foreign key (PROCESS_INSTANCE_ID_)
    references ACT_RU_EXECUTION (ID_);

create index ACT_IDX_SJOB_PROC_DEF_ID on ACT_RU_SUSPENDED_JOB(PROC_DEF_ID_);
alter table ACT_RU_SUSPENDED_JOB
    add constraint ACT_FK_SJOB_PROC_DEF
    foreign key (PROC_DEF_ID_)
    references ACT_RE_PROCDEF (ID_);

create index ACT_IDX_SJOB_EXCEPTION on ACT_RU_SUSPENDED_JOB(EXCEPTION_STACK_ID_);
alter table ACT_RU_SUSPENDED_JOB
    add constraint ACT_FK_SJOB_EXCEPTION
    foreign key (EXCEPTION_STACK_ID_)
    references ACT_GE_BYTEARRAY (ID_);

create index ACT_IDX_DJOB_EXECUTION_ID on ACT_RU_DEADLETTER_JOB(EXECUTION_ID_);
alter table ACT_RU_DEADLETTER_JOB
    add constraint ACT_FK_DJOB_EXECUTION
    foreign key (EXECUTION_ID_)
    references ACT_RU_EXECUTION (ID_);

create index ACT_IDX_DJOB_PROC_INST_ID on ACT_RU_DEADLETTER_JOB(PROCESS_INSTANCE_ID_);
alter table ACT_RU_DEADLETTER_JOB
    add constraint ACT_FK_DJOB_PROCESS_INSTANCE
    foreign key (PROCESS_INSTANCE_ID_)
    references ACT_RU_EXECUTION (ID_);

create index ACT_IDX_DJOB_PROC_DEF_ID on ACT_RU_DEADLETTER_JOB(PROC_DEF_ID_);
alter table ACT_RU_DEADLETTER_JOB
    add constraint ACT_FK_DJOB_PROC_DEF
    foreign key (PROC_DEF_ID_)
    references ACT_RE_PROCDEF (ID_);

create index ACT_IDX_DJOB_EXCEPTION on ACT_RU_DEADLETTER_JOB(EXCEPTION_STACK_ID_);
alter table ACT_RU_DEADLETTER_JOB
    add constraint ACT_FK_DJOB_EXCEPTION
    foreign key (EXCEPTION_STACK_ID_)
    references ACT_GE_BYTEARRAY (ID_);

create index ACT_IDX_EVENT_SUBSCR on ACT_RU_EVENT_SUBSCR(EXECUTION_ID_);
alter table ACT_RU_EVENT_SUBSCR
    add constraint ACT_FK_EVENT_EXEC
    foreign key (EXECUTION_ID_)
    references ACT_RU_EXECUTION(ID_);

create index ACT_IDX_MODEL_SOURCE on ACT_RE_MODEL(EDITOR_SOURCE_VALUE_ID_);
alter table ACT_RE_MODEL
    add constraint ACT_FK_MODEL_SOURCE
    foreign key (EDITOR_SOURCE_VALUE_ID_)
    references ACT_GE_BYTEARRAY (ID_);

create index ACT_IDX_MODEL_SOURCE_EXTRA on ACT_RE_MODEL(EDITOR_SOURCE_EXTRA_VALUE_ID_);
alter table ACT_RE_MODEL
    add constraint ACT_FK_MODEL_SOURCE_EXTRA
    foreign key (EDITOR_SOURCE_EXTRA_VALUE_ID_)
    references ACT_GE_BYTEARRAY (ID_);

create index ACT_IDX_MODEL_DEPLOYMENT on ACT_RE_MODEL(DEPLOYMENT_ID_);
alter table ACT_RE_MODEL
    add constraint ACT_FK_MODEL_DEPLOYMENT
    foreign key (DEPLOYMENT_ID_)
    references ACT_RE_DEPLOYMENT (ID_);

create index ACT_IDX_PROCDEF_INFO_JSON on ACT_PROCDEF_INFO(INFO_JSON_ID_);
alter table ACT_PROCDEF_INFO
    add constraint ACT_FK_INFO_JSON_BA
    foreign key (INFO_JSON_ID_)
    references ACT_GE_BYTEARRAY (ID_);

create index ACT_IDX_PROCDEF_INFO_PROC on ACT_PROCDEF_INFO(PROC_DEF_ID_);
alter table ACT_PROCDEF_INFO
    add constraint ACT_FK_INFO_PROCDEF
    foreign key (PROC_DEF_ID_)
    references ACT_RE_PROCDEF (ID_);

alter table ACT_PROCDEF_INFO
    add constraint ACT_UNIQ_INFO_PROCDEF
    unique (PROC_DEF_ID_);

alter table ACT_RU_INTEGRATION
    add constraint ACT_FK_INT_EXECUTION
    foreign key (EXECUTION_ID_)
    references ACT_RU_EXECUTION (ID_)
    on delete cascade;

alter table ACT_RU_INTEGRATION
    add constraint ACT_FK_INT_PROC_INST
    foreign key (PROCESS_INSTANCE_ID_)
    references ACT_RU_EXECUTION (ID_);

alter table ACT_RU_INTEGRATION
    add constraint ACT_FK_INT_PROC_DEF
    foreign key (PROC_DEF_ID_)
    references ACT_RE_PROCDEF (ID_);

activiti.dm.create.history.sql

create table ACT_HI_PROCINST (
    ID_ NVARCHAR2(64) not null,
    PROC_INST_ID_ NVARCHAR2(64) not null,
    BUSINESS_KEY_ NVARCHAR2(255),
    PROC_DEF_ID_ NVARCHAR2(64) not null,
    START_TIME_ TIMESTAMP(6) not null,
    END_TIME_ TIMESTAMP(6),
    DURATION_ NUMBER(19,0),
    START_USER_ID_ NVARCHAR2(255),
    START_ACT_ID_ NVARCHAR2(255),
    END_ACT_ID_ NVARCHAR2(255),
    SUPER_PROCESS_INSTANCE_ID_ NVARCHAR2(64),
    DELETE_REASON_ NVARCHAR2(2000),
    TENANT_ID_ NVARCHAR2(255) default '',
    NAME_ NVARCHAR2(255),
    primary key (ID_),
    unique (PROC_INST_ID_)
);

create table ACT_HI_ACTINST (
    ID_ NVARCHAR2(64) not null,
    PROC_DEF_ID_ NVARCHAR2(64) not null,
    PROC_INST_ID_ NVARCHAR2(64) not null,
    EXECUTION_ID_ NVARCHAR2(64) not null,
    ACT_ID_ NVARCHAR2(255) not null,
    TASK_ID_ NVARCHAR2(64),
    CALL_PROC_INST_ID_ NVARCHAR2(64),
    ACT_NAME_ NVARCHAR2(255),
    ACT_TYPE_ NVARCHAR2(255) not null,
    ASSIGNEE_ NVARCHAR2(255),
    START_TIME_ TIMESTAMP(6) not null,
    END_TIME_ TIMESTAMP(6),
    DURATION_ NUMBER(19,0),
    DELETE_REASON_ NVARCHAR2(2000),
    TENANT_ID_ NVARCHAR2(255) default '',
    primary key (ID_)
);

create table ACT_HI_TASKINST (
    ID_ NVARCHAR2(64) not null,
    PROC_DEF_ID_ NVARCHAR2(64),
    TASK_DEF_KEY_ NVARCHAR2(255),
    PROC_INST_ID_ NVARCHAR2(64),
    EXECUTION_ID_ NVARCHAR2(64),
    PARENT_TASK_ID_ NVARCHAR2(64),
    NAME_ NVARCHAR2(255),
    DESCRIPTION_ NVARCHAR2(2000),
    OWNER_ NVARCHAR2(255),
    ASSIGNEE_ NVARCHAR2(255),
    START_TIME_ TIMESTAMP(6) not null,
    CLAIM_TIME_ TIMESTAMP(6),
    END_TIME_ TIMESTAMP(6),
    DURATION_ NUMBER(19,0),
    DELETE_REASON_ NVARCHAR2(2000),
    PRIORITY_ INTEGER,
    DUE_DATE_ TIMESTAMP(6),
    FORM_KEY_ NVARCHAR2(255),
    CATEGORY_ NVARCHAR2(255),
    TENANT_ID_ NVARCHAR2(255) default '',
    primary key (ID_)
);

create table ACT_HI_VARINST (
    ID_ NVARCHAR2(64) not null,
    PROC_INST_ID_ NVARCHAR2(64),
    EXECUTION_ID_ NVARCHAR2(64),
    TASK_ID_ NVARCHAR2(64),
    NAME_ NVARCHAR2(255) not null,
    VAR_TYPE_ NVARCHAR2(100),
    REV_ INTEGER,
    BYTEARRAY_ID_ NVARCHAR2(64),
    DOUBLE_ NUMBER(*,10),
    LONG_ NUMBER(19,0),
    TEXT_ NVARCHAR2(2000),
    TEXT2_ NVARCHAR2(2000),
    CREATE_TIME_ TIMESTAMP(6),
    LAST_UPDATED_TIME_ TIMESTAMP(6),
    primary key (ID_)
);

create table ACT_HI_DETAIL (
    ID_ NVARCHAR2(64) not null,
    TYPE_ NVARCHAR2(255) not null,
    PROC_INST_ID_ NVARCHAR2(64),
    EXECUTION_ID_ NVARCHAR2(64),
    TASK_ID_ NVARCHAR2(64),
    ACT_INST_ID_ NVARCHAR2(64),
    NAME_ NVARCHAR2(255) not null,
    VAR_TYPE_ NVARCHAR2(64),
    REV_ INTEGER,
    TIME_ TIMESTAMP(6) not null,
    BYTEARRAY_ID_ NVARCHAR2(64),
    DOUBLE_ NUMBER(*,10),
    LONG_ NUMBER(19,0),
    TEXT_ NVARCHAR2(2000),
    TEXT2_ NVARCHAR2(2000),
    primary key (ID_)
);

create table ACT_HI_COMMENT (
    ID_ NVARCHAR2(64) not null,
    TYPE_ NVARCHAR2(255),
    TIME_ TIMESTAMP(6) not null,
    USER_ID_ NVARCHAR2(255),
    TASK_ID_ NVARCHAR2(64),
    PROC_INST_ID_ NVARCHAR2(64),
    ACTION_ NVARCHAR2(255),
    MESSAGE_ NVARCHAR2(2000),
    FULL_MSG_ BLOB,
    primary key (ID_)
);

create table ACT_HI_ATTACHMENT (
    ID_ NVARCHAR2(64) not null,
    REV_ INTEGER,
    USER_ID_ NVARCHAR2(255),
    NAME_ NVARCHAR2(255),
    DESCRIPTION_ NVARCHAR2(2000),
    TYPE_ NVARCHAR2(255),
    TASK_ID_ NVARCHAR2(64),
    PROC_INST_ID_ NVARCHAR2(64),
    URL_ NVARCHAR2(2000),
    CONTENT_ID_ NVARCHAR2(64),
    TIME_ TIMESTAMP(6),
    primary key (ID_)
);

create table ACT_HI_IDENTITYLINK (
    ID_ NVARCHAR2(64),
    GROUP_ID_ NVARCHAR2(255),
    TYPE_ NVARCHAR2(255),
    USER_ID_ NVARCHAR2(255),
    TASK_ID_ NVARCHAR2(64),
    PROC_INST_ID_ NVARCHAR2(64),
    primary key (ID_)
);

create index ACT_IDX_HI_PRO_INST_END on ACT_HI_PROCINST(END_TIME_);
create index ACT_IDX_HI_PRO_I_BUSKEY on ACT_HI_PROCINST(BUSINESS_KEY_);
create index ACT_IDX_HI_ACT_INST_START on ACT_HI_ACTINST(START_TIME_);
create index ACT_IDX_HI_ACT_INST_END on ACT_HI_ACTINST(END_TIME_);
create index ACT_IDX_HI_DETAIL_PROC_INST on ACT_HI_DETAIL(PROC_INST_ID_);
create index ACT_IDX_HI_DETAIL_ACT_INST on ACT_HI_DETAIL(ACT_INST_ID_);
create index ACT_IDX_HI_DETAIL_TIME on ACT_HI_DETAIL(TIME_);
create index ACT_IDX_HI_DETAIL_NAME on ACT_HI_DETAIL(NAME_);
create index ACT_IDX_HI_DETAIL_TASK_ID on ACT_HI_DETAIL(TASK_ID_);
create index ACT_IDX_HI_PROCVAR_PROC_INST on ACT_HI_VARINST(PROC_INST_ID_);
create index ACT_IDX_HI_PROCVAR_NAME_TYPE on ACT_HI_VARINST(NAME_, VAR_TYPE_);
create index ACT_IDX_HI_PROCVAR_TASK_ID on ACT_HI_VARINST(TASK_ID_);
create index ACT_IDX_HI_IDENT_LNK_USER on ACT_HI_IDENTITYLINK(USER_ID_);
create index ACT_IDX_HI_IDENT_LNK_TASK on ACT_HI_IDENTITYLINK(TASK_ID_);
create index ACT_IDX_HI_IDENT_LNK_PROCINST on ACT_HI_IDENTITYLINK(PROC_INST_ID_);

create index ACT_IDX_HI_ACT_INST_PROCINST on ACT_HI_ACTINST(PROC_INST_ID_, ACT_ID_);
create index ACT_IDX_HI_ACT_INST_EXEC on ACT_HI_ACTINST(EXECUTION_ID_, ACT_ID_);
create index ACT_IDX_HI_TASK_INST_PROCINST on ACT_HI_TASKINST(PROC_INST_ID_);

2.3 在drop目录中创建删除数据库表的文件

activiti.dm.drop.engine.sql

drop index ACT_IDX_BYTEAR_DEPL;
drop index ACT_IDX_EXE_PROCINST;
drop index ACT_IDX_EXE_PARENT;
drop index ACT_IDX_EXE_SUPER;
drop index ACT_IDX_TSKASS_TASK;
drop index ACT_IDX_TASK_EXEC;
drop index ACT_IDX_TASK_PROCINST;
drop index ACT_IDX_TASK_PROCDEF;
drop index ACT_IDX_VAR_EXE;
drop index ACT_IDX_VAR_PROCINST;
drop index ACT_IDX_VAR_BYTEARRAY;
drop index ACT_IDX_JOB_EXECUTION_ID;
drop index ACT_IDX_JOB_PROC_INST_ID;
drop index ACT_IDX_JOB_PROC_DEF_ID;
drop index ACT_IDX_JOB_EXCEPTION;
drop index ACT_IDX_TJOB_EXECUTION_ID;
drop index ACT_IDX_TJOB_PROC_INST_ID;
drop index ACT_IDX_TJOB_PROC_DEF_ID;
drop index ACT_IDX_TJOB_EXCEPTION;
drop index ACT_IDX_SJOB_EXECUTION_ID;
drop index ACT_IDX_SJOB_PROC_INST_ID;
drop index ACT_IDX_SJOB_PROC_DEF_ID;
drop index ACT_IDX_SJOB_EXCEPTION;
drop index ACT_IDX_DJOB_EXECUTION_ID;
drop index ACT_IDX_DJOB_PROC_INST_ID;
drop index ACT_IDX_DJOB_PROC_DEF_ID;
drop index ACT_IDX_DJOB_EXCEPTION;
drop index ACT_IDX_MODEL_SOURCE;
drop index ACT_IDX_MODEL_SOURCE_EXTRA;
drop index ACT_IDX_MODEL_DEPLOYMENT;
drop index ACT_IDX_PROCDEF_INFO_JSON;

drop index ACT_IDX_EXEC_BUSKEY;
drop index ACT_IDX_TASK_CREATE;
drop index ACT_IDX_IDENT_LNK_USER;
drop index ACT_IDX_IDENT_LNK_GROUP;
drop index ACT_IDX_VARIABLE_TASK_ID;

alter table ACT_GE_BYTEARRAY
    drop CONSTRAINT ACT_FK_BYTEARR_DEPL;

alter table ACT_RU_EXECUTION
    drop CONSTRAINT ACT_FK_EXE_PROCINST;

alter table ACT_RU_EXECUTION
    drop CONSTRAINT ACT_FK_EXE_PARENT;

alter table ACT_RU_EXECUTION
    drop CONSTRAINT ACT_FK_EXE_SUPER;

alter table ACT_RU_EXECUTION
    drop CONSTRAINT ACT_FK_EXE_PROCDEF;

alter table ACT_RU_IDENTITYLINK
    drop CONSTRAINT ACT_FK_TSKASS_TASK;

alter table ACT_RU_IDENTITYLINK
    drop CONSTRAINT ACT_FK_ATHRZ_PROCEDEF;

alter table ACT_RU_TASK
	drop CONSTRAINT ACT_FK_TASK_EXE;

alter table ACT_RU_TASK
	drop CONSTRAINT ACT_FK_TASK_PROCINST;

alter table ACT_RU_TASK
	drop CONSTRAINT ACT_FK_TASK_PROCDEF;

alter table ACT_RU_VARIABLE
    drop CONSTRAINT ACT_FK_VAR_EXE;

alter table ACT_RU_VARIABLE
	drop CONSTRAINT ACT_FK_VAR_PROCINST;

alter table ACT_RU_VARIABLE
    drop CONSTRAINT ACT_FK_VAR_BYTEARRAY;

alter table ACT_RU_JOB
    drop CONSTRAINT ACT_FK_JOB_EXECUTION;

alter table ACT_RU_JOB
    drop CONSTRAINT ACT_FK_JOB_PROCESS_INSTANCE;

alter table ACT_RU_JOB
    drop CONSTRAINT ACT_FK_JOB_PROC_DEF;

alter table ACT_RU_JOB
    drop CONSTRAINT ACT_FK_JOB_EXCEPTION;

alter table ACT_RU_TIMER_JOB
    drop CONSTRAINT ACT_FK_TJOB_EXECUTION;

alter table ACT_RU_TIMER_JOB
    drop CONSTRAINT ACT_FK_TJOB_PROCESS_INSTANCE;

alter table ACT_RU_TIMER_JOB
    drop CONSTRAINT ACT_FK_TJOB_PROC_DEF;

alter table ACT_RU_TIMER_JOB
    drop CONSTRAINT ACT_FK_TJOB_EXCEPTION;

alter table ACT_RU_SUSPENDED_JOB
    drop CONSTRAINT ACT_FK_SJOB_EXECUTION;

alter table ACT_RU_SUSPENDED_JOB
    drop CONSTRAINT ACT_FK_SJOB_PROCESS_INSTANCE;

alter table ACT_RU_SUSPENDED_JOB
    drop CONSTRAINT ACT_FK_SJOB_PROC_DEF;

alter table ACT_RU_SUSPENDED_JOB
    drop CONSTRAINT ACT_FK_SJOB_EXCEPTION;

alter table ACT_RU_DEADLETTER_JOB
    drop CONSTRAINT ACT_FK_DJOB_EXECUTION;

alter table ACT_RU_DEADLETTER_JOB
    drop CONSTRAINT ACT_FK_DJOB_PROCESS_INSTANCE;

alter table ACT_RU_DEADLETTER_JOB
    drop CONSTRAINT ACT_FK_DJOB_PROC_DEF;

alter table ACT_RU_DEADLETTER_JOB
    drop CONSTRAINT ACT_FK_DJOB_EXCEPTION;

alter table ACT_RU_EVENT_SUBSCR
    drop CONSTRAINT ACT_FK_EVENT_EXEC;

alter table ACT_RE_PROCDEF
    drop CONSTRAINT ACT_UNIQ_PROCDEF;

alter table ACT_RE_MODEL
    drop CONSTRAINT ACT_FK_MODEL_SOURCE;

alter table ACT_RE_MODEL
    drop CONSTRAINT ACT_FK_MODEL_SOURCE_EXTRA;

alter table ACT_RE_MODEL
    drop CONSTRAINT ACT_FK_MODEL_DEPLOYMENT;

alter table ACT_PROCDEF_INFO
    drop CONSTRAINT ACT_UNIQ_INFO_PROCDEF;

alter table ACT_PROCDEF_INFO
    drop CONSTRAINT ACT_FK_INFO_JSON_BA;

alter table ACT_PROCDEF_INFO
    drop CONSTRAINT ACT_FK_INFO_PROCDEF;

alter table ACT_RU_INTEGRATION
    drop CONSTRAINT ACT_FK_INT_EXECUTION;

alter table ACT_RU_INTEGRATION
    drop CONSTRAINT ACT_FK_INT_PROC_INST;

alter table ACT_RU_INTEGRATION
    drop CONSTRAINT ACT_FK_INT_PROC_DEF;

drop index ACT_IDX_EVENT_SUBSCR_CONFIG_;
drop index ACT_IDX_EVENT_SUBSCR;
drop index ACT_IDX_ATHRZ_PROCEDEF;
drop index ACT_IDX_PROCDEF_INFO_PROC;

drop table ACT_GE_PROPERTY;
drop table ACT_GE_BYTEARRAY;
drop table ACT_RE_DEPLOYMENT;
drop table ACT_RE_MODEL;
drop table ACT_RE_PROCDEF;
drop table ACT_RU_IDENTITYLINK;
drop table ACT_RU_VARIABLE;
drop table ACT_RU_TASK;
drop table ACT_RU_EXECUTION;
drop table ACT_RU_JOB;
drop table ACT_RU_TIMER_JOB;
drop table ACT_RU_SUSPENDED_JOB;
drop table ACT_RU_DEADLETTER_JOB;
drop table ACT_RU_EVENT_SUBSCR;

drop sequence act_evt_log_seq;
drop table ACT_EVT_LOG;
drop table ACT_PROCDEF_INFO;
drop table ACT_RU_INTEGRATION;

activiti.dm.drop.history.sql

drop index ACT_IDX_HI_PRO_INST_END;
drop index ACT_IDX_HI_PRO_I_BUSKEY;
drop index ACT_IDX_HI_ACT_INST_START;
drop index ACT_IDX_HI_ACT_INST_END;
drop index ACT_IDX_HI_DETAIL_PROC_INST;
drop index ACT_IDX_HI_DETAIL_ACT_INST;
drop index ACT_IDX_HI_DETAIL_TIME;
drop index ACT_IDX_HI_DETAIL_NAME;
drop index ACT_IDX_HI_DETAIL_TASK_ID;
drop index ACT_IDX_HI_PROCVAR_PROC_INST;
drop index ACT_IDX_HI_PROCVAR_NAME_TYPE;
drop index ACT_IDX_HI_ACT_INST_PROCINST;
drop index ACT_IDX_HI_IDENT_LNK_USER;
drop index ACT_IDX_HI_IDENT_LNK_TASK;
drop index ACT_IDX_HI_IDENT_LNK_PROCINST;
drop index ACT_IDX_HI_TASK_INST_PROCINST;

drop table ACT_HI_PROCINST;
drop table ACT_HI_ACTINST;
drop table ACT_HI_VARINST;
drop table ACT_HI_TASKINST;
drop table ACT_HI_DETAIL;
drop table ACT_HI_COMMENT;
drop table ACT_HI_ATTACHMENT;
drop table ACT_HI_IDENTITYLINK;

2.4 在properties目录中追加达梦数据库相关配置文件

dm.properties

limitAfter=LIMIT #{maxResults} OFFSET #{firstResult}

最后通过压缩包的方式打开jar文件覆盖掉刚刚改掉的db相关文件即可

附上修改后资源链接

至此修改完毕了重新将项目编译启动即可

已解决问题

1 异常org.activiti.engine.ActivitiException: Could not update Activiti database schema: unknown version from database: ‘x.x.x.x’

这是由于自己activiti 相关的jar版本和表 act_ge_property 中 schema.version 所存储的版本不一致导致报错的。将ACT_GE_PROPERTY表中的schema.version，改成与程序中对应的jar包版本

在这里插入图片描述

2 异常Error creating bean with name ‘processEngine‘: FactoryBean threw exception on object creation； nest

在这里插入图片描述

url上添加nullCatalogMeansCurrent=true 应该是act_ge_property这张表引起的问题

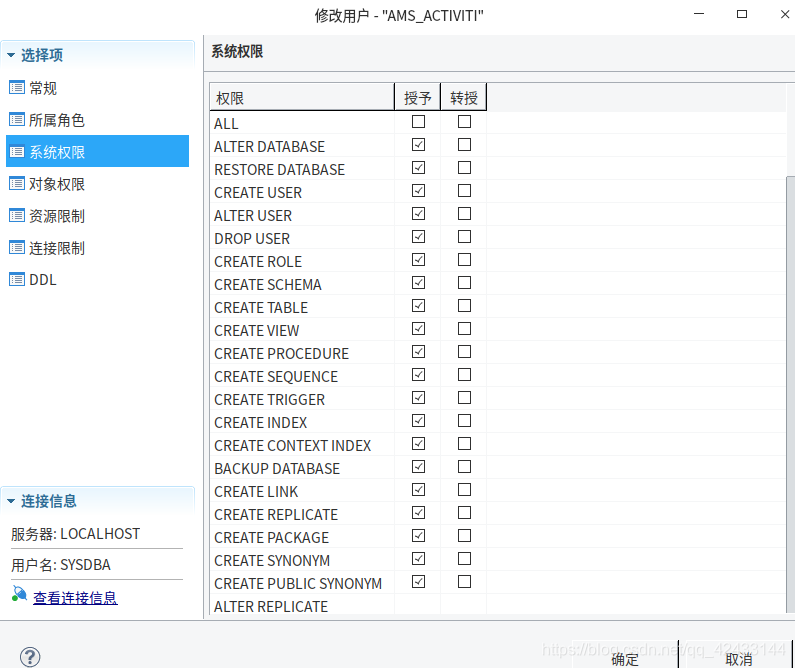

3 修改后项目启动异常Caused by: dm.jdbc.driver.DMException: 没有创建表权限这是由于当前连接的角色还没有赋予表操作相关权限导致的，前往数据库中使用SYSDBA账户登陆后前往用户管理中，赋予相关权限即可

在这里插入图片描述

4 异常信息中带有Error creating bean with name ‘processEngine’: FactoryBean threw exception on object creation; nested exception is org.activiti.engine.ActivitiException: Error while building ibatis SqlSessionFactory: inStream parameter is null

这个好像是你还没有在jar包中添加DMsql等文件导致的，楼主试了好几次找到的原因是项目启动后Activiti会通过相关sql文件检查数据库表如果你没有添加相关数据库表文件的话这时候创建 SqlSession会出错，加上后就可以正常执行sql

5 修改jar包后项目打包如果遇到Failed to execute goal org.apache.maven.plugins:maven-enforcer-plugin:3.0.0-M3:enforce (enforce-java) on project activiti-engine: Some Enforcer rules have failed. Look above for specific messages explaining why the rule failed.请把jdk升级为11，似乎是低版本jdk调用高版本jdk编译后的文件所导致的，最好就是跟activiti 官方一致

步行街车神&

关注

3
点赞
踩
12

收藏

觉得还不错? 一键收藏
4
评论
Activiti7.X支持达梦数据库

Activiti7.X支持达梦数据库最近公司将项目国产化，用到了达梦数据库，Activiti一直都没有官方支持国内的各大数据库，所以得自己改源码，最开始楼主也是借鉴了别的解决方案，没有一个合适的，经历3天以来的修改终于把项目成功部署。为了使Activiti可以适配达梦数据库，需要修改其部分源代码。将activiti.engine-7.X（源码链接Activiti）中相关的源代码拷贝到工程src目录下，保持包路径不变。具体的修改如下：1.1 在org.activiti.engine.impl.cfg.
复制链接

扫一扫
