vue-draggable-resizable 自定义多组件的拖动、缩放功能

本文档展示了如何在Vue项目中安装和使用vue-draggable-resizable库来创建可拖动和可调整大小的组件。通过目录结构、引用、组件使用和事件处理,详细解释了如何实现面板的动态布局,并提供了相应的代码示例。同时,还包含了布局记忆功能和关闭调整布局的逻辑。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

安装:

npm install --save vue-draggable-resizable

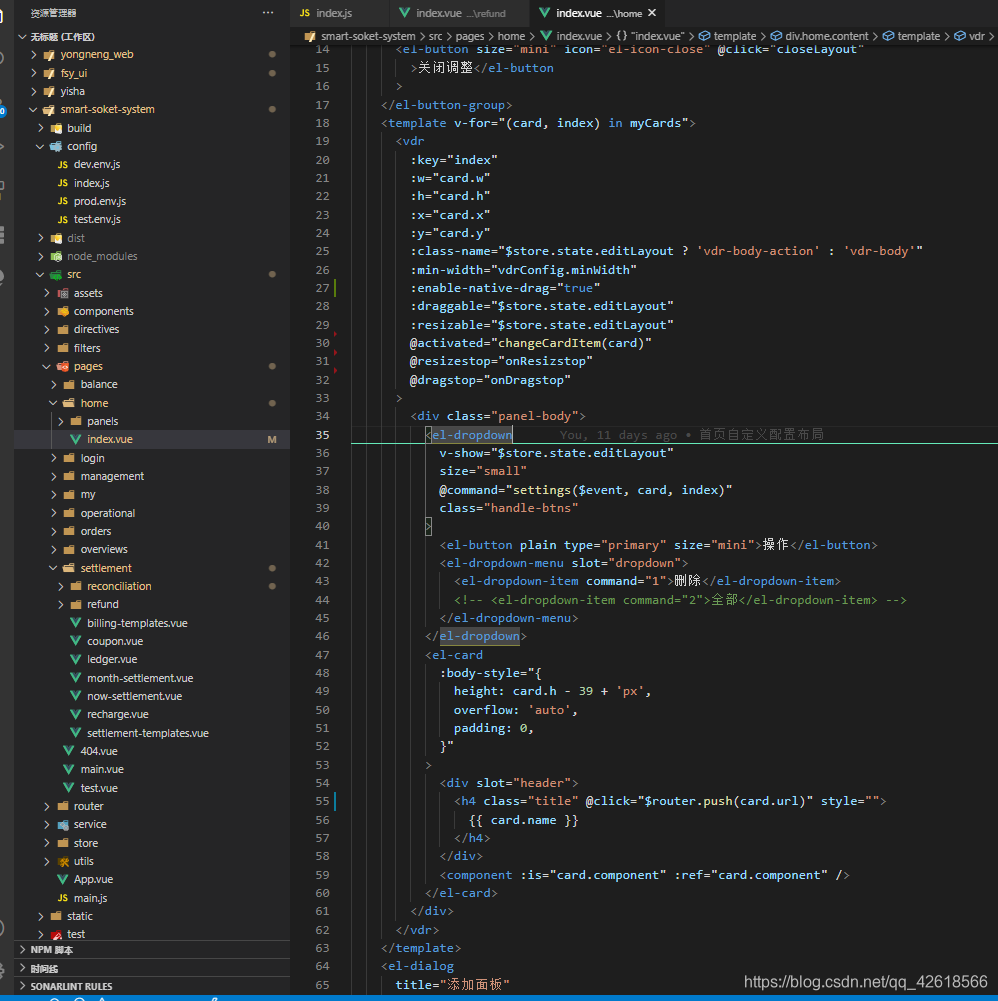

我的目录结构:
在这里插入图片描述
引用:

import vdr from "vue-draggable-resizable";
import "vue-draggable-resizable/dist/VueDraggableResizable.css";

在这里插入图片描述

使用:
在这里插入图片描述


我的index.vue
<template>
  <div class="home content">
    <el-button-group
      class="animate__animated animate__backInDown edit-layout-btns"
      v-show="$store.state.editLayout"
    >
      <el-button
        type="primary"
        size="mini"
        icon="el-icon-check"
        @click="okLayout"
        >确认调整</el-button
      >
      <el-button size="mini" icon="el-icon-close" @click="closeLayout"
        >关闭调整</el-button
      >
    </el-button-group>
    <template v-for="(card, index) in myCards">
      <vdr
        :key="index"
        :w="card.w"
        :h="card.h"
        :x="card.x"
        :y="card.y"
        :class-name="$store.state.editLayout ? 'vdr-body-action' : 'vdr-body'"
        :min-width="vdrConfig.minWidth"
        :enable-native-drag="true"
        :draggable="$store.state.editLayout"
        :resizable="$store.state.editLayout"
        @activated="changeCardItem(card)"
        @resizestop="onResizstop"
        @dragstop="onDragstop"
      >
        <div class="panel-body">
          <el-dropdown
            v-show="$store.state.editLayout"
            size="small"
            @command="settings($event, card, index)"
            class="handle-btns"
          >
            <el-button plain type="primary" size="mini">操作</el-button>
            <el-dropdown-menu slot="dropdown">
              <el-dropdown-item command="1">删除</el-dropdown-item>
              <!-- <el-dropdown-item command="2">全部</el-dropdown-item> -->
            </el-dropdown-menu>
          </el-dropdown>
          <el-card
            :body-style="{
              height: card.h - 39 + 'px',
              overflow: 'auto',
              padding: 0,
            }"
          >
            <div slot="header">
              <h4 class="title" @click="$router.push(card.url)" style="">
                {{ card.name }}
              </h4>
            </div>
            <component :is="card.component" :ref="card.component" />
          </el-card>
        </div>
      </vdr>
    </template>
    <el-dialog
      title="添加面板"
      width="500px"
      append-to-body
      :visible="$store.state.addLayout"
      :before-close="closeAddPanel"
    >
      <el-form :model="addPanelForm">
        <el-form-item>
          <el-select
            multiple
            filterable
            v-model="addPanelForm.components"
            placeholder="请选组件"
          >
            <template v-for="(cmp, index) in components">
              <el-option
                :key="index"
                :label="cmp.name"
                :value="cmp.component"
              />
            </template>
          </el-select>
        </el-form-item>
      </el-form>
      <div slot="footer" class="dialog-footer">
        <el-button @click="closeAddPanel">取 消</el-button>
        <el-button type="primary" @click="okAddPanel()">确 定</el-button>
      </div>
    </el-dialog>
  </div>
</template>


<script>
/**
 * @author        全易
 * @time          2021-01-11 11:12:22  星期一
 * @description   首页
 */
import vdr from "vue-draggable-resizable";
import "vue-draggable-resizable/dist/VueDraggableResizable.css";
import NewUsers from "./panels/new-users";
import Withdraw from "./panels/withdraw";
import Refunds from "./panels/refund";
import Orders from "./panels/orders";
import api from "@/service/api";

export default {
  name: "Home",
  components: {
    vdr,
    NewUsers,
    Withdraw,
    Refunds,
    Orders,
  },
  data() {
    return {
      allComponent: [
        { name: "今日新增用户", component: "NewUsers" },
        { name: "用户提现", component: "Withdraw" },
        { name: "订单退款", component: "Refunds" },
        { name: "未付款订单", component: "Orders" },
      ],
      vdrConfig: {
        editActive: false,
        minWidth: 300,
        tolerance: 10,
        changeCard: {},
      },
      myCards: [
        {
          component: "NewUsers",
          url: "/management/use-electric",
          h: 280,
          id: "1",
          name: "今日新增用户",
          w: 450,
          x: 5,
          y: 4,
        },
        {
          component: "Withdraw",
          url: "/settlement/withdraw",
          h: 280,
          id: "2",
          name: "用户提现",
          w: 631,
          x: 472,
          y: -278,
        },
        {
          component: "Refunds",
          url: "/settlement/refund",
          h: 280,
          id: "3",
          name: "订单退款",
          w: 565,
          x: 1119,
          y: -560,
        },
        {
          component: "Orders",
          url: "/orders/order-manage",
          h: 400,
          id: "4",
          name: "未付款订单",
          w: 1678,
          x: 5,
          y: -543,
        },
      ],
      addPanelForm: {
        components: [],
      },
    };
  },
  created() {
    console.log(this.$store.state.userInfo.roleGroup);
    this.hasLayout();
  },
  computed: {
    // 添加组件下拉选去重
    components() {
      return this.myCards.filter((component) => {
        return this.myCards.every((card) => {
          return card.component !== component.component;
        });
      });
    },
  },
  methods: {
    // 布局记忆
    hasLayout() {
      api.homeLayout().then((res) => {
        console.log(res);
        if (res.code === 0 && res.data.length !== 0) {
          this.myCards = JSON.parse(res.data[0].homeJson);
        }
      });
    },
    // 选中要调整的面板时
    changeCardItem(panel) {
      if (this.$store.state.editLayout) {
        console.log(panel);
        this.vdrConfig.changeCard = panel;
      }
    },
    // 停止改变面板尺寸时
    onResizstop(x, y, width, height) {
      console.log(
        `调整id${this.vdrConfig.changeCard.id}面板,宽:${width},高:${height},X:${x},Y:${y}`
      );
      this.myCards.filter((card) => {
        if (this.vdrConfig.changeCard.id === card.id) {
          card.w = width;
          card.h = height;
          card.x = x;
          card.y = y;
        }
        return true;
      });
    },
    // 停止移动面板时
    onDragstop(x, y) {
      console.log(`调整第${this.vdrConfig.changeCard.id}个,X:${x},Y:${y}`);
      this.myCards.map((card) => {
        if (this.vdrConfig.changeCard.id === card.id) {
          console.log(card);
          card.x = x;
          card.y = y;
        }
      });
    },
    // 删除面板
    detelePanel(obj, index) {
      this.myCards.splice(index, 1);
    },
    // 设置面板
    settings(command, card, index) {
      // console.log(command, card, index);
      switch (command) {
        case "1":
          this.detelePanel(card, index);
          break;
        case "2":
          break;
      }
    },
    // 确定调整布局
    okLayout() {
      this.$store.commit("editLayout", false);
      api
        .editHomeLayout({
          homeJson: JSON.stringify(this.myCards),
        })
        .then((res) => {
          if (res.code === 0) {
            this.$message.success("调整成功");
            this.hasLayout();
          }
        });
    },
    // 关闭调整布局
    closeLayout() {
      this.$store.commit("editLayout", false);
      this.hasLayout();
    },
    // 关闭添加展示面板
    closeAddPanel(done) {
      // @param done is a function
      this.$store.commit("addLayout", false);
      this.addPanelForm.components = [];
    },
    // 确定添加功能面板
    okAddPanel() {
      console.log(this.addPanelForm);
      if (this.addPanelForm.components.length < 1) {
        this.$message.warning("请选择组件");
        return false;
      }
    },
  },
  // 路由离开前
  beforeRouteLeave(to, from, next) {
    // 可以访问组件实例 `this`
    // console.log(to, from);
    if (this.$store.state.editLayout) {
      this.$confirm("您在调整布局", "提示", {
        confirmButtonText: "保存配置并离开",
        cancelButtonText: "继续调整",
        type: "warning",
      })
        .then(() => {
          this.okLayout();
          next();
        })
        .catch(() => {});
    } else {
      next();
    }
  },
};
</script>

<style lang="less" scoped>
.edit-layout-btns {
  position: fixed;
  top: 0;
  right: 100px;
  z-index: 99999;
}
.vdr-body {
  border: 1px dashed transparent;
}
.vdr-body-action {
  border: 1px dashed #b4b4b4;
  z-index: 9999999 !important;
}
.panel-body {
  .handle-btns {
    position: absolute;
    top: 0;
    right: 0;
  }
  /deep/.el-card__header {
    padding: 8px;
    border-bottom: none;
    .title {
      cursor: pointer;
      display: inline-block;
      &:hover {
        color: #19aa8d;
      }
    }
  }
}
</style>

在这里插入图片描述

使用文档:https://github.com/mauricius/vue-draggable-resizable
