WebSocket 在springboot项目中的简单应用
首先是springboot项目的启动方式,根据不同的启动方式,导入WebSocket对的方式不同。
-
springboot项目启动直接使用启动类方式
首先在pom文件中导入依赖
<dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-websocket</artifactId> </dependency>
创建WebSocketServer类,建议放在controller层
package ncu.graduation.hzl.controller; import com.alibaba.fastjson.JSON; import com.alibaba.fastjson.JSONObject; import org.springframework.stereotype.Component; import javax.websocket.OnClose; import javax.websocket.OnError; import javax.websocket.OnMessage; import javax.websocket.OnOpen; import javax.websocket.Session; import javax.websocket.server.PathParam; import javax.websocket.server.ServerEndpoint; import java.io.IOException; import java.util.concurrent.ConcurrentHashMap; @ServerEndpoint("/ws/{userId}") @Component public class WebSocketServer { /**concurrent包的线程安全Set,用来存放每个客户端对应的MyWebSocket对象。*/ private static ConcurrentHashMap<String,WebSocketServer> webSocketMap = new ConcurrentHashMap<String,WebSocketServer>(); /**与某个客户端的连接会话,需要通过它来给客户端发送数据*/ private Session session; /**接收userId*/ private String userId=""; /** * 连接建立成功调用的方法*/ @OnOpen public void onOpen(Session session, @PathParam("userId") String userId) { this.session = session; if(webSocketMap.containsKey(userId)){ webSocketMap.remove(userId); webSocketMap.put(userId,this); }else{ webSocketMap.put(userId,this); } System.out.println("当前连接用户:"+userId); } /** * 连接关闭调用的方法 */ @OnClose public void onClose() { if(webSocketMap.containsKey(userId)){ webSocketMap.remove(userId); } System.out.println("用户 "+userId+" 退出:"); } /** * 收到客户端消息后调用的方法 * * @param message 客户端发送过来的消息*/ @OnMessage public void onMessage(String message, Session session) { System.out.println("收到用户消息:"+userId+",报文:"+message); if(!"".equals(message)){ try { //解析发送的报文 JSONObject jsonObject = JSON.parseObject(message); //追加发送人(防止串改) jsonObject.put("fromUserId",this.userId); String toUserId=jsonObject.getString("toUserId"); //传送给对应toUserId用户的websocket if(!"".equals(toUserId) && webSocketMap.containsKey(toUserId)){ webSocketMap.get(toUserId).sendMessage(jsonObject.toJSONString()); }else{ webSocketMap.get(this.userId).sendMessage("请求的userId:"+toUserId+"不在该服务器上"); System.out.println("请求的userId:"+toUserId+"不在该服务器上"); } }catch (Exception e){ e.printStackTrace(); } } } /** * * @param session * @param error */ @OnError public void onError(Session session, Throwable error) { System.out.println("用户错误:"+this.userId+",原因:"+error.getMessage()); error.printStackTrace(); } /** * 实现服务器主动推送 */ public void sendMessage(String message) throws IOException { if(this.session != null) { this.session.getAsyncRemote().sendText(message); } } /** * 发送自定义消息 * */ public static void sendInfo(String message, String userId) throws IOException { System.out.println("发送消息到:"+userId+",报文:"+message); if(!"".equals(userId) && webSocketMap.containsKey(userId)){ webSocketMap.get(userId).sendMessage(message); }else{ System.out.println("用户"+userId+",不在线!"); } } public static ConcurrentHashMap<String, WebSocketServer> getWebSocketMap() { return webSocketMap; } public static void setWebSocketMap(ConcurrentHashMap<String, WebSocketServer> webSocketMap) { WebSocketServer.webSocketMap = webSocketMap; } }
项目启动类中添加如下配置
@Bean public ServerEndpointExporter serverEndpointExporter(){ return new ServerEndpointExporter(); }
前端创建test.html文件
<!DOCTYPE html> <html> <head> <meta charset="utf-8"> <title>websocket通讯</title> </head> //注意换成自己的js文件位置 <script src="../layui/js/jquery-3.3.1.js"></script> <script> var socket; //开启连接 function openSocket() { if(typeof(WebSocket) == "undefined") { console.log("您的浏览器不支持WebSocket"); }else{ if (!$("#fromUserId").val()){ alert("请输入用户名"); return; } console.log("您的浏览器支持WebSocket"); //实现化WebSocket对象,指定要连接的服务器地址与端口 建立连接 //等同于socket = new WebSocket("ws://localhost:8888/xxxx/im/25"); //var socketUrl="${request.contextPath}/im/"+$("#userId").val(); var socketUrl="http://localhost:8080/ws/"+$("#fromUserId").val(); socketUrl=socketUrl.replace("https","ws").replace("http","ws"); console.log(socketUrl); if(socket!=null){ socket.close(); socket=null; } socket = new WebSocket(socketUrl); //打开事件 socket.onopen = function() { console.log("websocket已打开"); $("#allContent") .append("<div>" + "收到消息:已建立连接,"+new Date() + "</div>"); }; //获得消息事件 socket.onmessage = function(msg) { $("#allContent") .append("<div>" + "收到消息" +":"+msg.data + "</div>"); console.log(msg.data); }; //关闭事件 socket.onclose = function() { $("#allContent") .append("<div>" + "收到消息:websocket已关闭,"+new Date() + "</div>"); console.log("websocket已关闭"); }; //发生了错误事件 socket.onerror = function() { $("#allContent") .append("<div>" + "收到消息:websocket连接发生了错误,"+new Date() + "</div>"); console.log("websocket发生了错误"); } } } // 关闭连接 function closeSocket() { if (socket){ socket.disconnect(); } } // 发送消息 function sendMessage() { if(typeof(WebSocket) == "undefined") { console.log("您的浏览器不支持WebSocket"); }else { // 判断是否已建立连接 if (socket){ socket.send('{"toUserId":"'+$("#toUserId").val()+'","contentText":"'+$("#contentText").val()+'"}'); }else { alert("请先建立连接"); } } } </script> <body> 【请输入用户名】:<input id="fromUserId" name="fromUserId" type="text" value="admin"/> 【目标用户名】:<input id="toUserId" name="toUserId" type="text" value="qxf"/> <button onclick="openSocket()" style="color:red;">开启连接</button> <button onclick="closeSocket()" style="color:red;">关闭连接</button> <button onclick="sendMessage()" style="color:blue;">发送消息</button> 【内容】:<input id="contentText" name="contentText" type="text" value="hello websocket"> <div id="allContent"> </div> </body> </html>
之后测试连接就可以了
-
springboot项目使用外置tomcat方式启动
此方式启动springboot项目的话,不用导入websocket的依赖,并且不用在启动类中添加配置,直接使用外部容器中的jar包,项目运行在外部的tomcat中,首先将websocket的jar包添加到tomcat下面的lib文件夹中

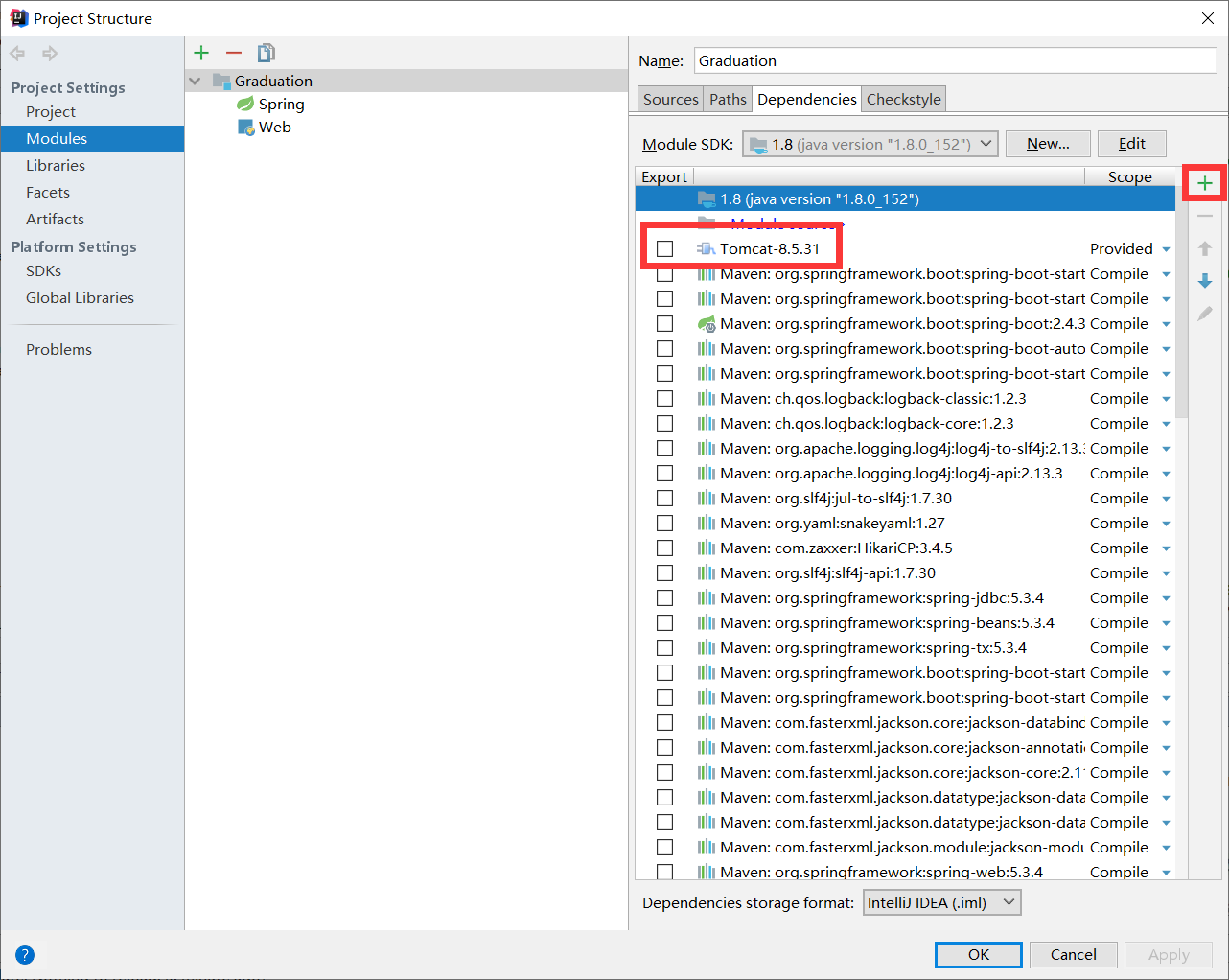

然后在idea中配置引用tomcat中jar包,在Setting中查找Application Servers
,然后把需要的jar加进来。
最后加入项目的依赖中
完成之后,前端测试页面内容不变,可以进行测试了
转载于1https://blog.csdn.net/qiuxinfa123/article/details/106441492
转载于2https://blog.csdn.net/weferxe/article/details/91047676
