- 最近有个项目需要一个简单的页面,为了实现对项目基础信息增删改查的功能,于是就用django+simpleui写了一个,开发工具是pycharm。历经大坑小坑,最终成功上线,这里记录下整个过程,并分享出源码,放在文章最后。

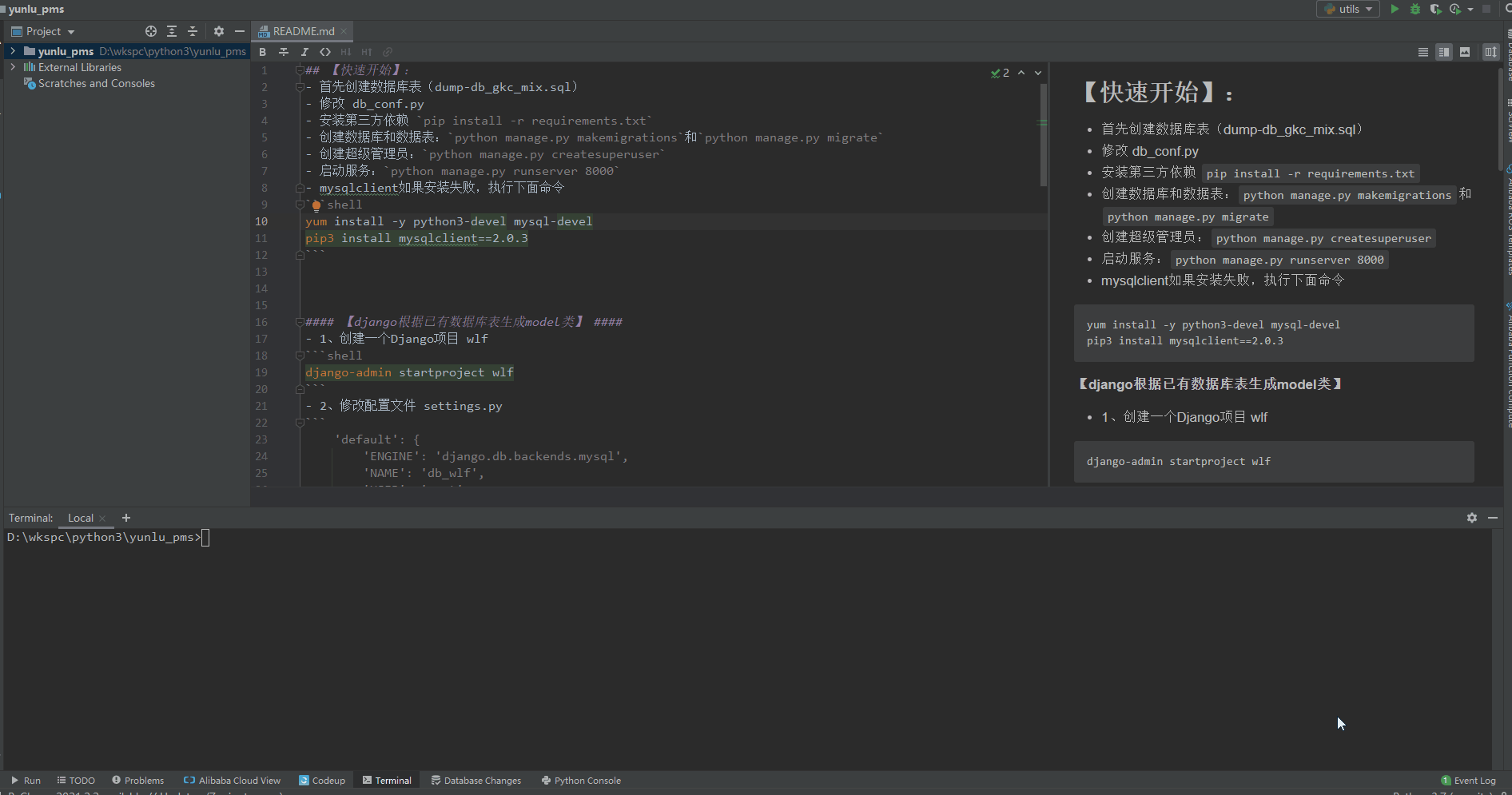

- 如果你想自己测试下,拿到源码,首先你得有python3环境吧,然后你可以按照
README.md
文件中的【快速开始】准备下你自己的本地环境,按照步骤应该就能起来,如果遇到问题可以评论问我(不要私信我),我天天都刷博客,有消息就能看到,看到就会及时回复。

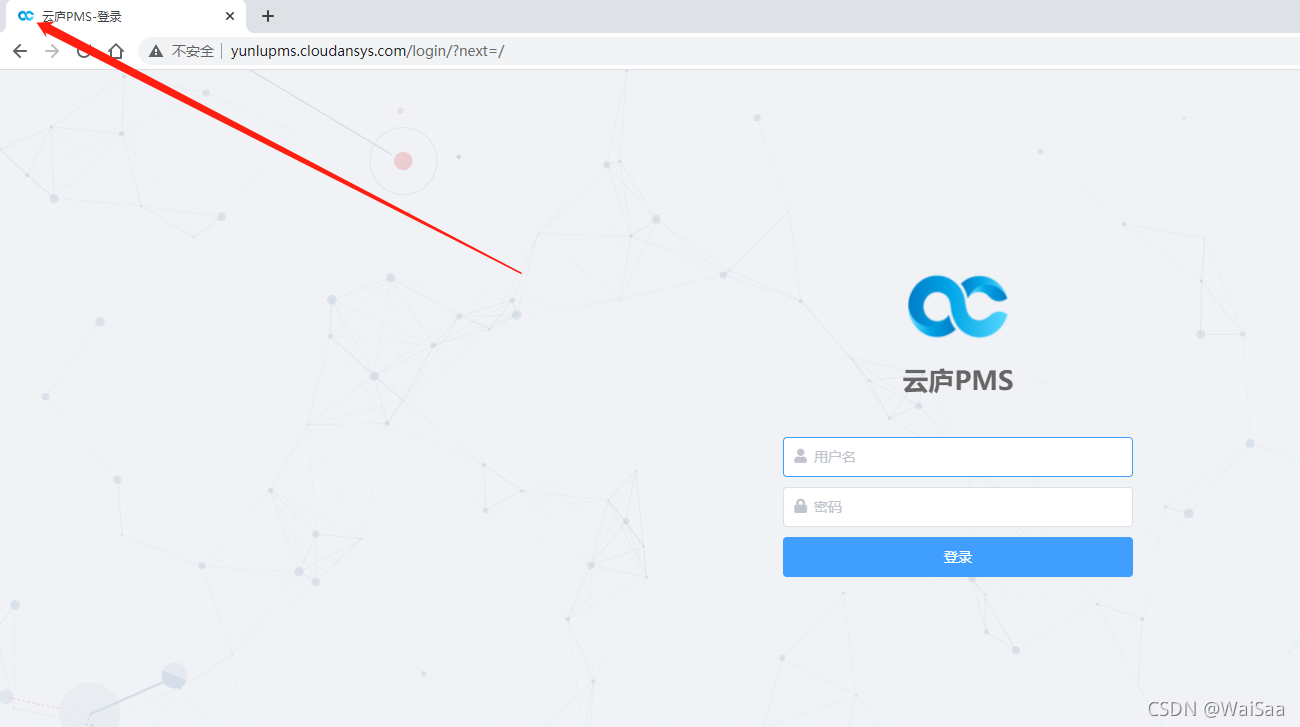

1、先上最终效果
2、定制化

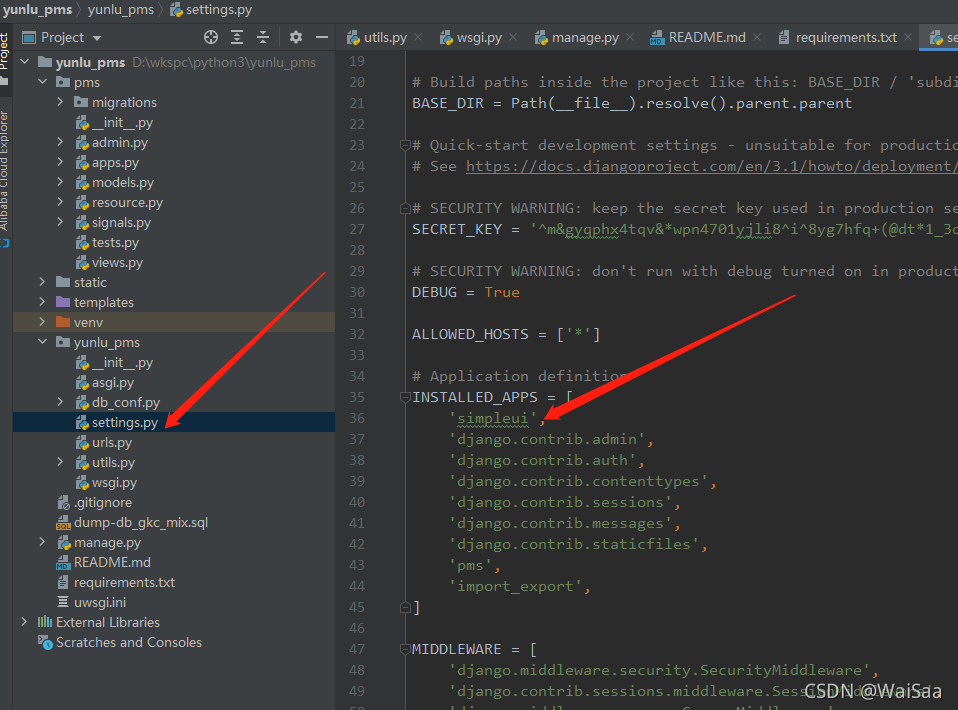

- 定制主题
先安装再配置
pip3 install django-simpleui

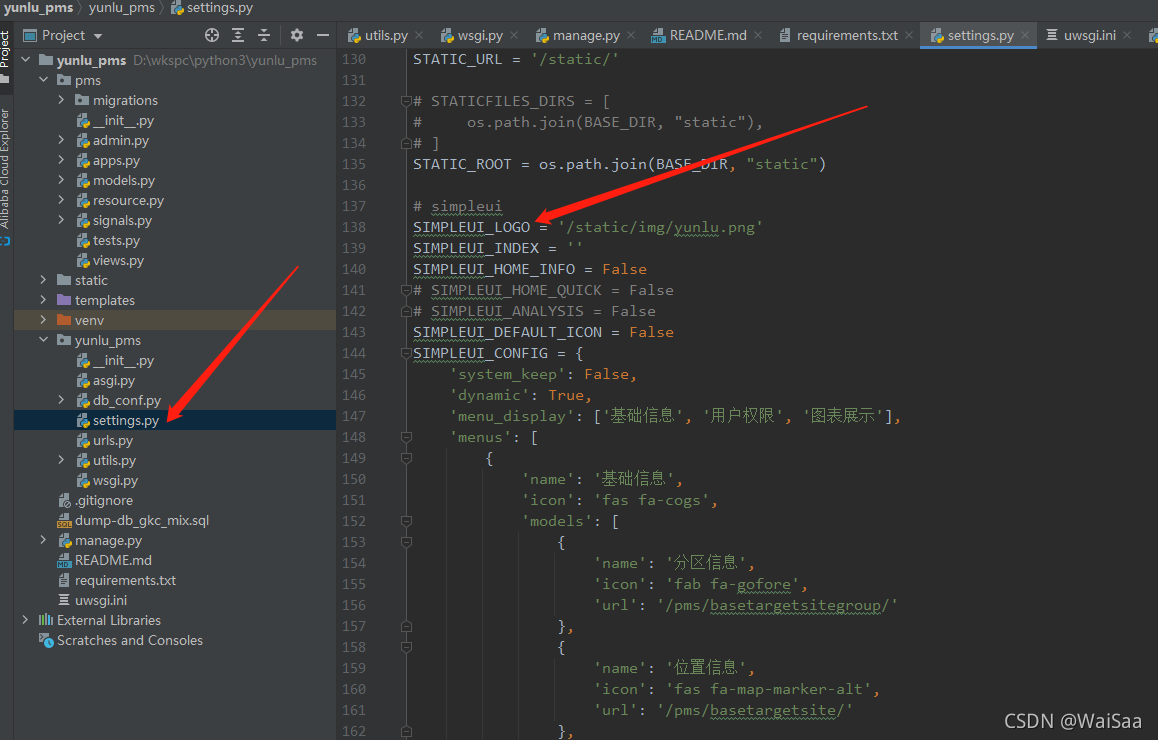

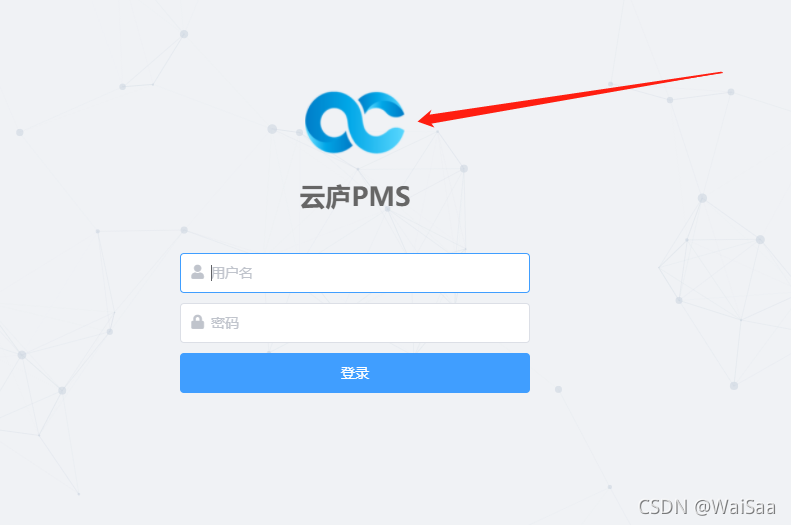

- 定制网站
logo

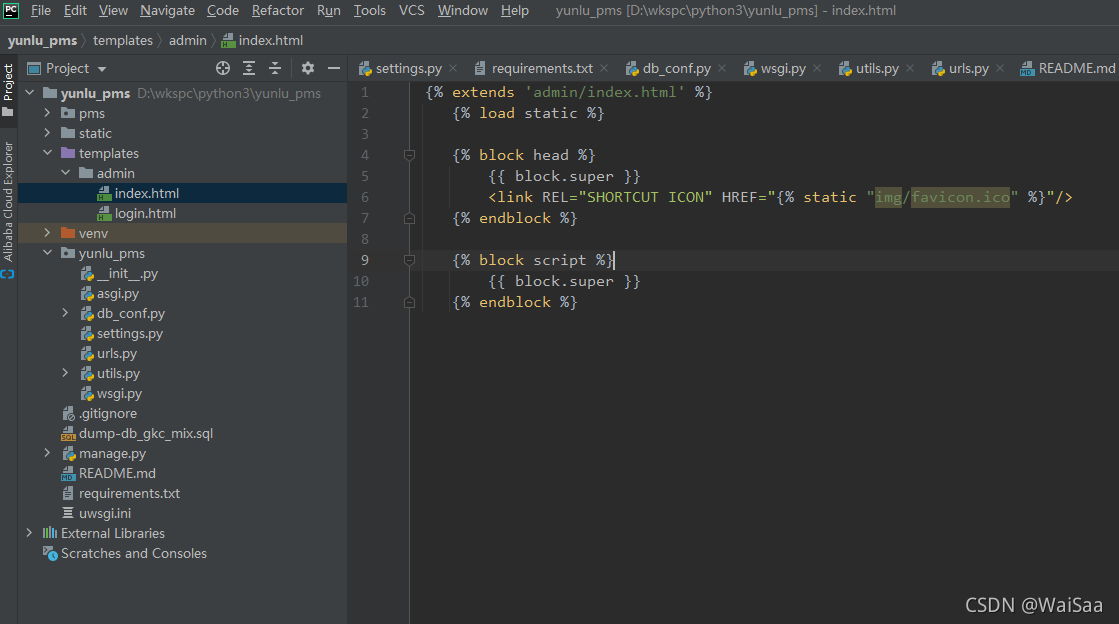

- 定制网站
favicon.ico
需要自己制作,这是在线制作网站 在线制作ico图标

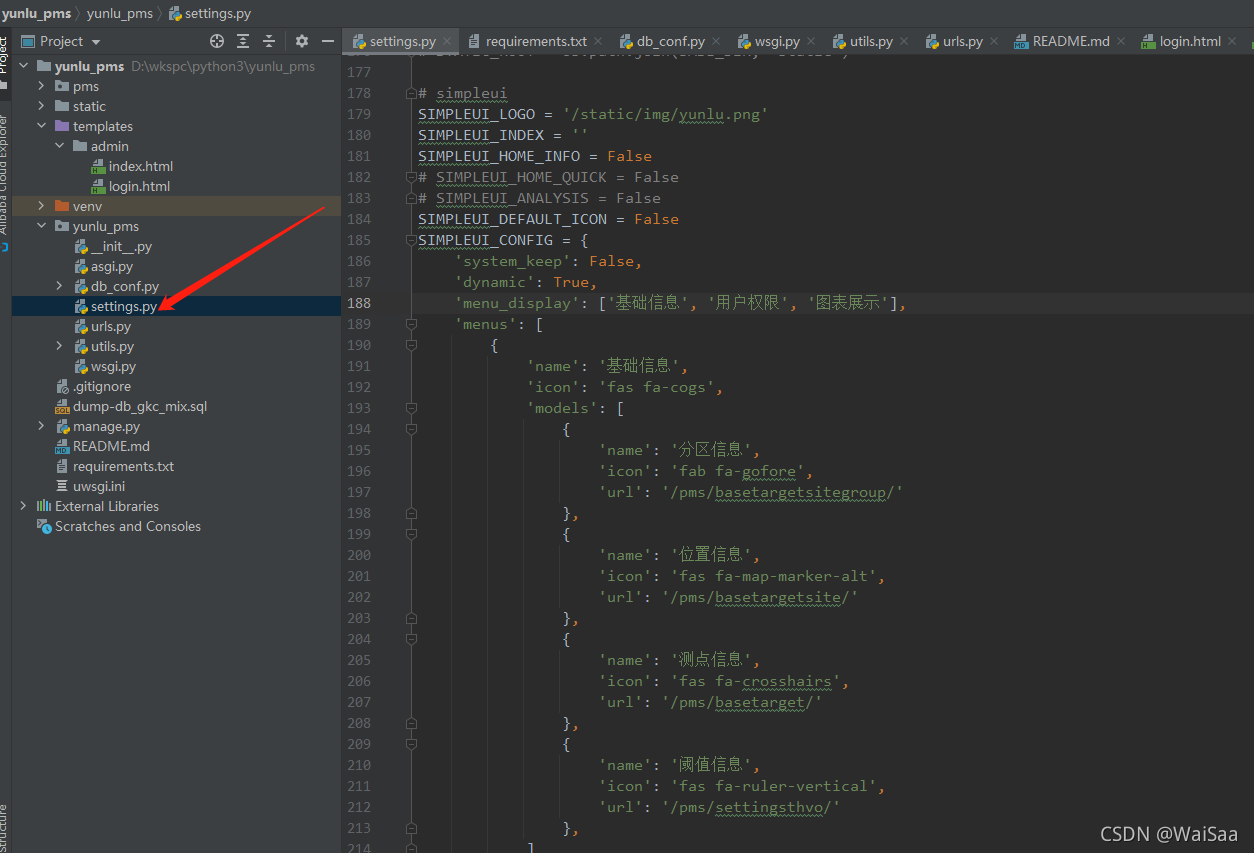

- 定制网站菜单
图标可以在这个网站上找【Font Awesome】, 使用就很简单了。
3、部署到服务器上
这里采用Nginx配合uWSGI的方式。

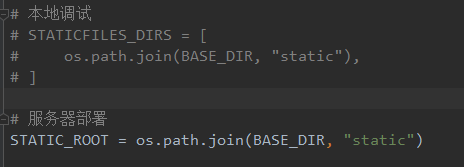

部署前需要修改下配置 settings.py1.DEBUG = False
2.ALLOWED_HOSTS = [‘*’]
3.STATIC_ROOT = os.path.join(BASE_DIR, “static”)
- 首先在服务器上建目录并修改权限
mkdir /pyweb
useradd nginx
chown -R nginx.nginx /pyweb/
-
然后把项目拷贝到这个目录下
-
安装依赖(我这里没用虚拟环境)
pip3 install -r requirements.txt
- 配置nginx并启动
怎么安装这里就不赘述了,安装好把nginx.conf的内容换成下面的(若nginx无他用),需要修改的地方已经注释很清楚了。
events {
worker_connections 1024;
}
http {
include mime.types;
default_type application/octet-stream;
sendfile on;
server {
listen 80;
server_name yours.com; #改为自己的域名,没域名修改为127.0.0.1:80
charset utf-8;
location / {
include uwsgi_params;
uwsgi_pass yours:8000; #这个和uwsgi里的socket配置要一样
uwsgi_param UWSGI_SCRIPT yunlu_pms.wsgi; #wsgi.py所在的目录名+.wsgi
uwsgi_param UWSGI_CHDIR /pyweb/yunlu_pms/; #项目路径
}
location /static/ {
alias /pyweb/yunlu_pms/static/; #静态资源路径
}
}
}

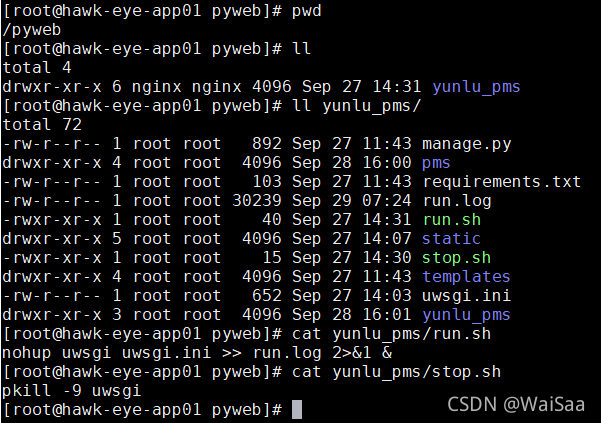

- 配置uwsgi并启动
在目录
/pyweb/yunlu_pms/
下直接执行run.sh
脚本就行了。
[uwsgi]
chdir=/pyweb/yunlu_pms
socket=yours:8000
master=true
disable-logging=true
py-autoreload = 1
- 浏览器访问
访问你配置的域名(或者是你本机的IP),没问题的话应该就能看到登录界面了。

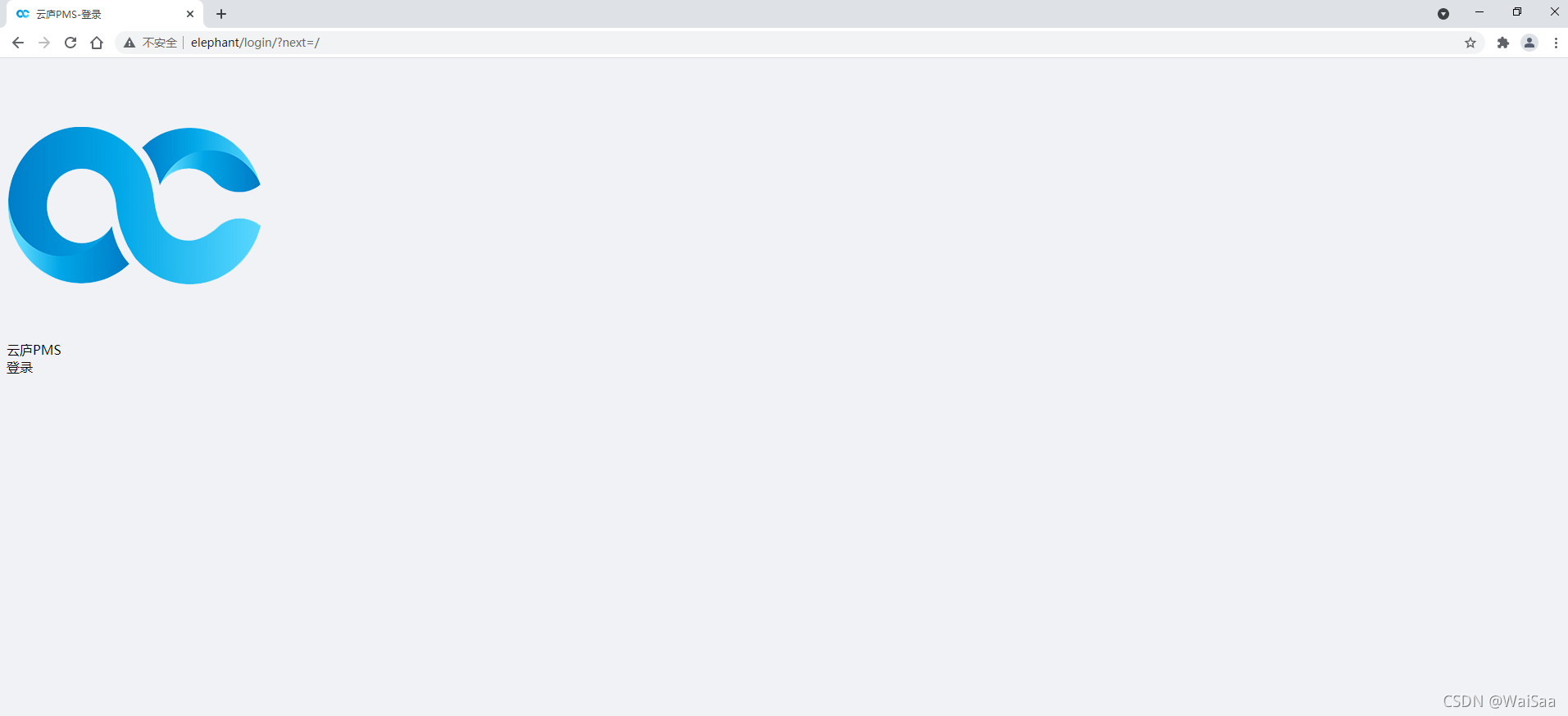

- 服务器部署时后台样式没有生效的问题
python manage.py collectstatic
4、源码
yunlu_pms源码下载地址
【提取码:king】
5、另附通用操作脚本 operate.sh
operate.sh
#!/bin/bash
:<<!
【脚本说明】
1、此脚本适用操作python程序;
2、支持服务启动、停止、重启、查看状态、查看日志;
!
# 程序名称
app=manage.py
# 启动命令
run_cmd="python3 $app.py"
# 服务基本信息
operate=$1
ps_1=$app.py
dir_home=$(cd $(dirname $0);pwd)
log_file=$dir_home/logs/$app.log
pid_1=`ps -ef | grep $ps_1 | grep -v grep | awk '{print $2}'`
# 提示信息
msg="Please input the param 【<run|kil|res|sta|log>】"
# 定制化shell输出
function custom_print(){
echo -e "\033[5;34m ***** \033[0m"
echo -e "\033[32m $@ ! \033[0m"
echo -e "\033[5;34m ***** \033[0m"
}
# 启动命令
function run(){
nohup $run_cmd > /dev/null 2>&1 &
}
# 启动服务
if [[ $operate = "run" || $operate = "start" ]]; then
if [[ ! $pid_1 ]]; then
run
msg='Start success'
custom_print $msg
else
msg='The service is already running'
custom_print $msg
fi
# 停止服务
elif [[ $operate = "kil" || $operate = "stop" ]]; then
if [[ $pid_1 ]]; then
kill -9 $pid_1
msg='Stopped success'
custom_print $msg
else
# 服务早已停止或未启动
msg='The service is already down'
custom_print $msg
fi
# 重启服务
elif [[ $operate = "res" || $operate = "restart" ]]; then
if [[ $pid_1 ]]; then
kill -9 $pid_1
fi
run
msg='Restart success'
custom_print $msg
# 查看服务运行状态
elif [[ $operate = "sta" || $operate = "status" ]]; then
if [[ $pid_1 ]]; then
# 黄底蓝字
echo -e "\033[43;34m RUNNING \033[0m"
else
# 蓝底黑字
echo -e "\033[44;30m STOPPED \033[0m"
fi
# 查看服务运行日志
elif [[ $operate = "log" ]]; then
if [[ -e $log_file ]]; then
tail -f $log_file
else
msg="No logs have been generated so far"
custom_print $msg
fi
else
custom_print $msg
fi

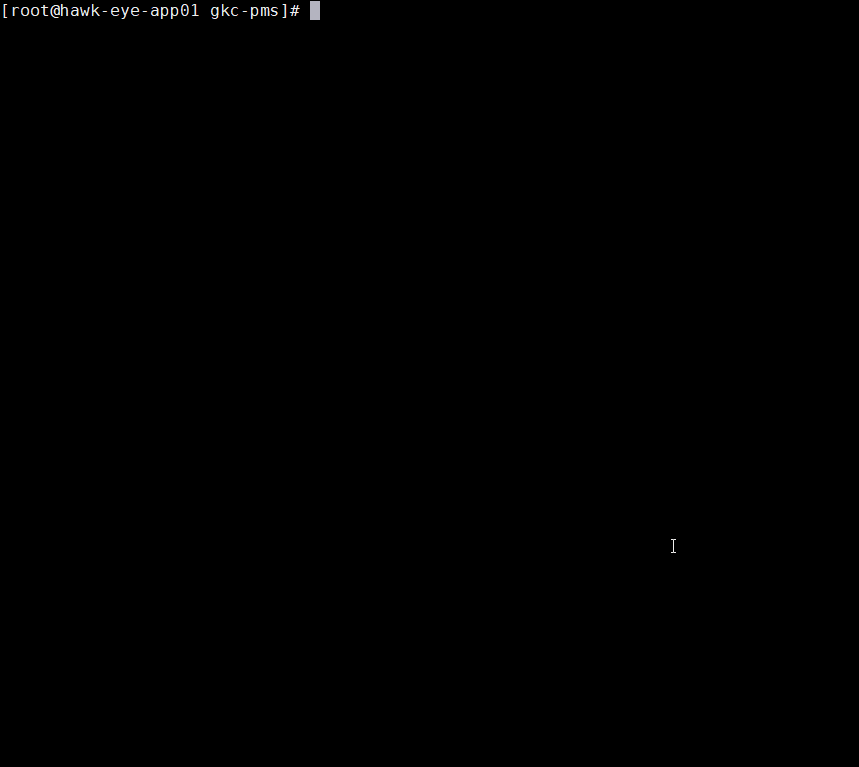

- 使用
