网络拓扑与进程调度结合模拟：在 Python 中创建一个网状网络拓扑，在每个节点上模拟操作系统的进程调度（使用如 FCFS、SJF 等算法），模拟数据在网络节点间的传输过程中，同时考虑进程调度对数据传输效率和可靠性的影响。例如，当节点上的进程调度繁忙时，数据传输可能会延迟，分析这种情况下网络的整体性能。
import tkinter as tk
from tkinter import ttk, scrolledtext
import matplotlib.pyplot as plt
from matplotlib.backends.backend_tkagg import FigureCanvasTkAgg
import numpy as np
import random
import heapq
from enum import Enum
from collections import deque, defaultdict
from matplotlib.figure import Figure
# 设置随机种子以便结果可重现
random.seed(42)
class Process:
"""表示一个需要调度和执行的进程"""
def __init__(self, pid, arrival_time, burst_time, data_size=0):
self.pid = pid # 进程ID
self.arrival_time = arrival_time # 到达时间
self.burst_time = burst_time # 执行时间
self.remaining_time = burst_time # 剩余执行时间
self.start_time = None # 首次执行时间
self.completion_time = None # 完成时间
self.waiting_time = 0 # 等待时间
self.turnaround_time = 0 # 周转时间
self.data_size = data_size # 数据大小(如果是网络相关进程)
def __repr__(self):
return f"Process(pid={self.pid}, arrival_time={self.arrival_time}, burst_time={self.burst_time})"
class SchedulingAlgorithm(Enum):
"""调度算法枚举"""
FCFS = 1 # 先来先服务
SJF = 2 # 最短作业优先
RR = 3 # 时间片轮转
class DataPacket:
"""表示网络中的数据包"""
def __init__(self, packet_id, source, destination, size):
self.packet_id = packet_id # 数据包ID
self.source = source # 源节点
self.destination = destination # 目标节点
self.size = size # 数据包大小(影响处理时间)
self.arrival_time = 0 # 到达时间
self.hops = 0 # 经过的跳数
self.dropped = False # 是否被丢弃
self.current_position = None # 当前位置(用于动画)
self.progress = 0 # 传输进度(0-100)
def __repr__(self):
return f"Packet(id={self.packet_id}, size={self.size})"
class NetworkNode:
"""表示网络中的一个节点"""
def __init__(self, node_id, x, y, scheduling_algorithm=SchedulingAlgorithm.FCFS, time_quantum=2):
self.node_id = node_id # 节点ID
self.x = x # x坐标(用于可视化)
self.y = y # y坐标(用于可视化)
self.scheduling_algorithm = scheduling_algorithm # 调度算法
self.time_quantum = time_quantum # 时间片大小(用于RR算法)
self.process_queue = [] # 进程队列
self.executing_process = None # 当前执行的进程
self.time = 0 # 节点内部时间
self.finished_processes = [] # 已完成的进程
self.network_queue = deque() # 网络数据包队列
self.neighbors = [] # 邻居节点列表
self.performance_metrics = {
'avg_waiting_time': 0,
'avg_turnaround_time': 0,
'throughput': 0,
'packet_delay': []
}
self.current_packet = None # 当前正在处理的数据包
self.packet_processing_time = 0 # 处理当前数据包的剩余时间
self.active_packets = [] # 正在从该节点发送的数据包
def add_neighbor(self, neighbor_node):
"""添加邻居节点"""
self.neighbors.append(neighbor_node)
def add_process(self, process):
"""添加新进程到队列"""
process.arrival_time = self.time # 设置到达时间为当前节点时间
self.process_queue.append(process)
def add_packet(self, packet):
"""添加数据包到网络队列"""
packet.arrival_time = self.time # 记录到达时间
self.network_queue.append(packet)
def update_performance_metrics(self):
"""更新性能指标"""
if self.finished_processes:
total_waiting_time = sum(p.waiting_time for p in self.finished_processes)
total_turnaround_time = sum(p.turnaround_time for p in self.finished_processes)
self.performance_metrics['avg_waiting_time'] = total_waiting_time / len(self.finished_processes)
self.performance_metrics['avg_turnaround_time'] = total_turnaround_time / len(self.finished_processes)
if self.performance_metrics['packet_delay']:
self.performance_metrics['throughput'] = len(self.performance_metrics['packet_delay']) / max(1, self.time)
def select_next_process(self):
"""根据调度算法选择下一个要执行的进程"""
if not self.process_queue:
return None
if self.scheduling_algorithm == SchedulingAlgorithm.FCFS:
# 按到达时间排序
self.process_queue.sort(key=lambda p: p.arrival_time)
return self.process_queue.pop(0)
elif self.scheduling_algorithm == SchedulingAlgorithm.SJF:
# 按执行时间排序(最短作业优先)
self.process_queue.sort(key=lambda p: p.burst_time)
return self.process_queue.pop(0)
elif self.scheduling_algorithm == SchedulingAlgorithm.RR:
# 轮转调度:从队列头部取出，执行一个时间片后放回尾部
if not hasattr(self, 'rr_queue'):
self.rr_queue = deque(self.process_queue)
self.process_queue = []
if not self.rr_queue:
return None
process = self.rr_queue.popleft()
return process
return None
def process_packet(self):
"""处理网络数据包"""
if self.current_packet is None and self.network_queue:
self.current_packet = self.network_queue.popleft()
# 处理时间与数据包大小成正比
self.packet_processing_time = self.current_packet.size
if self.current_packet is not None:
# 处理数据包
self.packet_processing_time -= 1
if self.packet_processing_time <= 0:
# 数据包处理完成，转发到下一个节点
self.forward_packet(self.current_packet)
# 记录延迟
delay = self.time - self.current_packet.arrival_time
self.performance_metrics['packet_delay'].append(delay)
self.current_packet = None
self.packet_processing_time = 0
def forward_packet(self, packet):
"""将数据包转发到下一个节点"""
if not self.neighbors:
# 没有邻居节点，数据包丢弃
packet.dropped = True
return
# 随机选择一个邻居节点转发
next_node = random.choice(self.neighbors)
# 设置数据包的当前位置和目标位置
packet.current_position = (self.x, self.y)
packet.target_node = next_node
packet.progress = 0
# 添加到活动数据包列表
self.active_packets.append(packet)
def execute(self, time_units=1):
"""执行一个时间单位的模拟"""
execution_log = []
for _ in range(time_units):
self.time += 1
# 更新活动数据包的位置
for packet in self.active_packets[:]:
packet.progress += 10 # 每次更新10%的进度
if packet.progress >= 100:
# 数据包到达目标节点
packet.hops += 1
packet.target_node.add_packet(packet)
self.active_packets.remove(packet)
# 处理网络数据包
self.process_packet()
# 如果当前有执行的进程，继续执行
if self.executing_process:
self.executing_process.remaining_time -= 1
# 记录执行信息
log_entry = f"时间 {self.time}: 节点 {self.node_id} 正在执行进程 {self.executing_process.pid} " \
f"(剩余时间: {self.executing_process.remaining_time})"
execution_log.append(log_entry)
# 检查进程是否完成
if self.executing_process.remaining_time <= 0:
self.executing_process.completion_time = self.time
self.executing_process.turnaround_time = self.executing_process.completion_time - self.executing_process.arrival_time
self.executing_process.waiting_time = self.executing_process.turnaround_time - self.executing_process.burst_time
self.finished_processes.append(self.executing_process)
# 记录完成信息
log_entry = f"时间 {self.time}: 节点 {self.node_id} 完成进程 {self.executing_process.pid} " \
f"(周转时间: {self.executing_process.turnaround_time}, 等待时间: {self.executing_process.waiting_time})"
execution_log.append(log_entry)
# 如果是网络数据包相关的进程，处理完后创建数据包
if self.executing_process.data_size > 0:
packet = DataPacket(
packet_id=len(self.performance_metrics['packet_delay']) + 1,
source=self,
destination=None, # 目的地将在网络层确定
size=self.executing_process.data_size
)
self.add_packet(packet)
log_entry = f"时间 {self.time}: 节点 {self.node_id} 生成数据包 {packet.packet_id} (大小: {packet.size})"
execution_log.append(log_entry)
self.executing_process = None
# 如果是RR算法，检查队列中是否有更多进程
if self.scheduling_algorithm == SchedulingAlgorithm.RR and hasattr(self,
'rr_queue') and self.rr_queue:
self.executing_process = self.rr_queue.popleft()
# 对于RR算法，检查时间片是否用完
elif self.scheduling_algorithm == SchedulingAlgorithm.RR:
# 减少时间片计数
if not hasattr(self, 'time_quantum_count'):
self.time_quantum_count = self.time_quantum
self.time_quantum_count -= 1
if self.time_quantum_count <= 0:
# 时间片用完，将进程放回队列尾部
self.rr_queue.append(self.executing_process)
self.executing_process = None
self.time_quantum_count = self.time_quantum
# 如果当前没有执行的进程，选择一个新进程
if self.executing_process is None:
self.executing_process = self.select_next_process()
if self.executing_process:
if self.executing_process.start_time is None:
self.executing_process.start_time = self.time
# 记录开始执行信息
log_entry = f"时间 {self.time}: 节点 {self.node_id} 开始执行进程 {self.executing_process.pid} " \
f"(执行时间: {self.executing_process.burst_time})"
execution_log.append(log_entry)
# 更新性能指标
self.update_performance_metrics()
return execution_log
class MeshNetwork:
"""表示网状网络拓扑"""
def __init__(self, num_nodes, connectivity=2, scheduling_algorithm=SchedulingAlgorithm.FCFS, time_quantum=2):
self.num_nodes = num_nodes # 节点数量
self.connectivity = connectivity # 每个节点的连接数
self.nodes = [] # 节点列表
self.time = 0 # 网络全局时间
self.scheduling_algorithm = scheduling_algorithm
self.time_quantum = time_quantum
self.execution_logs = [] # 执行日志
# 创建节点(环形布局)
angles = np.linspace(0, 2 * np.pi, num_nodes, endpoint=False)
radius = 200 # 圆环半径
for i in range(num_nodes):
x = 250 + radius * np.cos(angles[i]) # +250是为了将图形居中
y = 250 + radius * np.sin(angles[i])
node = NetworkNode(
node_id=i,
x=x,
y=y,
scheduling_algorithm=scheduling_algorithm,
time_quantum=time_quantum
)
self.nodes.append(node)
# 构建网状连接
self.build_mesh_topology()
def build_mesh_topology(self):
"""构建网状拓扑结构"""
# 使用环形连接作为基础，然后添加随机连接
for i in range(self.num_nodes):
# 连接到下一个节点(形成环)
next_node = (i + 1) % self.num_nodes
self.nodes[i].add_neighbor(self.nodes[next_node])
# 添加额外的随机连接
for _ in range(self.connectivity - 1):
# 随机选择一个不相邻的节点
possible_neighbors = [j for j in range(self.num_nodes)
if j != i and j != next_node and j not in [n.node_id for n in
self.nodes[i].neighbors]]
if possible_neighbors:
neighbor_idx = random.choice(possible_neighbors)
self.nodes[i].add_neighbor(self.nodes[neighbor_idx])
def generate_processes(self, num_processes_per_node, burst_time_range=(1, 10), data_size_range=(1, 5)):
"""为每个节点生成随机进程"""
for node in self.nodes:
for i in range(num_processes_per_node):
burst_time = random.randint(*burst_time_range)
# 50%的概率是网络相关进程，需要生成数据包
data_size = random.randint(*data_size_range) if random.random() > 0.5 else 0
process = Process(
pid=f"{node.node_id}-{i}",
arrival_time=0, # 将在节点添加进程时设置
burst_time=burst_time,
data_size=data_size
)
node.add_process(process)
def run_simulation(self, time_units=1):
"""运行模拟指定的时间单位"""
all_logs = []
for _ in range(time_units):
self.time += 1
# 每个节点执行一个时间单位
for node in self.nodes:
logs = node.execute()
all_logs.extend(logs)
self.execution_logs.extend(all_logs)
return all_logs

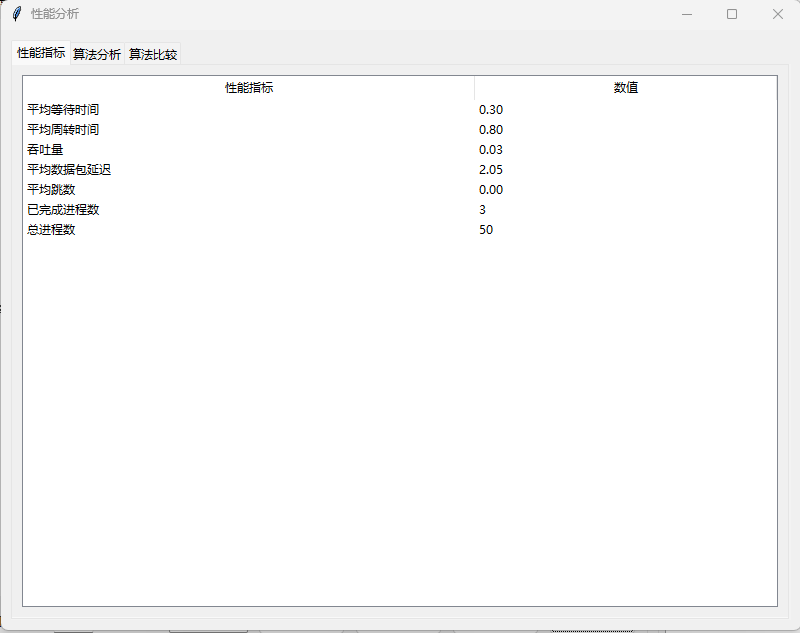

def get_average_performance(self):
"""获取整个网络的平均性能指标"""
avg_metrics = {
'avg_waiting_time': 0,
'avg_turnaround_time': 0,
'avg_throughput': 0,
'avg_packet_delay': 0,
'avg_hops': 0,
'completed_processes': 0,
'total_processes': 0
}
all_delays = []
all_hops = []
for node in self.nodes:
avg_metrics['avg_waiting_time'] += node.performance_metrics['avg_waiting_time']
avg_metrics['avg_turnaround_time'] += node.performance_metrics['avg_turnaround_time']
avg_metrics['avg_throughput'] += node.performance_metrics['throughput']
all_delays.extend(node.performance_metrics['packet_delay'])
all_hops.extend([p.hops for p in node.performance_metrics['packet_delay'] if hasattr(p, 'hops')])
avg_metrics['completed_processes'] += len(node.finished_processes)
avg_metrics['total_processes'] += len(node.finished_processes) + len(node.process_queue)
if hasattr(node, 'rr_queue'):
avg_metrics['total_processes'] += len(node.rr_queue)
# 计算平均值
if self.nodes:
avg_metrics['avg_waiting_time'] /= len(self.nodes)
avg_metrics['avg_turnaround_time'] /= len(self.nodes)
avg_metrics['avg_throughput'] /= len(self.nodes)
if all_delays:
avg_metrics['avg_packet_delay'] = sum(all_delays) / len(all_delays)
if all_hops:
avg_metrics['avg_hops'] = sum(all_hops) / len(all_hops)
return avg_metrics

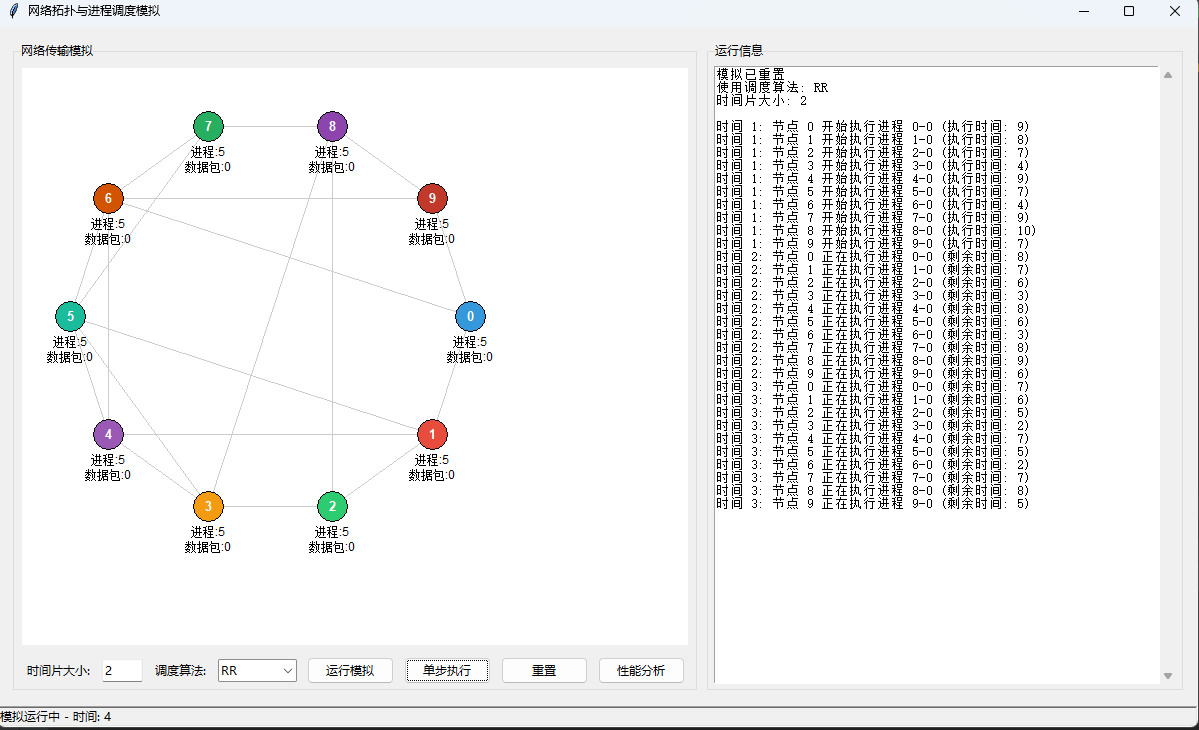

def visualize_network(self, canvas):
"""在给定的画布上可视化网络拓扑结构和数据包传输"""
# 清除画布
canvas.delete("all")
# 绘制节点间的连接
for node in self.nodes:
for neighbor in node.neighbors:
if node.node_id < neighbor.node_id: # 避免重复绘制
canvas.create_line(node.x, node.y, neighbor.x, neighbor.y, fill="#CCCCCC", width=1)
# 绘制节点
node_colors = ["#3498db", "#e74c3c", "#2ecc71", "#f39c12", "#9b59b6",
"#1abc9c", "#d35400", "#27ae60", "#8e44ad", "#c0392b"]
for i, node in enumerate(self.nodes):
color = node_colors[i % len(node_colors)]
# 节点圆圈
canvas.create_oval(node.x - 15, node.y - 15, node.x + 15, node.y + 15, fill=color, outline="black")
# 节点ID文本
canvas.create_text(node.x, node.y, text=str(node.node_id), fill="white", font=("Arial", 10, "bold"))
# 显示节点上的进程数量
process_count = len(node.process_queue)
if hasattr(node, 'rr_queue'):
process_count += len(node.rr_queue)
if node.executing_process:
process_count += 1
canvas.create_text(node.x, node.y + 25, text=f"进程:{process_count}", fill="black", font=("Arial", 9))
# 显示节点上的数据包数量
packet_count = len(node.network_queue)
if node.current_packet:
packet_count += 1
canvas.create_text(node.x, node.y + 40, text=f"数据包:{packet_count}", fill="black", font=("Arial", 9))
# 绘制活动数据包
for node in self.nodes:
for packet in node.active_packets:
# 计算数据包的当前位置
target_x, target_y = packet.target_node.x, packet.target_node.y
progress = packet.progress / 100.0
current_x = node.x + (target_x - node.x) * progress
current_y = node.y + (target_y - node.y) * progress
# 根据数据包大小确定圆圈大小
size_factor = 5 + packet.size * 2
# 绘制数据包
canvas.create_oval(current_x - size_factor / 2, current_y - size_factor / 2,
current_x + size_factor / 2, current_y + size_factor / 2,
fill="#f1c40f", outline="black")
# 绘制数据包ID
canvas.create_text(current_x, current_y, text=str(packet.packet_id), fill="black", font=("Arial", 8))
class NetworkSimulationGUI:
"""网络模拟图形界面"""
def __init__(self, root):
self.root = root
self.root.title("网络拓扑与进程调度模拟")
self.root.geometry("1200x700")
# 创建主框架
main_frame = ttk.Frame(root)
main_frame.pack(fill=tk.BOTH, expand=True, padx=10, pady=10)
# 左侧框架 - 网络可视化
left_frame = ttk.LabelFrame(main_frame, text="网络传输模拟")
left_frame.pack(side=tk.LEFT, fill=tk.BOTH, expand=True, padx=5, pady=5)
# 创建画布用于网络可视化
self.network_canvas = tk.Canvas(left_frame, width=500, height=500, bg="white")
self.network_canvas.pack(fill=tk.BOTH, expand=True, padx=5, pady=5)
# 控制面板
control_frame = ttk.Frame(left_frame)
control_frame.pack(fill=tk.X, padx=5, pady=5)
ttk.Label(control_frame, text="时间片大小:").pack(side=tk.LEFT, padx=5)
self.time_quantum_var = tk.IntVar(value=2)
ttk.Entry(control_frame, textvariable=self.time_quantum_var, width=5).pack(side=tk.LEFT, padx=5)
ttk.Label(control_frame, text="调度算法:").pack(side=tk.LEFT, padx=5)
self.algorithm_var = tk.StringVar(value="RR")
algorithm_combo = ttk.Combobox(control_frame, textvariable=self.algorithm_var,
values=["FCFS", "SJF", "RR"], width=8)
algorithm_combo.pack(side=tk.LEFT, padx=5)
self.run_button = ttk.Button(control_frame, text="运行模拟", command=self.run_simulation)
self.run_button.pack(side=tk.LEFT, padx=5)
self.step_button = ttk.Button(control_frame, text="单步执行", command=self.step_simulation)
self.step_button.pack(side=tk.LEFT, padx=5)
self.reset_button = ttk.Button(control_frame, text="重置", command=self.reset_simulation)
self.reset_button.pack(side=tk.LEFT, padx=5)
self.analysis_button = ttk.Button(control_frame, text="性能分析", command=self.show_analysis)
self.analysis_button.pack(side=tk.LEFT, padx=5)
# 右侧框架 - 运行信息
right_frame = ttk.LabelFrame(main_frame, text="运行信息")
right_frame.pack(side=tk.RIGHT, fill=tk.BOTH, expand=True, padx=5, pady=5)
# 创建文本区域用于显示日志
self.log_text = scrolledtext.ScrolledText(right_frame, wrap=tk.WORD, height=20)
self.log_text.pack(fill=tk.BOTH, expand=True, padx=5, pady=5)
# 创建状态栏
self.status_var = tk.StringVar(value="就绪")
self.status_bar = ttk.Label(root, textvariable=self.status_var, relief=tk.SUNKEN, anchor=tk.W)
self.status_bar.pack(side=tk.BOTTOM, fill=tk.X)
# 初始化网络
self.reset_simulation()
def reset_simulation(self):
"""重置模拟"""
# 清空日志
self.log_text.delete(1.0, tk.END)
# 获取算法设置
algorithm_map = {
"FCFS": SchedulingAlgorithm.FCFS,
"SJF": SchedulingAlgorithm.SJF,
"RR": SchedulingAlgorithm.RR
}
algorithm = algorithm_map[self.algorithm_var.get()]
time_quantum = self.time_quantum_var.get()
# 创建网络
self.network = MeshNetwork(
num_nodes=10,
connectivity=3,
scheduling_algorithm=algorithm,
time_quantum=time_quantum
)
# 为每个节点生成进程
self.network.generate_processes(num_processes_per_node=5)
# 更新可视化
self.network.visualize_network(self.network_canvas)
# 更新状态栏
self.status_var.set(f"模拟已重置 - 时间: {self.network.time}")
# 启用按钮
self.run_button.config(state=tk.NORMAL)
self.step_button.config(state=tk.NORMAL)
self.analysis_button.config(state=tk.NORMAL)
# 添加初始日志
self.log_text.insert(tk.END, "模拟已重置\n")
self.log_text.insert(tk.END, f"使用调度算法: {self.algorithm_var.get()}\n")
self.log_text.insert(tk.END, f"时间片大小: {time_quantum}\n\n")
def step_simulation(self):
"""单步执行模拟"""
if not hasattr(self, 'network'):
self.reset_simulation()
# 执行一个时间单位
logs = self.network.run_simulation(time_units=1)
# 更新可视化
self.network.visualize_network(self.network_canvas)
# 更新日志
for log in logs:
self.log_text.insert(tk.END, log + "\n")
self.log_text.see(tk.END) # 滚动到底部
# 更新状态栏
self.status_var.set(f"模拟运行中 - 时间: {self.network.time}")
def run_simulation(self):
"""运行完整模拟"""
if not hasattr(self, 'network'):
self.reset_simulation()
# 禁用按钮防止重复点击
self.run_button.config(state=tk.DISABLED)
self.step_button.config(state=tk.DISABLED)
# 更新状态栏
self.status_var.set(f"模拟运行中 - 时间: {self.network.time}")
# 运行50个时间单位
for _ in range(50):
logs = self.network.run_simulation(time_units=1)
# 更新可视化
self.network.visualize_network(self.network_canvas)
# 更新日志
for log in logs:
self.log_text.insert(tk.END, log + "\n")
self.log_text.see(tk.END) # 滚动到底部
# 更新状态栏
self.status_var.set(f"模拟运行中 - 时间: {self.network.time}")
# 让界面有时间更新
self.root.update_idletasks()
# 重新启用按钮
self.run_button.config(state=tk.NORMAL)
self.step_button.config(state=tk.NORMAL)
# 更新状态栏
self.status_var.set(f"模拟完成 - 时间: {self.network.time}")
def show_analysis(self):
"""显示性能分析窗口"""
if not hasattr(self, 'network'):
self.reset_simulation()
# 创建新窗口
analysis_window = tk.Toplevel(self.root)
analysis_window.title("性能分析")
analysis_window.geometry("800x600")
# 创建标签页
notebook = ttk.Notebook(analysis_window)
notebook.pack(fill=tk.BOTH, expand=True, padx=10, pady=10)
# 性能指标标签页
metrics_frame = ttk.Frame(notebook)
notebook.add(metrics_frame, text="性能指标")
# 获取性能指标
metrics = self.network.get_average_performance()
# 创建性能指标表格
metrics_tree = ttk.Treeview(metrics_frame, columns=("指标", "值"), show="headings")
metrics_tree.heading("指标", text="性能指标")
metrics_tree.heading("值", text="数值")
metrics_tree.column("指标", width=300)
metrics_tree.column("值", width=150)
metrics_tree.pack(fill=tk.BOTH, expand=True, padx=10, pady=10)
# 添加性能指标
metrics_tree.insert("", tk.END, values=("平均等待时间", f"{metrics['avg_waiting_time']:.2f}"))
metrics_tree.insert("", tk.END, values=("平均周转时间", f"{metrics['avg_turnaround_time']:.2f}"))
metrics_tree.insert("", tk.END, values=("吞吐量", f"{metrics['avg_throughput']:.2f}"))
metrics_tree.insert("", tk.END, values=("平均数据包延迟", f"{metrics['avg_packet_delay']:.2f}"))
metrics_tree.insert("", tk.END, values=("平均跳数", f"{metrics['avg_hops']:.2f}"))
metrics_tree.insert("", tk.END, values=("已完成进程数", f"{metrics['completed_processes']}"))
metrics_tree.insert("", tk.END, values=("总进程数", f"{metrics['total_processes']}"))
# 算法分析标签页
analysis_frame = ttk.Frame(notebook)
notebook.add(analysis_frame, text="算法分析")
# 添加分析文本
analysis_text = scrolledtext.ScrolledText(analysis_frame, wrap=tk.WORD)
analysis_text.pack(fill=tk.BOTH, expand=True, padx=10, pady=10)
analysis_content = """
进程调度算法分析
1. 最短作业优先(SJF)算法
优点:
- 平均等待时间和周转时间通常最优，能有效提高系统吞吐量
- 短作业能够快速完成，减少了整体响应时间
- 在作业执行时间差异较大的情况下表现尤为出色
缺点:
- 需要预先知道作业执行时间，这在实际系统中往往难以实现
- 对长作业不利，可能导致长作业长时间得不到处理(饥饿现象)
- 无法适应动态到达的作业流
适用场景:
- 批处理系统，作业执行时间可预测的场景
- 作业执行时间差异较大的环境
- 对系统吞吐量要求较高的场景
2. 时间片轮转(RR)算法
优点:
- 公平性好，每个进程都能在一定时间内得到处理
- 响应时间快，适合交互式系统，用户体验较好
- 实现简单，不需要预先知道作业执行时间
缺点:
- 时间片设置过小将增加上下文切换开销，降低系统效率
- 时间片设置过大则退化为FCFS算法，失去RR的优势
- 平均周转时间通常比SJF长
适用场景:
- 分时系统，需要快速响应的交互式系统
- 作业执行时间相近的环境
- 对公平性要求较高的场景
3. 先来先服务(FCFS)算法
优点:
- 实现简单，公平性较好
- 没有饥饿现象，每个进程最终都会被执行
缺点:
- 长作业可能导致短作业长时间等待
- 平均等待时间和周转时间通常不是最优
- 不适合需要快速响应的系统
适用场景:
- 对响应时间要求不高的批处理系统
- 作业执行时间相近的环境
在本次模拟中:
- 平均等待时间为 {avg_waiting_time:.2f}
- 平均周转时间为 {avg_turnaround_time:.2f}
- 吞吐量为 {avg_throughput:.2f}
- 平均数据包延迟为 {avg_packet_delay:.2f}
结论:
- 选择调度算法时，需要根据系统类型、作业特性和性能目标综合考虑
- 对于网络环境，RR算法通常更适合，因为它提供了更好的公平性和响应时间
- 时间片大小对RR算法的性能影响很大，需要根据系统特性合理设置
""".format(**metrics)
analysis_text.insert(tk.END, analysis_content)
analysis_text.config(state=tk.DISABLED) # 设为只读
# 性能比较标签页
compare_frame = ttk.Frame(notebook)
notebook.add(compare_frame, text="算法比较")
# 添加比较按钮
compare_button = ttk.Button(compare_frame, text="比较不同算法",
command=lambda: self.compare_algorithms(compare_frame))
compare_button.pack(pady=10)
# 初始显示提示信息
ttk.Label(compare_frame, text="点击上方按钮比较不同调度算法的性能").pack(pady=20)
def compare_algorithms(self, parent_frame):
"""比较不同调度算法的性能"""
# 清除现有内容
for widget in parent_frame.winfo_children():
widget.destroy()
# 创建图表
fig = Figure(figsize=(7, 5), dpi=100)
# 获取当前网络配置
num_nodes = self.network.num_nodes
connectivity = self.network.connectivity
# 比较三种算法
algorithms = [
(SchedulingAlgorithm.FCFS, "FCFS"),
(SchedulingAlgorithm.SJF, "SJF"),
(SchedulingAlgorithm.RR, "RR")
]
results = {}
for algorithm, name in algorithms:
# 创建新的网络实例
network = MeshNetwork(
num_nodes=num_nodes,
connectivity=connectivity,
scheduling_algorithm=algorithm,
time_quantum=self.time_quantum_var.get()
)
# 生成相同的进程集
network.generate_processes(num_processes_per_node=5)
# 运行模拟
for _ in range(50):
network.run_simulation(time_units=1)
# 收集结果
results[name] = network.get_average_performance()
# 绘制比较图表
metrics = ['avg_waiting_time', 'avg_turnaround_time', 'avg_throughput', 'avg_packet_delay']
metric_names = ['平均等待时间', '平均周转时间', '吞吐量', '平均数据包延迟']
for i, metric in enumerate(metrics):
ax = fig.add_subplot(2, 2, i + 1)
values = [results[alg][metric] for alg in results.keys()]
ax.bar(results.keys(), values, color=['blue', 'green', 'orange'])
ax.set_title(metric_names[i])
ax.set_ylabel(metric_names[i].split('(')[0])
# 添加数值标签
for j, v in enumerate(values):
ax.text(j, v + 0.05 * max(values), f'{v:.2f}', ha='center')
fig.tight_layout()
# 在Tkinter中显示图表
canvas = FigureCanvasTkAgg(fig, master=parent_frame)
canvas.draw()
canvas.get_tk_widget().pack(fill=tk.BOTH, expand=True)
if __name__ == "__main__":
root = tk.Tk()
app = NetworkSimulationGUI(root)
root.mainloop()
扫一扫
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
