WPF TabControl控件示例

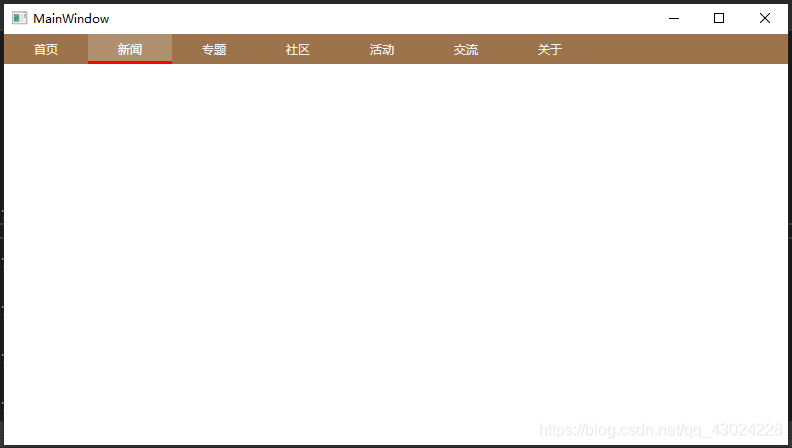

运行效果：
在这里插入图片描述
主窗体XAML代码：

<Window x:Class="WPF0417.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:WPF0417"
        mc:Ignorable="d"
        Title="MainWindow" Height="450" Width="800">
    <Border Background="#9C734B">
        <Grid>
            <TabControl Style="{StaticResource TabControlStyle}">
                <TabItem Header="首页" Foreground="#ddffffff" Style="{StaticResource TabItemStyle}">

                </TabItem>
                <TabItem Header="新闻" Foreground="#ddffffff" Style="{StaticResource TabItemStyle}">

                </TabItem>
                <TabItem Header="专题" Foreground="#ddffffff" Style="{StaticResource TabItemStyle}">

                </TabItem>
                <TabItem Header="社区" Foreground="#ddffffff" Style="{StaticResource TabItemStyle}">

                </TabItem>
                <TabItem Header="活动" Foreground="#ddffffff" Style="{StaticResource TabItemStyle}">

                </TabItem>
                <TabItem Header="交流" Foreground="#ddffffff" Style="{StaticResource TabItemStyle}">

                </TabItem>
                <TabItem Header="关于" Foreground="#ddffffff" Style="{StaticResource TabItemStyle}">

                </TabItem>
            </TabControl>
        </Grid>
    </Border>
</Window>

新建一个Styles文件夹，内部添加一个资源字典文件TabControl，代码如下：

<ResourceDictionary xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
                    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
                    xmlns:local="clr-namespace:WPF0417.Styles"
                    xmlns:controls="clr-namespace:WPFDemo.Controls">

    <Style x:Key="TabControlStyle" TargetType="{x:Type TabControl}">
        <Setter Property="Template">
            <Setter.Value>
                <ControlTemplate TargetType="{x:Type TabControl}">
                    <Grid Background="Transparent">
                        <Grid.RowDefinitions>
                            <RowDefinition Height="Auto"/>
                            <RowDefinition Height="*"/>
                        </Grid.RowDefinitions>
                        <Border  BorderBrush="Transparent" BorderThickness="0 0 0 0">
                            <TabPanel IsItemsHost="True"/>
                        </Border>
                        <Border Grid.Row="1"
                                    BorderBrush="Transparent"
                                    Padding="0"
                                    BorderThickness="0" Background="{TemplateBinding Background}">
                            <ContentPresenter ContentSource="SelectedContent" Name="PART_SelectedContentHost"/>
                        </Border>
                    </Grid>

                </ControlTemplate>
            </Setter.Value>
        </Setter>
    </Style>

    <!--TabControl-->
    <Style x:Key="TabItemStyle" TargetType="TabItem">
        <Setter Property="Template">
            <Setter.Value>
                <ControlTemplate TargetType="TabItem">
                    <Grid >
                        <Border x:Name="bd"
                                    Background="Transparent"
                                    Height="30"
                                    BorderBrush="Transparent"
                                    BorderThickness="0 0 0 0"
                                    CornerRadius="0,0,0,0"
                                    Margin="0">
                            <TextBlock x:Name="txt" Text="{Binding RelativeSource={RelativeSource Mode=TemplatedParent},Path=Header}" VerticalAlignment="Center" Margin="30 0"/>
                        </Border>
                        <Rectangle Fill="Red" Height="3" VerticalAlignment="Bottom" Visibility="Hidden" Name="LeftSideRectangle"></Rectangle>
                    </Grid>
                    <ControlTemplate.Triggers>
                        <Trigger Property="IsSelected" Value="true">
                            <Setter TargetName="bd" Property="BorderThickness" Value="0,0,0,0" />
                            <Setter TargetName="bd" Property="BorderBrush" Value="Transparent" />
                            <Setter TargetName="bd" Property="Background" Value="#33ffffff" />
                            <Setter TargetName="LeftSideRectangle" Property="Visibility" Value="Visible"></Setter>
                            <!--<Setter TargetName="bd" Property="Background" Value="{StaticResource  defaultcolor}" />-->
                            <Setter TargetName="txt" Property="Foreground" Value="#fff"/>
                        </Trigger>
                        <!--<Trigger Property="IsMouseOver" Value="true">
                            <Setter TargetName="txt" Property="Foreground" Value="{StaticResource defaultoverbg}"/>
                        </Trigger>-->
                        <MultiTrigger>
                            <MultiTrigger.Conditions>
                                <Condition Property="IsSelected" Value="False"/>
                                <Condition Property="IsMouseOver" Value="True"/>
                            </MultiTrigger.Conditions>
                            <Setter TargetName="txt" Property="Foreground" Value="#fff"/>
                        </MultiTrigger>
                    </ControlTemplate.Triggers>
                </ControlTemplate>
            </Setter.Value>
        </Setter>
    </Style>

    <Style x:Key="TabControlStyle1" TargetType="{x:Type TabControl}">
        <Setter Property="Padding" Value="2"/>
        <Setter Property="HorizontalContentAlignment" Value="Center"/>
        <Setter Property="VerticalContentAlignment" Value="Center"/>
        <Setter Property="Background" Value="White"/>
        <Setter Property="BorderBrush" Value="#FFACACAC"/>
        <Setter Property="BorderThickness" Value="1"/>
        <Setter Property="Foreground" Value="{DynamicResource {x:Static SystemColors.ControlTextBrushKey}}"/>
        <Setter Property="Template">
            <Setter.Value>
                <ControlTemplate TargetType="{x:Type TabControl}">
                    <Border BorderThickness="{TemplateBinding BorderThickness}" BorderBrush="{TemplateBinding BorderBrush}" Background="{TemplateBinding Background}">
                        <Grid x:Name="templateRoot" ClipToBounds="True" SnapsToDevicePixels="True" KeyboardNavigation.TabNavigation="Local">
                            <Grid.ColumnDefinitions>
                                <ColumnDefinition x:Name="ColumnDefinition0"/>
                                <ColumnDefinition x:Name="ColumnDefinition1" Width="0"/>
                            </Grid.ColumnDefinitions>
                            <Grid.RowDefinitions>
                                <RowDefinition x:Name="RowDefinition0" Height="Auto"/>
                                <RowDefinition x:Name="RowDefinition1" Height="*"/>
                            </Grid.RowDefinitions>
                            <UniformGrid x:Name="HeaderPanel" Rows="1" Background="Transparent" Grid.Column="0" IsItemsHost="True" Margin="0" Grid.Row="0" KeyboardNavigation.TabIndex="1" Panel.ZIndex="1"/>
                            <Line X1="0" X2="{Binding ActualWidth, RelativeSource={RelativeSource Self}}" Stroke="White" StrokeThickness="0.1" VerticalAlignment="Bottom" Margin="0 0 0 1" SnapsToDevicePixels="True"/>
                            <Border x:Name="ContentPanel" BorderThickness="0" Background="{TemplateBinding Background}" Grid.Column="0" KeyboardNavigation.DirectionalNavigation="Contained" Grid.Row="1" KeyboardNavigation.TabIndex="2" KeyboardNavigation.TabNavigation="Local">
                                <ContentPresenter x:Name="PART_SelectedContentHost" ContentTemplate="{TemplateBinding SelectedContentTemplate}" Content="{TemplateBinding SelectedContent}" ContentStringFormat="{TemplateBinding SelectedContentStringFormat}" ContentSource="SelectedContent" Margin="0" SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}"/>
                            </Border>
                        </Grid>
                    </Border>

                    <ControlTemplate.Triggers>
                        <Trigger Property="TabStripPlacement" Value="Bottom">
                            <Setter Property="Grid.Row" TargetName="HeaderPanel" Value="1"/>
                            <Setter Property="Grid.Row" TargetName="ContentPanel" Value="0"/>
                            <Setter Property="Height" TargetName="RowDefinition0" Value="*"/>
                            <Setter Property="Height" TargetName="RowDefinition1" Value="Auto"/>
                        </Trigger>
                        <Trigger Property="TabStripPlacement" Value="Left">
                            <Setter Property="Grid.Row" TargetName="HeaderPanel" Value="0"/>
                            <Setter Property="Grid.Row" TargetName="ContentPanel" Value="0"/>
                            <Setter Property="Grid.Column" TargetName="HeaderPanel" Value="0"/>
                            <Setter Property="Grid.Column" TargetName="ContentPanel" Value="1"/>
                            <Setter Property="Width" TargetName="ColumnDefinition0" Value="Auto"/>
                            <Setter Property="Width" TargetName="ColumnDefinition1" Value="*"/>
                            <Setter Property="Height" TargetName="RowDefinition0" Value="*"/>
                            <Setter Property="Height" TargetName="RowDefinition1" Value="0"/>
                        </Trigger>
                        <Trigger Property="TabStripPlacement" Value="Right">
                            <Setter Property="Grid.Row" TargetName="HeaderPanel" Value="0"/>
                            <Setter Property="Grid.Row" TargetName="ContentPanel" Value="0"/>
                            <Setter Property="Grid.Column" TargetName="HeaderPanel" Value="1"/>
                            <Setter Property="Grid.Column" TargetName="ContentPanel" Value="0"/>
                            <Setter Property="Width" TargetName="ColumnDefinition0" Value="*"/>
                            <Setter Property="Width" TargetName="ColumnDefinition1" Value="Auto"/>
                            <Setter Property="Height" TargetName="RowDefinition0" Value="*"/>
                            <Setter Property="Height" TargetName="RowDefinition1" Value="0"/>
                        </Trigger>
                        <Trigger Property="IsEnabled" Value="False">
                            <Setter Property="TextElement.Foreground" TargetName="templateRoot" Value="{DynamicResource {x:Static SystemColors.GrayTextBrushKey}}"/>
                        </Trigger>
                    </ControlTemplate.Triggers>
                </ControlTemplate>
            </Setter.Value>
        </Setter>
    </Style>

    <Style x:Key="TabItemStyle1" TargetType="{x:Type TabItem}">
        <Setter Property="Foreground" Value="White"/>
        <Setter Property="Background" Value="Transparent"/>
        <Setter Property="BorderBrush" Value="#FFACACAC"/>
        <Setter Property="Margin" Value="0"/>
        <Setter Property="HorizontalContentAlignment" Value="Stretch"/>
        <Setter Property="VerticalContentAlignment" Value="Stretch"/>
        <Setter Property="Template">
            <Setter.Value>
                <ControlTemplate TargetType="{x:Type TabItem}">
                    <Grid x:Name="templateRoot"  SnapsToDevicePixels="True" Background="Transparent">
                        <TextBlock x:Name="txt" Visibility="Visible" VerticalAlignment="Center" HorizontalAlignment="Center" Text="{TemplateBinding Header}" ToolTip="{TemplateBinding Header}" Foreground="{TemplateBinding Foreground}" TextTrimming="CharacterEllipsis" />
                    </Grid>
                    <ControlTemplate.Triggers>
                        <MultiDataTrigger>
                            <MultiDataTrigger.Conditions>
                                <Condition Binding="{Binding IsMouseOver, RelativeSource={RelativeSource Self}}" Value="true"/>
                                <Condition Binding="{Binding TabStripPlacement, RelativeSource={RelativeSource FindAncestor, AncestorLevel=1, AncestorType={x:Type TabControl}}}" Value="Top"/>
                            </MultiDataTrigger.Conditions>

                            <Setter Property="Foreground" TargetName="txt" Value="#fffea1"/>
                        </MultiDataTrigger>
                        <MultiDataTrigger>
                            <MultiDataTrigger.Conditions>
                                <Condition Binding="{Binding IsEnabled, RelativeSource={RelativeSource Self}}" Value="false"/>
                                <Condition Binding="{Binding TabStripPlacement, RelativeSource={RelativeSource FindAncestor, AncestorLevel=1, AncestorType={x:Type TabControl}}}" Value="Left"/>
                            </MultiDataTrigger.Conditions>
                            <Setter Property="Opacity" TargetName="templateRoot" Value="0.56"/>
                        </MultiDataTrigger>
                        <MultiDataTrigger>
                            <MultiDataTrigger.Conditions>
                                <Condition Binding="{Binding IsEnabled, RelativeSource={RelativeSource Self}}" Value="false"/>
                                <Condition Binding="{Binding TabStripPlacement, RelativeSource={RelativeSource FindAncestor, AncestorLevel=1, AncestorType={x:Type TabControl}}}" Value="Bottom"/>
                            </MultiDataTrigger.Conditions>
                            <Setter Property="Opacity" TargetName="templateRoot" Value="0.56"/>
                        </MultiDataTrigger>
                        <MultiDataTrigger>
                            <MultiDataTrigger.Conditions>
                                <Condition Binding="{Binding IsEnabled, RelativeSource={RelativeSource Self}}" Value="false"/>
                                <Condition Binding="{Binding TabStripPlacement, RelativeSource={RelativeSource FindAncestor, AncestorLevel=1, AncestorType={x:Type TabControl}}}" Value="Right"/>
                            </MultiDataTrigger.Conditions>
                            <Setter Property="Opacity" TargetName="templateRoot" Value="0.56"/>
                        </MultiDataTrigger>
                        <MultiDataTrigger>
                            <MultiDataTrigger.Conditions>
                                <Condition Binding="{Binding IsEnabled, RelativeSource={RelativeSource Self}}" Value="false"/>
                                <Condition Binding="{Binding TabStripPlacement, RelativeSource={RelativeSource FindAncestor, AncestorLevel=1, AncestorType={x:Type TabControl}}}" Value="Top"/>
                            </MultiDataTrigger.Conditions>
                            <Setter Property="Opacity" TargetName="templateRoot" Value="0.56"/>
                        </MultiDataTrigger>

                        <MultiDataTrigger>
                            <MultiDataTrigger.Conditions>
                                <Condition Binding="{Binding IsSelected, RelativeSource={RelativeSource Self}}" Value="true"/>
                                <Condition Binding="{Binding TabStripPlacement, RelativeSource={RelativeSource FindAncestor, AncestorLevel=1, AncestorType={x:Type TabControl}}}" Value="Top"/>
                            </MultiDataTrigger.Conditions>
                            <Setter Property="Panel.ZIndex" Value="1"/>
                            <Setter Property="Foreground" TargetName="txt" Value="#fffea1"/>
                        </MultiDataTrigger>
                    </ControlTemplate.Triggers>
                </ControlTemplate>
            </Setter.Value>
        </Setter>
    </Style>

    <Style x:Key="TabControlWithUnderLineStyle" TargetType="{x:Type TabControl}">
        <Setter Property="Padding" Value="2"/>
        <Setter Property="HorizontalContentAlignment" Value="Center"/>
        <Setter Property="VerticalContentAlignment" Value="Center"/>
        <Setter Property="Background" Value="White"/>
        <Setter Property="BorderBrush" Value="#FFACACAC"/>
        <Setter Property="BorderThickness" Value="1"/>
        <Setter Property="Foreground" Value="{DynamicResource {x:Static SystemColors.ControlTextBrushKey}}"/>
        <Setter Property="Template">
            <Setter.Value>
                <ControlTemplate TargetType="{x:Type TabControl}">
                    <Grid x:Name="templateRoot" ClipToBounds="True" Background="{TemplateBinding Background}" SnapsToDevicePixels="True" KeyboardNavigation.TabNavigation="Local">
                        <Grid.ColumnDefinitions>
                            <ColumnDefinition x:Name="ColumnDefinition0"/>
                            <ColumnDefinition x:Name="ColumnDefinition1" Width="0"/>
                        </Grid.ColumnDefinitions>
                        <Grid.RowDefinitions>
                            <RowDefinition x:Name="RowDefinition0" Height="Auto"/>
                            <RowDefinition x:Name="RowDefinition1" Height="*"/>
                        </Grid.RowDefinitions>
                        <TabPanel x:Name="HeaderPanel" HorizontalAlignment="Center" Background="Transparent" Grid.Column="0" IsItemsHost="True" Margin="0" Grid.Row="0" KeyboardNavigation.TabIndex="1" Panel.ZIndex="1"/>
                        <Line X1="0" X2="{Binding ActualWidth, RelativeSource={RelativeSource Self}}" Stroke="Gray" StrokeThickness="0.1" VerticalAlignment="Bottom" Margin="0 0 0 1" SnapsToDevicePixels="True"/>
                        <Border x:Name="ContentPanel" BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}" Background="{TemplateBinding Background}" Grid.Column="0" KeyboardNavigation.DirectionalNavigation="Contained" Grid.Row="1" KeyboardNavigation.TabIndex="2" KeyboardNavigation.TabNavigation="Local">
                            <ContentPresenter x:Name="PART_SelectedContentHost" ContentTemplate="{TemplateBinding SelectedContentTemplate}" Content="{TemplateBinding SelectedContent}" ContentStringFormat="{TemplateBinding SelectedContentStringFormat}" ContentSource="SelectedContent" Margin="0" SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}"/>
                        </Border>
                    </Grid>
                    <ControlTemplate.Triggers>
                        <Trigger Property="TabStripPlacement" Value="Bottom">
                            <Setter Property="Grid.Row" TargetName="HeaderPanel" Value="1"/>
                            <Setter Property="Grid.Row" TargetName="ContentPanel" Value="0"/>
                            <Setter Property="Height" TargetName="RowDefinition0" Value="*"/>
                            <Setter Property="Height" TargetName="RowDefinition1" Value="Auto"/>
                        </Trigger>
                        <Trigger Property="TabStripPlacement" Value="Left">
                            <Setter Property="Grid.Row" TargetName="HeaderPanel" Value="0"/>
                            <Setter Property="Grid.Row" TargetName="ContentPanel" Value="0"/>
                            <Setter Property="Grid.Column" TargetName="HeaderPanel" Value="0"/>
                            <Setter Property="Grid.Column" TargetName="ContentPanel" Value="1"/>
                            <Setter Property="Width" TargetName="ColumnDefinition0" Value="Auto"/>
                            <Setter Property="Width" TargetName="ColumnDefinition1" Value="*"/>
                            <Setter Property="Height" TargetName="RowDefinition0" Value="*"/>
                            <Setter Property="Height" TargetName="RowDefinition1" Value="0"/>
                        </Trigger>
                        <Trigger Property="TabStripPlacement" Value="Right">
                            <Setter Property="Grid.Row" TargetName="HeaderPanel" Value="0"/>
                            <Setter Property="Grid.Row" TargetName="ContentPanel" Value="0"/>
                            <Setter Property="Grid.Column" TargetName="HeaderPanel" Value="1"/>
                            <Setter Property="Grid.Column" TargetName="ContentPanel" Value="0"/>
                            <Setter Property="Width" TargetName="ColumnDefinition0" Value="*"/>
                            <Setter Property="Width" TargetName="ColumnDefinition1" Value="Auto"/>
                            <Setter Property="Height" TargetName="RowDefinition0" Value="*"/>
                            <Setter Property="Height" TargetName="RowDefinition1" Value="0"/>
                        </Trigger>
                        <Trigger Property="IsEnabled" Value="False">
                            <Setter Property="TextElement.Foreground" TargetName="templateRoot" Value="{DynamicResource {x:Static SystemColors.GrayTextBrushKey}}"/>
                        </Trigger>
                    </ControlTemplate.Triggers>
                </ControlTemplate>
            </Setter.Value>
        </Setter>
    </Style>

    <Style x:Key="TabItemExWithUnderLineStyle"  TargetType="{x:Type TabItem}">
        <Setter Property="Foreground" Value="White"/>
        <Setter Property="Background" Value="Transparent"/>
        <Setter Property="BorderBrush" Value="#FFACACAC"/>
        <Setter Property="Margin" Value="0"/>
        <Setter Property="HorizontalContentAlignment" Value="Stretch"/>
        <Setter Property="VerticalContentAlignment" Value="Stretch"/>
        <Setter Property="Template">
            <Setter.Value>
                <ControlTemplate TargetType="{x:Type TabItem}">
                    <Grid x:Name="templateRoot"  SnapsToDevicePixels="True" Background="Transparent">
                        <Border x:Name="_underline" BorderBrush="#37aefe" BorderThickness="0" Margin="{TemplateBinding Margin}"/>
                        <Grid>
                            <TextBlock x:Name="txt" Visibility="Visible" VerticalAlignment="Center" HorizontalAlignment="Center" Text="{TemplateBinding Header}" ToolTip="{TemplateBinding Header}" Foreground="{TemplateBinding Foreground}" TextTrimming="CharacterEllipsis" />
                        </Grid>
                    </Grid>
                    <ControlTemplate.Triggers>
                        <MultiDataTrigger>
                            <MultiDataTrigger.Conditions>
                                <Condition Binding="{Binding IsMouseOver, RelativeSource={RelativeSource Self}}" Value="true"/>
                                <Condition Binding="{Binding TabStripPlacement, RelativeSource={RelativeSource FindAncestor, AncestorLevel=1, AncestorType={x:Type TabControl}}}" Value="Top"/>
                            </MultiDataTrigger.Conditions>

                            <Setter Property="Foreground" TargetName="txt" Value="#37aefe"/>
                        </MultiDataTrigger>
                        <MultiDataTrigger>
                            <MultiDataTrigger.Conditions>
                                <Condition Binding="{Binding IsEnabled, RelativeSource={RelativeSource Self}}" Value="false"/>
                                <Condition Binding="{Binding TabStripPlacement, RelativeSource={RelativeSource FindAncestor, AncestorLevel=1, AncestorType={x:Type TabControl}}}" Value="Left"/>
                            </MultiDataTrigger.Conditions>
                            <Setter Property="Opacity" TargetName="templateRoot" Value="0.56"/>
                        </MultiDataTrigger>
                        <MultiDataTrigger>
                            <MultiDataTrigger.Conditions>
                                <Condition Binding="{Binding IsEnabled, RelativeSource={RelativeSource Self}}" Value="false"/>
                                <Condition Binding="{Binding TabStripPlacement, RelativeSource={RelativeSource FindAncestor, AncestorLevel=1, AncestorType={x:Type TabControl}}}" Value="Bottom"/>
                            </MultiDataTrigger.Conditions>
                            <Setter Property="Opacity" TargetName="templateRoot" Value="0.56"/>
                        </MultiDataTrigger>
                        <MultiDataTrigger>
                            <MultiDataTrigger.Conditions>
                                <Condition Binding="{Binding IsEnabled, RelativeSource={RelativeSource Self}}" Value="false"/>
                                <Condition Binding="{Binding TabStripPlacement, RelativeSource={RelativeSource FindAncestor, AncestorLevel=1, AncestorType={x:Type TabControl}}}" Value="Right"/>
                            </MultiDataTrigger.Conditions>
                            <Setter Property="Opacity" TargetName="templateRoot" Value="0.56"/>
                        </MultiDataTrigger>
                        <MultiDataTrigger>
                            <MultiDataTrigger.Conditions>
                                <Condition Binding="{Binding IsEnabled, RelativeSource={RelativeSource Self}}" Value="false"/>
                                <Condition Binding="{Binding TabStripPlacement, RelativeSource={RelativeSource FindAncestor, AncestorLevel=1, AncestorType={x:Type TabControl}}}" Value="Top"/>
                            </MultiDataTrigger.Conditions>
                            <Setter Property="Opacity" TargetName="templateRoot" Value="0.56"/>
                        </MultiDataTrigger>

                        <MultiDataTrigger>
                            <MultiDataTrigger.Conditions>
                                <Condition Binding="{Binding IsSelected, RelativeSource={RelativeSource Self}}" Value="true"/>
                                <Condition Binding="{Binding TabStripPlacement, RelativeSource={RelativeSource FindAncestor, AncestorLevel=1, AncestorType={x:Type TabControl}}}" Value="Top"/>
                            </MultiDataTrigger.Conditions>
                            <Setter Property="Panel.ZIndex" Value="1"/>
                            <Setter Property="Foreground" TargetName="txt" Value="#37aefe"/>
                            <Setter Property="BorderThickness" TargetName="_underline" Value="0 0 0 2"/>
                        </MultiDataTrigger>
                    </ControlTemplate.Triggers>
                </ControlTemplate>
            </Setter.Value>
        </Setter>
    </Style>

    <Style TargetType="{x:Type controls:TabItemClose}">
        <Setter Property="HorizontalContentAlignment" Value="Stretch"/>
        <Setter Property="VerticalContentAlignment" Value="Stretch"/>
        <Setter Property="Foreground" Value="#666666"/>
        <Setter Property="Margin" Value="0 0 0 0"/>
        <Setter Property="Padding" Value="0"/>
        <Setter Property="BorderThickness" Value="0"/>
        <Setter Property="CloseIcon" Value="/Images/close.png"/>
        <Setter Property="NormalBackground" Value="White"/>
        <Setter Property="OverBackgound" Value="#33ca5100"/>
        <Setter Property="SelectedBackgound" Value="#ca5100"/>
        <Setter Property="NormalForeground" Value="#555558"/>
        <Setter Property="OverForeground" Value="White"/>
        <Setter Property="SelectedForeground" Value="White"/>
        <Setter Property="Template">
            <Setter.Value>
                <ControlTemplate TargetType="{x:Type controls:TabItemClose}">
                    <Border x:Name="_bordertop"   Width="{TemplateBinding Width}" MaxWidth="{TemplateBinding MaxWidth}" Height="{TemplateBinding Height}"
                            CornerRadius="{TemplateBinding CornerRadius}"  Background="{TemplateBinding NormalBackground}" BorderThickness="{TemplateBinding BorderThickness}"
                            BorderBrush="{TemplateBinding BorderBrush}" ToolTip="{TemplateBinding Header}"  >
                        <DockPanel>
                            <Image x:Name="_logo" DockPanel.Dock="Left" Visibility="Visible" Margin="{TemplateBinding LogoPadding}" Source="{TemplateBinding LogoIcon}" VerticalAlignment="Center"  HorizontalAlignment="Center" Stretch="Uniform" Width="{TemplateBinding LogoIconWidth}" Height="{TemplateBinding LogoIconHeigth}" />
                            <Grid Name="_grid" SnapsToDevicePixels="True">
                                <Grid.ColumnDefinitions>
                                    <ColumnDefinition Width="*" />
                                    <ColumnDefinition x:Name="_col_close" Width="20" />
                                </Grid.ColumnDefinitions>
                                <Border Grid.ColumnSpan="2" Background="White" Opacity="0"/>
                                <TextBlock   x:Name="_txt" VerticalAlignment="Center" TextTrimming="CharacterEllipsis"  Margin="3 0 3 0"   Foreground="{TemplateBinding NormalForeground}" TextAlignment="Center" HorizontalAlignment="Center"   Text="{TemplateBinding Header}"  />
                                <Grid x:Name="_gridclose" Grid.Column="1"  >
                                    <Border x:Name="_borderbg" Background="Black" Opacity="0" />
                                    <controls:ButtonEx x:Name="PART_Close_TabItem" HorizontalAlignment="Center"  VerticalAlignment="Center" Background="Transparent" Visibility="Visible" Icon="{TemplateBinding CloseIcon}"  ButtonType="Icon" />
                                </Grid>
                            </Grid>
                        </DockPanel>

                    </Border>
                    <ControlTemplate.Triggers>
                        <Trigger Property="LogoIcon" Value="{x:Null}">
                            <Setter TargetName="_logo" Property="Visibility" Value="Collapsed" />
                        </Trigger>
                        <Trigger Property="IsCanClose" Value="false">
                            <Setter TargetName="_gridclose" Property="Visibility" Value="Collapsed"/>
                            <Setter TargetName="_col_close" Property="Width" Value="0"/>
                        </Trigger>
                        <Trigger Property="IsSelected" Value="true">
                            <Setter TargetName="_bordertop" Property="Background" Value="{Binding SelectedBackgound,RelativeSource={RelativeSource TemplatedParent}}" />
                            <Setter TargetName="_txt"  Property="Foreground" Value="{Binding SelectedForeground,RelativeSource={RelativeSource TemplatedParent}}"/>
                        </Trigger>
                        <MultiTrigger>
                            <MultiTrigger.Conditions>
                                <Condition Property="IsMouseOver" Value="true"/>
                                <Condition Property="IsSelected" Value="false"/>
                            </MultiTrigger.Conditions>
                            <Setter TargetName="_txt"  Property="Foreground" Value="{Binding OverForeground,RelativeSource={RelativeSource TemplatedParent}}"/>
                            <Setter TargetName="_bordertop"  Property="Background" Value="{Binding OverBackgound,RelativeSource={RelativeSource TemplatedParent}}"/>
                        </MultiTrigger>
                    </ControlTemplate.Triggers>
                </ControlTemplate>
            </Setter.Value>
        </Setter>
    </Style>

</ResourceDictionary>

添加一个Controls文件夹，内部添加上个类ButtonEx，MultiComboBox，TabItemClose，代码如下：
ButtonEx类：

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Media;

namespace WPFDemo.Controls
{
    public class ButtonEx : Button
    {
        static ButtonEx()
        {
            DefaultStyleKeyProperty.OverrideMetadata(typeof(ButtonEx), new FrameworkPropertyMetadata(typeof(ButtonEx)));
        }


        public ButtonType ButtonType
        {
            get { return (ButtonType)GetValue(ButtonTypeProperty); }
            set { SetValue(ButtonTypeProperty, value); }
        }

        public static readonly DependencyProperty ButtonTypeProperty =
            DependencyProperty.Register("ButtonType", typeof(ButtonType), typeof(ButtonEx), new PropertyMetadata(ButtonType.Normal));


        public ImageSource Icon
        {
            get { return (ImageSource)GetValue(IconProperty); }
            set { SetValue(IconProperty, value); }
        }

        public static readonly DependencyProperty IconProperty =
            DependencyProperty.Register("Icon", typeof(ImageSource), typeof(ButtonEx), new PropertyMetadata(null));


        public CornerRadius CornerRadius
        {
            get { return (CornerRadius)GetValue(CornerRadiusProperty); }
            set { SetValue(CornerRadiusProperty, value); }
        }

        public static readonly DependencyProperty CornerRadiusProperty =
            DependencyProperty.Register("CornerRadius", typeof(CornerRadius), typeof(ButtonEx), new PropertyMetadata(new CornerRadius(0)));


        public Brush MouseOverForeground
        {
            get { return (Brush)GetValue(MouseOverForegroundProperty); }
            set { SetValue(MouseOverForegroundProperty, value); }
        }

        public static readonly DependencyProperty MouseOverForegroundProperty =
            DependencyProperty.Register("MouseOverForeground", typeof(Brush), typeof(ButtonEx), new PropertyMetadata());


        public Brush MousePressedForeground
        {
            get { return (Brush)GetValue(MousePressedForegroundProperty); }
            set { SetValue(MousePressedForegroundProperty, value); }
        }

        public static readonly DependencyProperty MousePressedForegroundProperty =
            DependencyProperty.Register("MousePressedForeground", typeof(Brush), typeof(ButtonEx), new PropertyMetadata());


        public Brush MouseOverBorderbrush
        {
            get { return (Brush)GetValue(MouseOverBorderbrushProperty); }
            set { SetValue(MouseOverBorderbrushProperty, value); }
        }

        public static readonly DependencyProperty MouseOverBorderbrushProperty =
            DependencyProperty.Register("MouseOverBorderbrush", typeof(Brush), typeof(ButtonEx), new PropertyMetadata());


        public Brush MouseOverBackground
        {
            get { return (Brush)GetValue(MouseOverBackgroundProperty); }
            set { SetValue(MouseOverBackgroundProperty, value); }
        }

        public static readonly DependencyProperty MouseOverBackgroundProperty =
            DependencyProperty.Register("MouseOverBackground", typeof(Brush), typeof(ButtonEx), new PropertyMetadata());


        public Brush MousePressedBackground
        {
            get { return (Brush)GetValue(MousePressedBackgroundProperty); }
            set { SetValue(MousePressedBackgroundProperty, value); }
        }

        public static readonly DependencyProperty MousePressedBackgroundProperty =
            DependencyProperty.Register("MousePressedBackground", typeof(Brush), typeof(ButtonEx), new PropertyMetadata());

        protected override void OnClick()
        {
            base.OnClick();

            if (!string.IsNullOrEmpty(Name) && Name == "PART_Close_TabItem")
            {
                TabItemClose itemclose = FindVisualParent<TabItemClose>(this);
                (itemclose.Parent as TabControl).Items.Remove(itemclose);
                RoutedEventArgs args = new RoutedEventArgs(TabItemClose.CloseItemEvent, itemclose);
                itemclose.RaiseEvent(args);
            }

        }

        public static T FindVisualParent<T>(DependencyObject obj) where T : class
        {
            while (obj != null)
            {
                if (obj is T)
                    return obj as T;

                obj = VisualTreeHelper.GetParent(obj);
            }

            return null;
        }
    }

    public enum ButtonType
    {
        Normal,
        Icon,
        Text,
        IconText
    }
}

MultiComboBox 类：

using System;
using System.Collections.Generic;
using System.Collections.ObjectModel;
using System.Linq;
using System.Text;
using System.Windows;
using System.Windows.Controls;

namespace WPFDemo.Controls
{
    public class MultiComboBox : ComboBox
    {
        static MultiComboBox()
        {
            DefaultStyleKeyProperty.OverrideMetadata(typeof(MultiComboBox), new FrameworkPropertyMetadata(typeof(MultiComboBox)));
        }


        private static void OnPropertyChanged(DependencyObject d, DependencyPropertyChangedEventArgs e)
        {
            d.SetValue(e.Property, e.NewValue);
        }

        /// <summary>
        /// 选中项列表
        /// </summary>
        public ObservableCollection<MultiCbxBaseData> ChekedItems = new ObservableCollection<MultiCbxBaseData>();

        /// <summary>
        /// ListBox竖向列表
        /// </summary>
        private ListBox _ListBoxV;

        /// <summary>
        /// ListBox横向列表
        /// </summary>
        private ListBox _ListBoxH;

        public override void OnApplyTemplate()
        {
            base.OnApplyTemplate();
            _ListBoxV = Template.FindName("PART_ListBox", this) as ListBox;
            _ListBoxH = Template.FindName("PART_ListBoxChk", this) as ListBox;
            _ListBoxH.ItemsSource = ChekedItems;
            _ListBoxV.SelectionChanged += _ListBoxV_SelectionChanged;
            _ListBoxH.SelectionChanged += _ListBoxH_SelectionChanged;

            if (ItemsSource != null)
            {
                foreach (var item in ItemsSource)
                {
                    MultiCbxBaseData bdc = item as MultiCbxBaseData;
                    if (bdc.IsCheck)
                    {
                        _ListBoxV.SelectedItems.Add(bdc);
                    }
                }
            }
        }

        private void _ListBoxH_SelectionChanged(object sender, SelectionChangedEventArgs e)
        {
            foreach (var item in e.RemovedItems)
            {
                MultiCbxBaseData datachk = item as MultiCbxBaseData;

                for (int i = 0; i < _ListBoxV.SelectedItems.Count; i++)
                {
                    MultiCbxBaseData datachklist = _ListBoxV.SelectedItems[i] as MultiCbxBaseData;
                    if (datachklist.ID == datachk.ID)
                    {
                        _ListBoxV.SelectedItems.Remove(_ListBoxV.SelectedItems[i]);
                    }
                }
            }
        }

        void _ListBoxV_SelectionChanged(object sender, SelectionChangedEventArgs e)
        {
            foreach (var item in e.AddedItems)
            {
                MultiCbxBaseData datachk = item as MultiCbxBaseData;
                datachk.IsCheck = true;
                if (ChekedItems.IndexOf(datachk) < 0)
                {
                    ChekedItems.Add(datachk);
                }
            }

            foreach (var item in e.RemovedItems)
            {
                MultiCbxBaseData datachk = item as MultiCbxBaseData;
                datachk.IsCheck = false;
                ChekedItems.Remove(datachk);
            }
        }

        public class MultiCbxBaseData
        {
            private int _id;
            /// <summary>
            /// 关联主键
            /// </summary>
            public int ID
            {
                get { return _id; }
                set { _id = value; }
            }

            private string _viewName;
            /// <summary>
            /// 显示名称
            /// </summary>
            public string ViewName
            {
                get { return _viewName; }
                set
                {
                    _viewName = value;
                }
            }

            private bool _isCheck;
            /// <summary>
            /// 是否选中
            /// </summary>
            public bool IsCheck
            {
                get { return _isCheck; }
                set { _isCheck = value; }
            }
        }
    }
}

TabItemClose类：

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Media;

namespace WPFDemo.Controls
{
    public class TabItemClose : TabItem
    {
        static TabItemClose()
        {
            DefaultStyleKeyProperty.OverrideMetadata(typeof(TabItemClose), new FrameworkPropertyMetadata(typeof(TabItemClose)));
        }

        private static void OnPropertyChanged(DependencyObject d, DependencyPropertyChangedEventArgs e)
        {
            d.SetValue(e.Property, e.NewValue);
        }

        /// <summary>
        /// 是否可以关闭
        /// </summary>
        public bool IsCanClose
        {
            get { return (bool)GetValue(IsCanCloseProperty); }
            set { SetValue(IsCanCloseProperty, value); }
        }

        public static readonly DependencyProperty IsCanCloseProperty =
            DependencyProperty.Register("IsCanClose", typeof(bool), typeof(TabItemClose), new PropertyMetadata(true, OnPropertyChanged));

        /// <summary>
        /// 关闭的图标
        /// </summary>
        public ImageSource CloseIcon
        {
            get { return (ImageSource)GetValue(CloseIconProperty); }
            set { SetValue(CloseIconProperty, value); }
        }

        public static readonly DependencyProperty CloseIconProperty =
            DependencyProperty.Register("CloseIcon", typeof(ImageSource), typeof(TabItemClose), new PropertyMetadata(null, OnPropertyChanged));



        /// <summary>
        /// 正常背景色
        /// </summary>
        public SolidColorBrush NormalBackground
        {
            get { return (SolidColorBrush)GetValue(NormalBackgroundProperty); }
            set { SetValue(NormalBackgroundProperty, value); }
        }

        public static readonly DependencyProperty NormalBackgroundProperty =
            DependencyProperty.Register("NormalBackground", typeof(SolidColorBrush), typeof(TabItemClose), new PropertyMetadata(null, OnPropertyChanged));

        /// <summary>
        /// 悬浮背景色
        /// </summary>
        public SolidColorBrush OverBackgound
        {
            get { return (SolidColorBrush)GetValue(OverBackgoundProperty); }
            set { SetValue(OverBackgoundProperty, value); }
        }

        public static readonly DependencyProperty OverBackgoundProperty =
            DependencyProperty.Register("OverBackgound", typeof(SolidColorBrush), typeof(TabItemClose), new PropertyMetadata(null, OnPropertyChanged));


        /// <summary>
        /// 选中背景色
        /// </summary>
        public SolidColorBrush SelectedBackgound
        {
            get { return (SolidColorBrush)GetValue(SelectedBackgoundProperty); }
            set { SetValue(SelectedBackgoundProperty, value); }
        }

        public static readonly DependencyProperty SelectedBackgoundProperty =
            DependencyProperty.Register("SelectedBackgound", typeof(SolidColorBrush), typeof(TabItemClose), new PropertyMetadata(null, OnPropertyChanged));


        /// <summary>
        /// 默认前景色
        /// </summary>
        public SolidColorBrush NormalForeground
        {
            get { return (SolidColorBrush)GetValue(NormalForegroundProperty); }
            set { SetValue(NormalForegroundProperty, value); }
        }

        public static readonly DependencyProperty NormalForegroundProperty =
            DependencyProperty.Register("NormalForeground", typeof(SolidColorBrush), typeof(TabItemClose), new PropertyMetadata(null, OnPropertyChanged));

        /// <summary>
        /// 悬浮前景色
        /// </summary>
        public SolidColorBrush OverForeground
        {
            get { return (SolidColorBrush)GetValue(OverForegroundProperty); }
            set { SetValue(OverForegroundProperty, value); }
        }

        public static readonly DependencyProperty OverForegroundProperty =
            DependencyProperty.Register("OverForeground", typeof(SolidColorBrush), typeof(TabItemClose), new PropertyMetadata(null, OnPropertyChanged));

        /// <summary>
        /// 选中前景色
        /// </summary>
        public SolidColorBrush SelectedForeground
        {
            get { return (SolidColorBrush)GetValue(SelectedForegroundProperty); }
            set { SetValue(SelectedForegroundProperty, value); }
        }

        public static readonly DependencyProperty SelectedForegroundProperty =
            DependencyProperty.Register("SelectedForeground", typeof(SolidColorBrush), typeof(TabItemClose), new PropertyMetadata(null, OnPropertyChanged));


        /// <summary>
        /// 控件圆角
        /// </summary>
        public CornerRadius CornerRadius
        {
            get { return (CornerRadius)GetValue(CornerRadiusProperty); }
            set { SetValue(CornerRadiusProperty, value); }
        }

        public static readonly DependencyProperty CornerRadiusProperty =
            DependencyProperty.Register("CornerRadius", typeof(CornerRadius), typeof(TabItemClose), new PropertyMetadata(new CornerRadius(0), OnPropertyChanged));


        /// <summary>
        /// 前置Logo
        /// </summary>
        public ImageSource LogoIcon
        {
            get { return (ImageSource)GetValue(LogoIconProperty); }
            set { SetValue(LogoIconProperty, value); }
        }

        public static readonly DependencyProperty LogoIconProperty =
            DependencyProperty.Register("LogoIcon", typeof(ImageSource), typeof(TabItemClose), new PropertyMetadata(null, OnPropertyChanged));



        /// <summary>
        /// 前置Logo宽度
        /// </summary>
        public double LogoIconWidth
        {
            get { return (double)GetValue(LogoIconWidthProperty); }
            set { SetValue(LogoIconWidthProperty, value); }
        }

        public static readonly DependencyProperty LogoIconWidthProperty =
            DependencyProperty.Register("LogoIconWidth", typeof(double), typeof(TabItemClose), new PropertyMetadata(double.Parse("0"), OnPropertyChanged));


        /// <summary>
        /// 前置Logo高度
        /// </summary>
        public double LogoIconHeigth
        {
            get { return (double)GetValue(LogoIconHeigthProperty); }
            set { SetValue(LogoIconHeigthProperty, value); }
        }

        public static readonly DependencyProperty LogoIconHeigthProperty =
            DependencyProperty.Register("LogoIconHeigth", typeof(double), typeof(TabItemClose), new PropertyMetadata(double.Parse("0"), OnPropertyChanged));


        /// <summary>
        /// LogoPadding
        /// </summary>
        public Thickness LogoPadding
        {
            get { return (Thickness)GetValue(LogoPaddingProperty); }
            set { SetValue(LogoPaddingProperty, value); }
        }

        public static readonly DependencyProperty LogoPaddingProperty =
            DependencyProperty.Register("LogoPadding", typeof(Thickness), typeof(TabItemClose), new PropertyMetadata(new Thickness(0), OnPropertyChanged));

        /// <summary>
        /// 关闭item事件
        /// </summary>
        public event RoutedEventHandler CloseItem
        {
            add { AddHandler(CloseItemEvent, value); }
            remove { RemoveHandler(CloseItemEvent, value); }
        }
        public static readonly RoutedEvent CloseItemEvent =
            EventManager.RegisterRoutedEvent("CloseItem", RoutingStrategy.Bubble, typeof(RoutedEventHandler), typeof(TabItemClose));

        /// <summary>
        /// 关闭项的右键菜单
        /// </summary>
        public ContextMenu ItemContextMenu { get; set; }

        Border ItemBorder;

        public override void OnApplyTemplate()
        {
            base.OnApplyTemplate();
            ItemBorder = Template.FindName("_bordertop", this) as Border;
            if (ItemContextMenu != null)
            {
                ItemBorder.ContextMenu = ItemContextMenu;
            }
        }
    }
}

在APP.XAML中引用资源字典：

<Application x:Class="WPF0417.App"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:local="clr-namespace:WPF0417"
             StartupUri="MainWindow.xaml">
    <Application.Resources>
        <ResourceDictionary>
            <ResourceDictionary.MergedDictionaries>
                <ResourceDictionary Source="Styles/TabControl.xaml"></ResourceDictionary>
            </ResourceDictionary.MergedDictionaries>
        </ResourceDictionary>
    </Application.Resources>
</Application>

文件结构：
在这里插入图片描述

Danny_hi

关注

5
点赞
踩
31

收藏

觉得还不错? 一键收藏
1
评论
WPF TabControl控件示例

WPF TabControl控件示例运行效果：主窗体XAML代码：<Window x:Class="WPF0417.MainWindow" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/win...
复制链接

扫一扫
