WPF 自定义滚动条控件ScrollViewer(三)
一、添加资源字典:
ScrollViewer.xaml
<ResourceDictionary xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml">
<Style x:Key="ScrollBarThumb"
TargetType="{x:Type Thumb}">
<Setter Property="OverridesDefaultStyle"
Value="true"/>
<Setter Property="IsTabStop"
Value="false"/>
<Setter Property="Template">
<Setter.Value>
<ControlTemplate TargetType="{x:Type Thumb}">
<Grid>
<Rectangle
Fill="#90000000"
RadiusX="3"
RadiusY="3"/>
</Grid>
</ControlTemplate>
</Setter.Value>
</Setter>
</Style>
<Style x:Key="HorizontalScrollBarPageButton"
TargetType="{x:Type RepeatButton}">
<Setter Property="OverridesDefaultStyle"
Value="true"/>
<Setter Property="Background"
Value="Transparent"/>
<Setter Property="Focusable"
Value="false"/>
<Setter Property="IsTabStop"
Value="false"/>
<Setter Property="Opacity"
Value="0"/>
<Setter Property="Template">
<Setter.Value>
<ControlTemplate TargetType="{x:Type RepeatButton}">
<Rectangle Fill="{TemplateBinding Background}"
Width="{TemplateBinding Width}"
Height="{TemplateBinding Height}"/>
</ControlTemplate>
</Setter.Value>
</Setter>
</Style>
<Style x:Key="VerticalScrollBarPageButton"
TargetType="{x:Type RepeatButton}">
<Setter Property="OverridesDefaultStyle"
Value="true"/>
<Setter Property="Background"
Value="Transparent"/>
<Setter Property="Focusable"
Value="false"/>
<Setter Property="IsTabStop"
Value="false"/>
<Setter Property="Opacity"
Value="0"/>
<Setter Property="Template">
<Setter.Value>
<ControlTemplate TargetType="{x:Type RepeatButton}">
<Rectangle Fill="{TemplateBinding Background}"
Width="{TemplateBinding Width}"
Height="{TemplateBinding Height}"/>
</ControlTemplate>
</Setter.Value>
</Setter>
</Style>
<Style x:Key="for_scrollbar"
TargetType="{x:Type ScrollBar}">
<Setter Property="Stylus.IsPressAndHoldEnabled"
Value="false"/>
<Setter Property="Stylus.IsFlicksEnabled"
Value="false"/>
<Setter Property="Background"
Value="Transparent"/>
<Setter Property="Margin"
Value="0,1,1,6"/>
<Setter Property="Width"
Value="5"/>
<Setter Property="MinWidth"
Value="5"/>
<Setter Property="Opacity"
Value="0"/>
<Setter Property="Template">
<Setter.Value>
<ControlTemplate TargetType="{x:Type ScrollBar}">
<Grid x:Name="Bg" SnapsToDevicePixels="true">
<Track x:Name="PART_Track"
IsEnabled="{TemplateBinding IsMouseOver}"
IsDirectionReversed="true">
<Track.DecreaseRepeatButton>
<RepeatButton
Style="{StaticResource VerticalScrollBarPageButton}"
Command="{x:Static ScrollBar.PageUpCommand}"/>
</Track.DecreaseRepeatButton>
<Track.IncreaseRepeatButton>
<RepeatButton
Style="{StaticResource VerticalScrollBarPageButton}"
Command="{x:Static ScrollBar.PageDownCommand}"/>
</Track.IncreaseRepeatButton>
<Track.Thumb>
<Thumb Style="{StaticResource ScrollBarThumb}"/>
</Track.Thumb>
</Track>
</Grid>
</ControlTemplate>
</Setter.Value>
</Setter>
<Style.Triggers>
<Trigger Property="Orientation"
Value="Horizontal">
<Setter Property="Background"
Value="Transparent"/>
<Setter Property="Margin"
Value="1,0,6,1"/>
<Setter Property="Height"
Value="5"/>
<Setter Property="MinHeight"
Value="5"/>
<Setter Property="Width"
Value="Auto"/>
<Setter Property="Opacity"
Value="0"/>
<Setter Property="Template">
<Setter.Value>
<ControlTemplate TargetType="{x:Type ScrollBar}">
<Grid x:Name="Bg" SnapsToDevicePixels="true">
<Track x:Name="PART_Track"
IsEnabled="{TemplateBinding IsMouseOver}">
<Track.DecreaseRepeatButton>
<RepeatButton Style="{StaticResource HorizontalScrollBarPageButton}"
Command="{x:Static ScrollBar.PageLeftCommand}"/>
</Track.DecreaseRepeatButton>
<Track.IncreaseRepeatButton>
<RepeatButton Style="{StaticResource HorizontalScrollBarPageButton}"
Command="{x:Static ScrollBar.PageRightCommand}"/>
</Track.IncreaseRepeatButton>
<Track.Thumb>
<Thumb Style="{StaticResource ScrollBarThumb}"/>
</Track.Thumb>
</Track>
</Grid>
</ControlTemplate>
</Setter.Value>
</Setter>
</Trigger>
</Style.Triggers>
</Style>
<!-- ScrollViewer -->
<Style x:Key="for_scrollviewer"
TargetType="{x:Type ScrollViewer}">
<Setter Property="BorderBrush"
Value="LightGray"/>
<Setter Property="BorderThickness"
Value="0"/>
<Setter Property="HorizontalContentAlignment"
Value="Left"/>
<Setter Property="HorizontalScrollBarVisibility"
Value="Auto"/>
<Setter Property="VerticalContentAlignment"
Value="Top"/>
<Setter Property="VerticalScrollBarVisibility"
Value="Auto"/>
<Setter Property="Template">
<Setter.Value>
<ControlTemplate TargetType="{x:Type ScrollViewer}">
<Border BorderBrush="{TemplateBinding BorderBrush}"
BorderThickness="{TemplateBinding BorderThickness}"
SnapsToDevicePixels="True">
<Grid Background="{TemplateBinding Background}">
<ScrollContentPresenter
Cursor="{TemplateBinding Cursor}"
Margin="{TemplateBinding Padding}"
ContentTemplate="{TemplateBinding ContentTemplate}"/>
<ScrollBar x:Name="PART_VerticalScrollBar"
HorizontalAlignment="Right"
Maximum="{TemplateBinding ScrollableHeight}"
Orientation="Vertical"
Style="{StaticResource for_scrollbar}"
ViewportSize="{TemplateBinding ViewportHeight}"
Value="{TemplateBinding VerticalOffset}"
Visibility="{TemplateBinding ComputedVerticalScrollBarVisibility}"/>
<ScrollBar x:Name="PART_HorizontalScrollBar"
Maximum="{TemplateBinding ScrollableWidth}"
Orientation="Horizontal"
Style="{StaticResource for_scrollbar}"
VerticalAlignment="Bottom"
Value="{TemplateBinding HorizontalOffset}"
ViewportSize="{TemplateBinding ViewportWidth}"
Visibility="{TemplateBinding ComputedHorizontalScrollBarVisibility}"/>
</Grid>
</Border>
<ControlTemplate.Triggers>
<EventTrigger RoutedEvent="ScrollChanged">
<BeginStoryboard>
<Storyboard>
<DoubleAnimation
Storyboard.TargetName="PART_VerticalScrollBar"
Storyboard.TargetProperty="Opacity"
To="1"
Duration="0:0:1"/>
<DoubleAnimation
Storyboard.TargetName="PART_VerticalScrollBar"
Storyboard.TargetProperty="Opacity"
To="0"
Duration="0:0:1"
BeginTime="0:0:1"/>
<DoubleAnimation
Storyboard.TargetName="PART_HorizontalScrollBar"
Storyboard.TargetProperty="Opacity"
To="1"
Duration="0:0:1"/>
<DoubleAnimation
Storyboard.TargetName="PART_HorizontalScrollBar"
Storyboard.TargetProperty="Opacity"
To="0"
Duration="0:0:1"
BeginTime="0:0:1"/>
</Storyboard>
</BeginStoryboard>
</EventTrigger>
<EventTrigger RoutedEvent="MouseEnter"
SourceName="PART_VerticalScrollBar">
<BeginStoryboard>
<Storyboard>
<DoubleAnimation
Storyboard.TargetName="PART_VerticalScrollBar"
Storyboard.TargetProperty="Opacity"
To="1"
Duration="0:0:1"/>
</Storyboard>
</BeginStoryboard>
</EventTrigger>
<EventTrigger RoutedEvent="MouseLeave"
SourceName="PART_VerticalScrollBar">
<BeginStoryboard>
<Storyboard>
<DoubleAnimation
Storyboard.TargetName="PART_VerticalScrollBar"
Storyboard.TargetProperty="Opacity"
To="0"
Duration="0:0:1"/>
</Storyboard>
</BeginStoryboard>
</EventTrigger>
<EventTrigger RoutedEvent="MouseEnter"
SourceName="PART_HorizontalScrollBar">
<BeginStoryboard>
<Storyboard>
<DoubleAnimation
Storyboard.TargetName="PART_HorizontalScrollBar"
Storyboard.TargetProperty="Opacity"
To="1"
Duration="0:0:1"/>
</Storyboard>
</BeginStoryboard>
</EventTrigger>
<EventTrigger RoutedEvent="MouseLeave"
SourceName="PART_HorizontalScrollBar">
<BeginStoryboard>
<Storyboard>
<DoubleAnimation
Storyboard.TargetName="PART_HorizontalScrollBar"
Storyboard.TargetProperty="Opacity"
To="0"
Duration="0:0:1"/>
</Storyboard>
</BeginStoryboard>
</EventTrigger>
</ControlTemplate.Triggers>
</ControlTemplate>
</Setter.Value>
</Setter>
</Style>
</ResourceDictionary>
二.主窗体代码:
<Window x:Class="WpfApp8.MainWindow"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:local="clr-namespace:WpfApp8"
mc:Ignorable="d"
Title="MainWindow" Height="450" Width="800">
<Window.Resources>
<ResourceDictionary>
<ResourceDictionary.MergedDictionaries>
<ResourceDictionary Source="ScrollViewer.xaml"/>
</ResourceDictionary.MergedDictionaries>
</ResourceDictionary>
</Window.Resources>
<Grid>
<!--<ContentControl Margin="10">
<ContentControl.Template>
<ControlTemplate TargetType="{x:Type ContentControl}">
<ScrollViewer Style="{StaticResource for_scrollviewer}">
<ContentPresenter/>
</ScrollViewer>
</ControlTemplate>
</ContentControl.Template>
<Canvas Height="1600" Width="1600" Background="AliceBlue">
</Canvas>
</ContentControl>-->
<ScrollViewer Style="{StaticResource for_scrollviewer}" Grid.Column="0" Grid.Row="1" VerticalAlignment="Top" Grid.ColumnSpan="2" x:Name="scrList" Margin="0" VerticalScrollBarVisibility="Auto" Height="350" Width="250">
<StackPanel Orientation="Vertical" Name="layerList" ScrollViewer.VerticalScrollBarVisibility="Visible" Width="250" >
<Button Height="50" Width="230" HorizontalAlignment="Left" Content="数据一"></Button>
<Button Height="50" Width="230" HorizontalAlignment="Left" Content="数据二"></Button>
<Button Height="50" Width="230" HorizontalAlignment="Left" Content="数据三"></Button>
<Button Height="50" Width="230" HorizontalAlignment="Left" Content="数据四"></Button>
<Button Height="50" Width="230" HorizontalAlignment="Left" Content="数据五"></Button>
<Button Height="50" Width="230" HorizontalAlignment="Left" Content="数据六"></Button>
<Button Height="50" Width="230" HorizontalAlignment="Left" Content="数据七"></Button>
<Button Height="50" Width="230" HorizontalAlignment="Left" Content="数据八"></Button>
<Button Height="50" Width="230" HorizontalAlignment="Left" Content="数据九"></Button>
<Button Height="50" Width="230" HorizontalAlignment="Left" Content="数据十"></Button>
</StackPanel>
</ScrollViewer>
</Grid>
</Window>

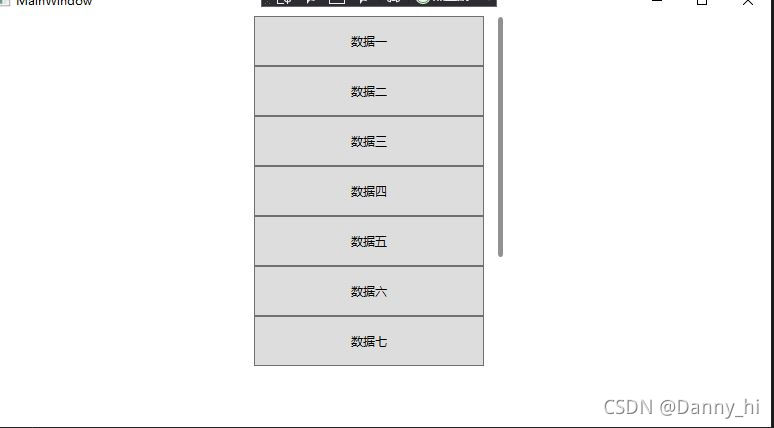

三、运行效果
引用:https://blog.csdn.net/qqamoon/article/details/7317891
