要把一个表格数据导出到Excel中,有很多种实现思路,由于前端的表格数据是后台经数据库查询得到的,所以在导出Excel时没有必要再去访问数据库了,直接在前端把表格数据传到后台就行。后台的实现思路打致是:把前台传来的表格信息转成Document(org.dom4j.Document),然后获取到表头<thead>和表体<tbody>部分,分别循环插入到Excel中。
关于引用的jar包
<dependency>
<groupId>org.apache.poi</groupId>
<artifactId>poi</artifactId>
<version>3.15</version>
</dependency>
<dependency>
<groupId>com.crsc.common</groupId>
<artifactId>xml-apis</artifactId>
<version>2.8.0</version>
</dependency>
直接上代码!
前端部分:
var tableCostStrhtml = $("#tableCostStr").html();
var tableCategoryhtml = $("#tableCategory").html();
var tableExpectedGainhtml = $("#tableExpectedGain").html();
var tableProjectTypehtml = $("#tableProjectType").html();
//获取表格内容 js 和 jquary 的两种写法
//var tableProjectTypehtml = document.getElementById('tableProjectType').innerHTML;
/* 模拟表单提交 */
document.write("<form action='${adminPath}/budgetStatistic/export/exportForEchartsImg' method=post name='form1' style='display:none'>");
document.write("<input type=hidden name='tableCostStrhtml' value='"+tableCostStrhtml+"'/>");
document.write("<input type=hidden name='tableCategoryhtml' value='"+tableCategoryhtml+"'/>");
document.write("<input type=hidden name='tableExpectedGainhtml' value='"+tableExpectedGainhtml+"'/>");
document.write("<input type=hidden name='tableProjectTypehtml' value='"+tableProjectTypehtml+"'/>");
document.write("</form>");
document.form1.submit();
在前端获取表格信息时,有两种写法:
1是js的:document.getElementById('tableProjectType').innerHTML
2是jquary的:$("#tableProjectType").html();
注意,jquary是没有.innerHTML这个方法的,jquary获取内容只有.val(),.html(),.test()这三种方法
js的.innerHTML 和jquary的.html() 方法的区别具体参考博客
https://www.cnblogs.com/lovebing/p/6609903.html

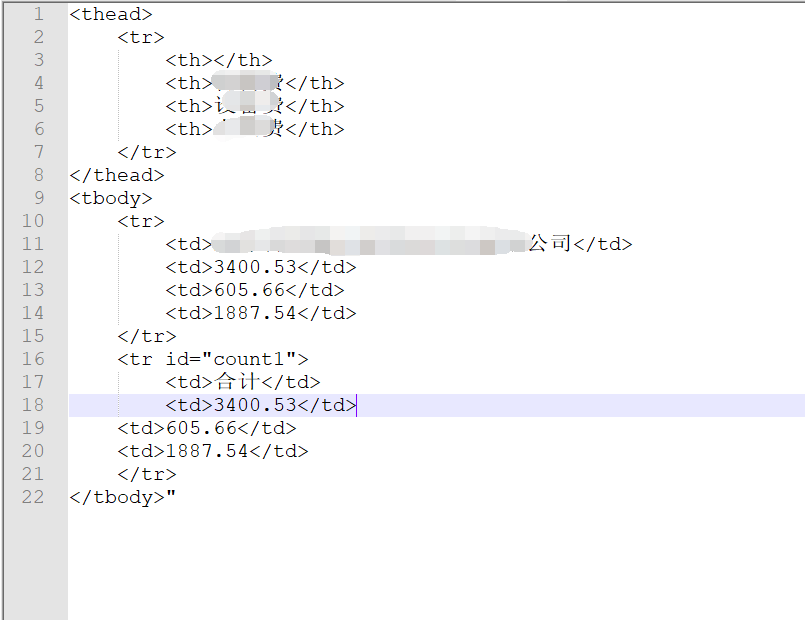

前端获取到的table数据信息为
如果在后台直接Document data = DocumentHelper.parseText(tablehtml);这样把表格转成Document,会报错。因为在转换时,需要一个最大的根节点把整个表信息包起来。所以需要在表信息字符串前后加上<table></table>
后台代码:
@RequestMapping(value = "/export/exportForEchartsImg")
public void exportForEchartsImg(
@RequestParam(value = "tableCostStrhtml") String tableCostStrhtml,
@RequestParam(value = "tableCategoryhtml") String tableCategoryhtml,
@RequestParam(value = "tableExpectedGainhtml") String tableExpectedGainhtml,
@RequestParam(value = "tableProjectTypehtml") String tableProjectTypehtml,HttpServletRequest request,
HttpServletResponse response) throws Exception {
// 创建Excel工作簿
HSSFWorkbook wb = new HSSFWorkbook();
// 创建sheet页
HSSFSheet sheet = wb.createSheet("可视数据");
//table表格
createTableInExcel(wb, sheet, tableCostStrhtml,1,15);
//table表格
createTableInExcel(wb, sheet, tableCategoryhtml,28,15);
//table表格
createTableInExcel(wb, sheet, tableExpectedGainhtml,56,15);
//table表格
createTableInExcel(wb, sheet, tableProjectTypehtml,84,15);
// Excel下载
OutputStream out = response.getOutputStream();
response.setContentType("application/vnd.ms-excel");
//处理导出时文件名中文乱码
String userAgent = request.getHeader("User-Agent");
String filename = "";
if (userAgent.contains("MSIE") || userAgent.contains("Trident")) {
filename = java.net.URLEncoder.encode("可视数据图表", "UTF-8");
} else {
// 非IE浏览器的处理:
filename = new String("可视数据图表".getBytes("UTF-8"), "ISO-8859-1");
}
response.setHeader("Content-Disposition","attachment;filename=" + filename + ".xls");
wb.write(out);
wb.close();
}
/**
* 将表格保存到Excel中
*
* @param wb-----Excel工作簿
* @param sheet-----Excel的sheet页
* @param tablehtml-----前台传来的表格内容
* @param rowIndex------起始行索引
* @param startcellIndex-----起始列索引
*/
public void createTableInExcel(HSSFWorkbook wb,HSSFSheet sheet,String tablehtml,int rowIndex,int startcellIndex){
/*
* html表格转Excel
*/
HSSFCellStyle style = wb.createCellStyle();
style.setAlignment(HSSFCellStyle.ALIGN_CENTER);
//List<CrossRangeCellMeta> crossRowEleMetaLs = new ArrayList<>();
try {
//处理前台传参中文乱码
tablehtml = new String(tablehtml.getBytes("ISO8859-1"), "utf-8");
//在获取到的表格内容前后加上根节点,不然会报错
tablehtml = "<table>" + tablehtml + "</table>";
Document data = DocumentHelper.parseText(tablehtml);
// 获取表头(<thead>部分)
Element thead = data.getRootElement().element("thead");
//设置表头(<thead>)样式
HSSFCellStyle titleStyle = getTitleStyle(wb);
if (thead != null) {
//循环生成表头
List<Element> trLs = thead.elements("tr");
for (Element trEle : trLs) {
HSSFRow row = sheet.createRow(rowIndex);
List<Element> thLs = trEle.elements("th");
makeRowCell(thLs, rowIndex, row, startcellIndex, titleStyle);
rowIndex++;
}
}
// 获取表体(<tbody>部分)
Element tbody = data.getRootElement().element("tbody");
if (tbody != null) {
//设置表体(<tbody>)样式
HSSFCellStyle contentStyle = getContentStyle(wb);
//循环生成表体
List<Element> trLs = tbody.elements("tr");
for (Element trEle : trLs) {
HSSFRow row = sheet.createRow(rowIndex);
List<Element> thLs = trEle.elements("th");
int cellIndex = makeRowCell(thLs, rowIndex, row, startcellIndex, titleStyle);
List<Element> tdLs = trEle.elements("td");
makeRowCell(tdLs, rowIndex, row, cellIndex, contentStyle);
rowIndex++;
}
}
} catch (Exception e) {
e.printStackTrace();
}
// 自动调整列宽,这里设置初始值为15,表示在Excel中的第15列开始根据内容调整列宽
for (int i = 15; i < 50; i++) {
sheet.autoSizeColumn((short) i);
}
}
/**
* 获得标题样式
*
* @param workbook
* @return
*/
@SuppressWarnings("deprecation")
private static HSSFCellStyle getTitleStyle(HSSFWorkbook workbook) {
short titlebackgroundcolor = HSSFColor.WHITE.index;
short fontSize = 12;
String fontName = "宋体";
HSSFCellStyle style = workbook.createCellStyle();
style.setVerticalAlignment(HSSFCellStyle.VERTICAL_CENTER);
style.setAlignment(HSSFCellStyle.ALIGN_CENTER);
style.setBorderBottom((short) 1);
style.setBorderTop((short) 1);
style.setBorderLeft((short) 1);
style.setBorderRight((short) 1);
style.setFillPattern(HSSFCellStyle.SOLID_FOREGROUND);
style.setFillForegroundColor(titlebackgroundcolor);// 背景色
HSSFFont font = workbook.createFont();
font.setFontName(fontName);
font.setFontHeightInPoints(fontSize);
font.setBoldweight(HSSFFont.BOLDWEIGHT_BOLD);
style.setFont(font);
return style;
}
/**
* 获得内容样式
*
* @param wb
* @return
*/
@SuppressWarnings("deprecation")
private static HSSFCellStyle getContentStyle(HSSFWorkbook wb) {
short fontSize = 12;
String fontName = "宋体";
HSSFCellStyle style = wb.createCellStyle();
style.setBorderBottom((short) 1);
style.setBorderTop((short) 1);
style.setBorderLeft((short) 1);
style.setBorderRight((short) 1);
HSSFFont font = wb.createFont();
font.setFontName(fontName);
font.setFontHeightInPoints(fontSize);
style.setFont(font);
return style;
}
/**
* 生成行内容
*
* @return 最后一列的cell index
* @param tdLs th或者td集合
* @param rowIndex 起始行索引
* @param row POI行对象
* @param startCellIndex 起始列索引
* @param cellStyle 样式
* @return 返回表格最后一行的索引
*/
@SuppressWarnings("deprecation")
private static int makeRowCell(List<Element> tdLs, int rowIndex, HSSFRow row, int startCellIndex,
HSSFCellStyle cellStyle) {
int i = startCellIndex;
//循环th或者td集合,把th或者td的内容通过setCellValue塞进Excel中
for (int eleIndex = 0; eleIndex < tdLs.size(); i++, eleIndex++) {
Element thEle = tdLs.get(eleIndex);
String val = thEle.getTextTrim();
HSSFCell c = row.createCell(i);
if (NumberUtils.isNumber(val)) {
c.setCellValue(Double.parseDouble(val));
c.setCellType(HSSFCell.CELL_TYPE_NUMERIC);
} else {
c.setCellValue(val);
}
c.setCellStyle(cellStyle);
}
return i;
}

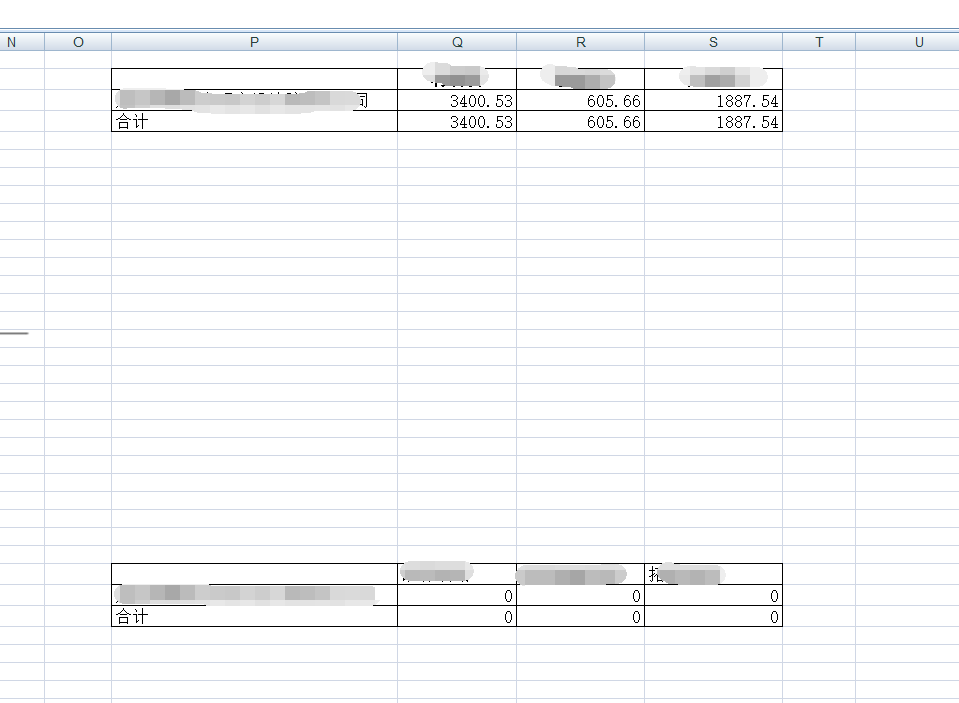

具体的代码含义参考注释,最后导出的效果如下
