Springboot整合Zipkin监控

导入依赖：

<!-- Brave 核心库 -->
        <!-- The below are needed to report traces to http://localhost:9411/api/v2/spans -->


        <dependency>
            <groupId>io.zipkin.brave</groupId>
            <artifactId>brave</artifactId>
        </dependency>
        <dependency>
            <groupId>io.zipkin.reporter2</groupId>
            <artifactId>zipkin-sender-okhttp3</artifactId>
        </dependency>

        <!-- Adds the MVC class and method names to server spans -->
        <!-- Brave 对 Spring MVC 的支持 -->
        <dependency>
            <groupId>io.zipkin.brave</groupId>
            <artifactId>brave-instrumentation-spring-webmvc</artifactId>
        </dependency>

        <!-- Brave 对 MySQL 的支持 -->
        <dependency>
            <groupId>io.zipkin.brave</groupId>
            <artifactId>brave-instrumentation-mysql</artifactId>
        </dependency>

	<dependencyManagement>



        <dependencies>
            <!-- Brave Bom 文件 -->
            <dependency>
                <groupId>io.zipkin.brave</groupId>
                <artifactId>brave-bom</artifactId>
                <version>5.9.1</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

配置config

ZipkinConfiguration

package com.jianfan.backend.framework.config.zipConfig;

import brave.CurrentSpanCustomizer;
import brave.SpanCustomizer;
import brave.Tracing;
import brave.http.HttpTracing;
import brave.servlet.TracingFilter;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import zipkin2.Span;
import zipkin2.reporter.AsyncReporter;
import zipkin2.reporter.Sender;
import zipkin2.reporter.okhttp3.OkHttpSender;

import javax.servlet.Filter;

@Configuration
public class ZipkinConfiguration {

    // ==================== 通用配置 ====================

    /**
     * Configuration for how to send spans to Zipkin
     */
    @Bean
    public Sender sender() {
        return OkHttpSender.create("http://ip:9411/api/v2/spans");
    }

    /**
     * Configuration for how to buffer spans into messages for Zipkin
     */
    @Bean
    public AsyncReporter<Span> spanReporter() {
        return AsyncReporter.create(sender());
    }

    /**
     * Controls aspects of tracing such as the service name that shows up in the UI
     */
    @Bean
    public Tracing tracing(@Value("${spring.application.name}") String serviceName) {
        return Tracing.newBuilder()
                .localServiceName(serviceName)
                .spanReporter(spanReporter()).build();
    }

    /**
     * Allows someone to add tags to a span if a trace is in progress
     */
    @Bean
    public SpanCustomizer spanCustomizer(Tracing tracing) {
        return CurrentSpanCustomizer.create(tracing);
    }

    // ==================== HTTP 相关 ====================

    /**
     * Decides how to name and tag spans. By default they are named the same as the http method
     */
    @Bean
    public HttpTracing httpTracing(Tracing tracing) {
        return HttpTracing.create(tracing);
    }

    /**
     * Creates server spans for http requests
     */
    @Bean
    public Filter tracingFilter(HttpTracing httpTracing) {
        return TracingFilter.create(httpTracing);
    }

    // ==================== SpringMVC 相关 ====================
    // @see SpringMvcConfiguration 类上的，@Import(SpanCustomizingAsyncHandlerInterceptor.class)

}

SpringMvcConfiguration

package com.jianfan.backend.framework.config.zipConfig;

import brave.spring.webmvc.SpanCustomizingAsyncHandlerInterceptor;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Import;
import org.springframework.web.servlet.config.annotation.InterceptorRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;

@Configuration
@Import(SpanCustomizingAsyncHandlerInterceptor.class)
public class SpringMvcConfiguration implements WebMvcConfigurer {

    @Autowired
    public SpanCustomizingAsyncHandlerInterceptor webMvcTracingCustomizer;

    /**
     * Decorates server spans with application-defined web tags
     */
    @Override
    public void addInterceptors(InterceptorRegistry registry) {
        registry.addInterceptor(webMvcTracingCustomizer);
    }

}

配置文件：

zipkinService默认为这个名字

spring:
  application:
    name: followUp

linux安装zip:

docker run -d -p 9411:9411 openzipkin/zipkin --name zipkin

项目启动任意发送一个请求

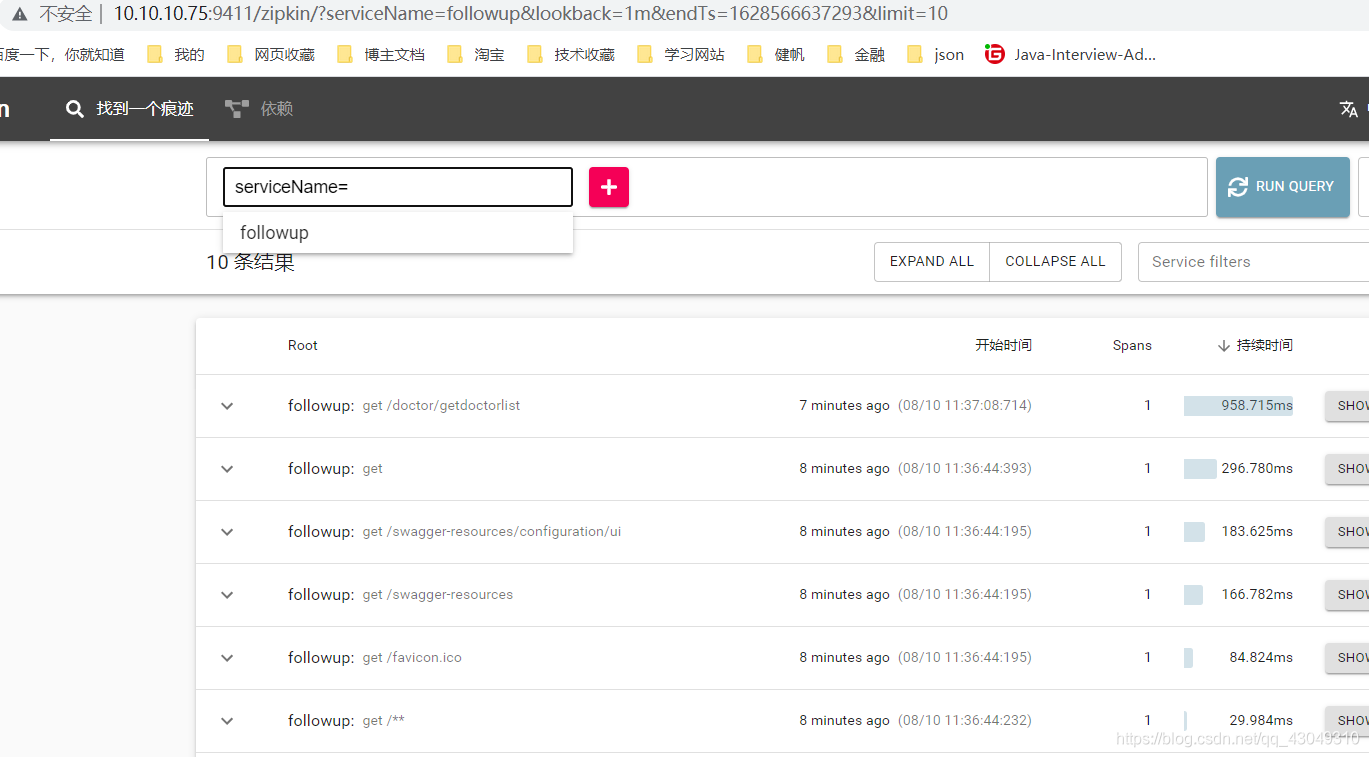

服务器查看：ip:9411

1.点击+号 选择根据服务名查看
