F5 configuration system database design

Database is the foundation of the system, it stores the information of ticket , user , and configuration parameter . database is a place to store relational data in essence , data is stored in various of table in database.
This section focus on tables in the database, field in each table.

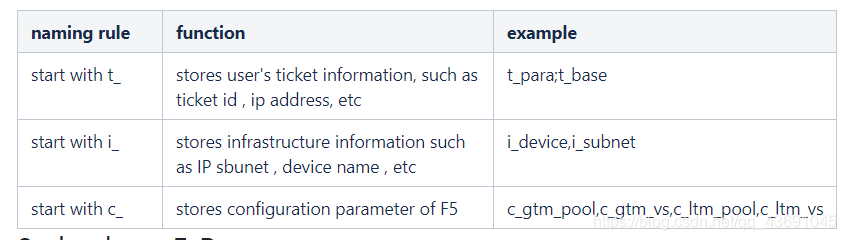

1 database table design

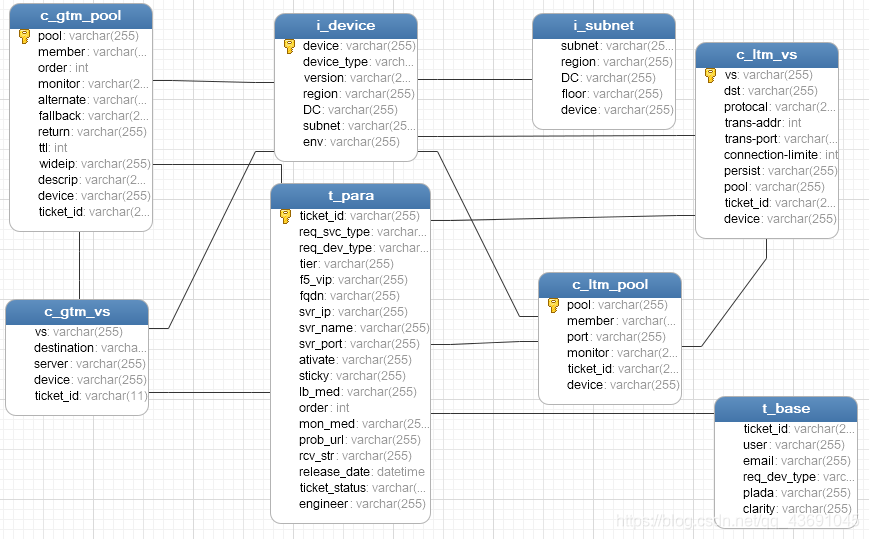

2 database E-R

3. table detail

before start , terminology several terminologies used in this section need to be clarify :

• request item: a ticket from users may contain multiple request items.for example, if user want to setup 5 VIP on LTM , we say there are 5 request items in user ticket; the data in each row of t_para stands for one request item of user;
• configuration item: a complete configuration of a object on the device . for example setup a pool ltm is a configuration item , including pool member configuration , monitor config of the pool . every pool ltm configuration item is stored in one row in c_ltm_pool.
  ticket_id is the bridge between request item and configuration item.

3.1 i_device

the main key the this table is device, stores the device information;

• device: device name;
• device type: LTM , GTM
• version:software version the the device;
• region:HK, india, UK;
• DC:DC1,DC2,DC3
• subnet: the list of subnets that will be configure on this device.192.168.1.0/24
• env: prd/uat;

3.2 i_subnet

• subnet is the main key and device is foreign key;
• DC:SKM,TKO
• floor:4 floor
• region:HK

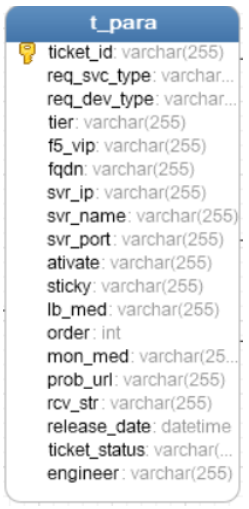

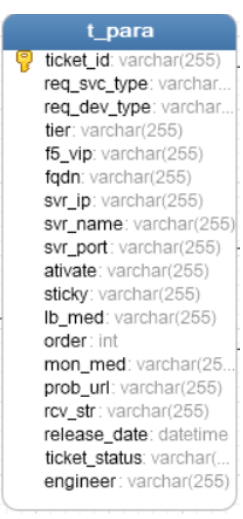

3.3 t_para

t_para stores the parameter of a ticket submit by user, ticket_id is the main key of this table
A ticket from user may contain multiple request , such as create several pool , virtual server on a ltm.
we name the configuration of a pool,corresponding vs configuration and corresponding other configuration a configuration item in this system.
each row in the database stands for a configuration item , a ticket may contain multiple configuration items

• req_svc_type: request service type, change exist config or new seutp;
• req_dev_type:request device type, GTM or LTM
• tier: tier of the application
• f5_vip: vip on F5,if it is a gtm ticket, this value will be empty
• fqdn: if it is a LTM ticket, fqdn will be the fqdn of f5 vip , if it is GTM ticket, fqdn will be service fqdn
• svr_ip : stores the ip list of configure a item of a ticket. data structure is [IP1:port1,ip2:port2,ip3:port3] , the IP in this structure will be sorted for small to big . with this structure, it will be easier for program to validate the IP pool exist or not in existing configuration of F5
• srv_name: stores the name of the server,the structure is [ server1,server2,server3] , the sequence of the server name must be identical with svr_ip field
• srv_port: ignore;
• activate: 1 presents for activate , 0 presents for suspend, the sequence of the server name must be identical with svr_ip field
• lb_med: load-balance method , round-roubin or order
• order: if lb_med is order , this field stores the oder of the server [1, 2,3],the sequence of the server order must be identical with svr_ip field
• mon_med : monitor method , tcp, https, https
• prob_url : the url used to probing server ,if mon_med is tcp, this field will be empty
• release_date: the date plan to release, fill in by BAU engineer. this field is used for increasementtal update. providing a date to application when will retrieve the configuration status of this item.
• ticket_status: preparing , deployed , closed
• engineer: engineer who works on this ticket;

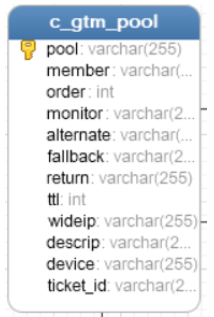

3.4 c_gtm_pool

c_gtm_pool stores the gtm pool configuration . pool is the main key , ticket_id is the foreign key. each row in database stores a pool configuration of a gtm;

• pool , the name of the pool
• member: the list of pool member,the structure of this field is [ member1, member2, member3,…], the list of the member is virtual server list in c_gtm_pool;the
• order: the order of the return member , [1,2,3,…] , the order must be identical with member field;
• monitor : tcp2s, or https
• alternate: tcp2s, https, none
• fallback:tcp2s, https, none
• ttl: ttl
• wideip: wideip of the FQDN
• descrip: description of the wideip
• device: the device of this configuration locates
• ticket_id: ticket_id of this configuration , will be used for ticket status search of user

3.5 c_gtm_vs

c_gtm_vs stores the GTM virtual server configuration.each row in a database present for a ticket request item . a ticket may contain multiple request item.

vs is the main key , ticket_id and vs is the foreign key.

• vs: virtual server, data structure: [server1:vs1, server2:vs2,…]， this field is the same with member field in c_gtm;
• destination: the destination list of the virtual server [desintion1:port1, detination 2: port2, destination3:port3…];
• server: ignore;
• device: the device where this configuration item locates;
• ticket_id: the ticket_id of this item . when user search their ticket status with their ticket id. this file will be used;

3.6 c_ltm_vs

this table stores the vs configuration of a ltm, vs is main key and ticket_id is foreign key; the data of each row in the database stands for
a configuration item which is deployed according to user request item, a ticket from user may contain multiple request item。

• vs. the virtual server of the configuration item;
• dst: the destination of the virtual server , the structure is ip:port ;
• protocol: protocol of virtual server ;
• trasn-add: 1 stands for enable , 0 stands for disable;
• trans-port: 1 stands for enable , 0 stands for disable;
• connection-limit: the number of the limitation;
• persist: the duration of the persistance
• pool: the pool of this virtual server;
• ticket_id: the ticket_id of this configuration item;
• device: device where this ticket id locate;

3.7 c_ltm_pool

this table stores the pool configuration of a ltm, pool is main key and ticket_id is foreign key; the data of each row in the database stands for

a configuration item which is deployed according to user request item, a ticket from user may contain multiple request item。

• pool: the pool name of this item;
• member: the member of this pool, the structure of this field [ip1:port1,ip2:port2,…];
  port: ignore;
• monitor: the monitor of this pool;
• url: the monitor url of this pool ;
• ticket_id: the ticket_id of this configuration item ;
• device: the device where the configuration item located;

3.8 t_base

this table stores basic information of a ticket:

• ticket_id
• user
• email
• req_dev_type
• plada:
• clarity
• application
