elasticsearch7.10安装部署详细配置

一、下载elasticsearch

下载地址

https://www.elastic.co/cn/downloads/past-releases#elasticsearch

根据情况下载对应的版本

二、安装配置elasticsearch

解压

tar -xf elasticsearch-7.10.2.tar.gz

创建es用户,es要求不能用root用户启动

#创建es用户
useradd es
#设置密码
echo "123456"|passwd --stdin es
#修改elasicsearch目录的拥有者
chown -R es elasticsearch-6.4.0

修改Linux系统的限制配置，将文件创建数修改为65536个。

1、修改系统中允许应用最多创建多少文件等的限制权限。Linux默认来说，一般限制应用最多创建的文件是65535个。但是ES至少需要65536的文件创建数的权限。
2. 修改系统中允许用户启动的进程开启多少个线程。默认的Linux限制root用户开启的进程可以开启任意数量的线程，其他用户开启的进程可以开启1024个线程。必须修改限制数为
4096+。因为ES至少需要4096的线程池预备。

vi /etc/security/limits.conf
#新增如下内容在limits.conf文件中
es soft nofile 65536
es hard nofile 65536
es soft nproc 4096
es hard nproc 4096

修改系统控制权限，ElasticSearch需要开辟一个65536字节以上空间的虚拟内存。Linux默认不允许任何用户和应用程序直接开辟这么大的虚拟内存。

vi /etc/sysctl.conf

#新增如下内容在sysctl.conf文件中，当前用户拥有的内存权限大小

vm.max_map_count=262144

#让系统控制权限配置生效

sysctl -p

配置elasticsearch

vim  elasticsearch.yml
#集群名称
cluster.name: my-application-fcy
#节点名称
node.name: node-1
#允许访问的网络IP地址，0.0.0.0 就是允许所有
network.host: 0.0.0.0
#设置服务启动的端口号
http.port: 19200
#集群初始化时启动的节点，如果有多个节点就填写多个，不同节点之间用逗号隔开。
cluster.initial_master_nodes: ["node-1"]

配置jvm参数

vim elasticsearch-6.8.4/config/jvm.options

启动elasticsearch

#调整xms xmx 根据情况调整、这两个值默认要调整为一样的
-Xms3g
-Xmx3g

#加上-d 为后台启动，不加为前台
./elasticsearch-7.10.2/bin/elasticsearch -d

配置elasticsearch密码认证及创建用户

生成证书

[root@fcy-fpsc-1 bin]# ./elasticsearch-certutil ca

Please enter the desired output file [elastic-stack-ca.p12]: #这里直接回车即可

Enter password for certs :  #这里直接回车即可，不要设置密码

设置完毕后，会在es家目录下看到新生成的文件：

elastic-stack-ca.p12

ps:

假如在生成证书的时候设置了密码，会导致无法启动ES，报错：

ElasticsearchSecurityException[failed to load SSL configuration [xpack.security.transport.ssl]]; nested: ElasticsearchException[failed to create trust manager]; nested: ElasticsearchException[failed to initialize SSL TrustManager]; nested: IOException[keystore password was incorrect]; nested: UnrecoverableKeyException[failed to decrypt safe contents entry: javax.crypto.BadPaddingException: Given final block not properly padded. Such issues can arise if a bad key is used during decryption.];

Likely root cause: java.security.UnrecoverableKeyException: failed to decrypt safe contents entry: javax.crypto.BadPaddingException: Given final block not properly padded. Such issues can arise if a bad key is used during decryption.

生成p12秘钥

#使用第一步生成的证书，生成p12秘钥
[root@fcy-fpsc-1 bin]#  ./elasticsearch-certutil cert --ca elastic-stack-ca.p12

下面三项直接回车即可：

……

Enter password for CA (elastic-stack-ca.p12) :

Please enter the desired output file [elastic-certificates.p12]:

Enter password for elastic-certificates.p12 : #这里直接回车即可，不要设置密码，否则后面ES会启动不了

Certificates written to /software/es7.10/elasticsearch-7.10.2/elastic-certificates.p12

设置完毕后，会在es目录下下看到新生成的文件：

elastic-certificates.p12


拷贝p12秘钥文件

cd /software/es7.10/elasticsearch-7.10.2/config

mkdir certs

cp /software/es7.10/elasticsearch-7.10.2/elastic-certificates.p12 certs/

将p12认证文件拷贝到其他节点上

scp /software/es7.10/elasticsearch-7.10.2/config/certs/elastic-certificates.p12 192.168.1.2:/usr/local/ElasticSearch/config/certs/elastic-certificates.p12

修改所有ES节点的配置文件
后面添加

http.cors.enabled:  true
http.cors.allow-origin:  "*"
xpack.security.enabled: true
xpack.security.transport.ssl.enabled: true
xpack.security.transport.ssl.verification_mode: certificate
xpack.security.transport.ssl.keystore.path: /software/es7.10/elasticsearch-7.10.2/config/certs/elastic-certificates.p12
xpack.security.transport.ssl.truststore.path: /software/es7.10/elasticsearch-7.10.2/config/certs/elastic-certificates.p12
cluster.max_shards_per_node: 900000

重启es
设置密码

./bin/elasticsearch-setup-passwords interactive
Initiating the setup of passwords for reserved users elastic,apm_system,kibana,logstash_system,beats_system,remote_monitoring_user.

You will be prompted to enter passwords as the process progresses.

Please confirm that you would like to continue [y/N]y

Enter password for [elastic]:

Reenter password for [elastic]:

Enter password for [apm_system]:

Reenter password for [apm_system]:

Enter password for [kibana]:

Reenter password for [kibana]:

Enter password for [logstash_system]:

Reenter password for [logstash_system]:

Enter password for [beats_system]:

Reenter password for [beats_system]:

Enter password for [remote_monitoring_user]:

Reenter password for [remote_monitoring_user]:

Changed password for user [apm_system]

Changed password for user [kibana]

Changed password for user [logstash_system]

Changed password for user [beats_system]

Changed password for user [remote_monitoring_user]

Changed password for user [elastic]

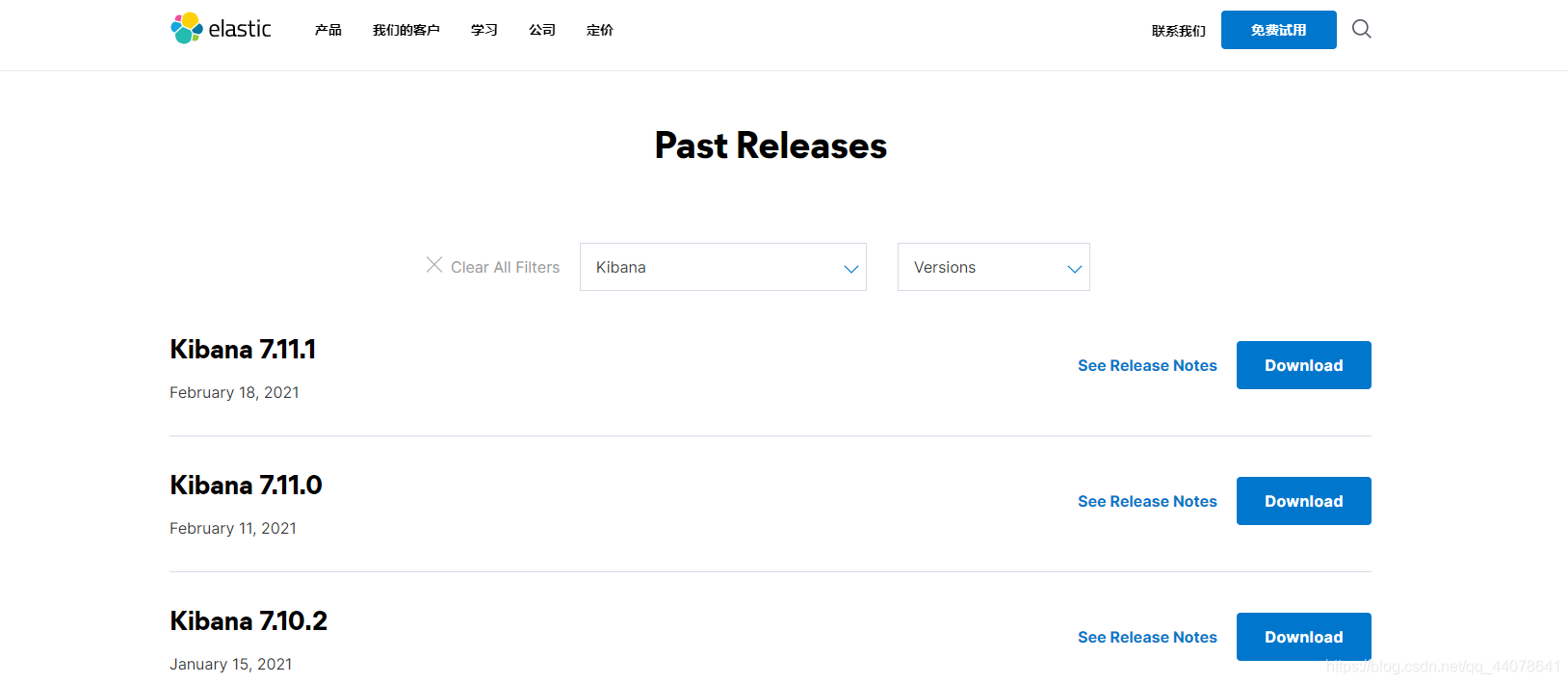

下载kibana

下载地址:

https://www.elastic.co/cn/downloads/past-releases#kibana

安装配置Kinbana

解压

tar -xf kibana-7.10.2-linux-x86_64.tar.gz

修改配置文件

vim kibana-7.10.2-linux-x86_64/config/kibana.yml
#服务端口
server.port: 15601
#服务地址
server.host: "0.0.0.0"
#es连接地址
elasticsearch.hosts: ["http://localhost:19200"]
#连接es时使用的用户名密码
elasticsearch.username: "kibana_system"
elasticsearch.password: "ysIgdF"
#设置kibana界面为中文
i18n.locale: "zh-CN"

启动

./kibana-7.10.2-linux-x86_64/bin/kibana

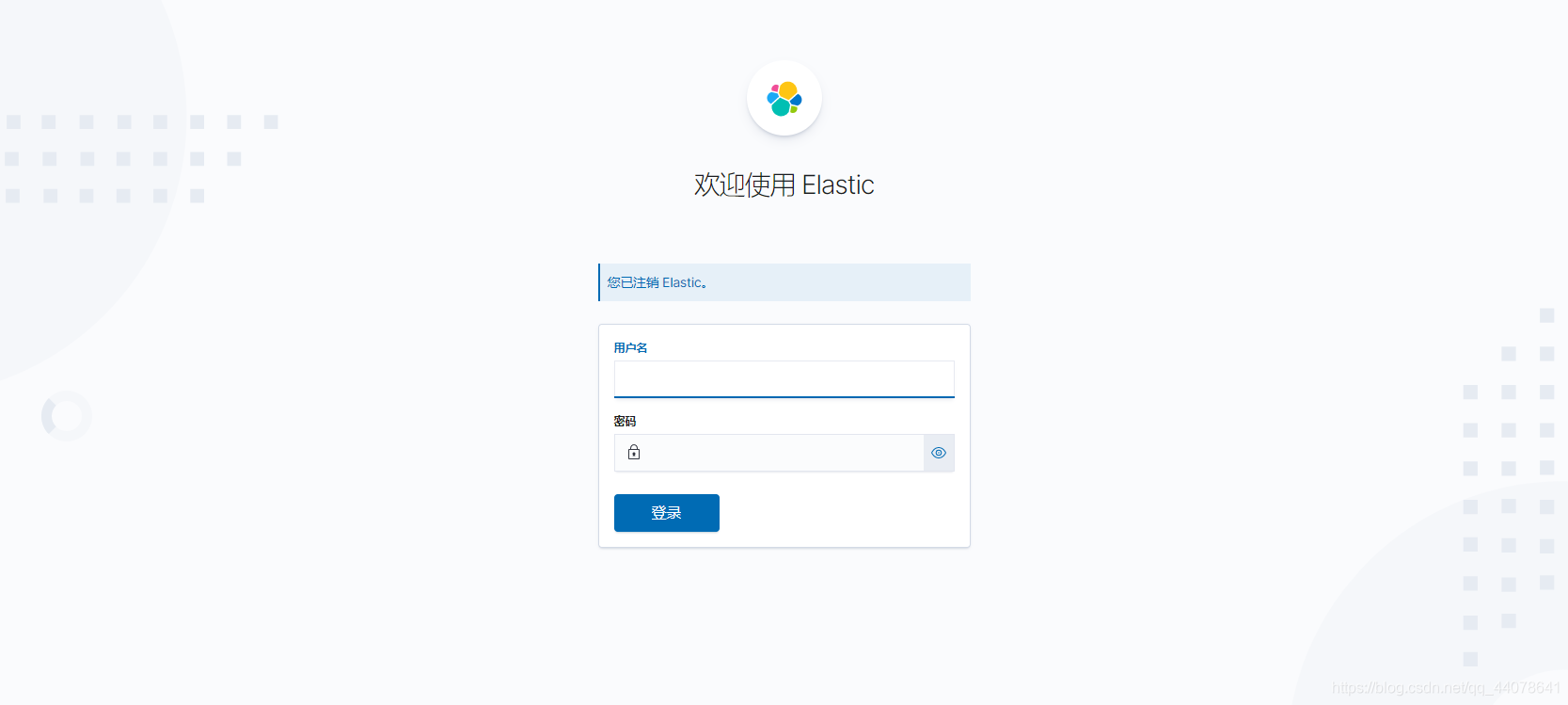

启动后输入ip地址和端口号浏览器出现该页面
