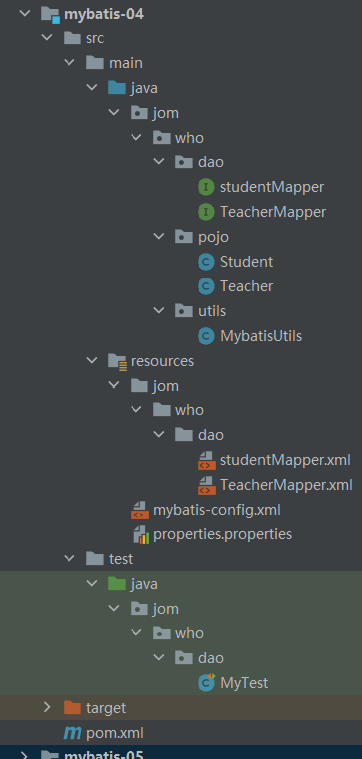

结构图:
思路流程:搭建环境–>导入Mybatis—>编写代码—>测试
01、一个完整的mybatis构建
1、搭建实验数据库
CREATE DATABASE `mybatis`;
USE `mybatis`;
DROP TABLE IF EXISTS `user`;
CREATE TABLE `user` (
`id` int(20) NOT NULL,
`name` varchar(30) DEFAULT NULL,
`pwd` varchar(30) DEFAULT NULL,
PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;
insert into `user`(`id`,`name`,`pwd`) values (1,'jom','123456'),(2,'张三','abcdef'),(3,'李四','987654');
2、在pom.xml文件中导入相关 jar 包
1.导入MyBatis相关 jar 包
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis</artifactId>
<version>3.5.2</version>
</dependency>
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>5.1.47</version>
</dependency>
2.设置实体类的别名:
<!-- 此时,User可以代替jom.who.pojo.User -->
<typeAliases>
<typeAlias type="jom.who.pojo.User" alias="User"/>
</typeAliases>
也可以指定一个包名,MyBatis 会在包名下面搜索需要的 Java Bean:
<typeAliases>
<package name="jom.who.pojo"/>
</typeAliases>
此时,该Java类名的首字母改为小写后作为它的别名。例如 jom.who.pojo.User 的别名为:user
3、编写mybatis-config.xml核心配置文件:
1.设置日志记录:
<!-- 标准日志实现方式 -->
<settings>
<setting name="logImpl" value="STDOUT_LOGGING"/>
</settings>
<!-- log4j日志实现方式 -->
<settings>
<setting name="logImpl" value="LOG4J"/>
</settings>
2.设置数据连接属性:
方式一:在mybatis-config.xml中直接设置数据库参数
<environments default="development">
<environment id="development">
<transactionManager type="JDBC"/>
<!-- 数据源也有很多第三方的实现,比如dbcp,c3p0,druid等等连接池.... -->
<dataSource type="POOLED">
<property name="driver" value="com.mysql.jdbc.Driver"/>
<property name="url" value="jdbc:mysql://localhost:3306/mybatis?useSSL=true&useUnicode=true&characterEncoding=utf8"/>
<property name="username" value="root"/>
<property name="password" value="123456"/>
</dataSource>
</environment>
</environments>
方式二:通过 properties 文件的子元素来传递数据库元素,实现可动态替换:
先资源目录下新建一个db.properties:
driver=com.mysql.jdbc.Driver
url=jdbc:mysql://localhost:3306/mybatis?useSSL=true&useUnicode=true&characterEncoding=utf8
username=root
password=123456
<!--导入properties文件-->
<properties resource="db.properties"/>
<environments default="development">
<environment id="development">
<transactionManager type="JDBC"/>
<dataSource type="POOLED">
<property name="driver" value="${driver}"/>
<property name="url" value="${url}"/>
<property name="username" value="${username}"/>
<property name="password" value="${password}"/>
</dataSource>
</environment>
</environments>
3.映射mapper文件:
<!-- 使用相对于类路径的资源引用 -->
<mappers>
<mapper resource="org/mybatis/builder/PostMapper.xml"/>
</mappers>
<!-- 使用完全限定资源定位符(URL) -->
<mappers>
<mapper url="file:///var/mappers/AuthorMapper.xml"/>
</mappers>
<!--
使用映射器接口实现类的完全限定类名
需要配置文件名称和接口名称一致,并且位于同一目录下
-->
<mappers>
<mapper class="org.mybatis.builder.AuthorMapper"/>
</mappers>
完整的mybatis-config.xml配置:
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
<properties resource="properties.properties"/>
<settings>
<setting name="logImpl" value="STDOUT_LOGGING"/>
</settings>
<!-- 给实体类起别名 -->
<typeAliases>
<typeAlias type="jom.who.pojo.Student" alias="Student"/>
<typeAlias type="jom.who.pojo.Teacher" alias="Teacher"/>
</typeAliases>
<environments default="development">
<environment id="development">
<transactionManager type="JDBC"/>
<dataSource type="POOLED">
<property name="driver" value="${driver}"/>
<property name="url" value="${url}"/>
<property name="username" value="${username}"/>
<property name="password" value="${password}"/>
</dataSource>
</environment>
</environments>
<!-- 映射到对应的Mapper接口 -->
<mappers>
<mapper class="jom.who.dao.TeacherMapper"/>
<mapper class="jom.who.dao.studentMapper"/>
</mappers>
</configuration>
4、编写MybatisUtils工具类
读 mybatis-config.xml 并获取 获取SqlSession连接
import org.apache.ibatis.io.Resources;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;
import java.io.IOException;
import java.io.InputStream;
public class MybatisUtils {
private static SqlSessionFactory sqlSessionFactory;
static {
try {
String resource = "mybatis-config.xml";
InputStream inputStream = Resources.getResourceAsStream(resource);
sqlSessionFactory = new SqlSessionFactoryBuilder().build(inputStream);
} catch (IOException e) {
e.printStackTrace();
}
}
//获取SqlSession连接
public static SqlSession getSession(){
return sqlSessionFactory.openSession();
}
}
改造MybatisUtils工具类的getSession( ) 方法:
//获取SqlSession连接
public static SqlSession getSession(){
return getSession(true); //事务自动提交
}
5、创建实体类
方式一:
public class User {
private int id; //id
private String name; //姓名
private String pwd; //密码
//构造,有参,无参
//set/get
//toString()
}
方式二:
//导入Lombok插件,使用注解自动生成。
@Data //GET,SET,ToString,有参,无参构造
public class Teacher {
private int id;
private String name;
}
6、编写Mapper接口类
import com.kuang.pojo.User;
import java.util.List;
public interface UserMapper {
List<User> selectUser();
}
思路一:直接在方法中传递参数
1、在接口方法的参数前加 @Param属性,当编写Sql语句时,直接取@Param中设置的值即可。在方法接受多个参数的情况下,一般使用@Param注解给参数命名。
//通过密码和名字查询用户
User selectUserByNP(@Param("username") String name,@Param("pwd") String pwd);
/*
<select id="selectUserByNP" resultType="com.kuang.pojo.User">
select * from user where name = #{username} and pwd = #{pwd}
</select>
*/
思路二:如果参数过多,我们可以考虑直接使用Map实现:
1、在接口方法中,参数直接传递Map:
User selectUserByNP2(Map<String,Object> map);
2、编写sql语句的时候,需要传递参数类型,参数类型为map
<select id="selectUserByNP2" parameterType="map" resultType="com.kuang.pojo.User">
select * from user where name = #{username} and pwd = #{pwd}
</select>
3、在使用方法的时候,Map的 key 为 sql中取的值即可,没有顺序要求
Map<String, Object> map = new HashMap<String, Object>();
map.put("username","小明");
map.put("pwd","123456");
User user = mapper.selectUserByNP2(map);
7、编写Mapper.xml配置文件
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<!-- 映射到Mapper接口 -->
<mapper namespace="jom.who.dao.UserMapper">
<select id="selectUser" resultType="jom.who.pojo.User">
select * from user
</select>
</mapper>
8、编写测试类
public class MyTest {
@Test
public void selectUser() {
SqlSession session = MybatisUtils.getSession();
//方法一:
//List<User> users = session.selectList("jom.who.mapper.UserMapper.selectUser");
//方法二:
UserMapper mapper = session.getMapper(UserMapper.class);
List<User> users = mapper.selectUser();
for (User user: users){
System.out.println(user);
}
session.commit(); //提交事务,重点!不写的话不会提交到数据库
session.close();
}
}

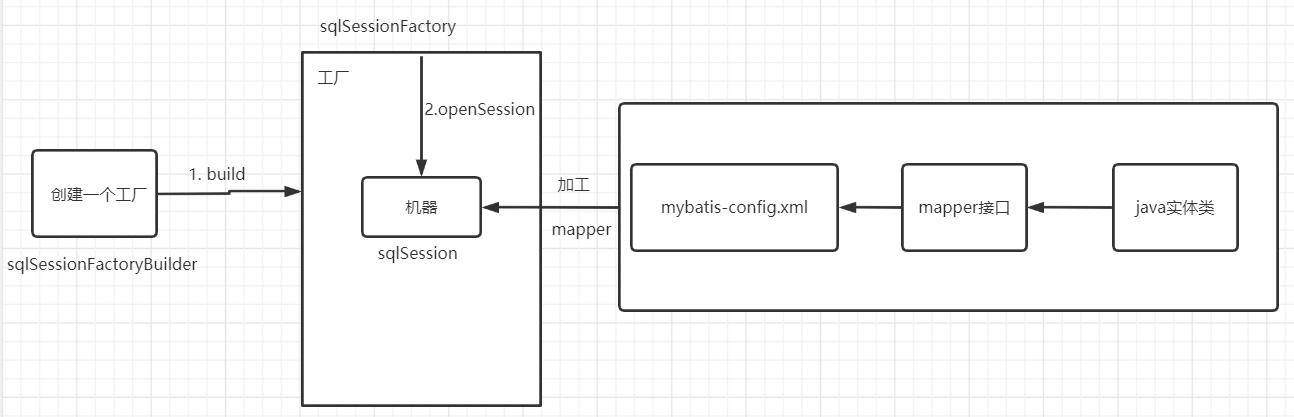

流程图解:
02、SQL分页
如果查询大量数据的时候,我们往往使用分页进行查询,也就是每次处理小部分数据,这样对数据库压力就在可控范围内。
1.使用Limit实现分页
#语法
SELECT * FROM table LIMIT stratIndex,pageSize
SELECT * FROM table LIMIT 5,10; // 检索记录行 6-15
#为了检索从某一个偏移量到记录集的结束所有的记录行,可以指定第二个参数为 -1:
SELECT * FROM table LIMIT 95,-1; // 检索记录行 96-last.
#如果只给定一个参数,它表示返回最大的记录行数目:
SELECT * FROM table LIMIT 5; //检索前 5 个记录行
在测试类中传入参数测试
起始位置 = (当前页面 - 1 ) * 页面大小
int currentPage = 1; //第几页
int pageSize = 2; //每页显示几个
Map<String,Integer> map = new HashMap<String,Integer>();
map.put("startIndex",(currentPage-1)*pageSize);
map.put("pageSize",pageSize);
List<User> users = mapper.selectUser(map);
2.PageHelper分页插件
03、使用注解编写SQL语句
查询:
//根据id查询用户
@Select("select * from user where id = #{id}")
User selectUserById(@Param("id") int id);
新增:
//添加一个用户
@Insert("insert into user (id,name,pwd) values (#{id},#{name},#{pwd})")
int addUser(User user);
修改:
//修改一个用户
@Update("update user set name=#{name},pwd=#{pwd} where id = #{id}")
int updateUser(User user);
删除:
//根据id删除用
@Delete("delete from user where id = #{id}")
int deleteUser(@Param("id")int id);
04、一对多和多对一处理
多对一的处理
按查询嵌套处理:
<!--
需求:获取所有学生及对应老师的信息
思路:
1. 获取所有学生的信息
2. 根据获取的学生信息的老师ID->获取该老师的信息
3. 思考问题,这样学生的结果集中应该包含老师,该如何处理呢,数据库中我们一般使用关联查询?
1. 做一个结果集映射:StudentTeacher
2. StudentTeacher结果集的类型为 Student
3. 学生中老师的属性为teacher,对应数据库中为tid。
多个 [1,...)学生关联一个老师=> 一对一,一对多
4. 查看官网找到:association – 一个复杂类型的关联;使用它来处理关联查询
-->
<select id="getStudents" resultMap="StudentTeacher">
select * from student
</select>
<resultMap id="StudentTeacher" type="Student">
<!--association关联属性 property属性名 javaType属性类型 column在多的一方的表中的列名-->
<association property="teacher" column="tid" javaType="Teacher" select="getTeacher"/>
</resultMap>
<!--
这里传递过来的id,只有一个属性的时候,下面可以写任何值
association中column多参数配置:
column="{key=value,key=value}"
其实就是键值对的形式,key是传给下个sql的取值名称,value是片段一中sql查询的字段名。
-->
<select id="getTeacher" resultType="teacher">
select * from teacher where id = #{id}
</select>
按结果嵌套处理:
<!--
按查询结果嵌套处理
思路:
1. 直接查询出结果,进行结果集的映射
-->
<select id="getStudents2" resultMap="StudentTeacher2" >
select s.id sid, s.name sname , t.name tname
from student s,teacher t
where s.tid = t.id
</select>
<resultMap id="StudentTeacher2" type="Student">
<id property="id" column="sid"/>
<result property="name" column="sname"/>
<!--关联对象property 关联对象在Student实体类中的属性-->
<association property="teacher" javaType="Teacher">
<result property="name" column="tname"/>
</association>
</resultMap>
一对多的处理
按查询嵌套处理:
<select id="getTeacher2" resultMap="TeacherStudent2">
select * from teacher where id = #{id}
</select>
<resultMap id="TeacherStudent2" type="Teacher">
<!--column是一对多的外键 , 写的是一的主键的列名-->
<collection property="students" javaType="ArrayList" ofType="Student" column="id" select="getStudentByTeacherId"/>
</resultMap>
<select id="getStudentByTeacherId" resultType="Student">
select * from student where tid = #{id}
</select>
按结果嵌套处理:
<!--
思路:
1. 从学生表和老师表中查出学生id,学生姓名,老师姓名
2. 对查询出来的操作做结果集映射
1. 集合的话,使用collection!
JavaType和ofType都是用来指定对象类型的
JavaType是用来指定pojo中属性的类型
ofType指定的是映射到list集合属性中pojo的类型。
-->
<select id="getTeacher" resultMap="TeacherStudent">
select s.id sid, s.name sname , t.name tname, t.id tid
from student s,teacher t
where s.tid = t.id and t.id=#{id}
</select>
<resultMap id="TeacherStudent" type="Teacher">
<result property="name" column="tname"/>
<collection property="students" ofType="Student">
<result property="id" column="sid" />
<result property="name" column="sname" />
<result property="tid" column="tid" />
</collection>
</resultMap>
05、动态SQL
动态SQL在开发中大量的使用,一定要熟练掌握!
- if
- choose (when, otherwise)
- trim (where, set)
- foreach
- where - if
<!--需求1:
根据作者名字和博客名字来查询博客!
如果作者名字为空,那么只根据博客名字查询,反之,则根据作者名来查询
select * from blog where title = #{title} and author = #{author}
“where”标签会知道如果它包含的标签中有返回值的话,它就插入一个‘where’。同时,如果标签返回的内容是以 AND 或 OR 开头的它会自动去掉。
-->
<select id="queryBlogIf" parameterType="map" resultType="blog">
select * from blog
<where>
<if test="title != null">
title = #{title}
</if>
<if test="author != null">
and author = #{author}
</if>
</where>
</select>
2.Set
<!--注意set是用的逗号隔开-->
<update id="updateBlog" parameterType="map">
update blog
<set>
<if test="title != null">
title = #{title},
</if>
<if test="author != null">
author = #{author}
</if>
</set>
where id = #{id};
</update>
3.choose - when
满足其中一个查询条件即可
<select id="queryBlogChoose" parameterType="map" resultType="blog">
select * from blog
<where>
<choose>
<when test="title != null">
title = #{title}
</when>
<when test="author != null">
and author = #{author}
</when>
<otherwise>
and views = #{views}
</otherwise>
</choose>
</where>
</select>
4.SQL片段:
有些 sql 语句用的特别多,为了增加代码的重用性,我们将这些代码抽取出来,使用时直接调用。
注:在 sql 片段中不要包括 where
<sql id="if-title-author">
<if test="title != null">
title = #{title}
</if>
<if test="author != null">
and author = #{author}
</if>
</sql>
<select id="queryBlogIf" parameterType="map" resultType="blog">
select * from blog
<where>
<!-- 引用 sql 片段,如果refid 指定的不在本文件中,那么需要在前面加上 namespace -->
<include refid="if-title-author"></include>
<!-- 在这里还可以引用其他的 sql 片段 -->
</where>
</select>
5.Foreach 根据某个属性的不同值查询多条数据
select * from blog where 1=1 and (id=1 or id=2 or id=3)
<foreach collection="ids" item="id" open="and (" close=")" separator="or">
id=#{id}
collection:指定输入对象中的集合属性
item:每次遍历生成的对象
open:开始遍历时的拼接字符串
close:结束时拼接的字符串
separator:遍历对象之间需要拼接的字符串
06、缓存
将用户经常查询的数据放在缓存(内存)中,用户去查询数据就不用从磁盘上(关系型数据库数据文件)查询,从缓存中查询,从而提高查询效率,解决了高并发系统的性能问题。

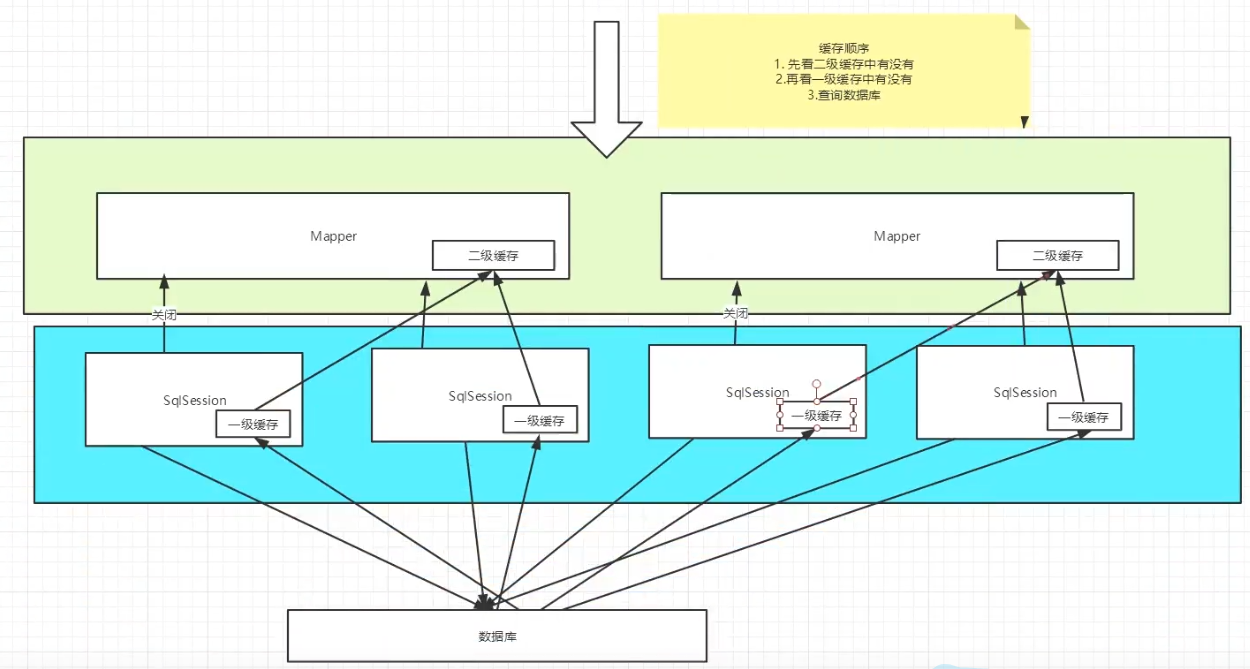

缓存原理:
1.一级缓存
一级缓存是SqlSession级别的缓存,是一直开启的,只能通过close()关闭。
每个sqlSession中的缓存相互独立,当多个对象执行同一个操作时,使用的其实是同一个缓存,例如:
@Test
public void testQueryUserById(){
SqlSession session = MybatisUtils.getSession();
UserMapper mapper = session.getMapper(UserMapper.class);
UserMapper mapper2 = session.getMapper(UserMapper.class);
User user = mapper.queryUserById(1);
System.out.println(user);
User user2 = mapper2.queryUserById(2);
System.out.println(user2);
System.out.println(user==user2);
session.close();
}
当改变了查询的数据后,SqlSession会重新执行,生成新的缓存。
二级缓存
基于namespace级别的缓存,一个名称空间,对应一个二级缓存
1、开启全局缓存 【mybatis-config.xml】
<setting name="cacheEnabled" value="true"/>
2、去每个mapper.xml中配置使用二级缓存【xxxMapper.xml】
<cache
eviction="FIFO"
flushInterval="60000"
size="512"
readOnly="true"/>
注:查出的数据都会被默认先放在一级缓存中
只有会话提交或者关闭以后,一级缓存中的数据才会转到二级缓存中。
3、第三方缓存实现–EhCache
