一、搭建项目工程

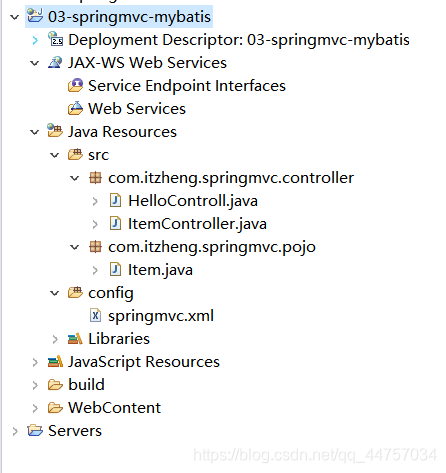

1、复制上次的工程并重新命名

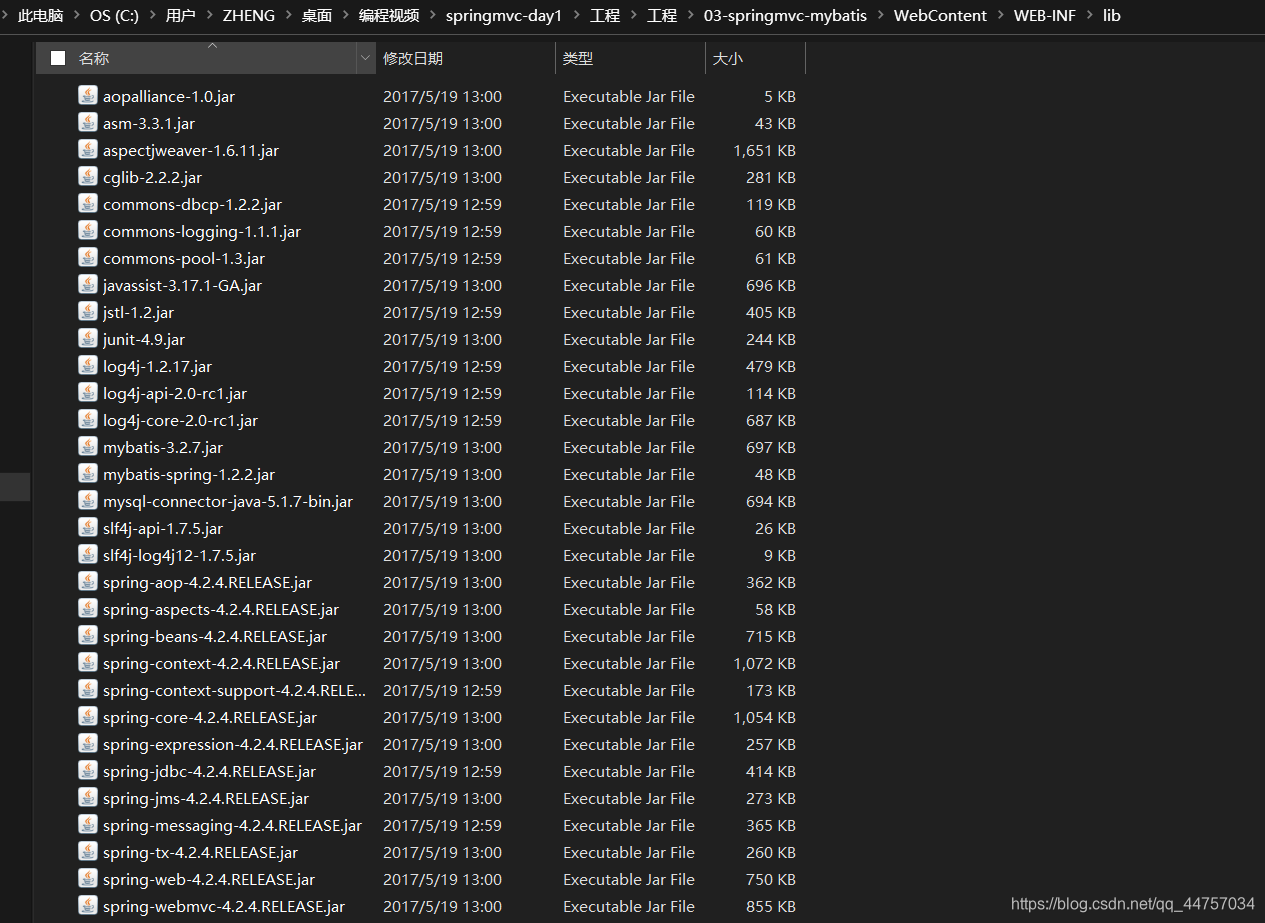

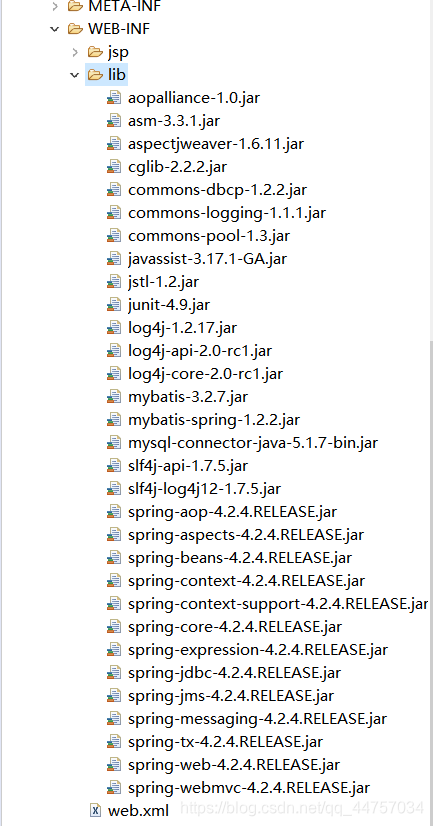

2、引入jar包

3、创建数据库

/*
Navicat MySQL Data Transfer

Source Server         : ZHENG
Source Server Version : 50527
Source Host           : localhost:3306
Source Database       : mybatis

Target Server Type    : MYSQL
Target Server Version : 50527
File Encoding         : 65001

Date: 2021-03-31 20:44:29
*/

SET FOREIGN_KEY_CHECKS=0;

-- ----------------------------
-- Table structure for `item`
-- ----------------------------
DROP TABLE IF EXISTS `item`;
CREATE TABLE `item` (
  `id` int(255) NOT NULL AUTO_INCREMENT,
  `name` varchar(255) NOT NULL,
  `price` double(255,0) NOT NULL,
  `detail` varchar(255) NOT NULL,
  `pic` varchar(255) NOT NULL,
  `createtime` date NOT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8;

-- ----------------------------
-- Records of item
-- ----------------------------
INSERT INTO `item` VALUES ('1', '张三', '100', '212', '2121', '2021-03-01');

-- ----------------------------
-- Table structure for `order`
-- ----------------------------
DROP TABLE IF EXISTS `order`;
CREATE TABLE `order` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `user_id` int(11) NOT NULL COMMENT '下单用户id',
  `number` varchar(32) NOT NULL COMMENT '订单号',
  `createtime` datetime NOT NULL COMMENT '创建订单时间',
  `note` varchar(100) DEFAULT NULL COMMENT '备注',
  PRIMARY KEY (`id`),
  KEY `FK_orders_1` (`user_id`),
  CONSTRAINT `FK_order_id` FOREIGN KEY (`user_id`) REFERENCES `user` (`id`) ON DELETE NO ACTION ON UPDATE NO ACTION
) ENGINE=InnoDB AUTO_INCREMENT=6 DEFAULT CHARSET=utf8;

-- ----------------------------
-- Records of order
-- ----------------------------
INSERT INTO `order` VALUES ('3', '1', '1000010', '2015-02-04 13:22:35', null);
INSERT INTO `order` VALUES ('4', '1', '1000011', '2015-02-03 13:22:41', null);
INSERT INTO `order` VALUES ('5', '10', '1000012', '2015-02-12 16:13:23', null);

-- ----------------------------
-- Table structure for `user`
-- ----------------------------
DROP TABLE IF EXISTS `user`;
CREATE TABLE `user` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `username` varchar(32) NOT NULL COMMENT '用户名称',
  `birthday` date DEFAULT NULL COMMENT '生日',
  `sex` char(1) DEFAULT NULL COMMENT '性别',
  `address` varchar(256) DEFAULT NULL COMMENT '地址',
  `uuid2` varchar(128) DEFAULT NULL COMMENT 'uuid2',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=47 DEFAULT CHARSET=utf8;

-- ----------------------------
-- Records of user
-- ----------------------------
INSERT INTO `user` VALUES ('1', 'admin', '2014-07-10', '2', '呼和浩特', null);
INSERT INTO `user` VALUES ('10', '王五', '2014-07-10', '1', '哈哈哈', null);
INSERT INTO `user` VALUES ('16', '王五', '2014-07-10', '1', '略略略', null);
INSERT INTO `user` VALUES ('22', '张娜', '2014-07-10', '1', '河北', null);
INSERT INTO `user` VALUES ('24', '张三', '2014-07-10', '1', '内蒙古', null);
INSERT INTO `user` VALUES ('25', '李四', '2014-07-10', '1', '河南', null);
INSERT INTO `user` VALUES ('26', '赵六', '2014-07-10', '2', '广东', null);
INSERT INTO `user` VALUES ('27', '张飞', '2021-01-26', '1', '四川', null);
INSERT INTO `user` VALUES ('28', '张飞', '2021-01-29', '1', '四川', null);
INSERT INTO `user` VALUES ('29', '张飞2', '2021-01-29', '1', '四川', null);
INSERT INTO `user` VALUES ('30', '张角', '2021-01-29', '1', '四川', null);
INSERT INTO `user` VALUES ('31', '张飞5', '2021-01-29', '1', '四川', null);
INSERT INTO `user` VALUES ('32', '张飞7', '2021-01-29', '1', '四川', 'a5e55878-6207-11eb-877e-6045cbbd3ae1');
INSERT INTO `user` VALUES ('34', '张飞7', '2021-01-29', '1', '四川', '2240280a-6208-11eb-877e-6045cbbd3ae1');
INSERT INTO `user` VALUES ('35', '张飞7', '2021-01-29', '1', '四川', null);
INSERT INTO `user` VALUES ('36', '张飞1111', '2021-01-30', '2', '深圳2121', null);
INSERT INTO `user` VALUES ('37', '张飞1111', '2021-01-30', '2', '深圳2121', null);
INSERT INTO `user` VALUES ('38', '张飞1111', '2021-03-09', '2', '深圳2121', null);
INSERT INTO `user` VALUES ('39', '张飞1111', '2021-03-12', '2', '深圳2121', null);
INSERT INTO `user` VALUES ('40', '张飞1111', '2021-03-12', '2', '深圳2121', null);
INSERT INTO `user` VALUES ('41', '张飞1111', '2021-03-12', '2', '2121', null);
INSERT INTO `user` VALUES ('42', '张飞1111', '2021-03-12', '2', '深圳2121', null);
INSERT INTO `user` VALUES ('43', '张飞1111', '2021-03-13', '2', '深圳2121', null);
INSERT INTO `user` VALUES ('44', '张飞1111', '2021-03-16', '2', '深圳2121', null);
INSERT INTO `user` VALUES ('45', '张飞1111', '2021-03-16', '2', '深圳2121', null);
INSERT INTO `user` VALUES ('46', '诸葛亮', null, '1', '三国蜀国', null);

一、Dao层

0、创建Item类

package com.itzheng.springmvc.pojo;

import java.util.Date;

public class Item {
    private Integer id;

    private String name;

    private Float price;

    private String detail;

    private String pic;

    private Date createtime;

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name == null ? null : name.trim();
    }

    public Float getPrice() {
        return price;
    }

    public void setPrice(Float price) {
        this.price = price;
    }

    public String getDetail() {
        return detail;
    }

    public void setDetail(String detail) {
        this.detail = detail == null ? null : detail.trim();
    }

    public String getPic() {
        return pic;
    }

    public void setPic(String pic) {
        this.pic = pic == null ? null : pic.trim();
    }

    public Date getCreatetime() {
        return createtime;
    }

    public void setCreatetime(Date createtime) {
        this.createtime = createtime;
    }

	@Override
	public String toString() {
		return "Item [id=" + id + ", name=" + name + ", price=" + price + ", detail=" + detail + ", pic=" + pic
				+ ", createtime=" + createtime + "]";
	}
}

1、创建ItemExample类

package com.itzheng.springmvc.pojo;
import java.util.ArrayList;
import java.util.Date;
import java.util.List;

public class ItemExample {
	protected String orderByClause;

	protected boolean distinct;

	protected List<Criteria> oredCriteria;

	public ItemExample() {
		oredCriteria = new ArrayList<Criteria>();
	}

	public void setOrderByClause(String orderByClause) {
		this.orderByClause = orderByClause;
	}

	public String getOrderByClause() {
		return orderByClause;
	}

	public void setDistinct(boolean distinct) {
		this.distinct = distinct;
	}

	public boolean isDistinct() {
		return distinct;
	}

	public List<Criteria> getOredCriteria() {
		return oredCriteria;
	}

	public void or(Criteria criteria) {
		oredCriteria.add(criteria);
	}

	public Criteria or() {
		Criteria criteria = createCriteriaInternal();
		oredCriteria.add(criteria);
		return criteria;
	}

	public Criteria createCriteria() {
		Criteria criteria = createCriteriaInternal();
		if (oredCriteria.size() == 0) {
			oredCriteria.add(criteria);
		}
		return criteria;
	}

	protected Criteria createCriteriaInternal() {
		Criteria criteria = new Criteria();
		return criteria;
	}

	public void clear() {
		oredCriteria.clear();
		orderByClause = null;
		distinct = false;
	}

	protected abstract static class GeneratedCriteria {
		protected List<Criterion> criteria;

		protected GeneratedCriteria() {
			super();
			criteria = new ArrayList<Criterion>();
		}

		public boolean isValid() {
			return criteria.size() > 0;
		}

		public List<Criterion> getAllCriteria() {
			return criteria;
		}

		public List<Criterion> getCriteria() {
			return criteria;
		}

		protected void addCriterion(String condition) {
			if (condition == null) {
				throw new RuntimeException("Value for condition cannot be null");
			}
			criteria.add(new Criterion(condition));
		}

		protected void addCriterion(String condition, Object value, String property) {
			if (value == null) {
				throw new RuntimeException("Value for " + property + " cannot be null");
			}
			criteria.add(new Criterion(condition, value));
		}

		protected void addCriterion(String condition, Object value1, Object value2, String property) {
			if (value1 == null || value2 == null) {
				throw new RuntimeException("Between values for " + property + " cannot be null");
			}
			criteria.add(new Criterion(condition, value1, value2));
		}

		public Criteria andIdIsNull() {
			addCriterion("id is null");
			return (Criteria) this;
		}

		public Criteria andIdIsNotNull() {
			addCriterion("id is not null");
			return (Criteria) this;
		}

		public Criteria andIdEqualTo(Integer value) {
			addCriterion("id =", value, "id");
			return (Criteria) this;
		}

		public Criteria andIdNotEqualTo(Integer value) {
			addCriterion("id <>", value, "id");
			return (Criteria) this;
		}

		public Criteria andIdGreaterThan(Integer value) {
			addCriterion("id >", value, "id");
			return (Criteria) this;
		}

		public Criteria andIdGreaterThanOrEqualTo(Integer value) {
			addCriterion("id >=", value, "id");
			return (Criteria) this;
		}

		public Criteria andIdLessThan(Integer value) {
			addCriterion("id <", value, "id");
			return (Criteria) this;
		}

		public Criteria andIdLessThanOrEqualTo(Integer value) {
			addCriterion("id <=", value, "id");
			return (Criteria) this;
		}

		public Criteria andIdIn(List<Integer> values) {
			addCriterion("id in", values, "id");
			return (Criteria) this;
		}

		public Criteria andIdNotIn(List<Integer> values) {
			addCriterion("id not in", values, "id");
			return (Criteria) this;
		}

		public Criteria andIdBetween(Integer value1, Integer value2) {
			addCriterion("id between", value1, value2, "id");
			return (Criteria) this;
		}

		public Criteria andIdNotBetween(Integer value1, Integer value2) {
			addCriterion("id not between", value1, value2, "id");
			return (Criteria) this;
		}

		public Criteria andNameIsNull() {
			addCriterion("name is null");
			return (Criteria) this;
		}

		public Criteria andNameIsNotNull() {
			addCriterion("name is not null");
			return (Criteria) this;
		}

		public Criteria andNameEqualTo(String value) {
			addCriterion("name =", value, "name");
			return (Criteria) this;
		}

		public Criteria andNameNotEqualTo(String value) {
			addCriterion("name <>", value, "name");
			return (Criteria) this;
		}

		public Criteria andNameGreaterThan(String value) {
			addCriterion("name >", value, "name");
			return (Criteria) this;
		}

		public Criteria andNameGreaterThanOrEqualTo(String value) {
			addCriterion("name >=", value, "name");
			return (Criteria) this;
		}

		public Criteria andNameLessThan(String value) {
			addCriterion("name <", value, "name");
			return (Criteria) this;
		}

		public Criteria andNameLessThanOrEqualTo(String value) {
			addCriterion("name <=", value, "name");
			return (Criteria) this;
		}

		public Criteria andNameLike(String value) {
			addCriterion("name like", value, "name");
			return (Criteria) this;
		}

		public Criteria andNameNotLike(String value) {
			addCriterion("name not like", value, "name");
			return (Criteria) this;
		}

		public Criteria andNameIn(List<String> values) {
			addCriterion("name in", values, "name");
			return (Criteria) this;
		}

		public Criteria andNameNotIn(List<String> values) {
			addCriterion("name not in", values, "name");
			return (Criteria) this;
		}

		public Criteria andNameBetween(String value1, String value2) {
			addCriterion("name between", value1, value2, "name");
			return (Criteria) this;
		}

		public Criteria andNameNotBetween(String value1, String value2) {
			addCriterion("name not between", value1, value2, "name");
			return (Criteria) this;
		}

		public Criteria andPriceIsNull() {
			addCriterion("price is null");
			return (Criteria) this;
		}

		public Criteria andPriceIsNotNull() {
			addCriterion("price is not null");
			return (Criteria) this;
		}

		public Criteria andPriceEqualTo(Float value) {
			addCriterion("price =", value, "price");
			return (Criteria) this;
		}

		public Criteria andPriceNotEqualTo(Float value) {
			addCriterion("price <>", value, "price");
			return (Criteria) this;
		}

		public Criteria andPriceGreaterThan(Float value) {
			addCriterion("price >", value, "price");
			return (Criteria) this;
		}

		public Criteria andPriceGreaterThanOrEqualTo(Float value) {
			addCriterion("price >=", value, "price");
			return (Criteria) this;
		}

		public Criteria andPriceLessThan(Float value) {
			addCriterion("price <", value, "price");
			return (Criteria) this;
		}

		public Criteria andPriceLessThanOrEqualTo(Float value) {
			addCriterion("price <=", value, "price");
			return (Criteria) this;
		}

		public Criteria andPriceIn(List<Float> values) {
			addCriterion("price in", values, "price");
			return (Criteria) this;
		}

		public Criteria andPriceNotIn(List<Float> values) {
			addCriterion("price not in", values, "price");
			return (Criteria) this;
		}

		public Criteria andPriceBetween(Float value1, Float value2) {
			addCriterion("price between", value1, value2, "price");
			return (Criteria) this;
		}

		public Criteria andPriceNotBetween(Float value1, Float value2) {
			addCriterion("price not between", value1, value2, "price");
			return (Criteria) this;
		}

		public Criteria andDetailIsNull() {
			addCriterion("detail is null");
			return (Criteria) this;
		}

		public Criteria andDetailIsNotNull() {
			addCriterion("detail is not null");
			return (Criteria) this;
		}

		public Criteria andDetailEqualTo(String value) {
			addCriterion("detail =", value, "detail");
			return (Criteria) this;
		}

		public Criteria andDetailNotEqualTo(String value) {
			addCriterion("detail <>", value, "detail");
			return (Criteria) this;
		}

		public Criteria andDetailGreaterThan(String value) {
			addCriterion("detail >", value, "detail");
			return (Criteria) this;
		}

		public Criteria andDetailGreaterThanOrEqualTo(String value) {
			addCriterion("detail >=", value, "detail");
			return (Criteria) this;
		}

		public Criteria andDetailLessThan(String value) {
			addCriterion("detail <", value, "detail");
			return (Criteria) this;
		}

		public Criteria andDetailLessThanOrEqualTo(String value) {
			addCriterion("detail <=", value, "detail");
			return (Criteria) this;
		}

		public Criteria andDetailLike(String value) {
			addCriterion("detail like", value, "detail");
			return (Criteria) this;
		}

		public Criteria andDetailNotLike(String value) {
			addCriterion("detail not like", value, "detail");
			return (Criteria) this;
		}

		public Criteria andDetailIn(List<String> values) {
			addCriterion("detail in", values, "detail");
			return (Criteria) this;
		}

		public Criteria andDetailNotIn(List<String> values) {
			addCriterion("detail not in", values, "detail");
			return (Criteria) this;
		}

		public Criteria andDetailBetween(String value1, String value2) {
			addCriterion("detail between", value1, value2, "detail");
			return (Criteria) this;
		}

		public Criteria andDetailNotBetween(String value1, String value2) {
			addCriterion("detail not between", value1, value2, "detail");
			return (Criteria) this;
		}

		public Criteria andPicIsNull() {
			addCriterion("pic is null");
			return (Criteria) this;
		}

		public Criteria andPicIsNotNull() {
			addCriterion("pic is not null");
			return (Criteria) this;
		}

		public Criteria andPicEqualTo(String value) {
			addCriterion("pic =", value, "pic");
			return (Criteria) this;
		}

		public Criteria andPicNotEqualTo(String value) {
			addCriterion("pic <>", value, "pic");
			return (Criteria) this;
		}

		public Criteria andPicGreaterThan(String value) {
			addCriterion("pic >", value, "pic");
			return (Criteria) this;
		}

		public Criteria andPicGreaterThanOrEqualTo(String value) {
			addCriterion("pic >=", value, "pic");
			return (Criteria) this;
		}

		public Criteria andPicLessThan(String value) {
			addCriterion("pic <", value, "pic");
			return (Criteria) this;
		}

		public Criteria andPicLessThanOrEqualTo(String value) {
			addCriterion("pic <=", value, "pic");
			return (Criteria) this;
		}

		public Criteria andPicLike(String value) {
			addCriterion("pic like", value, "pic");
			return (Criteria) this;
		}

		public Criteria andPicNotLike(String value) {
			addCriterion("pic not like", value, "pic");
			return (Criteria) this;
		}

		public Criteria andPicIn(List<String> values) {
			addCriterion("pic in", values, "pic");
			return (Criteria) this;
		}

		public Criteria andPicNotIn(List<String> values) {
			addCriterion("pic not in", values, "pic");
			return (Criteria) this;
		}

		public Criteria andPicBetween(String value1, String value2) {
			addCriterion("pic between", value1, value2, "pic");
			return (Criteria) this;
		}

		public Criteria andPicNotBetween(String value1, String value2) {
			addCriterion("pic not between", value1, value2, "pic");
			return (Criteria) this;
		}

		public Criteria andCreatetimeIsNull() {
			addCriterion("createtime is null");
			return (Criteria) this;
		}

		public Criteria andCreatetimeIsNotNull() {
			addCriterion("createtime is not null");
			return (Criteria) this;
		}

		public Criteria andCreatetimeEqualTo(Date value) {
			addCriterion("createtime =", value, "createtime");
			return (Criteria) this;
		}

		public Criteria andCreatetimeNotEqualTo(Date value) {
			addCriterion("createtime <>", value, "createtime");
			return (Criteria) this;
		}

		public Criteria andCreatetimeGreaterThan(Date value) {
			addCriterion("createtime >", value, "createtime");
			return (Criteria) this;
		}

		public Criteria andCreatetimeGreaterThanOrEqualTo(Date value) {
			addCriterion("createtime >=", value, "createtime");
			return (Criteria) this;
		}

		public Criteria andCreatetimeLessThan(Date value) {
			addCriterion("createtime <", value, "createtime");
			return (Criteria) this;
		}

		public Criteria andCreatetimeLessThanOrEqualTo(Date value) {
			addCriterion("createtime <=", value, "createtime");
			return (Criteria) this;
		}

		public Criteria andCreatetimeIn(List<Date> values) {
			addCriterion("createtime in", values, "createtime");
			return (Criteria) this;
		}

		public Criteria andCreatetimeNotIn(List<Date> values) {
			addCriterion("createtime not in", values, "createtime");
			return (Criteria) this;
		}

		public Criteria andCreatetimeBetween(Date value1, Date value2) {
			addCriterion("createtime between", value1, value2, "createtime");
			return (Criteria) this;
		}

		public Criteria andCreatetimeNotBetween(Date value1, Date value2) {
			addCriterion("createtime not between", value1, value2, "createtime");
			return (Criteria) this;
		}
	}

	public static class Criteria extends GeneratedCriteria {

		protected Criteria() {
			super();
		}
	}

	public static class Criterion {
		private String condition;

		private Object value;

		private Object secondValue;

		private boolean noValue;

		private boolean singleValue;

		private boolean betweenValue;

		private boolean listValue;

		private String typeHandler;

		public String getCondition() {
			return condition;
		}

		public Object getValue() {
			return value;
		}

		public Object getSecondValue() {
			return secondValue;
		}

		public boolean isNoValue() {
			return noValue;
		}

		public boolean isSingleValue() {
			return singleValue;
		}

		public boolean isBetweenValue() {
			return betweenValue;
		}

		public boolean isListValue() {
			return listValue;
		}

		public String getTypeHandler() {
			return typeHandler;
		}

		protected Criterion(String condition) {
			super();
			this.condition = condition;
			this.typeHandler = null;
			this.noValue = true;
		}

		protected Criterion(String condition, Object value, String typeHandler) {
			super();
			this.condition = condition;
			this.value = value;
			this.typeHandler = typeHandler;
			if (value instanceof List<?>) {
				this.listValue = true;
			} else {
				this.singleValue = true;
			}
		}

		protected Criterion(String condition, Object value) {
			this(condition, value, null);
		}

		protected Criterion(String condition, Object value, Object secondValue, String typeHandler) {
			super();
			this.condition = condition;
			this.value = value;
			this.secondValue = secondValue;
			this.typeHandler = typeHandler;
			this.betweenValue = true;
		}

		protected Criterion(String condition, Object value, Object secondValue) {
			this(condition, value, secondValue, null);
		}
	}
}

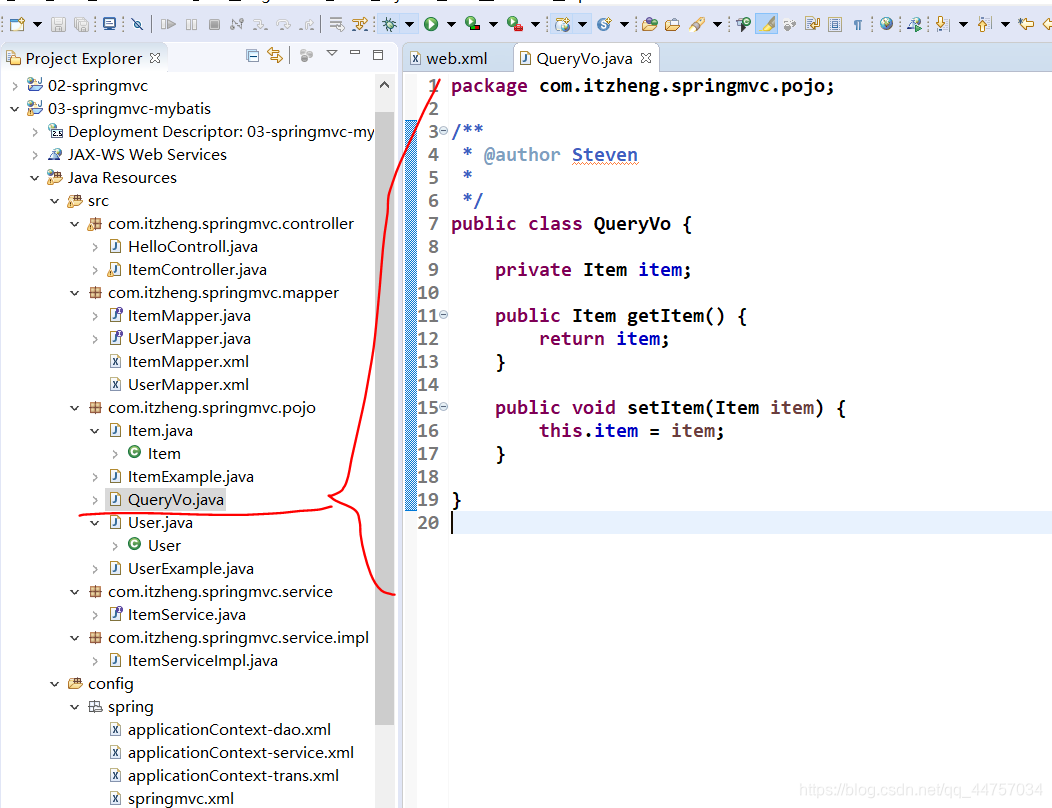

2、创建QueryVo类

package com.itzheng.springmvc.pojo;

/**
 *
 * @author Steven
 *
 */
public class QueryVo {

	private Item item;

	public Item getItem() {
		return item;
	}

	public void setItem(Item item) {
		this.item = item;
	}

}

3、创建User类

package com.itzheng.springmvc.pojo;
import java.util.Date;

public class User {
    private Integer id;

    private String username;

    private Date birthday;

    private String sex;

    private String address;

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getUsername() {
        return username;
    }

    public void setUsername(String username) {
        this.username = username == null ? null : username.trim();
    }

    public Date getBirthday() {
        return birthday;
    }

    public void setBirthday(Date birthday) {
        this.birthday = birthday;
    }

    public String getSex() {
        return sex;
    }

    public void setSex(String sex) {
        this.sex = sex == null ? null : sex.trim();
    }

    public String getAddress() {
        return address;
    }

    public void setAddress(String address) {
        this.address = address == null ? null : address.trim();
    }
}

4、创建UserExample类

package com.itzheng.springmvc.pojo;
import java.util.ArrayList;
import java.util.Date;
import java.util.Iterator;
import java.util.List;

public class UserExample {
    protected String orderByClause;

    protected boolean distinct;

    protected List<Criteria> oredCriteria;

    public UserExample() {
        oredCriteria = new ArrayList<Criteria>();
    }

    public void setOrderByClause(String orderByClause) {
        this.orderByClause = orderByClause;
    }

    public String getOrderByClause() {
        return orderByClause;
    }

    public void setDistinct(boolean distinct) {
        this.distinct = distinct;
    }

    public boolean isDistinct() {
        return distinct;
    }

    public List<Criteria> getOredCriteria() {
        return oredCriteria;
    }

    public void or(Criteria criteria) {
        oredCriteria.add(criteria);
    }

    public Criteria or() {
        Criteria criteria = createCriteriaInternal();
        oredCriteria.add(criteria);
        return criteria;
    }

    public Criteria createCriteria() {
        Criteria criteria = createCriteriaInternal();
        if (oredCriteria.size() == 0) {
            oredCriteria.add(criteria);
        }
        return criteria;
    }

    protected Criteria createCriteriaInternal() {
        Criteria criteria = new Criteria();
        return criteria;
    }

    public void clear() {
        oredCriteria.clear();
        orderByClause = null;
        distinct = false;
    }

    protected abstract static class GeneratedCriteria {
        protected List<Criterion> criteria;

        protected GeneratedCriteria() {
            super();
            criteria = new ArrayList<Criterion>();
        }

        public boolean isValid() {
            return criteria.size() > 0;
        }

        public List<Criterion> getAllCriteria() {
            return criteria;
        }

        public List<Criterion> getCriteria() {
            return criteria;
        }

        protected void addCriterion(String condition) {
            if (condition == null) {
                throw new RuntimeException("Value for condition cannot be null");
            }
            criteria.add(new Criterion(condition));
        }

        protected void addCriterion(String condition, Object value, String property) {
            if (value == null) {
                throw new RuntimeException("Value for " + property + " cannot be null");
            }
            criteria.add(new Criterion(condition, value));
        }

        protected void addCriterion(String condition, Object value1, Object value2, String property) {
            if (value1 == null || value2 == null) {
                throw new RuntimeException("Between values for " + property + " cannot be null");
            }
            criteria.add(new Criterion(condition, value1, value2));
        }

        protected void addCriterionForJDBCDate(String condition, Date value, String property) {
            if (value == null) {
                throw new RuntimeException("Value for " + property + " cannot be null");
            }
            addCriterion(condition, new java.sql.Date(value.getTime()), property);
        }

        protected void addCriterionForJDBCDate(String condition, List<Date> values, String property) {
            if (values == null || values.size() == 0) {
                throw new RuntimeException("Value list for " + property + " cannot be null or empty");
            }
            List<java.sql.Date> dateList = new ArrayList<java.sql.Date>();
            Iterator<Date> iter = values.iterator();
            while (iter.hasNext()) {
                dateList.add(new java.sql.Date(iter.next().getTime()));
            }
            addCriterion(condition, dateList, property);
        }

        protected void addCriterionForJDBCDate(String condition, Date value1, Date value2, String property) {
            if (value1 == null || value2 == null) {
                throw new RuntimeException("Between values for " + property + " cannot be null");
            }
            addCriterion(condition, new java.sql.Date(value1.getTime()), new java.sql.Date(value2.getTime()), property);
        }

        public Criteria andIdIsNull() {
            addCriterion("id is null");
            return (Criteria) this;
        }

        public Criteria andIdIsNotNull() {
            addCriterion("id is not null");
            return (Criteria) this;
        }

        public Criteria andIdEqualTo(Integer value) {
            addCriterion("id =", value, "id");
            return (Criteria) this;
        }

        public Criteria andIdNotEqualTo(Integer value) {
            addCriterion("id <>", value, "id");
            return (Criteria) this;
        }

        public Criteria andIdGreaterThan(Integer value) {
            addCriterion("id >", value, "id");
            return (Criteria) this;
        }

        public Criteria andIdGreaterThanOrEqualTo(Integer value) {
            addCriterion("id >=", value, "id");
            return (Criteria) this;
        }

        public Criteria andIdLessThan(Integer value) {
            addCriterion("id <", value, "id");
            return (Criteria) this;
        }

        public Criteria andIdLessThanOrEqualTo(Integer value) {
            addCriterion("id <=", value, "id");
            return (Criteria) this;
        }

        public Criteria andIdIn(List<Integer> values) {
            addCriterion("id in", values, "id");
            return (Criteria) this;
        }

        public Criteria andIdNotIn(List<Integer> values) {
            addCriterion("id not in", values, "id");
            return (Criteria) this;
        }

        public Criteria andIdBetween(Integer value1, Integer value2) {
            addCriterion("id between", value1, value2, "id");
            return (Criteria) this;
        }

        public Criteria andIdNotBetween(Integer value1, Integer value2) {
            addCriterion("id not between", value1, value2, "id");
            return (Criteria) this;
        }

        public Criteria andUsernameIsNull() {
            addCriterion("username is null");
            return (Criteria) this;
        }

        public Criteria andUsernameIsNotNull() {
            addCriterion("username is not null");
            return (Criteria) this;
        }

        public Criteria andUsernameEqualTo(String value) {
            addCriterion("username =", value, "username");
            return (Criteria) this;
        }

        public Criteria andUsernameNotEqualTo(String value) {
            addCriterion("username <>", value, "username");
            return (Criteria) this;
        }

        public Criteria andUsernameGreaterThan(String value) {
            addCriterion("username >", value, "username");
            return (Criteria) this;
        }

        public Criteria andUsernameGreaterThanOrEqualTo(String value) {
            addCriterion("username >=", value, "username");
            return (Criteria) this;
        }

        public Criteria andUsernameLessThan(String value) {
            addCriterion("username <", value, "username");
            return (Criteria) this;
        }

        public Criteria andUsernameLessThanOrEqualTo(String value) {
            addCriterion("username <=", value, "username");
            return (Criteria) this;
        }

        public Criteria andUsernameLike(String value) {
            addCriterion("username like", value, "username");
            return (Criteria) this;
        }

        public Criteria andUsernameNotLike(String value) {
            addCriterion("username not like", value, "username");
            return (Criteria) this;
        }

        public Criteria andUsernameIn(List<String> values) {
            addCriterion("username in", values, "username");
            return (Criteria) this;
        }

        public Criteria andUsernameNotIn(List<String> values) {
            addCriterion("username not in", values, "username");
            return (Criteria) this;
        }

        public Criteria andUsernameBetween(String value1, String value2) {
            addCriterion("username between", value1, value2, "username");
            return (Criteria) this;
        }

        public Criteria andUsernameNotBetween(String value1, String value2) {
            addCriterion("username not between", value1, value2, "username");
            return (Criteria) this;
        }

        public Criteria andBirthdayIsNull() {
            addCriterion("birthday is null");
            return (Criteria) this;
        }

        public Criteria andBirthdayIsNotNull() {
            addCriterion("birthday is not null");
            return (Criteria) this;
        }

        public Criteria andBirthdayEqualTo(Date value) {
            addCriterionForJDBCDate("birthday =", value, "birthday");
            return (Criteria) this;
        }

        public Criteria andBirthdayNotEqualTo(Date value) {
            addCriterionForJDBCDate("birthday <>", value, "birthday");
            return (Criteria) this;
        }

        public Criteria andBirthdayGreaterThan(Date value) {
            addCriterionForJDBCDate("birthday >", value, "birthday");
            return (Criteria) this;
        }

        public Criteria andBirthdayGreaterThanOrEqualTo(Date value) {
            addCriterionForJDBCDate("birthday >=", value, "birthday");
            return (Criteria) this;
        }

        public Criteria andBirthdayLessThan(Date value) {
            addCriterionForJDBCDate("birthday <", value, "birthday");
            return (Criteria) this;
        }

        public Criteria andBirthdayLessThanOrEqualTo(Date value) {
            addCriterionForJDBCDate("birthday <=", value, "birthday");
            return (Criteria) this;
        }

        public Criteria andBirthdayIn(List<Date> values) {
            addCriterionForJDBCDate("birthday in", values, "birthday");
            return (Criteria) this;
        }

        public Criteria andBirthdayNotIn(List<Date> values) {
            addCriterionForJDBCDate("birthday not in", values, "birthday");
            return (Criteria) this;
        }

        public Criteria andBirthdayBetween(Date value1, Date value2) {
            addCriterionForJDBCDate("birthday between", value1, value2, "birthday");
            return (Criteria) this;
        }

        public Criteria andBirthdayNotBetween(Date value1, Date value2) {
            addCriterionForJDBCDate("birthday not between", value1, value2, "birthday");
            return (Criteria) this;
        }

        public Criteria andSexIsNull() {
            addCriterion("sex is null");
            return (Criteria) this;
        }

        public Criteria andSexIsNotNull() {
            addCriterion("sex is not null");
            return (Criteria) this;
        }

        public Criteria andSexEqualTo(String value) {
            addCriterion("sex =", value, "sex");
            return (Criteria) this;
        }

        public Criteria andSexNotEqualTo(String value) {
            addCriterion("sex <>", value, "sex");
            return (Criteria) this;
        }

        public Criteria andSexGreaterThan(String value) {
            addCriterion("sex >", value, "sex");
            return (Criteria) this;
        }

        public Criteria andSexGreaterThanOrEqualTo(String value) {
            addCriterion("sex >=", value, "sex");
            return (Criteria) this;
        }

        public Criteria andSexLessThan(String value) {
            addCriterion("sex <", value, "sex");
            return (Criteria) this;
        }

        public Criteria andSexLessThanOrEqualTo(String value) {
            addCriterion("sex <=", value, "sex");
            return (Criteria) this;
        }

        public Criteria andSexLike(String value) {
            addCriterion("sex like", value, "sex");
            return (Criteria) this;
        }

        public Criteria andSexNotLike(String value) {
            addCriterion("sex not like", value, "sex");
            return (Criteria) this;
        }

        public Criteria andSexIn(List<String> values) {
            addCriterion("sex in", values, "sex");
            return (Criteria) this;
        }

        public Criteria andSexNotIn(List<String> values) {
            addCriterion("sex not in", values, "sex");
            return (Criteria) this;
        }

        public Criteria andSexBetween(String value1, String value2) {
            addCriterion("sex between", value1, value2, "sex");
            return (Criteria) this;
        }

        public Criteria andSexNotBetween(String value1, String value2) {
            addCriterion("sex not between", value1, value2, "sex");
            return (Criteria) this;
        }

        public Criteria andAddressIsNull() {
            addCriterion("address is null");
            return (Criteria) this;
        }

        public Criteria andAddressIsNotNull() {
            addCriterion("address is not null");
            return (Criteria) this;
        }

        public Criteria andAddressEqualTo(String value) {
            addCriterion("address =", value, "address");
            return (Criteria) this;
        }

        public Criteria andAddressNotEqualTo(String value) {
            addCriterion("address <>", value, "address");
            return (Criteria) this;
        }

        public Criteria andAddressGreaterThan(String value) {
            addCriterion("address >", value, "address");
            return (Criteria) this;
        }

        public Criteria andAddressGreaterThanOrEqualTo(String value) {
            addCriterion("address >=", value, "address");
            return (Criteria) this;
        }

        public Criteria andAddressLessThan(String value) {
            addCriterion("address <", value, "address");
            return (Criteria) this;
        }

        public Criteria andAddressLessThanOrEqualTo(String value) {
            addCriterion("address <=", value, "address");
            return (Criteria) this;
        }

        public Criteria andAddressLike(String value) {
            addCriterion("address like", value, "address");
            return (Criteria) this;
        }

        public Criteria andAddressNotLike(String value) {
            addCriterion("address not like", value, "address");
            return (Criteria) this;
        }

        public Criteria andAddressIn(List<String> values) {
            addCriterion("address in", values, "address");
            return (Criteria) this;
        }

        public Criteria andAddressNotIn(List<String> values) {
            addCriterion("address not in", values, "address");
            return (Criteria) this;
        }

        public Criteria andAddressBetween(String value1, String value2) {
            addCriterion("address between", value1, value2, "address");
            return (Criteria) this;
        }

        public Criteria andAddressNotBetween(String value1, String value2) {
            addCriterion("address not between", value1, value2, "address");
            return (Criteria) this;
        }
    }

    public static class Criteria extends GeneratedCriteria {

        protected Criteria() {
            super();
        }
    }
    public static class Criterion {
        private String condition;

        private Object value;

        private Object secondValue;

        private boolean noValue;

        private boolean singleValue;

        private boolean betweenValue;

        private boolean listValue;

        private String typeHandler;

        public String getCondition() {
            return condition;
        }

        public Object getValue() {
            return value;
        }

        public Object getSecondValue() {
            return secondValue;
        }

        public boolean isNoValue() {
            return noValue;
        }

        public boolean isSingleValue() {
            return singleValue;
        }

        public boolean isBetweenValue() {
            return betweenValue;
        }

        public boolean isListValue() {
            return listValue;
        }

        public String getTypeHandler() {
            return typeHandler;
        }

        protected Criterion(String condition) {
            super();
            this.condition = condition;
            this.typeHandler = null;
            this.noValue = true;
        }

        protected Criterion(String condition, Object value, String typeHandler) {
            super();
            this.condition = condition;
            this.value = value;
            this.typeHandler = typeHandler;
            if (value instanceof List<?>) {
                this.listValue = true;
            } else {
                this.singleValue = true;
            }
        }

        protected Criterion(String condition, Object value) {
            this(condition, value, null);
        }

        protected Criterion(String condition, Object value, Object secondValue, String typeHandler) {
            super();
            this.condition = condition;
            this.value = value;
            this.secondValue = secondValue;
            this.typeHandler = typeHandler;
            this.betweenValue = true;
        }

        protected Criterion(String condition, Object value, Object secondValue) {
            this(condition, value, secondValue, null);
        }
    }
}

5、创建SqlMapConfig.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
</configuration>

6、创建spring文件夹并创建applicationContext-dao.xml

a)数据库连接池
b)SqlSessionFactory对象，需要spring和mybatis整合包下的。
c)配置mapper文件扫描器

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:context="http://www.springframework.org/schema/context" xmlns:p="http://www.springframework.org/schema/p"
	xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
	http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd
	http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.0.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.0.xsd
	http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util-4.0.xsd">
   <!-- 加载配置文件 -->
   <context:property-placeholder location="classpath:jdbc.properties" />
	<!-- 数据库连接池 -->
	<bean id="dataSource" class="org.apache.commons.dbcp.BasicDataSource"
		destroy-method="close">
		<property name="driverClassName" value="${jdbc.driver}" />
		<property name="url" value="${jdbc.url}" />
		<property name="username" value="${jdbc.username}" />
		<property name="password" value="${jdbc.password}" />
		<!-- 连接池的最大数据库连接数 -->
		<property name="maxActive" value="10" />
		<!-- 最大空闲数 -->
		<property name="maxIdle" value="5" />
	</bean>
	<!-- SqlSessionFactory配置 -->
	<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
		<property name="dataSource" ref="dataSource" />
		<!-- 加载mybatis核心配置文件 -->
		<property name="configLocation" value="classpath:SqlMapConfig.xml" />
		<!-- 别名包扫描 -->
		<property name="typeAliasesPackage" value="com.itzheng.springmvc.pojo" />
	</bean>
    <!-- 动态代理，第二种方式：包扫描（推荐）： -->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
    	<!-- basePackage多个包用","分隔 -->
    	<property name="basePackage" value="com.itzheng.springmvc.mapper" />
    </bean>
</beans>

7、jdbc.properties和log4j.properties

jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/mybatis?characterEncoding=utf-8
jdbc.username=root
jdbc.password=root

# Global logging configuration
log4j.rootLogger=DEBUG, stdout
# Console output...
log4j.appender.stdout=org.apache.log4j.ConsoleAppender
log4j.appender.stdout.layout=org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern=%5p [%t] - %m%n

8、创建mapper文件夹以及对应的类和映射

（1）创建ItemMapper接口和对应的方法

package com.itzheng.springmvc.mapper;

import com.itzheng.springmvc.pojo.Item;
import com.itzheng.springmvc.pojo.ItemExample;
import java.util.List;
import org.apache.ibatis.annotations.Param;

public interface ItemMapper {
	int countByExample(ItemExample example);

	int deleteByExample(ItemExample example);

	int deleteByPrimaryKey(Integer id);

	int insert(Item record);

	int insertSelective(Item record);

	List<Item> selectByExample(ItemExample example);

	Item selectByPrimaryKey(Integer id);

	int updateByExampleSelective(@Param("record") Item record, @Param("example") ItemExample example);

	int updateByExample(@Param("record") Item record, @Param("example") ItemExample example);

	int updateByPrimaryKeySelective(Item record);

	int updateByPrimaryKey(Item record);
}

（2）创建ItemMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.itzheng.springmvc.mapper.ItemMapper" >
  <resultMap id="BaseResultMap" type="com.itzheng.springmvc.pojo.Item" >
    <id column="id" property="id" jdbcType="INTEGER" />
    <result column="name" property="name" jdbcType="VARCHAR" />
    <result column="price" property="price" jdbcType="REAL" />
    <result column="detail" property="detail" jdbcType="VARCHAR" />
    <result column="pic" property="pic" jdbcType="VARCHAR" />
    <result column="createtime" property="createtime" jdbcType="TIMESTAMP" />
  </resultMap>
  <sql id="Example_Where_Clause" >
    <where >
      <foreach collection="oredCriteria" item="criteria" separator="or" >
        <if test="criteria.valid" >
          <trim prefix="(" suffix=")" prefixOverrides="and" >
            <foreach collection="criteria.criteria" item="criterion" >
              <choose >
                <when test="criterion.noValue" >
                  and ${criterion.condition}
                </when>
                <when test="criterion.singleValue" >
                  and ${criterion.condition} #{criterion.value}
                </when>
                <when test="criterion.betweenValue" >
                  and ${criterion.condition} #{criterion.value} and #{criterion.secondValue}
                </when>
                <when test="criterion.listValue" >
                  and ${criterion.condition}
                  <foreach collection="criterion.value" item="listItem" open="(" close=")" separator="," >
                    #{listItem}
                  </foreach>
                </when>
              </choose>
            </foreach>
          </trim>
        </if>
      </foreach>
    </where>
  </sql>
  <sql id="Update_By_Example_Where_Clause" >
    <where >
      <foreach collection="example.oredCriteria" item="criteria" separator="or" >
        <if test="criteria.valid" >
          <trim prefix="(" suffix=")" prefixOverrides="and" >
            <foreach collection="criteria.criteria" item="criterion" >
              <choose >
                <when test="criterion.noValue" >
                  and ${criterion.condition}
                </when>
                <when test="criterion.singleValue" >
                  and ${criterion.condition} #{criterion.value}
                </when>
                <when test="criterion.betweenValue" >
                  and ${criterion.condition} #{criterion.value} and #{criterion.secondValue}
                </when>
                <when test="criterion.listValue" >
                  and ${criterion.condition}
                  <foreach collection="criterion.value" item="listItem" open="(" close=")" separator="," >
                    #{listItem}
                  </foreach>
                </when>
              </choose>
            </foreach>
          </trim>
        </if>
      </foreach>
    </where>
  </sql>
  <sql id="Base_Column_List" >
    id, name, price, detail, pic, createtime
  </sql>
  <select id="selectByExample" resultMap="BaseResultMap" parameterType="com.itzheng.springmvc.pojo.ItemExample" >
    select
    <if test="distinct" >
      distinct
    </if>
    <include refid="Base_Column_List" />
    from item
    <if test="_parameter != null" >
      <include refid="Example_Where_Clause" />
    </if>
    <if test="orderByClause != null" >
      order by ${orderByClause}
    </if>
  </select>
  <select id="selectByPrimaryKey" resultMap="BaseResultMap" parameterType="java.lang.Integer" >
    select
    <include refid="Base_Column_List" />
    from item
    where id = #{id,jdbcType=INTEGER}
  </select>
  <delete id="deleteByPrimaryKey" parameterType="java.lang.Integer" >
    delete from item
    where id = #{id,jdbcType=INTEGER}
  </delete>
  <delete id="deleteByExample" parameterType="com.itzheng.springmvc.pojo.ItemExample" >
    delete from item
    <if test="_parameter != null" >
      <include refid="Example_Where_Clause" />
    </if>
  </delete>
  <insert id="insert" parameterType="com.itzheng.springmvc.pojo.Item" >
    insert into item (id, name, price,
      detail, pic, createtime
      )
    values (#{id,jdbcType=INTEGER}, #{name,jdbcType=VARCHAR}, #{price,jdbcType=REAL},
      #{detail,jdbcType=VARCHAR}, #{pic,jdbcType=VARCHAR}, #{createtime,jdbcType=TIMESTAMP}
      )
  </insert>
  <insert id="insertSelective" parameterType="com.itzheng.springmvc.pojo.Item" >
    insert into item
    <trim prefix="(" suffix=")" suffixOverrides="," >
      <if test="id != null" >
        id,
      </if>
      <if test="name != null" >
        name,
      </if>
      <if test="price != null" >
        price,
      </if>
      <if test="detail != null" >
        detail,
      </if>
      <if test="pic != null" >
        pic,
      </if>
      <if test="createtime != null" >
        createtime,
      </if>
    </trim>
    <trim prefix="values (" suffix=")" suffixOverrides="," >
      <if test="id != null" >
        #{id,jdbcType=INTEGER},
      </if>
      <if test="name != null" >
        #{name,jdbcType=VARCHAR},
      </if>
      <if test="price != null" >
        #{price,jdbcType=REAL},
      </if>
      <if test="detail != null" >
        #{detail,jdbcType=VARCHAR},
      </if>
      <if test="pic != null" >
        #{pic,jdbcType=VARCHAR},
      </if>
      <if test="createtime != null" >
        #{createtime,jdbcType=TIMESTAMP},
      </if>
    </trim>
  </insert>
  <select id="countByExample" parameterType="com.itzheng.springmvc.pojo.ItemExample" resultType="java.lang.Integer" >
    select count(*) from item
    <if test="_parameter != null" >
      <include refid="Example_Where_Clause" />
    </if>
  </select>
  <update id="updateByExampleSelective" parameterType="map" >
    update item
    <set >
      <if test="record.id != null" >
        id = #{record.id,jdbcType=INTEGER},
      </if>
      <if test="record.name != null" >
        name = #{record.name,jdbcType=VARCHAR},
      </if>
      <if test="record.price != null" >
        price = #{record.price,jdbcType=REAL},
      </if>
      <if test="record.detail != null" >
        detail = #{record.detail,jdbcType=VARCHAR},
      </if>
      <if test="record.pic != null" >
        pic = #{record.pic,jdbcType=VARCHAR},
      </if>
      <if test="record.createtime != null" >
        createtime = #{record.createtime,jdbcType=TIMESTAMP},
      </if>
    </set>
    <if test="_parameter != null" >
      <include refid="Update_By_Example_Where_Clause" />
    </if>
  </update>
  <update id="updateByExample" parameterType="map" >
    update item
    set id = #{record.id,jdbcType=INTEGER},
      name = #{record.name,jdbcType=VARCHAR},
      price = #{record.price,jdbcType=REAL},
      detail = #{record.detail,jdbcType=VARCHAR},
      pic = #{record.pic,jdbcType=VARCHAR},
      createtime = #{record.createtime,jdbcType=TIMESTAMP}
    <if test="_parameter != null" >
      <include refid="Update_By_Example_Where_Clause" />
    </if>
  </update>
  <update id="updateByPrimaryKeySelective" parameterType="com.itzheng.springmvc.pojo.Item" >
    update item
    <set >
      <if test="name != null" >
        name = #{name,jdbcType=VARCHAR},
      </if>
      <if test="price != null" >
        price = #{price,jdbcType=REAL},
      </if>
      <if test="detail != null" >
        detail = #{detail,jdbcType=VARCHAR},
      </if>
      <if test="pic != null" >
        pic = #{pic,jdbcType=VARCHAR},
      </if>
      <if test="createtime != null" >
        createtime = #{createtime,jdbcType=TIMESTAMP},
      </if>
    </set>
    where id = #{id,jdbcType=INTEGER}
  </update>
  <update id="updateByPrimaryKey" parameterType="com.itzheng.springmvc.pojo.Item" >
    update item
    set name = #{name,jdbcType=VARCHAR},
      price = #{price,jdbcType=REAL},
      detail = #{detail,jdbcType=VARCHAR},
      pic = #{pic,jdbcType=VARCHAR},
      createtime = #{createtime,jdbcType=TIMESTAMP}
    where id = #{id,jdbcType=INTEGER}
  </update>
</mapper>

（3）创建UserMapper.java

package com.itzheng.springmvc.mapper;

import com.itzheng.springmvc.pojo.User;
import com.itzheng.springmvc.pojo.UserExample;
import java.util.List;
import org.apache.ibatis.annotations.Param;

public interface UserMapper {
    int countByExample(UserExample example);

    int deleteByExample(UserExample example);

    int deleteByPrimaryKey(Integer id);

    int insert(User record);

    int insertSelective(User record);

    List<User> selectByExample(UserExample example);

    User selectByPrimaryKey(Integer id);

    int updateByExampleSelective(@Param("record") User record, @Param("example") UserExample example);

    int updateByExample(@Param("record") User record, @Param("example") UserExample example);

    int updateByPrimaryKeySelective(User record);

    int updateByPrimaryKey(User record);
}

（4）创建UserMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.itzheng.springmvc.mapper.UserMapper" >
  <resultMap id="BaseResultMap" type="com.itzheng.springmvc.pojo.User" >
    <id column="id" property="id" jdbcType="INTEGER" />
    <result column="username" property="username" jdbcType="VARCHAR" />
    <result column="birthday" property="birthday" jdbcType="DATE" />
    <result column="sex" property="sex" jdbcType="CHAR" />
    <result column="address" property="address" jdbcType="VARCHAR" />
  </resultMap>
  <sql id="Example_Where_Clause" >
    <where >
      <foreach collection="oredCriteria" item="criteria" separator="or" >
        <if test="criteria.valid" >
          <trim prefix="(" suffix=")" prefixOverrides="and" >
            <foreach collection="criteria.criteria" item="criterion" >
              <choose >
                <when test="criterion.noValue" >
                  and ${criterion.condition}
                </when>
                <when test="criterion.singleValue" >
                  and ${criterion.condition} #{criterion.value}
                </when>
                <when test="criterion.betweenValue" >
                  and ${criterion.condition} #{criterion.value} and #{criterion.secondValue}
                </when>
                <when test="criterion.listValue" >
                  and ${criterion.condition}
                  <foreach collection="criterion.value" item="listItem" open="(" close=")" separator="," >
                    #{listItem}
                  </foreach>
                </when>
              </choose>
            </foreach>
          </trim>
        </if>
      </foreach>
    </where>
  </sql>
  <sql id="Update_By_Example_Where_Clause" >
    <where >
      <foreach collection="example.oredCriteria" item="criteria" separator="or" >
        <if test="criteria.valid" >
          <trim prefix="(" suffix=")" prefixOverrides="and" >
            <foreach collection="criteria.criteria" item="criterion" >
              <choose >
                <when test="criterion.noValue" >
                  and ${criterion.condition}
                </when>
                <when test="criterion.singleValue" >
                  and ${criterion.condition} #{criterion.value}
                </when>
                <when test="criterion.betweenValue" >
                  and ${criterion.condition} #{criterion.value} and #{criterion.secondValue}
                </when>
                <when test="criterion.listValue" >
                  and ${criterion.condition}
                  <foreach collection="criterion.value" item="listItem" open="(" close=")" separator="," >
                    #{listItem}
                  </foreach>
                </when>
              </choose>
            </foreach>
          </trim>
        </if>
      </foreach>
    </where>
  </sql>
  <sql id="Base_Column_List" >
    id, username, birthday, sex, address
  </sql>
  <select id="selectByExample" resultMap="BaseResultMap" parameterType="com.itzheng.springmvc.pojo.UserExample" >
    select
    <if test="distinct" >
      distinct
    </if>
    <include refid="Base_Column_List" />
    from user
    <if test="_parameter != null" >
      <include refid="Example_Where_Clause" />
    </if>
    <if test="orderByClause != null" >
      order by ${orderByClause}
    </if>
  </select>
  <select id="selectByPrimaryKey" resultMap="BaseResultMap" parameterType="java.lang.Integer" >
    select
    <include refid="Base_Column_List" />
    from user
    where id = #{id,jdbcType=INTEGER}
  </select>
  <delete id="deleteByPrimaryKey" parameterType="java.lang.Integer" >
    delete from user
    where id = #{id,jdbcType=INTEGER}
  </delete>
  <delete id="deleteByExample" parameterType="com.itzheng.springmvc.pojo.UserExample" >
    delete from user
    <if test="_parameter != null" >
      <include refid="Example_Where_Clause" />
    </if>
  </delete>
  <insert id="insert" parameterType="com.itzheng.springmvc.pojo.User" >
    insert into user (id, username, birthday,
      sex, address)
    values (#{id,jdbcType=INTEGER}, #{username,jdbcType=VARCHAR}, #{birthday,jdbcType=DATE},
      #{sex,jdbcType=CHAR}, #{address,jdbcType=VARCHAR})
  </insert>
  <insert id="insertSelective" parameterType="com.itzheng.springmvc.pojo.User" >
    insert into user
    <trim prefix="(" suffix=")" suffixOverrides="," >
      <if test="id != null" >
        id,
      </if>
      <if test="username != null" >
        username,
      </if>
      <if test="birthday != null" >
        birthday,
      </if>
      <if test="sex != null" >
        sex,
      </if>
      <if test="address != null" >
        address,
      </if>
    </trim>
    <trim prefix="values (" suffix=")" suffixOverrides="," >
      <if test="id != null" >
        #{id,jdbcType=INTEGER},
      </if>
      <if test="username != null" >
        #{username,jdbcType=VARCHAR},
      </if>
      <if test="birthday != null" >
        #{birthday,jdbcType=DATE},
      </if>
      <if test="sex != null" >
        #{sex,jdbcType=CHAR},
      </if>
      <if test="address != null" >
        #{address,jdbcType=VARCHAR},
      </if>
    </trim>
  </insert>
  <select id="countByExample" parameterType="com.itzheng.springmvc.pojo.UserExample" resultType="java.lang.Integer" >
    select count(*) from user
    <if test="_parameter != null" >
      <include refid="Example_Where_Clause" />
    </if>
  </select>
  <update id="updateByExampleSelective" parameterType="map" >
    update user
    <set >
      <if test="record.id != null" >
        id = #{record.id,jdbcType=INTEGER},
      </if>
      <if test="record.username != null" >
        username = #{record.username,jdbcType=VARCHAR},
      </if>
      <if test="record.birthday != null" >
        birthday = #{record.birthday,jdbcType=DATE},
      </if>
      <if test="record.sex != null" >
        sex = #{record.sex,jdbcType=CHAR},
      </if>
      <if test="record.address != null" >
        address = #{record.address,jdbcType=VARCHAR},
      </if>
    </set>
    <if test="_parameter != null" >
      <include refid="Update_By_Example_Where_Clause" />
    </if>
  </update>
  <update id="updateByExample" parameterType="map" >
    update user
    set id = #{record.id,jdbcType=INTEGER},
      username = #{record.username,jdbcType=VARCHAR},
      birthday = #{record.birthday,jdbcType=DATE},
      sex = #{record.sex,jdbcType=CHAR},
      address = #{record.address,jdbcType=VARCHAR}
    <if test="_parameter != null" >
      <include refid="Update_By_Example_Where_Clause" />
    </if>
  </update>
  <update id="updateByPrimaryKeySelective" parameterType="com.itzheng.springmvc.pojo.User" >
    update user
    <set >
      <if test="username != null" >
        username = #{username,jdbcType=VARCHAR},
      </if>
      <if test="birthday != null" >
        birthday = #{birthday,jdbcType=DATE},
      </if>
      <if test="sex != null" >
        sex = #{sex,jdbcType=CHAR},
      </if>
      <if test="address != null" >
        address = #{address,jdbcType=VARCHAR},
      </if>
    </set>
    where id = #{id,jdbcType=INTEGER}
  </update>
  <update id="updateByPrimaryKey" parameterType="com.itzheng.springmvc.pojo.User" >
    update user
    set username = #{username,jdbcType=VARCHAR},
      birthday = #{birthday,jdbcType=DATE},
      sex = #{sex,jdbcType=CHAR},
      address = #{address,jdbcType=VARCHAR}
    where id = #{id,jdbcType=INTEGER}
  </update>
</mapper>

二、创建Service层

（一）创建Service的接口和对应的实现类

1、创建对应的接口的方法

package com.itzheng.springmvc.service;

import java.util.List;

import com.itzheng.springmvc.pojo.Item;

/**
 * @author Steven
 *
 */
public interface ItemService {

	/**
	 * @return
	 */
	List<Item> getItemList();

	/**
	 * @param id
	 * @return
	 */
	Item getItemById(Integer id);

	/**
	 * @param item
	 */
	void updateItem(Item item);
}

2、创建对应的实现类和对象与的方法

package com.itzheng.springmvc.service.impl;
import java.util.List;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import com.itzheng.springmvc.mapper.ItemMapper;
import com.itzheng.springmvc.pojo.Item;
import com.itzheng.springmvc.service.ItemService;
@Service
public class ItemServiceImpl implements ItemService {
	@Autowired
	private ItemMapper itemMapper;
	@Override
	public List<Item> getItemList() {
		return itemMapper.selectByExample(null);
	}
	@Override
	public Item getItemById(Integer id) {
		return itemMapper.selectByPrimaryKey(id);
	}
	@Override
	public void updateItem(Item item) {
		itemMapper.updateByPrimaryKeySelective(item);
	}
}

（二）Service对应的配置文件

1、applicationContext-service.xml包扫描器，扫描@service注解的类。

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:context="http://www.springframework.org/schema/context" xmlns:p="http://www.springframework.org/schema/p"
	xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
	http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd
	http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.0.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.0.xsd
	http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util-4.0.xsd">
	<!-- @Service包扫描器 -->
	<context:component-scan base-package="com.itzheng.springmvc.service"/>
</beans>

2、applicationContext-trans.xml配置事务。

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:context="http://www.springframework.org/schema/context" xmlns:p="http://www.springframework.org/schema/p"
	xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
	http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd
	http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.0.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.0.xsd
	http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util-4.0.xsd">

	<!-- 事务管理器 -->
	<bean id="transactionManager"
		class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
		<!-- 数据源 -->
		<property name="dataSource" ref="dataSource" />
	</bean>

	<!-- 通知 -->
	<tx:advice id="txAdvice" transaction-manager="transactionManager">
		<tx:attributes>
			<!-- 传播行为 -->
			<tx:method name="save*" propagation="REQUIRED" />
			<tx:method name="insert*" propagation="REQUIRED" />
			<tx:method name="delete*" propagation="REQUIRED" />
			<tx:method name="update*" propagation="REQUIRED" />
			<tx:method name="find*" propagation="SUPPORTS" read-only="true" />
			<tx:method name="get*" propagation="SUPPORTS" read-only="true" />
			<tx:method name="query*" propagation="SUPPORTS" read-only="true" />
		</tx:attributes>
	</tx:advice>
	<!-- 切面 -->
	<aop:config>
		<aop:advisor advice-ref="txAdvice"
			pointcut="execution(* com.itzheng.springmvc.service.*.*(..))" />
	</aop:config>
</beans>

三、Controller层：

Springmvc.xml

1、包扫描器，扫描@Controller注解的类。

2、配置注解驱动。

3、视图解析器

package com.itzheng.springmvc.controller;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.servlet.ModelAndView;

import com.itzheng.springmvc.pojo.Item;
import com.itzheng.springmvc.pojo.QueryVo;
import com.itzheng.springmvc.service.ItemService;

@Controller
public class ItemController {

	@Autowired
	private ItemService itemService;

	@RequestMapping("itemList")
	public ModelAndView itemList() {
		ModelAndView mav = new ModelAndView();

		List<Item> itemList = itemService.getItemList();

		mav.addObject("itemList", itemList);
		// mav.setViewName("/WEB-INF/jsp/itemList.jsp");
		mav.setViewName("itemList");
		return mav;
	}

	/**
	 * 跟据ID查询商品信息，跳转修改商品页面
	 * 演示默认支持的参数传递
	 * Model/ModelMap返回数据模型
	 * @param request
	 * @param response
	 * @param session
	 * @return
	 */
	/*@RequestMapping("itemEdit")
	public String itemEdit(Model model,ModelMap modelMap,HttpServletRequest request, HttpServletResponse response, HttpSession session) {
		String idStr = request.getParameter("id");
		System.out.println("response:" + response);
		System.out.println("session:" + session);
		// 查询商品信息
		Item item = itemService.getItemById(new Integer(idStr));
		//model返回数据模型
		model.addAttribute("item", item);
		//mav.addObject("item", item);
		return "itemEdit";
	}*/

	@RequestMapping("itemEdit")
	public String itemEdit(Model model,@RequestParam(value="id",required=true,defaultValue="1") Integer ids) {
		// 查询商品信息
		Item item = itemService.getItemById(ids);
		//model返回数据模型
		model.addAttribute("item", item);
		//mav.addObject("item", item);
		return "itemEdit";
	}

	/**
	 * 修改商品
	 * 演示pojo参数绑定
	 * @param item
	 * @return
	 */
	@RequestMapping("updateItem")
	public String updateItem(Item item,Model model){
		itemService.updateItem(item);
		model.addAttribute("item", item);
		model.addAttribute("msg", "修改商品信息成功");
		return "itemEdit";
	}

	@RequestMapping("queryItem")
	public String queryItem(QueryVo vo,Model model){
		if(vo.getItem() != null){
			System.out.println(vo.getItem());
		}

		//模拟搜索商品
		List<Item> itemList = itemService.getItemList();

		model.addAttribute("itemList", itemList);
		return "itemList";
	}
}

Springmvc.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:p="http://www.springframework.org/schema/p"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:mvc="http://www.springframework.org/schema/mvc"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
        http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd">

	<!-- 配置@controller扫描包 -->
	<context:component-scan base-package="com.itzheng.springmvc.controller" />


	<!-- 配置注解驱动，相当于同时使用最新处理器映射跟处理器适配器,对json数据响应提供支持 -->
	<mvc:annotation-driven />

	<!-- 配置视图解析器 -->
	<bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
		<property name="prefix" value="/WEB-INF/jsp/"/>
		<property name="suffix" value=".jsp"/>
	</bean>
</beans>

四、Web.xml

1.配置spring容量监听器

2.配置前端控制器

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd" id="WebApp_ID" version="2.5">
  <display-name>03-springmvc-mybatis</display-name>
  <welcome-file-list>
    <welcome-file>index.html</welcome-file>
    <welcome-file>index.htm</welcome-file>
    <welcome-file>index.jsp</welcome-file>
    <welcome-file>default.html</welcome-file>
    <welcome-file>default.htm</welcome-file>
    <welcome-file>default.jsp</welcome-file>
  </welcome-file-list>

  <!-- 配置spring -->
	<context-param>
		<param-name>contextConfigLocation</param-name>
		<param-value>classpath:spring/applicationContext*.xml</param-value>
	</context-param>

	<!-- 使用监听器加载Spring配置文件 -->
	<listener>
		<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
	</listener>

	<!-- 解决post乱码问题 -->
	<filter>
		<filter-name>encoding</filter-name>
		<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
		<!-- 设置编码参是UTF8 -->
		<init-param>
			<param-name>encoding</param-name>
			<param-value>UTF-8</param-value>
		</init-param>
	</filter>
	<filter-mapping>
		<filter-name>encoding</filter-name>
		<url-pattern>/*</url-pattern>
	</filter-mapping>


	<!-- 前端控制器 -->
	<servlet>
		<servlet-name>springmvc-web</servlet-name>
		<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
		<init-param>
			<param-name>contextConfigLocation</param-name>
			<param-value>classpath:spring/springmvc.xml</param-value>
		</init-param>
	</servlet>

	<servlet-mapping>
		<servlet-name>springmvc-web</servlet-name>
		<url-pattern>*.action</url-pattern>
	</servlet-mapping>

</web-app>

3.运行并测试项目：

http://localhost:8080/itemEdit.action?id=1

五、SpringMVC参数绑定

支持的数据类型
参数类型推荐使用包装数据类型，因为基础数据类型不可以为null
整型：Integer、int
字符串：String
单精度：Float，float
双精度：Double、double
布尔型：Boolean ,boolean

1、默认支持的参数类型

基于完成需求：点击修改商品时，打开商品编辑页面，展示商品信息修改ItemController.java

@RequestMapping("itemEdit")
	public String itemEdit(Model model,ModelMap modelMap,HttpServletRequest request, HttpServletResponse response, HttpSession session) {
		String idStr = request.getParameter("id");
		System.out.println("response:" + response);
		System.out.println("session:" + session);
		// 查询商品信息
		Item item = itemService.getItemById(new Integer(idStr));
		//model返回数据模型
		model.addAttribute("item", item);
		//mav.addObject("item", item);
		return "itemEdit";
	}

2、绑定简单参数

@RequestMapping("itemEdit")
	public String itemEdit(Model model,@RequestParam(value="id",required=true,defaultValue="1") Integer ids) {
		// 查询商品信息
		Item item = itemService.getItemById(ids);
		//model返回数据模型
		model.addAttribute("item", item);
		//mav.addObject("item", item);
		return "itemEdit";
	}

运行并测试http://localhost:8080/itemEdit.action?id=1

不传递参数的情况下默认参数为1

3、创建修改商品的方法

（1）在controller层当中

	/**
	 * 修改商品
	 * 演示pojo参数绑定
	 * @param item
	 * @return
	 */
	@RequestMapping("updateItem")
	public String updateItem(Item item,Model model){
		itemService.updateItem(item);
		model.addAttribute("item", item);
		model.addAttribute("msg", "修改商品信息成功");
		return "itemEdit";
	}

（2）在service层当中

接口方法

/**
	 * @param item
	 */
	void updateItem(Item item);

实现方法

	@Override
	public void updateItem(Item item) {
		itemMapper.updateByPrimaryKeySelective(item);
	}

运行并测试项目
http://localhost:8080/itemEdit.action?id=1

修改信息后点击提交

修改成功

4、包装的pojo参数绑定

（1）创建包装类

package com.itzheng.springmvc.pojo;
/**
 * @author Steven
 */
public class QueryVo {
	private Item item;
	public Item getItem() {
		return item;
	}
	public void setItem(Item item) {
		this.item = item;
	}
}

（2）测试访问：http://localhost:8080/itemList.action

5、完善上述表单的查询方法

（1）修改itemList.jsp当中的内容

	查询条件：
	<table width="100%" border=1>
		<tr>
			<td>商品名称:<input type="text" name="item.name"></td>
			<td>商品价格:<input type="text" name="item.price"></td>
		</tr>
		<tr>
			<td><input type="submit" value="查询"/></td>
		</tr>
	</table>
	商品列表：

（2）完善ItemController创建对应的查询的方法

	@RequestMapping("queryItem")//绑定请求地址
	public String queryItem(QueryVo vo,Model model){
		if(vo.getItem() != null){
			System.out.println(vo.getItem());
		}

		//模拟搜索商品
		List<Item> itemList = itemService.getItemList();

		model.addAttribute("itemList", itemList);
		return "itemList";
	}

（3）运行测试

http://localhost:8080/queryItem.action

点击查询后台运行：条件查询成功

SpringMVC快速入门（1）SpringMVC介绍、SpringMVC入门创建工程，SpringMVC执行流程
SpringMVC快速入门（2）商品列表的加载
SpringMVC快速入门（3）默认组件加载
SpringMVC快速入门（4）SpringMVC整合Mybatis，SpringMVC参数绑定
SpringMVC快速入门（5）高级参数的绑定,@RequestMapping注解的用法,Controller方法返回值,SpringMVC当中的异常处理
SpringMVC快速入门（6）图片上传，配置虚拟目录，文件上传
SpringMVC快速入门（7）JSON数据交互，RESTful支持（直接通过id访问对应的页面）
SpringMVC快速入门（8）拦截器，拦截器案例应用，登录拦截器
