nacos搭建一个框架需要的工作架构

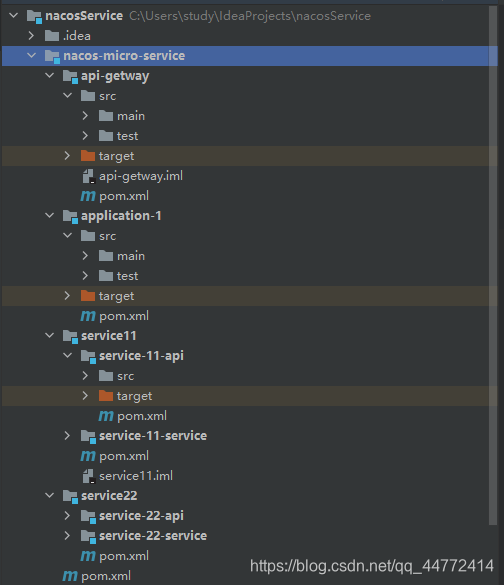

目录结构如下所示：

getway调用application是http协议，而application1调用服务和服务内部调用则是dubbo协议，dubbo协议比http协议快，service-11-api里面写接口，service-22-service里面写实现。application的一个简单服务调用效果如下:

最外层父包nacosservice的pom.xml为

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>org.example</groupId>
    <artifactId>nacosService</artifactId>
    <packaging>pom</packaging>
    <version>1.0-SNAPSHOT</version>
    <modules>
        <module>nacos-micro-service</module>
    </modules>
    <parent>
        <artifactId>spring-boot-dependencies</artifactId>
        <groupId>org.springframework.boot</groupId>
        <version>2.3.2.RELEASE</version>
        <relativePath />
    </parent>
    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
        <alibaba-cloud.version>2.2.5.RELEASE</alibaba-cloud.version>
        <springcloud.version>Hoxton.SR8</springcloud.version>
    </properties>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${springcloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-alibaba-dependencies</artifactId>
                <version>${alibaba-cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <dependencies>
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-lang3</artifactId>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

nocos-micro-service的pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>nacosService</artifactId>
        <groupId>org.example</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>nacos-micro-service</artifactId>
    <packaging>pom</packaging>
    <modules>
        <module>application-1</module>
        <module>service11</module>
        <module>service22</module>
        <module>api-getway</module>
    </modules>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
    </properties>

</project>

api-getway的pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>nacos-micro-service</artifactId>
        <groupId>org.example</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>api-getway</artifactId>
    <dependencies>
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-zuul</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
    </dependencies>
    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
    </properties>

</project>

application-1的pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>nacos-micro-service</artifactId>
        <groupId>org.example</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>application-1</artifactId>
    <dependencies>
        <dependency>
            <groupId>org.example</groupId>
            <artifactId>service-11-api</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
        <dependency>
            <groupId>org.example</groupId>
            <artifactId>service-22-api</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-dubbo</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
    </dependencies>
    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
    </properties>
    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <version>2.0.6.RELEASE</version>
                <executions>
                    <execution>
                        <goals>
                            <goal>repackage</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>
</project>

service-11-service的pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>service11</artifactId>
        <groupId>org.example</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>service-11-service</artifactId>
    <dependencies>
        <dependency>
            <groupId>org.example</groupId>
            <artifactId>service-11-api</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-dubbo</artifactId>
        </dependency>
    </dependencies>
    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
    </properties>
</project>

service-22-service

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>service22</artifactId>
        <groupId>org.example</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>service-22-service</artifactId>
    <dependencies>
        <dependency>
            <groupId>org.example</groupId>
            <artifactId>service-22-api</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-dubbo</artifactId>
        </dependency>
    </dependencies>
    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
    </properties>

</project>

apgetway的bootstrap.yml

server:
  port: 1000
spring:
  application:
    name: api-getway
  main:
    allow-bean-definition-overriding: true #springboot 2.1需要设定
  cloud:
    nacos:
      discovery:
        server-addr: 127.0.0.1:8848
        namespace: 6cec7a10-3a34-4bfb-9753-0e9e5b318195
        cluster-name: DEFAULT
      config:
        server-addr: 127.0.0.1:8848
        namespace: 6cec7a10-3a34-4bfb-9753-0e9e5b318195
        file-extension: yaml
        group: NACOS_DEFAULT_GROUP

application1的配置文件bootstrap.yml

server:
  port: 5600 #启动端口，命令行注入
  servlet:
    context-path: /application

spring:
  application:
    name: application
  main:
    allow-bean-definition-overriding: true #springboot 2.1需要设定
  cloud:
    nacos:
      discovery:
        server-addr: 127.0.0.1:8848
        namespace: 6cec7a10-3a34-4bfb-9753-0e9e5b318195
        cluster-name: DEFAULT
      config:
        server-addr: 127.0.0.1:8848
        namespace: 6cec7a10-3a34-4bfb-9753-0e9e5b318195
        file-extension: yaml
        group: NACOS_DEFAULT_GROUP

service-11-service的bootstrap.yml

server:
  port: 5601 #启动端口，命令行注入
spring:
  application:
    name: service11
  main:
    allow-bean-definition-overriding: true #springboot 2.1需要设定
  cloud:
    nacos:
      discovery:
        server-addr: 127.0.0.1:8848
        namespace: 6cec7a10-3a34-4bfb-9753-0e9e5b318195
        cluster-name: DEFAULT
      config:
        server-addr: 127.0.0.1:8848
        namespace: 6cec7a10-3a34-4bfb-9753-0e9e5b318195 #开发环境
        file-extension: yaml
        group: NACOS_DEFAULT_GROUP
dubbo:
  scan:
    #dubbo 服务扫面的包
    base-packages: com.edu.stu
  protocol:
    #dubbo协议
    name: dubbo
    #dubbo协议端口
    port: ${dubbo_port:2000}
  registry:
    address: nacos://127.0.0.1:8848
  application:
    qos-enable: false #dubbo运维服务是否开启
  consumer:
    check: false #启动时是否检查依赖的服务

service-22-service的bootstrap.yml

server:
  port: 5602 #启动端口，命令行注入
spring:
  application:
    name: service22
  main:
    allow-bean-definition-overriding: true #springboot 2.1需要设定
  cloud:
    nacos:
      discovery:
        server-addr: 127.0.0.1:8848
        namespace: 6cec7a10-3a34-4bfb-9753-0e9e5b318195
        cluster-name: DEFAULT
      config:
        server-addr: 127.0.0.1:8848
        namespace: 6cec7a10-3a34-4bfb-9753-0e9e5b318195 #开发环境
        file-extension: yaml
        group: NACOS_DEFAULT_GROUP
dubbo:
  scan:
    #dubbo 服务扫面的包
    base-packages: com.edu.stu
  protocol:
    #dubbo协议
    name: dubbo
    #dubbo协议端口
    port: ${dubbo_port:2001}
  registry:
    address: nacos://127.0.0.1:8848
  application:
    qos-enable: false #dubbo运维服务是否开启
  consumer:
    check: false #启动时是否检查依赖的服务
