Spring源码分析之AOP拦截器调用流程

Spring AOP 拦截器调用流程

1、代理对象调用invoke方法

@Override
	@Nullable
	public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
		Object oldProxy = null;
		boolean setProxyContext = false;

		/**
		 * 【1】获取代理工厂
		 */
		TargetSource targetSource = this.advised.targetSource;
		Object target = null;

		try {
			if (!this.equalsDefined && AopUtils.isEqualsMethod(method)) {
				// The target does not implement the equals(Object) method itself.
				return equals(args[0]);
			}
			else if (!this.hashCodeDefined && AopUtils.isHashCodeMethod(method)) {
				// The target does not implement the hashCode() method itself.
				return hashCode();
			}
			else if (method.getDeclaringClass() == DecoratingProxy.class) {
				// There is only getDecoratedClass() declared -> dispatch to proxy config.
				return AopProxyUtils.ultimateTargetClass(this.advised);
			}
			else if (!this.advised.opaque && method.getDeclaringClass().isInterface() &&
					method.getDeclaringClass().isAssignableFrom(Advised.class)) {
				// Service invocations on ProxyConfig with the proxy config...
				return AopUtils.invokeJoinpointUsingReflection(this.advised, method, args);
			}

			Object retVal;

			if (this.advised.exposeProxy) {
				// Make invocation available if necessary.
				oldProxy = AopContext.setCurrentProxy(proxy);
				setProxyContext = true;
			}

			// Get as late as possible to minimize the time we "own" the target,
			// in case it comes from a pool.
			/**
			 * 【2】 获取真实对象
			 */
			target = targetSource.getTarget();
			Class<?> targetClass = (target != null ? target.getClass() : null);

			// Get the interception chain for this method.
			/**
			 * 【3】 获取方法链
			 *
			 *  (1) 根据代理工厂获取有效的advisors
			 *  (2) 遍历advisors，匹配类、匹配方法为true的advisor,获取advice，封装成MethodInterceptor对象。
			 *  (3) 将构建出来的MethodInterceptor对象,添加到拦截链中。
			 *
			 */
			List<Object> chain = this.advised.getInterceptorsAndDynamicInterceptionAdvice(method, targetClass);

			// Check whether we have any advice. If we don't, we can fallback on direct
			// reflective invocation of the target, and avoid creating a MethodInvocation.

			/**
			 * 【4】 如果没有调用链，直接反射调用方法
			 */
			if (chain.isEmpty()) {
				// We can skip creating a MethodInvocation: just invoke the target directly
				// Note that the final invoker must be an InvokerInterceptor so we know it does
				// nothing but a reflective operation on the target, and no hot swapping or fancy proxying.
				Object[] argsToUse = AopProxyUtils.adaptArgumentsIfNecessary(method, args);
				retVal = AopUtils.invokeJoinpointUsingReflection(target, method, argsToUse);
			}
			else {
				// We need to create a method invocation...
				MethodInvocation invocation =
						new ReflectiveMethodInvocation(proxy, target, method, args, targetClass, chain);
				// Proceed to the joinpoint through the interceptor chain.

				/**
				 * 【5】 链式调取
				 */
				retVal = invocation.proceed();
			}

			// Massage return value if necessary.
			Class<?> returnType = method.getReturnType();
			if (retVal != null && retVal == target &&
					returnType != Object.class && returnType.isInstance(proxy) &&
					!RawTargetAccess.class.isAssignableFrom(method.getDeclaringClass())) {
				// Special case: it returned "this" and the return type of the method
				// is type-compatible. Note that we can't help if the target sets
				// a reference to itself in another returned object.
				retVal = proxy;
			}
			else if (retVal == null && returnType != Void.TYPE && returnType.isPrimitive()) {
				throw new AopInvocationException(
						"Null return value from advice does not match primitive return type for: " + method);
			}
			return retVal;
		}
		finally {
			if (target != null && !targetSource.isStatic()) {
				// Must have come from TargetSource.
				targetSource.releaseTarget(target);
			}
			if (setProxyContext) {
				// Restore old proxy.
				AopContext.setCurrentProxy(oldProxy);
			}
		}
	}

2、获取执行链

public List<Object> getInterceptorsAndDynamicInterceptionAdvice(Method method, Class<?> targetClass) {
    MethodCacheKey cacheKey = new MethodCacheKey(method);
    // 从缓存中获取
    List<Object> cached = this.methodCache.get(cacheKey);
    // 缓存未命中，则进行下一步处理
    if (cached == null) {
        // 获取所有的拦截器
        cached = this.advisorChainFactory.getInterceptorsAndDynamicInterceptionAdvice(
                this, method, targetClass);
        // 存入缓存
        this.methodCache.put(cacheKey, cached);
    }
    return cached;
}

public List<Object> getInterceptorsAndDynamicInterceptionAdvice(
        Advised config, Method method, Class<?> targetClass) {

    List<Object> interceptorList = new ArrayList<Object>(config.getAdvisors().length);
    Class<?> actualClass = (targetClass != null ? targetClass : method.getDeclaringClass());
    boolean hasIntroductions = hasMatchingIntroductions(config, actualClass);
    // registry 为 DefaultAdvisorAdapterRegistry 类型
    AdvisorAdapterRegistry registry = GlobalAdvisorAdapterRegistry.getInstance();

    // 遍历通知器列表
    for (Advisor advisor : config.getAdvisors()) {
        if (advisor instanceof PointcutAdvisor) {
            PointcutAdvisor pointcutAdvisor = (PointcutAdvisor) advisor;
            /*
             * 调用 ClassFilter 对 bean 类型进行匹配，无法匹配则说明当前通知器
             * 不适合应用在当前 bean 上
             */
            if (config.isPreFiltered() || pointcutAdvisor.getPointcut().getClassFilter().matches(actualClass)) {
                // 将 advisor 中的 advice 转成相应的拦截器
                MethodInterceptor[] interceptors = registry.getInterceptors(advisor);
                MethodMatcher mm = pointcutAdvisor.getPointcut().getMethodMatcher();
                // 通过方法匹配器对目标方法进行匹配
                if (MethodMatchers.matches(mm, method, actualClass, hasIntroductions)) {
                    // 若 isRuntime 返回 true，则表明 MethodMatcher 要在运行时做一些检测
                    if (mm.isRuntime()) {
                        for (MethodInterceptor interceptor : interceptors) {
                            interceptorList.add(new InterceptorAndDynamicMethodMatcher(interceptor, mm));
                        }
                    }
                    else {
                        interceptorList.addAll(Arrays.asList(interceptors));
                    }
                }
            }
        }
        else if (advisor instanceof IntroductionAdvisor) {
            IntroductionAdvisor ia = (IntroductionAdvisor) advisor;
            // IntroductionAdvisor 类型的通知器，仅需进行类级别的匹配即可
            if (config.isPreFiltered() || ia.getClassFilter().matches(actualClass)) {
                Interceptor[] interceptors = registry.getInterceptors(advisor);
                interceptorList.addAll(Arrays.asList(interceptors));
            }
        }
        else {
            Interceptor[] interceptors = registry.getInterceptors(advisor);
            interceptorList.addAll(Arrays.asList(interceptors));
        }
    }

    return interceptorList;
}

public MethodInterceptor[] getInterceptors(Advisor advisor) throws UnknownAdviceTypeException {
    List<MethodInterceptor> interceptors = new ArrayList<MethodInterceptor>(3);
    Advice advice = advisor.getAdvice();
    /*
     * 若 advice 是 MethodInterceptor 类型的，直接添加到 interceptors 中即可。
     * 比如 AspectJAfterAdvice 就实现了 MethodInterceptor 接口
     */
    if (advice instanceof MethodInterceptor) {
        interceptors.add((MethodInterceptor) advice);
    }

    /*
     * 对于 AspectJMethodBeforeAdvice 等类型的通知，由于没有实现 MethodInterceptor
     * 接口，所以这里需要通过适配器进行转换
     */
    for (AdvisorAdapter adapter : this.adapters) {
        if (adapter.supportsAdvice(advice)) {
            interceptors.add(adapter.getInterceptor(advisor));
        }
    }
    if (interceptors.isEmpty()) {
        throw new UnknownAdviceTypeException(advisor.getAdvice());
    }
    return interceptors.toArray(new MethodInterceptor[interceptors.size()]);
}

3、 执行拦截器链

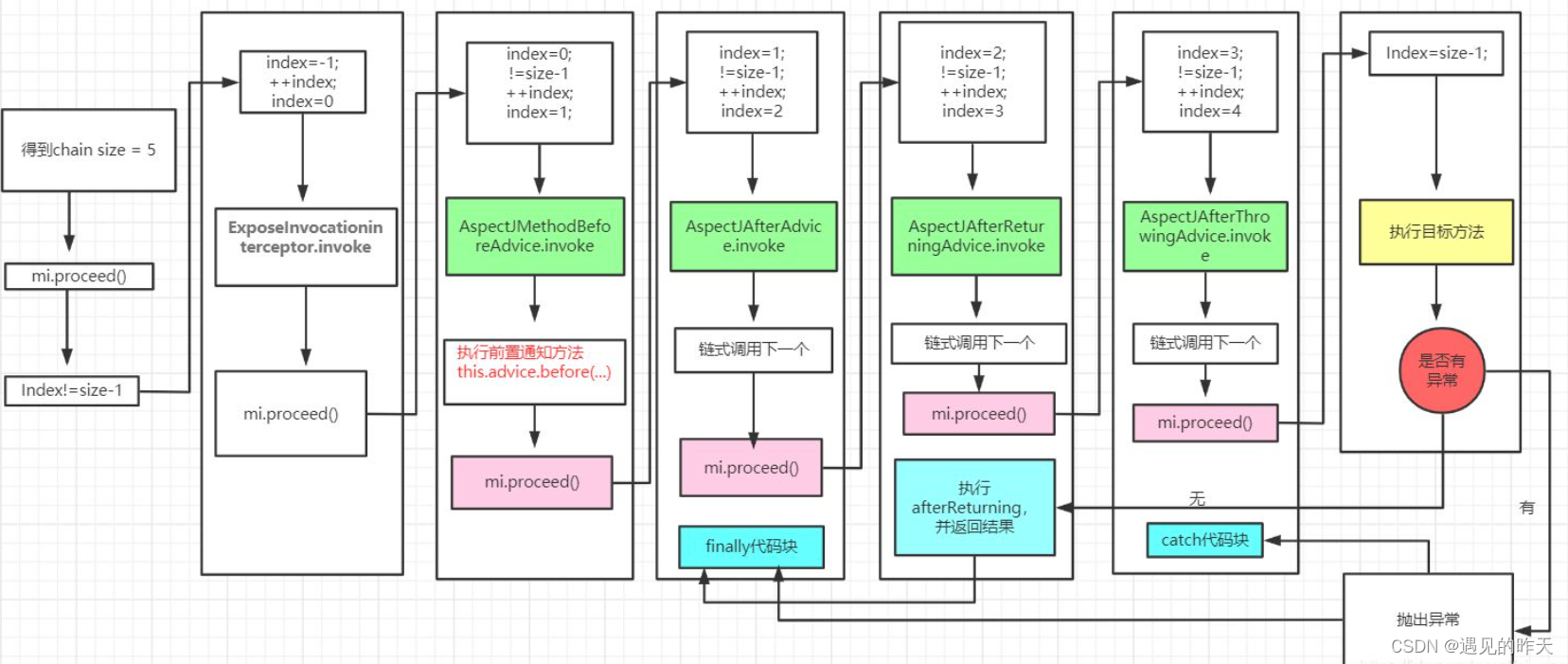

ReflectiveMethodInvocation 贯穿于拦截器链执行的始终，可以说是核心。该类的 proceed 方法用于启动启动拦截器链

public class ReflectiveMethodInvocation implements ProxyMethodInvocation {

    private int currentInterceptorIndex = -1;

    public Object proceed() throws Throwable {
        // 拦截器链中的最后一个拦截器执行完后，即可执行目标方法
        if (this.currentInterceptorIndex == this.interceptorsAndDynamicMethodMatchers.size() - 1) {
            // 执行目标方法
            return invokeJoinpoint();
        }

        Object interceptorOrInterceptionAdvice =
                this.interceptorsAndDynamicMethodMatchers.get(++this.currentInterceptorIndex);
        if (interceptorOrInterceptionAdvice instanceof InterceptorAndDynamicMethodMatcher) {
            InterceptorAndDynamicMethodMatcher dm =
                    (InterceptorAndDynamicMethodMatcher) interceptorOrInterceptionAdvice;
            /*
             * 调用具有三个参数（3-args）的 matches 方法动态匹配目标方法，
             * 两个参数（2-args）的 matches 方法用于静态匹配
             */
            if (dm.methodMatcher.matches(this.method, this.targetClass, this.arguments)) {
                // 调用拦截器逻辑
                return dm.interceptor.invoke(this);
            }
            else {
                // 如果匹配失败，则忽略当前的拦截器
                return proceed();
            }
        }
        else {
            // 调用拦截器逻辑，并传递 ReflectiveMethodInvocation 对象
            return ((MethodInterceptor) interceptorOrInterceptionAdvice).invoke(this);
        }
    }
}

如上，proceed 根据 currentInterceptorIndex 来确定当前应执行哪个拦截器，并在调用拦截器的 invoke 方法时，将自己作为参数传给该方法。前面的章节中，我们看过了前置拦截器的源码，这里来看一下后置拦截器源码。如下：

public class AspectJAfterAdvice extends AbstractAspectJAdvice
        implements MethodInterceptor, AfterAdvice, Serializable {

    public AspectJAfterAdvice(
            Method aspectJBeforeAdviceMethod, AspectJExpressionPointcut pointcut, AspectInstanceFactory aif) {

        super(aspectJBeforeAdviceMethod, pointcut, aif);
    }


    @Override
    public Object invoke(MethodInvocation mi) throws Throwable {
        try {
            // 调用 proceed
            return mi.proceed();
        }
        finally {
            // 调用后置通知逻辑
            invokeAdviceMethod(getJoinPointMatch(), null, null);
        }
    }

    //...
}

如上，由于后置通知需要在目标方法返回后执行，所以 AspectJAfterAdvice 先调用 mi.proceed() 执行下一个拦截器逻辑，等下一个拦截器返回后，再执行后置通知逻辑。
