Excel添加复选框
office版本:专业增强版2021
打开开发工具

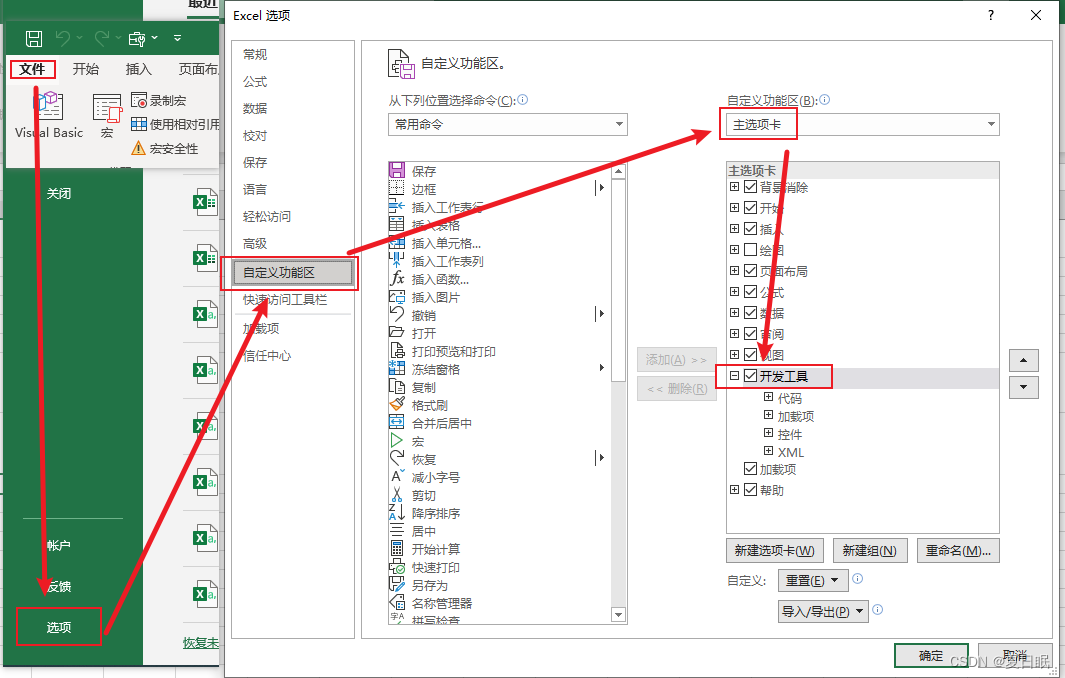

文件→选项→自定义功能区→主选项卡勾选开发工具
添加复选框

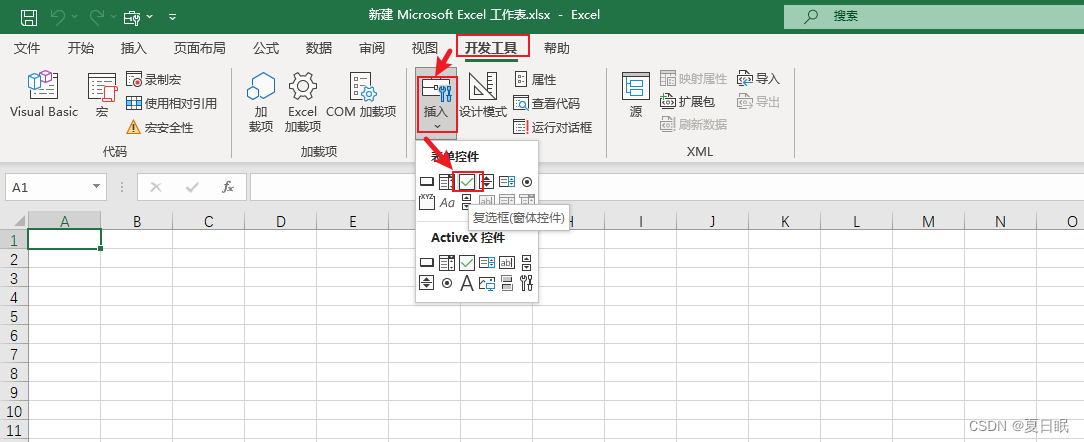

开发工具→插入→选中表单控件:复选框
使用VBA批量添加复选框

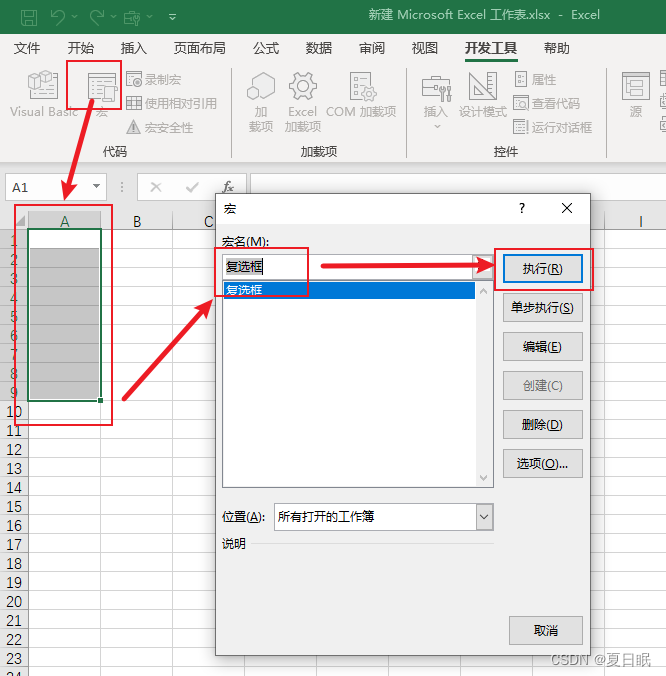

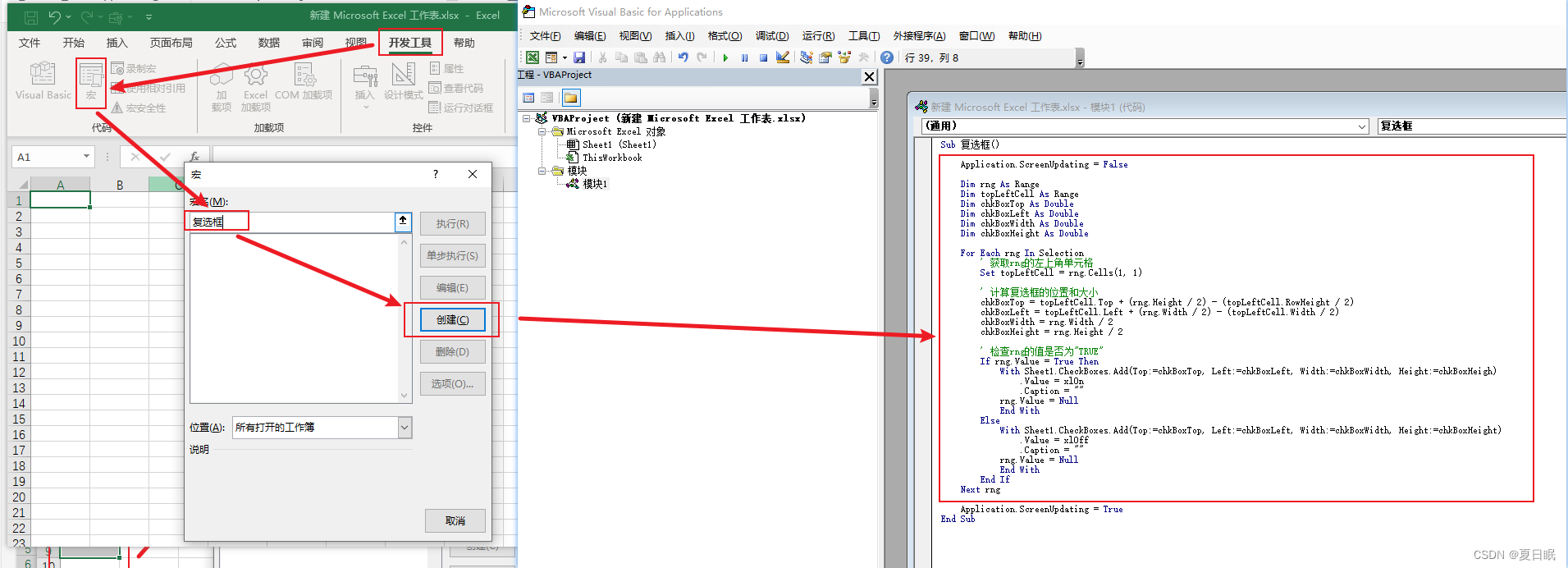

开发工具→宏→输入方法名→点击创建→输入代码→切回Excel文件→选择执行范围→宏执行
代码如下:
Sub 复选框()
Application.ScreenUpdating = False
Dim rng As Range
Dim topLeftCell As Range
Dim chkBoxTop As Double
Dim chkBoxLeft As Double
Dim chkBoxWidth As Double
Dim chkBoxHeight As Double
For Each rng In Selection
' 获取rng的左上角单元格
Set topLeftCell = rng.Cells(1, 1)
' 计算复选框的位置和大小
chkBoxTop = topLeftCell.Top + (rng.Height / 2) - (topLeftCell.RowHeight / 2)
chkBoxLeft = topLeftCell.Left + (rng.Width / 2) - (topLeftCell.Width / 2)
chkBoxWidth = rng.Width / 2
chkBoxHeight = rng.Height / 2
' 检查rng的值是否为"TRUE"
If rng.Value = True Then
With Sheet1.CheckBoxes.Add(Top:=chkBoxTop, Left:=chkBoxLeft, Width:=chkBoxWidth, Height:=chkBoxHeigh)
.Value = xlOn
.Caption = ""
rng.Value = Null
End With
Else
With Sheet1.CheckBoxes.Add(Top:=chkBoxTop, Left:=chkBoxLeft, Width:=chkBoxWidth, Height:=chkBoxHeight)
.Value = xlOff
.Caption = ""
rng.Value = Null
End With
End If
Next rng
Application.ScreenUpdating = True
End Sub

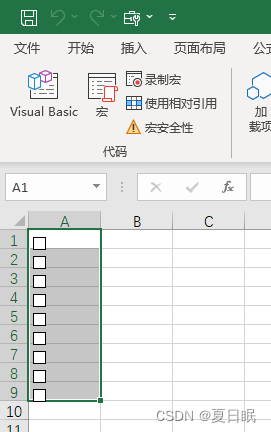

执行成功后的效果如下:
目前存在问题:复选框的位置不够居中。
