常见内网系统网络结构及nginx代理配置

1.系统网络结构图

传统公司服务部署网络都会分区，应用都部署在内网区，请求通过dmz区转出内网与互联网发生交互。

结构图详解：

1. 请求从互联网经过层层转发到内网中
2. 后台服务需要访问数据库及中间件；网关需要访问redis
3. 内网可以访问管理后台
4. 管理后台需要调用后台服务支持

如果需要开通网络策略及端口，参考上面的访问路线。

2.Nginx网络配置

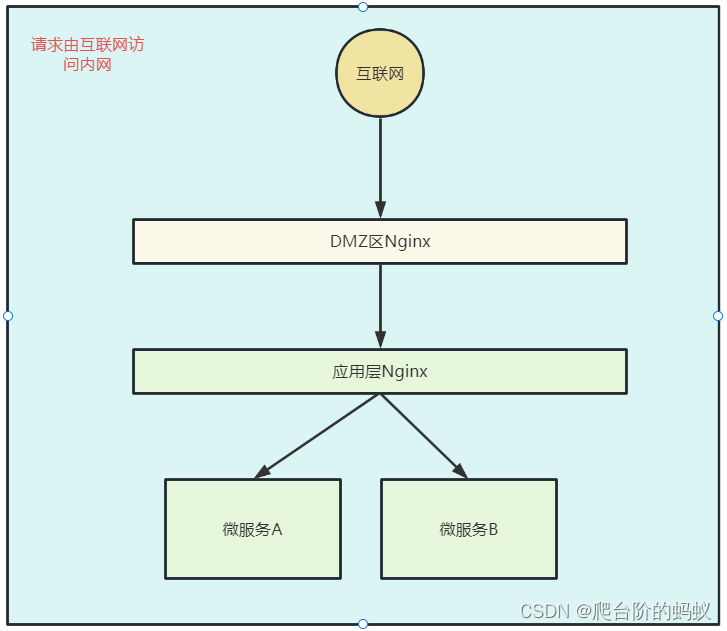

2.1请求从互联网区访问到内网区

说明：下面是一个简图，只代表网络交互，实际部署时会有多层负载

流程简要描述：
1.请求通过互联网区访问DMZ区nginx,所以DMZ区的nginx需要暴露一个端口供外网访问。这里通常做法都是提供一个域名供互联网访问，端口如果是http就是80，如果是https就是443.
2.DMZ区的nginx将请求发送到内网区的nginx后，有内网区的nginx做负载发送内网微服务集群

示例nginx配置：

1.互联网请求访问dmz区的nginx配置

server {
	listen 80;
	server_name	yyds.abc.com;
	access log /data/1ogs/nginx/in_yyds.abc.com.access.log;
	error log /data/1og3/nginx/in_yyds.abc.com.error.log;

	location /aa/ {
		proxy_pass http://127.0.0.1:8080/;
		proxy_pass_header User-Agent;
		proxy_set_header Host $host;
		proxy_set_header X-Real-IP $http_x_forwarded_for;
		proxy_set_header x-Forwarded-For $http_x_forwarded_for;
	}

	location /aa/bb/ {
		proxy_pass http://app_nginx_server/:   #app_nginx_server为appnginx所在机器ip
		proxy_pass_header User-Agent;
		proxy_set_header Host bb.app.com;
		proxy_set_header X-Real-IP $http_x_forwarded_for;
		proxy_set_header X-Forwarded-For $http_x_forwarded_for;
		proxy_http_version 1.1;
		proxy_set_header Upgrade $http_upgrade;
		proxy_set_header Connection "upgrade";
	}

	location /cc/dd/ee {
		return 404;
	}

	#静态图片
	location /ee/static-img/ {
		root /ff/gg/hh/;
	}
 }

2.dmz区nginx配置2，用来对1中的请求细化

server {
		listen 8080;
		server_name yyds.abc.com;  #这里是接受80端口转发过来的请求
		access_log /data/logs/nginx/yyds.abc.com.access.log;
		error_log /data/logs/nginx/yyds.abc.com.error.log;

		root 前台代码路径/dist;
		index index.html index.htm index.php;


		location /aa/ {
		proxy_pass http://app_nginx_server/yy/uu;   #app_nginx_server为appnginx所在机器ip
		proxy_pass_header User-Agent;
		proxy_set_header Host 微服务网关域名;
		proxy_set_header X-Real-IP $http _x_forwarded_for;
		proxy_set_header X-Forwarded-For $http_x_forwarded_for;
		}

		location /rr/  {
		proxy_pass http://app_nginx_server;
		proxy_set_header Host gateway.app.com;
		proxy_set_header X-Real-IP $http_x_forwarded_for;
		proxy_set_header X-Forwarded-For $http_x_forwarded_for;
		}
}

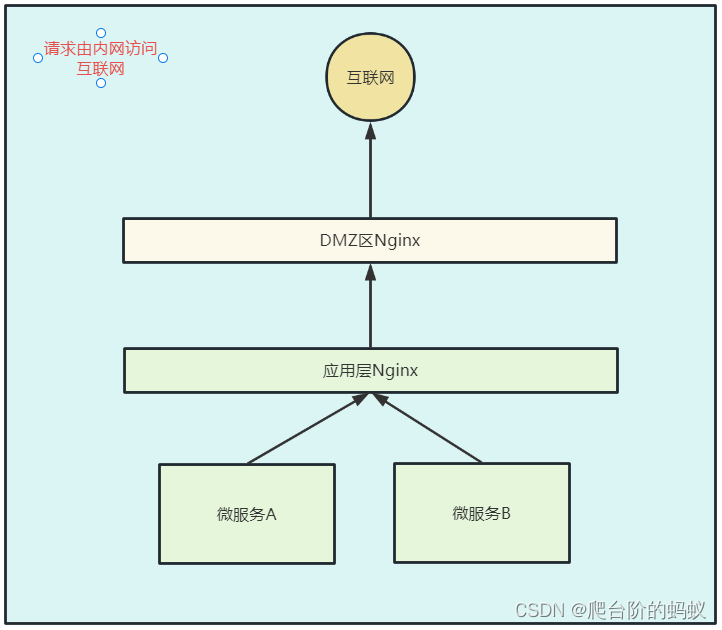

2.2 请求从内网访问互联网

流程简要描述：
1.微服务中涉及到需要访问互联网资源的请求，通过nginx配置的域名，服务先将请求打到appnginx,再通过appnginx转到webnginx，两个nginx还是开放80端口，通过不同的域名和路径转发
2.DMZ区的nginx将请求发送具体的外部资源所在地址

1 微服务将请求转发到appnginx

server{
		listen 80;
		server_name app.nginx.com;
		$http user_agent;
		access_1og /data/logs/nginx/out web.nginx.com.access.log;
		error_log /data/1ogs/nginx/out web.nginx.com.error.1og;

		location /api_weixin/ {
				proxy_pass https://web.nginx.com/
				proxy_set_header X-Real-IP $remote_addr;
				proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
				proxy_set_header X-Forwarded-Proto $scheme:
				proxy_redirect off;
		}

		location /open_weixin/ {
				proxy_pass https://web.nginx.com/
				proxy_set_header X-Real-IP $remote_addr;
				proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
				proxy_set_header X-Forwarded-Proto $scheme:
				proxy_redirect off;
		}
}

2.dmz区nginx请求访问出去的配置

server{
		listen 80;
		server_name web.nginx.com;
		$http user_agent;
		access_1og /data/logs/nginx/out web.nginx.com.access.log;
		error_log /data/1ogs/nginx/out web.nginx.com.error.1og;

		location /api_weixin/ {
				proxy_pass https://api.weixin.qq.com/
				proxy_set_header X-Real-IP $remote_addr;
				proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
				proxy_set_header X-Forwarded-Proto $scheme:
				proxy_redirect off;
		}

		location /open_weixin/ {
				proxy_pass https://open.weixin.qq.com/
				proxy_set_header X-Real-IP $remote_addr;
				proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
				proxy_set_header X-Forwarded-Proto $scheme:
				proxy_redirect off;
		}
}
