最近因为一些事情，需要将一张简单的图片转换为PDF的文件格式，在网上找了一些工具，但是这些工具不是需要注册账号，就是需要下载软件。
而对于只是转换一张图片的情况下，这些操作显然是非常繁琐的，所以作者就直接使用Java写了一个图片转换PDF的系统，现在将该系统分享在这里。

引入依赖

<!--该项目以SpringBoot为基础搭建-->
<parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>2.0.4.RELEASE</version>
    <relativePath/>
</parent>

<dependencies>
	<!--SpringMVC的依赖，方便我们可以获取前端传递过来的文件信息-->
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <!--ITextPdf，操作PDF文件的工具类-->
    <dependency>
        <groupId>com.itextpdf</groupId>
        <artifactId>itextpdf</artifactId>
        <version>5.4.2</version>
    </dependency>
</dependencies>

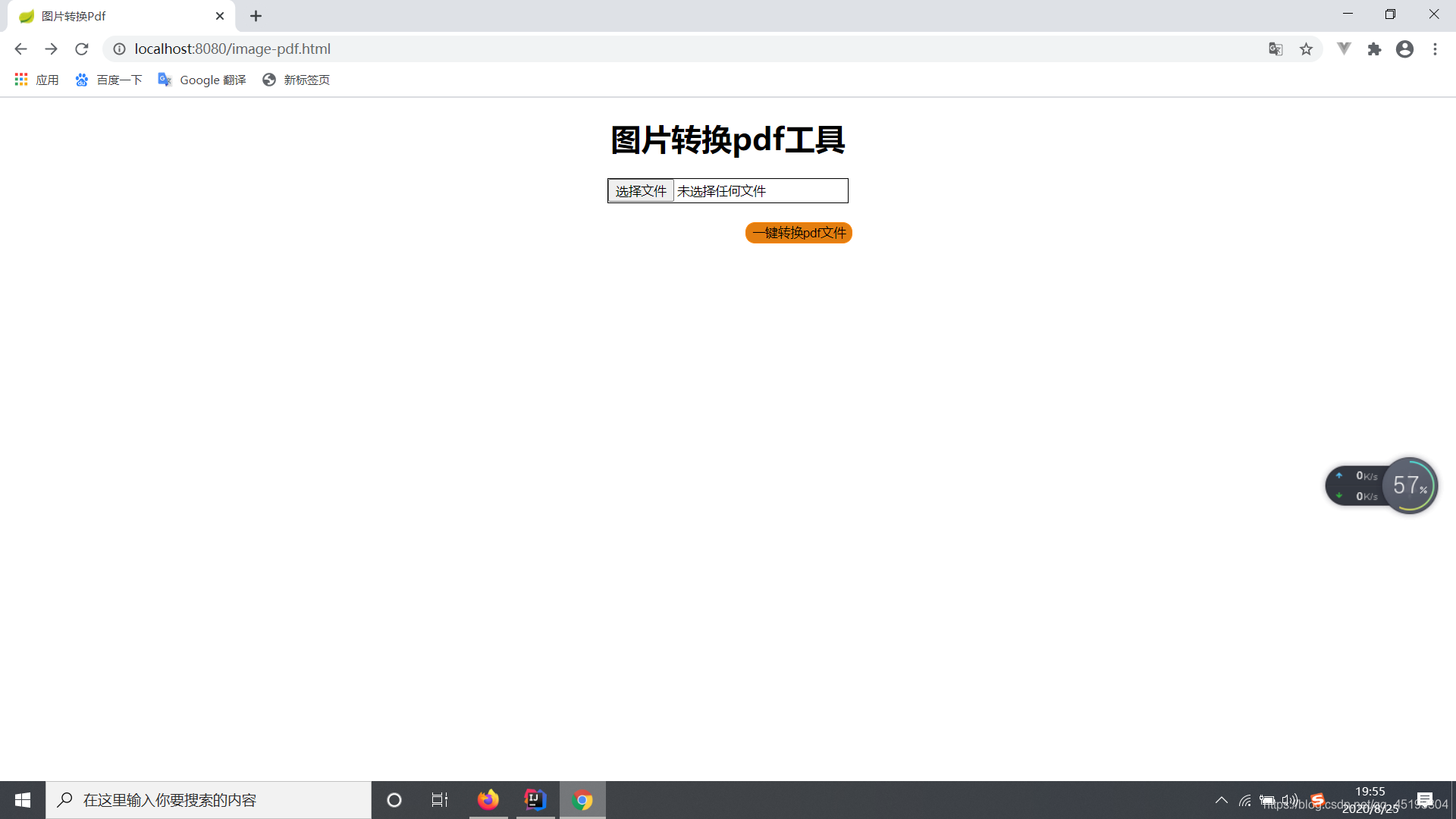

前端页面

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>图片转换Pdf</title>
    <style>
        .submitButton {
            margin-top: 20px;
            margin-left: 150px;
            background-color: #e37e10;
            border-radius: 10px;
            border: 1px solid #ff8300;
        }
    </style>
</head>
<body>
    <div style="text-align: center">
        <h1>图片转换pdf工具</h1>
        <form action="/pdf/image/to" enctype="multipart/form-data" method="post" onsubmit="return allowFileType()">
            <input type="file" id="file" name="file" placeholder="请选择图片" onchange="allowFileType()" style="border: 1px solid black;"><br>
            <input type="submit" value="一键转换pdf文件" class="submitButton">
        </form>
    </div>
</body>
<script>
    function allowFileType() {
        let file = document.getElementById("file").files[0];
        let fileName = file.name;
        let fileSize = file.size;
        let suffix = fileName.substring(fileName.lastIndexOf("."),fileName.length).toLowerCase();
        if('.jpg' != suffix && '.png' != suffix) {
            alert("目前只允许传入.jpg或者.png格式的图片！");
            return false;
        }
        if(fileSize > 2*1024*1024) {
            alert("上传图片不允许超过2MB!");
            return false;
        }
        return true;
    }
</script>
</html>

控制层接口

package com.hrp.controller;

import com.hrp.util.PdfUtils;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.multipart.MultipartFile;

import javax.servlet.http.HttpServletResponse;

/**
 * @description: 用于处理Pdf相关的请求
 */
@Controller
@RequestMapping("pdf")
public class PdfController {

    @PostMapping("image/to")
    public void imageToPdf(@RequestParam("file") MultipartFile file,HttpServletResponse response) throws Exception{
        PdfUtils.imageToPdf(file,response);
    }

}

PDF工具类

package com.hrp.util;

import com.itextpdf.text.Document;
import com.itextpdf.text.DocumentException;
import com.itextpdf.text.Image;
import com.itextpdf.text.PageSize;
import com.itextpdf.text.pdf.PdfWriter;
import org.springframework.stereotype.Component;
import org.springframework.web.multipart.MultipartFile;

import javax.servlet.http.HttpServletResponse;
import java.io.*;
import java.net.URLEncoder;


/**
 * @description: pdf相关的工具类
 */
@Component
public class PdfUtils {

    /**
     * 图片转换PDF的公共接口
     *
     * @param file     SpringMVC获取的图片文件
     * @param response HttpServletResponse
     * @throws IOException       IO异常
     * @throws DocumentException PDF文档异常
     */
    public static void imageToPdf(MultipartFile file, HttpServletResponse response) throws IOException, DocumentException {
        File pdfFile = generatePdfFile(file);
        downloadPdfFile(pdfFile, response);
    }

    /**
     * 将图片转换为PDF文件
     *
     * @param file SpringMVC获取的图片文件
     * @return PDF文件
     * @throws IOException       IO异常
     * @throws DocumentException PDF文档异常
     */
    private static File generatePdfFile(MultipartFile file) throws IOException, DocumentException {
        String fileName = file.getOriginalFilename();
        String pdfFileName = fileName.substring(0, fileName.lastIndexOf(".")) + ".pdf";
        Document doc = new Document(PageSize.A4, 20, 20, 20, 20);
        PdfWriter.getInstance(doc, new FileOutputStream(pdfFileName));
        doc.open();
        doc.newPage();
        Image image = Image.getInstance(file.getBytes());
        float height = image.getHeight();
        float width = image.getWidth();
        int percent = getPercent(height, width);
        image.setAlignment(Image.MIDDLE);
        image.scalePercent(percent);
        doc.add(image);
        doc.close();
        File pdfFile = new File(pdfFileName);
        return pdfFile;
    }

    /**
     *
     * 用于下载PDF文件
     *
     * @param pdfFile  PDF文件
     * @param response HttpServletResponse
     * @throws IOException IO异常
     */
    private static void downloadPdfFile(File pdfFile, HttpServletResponse response) throws IOException {
        FileInputStream fis = new FileInputStream(pdfFile);
        byte[] bytes = new byte[fis.available()];
        fis.read(bytes);
        fis.close();

        response.reset();
        response.setHeader("Content-Type", "application/pdf");
        response.setHeader("Content-Disposition", "attachment; filename=" + URLEncoder.encode(pdfFile.getName(), "UTF-8"));
        OutputStream out = response.getOutputStream();
        out.write(bytes);
        out.flush();
        out.close();
    }


    /**
     * 等比压缩，获取压缩百分比
     *
     * @param height 图片的高度
     * @param weight 图片的宽度
     * @return 压缩百分比
     */
    private static int getPercent(float height, float weight) {
        float percent = 0.0F;
        if (height > weight) {
            percent = PageSize.A4.getHeight() / height * 100;
        } else {
            percent = PageSize.A4.getWidth() / weight * 100;
        }
        return Math.round(percent);
    }
}
