DHCP欺骗实验操作及防护措施

DHCP欺骗实验操及防护措施

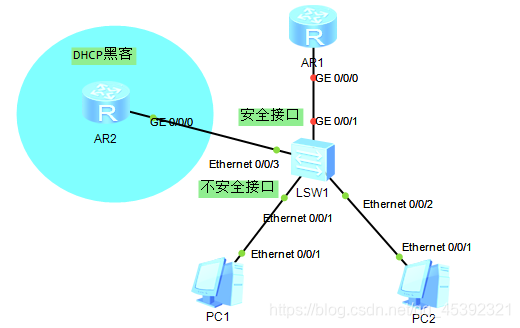

1、实验拓扑搭建

2、配置参数

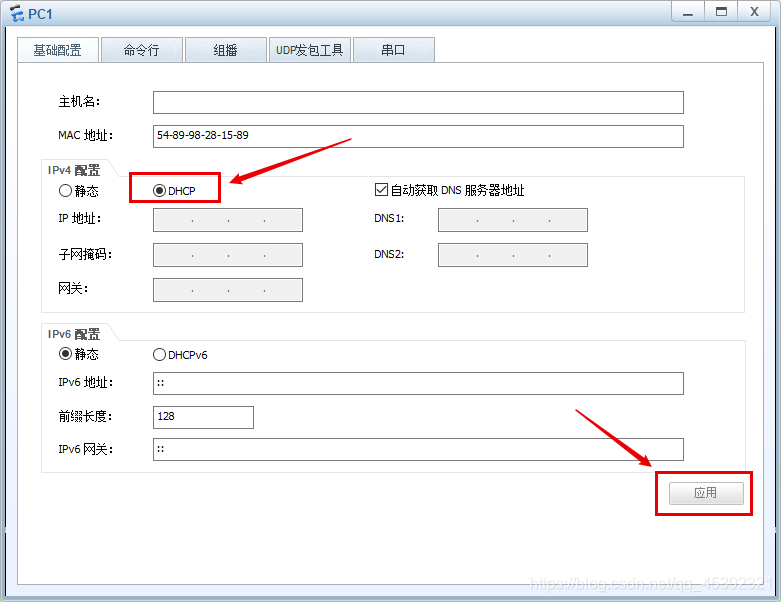

（1）PC1

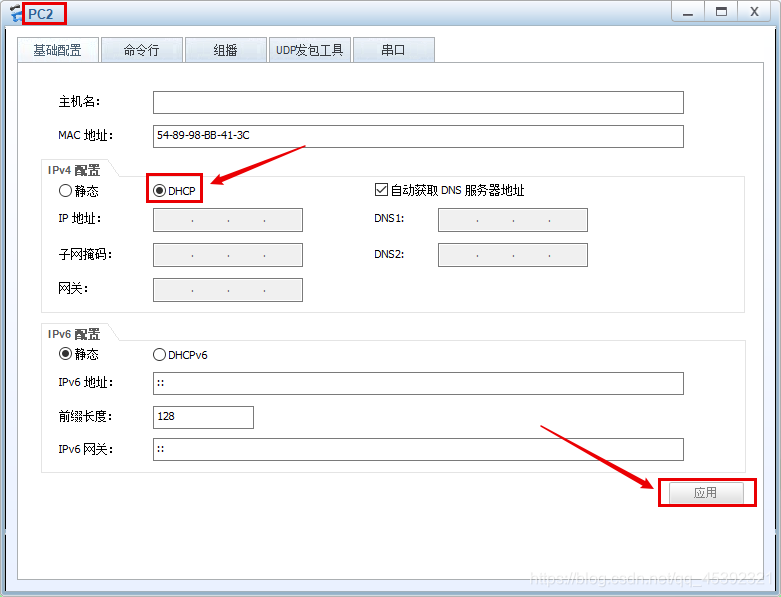

（2）PC2

（3）SW1配置参数

[SW1]vlan batch 10 20
[SW1]interface Ethernet0/0/1
[SW1-Ethernet0/0/1]display this
#
interface Ethernet0/0/1
 port link-type access
 port default vlan 10
#
return
[SW1-Ethernet0/0/1]
[SW1]interface Ethernet0/0/2
[SW1-Ethernet0/0/2]display this
#
interface Ethernet0/0/2
 port link-type access
 port default vlan 20
#
return
[SW1-Ethernet0/0/2]quit
[SW1]interface GigabitEthernet 0/0/1
[SW1-GigabitEthernet0/0/1]dis thi
#
interface GigabitEthernet0/0/1
 port link-type trunk
 undo port trunk allow-pass vlan 1
 port trunk allow-pass vlan 10 20
#
return
[SW1-GigabitEthernet0/0/1]

（4）AR1配置参数（合法路由器）

[AR1]dhcp enable
[AR1]ip pool TV
[AR1-ip-pool-TV]display this
[V200R003C00]
#
ip pool TV
 gateway-list 10.1.1.254
 network 10.1.1.0 mask 255.255.255.0
 excluded-ip-address 10.1.1.1
 lease day 2 hour 2 minute 2
 dns-list 202.99.99.99
#
return
[AR1-ip-pool-TV]quit
[AR1]ip pool VT
[AR1-ip-pool-VT]dis thi
[V200R003C00]
#
ip pool VT
 gateway-list 20.1.1.254
 network 20.1.1.0 mask 255.255.255.0
 excluded-ip-address 20.1.1.1
 lease day 2 hour 2 minute 2
 dns-list 202.99.99.99
#
return
[AR1-ip-pool-VT]quit
[AR1]interface GigabitEthernet 0/0/0.1
[AR1-GigabitEthernet0/0/0.1]display this
[V200R003C00]
#
interface GigabitEthernet0/0/0.1
 dot1q termination vid 10
 ip address 10.1.1.254 255.255.255.0
 arp broadcast enable
 dhcp select global
#
return
[AR1-GigabitEthernet0/0/0.1]
[AR1-GigabitEthernet0/0/0.2]dis thi
[V200R003C00]
#
interface GigabitEthernet0/0/0.2
 dot1q termination vid 20
 ip address 20.1.1.254 255.255.255.0
 arp broadcast enable
 dhcp select global
#
return
[AR1-GigabitEthernet0/0/0.2]

（5）AR2配置参数（黑客路由器）

[HEIKE]dhcp enable
Info: The operation may take a few seconds. Please wait for a moment.done.
[HEIKE]ip pool IT
Info: It's successful to create an IP address pool.
[HEIKE-ip-pool-IT]gateway-list 1.1.1.254
[HEIKE-ip-pool-IT]network 1.1.1.0 mask 255.255.255.0
[HEIKE-ip-pool-IT]dns-list 202.99.99.99
[HEIKE-ip-pool-IT]lease day 2 hour 2 minute 2
[HEIKE-ip-pool-IT]excluded-ip-address 1.1.1.1
[HEIKE-ip-pool-IT]display this
[V200R003C00]
#
ip pool IT
 gateway-list 1.1.1.254
 network 1.1.1.0 mask 255.255.255.0
 excluded-ip-address 1.1.1.1
 lease day 2 hour 2 minute 2
 dns-list 202.99.99.99
#
return
[HEIKE]ip pool HR
Info: It's successful to create an IP address pool.
[HEIKE-ip-pool-HR]
[HEIKE-ip-pool-HR] gateway-list 2.2.2.254
[HEIKE-ip-pool-HR]
[HEIKE-ip-pool-HR] network 2.2.2.0 mask 255.255.255.0
[HEIKE-ip-pool-HR]
[HEIKE-ip-pool-HR] excluded-ip-address 2.2.2.2
[HEIKE-ip-pool-HR]
[HEIKE-ip-pool-HR] lease day 2 hour 2 minute 2
[HEIKE-ip-pool-HR]
[HEIKE-ip-pool-HR] dns-list 202.99.99.99
[HEIKE-ip-pool-HR]dis thi
[V200R003C00]
#
ip pool HR
 gateway-list 2.2.2.254
 network 2.2.2.0 mask 255.255.255.0
 excluded-ip-address 2.2.2.2
 lease day 2 hour 2 minute 2
 dns-list 202.99.99.99
#
return
[HEIKE-ip-pool-HR]quit
[HEIKE]interface GigabitEthernet 0/0/0.1
[HEIKE-GigabitEthernet0/0/0.1]ip address 1.1.1.254 24
[HEIKE-GigabitEthernet0/0/0.1]dot1q termination vid 10
Jul 30 2020 10:42:56-08:00 HEIKE %%01IFNET/4/LINK_STATE(l)[2]:The line protocol
IP on the interface GigabitEthernet0/0/0.1 has entered the UP state.
[HEIKE-GigabitEthernet0/0/0.1]arp broadcast enable
[HEIKE-GigabitEthernet0/0/0.1]dis thi
[V200R003C00]
#
interface GigabitEthernet0/0/0.1
 dot1q termination vid 10
 ip address 1.1.1.254 255.255.255.0
 arp broadcast enable
#
return
[HEIKE-GigabitEthernet0/0/0.1]
[HEIKE]interface GigabitEthernet 0/0/0.2
[HEIKE-GigabitEthernet0/0/0.2]ip address 2.2.2.254 24
[HEIKE-GigabitEthernet0/0/0.2]dot1q termination vid 20
Jul 30 2020 10:44:30-08:00 HEIKE %%01IFNET/4/LINK_STATE(l)[3]:The line protocol
IP on the interface GigabitEthernet0/0/0.2 has entered the UP state.
[HEIKE-GigabitEthernet0/0/0.2]arp broadcast enable
[HEIKE-GigabitEthernet0/0/0.2]dis thi
[V200R003C00]
#
interface GigabitEthernet0/0/0.2
 dot1q termination vid 20
 ip address 2.2.2.254 255.255.255.0
 arp broadcast enable
#
return

# 子接口下启用全局DHCP
[HEIKE-GigabitEthernet0/0/0.2]dhcp select global
[HEIKE-GigabitEthernet0/0/0.2]dis thi
[V200R003C00]
#
interface GigabitEthernet0/0/0.2
 dot1q termination vid 20
 ip address 2.2.2.254 255.255.255.0
 arp broadcast enable
 dhcp select global
#
return
[HEIKE-GigabitEthernet0/0/0.2]

[HEIKE]interface GigabitEthernet 0/0/0.1
[HEIKE-GigabitEthernet0/0/0.1]dhcp  select global
[HEIKE-GigabitEthernet0/0/0.1]dis thi
[V200R003C00]
#
interface GigabitEthernet0/0/0.1
 dot1q termination vid 10
 ip address 1.1.1.254 255.255.255.0
 arp broadcast enable
 dhcp select global
#
return
[HEIKE-GigabitEthernet0/0/0.1]

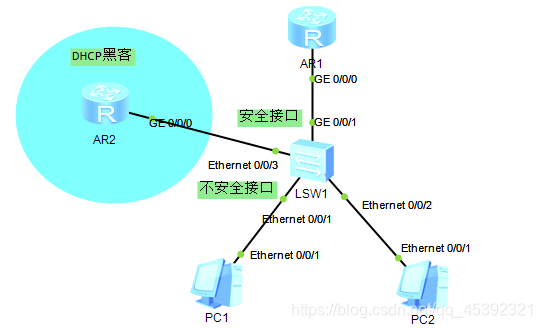

3、防护措施设置

使用DHCP Snooping防范DHCP欺骗攻击

DHCP 欺骗攻击过程：
1.首先攻击者伪装成DHCP客户端，发起大量的DHCP请求(可以用软件实现)。DHCP服务器收到请求后，把IP分配给伪装的DHCP客户端，由于DHCP服务器的IP地址数量是有限的，很快DHCP服务器上地址池的IP就会被消耗完，则DHCP服务器不再为其它客户端分配IP

2.第一步完成后，攻击者这时可以搭建一台DHCP服务器，则客户端的DHCP请求就会到非法的DHCP上请求IP,从而获取一个非法的IP地址。

DHCP Snpooing配置：
1.全局启用dhcp snooping
SW1-GigabitEthernet0/0/1
dhcp snooping enable
……………………………………………………………………………
2.将相应的端口（连接合法DHCP服务器的端口）划入trusted
SW1-GigabitEthernet0/0/1
dhcp snooping trusted
……………………………………………………………………………
3.SW1全局dhcp snooping和所连接的接口dhcp snooping都要开启
dhcp snooping enable
………………………………………………………………………………
4.开启dhcp snooping 防护功能时，要先开启DHCP服务（即dhcp enable）
dhcp enable
dhcp snooping enable

# 防护措施，在交换机的GE 0/0/1上设置参数
[SW1]dhcp enable
Info: The operation may take a few seconds. Please wait for a moment.done.
[SW1]dhcp snooping enable //全局开启dhcp snooping
[SW1]
Jul 30 2020 11:33:38-08:00 SW1 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25
.191.3.1 configurations have been changed. The current change number is 23, the
change loop count is 0, and the maximum number of records is 4095.
[SW1]interface GigabitEthernet 0/0/1
[SW1-GigabitEthernet0/0/1]dhcp snooping trusted
Jul 30 2020 11:35:18-08:00 SW1 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25
.191.3.1 configurations have been changed. The current change number is 24, the
change loop count is 0, and the maximum number of records is 4095.
[SW1-GigabitEthernet0/0/1]dis thi
#
interface GigabitEthernet0/0/1
 port link-type trunk
 undo port trunk allow-pass vlan 1
 port trunk allow-pass vlan 10 20
 dhcp snooping trusted
#
return
[SW1-GigabitEthernet0/0/1]
[SW1-GigabitEthernet0/0/1]dhcp snooping enable
[SW1-GigabitEthernet0/0/1]dis thi
#
interface GigabitEthernet0/0/1
 port link-type trunk
 undo port trunk allow-pass vlan 1
 port trunk allow-pass vlan 10 20
 dhcp snooping enable
 dhcp snooping trusted
#
return
[SW1-GigabitEthernet0/0/1]

[SW1]interface Ethernet0/0/3
[SW1-Ethernet0/0/3]dhcp snooping enable
Jul 30 2020 11:39:08-08:00 SW1 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25
.191.3.1 configurations have been changed. The current change number is 25, the
change loop count is 0, and the maximum number of records is 4095.
[SW1-Ethernet0/0/3]dis thi
#
interface Ethernet0/0/3
 port link-type trunk
 port trunk allow-pass vlan 10 20
 dhcp snooping enable
#
return
[SW1-Ethernet0/0/3]

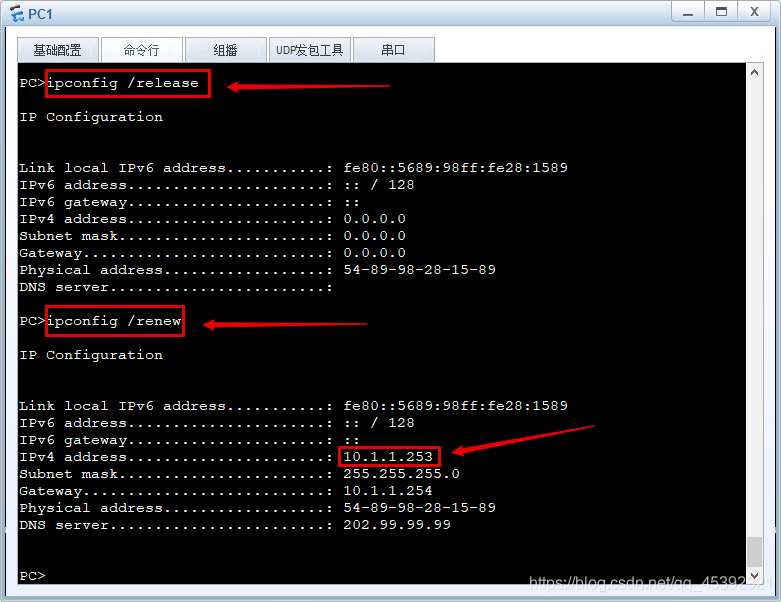

4、PC1 获取DHCP地址

5、PC2 获取DHCP地址

6、中断合法AR1端口后，验证PC能否正常获取DHCP

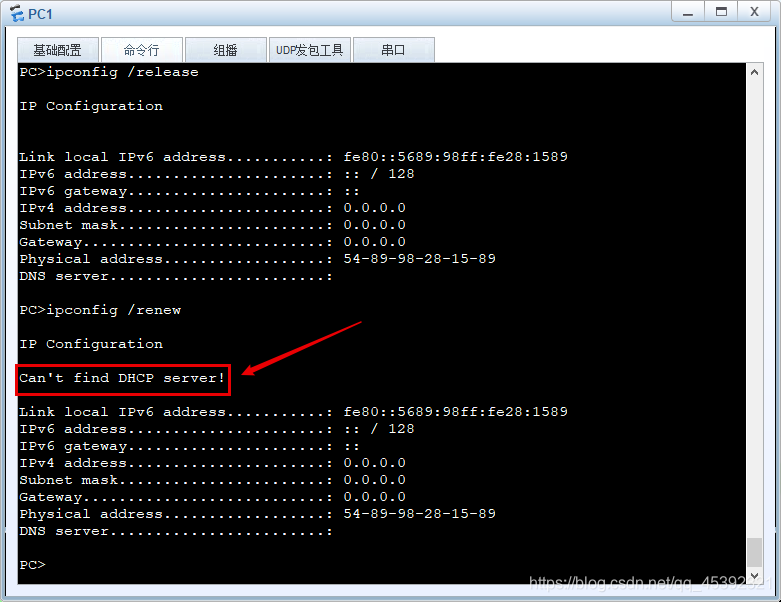

当交换机GE 0/0/1的端口与AR1的GE 0/0/0的合法端口通信中断后，Pc1和Pc2重新获取DHCP地址时，无法获取。如图所示。

[AR1]interface GigabitEthernet 0/0/0
[AR1-GigabitEthernet0/0/0]shutdown
Jul 30 2020 12:15:15-08:00 AR1 %%01IFPDT/4/IF_STATE(l)[0]:Interface GigabitEther
net0/0/0 has turned into DOWN state.
[AR1-GigabitEthernet0/0/0]
Jul 30 2020 12:15:15-08:00 AR1 %%01IFNET/4/LINK_STATE(l)[1]:The line protocol IP
 on the interface GigabitEthernet0/0/0.1 has entered the DOWN state.
[AR1-GigabitEthernet0/0/0]
Jul 30 2020 12:15:15-08:00 AR1 %%01IFNET/4/LINK_STATE(l)[2]:The line protocol IP
 on the interface GigabitEthernet0/0/0.2 has entered the DOWN state.
[AR1-GigabitEthernet0/0/0]

至此，防护措施已生效。
