Mr.张小白（案例：商品的类别的MyBatis的实现）

商品的类别

一、步骤

1.引入相关依赖pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.zjd</groupId>
    <artifactId>Part4</artifactId>
    <version>1.0-SNAPSHOT</version>
    <dependencies>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.5.2</version>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.12</version>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.11</version>
        </dependency>
        <dependency>
            <groupId>log4j</groupId>
            <artifactId>log4j</artifactId>
            <version>1.2.17</version>
        </dependency>
    </dependencies>
    <build>
        <resources>
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                </includes>
            </resource>
        </resources>
    </build>

</project>

2.导入数据库数据

1、新建数据库mybatis

CREATE DATABASE mybatis;

2、在mybatis数据库下创建表product

create table product(
    id int primary key auto_increment,
    goodsname varchar(20) not null ,
    price int not null ,
    typeid int not null
);

3、在product表中插入数据

insert into product(id, goodsname, price, typeid) VALUES
(1,'电视机',5000,1),
(2,'冰箱',4000,2),
(3,'空调',3000,2),
(4,'洗衣机',2000,4);

4、在mybatis数据库下创建表category

create table category(
    id int primary key auto_increment,
    typename varchar(20) not null
);

5、在category表中插入数据

insert into category(id, typename) VALUES
(1,'黑色电视'),
(2,'白色电视');

3.创建连接数据库配置文件db.properties

# MySQL的版本在8.0之下的，
mysql.driver=com.mysql.jdbc.Driver
# MySQL的版本在8.0之上的，
mysql.driver=com.mysql.cj.jdbc.Driver
mysql.url=jdbc:mysql://localhost:3306/mybatis?serverTimezone=UTC&characterEncoding=utf8&useUnicode=true&useSSL=false
mysql.username=root
mysql.password=root

4.创建myBatis的核心配置文件mybatis-config.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
    <properties resource="db.properties"/>
    <settings>
        <setting name="cacheEnabled" value="true"/>
        <setting name="lazyLoadingEnabled" value="true"/>
        <setting name="aggressiveLazyLoading" value="false"/>
    </settings>
    <typeAliases>
        <package name="com.zjd.pojo"/>
    </typeAliases>
    <environments default="development">
        <environment id="development">
            <transactionManager type="JDBC"/>
            <dataSource type="POOLED">
                <property name="driver" value="${mysql.driver}"/>
                <property name="url" value="${mysql.url}"/>
                <property name="username" value="${mysql.username}"/>
                <property name="password" value="${mysql.password}"/>
            </dataSource>
        </environment>
    </environments>
    <mappers>
        <mapper resource="com/zjd/mapper/CategoryMapper.xml"/>
    </mappers>
</configuration>

5.创建product的实体类Product.java

package com.zjd.pojo;

public class Product {
    private int id;
    private String goodsname;
    private int price;
    private int typeid;

    @Override
    public String toString() {
        return "Product{" +
                "id=" + id +
                ", goodsname='" + goodsname + '\'' +
                ", price=" + price +
                ", typeid=" + typeid +
                '}';
    }

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getGoodsname() {
        return goodsname;
    }

    public void setGoodsname(String goodsname) {
        this.goodsname = goodsname;
    }

    public int getPrice() {
        return price;
    }

    public void setPrice(int price) {
        this.price = price;
    }

    public int getTypeid() {
        return typeid;
    }

    public void setTypeid(int typeid) {
        this.typeid = typeid;
    }
}

6.创建category的实体类Category.java

package com.zjd.pojo;

import java.util.List;

public class Category {
    private int id;
    private String typename;
    private List<Product> product;

    @Override
    public String toString() {
        return "Category{" +
                "id=" + id +
                ", typename='" + typename + '\'' +
                ", product=" + product +
                '}';
    }

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getTypename() {
        return typename;
    }

    public void setTypename(String typename) {
        this.typename = typename;
    }

    public List<Product> getProduct() {
        return product;
    }

    public void setProduct(List<Product> product) {
        this.product = product;
    }
}

7.创建Category.java的映射文件CategoryMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.zjd.pojo.Category">
    <select id="findProductWithCategory" parameterType="Integer"
            resultMap="ProductWithCategoryResult">
     SELECT c.*,p.id as typeid,p.goodsname,p.price
       from category c,product p
       WHERE c.id=p.typeid
          and c.id=#{id}
   </select>
    <resultMap type="com.zjd.pojo.Category"
               id="ProductWithCategoryResult">
        <id property="id" column="id"/>
        <result property="typename" column="typename"/>
        <collection property="product" ofType="com.zjd.pojo.Product">
            <id property="id" column="typeid"/>
            <result property="goodsname" column="goodsname"/>
            <result property="price" column="price"/>
        </collection>
    </resultMap>
</mapper>

8.将映射文件加载到mybatis-config.xml中

<!--  上图我已加载过  -->
    <mappers>
        <mapper resource="com/zjd/mapper/CategoryMapper.xml"/>
    </mappers>

9.创建MyBatis的工具类MyBatisUtils.java

package com.zjd.utils;

import org.apache.ibatis.io.Resources;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;

import java.io.IOException;
import java.io.Reader;

public class MyBatisUtils {
    public static SqlSessionFactory sqlSession=null;
    static {
        try {
            Reader reader= Resources.getResourceAsReader("mybatis-config.xml");
            sqlSession=new SqlSessionFactoryBuilder().build(reader);
        }catch (IOException e){
            e.printStackTrace();
        }
    }
    public static SqlSession getSession(){
        return sqlSession.openSession();
    }
}

9.创建测试类CategoryTest.java测试运行

package Test;

import com.zjd.pojo.Category;
import com.zjd.utils.MyBatisUtils;
import org.apache.ibatis.session.SqlSession;
import org.junit.After;
import org.junit.Before;
import org.junit.Test;

public class CategoryTest {
    SqlSession session=null;
    @Before
    public void Before(){
        session= MyBatisUtils.getSession();
    }
    @Test
    public void findProductWithCategory(){
        Category category=session.selectOne("com.zjd.pojo.Category.findProductWithCategory",2);
        System.out.println(category);
    }
    @After
    public void After(){
        session.commit();
        session.close();
    }
}

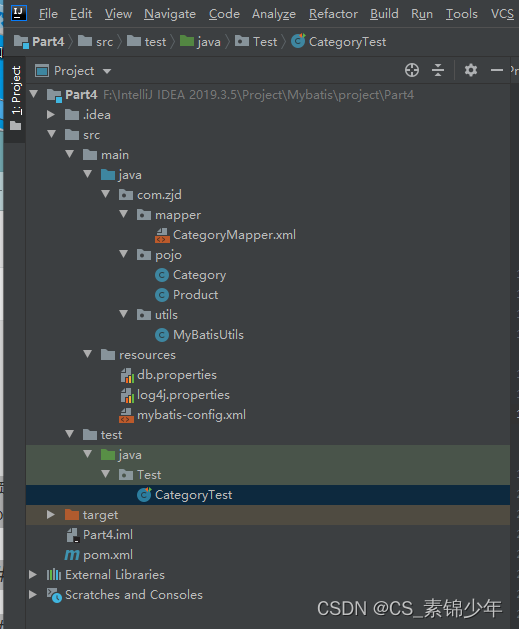

二、项目结构

注意：这个项目文件里，除了我们上述的这类文件之外，还有一个log4j.properties文件，这个文件是方便大家查看sql语句运行的情况，下面是它的配置代码（配置时，需要现在pom.xml文件中引入jar包）

1、引入jar包：

<dependency>
            <groupId>log4j</groupId>
            <artifactId>log4j</artifactId>
            <version>1.2.17</version>
        </dependency>

2、配置代码：

#全局日志配置
log4j.rootLogger=DEBUG,Console
#控制台输出配置
log4j.appender.Console=org.apache.log4j.ConsoleAppender
log4j.appender.Console.layout=org.apache.log4j.PatternLayout
log4j.appender.Console.layout.ConversionPattern=%d [%t] %-5p [%c] - %m%n
#日志输出级别
log4j.logger.java.sql.ResultSet=INFO
log4j.logger.org.apache=INFO
log4j.logger.java.sql.Connection=DEBUG
log4j.logger.java.sql.Statement=DEBUG
log4j.logger.java.sql.PreparedStatement=DEBUG

三、本次完成案例：商品的类别

通过MyBatis查询商品类别为白色家电的商品的所有信息
