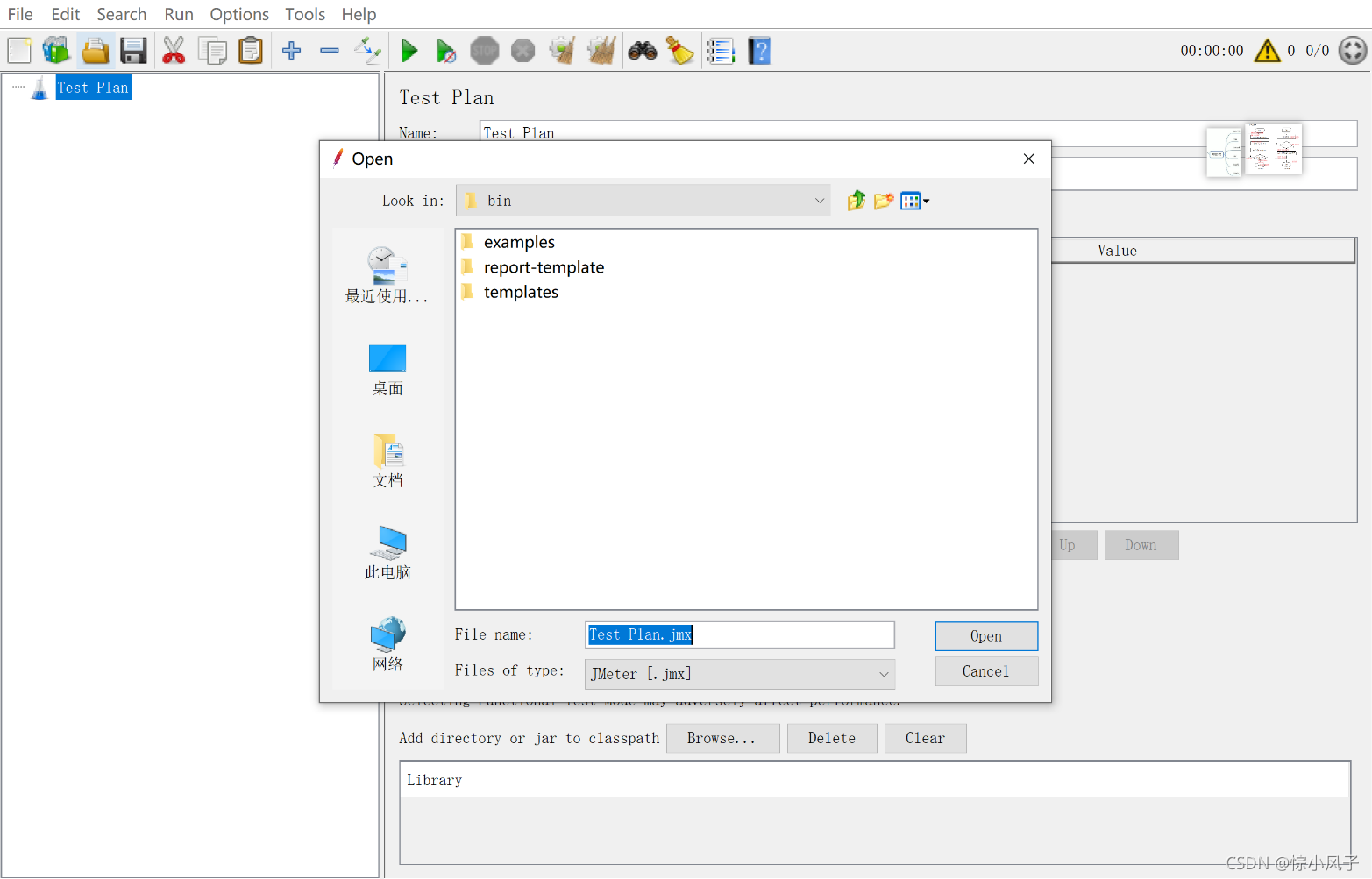

记录Jmeter无法打开保存文件的解决方法

运行报错

2021-11-06 09:28:51,668 WARN o.a.j.g.u.MenuFactory: Could not instantiate class: kg.apc.jmeter.reporters.LoadosophiaUploaderGui
java.lang.reflect.InvocationTargetException: null
	at jdk.internal.reflect.NativeConstructorAccessorImpl.newInstance0(Native Method) ~[?:?]
	at jdk.internal.reflect.NativeConstructorAccessorImpl.newInstance(NativeConstructorAccessorImpl.java:77) ~[?:?]
	at jdk.internal.reflect.DelegatingConstructorAccessorImpl.newInstance(DelegatingConstructorAccessorImpl.java:45) ~[?:?]
	at java.lang.reflect.Constructor.newInstanceWithCaller(Constructor.java:499) ~[?:?]
	at java.lang.reflect.Constructor.newInstance(Constructor.java:480) ~[?:?]
	at org.apache.jmeter.gui.util.MenuFactory.getGUIComponent(MenuFactory.java:207) ~[ApacheJMeter_core.jar:5.3]
	at org.apache.jmeter.gui.util.MenuFactory.initializeMenus(MenuFactory.java:151) ~[ApacheJMeter_core.jar:5.3]
	at org.apache.jmeter.gui.util.MenuFactory.<clinit>(MenuFactory.java:107) ~[ApacheJMeter_core.jar:5.3]
	at org.apache.jmeter.control.gui.TestPlanGui.createPopupMenu(TestPlanGui.java:94) ~[ApacheJMeter_core.jar:5.3]
	at org.apache.jmeter.gui.tree.JMeterTreeNode.createPopupMenu(JMeterTreeNode.java:184) ~[ApacheJMeter_core.jar:5.3]
	at org.apache.jmeter.gui.action.EditCommand.doAction(EditCommand.java:46) ~[ApacheJMeter_core.jar:5.3]
	at org.apache.jmeter.gui.action.ActionRouter.performAction(ActionRouter.java:87) ~[ApacheJMeter_core.jar:5.3]
	at org.apache.jmeter.gui.action.ActionRouter.lambda$actionPerformed$0(ActionRouter.java:69) ~[ApacheJMeter_core.jar:5.3]
	at java.awt.event.InvocationEvent.dispatch(InvocationEvent.java:318) ~[?:?]
	at java.awt.EventQueue.dispatchEventImpl(EventQueue.java:771) ~[?:?]
	at java.awt.EventQueue$4.run(EventQueue.java:722) ~[?:?]
	at java.awt.EventQueue$4.run(EventQueue.java:716) ~[?:?]
	at java.security.AccessController.doPrivileged(AccessController.java:399) [?:?]
	at java.security.ProtectionDomain$JavaSecurityAccessImpl.doIntersectionPrivilege(ProtectionDomain.java:86) [?:?]
	at java.awt.EventQueue.dispatchEvent(EventQueue.java:741) [?:?]
	at java.awt.EventDispatchThread.pumpOneEventForFilters(EventDispatchThread.java:203) [?:?]
	at java.awt.EventDispatchThread.pumpEventsForFilter(EventDispatchThread.java:124) [?:?]
	at java.awt.EventDispatchThread.pumpEventsForHierarchy(EventDispatchThread.java:113) [?:?]
	at java.awt.EventDispatchThread.pumpEvents(EventDispatchThread.java:109) [?:?]
	at java.awt.EventDispatchThread.pumpEvents(EventDispatchThread.java:101) [?:?]
	at java.awt.EventDispatchThread.run(EventDispatchThread.java:90) [?:?]

之前还有：

lang.NoClassDefFoundError: Could not initialize class org.apache.jmeter.gui.util.FileDialoger

解决方法

0.我的版本

apache-jmeter-5.3
jdk17.0.1

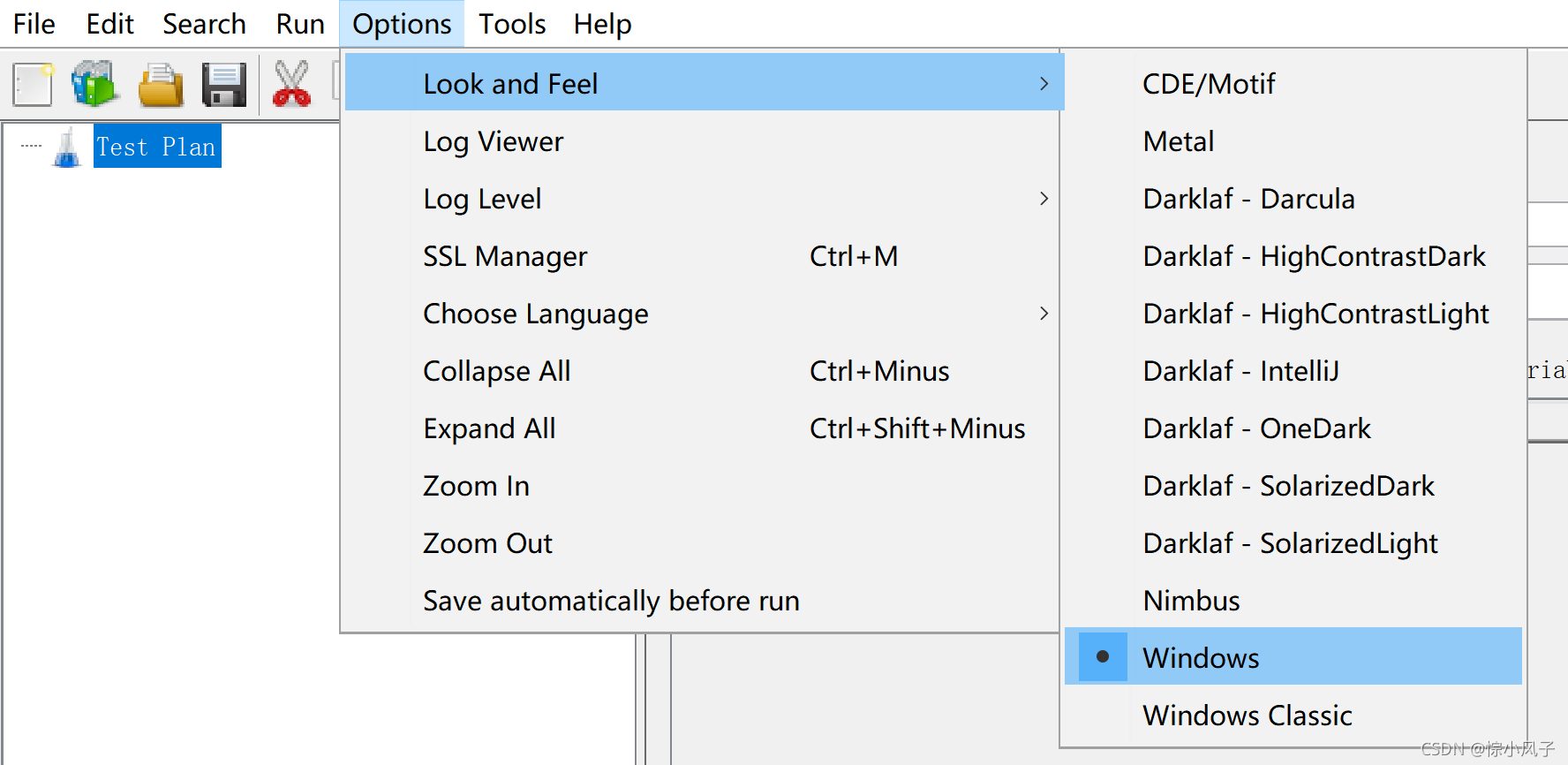

1.尽量不要采用Dark模式

这里也包括其他问题，只要报错后面还有darkfilexxx等相关字段，直接把dark皮肤换了就可以解决。基本上做完这一步就可以打开文件。

2.检查环境变量系统变量

JAVA_HOME 和 JMETER_HOME 填自己的安装路径。

CLASSPATH
.;%JAVA_HOME%/lib/dt.jar;%JAVA_HOME%/lib/tools.jar

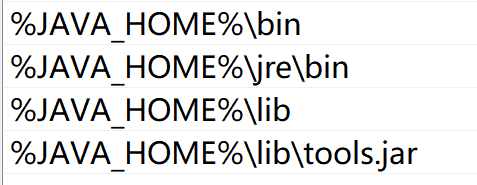

path后加

%JAVA_HOME%\bin
%JAVA_HOME%\jre\bin
%JAVA_HOME%\lib
%JAVA_HOME%\lib\tools.jar

如果不想利用.bat文件打开jmeter，而是利用cmd输入jmeter打开的话，path还要加

%JMETER_HOME%\bin

3.添加jar包

（不知道对这个结果是不是有影响，本意是添加监控工具插件了解学习，但事实是加入这两个包后问题得到了解决）

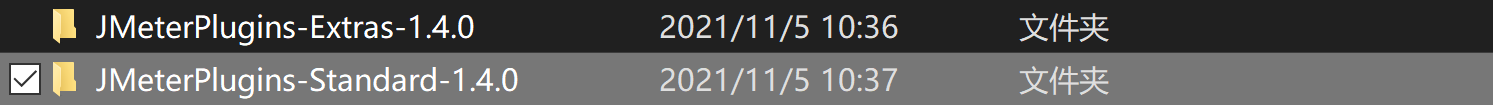

监控工具。下载这两个压缩包后解压，将lib/ext中的jar包复制粘贴到jmeter中的lib/ext中。

到这里无法打开保存文件的问题得到解决。

后续会上传相关安装包资源。

参考博客：
1.https://blog.csdn.net/qq_38653748/article/details/118962646
2.https://blog.csdn.net/pengjiangchun/article/details/105707405

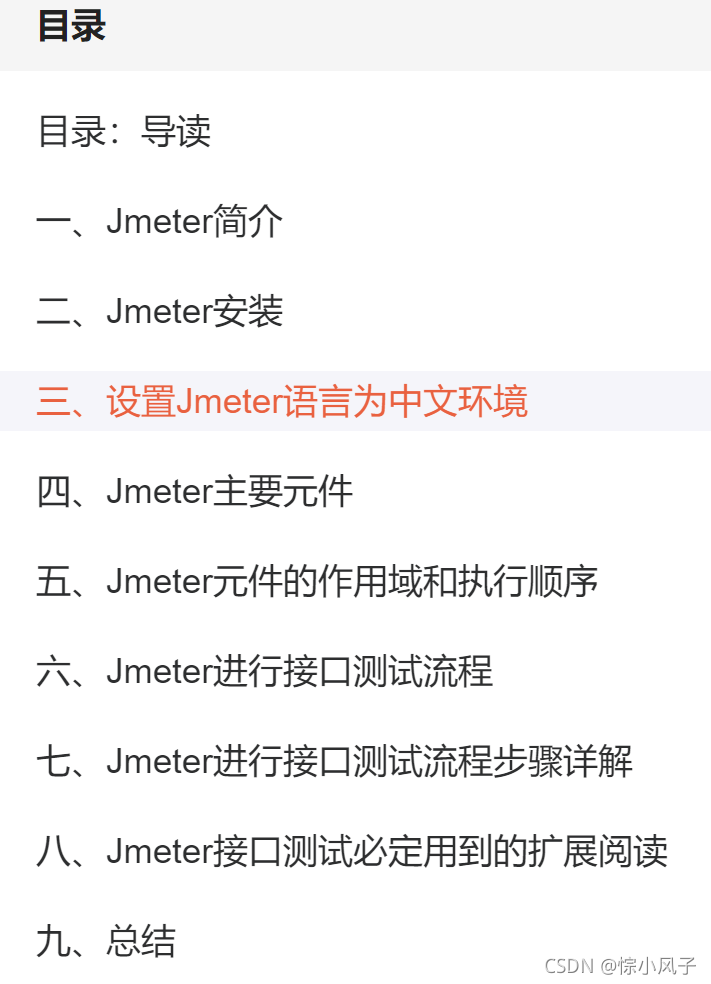

这篇文章很适合初学者学习：

3.https://blog.csdn.net/qq_37998956/article/details/120264192
