华为开源自研AI框架昇思MindSpore应用案例：基于MindSpore框架的SGD优化器案例实现

SGD优化器基本原理讲解

随机梯度下降（SGD）是一种迭代方法，其背后基本思想最早可以追溯到1950年代的Robbins-Monro算法，用于优化可微分目标函数。

它可以被视为梯度下降优化的随机近似，因为它用实际梯度（从整个数据集计算）替换为实际梯度（从随机选择的数据子集计算）。特别是在高维优化问题中，这减少了非常高的计算负担，实现更快的迭代以换取更低的收敛速度。随机梯度下降已成为机器学习中重要的优化方法。



   如果你对MindSpore感兴趣，可以关注昇思MindSpore社区

​​

​​

一、环境准备

1.进入ModelArts官网

云平台帮助用户快速创建和部署模型，管理全周期AI工作流，选择下面的云平台以开始使用昇思MindSpore，获取安装命令，安装MindSpore2.0.0-alpha版本，可以在昇思教程中进入ModelArts官网

​​

选择下方CodeLab立即体验

​​

等待环境搭建完成

​​

2.使用CodeLab体验Notebook实例

下载NoteBook样例代码，.ipynb为样例代码

选择ModelArts Upload Files上传.ipynb文件

​​

选择Kernel环境

​​

切换至GPU环境，切换成第一个限时免费

​​

进入昇思MindSpore官网，点击上方的安装

​​

获取安装命令

​​

回到Notebook中，在第一块代码前加入命令
​​

conda update -n base -c defaults conda

​​

安装MindSpore 2.0 GPU版本

conda install mindspore=2.0.0a0 -c mindspore -c conda-forge

​​

安装mindvision

pip install mindvision

​​

安装下载download

pip install download

​​

二、SGD应用案例

文档介绍了SGD以及它的很多优化方法，但如何选择优化方法和对应的参数依然是一个问题。

本部分我们希望通过一个案例设计一组对比实验，演示如何在实践中使用SGD优化器。通过这个案例，我们希望能达成三个目的:一是能够快速入门MindSpore，并将其应用于实践；二是掌握MindSpore框架SGD优化器的使用方法；三是比较不同参数设置下SGD优化器算法的性能，探究SGD优化器参数设置问题。

应用案例介绍

 案例流程

本案例使用数据集Fashion MNIST训练lenet网络模型，中间调用MindSpore提供的SGD优化器API，并设置三组实验来对比SGD优化器不同参数的选择对模型训练带来的影响。三组实验学习率固定设为0.01。实验一为SGD不带任何优化参数，实验二为SGD+momentum，实验三为SGD+momentum+nesterov。momentum与nesterov在理论上都能加速网络训练。最后通过实验数据可视化分析，得出结论。

关于数据集

Fashion MNIST（服饰数据集）是经典MNIST数据集的简易替换，MNIST数据集包含手写数字（阿拉伯数字）的图像，两者图像格式及大小都相同。Fashion MNIST比常规 MNIST手写数据将更具挑战性。两者数据集都较小，主要适用于初学者学习或验证某个算法可否正常运行。他们是测试和调试代码的良好起点。

Fashion MNIST/服饰数据集包含70000张灰度图像，其中包含60,000个示例的训练集和10,000个示例的测试集，每个示例都是一个28x28灰度图像。

数据集文件路径如下：

./mnist/
├── test
│   ├── t10k-images-idx3-ubyte
│   └── t10k-labels-idx1-ubyte
└── train
    ├── train-images-idx3-ubyte
    └── train-labels-idx1-ubyte

实验步骤

首先配置环境，要求MindSpore>=1.8.1,还需要安装mindvision和解决兼容性问题。如果使用Jupyter Notebook做本实验，完成后需要重启内核。

!pip install mindvision
!pip uninstall opencv-python-headless-4.6.0.66
!pip install "opencv-python-headless<4.3"

导入需要的模块

from mindspore import ops
from mindspore import nn
import csv

由于mindvision支持几种经典数据集，其中就有FashionMnist。我们直接使用mindvision接口下载FashionMnist数据集，并且无需进行数据预处理。

from mindvision.classification.dataset import FashionMnist
​
download_train = FashionMnist(path="./FashionMnist", split="train", batch_size=32, repeat_num=1, shuffle=True,
                         resize=32, download=True)
​
download_test = FashionMnist(path="./FashionMnist", split="test", batch_size=32, resize=32, download=True)
​
train_dataset = download_train.run()
test_dataset = download_test.run()

检查数据集结构

for image, label in train_dataset.create_tuple_iterator():
    print(f"Shape of image [N, C, H, W]: {image.shape} {image.dtype}")
    print(f"Shape of label: {label.shape} {label.dtype}")
    break
Shape of image [N, C, H, W]: (32, 1, 32, 32) Float32
Shape of label: (32,) Int32

使用LeNet网络，因为这是一个优化器算法比较案例，对网络没有特殊要求，这里推荐直接使用mindvision提供的接口。记得数据集为灰度图，通道数需要设为1。

from mindvision.classification.models import lenet
​
network = lenet(num_classes=10, num_channel=1, include_top=True)

创建训练函数和测试函数。对于测试函数，采用两个指标来评估模型质量：一是在测试集上的预测精度，二是在测试集上的平均损失。将这两个数据保存在csv文件中，方便后续处理。

from mindspore import ops
from mindspore import nn
# 定义训练函数
def train(model, dataset, loss_fn, optimizer):
    # Define forward function
    def forward_fn(data, label):
        logits = model(data)
        loss = loss_fn(logits, label)
        return loss, logits
​
    # Get gradient function
    grad_fn = ops.value_and_grad(forward_fn, None, optimizer.parameters, has_aux=True)
​
    # Define function of one-step training
    def train_step(data, label):
        (loss, _), grads = grad_fn(data, label)
        loss = ops.depend(loss, optimizer(grads))
        return loss
​
    size = dataset.get_dataset_size()
    model.set_train()
    for batch, (data, label) in enumerate(dataset.create_tuple_iterator()):
        loss = train_step(data, label)
​
        if batch % 100 == 0:
            loss, current = loss.asnumpy(), batch
            print(f"loss: {loss:>7f}  [{current:>3d}/{size:>3d}]")
​
​
# 除训练外，我们定义测试函数，用来评估模型的性能。
​
def test(model, dataset, loss_fn, writer):
    num_batches = dataset.get_dataset_size()
    model.set_train(False)
    total, test_loss, correct = 0, 0, 0
    for data, label in dataset.create_tuple_iterator():
        pred = model(data)
        total += len(data)
        test_loss += loss_fn(pred, label).asnumpy()
        correct += (pred.argmax(1) == label).asnumpy().sum()
    test_loss /= num_batches
    correct /= total
    print(f"Test: \n Accuracy: {(100*correct):>0.1f}%, Avg loss: {test_loss:>8f} \n")
    correct = round(correct * 100, 1)
    test_loss = round(test_loss,6)
    writer.writerow([correct, test_loss]) #将数据保存在对应的csv文件中

定义损失函数和优化器函数。损失函数使用交叉熵损失函数，优化器选择SGD，迭代次数为10，学习率固定设为0.01。在每次训练过后都将模型用测试集评估性能，来体现训练过程。

下面是实验一，使用纯粹的SGD优化器。

import csv
from mindvision.classification.models import lenet
from mindspore import nn
# 构建网络模型
network1 = lenet(num_classes=10, num_channel=1, include_top=True)
​
# 定义损失函数
net_loss = nn.SoftmaxCrossEntropyWithLogits(sparse=True, reduction='mean')
​
# 定义优化器函数
net_opt = nn.SGD(network1.trainable_params(), learning_rate=1e-2)
# 设置迭代次数
epochs = 10
csv_file1 = open('result/sgd1.csv', 'w', newline='')
writer1 = csv.writer(csv_file1)
writer1.writerow(['Accuracy', 'Avg_loss'])
for t in range(epochs):
    print(f"Epoch {t+1}\n-------------------------------")
    train(network1, train_dataset, net_loss, net_opt)
    test(network1, test_dataset, net_loss, writer1)
csv_file1.close()
print("Done!")

Epoch 1
-------------------------------
loss: 2.302577  [  0/1875]
loss: 2.302847  [100/1875]
loss: 2.302751  [200/1875]
loss: 2.302980  [300/1875]
loss: 2.303654  [400/1875]
loss: 2.303366  [500/1875]
loss: 2.304052  [600/1875]
loss: 2.302124  [700/1875]
loss: 2.300979  [800/1875]
loss: 2.305120  [900/1875]
loss: 2.302595  [1000/1875]
loss: 2.302863  [1100/1875]
loss: 2.302272  [1200/1875]
loss: 2.302855  [1300/1875]
loss: 2.301332  [1400/1875]
loss: 2.302946  [1500/1875]
loss: 2.302062  [1600/1875]
loss: 2.301753  [1700/1875]
loss: 2.302556  [1800/1875]
Test:
 Accuracy: 10.0%, Avg loss: 2.302537

Epoch 2
-------------------------------
loss: 2.302315  [  0/1875]
loss: 2.302679  [100/1875]
loss: 2.303077  [200/1875]
loss: 2.302937  [300/1875]
loss: 2.303362  [400/1875]
loss: 2.303807  [500/1875]
loss: 2.301589  [600/1875]
loss: 2.301368  [700/1875]
loss: 2.299467  [800/1875]
loss: 2.304304  [900/1875]
loss: 2.303492  [1000/1875]
loss: 2.303529  [1100/1875]
loss: 2.304138  [1200/1875]
loss: 2.301667  [1300/1875]
loss: 2.301730  [1400/1875]
loss: 2.303048  [1500/1875]
loss: 2.303775  [1600/1875]
loss: 2.303029  [1700/1875]
loss: 2.302475  [1800/1875]
Test:
 Accuracy: 16.2%, Avg loss: 2.302400

Epoch 3
-------------------------------
loss: 2.301794  [  0/1875]
loss: 2.303500  [100/1875]
loss: 2.302805  [200/1875]
loss: 2.302227  [300/1875]
loss: 2.301216  [400/1875]
loss: 2.302775  [500/1875]
loss: 2.301936  [600/1875]
loss: 2.302594  [700/1875]
loss: 2.302720  [800/1875]
loss: 2.302242  [900/1875]
loss: 2.303227  [1000/1875]
loss: 2.301566  [1100/1875]
loss: 2.301122  [1200/1875]
loss: 2.301184  [1300/1875]
loss: 2.299739  [1400/1875]
loss: 2.302099  [1500/1875]
loss: 2.301378  [1600/1875]
loss: 2.299140  [1700/1875]
loss: 2.298317  [1800/1875]
Test:
 Accuracy: 19.9%, Avg loss: 2.299189

Epoch 4
-------------------------------
loss: 2.298693  [  0/1875]
loss: 2.298517  [100/1875]
loss: 2.295070  [200/1875]
loss: 2.287685  [300/1875]
loss: 2.273570  [400/1875]
loss: 2.171952  [500/1875]
loss: 1.555109  [600/1875]
loss: 1.315035  [700/1875]
loss: 1.290831  [800/1875]
loss: 0.957171  [900/1875]
loss: 0.683247  [1000/1875]
loss: 1.657022  [1100/1875]
loss: 0.885075  [1200/1875]
loss: 0.906517  [1300/1875]
loss: 0.904378  [1400/1875]
loss: 1.017345  [1500/1875]
loss: 1.311617  [1600/1875]
loss: 0.797807  [1700/1875]
loss: 0.899135  [1800/1875]
Test:
 Accuracy: 69.3%, Avg loss: 0.824970

Epoch 5
-------------------------------
loss: 0.632757  [  0/1875]
loss: 0.734659  [100/1875]
loss: 0.945924  [200/1875]
loss: 0.672319  [300/1875]
loss: 0.684902  [400/1875]
loss: 0.706946  [500/1875]
loss: 0.759072  [600/1875]
loss: 0.552457  [700/1875]
loss: 0.529598  [800/1875]
loss: 1.010510  [900/1875]
loss: 0.701660  [1000/1875]
loss: 0.749967  [1100/1875]
loss: 0.557507  [1200/1875]
loss: 0.663519  [1300/1875]
loss: 0.856946  [1400/1875]
loss: 0.672521  [1500/1875]
loss: 0.620852  [1600/1875]
loss: 0.940065  [1700/1875]
loss: 0.525178  [1800/1875]
Test:
 Accuracy: 74.8%, Avg loss: 0.673452

Epoch 6
-------------------------------
loss: 0.526541  [  0/1875]
loss: 0.551981  [100/1875]
loss: 0.437927  [200/1875]
loss: 0.536838  [300/1875]
loss: 0.612873  [400/1875]
loss: 0.663827  [500/1875]
loss: 0.462745  [600/1875]
loss: 0.553594  [700/1875]
loss: 0.411590  [800/1875]
loss: 0.748116  [900/1875]
loss: 0.510949  [1000/1875]
loss: 0.381978  [1100/1875]
loss: 0.571769  [1200/1875]
loss: 0.576415  [1300/1875]
loss: 0.674996  [1400/1875]
loss: 0.657864  [1500/1875]
loss: 0.638442  [1600/1875]
loss: 0.409129  [1700/1875]
loss: 0.637906  [1800/1875]
Test:
 Accuracy: 78.8%, Avg loss: 0.573736

Epoch 7
-------------------------------
loss: 0.303391  [  0/1875]
loss: 0.386003  [100/1875]
loss: 0.689905  [200/1875]
loss: 0.512580  [300/1875]
loss: 0.466622  [400/1875]
loss: 0.435113  [500/1875]
loss: 0.432267  [600/1875]
loss: 0.504910  [700/1875]
loss: 0.666079  [800/1875]
loss: 0.614079  [900/1875]
loss: 0.400944  [1000/1875]
loss: 0.448082  [1100/1875]
loss: 0.767068  [1200/1875]
loss: 0.498046  [1300/1875]
loss: 0.530967  [1400/1875]
loss: 0.754128  [1500/1875]
loss: 0.558144  [1600/1875]
loss: 0.258042  [1700/1875]
loss: 0.358890  [1800/1875]
Test:
 Accuracy: 81.6%, Avg loss: 0.510896

Epoch 8
-------------------------------
loss: 0.506675  [  0/1875]
loss: 0.753561  [100/1875]
loss: 0.468868  [200/1875]
loss: 0.422411  [300/1875]
loss: 0.396021  [400/1875]
loss: 0.393111  [500/1875]
loss: 0.963203  [600/1875]
loss: 0.572667  [700/1875]
loss: 0.288582  [800/1875]
loss: 0.419174  [900/1875]
loss: 0.356242  [1000/1875]
loss: 0.464459  [1100/1875]
loss: 0.501630  [1200/1875]
loss: 0.593385  [1300/1875]
loss: 0.398698  [1400/1875]
loss: 0.774741  [1500/1875]
loss: 0.300537  [1600/1875]
loss: 0.626626  [1700/1875]
loss: 0.468578  [1800/1875]
Test:
 Accuracy: 80.9%, Avg loss: 0.520291

Epoch 9
-------------------------------
loss: 0.393862  [  0/1875]
loss: 0.242075  [100/1875]
loss: 0.380720  [200/1875]
loss: 0.613354  [300/1875]
loss: 0.313823  [400/1875]
loss: 0.708381  [500/1875]
loss: 0.501862  [600/1875]
loss: 0.367467  [700/1875]
loss: 0.601890  [800/1875]
loss: 0.417870  [900/1875]
loss: 0.465760  [1000/1875]
loss: 0.626054  [1100/1875]
loss: 0.564844  [1200/1875]
loss: 0.439832  [1300/1875]
loss: 0.247064  [1400/1875]
loss: 0.210835  [1500/1875]
loss: 0.672299  [1600/1875]
loss: 0.483748  [1700/1875]
loss: 0.694968  [1800/1875]
Test:
 Accuracy: 83.5%, Avg loss: 0.455580

Epoch 10
-------------------------------
loss: 0.391544  [  0/1875]
loss: 0.305324  [100/1875]
loss: 0.416478  [200/1875]
loss: 0.437293  [300/1875]
loss: 0.253441  [400/1875]
loss: 0.500829  [500/1875]
loss: 0.511331  [600/1875]
loss: 0.390801  [700/1875]
loss: 0.466885  [800/1875]
loss: 0.345322  [900/1875]
loss: 0.454487  [1000/1875]
loss: 0.409122  [1100/1875]
loss: 0.191410  [1200/1875]
loss: 0.507366  [1300/1875]
loss: 0.580812  [1400/1875]
loss: 0.367076  [1500/1875]
loss: 0.314957  [1600/1875]
loss: 0.409756  [1700/1875]
loss: 0.368590  [1800/1875]
Test:
 Accuracy: 84.0%, Avg loss: 0.436875

Done!

实验二，控制其它变量不变，选择SGD优化器并使用参数momentum,设为0.9

[

import csv
from mindvision.classification.models import lenet
from mindspore import nn
​
network2 = lenet(num_classes=10, num_channel=1, include_top=True)
net_loss = nn.SoftmaxCrossEntropyWithLogits(sparse=True, reduction='mean')
​
# 定义优化器函数
net_opt = nn.SGD(network2.trainable_params(), learning_rate=1e-2, momentum=0.9)
epochs = 10
csv_file2 = open('result/sgd2.csv', 'w', newline='')
writer2 = csv.writer(csv_file2)
writer2.writerow(['Accuracy', 'Avg_loss'])
for t in range(epochs):
    print(f"Epoch {t+1}\n-------------------------------")
    train(network2, train_dataset, net_loss, net_opt)
    test(network2, test_dataset, net_loss, writer2)
csv_file2.close()
print("Done!")

实验三，控制其它变量不变，选择SGD优化器并使用参数momentum,设为0.9，使用参数nesterov，设置为True

import csv
from mindvision.classification.models import lenet
from mindspore import nn
​
network3 = lenet(num_classes=10, num_channel=1, include_top=True)
net_loss = nn.SoftmaxCrossEntropyWithLogits(sparse=True, reduction='mean')
​
# 定义优化器函数
net_opt = nn.SGD(network3.trainable_params(), learning_rate=1e-2, momentum=0.9, nesterov=True)
epochs = 10
csv_file3 = open('result/sgd3.csv', 'w', newline='')
writer3 = csv.writer(csv_file3)
writer3.writerow(['Accuracy', 'Avg_loss'])
for t in range(epochs):
    print(f"Epoch {t+1}\n-------------------------------")
    train(network3, train_dataset, net_loss, net_opt)
    test(network3, test_dataset, net_loss, writer3)
csv_file3.close()
print("Done!")

可视化分析

绘图

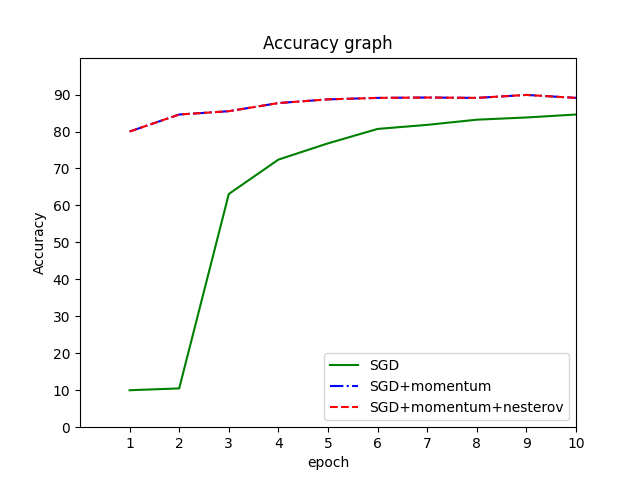

到此为止，我们获得了实验所有的数据，现在使用matplotlib对数据进行可视化分析。

首先对预测精度相关数据进行绘图

import matplotlib.pyplot as plt
import numpy as np
f = open('result/sgd1.csv')  # 打开csv文件
reader = csv.reader(f)  # 读取csv文件
data1 = list(reader)  # csv数据转换为列表
f.close()
​
f = open('result/sgd2.csv')  # 打开csv文件
reader = csv.reader(f)  # 读取csv文件
data2 = list(reader)  # csv数据转换为列表
f.close()
​
f = open('result/sgd3.csv')  # 打开csv文件
reader = csv.reader(f)  # 读取csv文件
data3 = list(reader)  # csv数据转换为列表
f.close()
​
​
x = [1, 2, 3, 4, 5, 6, 7, 8, 9, 10]
y1 = list()
y2 = list()
y3 = list()
for i in range(1, 11):  # 从第二行开始读取
    y1.append(float(data1[i][0]))
    y2.append(float(data2[i][0]))
    y3.append(float(data2[i][0]))
​
plt.plot(x, y1, color='g', linestyle='-', label = 'SGD')
plt.plot(x, y2, color='b', linestyle='-.', label = 'SGD+momentum')
plt.plot(x, y3, color='r', linestyle='--', label = 'SGD+momentum+nesterov')
plt.xlabel('epoch')
plt.ylabel('Accuracy')
plt.title('Accuracy graph')
plt.xlim((0, 10))
plt.ylim((0, 100))
my_y_ticks = np.arange(0, 100, 10)
plt.xticks(x)
plt.yticks(my_y_ticks)
​
plt.legend()
plt.savefig("sgd不同参数精确度对比图.png")
plt.show()  # 显示折线图

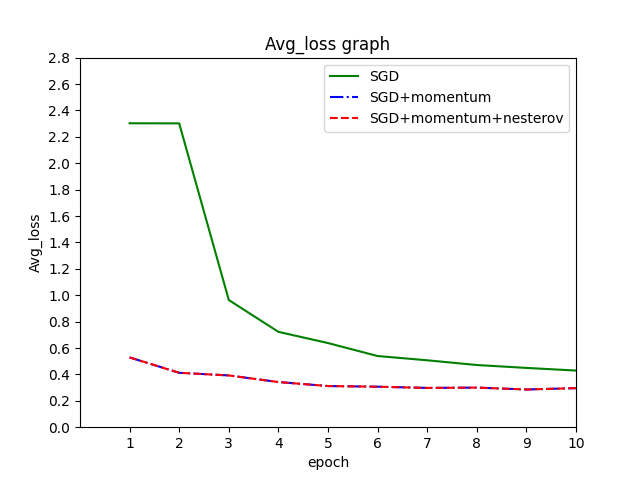

对平均损失相关数据进行绘图

import matplotlib.pyplot as plt
import numpy as np
f = open('result/sgd1.csv')  # 打开csv文件
reader = csv.reader(f)  # 读取csv文件
data1 = list(reader)  # csv数据转换为列表
f.close()
​
f = open('result/sgd2.csv')  # 打开csv文件
reader = csv.reader(f)  # 读取csv文件
data2 = list(reader)  # csv数据转换为列表
f.close()
​
f = open('result/sgd3.csv')  # 打开csv文件
reader = csv.reader(f)  # 读取csv文件
data3 = list(reader)  # csv数据转换为列表
f.close()
​
​
x = [1, 2, 3, 4, 5, 6, 7, 8, 9, 10]
y1 = list()
y2 = list()
y3 = list()
for i in range(1, 11):  # 从第二行开始读取
    y1.append(float(data1[i][1]))
    y2.append(float(data2[i][1]))
    y3.append(float(data2[i][1]))
​
plt.plot(x, y1, color='g', linestyle='-', label = 'SGD')
plt.plot(x, y2, color='b', linestyle='-.', label = 'SGD+momentum')
plt.plot(x, y3, color='r', linestyle='--', label = 'SGD+momentum+nesterov')
plt.xlabel('epoch')
plt.ylabel('Avg_loss')
plt.title('Avg_loss graph')
plt.xlim((0, 10))
plt.ylim((0, 2.5))
my_y_ticks = np.arange(0, 3, 0.2)
plt.xticks(x)
plt.yticks(my_y_ticks)
​
plt.legend()
plt.savefig("sgd不同参数损失对比图.png")
plt.show()  # 显示折线图

结果分析

无论是预测精度还是平均损失，纯粹的SGD表现并不是很好。第一个epoch之后，SGD预测精度只有10%，和瞎猜概率差不多，随着迭代次数增加，SGD的预测精度才慢慢增加，平均损失逐渐下降。10个epoch之后，SGD预测精度才不到85%。根据额外的实验，大概20个epoch能收敛到88%左右，这也是用fashion-minist数据集训练lenet所能达到的最高精度。

而使用momentum优化后，算法性能得到了质的飞跃，大概3个epoch就能收敛。

理论上来说，nesterov算法可以有效加速网络训练并减少波动。由于本实验所采用的数据集和网络模型都比较简单，算法优势没能很好的体现出来。

对于优化器选择的一些看法

由上述实验，我们可以得到的结论是，选择SGD优化器，momentum参数是非常有用的。

目前，最流行并且使用很高的优化器包括SGD、RMSprop、AdaDelta和Adam。每种优化器都有不同参数需要调试。在实际应用中，选择哪种优化器应结合具体问题。在充分理解数据的基础上，依然需要根据数据特性、算法特性进行充分的调参实验，找到最优解。

各大算法孰优孰劣并无定论。如果是刚入门，优先考虑SGD+NesteroV Momentum或者Adam（Standford 231n : The two recommended updates to use are either SGD+NesteroV Momentum or Adam）。
