1.1 适用产品系列

本案例适用于WA53、WA56系列的AP。

1.1.1 AP瘦切胖配置案例（Bootrom）

操作风险提示：AP瘦切胖有风险，操作不当或者意外断电会导致设备故障，操作需谨慎。命令行升级需在PC上搭建TFTP Server（推荐用户使用3CDaemon搭建TFTP服务器）

将软件版本下载到设备FLASH内，然后通过命令行加载Bootrom版本，再加载主机软件版本，加载时输入的文件名一定要一致，建议复制黏贴，然后升级过程中避免断电重启操作。

1、先从官网下载WA5300的胖版本，

H3C WA5300系列版本(适用于WA5530、WA5510E-T、WA5530-SI、WA5630X、WA5320X、WA5320X-SI、WA5320X-E、WAP723-W2、WAP722X-W2、UAP300、WA5320i、WA5320i-LI、WA5320X-LI、WA5530-LI、WA5530S、WAP722XS-W2、WA5340、WA5530i、WA5530X)-新华三集团-H3C

下载压缩包WA5300-CMW710-R2417P01-FAT.zip，解压生成ipe文件，放到电脑桌面上。

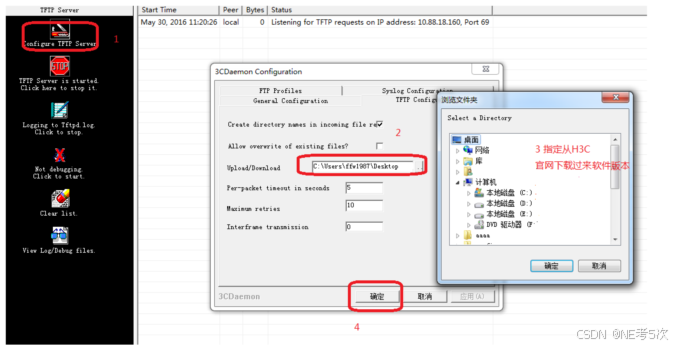

2、电脑通过网线连接到ap的一个网口，电脑网卡设置为：192.168.0.1 255.255.255.0，如下例子打开TFTP服务器，把ipe软件版本放到电脑桌面上，TFTP服务器目录指向电脑桌面，然后点击确定。

3、console口操作，console口登录方法参考《1.03 设备管理-Console登录方法》

在AP重启的时候按住不停地按Ctrl+B进入设备的bootroom菜单，以下标黑部分为设备自动打印部分。

==========================<EXTENDED-BOOTWARE MENU>=============

|<1> Boot System |

|<2> Enter Serial SubMenu |

|<3> Enter Ethernet SubMenu |

|<4> File Control |

|<5> Restore to Factory Default Configuration |

|<6> Skip Current System Configuration |

|<7> BootWare Operation Menu |

|<8> Skip Authentication for Console Login |

|<9> Storage Device Operation |

|<0> Reboot |

===================================================================

Ctrl+Z: Access EXTENDED ASSISTANT MENU

Ctrl+F: Format File System

Ctrl+C: Display Copyright

Ctrl+Y: Change AP Mode

Enter your choice(0-9): 此处按键 Ctrl+F，作用：格式化flash

Warning:All files on flash will be lost! Are you sure to format? [Y/N]Y //输入Y

...........................................................................................................................

Format success.

==========================<EXTENDED-BOOTWARE MENU>=============

|<1> Boot System |

|<2> Enter Serial SubMenu |

|<3> Enter Ethernet SubMenu |

|<4> File Control |

|<5> Restore to Factory Default Configuration |

|<6> Skip Current System Configuration |

|<7> BootWare Operation Menu |

|<8> Skip Authentication for Console Login |

|<9> Storage Device Operation |

|<0> Reboot |

===================================================================

Ctrl+Z: Access EXTENDED ASSISTANT MENU

Ctrl+F: Format File System

Ctrl+C: Display Copyright

Ctrl+Y: Change AP Mode

Enter your choice(0-9): //按键Ctrl+Y，设置ap胖模式或者瘦模式

Please select the new mode

Current mode is Fit //提示当前是fit瘦模式

===================================================================

|NO. Mode |

|1 Fat Mode |

|2 Fit Mode |

|0 Exit |

===================================================================

Enter your choice(0-2):1 //输入1，即fat胖模式

Changed to fat mode successfully! //修改成fat胖模式成功

==========================<EXTENDED-BOOTWARE MENU>=============

|<1> Boot System |

|<2> Enter Serial SubMenu |

|<3> Enter Ethernet SubMenu |

|<4> File Control |

|<5> Restore to Factory Default Configuration |

|<6> Skip Current System Configuration |

|<7> BootWare Operation Menu |

|<8> Skip Authentication for Console Login |

|<9> Storage Device Operation |

|<0> Reboot |

===================================================================

Ctrl+Z: Access EXTENDED ASSISTANT MENU

Ctrl+F: Format File System

Ctrl+C: Display Copyright

Ctrl+Y: Change AP Mode

Enter your choice(0-9): 3 //进入以太口子菜单

==========================<Enter Ethernet SubMenu>====================

|Note:the operating device is flash |

|<1> Download Image Program To SDRAM And Run |

|<2> Update Main Image File |

|<3> Update Backup Image File |

|<4> Download Files(*.*) |

|<5> Modify Ethernet Parameter |

|<0> Exit To Main Menu |

|<Ensure The Parameter Be Modified Before Downloading!> |

===================================================================

Enter your choice(0-5): 5 //修改以太口参数

==========================<ETHERNET PARAMETER SET>==============

|Note: '.' = Clear field. |

| '-' = Go to previous field. |

| Ctrl+D = Quit. |

===================================================================

Protocol (FTP or TFTP) :ftp TFTP

//忽略输出内容，直接输入TFTP，然后回车

Load File Name : WA5300-CMW710-E2329P01-FAT.ipe

//忽略输出内容，直接输入WA5300-CMW710-E2329P01-FAT.ipe，然后回车

WA5300-CMW710-E2329P01-FAT.ipe 是胖版本文件名称

Target File Name : WA5300-CMW710-E2329P01-FAT.ipe

//忽略输出内容，直接输入WA5300-CMW710-E2329P01-FAT.ipe，然后回车

WA5300-CMW710-E2329P01-FAT.ipe 是胖版本文件名称

Server IP Address :192.168.0.1

//忽略输出内容，直接输入电脑主机的 IP，比如192.168.0.1，然后回车

Local IP Address :192.168.0.50

//忽略输出内容，直接输入和电脑主机的ip同一网段，比如192.168.0.50，然后回车

Gateway IP Address :0.0.0.0

//忽略输出内容，直接回车

备注：注意给电脑手动配置一个与AP同网段的IP地址，保证电脑与AP路由可达

==========================<Enter Ethernet SubMenu>====================

|Note:the operating device is flash |

|<1> Download Image Program To SDRAM And Run |

|<2> Update Main Image File |

|<3> Update Backup Image File |

|<4> Download Files(*.*) |

|<5> Modify Ethernet Parameter |

|<0> Exit To Main Menu |

|<Ensure The Parameter Be Modified Before Downloading!> |

===================================================================

Enter your choice(0-5): 2 //输入2，更新版本

Loading.................................................................................................................Done.

38265856 bytes downloaded!

Image file wa5300-fat-boot.bin is self-decompressing...

Saving file flash:/wa5300-fat-boot.bin .................Done.

Image file wa5300-fat-system.bin is self-decompressing...

Saving file flash:/wa5300-fat-system.bin ..............................................................................................Done.

==========================<Enter Ethernet SubMenu>====================

|Note:the operating device is flash |

|<1> Download Image Program To SDRAM And Run |

|<2> pdate Main Image File |

|<3> Update Backup Image File |

|<4> Download Files(*.*) |

|<5> Modify Ethernet Parameter |

|<0> Exit To Main Menu |

|<Ensure The Parameter Be Modified Before Downloading!> |

===================================================================

Enter your choice(0-5): 0 //输入0，返回

==========================<EXTENDED-BOOTWARE MENU>=============

|<1> Boot System |

|<2> Enter Serial SubMenu |

|<3> Enter Ethernet SubMenu |

|<4> File Control |

|<5> Restore to Factory Default Configuration |

|<6> Skip Current System Configuration |

|<7> BootWare Operation Menu |

|<8> Skip Authentication for Console Login |

|<9> Storage Device Operation |

|<0> Reboot |

===================================================================

Ctrl+Z: Access EXTENDED ASSISTANT MENU

Ctrl+F: Format File System

Ctrl+C: Display Copyright

Ctrl+Y: Change AP Mode

Enter your choice(0-9): 0 //输入0，重启AP

System is starting...

设备启动完成

Press ENTER to get started.

<H3C> //升级成功

%Dec 15 18:56:54:395 2017 H3C SHELL/5/SHELL_LOGIN: Console logged in from con0.

建议与总结：

先Ctrl+F格式化flash，再Ctrl+Y选择胖模式，最后加载fat版本。
