华为无线AC间二层漫游

I love this bad girl

已于 2023-05-10 16:34:56 修改

阅读量574

点赞数 1

文章标签：网络运维

于 2023-05-10 14:52:20 首次发布

本文链接：https://blog.csdn.net/qq_55707182/article/details/130599564

版权

文章描述了两台AC设备（AC1和AC2）的详细配置，包括VLAN划分，DHCP设置，WLAN安全配置（WPA-WPA2PSK），AP（AccessPoint）信息，以及VAP配置。此外，还提到了CE（CustomerEdge）设备的接口配置，用于与AC建立连接。重点在于检查AC设备的漫游组成员状态和STA（Station）的关联及漫游轨迹，确保网络的正常运行。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

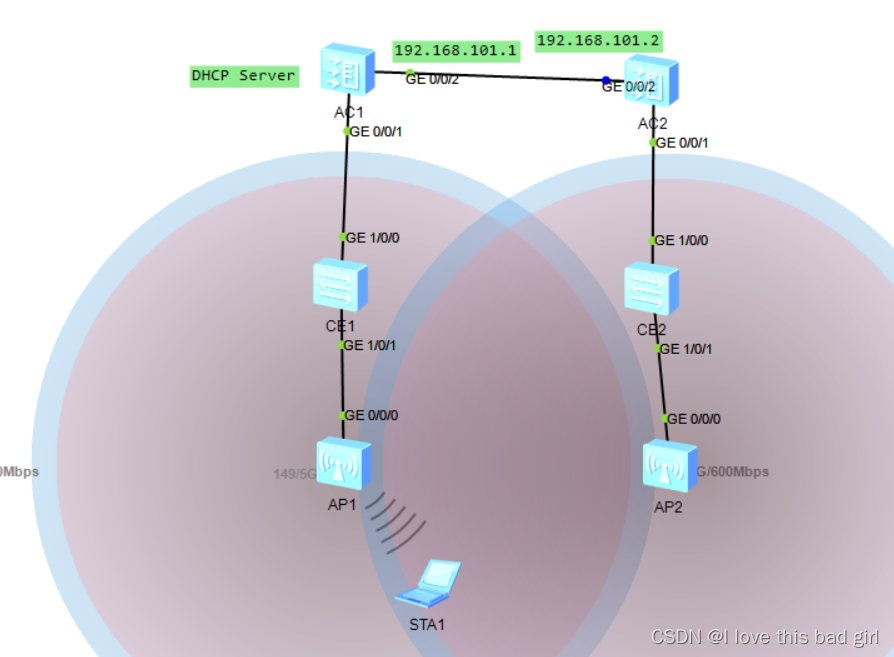

1、拓扑

2、配置

AC1

vlan batch 100 to 101
dhcp enable

interface Vlanif100
 ip address 192.168.100.1 255.255.255.0
 dhcp select interface
 dhcp server excluded-ip-address 192.168.100.2
 dhcp server dns-list 223.5.5.5
#
interface Vlanif101
 ip address 192.168.101.1 255.255.255.0
 dhcp select interface
 dhcp server excluded-ip-address 192.168.101.2
 dhcp server dns-list 223.5.5.5

interface GigabitEthernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan 100
#
interface GigabitEthernet0/0/2
 port link-type trunk
 port trunk allow-pass vlan 100 to 101

capwap source interface vlanif100

wlan

 ap-id 1 type-id 58 ap-mac 00e0-fcc7-2ea0 ap-sn 210235448310E70D5764
 security-profile name secu
  security wpa-wpa2 psk pass-phrase %^%#hN~tWi<D=%K$h_W8`U{0#j!^NvfU.8R*JS,2K%G!

 ssid-profile name ssid
  ssid wlan1

 vap-profile name vap1
  forward-mode tunnel
  service-vlan vlan-id 101
  ssid-profile ssid
  security-profile secu

 ap-group name default
  radio 0
   vap-profile vap1 wlan 1
  radio 1
   vap-profile vap1 wlan 1
  radio 2
   vap-profile vap1 wlan 1

 mobility-group name manyou1
  member ip-address 192.168.100.1
  member ip-address 192.168.100.2


AC2

vlan batch 100 to 101
interface Vlanif100
 ip address 192.168.100.2 255.255.255.0
#
interface Vlanif101
 ip address 192.168.101.2 255.255.255.0

interface GigabitEthernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan 100
#
interface GigabitEthernet0/0/2
 port link-type trunk
 port trunk allow-pass vlan 100 to 101
capwap source interface vlanif100

wlan
 security-profile name secu
  security wpa-wpa2 psk pass-phrase %^%#6Rsr/tqVc*DwY!~FH))%(wT\6k>u$'TG;)&r$JQ2

 ssid-profile name ssid
  ssid wlan1

 vap-profile name vap1
  forward-mode tunnel
  service-vlan vlan-id 101
  ssid-profile ssid
  security-profile secu

 ap-id 1 type-id 58 ap-mac 00e0-fc8c-0fd0 ap-sn 210235448310452ABE3D

 ap-group name default
  radio 0
   vap-profile vap1 wlan 1
  radio 1
   vap-profile vap1 wlan 1
  radio 2
   vap-profile vap1 wlan 1

 mobility-group name manyou1
  member ip-address 192.168.100.1
  member ip-address 192.168.100.2

CE1和CE2配置

interface GE1/0/0
 undo shutdown
 port link-type trunk
 port trunk allow-pass vlan 100
#
interface GE1/0/1
 undo shutdown
 port link-type trunk
 port trunk pvid vlan 100
 port trunk allow-pass vlan 100
 stp edged-port enable

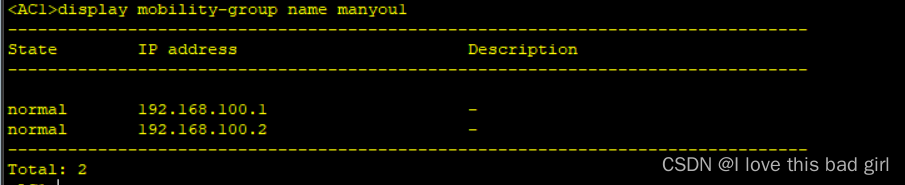

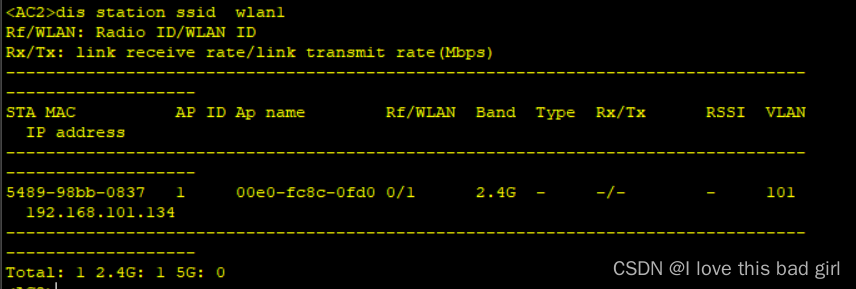

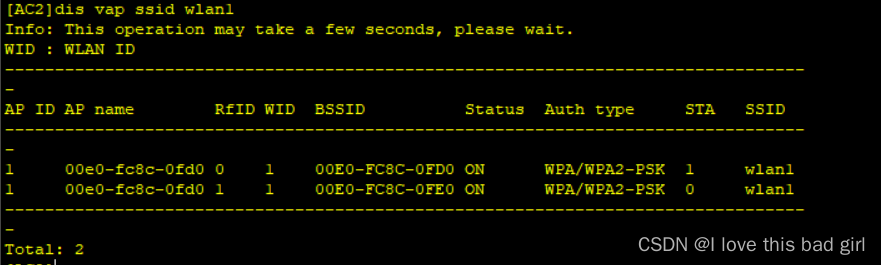

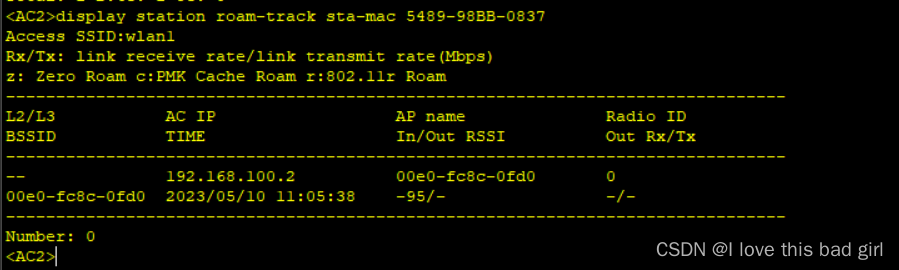

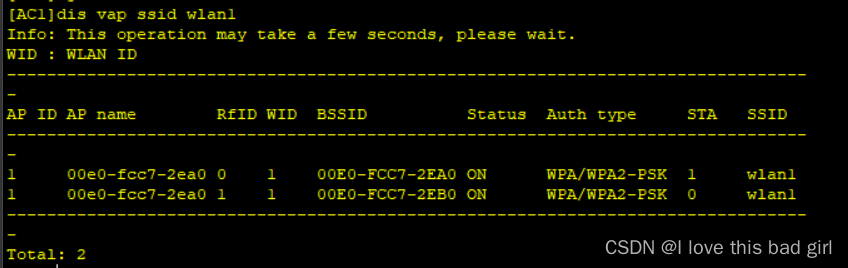

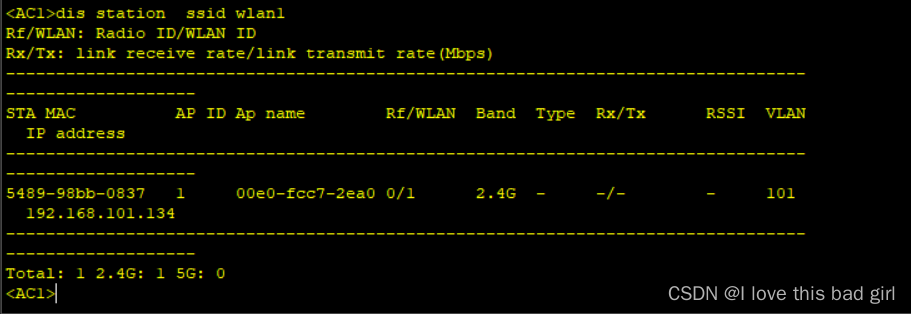

3、查看
