钉钉-飞书-影刀RPA调度配置文档

1.搭建飞书机器人：https://botbuilder.feishu.cn/home

 飞书机器人参数配置：

Webhook 地址（是默认的，要填到钉钉机器人里）
https://www.feishu.cn/flow/api/trigger-webhook/xx

– 钉钉机器人触发

//参数：

{"chatbotCorpId" :"ding8e05045117b97cd7ee0f45d8e4f7c288",
"chatbotUserId":"$:LWCP_v1:$NKgmUQ0y/bZXBwQaYcWrs7L4knVkqT+2" ,
"conversationId":"cidRZc9BoKW6TWO7Hf3Wb80j+gYe+GF5FxNaJ4CzuO+AtT=",
"conversationType":"1" ,
"createAt":1699109450136,
"isAdmin":true,
"msgId":"msg2jtCPjuPTxGeGhIrD08IMQ==",
"msgtype" :"text" ,
"robotCode":"dingdbku2fgvvaynsajq",
"senderCorpId":"ding8e05045117b97cd7ee0f45d8e4f7c288",
"senderTd":"$:LWCP_v1:$/Zcnnv1/A/hmH71hcTbxGA==",
"senderNick":"驿站",
"senderStaffId":"manager5321",
"sessionWebhook":"https://oapi.dingtalk.com/robot/sendBySession?session=64e9b7a60123e083e8bd54a4e12e0a5f",
"sessionWebhookExpiredTime":1699114850340,
"text" : { "content":"你好"}
}

2.发送 HTTP 请求—获取影刀token

请求方式

1.GET

URL

2.https://api.yingdao.com/oapi/token/v2/token/create?accessKeyId=xxx&accessKeySecret=xxx

返回值示例

{
    "data": {
        "accessToken": "",
        "expiresIn": 7199
    },
    "code": 200,
    "success": true,
    "requestId": ""
}

3.发送 HTTP 请求—连接影刀应用

请求方式

POST

URL

https://api.yingdao.com/oapi/dispatch/v2/task/start

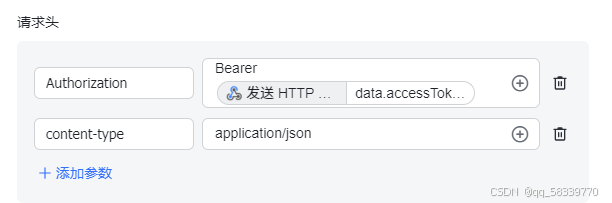

请求头示例

步骤2获取的token

添加请求头：

Bearer后面加一个空格

Authorization	Bearer
content-type	application/json

写入请求体示例

示例1：

{
    "accountName": "影刀账号",
    "scheduleUuid": "影刀应用UUid",
    "scheduleRelaParams": [
        {
            "robotUuid": "应用id",
            "params": [
                {
                    "name": "xxx",
                    "value": "",
                    "type": "str"
                },
                {
                    "name": "消息发送人",
                    "value": "",
                    "type": "str"
                }
            ]
        }
    ]
}

需要进行压缩

JSON在线解析及格式化验证 - JSON.cn

返回值示例

{"data": [{"scheduleUuid": "", "scheduleName": "", "scheduleType": "manual", "cronInterface": {"minimumIntervalSeconds": 60, "type": "manual", "minute": 1, "hour": 1, "dayOfWeeks": [], "month": 1, "time": "", "cronExpress": ""}, "enabled": true, "createTime": "", "updateTime": ""}], "page": {"total": 1, "size": 10, "page": 1, "pages": 1, "offset": 0, "order": "desc"}, "code": 200, "success": true, "msg": ""}

搭建流程

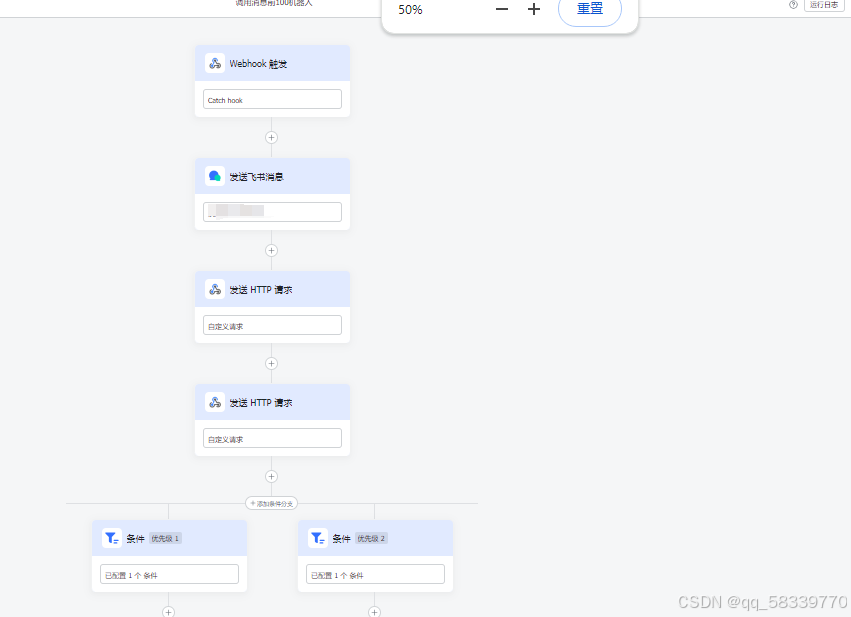

1.飞书机器人搭建流程
