前言

一般常用的是SD卡+FatFS+USB-MSC，或者外部FLASH+FatFs+USB-MSC，但是二者也可以共存。这里的SD卡和EMMC同理。

一、STM32CubeMx配置

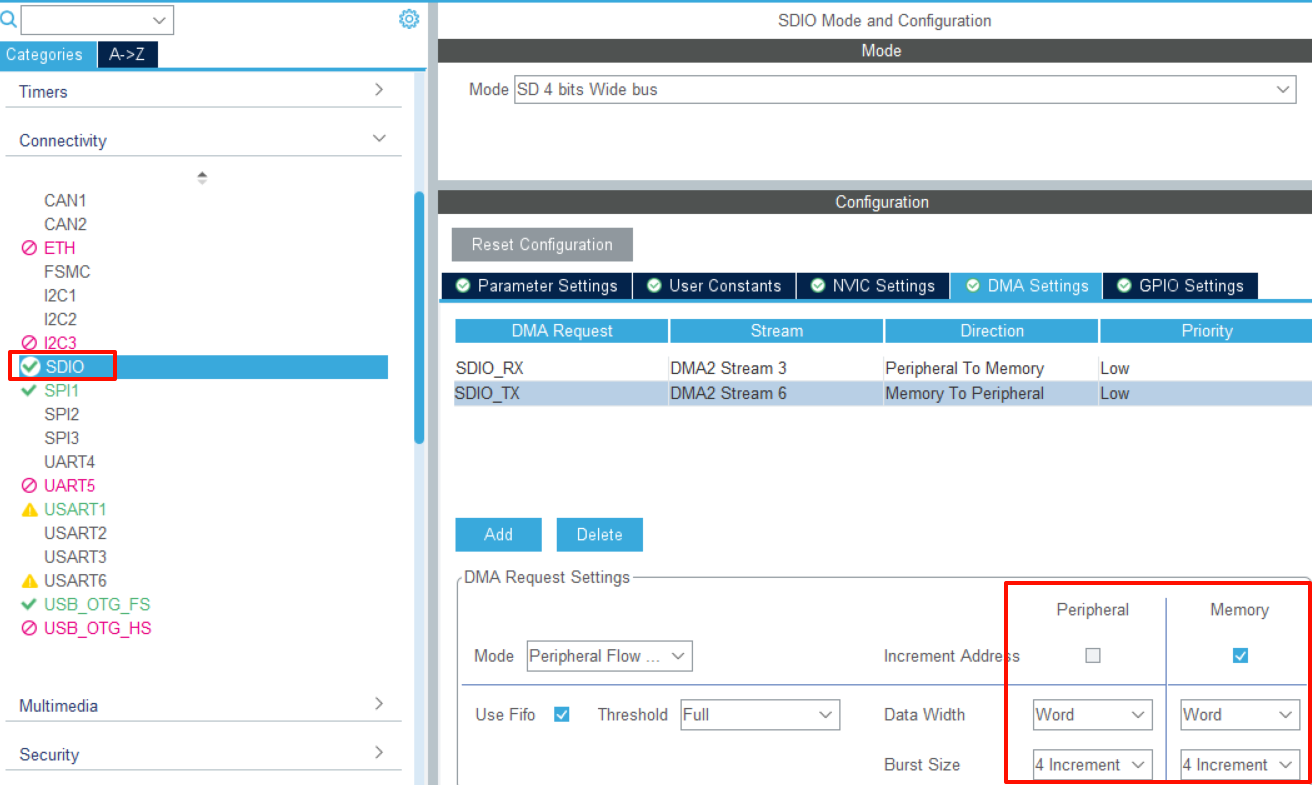

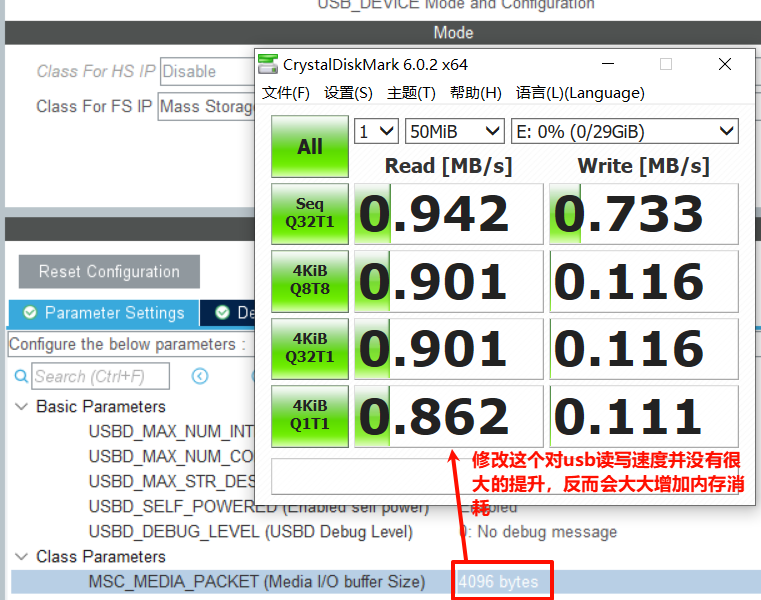

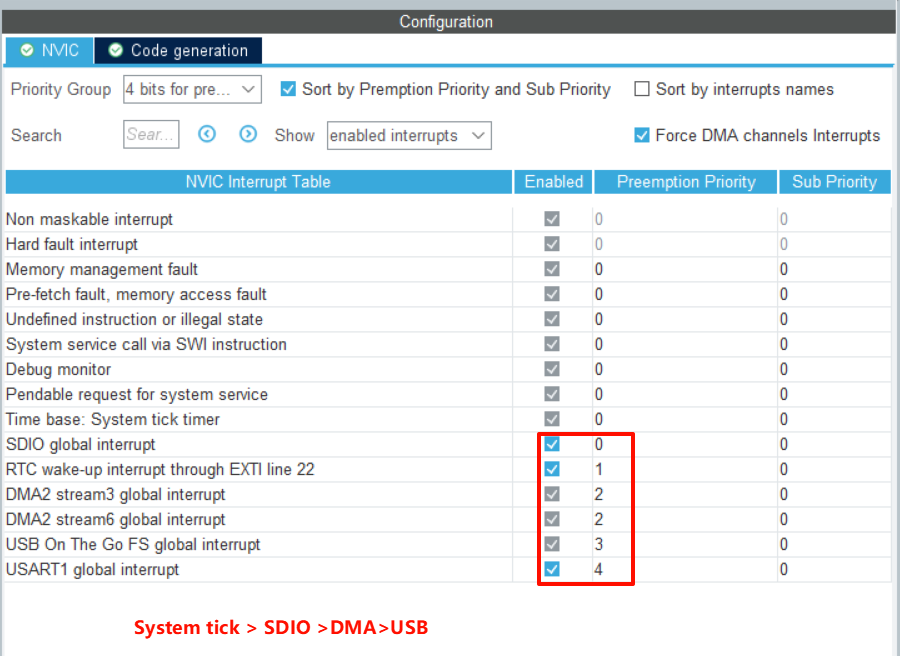

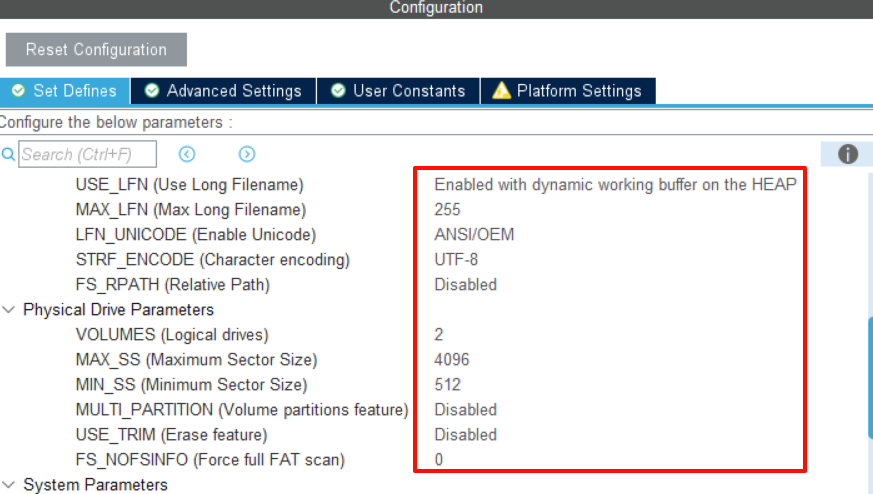

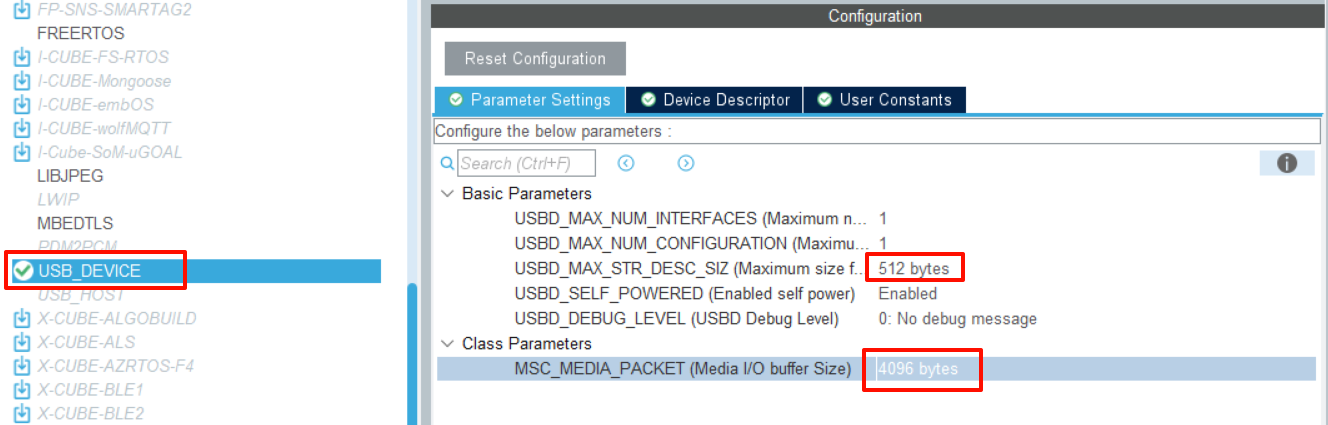

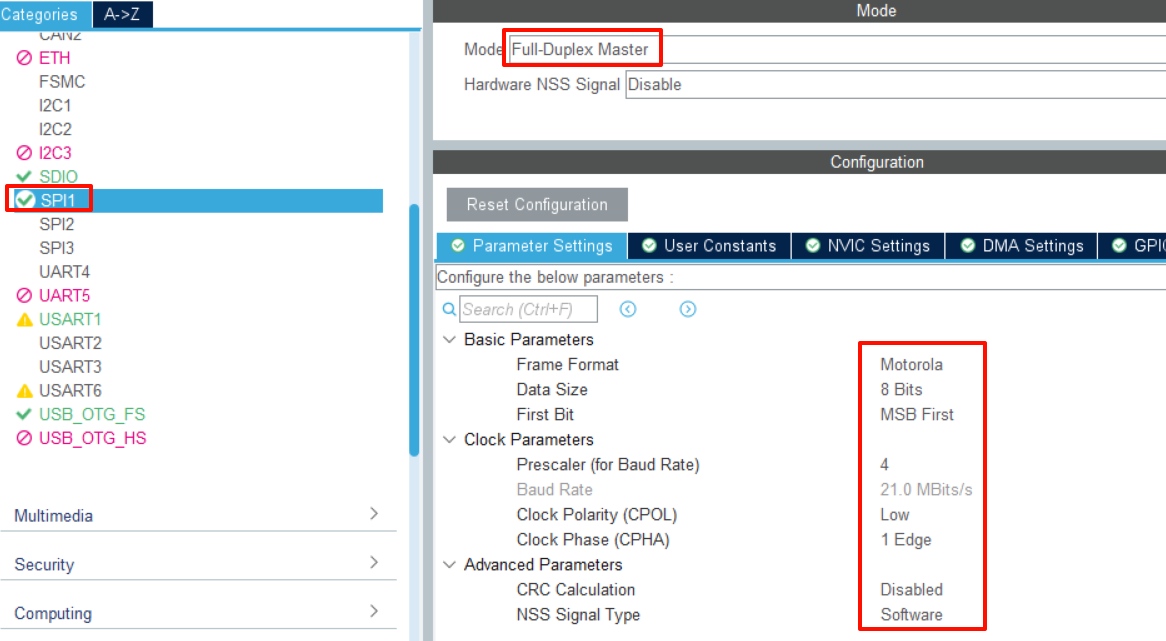

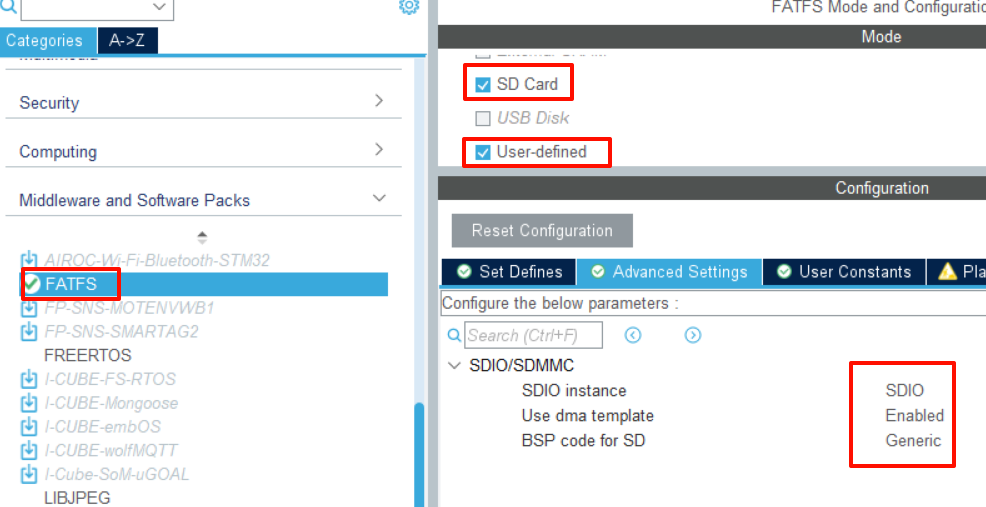

新建工程的部分我就不放出来，放几个关键的配置界面，给大家参考。

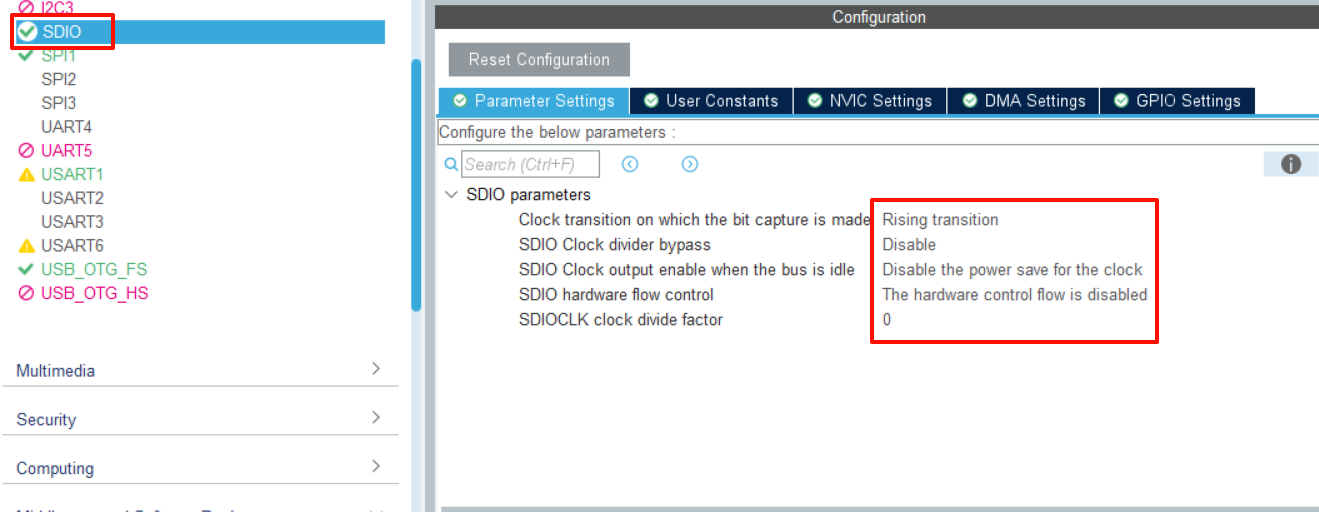

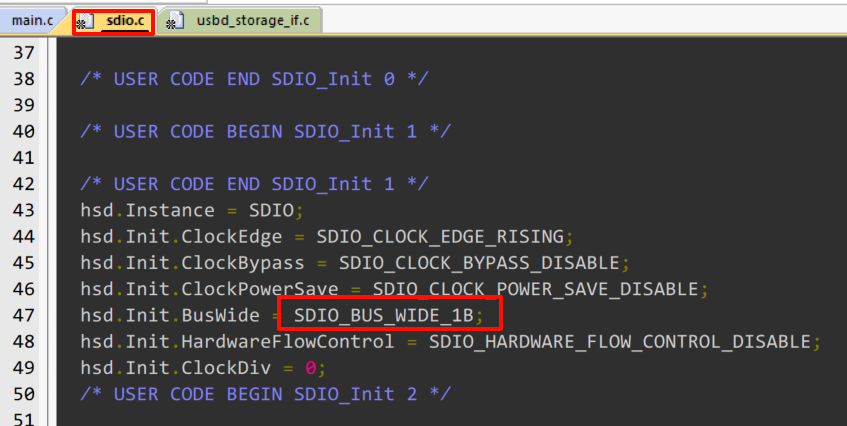

每次重新生成代码，记得把这里改成1b，这是STM32CubeMX的一个Bug。

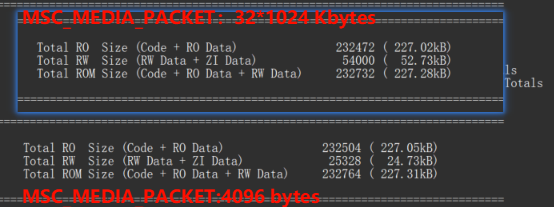

堆栈空间也可以适当给大一点。

二、移植代码

/* USER CODE BEGIN Header */
/**
  ******************************************************************************
  * @file           : main.c
  * @brief          : Main program body
  ******************************************************************************
  * @attention
  *
  * Copyright (c) 2024 STMicroelectronics.
  * All rights reserved.
  *
  * This software is licensed under terms that can be found in the LICENSE file
  * in the root directory of this software component.
  * If no LICENSE file comes with this software, it is provided AS-IS.
  *
  ******************************************************************************
  */
/* USER CODE END Header */
/* Includes ------------------------------------------------------------------*/
#include "main.h"
#include "dma.h"
#include "fatfs.h"
#include "rtc.h"
#include "sdio.h"
#include "spi.h"
#include "usart.h"
#include "usb_device.h"
#include "gpio.h"

/* Private includes ----------------------------------------------------------*/
/* USER CODE BEGIN Includes */
#include "bsp_fatfs.h"
#include "bsp_w25flash.h"
/* USER CODE END Includes */

/* Private typedef -----------------------------------------------------------*/
/* USER CODE BEGIN PTD */

/* USER CODE END PTD */

/* Private define ------------------------------------------------------------*/
/* USER CODE BEGIN PD */

/* USER CODE END PD */

/* Private macro -------------------------------------------------------------*/
/* USER CODE BEGIN PM */

/* USER CODE END PM */

/* Private variables ---------------------------------------------------------*/

/* USER CODE BEGIN PV */

/* USER CODE END PV */

/* Private function prototypes -----------------------------------------------*/
void SystemClock_Config(void);
/* USER CODE BEGIN PFP */

/* USER CODE END PFP */

/* Private user code ---------------------------------------------------------*/
/* USER CODE BEGIN 0 */

/* USER CODE END 0 */

/**
  * @brief  The application entry point.
  * @retval int
  */
int main(void)
{

  /* USER CODE BEGIN 1 */

  /* USER CODE END 1 */

  /* MCU Configuration--------------------------------------------------------*/

  /* Reset of all peripherals, Initializes the Flash interface and the Systick. */
  HAL_Init();

  /* USER CODE BEGIN Init */

  /* USER CODE END Init */

  /* Configure the system clock */
  SystemClock_Config();

  /* USER CODE BEGIN SysInit */

  /* USER CODE END SysInit */

  /* Initialize all configured peripherals */
  MX_GPIO_Init();
  MX_DMA_Init();
  MX_USART1_UART_Init();
  MX_SDIO_SD_Init();
  MX_RTC_Init();
  MX_SPI1_Init();
  MX_USB_DEVICE_Init();
  MX_FATFS_Init();
  /* USER CODE BEGIN 2 */
  uint16_t ID = Flash_ReadID();
  printf("W25Q64 ID:0x%x\r\n",ID);
//    printf("---------------------\r\n");
//    printf(">>Flash_Write\r\n");
//    Flash_TestWrite();
//    printf(">>Flash_Read\r\n");
//    Flash_TestRead();
//    printf(">>Flash_Erase\r\n");
//    Flash_TestErase();
//    printf("---------------------\r\n");

    //挂载文件系统
    SD_Mount_FatFs();
    //获取磁盘信息
    FatFs_GetDiskInfo("0:");

    FatFs_ScanDir("0:/");
    FatFs_WriteTXTFile("test2.txt",2024,12,12);
    FatFs_ReadTXTFile("test2.txt");
    FatFs_GetFileInfo("test2.txt");


    //挂载文件系统
    Flash_Mount_FatFs();
    //获取磁盘信息
    FatFs_GetDiskInfo("1:");

    FatFs_ScanDir("1:/");
    FatFs_WriteTXTFile("1:/flashtest2.txt",2024,12,12);
    FatFs_ReadTXTFile("1:/flashtest2.txt");
    FatFs_GetFileInfo("1:/flashtest2.txt");
  /* USER CODE END 2 */

  /* Infinite loop */
  /* USER CODE BEGIN WHILE */
  while (1)
  {


    /* USER CODE END WHILE */

    /* USER CODE BEGIN 3 */
  }
  /* USER CODE END 3 */
}

/**
  * @brief System Clock Configuration
  * @retval None
  */
void SystemClock_Config(void)
{
  RCC_OscInitTypeDef RCC_OscInitStruct = {0};
  RCC_ClkInitTypeDef RCC_ClkInitStruct = {0};

  /** Configure the main internal regulator output voltage
  */
  __HAL_RCC_PWR_CLK_ENABLE();
  __HAL_PWR_VOLTAGESCALING_CONFIG(PWR_REGULATOR_VOLTAGE_SCALE1);

  /** Initializes the RCC Oscillators according to the specified parameters
  * in the RCC_OscInitTypeDef structure.
  */
  RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSE|RCC_OSCILLATORTYPE_LSE;
  RCC_OscInitStruct.HSEState = RCC_HSE_ON;
  RCC_OscInitStruct.LSEState = RCC_LSE_ON;
  RCC_OscInitStruct.PLL.PLLState = RCC_PLL_ON;
  RCC_OscInitStruct.PLL.PLLSource = RCC_PLLSOURCE_HSE;
  RCC_OscInitStruct.PLL.PLLM = 4;
  RCC_OscInitStruct.PLL.PLLN = 168;
  RCC_OscInitStruct.PLL.PLLP = RCC_PLLP_DIV2;
  RCC_OscInitStruct.PLL.PLLQ = 7;
  if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK)
  {
    Error_Handler();
  }

  /** Initializes the CPU, AHB and APB buses clocks
  */
  RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK
                              |RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2;
  RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_PLLCLK;
  RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;
  RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV4;
  RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV2;

  if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_5) != HAL_OK)
  {
    Error_Handler();
  }
}

/* USER CODE BEGIN 4 */

/* USER CODE END 4 */

/**
  * @brief  This function is executed in case of error occurrence.
  * @retval None
  */
void Error_Handler(void)
{
  /* USER CODE BEGIN Error_Handler_Debug */
  /* User can add his own implementation to report the HAL error return state */
  __disable_irq();
  while (1)
  {
  }
  /* USER CODE END Error_Handler_Debug */
}

#ifdef  USE_FULL_ASSERT
/**
  * @brief  Reports the name of the source file and the source line number
  *         where the assert_param error has occurred.
  * @param  file: pointer to the source file name
  * @param  line: assert_param error line source number
  * @retval None
  */
void assert_failed(uint8_t *file, uint32_t line)
{
  /* USER CODE BEGIN 6 */
  /* User can add his own implementation to report the file name and line number,
     ex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */
  /* USER CODE END 6 */
}
#endif /* USE_FULL_ASSERT */

/* USER CODE BEGIN Header */
/**
 ******************************************************************************
  * @file    user_diskio.c
  * @brief   This file includes a diskio driver skeleton to be completed by the user.
  ******************************************************************************
  * @attention
  *
  * Copyright (c) 2024 STMicroelectronics.
  * All rights reserved.
  *
  * This software is licensed under terms that can be found in the LICENSE file
  * in the root directory of this software component.
  * If no LICENSE file comes with this software, it is provided AS-IS.
  *
  ******************************************************************************
  */
 /* USER CODE END Header */

#ifdef USE_OBSOLETE_USER_CODE_SECTION_0
/*
 * Warning: the user section 0 is no more in use (starting from CubeMx version 4.16.0)
 * To be suppressed in the future.
 * Kept to ensure backward compatibility with previous CubeMx versions when
 * migrating projects.
 * User code previously added there should be copied in the new user sections before
 * the section contents can be deleted.
 */
/* USER CODE BEGIN 0 */
/* USER CODE END 0 */
#endif

/* USER CODE BEGIN DECL */

/* Includes ------------------------------------------------------------------*/
#include <string.h>
#include "ff_gen_drv.h"

/* Private typedef -----------------------------------------------------------*/
/* Private define ------------------------------------------------------------*/

/* Private variables ---------------------------------------------------------*/
/* Disk status */
static volatile DSTATUS Stat = STA_NOINIT;

/* USER CODE END DECL */

/* Private function prototypes -----------------------------------------------*/
DSTATUS USER_initialize (BYTE pdrv);
DSTATUS USER_status (BYTE pdrv);
DRESULT USER_read (BYTE pdrv, BYTE *buff, DWORD sector, UINT count);
#if _USE_WRITE == 1
  DRESULT USER_write (BYTE pdrv, const BYTE *buff, DWORD sector, UINT count);
#endif /* _USE_WRITE == 1 */
#if _USE_IOCTL == 1
  DRESULT USER_ioctl (BYTE pdrv, BYTE cmd, void *buff);
#endif /* _USE_IOCTL == 1 */

Diskio_drvTypeDef  USER_Driver =
{
  USER_initialize,
  USER_status,
  USER_read,
#if  _USE_WRITE
  USER_write,
#endif  /* _USE_WRITE == 1 */
#if  _USE_IOCTL == 1
  USER_ioctl,
#endif /* _USE_IOCTL == 1 */
};

/* Private functions ---------------------------------------------------------*/

/**
  * @brief  Initializes a Drive
  * @param  pdrv: Physical drive number (0..)
  * @retval DSTATUS: Operation status
  */
DSTATUS USER_initialize (
	BYTE pdrv           /* Physical drive nmuber to identify the drive */
)
{
  /* USER CODE BEGIN INIT */
    Stat = STA_NOINIT;
    //获取驱动器状态
    Stat = USER_status(pdrv);
    return Stat;
  /* USER CODE END INIT */
}

/**
  * @brief  Gets Disk Status
  * @param  pdrv: Physical drive number (0..)
  * @retval DSTATUS: Operation status
  */
DSTATUS USER_status (
	BYTE pdrv       /* Physical drive number to identify the drive */
)
{
  /* USER CODE BEGIN STATUS */
    Stat = STA_NOINIT;		  //驱动器未初始化，Stat=0x01
    if(Flash_ReadID() != 0)   //读取Flash芯片的ID,只要不是0就表示Flash已初始化
        Stat &= ~STA_NOINIT;  //Stat=0x00
    return Stat;
  /* USER CODE END STATUS */
}

/**
  * @brief  Reads Sector(s)
  * @param  pdrv: Physical drive number (0..)
  * @param  *buff: Data buffer to store read data
  * @param  sector: Sector address (LBA)
  * @param  count: Number of sectors to read (1..128)
  * @retval DRESULT: Operation result
  */
DRESULT USER_read (
	BYTE pdrv,      /* Physical drive nmuber to identify the drive */
	BYTE *buff,     /* Data buffer to store read data */
	DWORD sector,   /* Sector address in LBA */
	UINT count      /* Number of sectors to read */
)
{
  /* USER CODE BEGIN READ */
	//扇区编号左移12位得绝对起始地址
	uint32_t globalAddr = sector << 12;
	//字节个数，左移12位就是乘4096，每个扇有4096字节
	uint16_t byteCount = count << 12;
	//读取数据
	Flash_ReadBytes(globalAddr, (uint8_t *)buff, byteCount);

	return RES_OK;

  /* USER CODE END READ */
}

/**
  * @brief  Writes Sector(s)
  * @param  pdrv: Physical drive number (0..)
  * @param  *buff: Data to be written
  * @param  sector: Sector address (LBA)
  * @param  count: Number of sectors to write (1..128)
  * @retval DRESULT: Operation result
  */
#if _USE_WRITE == 1
DRESULT USER_write (
	BYTE pdrv,          /* Physical drive nmuber to identify the drive */
	const BYTE *buff,   /* Data to be written */
	DWORD sector,       /* Sector address in LBA */
	UINT count          /* Number of sectors to write */
)
{
  /* USER CODE BEGIN WRITE */
  /* USER CODE HERE */
	//绝对地址
	uint32_t globalAddr = sector<<12;
	//字节个数
	uint16_t byteCount  = count<<12;
	Flash_WriteSector(globalAddr, (uint8_t*)buff, byteCount);

	return RES_OK;

  /* USER CODE END WRITE */
}
#endif /* _USE_WRITE == 1 */

/**
  * @brief  I/O control operation
  * @param  pdrv: Physical drive number (0..)
  * @param  cmd: Control code
  * @param  *buff: Buffer to send/receive control data
  * @retval DRESULT: Operation result
  */
#if _USE_IOCTL == 1
DRESULT USER_ioctl (
	BYTE pdrv,      /* Physical drive nmuber (0..) */
	BYTE cmd,       /* Control code */
	void *buff      /* Buffer to send/receive control data */
)
{
  /* USER CODE BEGIN IOCTL */
    DRESULT res = RES_OK;

	switch(cmd)
	{
		/*以下四个命令都是按照FatFs默认参数配置时必须需要的*/
		//完成挂起的写入过程(在_FS_READONLY == 0时需要)
		case CTRL_SYNC:
			break;

		//获取存储介质容量(在_USE_MKFS == 1时需要)
		case GET_SECTOR_COUNT:
			//W25Q64总的扇区个数,2048
			*(DWORD *)buff = FLASH_SECTOR_COUNT;
			break;

		//获取扇区大小(_MAX_SS != _MIN_SS时需要)
		case GET_SECTOR_SIZE:
			//W25Q64每个扇区的大小，4096字节
			*(DWORD *)buff = FLASH_SECTOR_SIZE;
			break;

		//获取擦除块的大小(_USE_MKFS == 1时需要)
		case GET_BLOCK_SIZE:
			*(DWORD *)buff = 1;
			break;//

		default:
			res = RES_ERROR;
	}
     return res;
  /* USER CODE END IOCTL */
}
#endif /* _USE_IOCTL == 1 */

/* USER CODE BEGIN Header */
/**
  ******************************************************************************
  * @file           : usbd_storage_if.c
  * @version        : v1.0_Cube
  * @brief          : Memory management layer.
  ******************************************************************************
  * @attention
  *
  * Copyright (c) 2024 STMicroelectronics.
  * All rights reserved.
  *
  * This software is licensed under terms that can be found in the LICENSE file
  * in the root directory of this software component.
  * If no LICENSE file comes with this software, it is provided AS-IS.
  *
  ******************************************************************************
  */
/* USER CODE END Header */

/* Includes ------------------------------------------------------------------*/
#include "usbd_storage_if.h"

/* USER CODE BEGIN INCLUDE */
#include "sdio_sdcard.h"
#include "bsp_w25flash.h"
/* USER CODE END INCLUDE */

/* Private typedef -----------------------------------------------------------*/
/* Private define ------------------------------------------------------------*/
/* Private macro -------------------------------------------------------------*/

/* USER CODE BEGIN PV */
/* Private variables ---------------------------------------------------------*/
extern SD_HandleTypeDef hsd;
/* 自己定义的一个标记USB状态的寄存器, 方便判断USB状态
 * bit0 : 表示电脑正在向SD卡写入数据
 * bit1 : 表示电脑正从SD卡读出数据
 * bit2 : SD卡写数据错误标志位
 * bit3 : SD卡读数据错误标志位
 * bit4 : 1,表示电脑有轮询操作(表明连接还保持着)
 */
volatile uint8_t g_usb_state_reg = 0;

/* USER CODE END PV */

/** @addtogroup STM32_USB_OTG_DEVICE_LIBRARY
  * @brief Usb device.
  * @{
  */

/** @defgroup USBD_STORAGE
  * @brief Usb mass storage device module
  * @{
  */

/** @defgroup USBD_STORAGE_Private_TypesDefinitions
  * @brief Private types.
  * @{
  */

/* USER CODE BEGIN PRIVATE_TYPES */

/* USER CODE END PRIVATE_TYPES */

/**
  * @}
  */

/** @defgroup USBD_STORAGE_Private_Defines
  * @brief Private defines.
  * @{
  */

#define STORAGE_LUN_NBR                  1
#define STORAGE_BLK_NBR                  0x10000
#define STORAGE_BLK_SIZ                  0x200

/* USER CODE BEGIN PRIVATE_DEFINES */
#define MY_STORAGE_LUN_NBR      2
/* USER CODE END PRIVATE_DEFINES */

/**
  * @}
  */

/** @defgroup USBD_STORAGE_Private_Macros
  * @brief Private macros.
  * @{
  */

/* USER CODE BEGIN PRIVATE_MACRO */

/* USER CODE END PRIVATE_MACRO */

/**
  * @}
  */

/** @defgroup USBD_STORAGE_Private_Variables
  * @brief Private variables.
  * @{
  */

/* USER CODE BEGIN INQUIRY_DATA_FS */
/** USB Mass storage Standard Inquiry Data. */
const int8_t STORAGE_Inquirydata_FS[] =

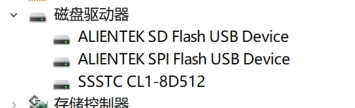

{/* 36 */ //增加多USB支持，添加第二个磁盘的描述

	/* LUN 0 */
	0x00,
	0x80,
	0x02,
	0x02,
	(STANDARD_INQUIRY_DATA_LEN - 5),
	0x00,
	0x00,
	0x00,
	'A', 'L', 'I', 'E', 'N', 'T', 'E', 'K', /* Manufacturer : 8 bytes */
	'S', 'P', 'I', ' ', 'F', 'l', 'a', 's', /* Product      : 16 Bytes */
	'h', ' ', ' ', ' ', ' ', ' ', ' ', ' ',
	'1', '.', '0',' ',                       /* Version      : 4 Bytes */

	/* LUN 1 */
	0x00,
	0x80,
	0x02,
	0x02,
	(STANDARD_INQUIRY_DATA_LEN - 5),
	0x00,
	0x00,
	0x00,
	'A', 'L', 'I', 'E', 'N', 'T', 'E', 'K', /* Manufacturer : 8 bytes */
	'S', 'D', ' ', 'F', 'l', 'a', 's', 'h', /* Product      : 16 Bytes */
	' ', ' ', ' ', ' ', ' ', ' ', ' ', ' ',
	'1', '.', '0',' '                       /* Version      : 4 Bytes */
};
/* USER CODE END INQUIRY_DATA_FS */

/* USER CODE BEGIN PRIVATE_VARIABLES */

/* USER CODE END PRIVATE_VARIABLES */

/**
  * @}
  */

/** @defgroup USBD_STORAGE_Exported_Variables
  * @brief Public variables.
  * @{
  */

extern USBD_HandleTypeDef hUsbDeviceFS;

/* USER CODE BEGIN EXPORTED_VARIABLES */

/* USER CODE END EXPORTED_VARIABLES */

/**
  * @}
  */

/** @defgroup USBD_STORAGE_Private_FunctionPrototypes
  * @brief Private functions declaration.
  * @{
  */

static int8_t STORAGE_Init_FS(uint8_t lun);
static int8_t STORAGE_GetCapacity_FS(uint8_t lun, uint32_t *block_num, uint16_t *block_size);
static int8_t STORAGE_IsReady_FS(uint8_t lun);
static int8_t STORAGE_IsWriteProtected_FS(uint8_t lun);
static int8_t STORAGE_Read_FS(uint8_t lun, uint8_t *buf, uint32_t blk_addr, uint16_t blk_len);
static int8_t STORAGE_Write_FS(uint8_t lun, uint8_t *buf, uint32_t blk_addr, uint16_t blk_len);
static int8_t STORAGE_GetMaxLun_FS(void);

/* USER CODE BEGIN PRIVATE_FUNCTIONS_DECLARATION */

/* USER CODE END PRIVATE_FUNCTIONS_DECLARATION */

/**
  * @}
  */

USBD_StorageTypeDef USBD_Storage_Interface_fops_FS =
{
  STORAGE_Init_FS,
  STORAGE_GetCapacity_FS,
  STORAGE_IsReady_FS,
  STORAGE_IsWriteProtected_FS,
  STORAGE_Read_FS,
  STORAGE_Write_FS,
  STORAGE_GetMaxLun_FS,
  (int8_t *)STORAGE_Inquirydata_FS
};

/* Private functions ---------------------------------------------------------*/
/**
  * @brief  Initializes the storage unit (medium) over USB FS IP
  * @param  lun: Logical unit number.
  * @retval USBD_OK if all operations are OK else USBD_FAIL
  */
int8_t STORAGE_Init_FS(uint8_t lun)
{
  /* USER CODE BEGIN 2 */
  return (USBD_OK);
  /* USER CODE END 2 */
}

/**
  * @brief  Returns the medium capacity.
  * @param  lun: Logical unit number.
  * @param  block_num: Number of total block number.
  * @param  block_size: Block size.
  * @retval USBD_OK if all operations are OK else USBD_FAIL
  */
int8_t STORAGE_GetCapacity_FS(uint8_t lun, uint32_t *block_num, uint16_t *block_size)
{
  /* USER CODE BEGIN 3 */
    HAL_SD_CardInfoTypeDef  g_sd_card_info_handle;
    switch (lun)
    {
        case 0: /* SPI FLASH */
            *block_size = 4096;
            *block_num = 2048;
            break;

        case 1: /* SD卡 */
            HAL_SD_GetCardInfo(&hsd, &g_sd_card_info_handle);
            *block_num = g_sd_card_info_handle.LogBlockNbr - 1;
            *block_size = g_sd_card_info_handle.LogBlockSize;
            break;
    }

  return (USBD_OK);
  /* USER CODE END 3 */
}

/**
  * @brief   Checks whether the medium is ready.
  * @param  lun:  Logical unit number.
  * @retval USBD_OK if all operations are OK else USBD_FAIL
  */
int8_t STORAGE_IsReady_FS(uint8_t lun)
{
  /* USER CODE BEGIN 4 */
    g_usb_state_reg |= 0X10;    /* 标记轮询 */
  return (USBD_OK);
  /* USER CODE END 4 */
}

/**
  * @brief  Checks whether the medium is write protected.
  * @param  lun: Logical unit number.
  * @retval USBD_OK if all operations are OK else USBD_FAIL
  */
int8_t STORAGE_IsWriteProtected_FS(uint8_t lun)
{
  /* USER CODE BEGIN 5 */
  return (USBD_OK);
  /* USER CODE END 5 */
}

/**
  * @brief  Reads data from the medium.
  * @param  lun: Logical unit number.
  * @param  buf: data buffer.
  * @param  blk_addr: Logical block address.
  * @param  blk_len: Blocks number.
  * @retval USBD_OK if all operations are OK else USBD_FAIL
  */
int8_t STORAGE_Read_FS(uint8_t lun, uint8_t *buf, uint32_t blk_addr, uint16_t blk_len)
{
  /* USER CODE BEGIN 6 */
    int8_t res = 0;
    g_usb_state_reg |= 0X02;    /* 标记正在读数据 */

    switch (lun)
    {
        case 0: /* SPI FLASH */
            Flash_ReadBytes(blk_addr * 4096,buf,blk_len * 4096);
            break;

        case 1: /* SD卡 */
            res = sd_read_disk(buf, blk_addr, blk_len);
            break;
    }

    if (res)
    {
        printf("rerr:%d,%d", lun, res);
        g_usb_state_reg |= 0X08;    /* 读错误! */
    }

    return res;
  /* USER CODE END 6 */
}

/**
  * @brief  Writes data into the medium.
  * @param  lun: Logical unit number.
  * @param  buf: data buffer.
  * @param  blk_addr: Logical block address.
  * @param  blk_len: Blocks number.
  * @retval USBD_OK if all operations are OK else USBD_FAIL
  */
int8_t STORAGE_Write_FS(uint8_t lun, uint8_t *buf, uint32_t blk_addr, uint16_t blk_len)
{
  /* USER CODE BEGIN 7 */
    int8_t res = 0;
    g_usb_state_reg |= 0X01;    /* 标记正在写数据 */

    switch (lun)
    {
        case 0: /* SPI FLASH */
            Flash_WriteSector(blk_addr * 4096,buf,blk_len * 4096);
            break;

        case 1: /* SD卡 */
            res = sd_write_disk(buf, blk_addr, blk_len);
            break;
    }

    if (res)
    {
        g_usb_state_reg |= 0X04;    /* 写错误! */
        printf("werr:%d,%d", lun, res);
    }

    return res;
  /* USER CODE END 7 */
}

/**
  * @brief  Returns the Max Supported LUNs.
  * @param  None
  * @retval Lun(s) number.
  */
int8_t STORAGE_GetMaxLun_FS(void)
{
  /* USER CODE BEGIN 8 */
    HAL_SD_CardInfoTypeDef sd_card_info;
    HAL_SD_GetCardInfo(&hsd, &sd_card_info);

    /* STORAGE_LUN_NBR 在usbd_conf.h里面定义, 默认是2 */
    if (sd_card_info.LogBlockNbr)    /* 如果SD卡正常, 则支持2个磁盘 */
    {
        return MY_STORAGE_LUN_NBR - 1;
    }
    else    /* SD卡不正常, 则只支持1个磁盘 */
    {
        return MY_STORAGE_LUN_NBR - 2;
    }
  /* USER CODE END 8 */
}

/* USER CODE BEGIN PRIVATE_FUNCTIONS_IMPLEMENTATION */

/* USER CODE END PRIVATE_FUNCTIONS_IMPLEMENTATION */

/**
  * @}
  */

/**
  * @}
  */
