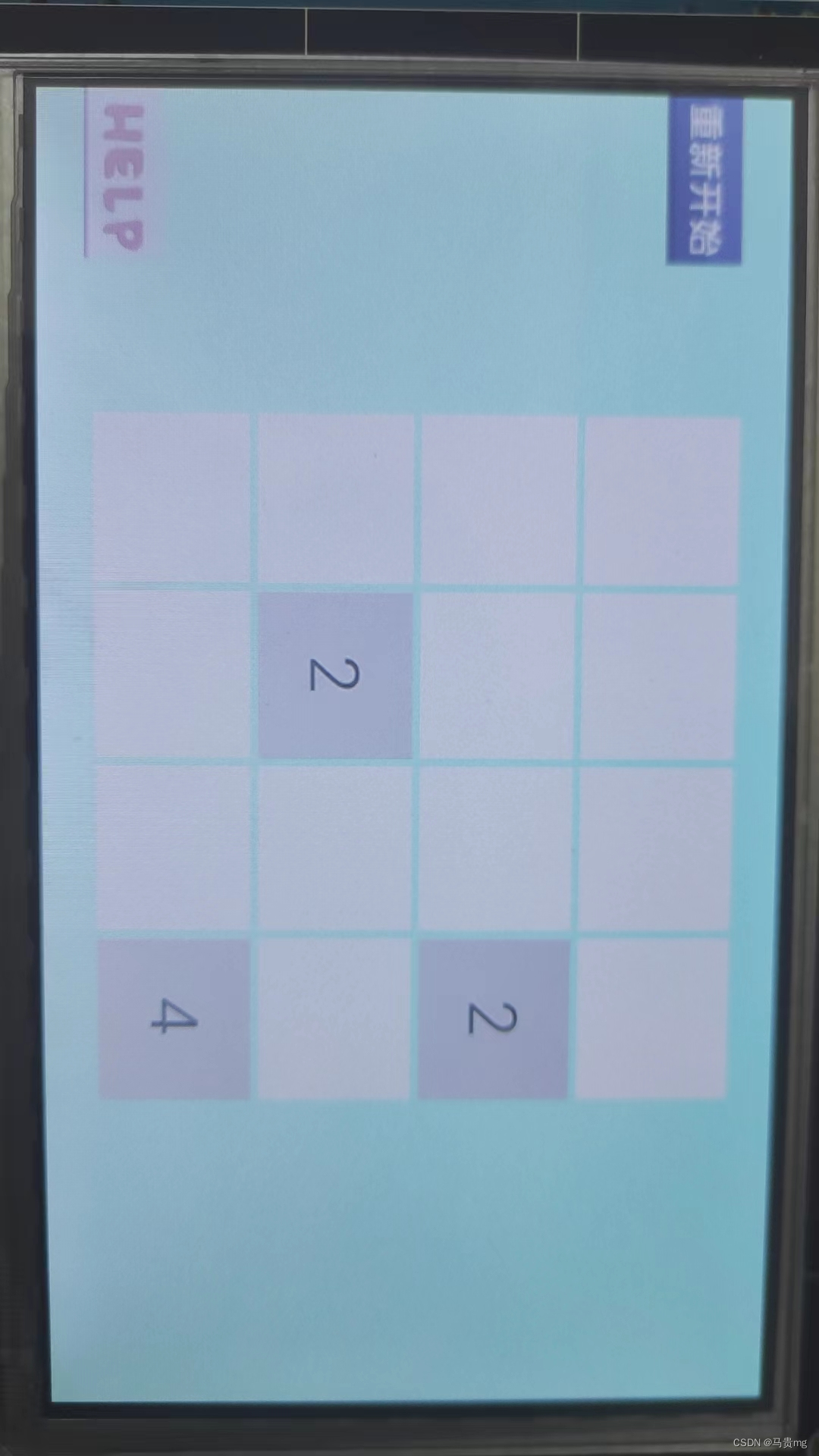

2048游戏 在开发板上实现 - linux arm

已于 2023-06-14 11:01:22 修改
阅读量1.8k 收藏 29
点赞数 3
文章标签： linux 嵌入式硬件 游戏
于 2023-06-14 09:13:37 首次发布
版权声明：本文为博主原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
本文链接：https://blog.csdn.net/qq_64262048/article/details/131151522
版权





代码如下：

#include <sys/types.h>
#include <sys/stat.h>
#include <fcntl.h>
#include <unistd.h>
#include <stdio.h>
#include <sys/mman.h>
#include <stdlib.h>
#include <linux/input.h>
#include <time.h>
#include <math.h>


#define LCD_WIDTH 800    //屏幕宽度
#define LCD_HEIGHT 480   //屏幕高度
#define ITEM_NUM  4   // 创建4行4列的矩阵
#define ITEM_WIDTH  100     //  图片宽100
#define ITEM_HEIGHT 100   //    图片高100
#define BLANK_SIZE   5
//宏
#define MATRIX_X0   (LCD_WIDTH - (ITEM_WIDTH + BLANK_SIZE)*ITEM_NUM)/2
#define MATRIX_Y0   (LCD_HEIGHT - (ITEM_HEIGHT + BLANK_SIZE)*ITEM_NUM)/2

void bmp_display(int x0, int y0,const char *bmp_file);
int *plcd = NULL;
int matrix_2048_bak[4][4];

int matrix_2048[4][4] = {
                   0, 0 , 0, 0,

                   0, 0, 0, 0,

                   0, 0, 0, 0,

                   0, 0, 0, 0
};

void print_matrix_2048()
{
int i,j;
	for (i = 0; i < 4; i++){
		for (j = 0; j < 4 ; j++){
            printf("%d  " ,matrix_2048[i][j]);
        }
        printf("\n");
    }
}

int is_change(){
    int i, j ;
    for (i = 0; i < 4; i++){
        for (j = 0; j < 4; j++){
            if (matrix_2048[i][j] != matrix_2048_bak[i][j]){
                return 1;
            }
        }
	}
	return 0;
}

void LCD_Draw_Point(int x, int y, int color){
    if (x >= 0 &&  x < 800 &&  y >= 0 && y < 480){
        *(plcd + 800*y + x) = color;
    }
}

//LCD_Draw_JuXing: 在屏幕点(x0,y0)处画一个长为w,高为h的矩形
void LCD_Draw_JuXing(int x0, int y0, int w, int h ,int color)
{
    //假设矩形内任意点的坐标为(x,y)
    int x, y;
    for (y = y0; y < y0 + h; y++){
        for (x = x0; x < x0 + w; x++){
            LCD_Draw_Point(x, y, color);
        }
    }
}

//产生2 4 8
void LCD_Draw_Matrix()
{
    int i, j;
    int x0, y0; //每个棋子矩形左上顶点的坐标
    for (i = 0; i < ITEM_NUM; i++){
        for (j = 0; j < ITEM_NUM ; j++){
            y0 = MATRIX_Y0 + (ITEM_HEIGHT + BLANK_SIZE)*i;
			x0 = MATRIX_X0 + (ITEM_WIDTH + BLANK_SIZE)*j;
            if (matrix_2048[i][j] == 0){
                LCD_Draw_JuXing(x0, y0, ITEM_WIDTH, ITEM_HEIGHT,0x00FFFFFF);
			}
			else{
                char filename[32];
                sprintf(filename, "m%d.bmp", matrix_2048[i][j]);
                bmp_display(x0,  y0, filename);
                }
		}
    }
}

//放图片
void bmp_display(int x0, int y0,const char *bmp_file)
{
     int fd;
    unsigned char buf[4];
    int ret;
    fd = open(bmp_file, O_RDONLY);
    if (fd == -1){
        printf("failed to open %s\n", bmp_file);
        return ;
    }
    lseek(fd, 0 ,SEEK_SET);
    read(fd, buf, 2);
	if (buf[0] == 0x42 && buf[1] == 0x4d ){
        printf("BMP file\n");
     }
    else{
        printf("Not BMP file, GOOD BYE\n");
        close(fd);
        return ;
    }
    int width,height;
    int depth;
    lseek(fd, 0x12, SEEK_SET);
    read(fd, buf, 4);
    width =  (buf[0]) | (buf[1] << 8) | (buf[2] << 16) | (buf[3] << 24);
    lseek(fd, 0x16, SEEK_SET);
    read(fd, buf, 4);
    height =  (buf[0]) |         (buf[1] << 8) | (buf[2] << 16) | (buf[3] << 24);
    printf("%d X %d\n", width, height);
    lseek(fd, 0x1c, SEEK_SET);
	read(fd, buf, 2);
    depth = (buf[0]) | (buf[1] << 8);
    if (depth != 24 && depth != 32){
        printf("Not Support\n");
        close(fd);
        return ;
    }
    int bytes_per_line = abs(width) * (depth / 8);
    int laizi = 0;
    if (bytes_per_line % 4 != 0){
    	laizi = 4 - bytes_per_line % 4;
    }
    int bytes_line = bytes_per_line + laizi;
    int size = bytes_line * abs(height);
    unsigned char *p =           malloc(size);
         lseek(fd, 54, SEEK_SET);
         read(fd, p, size);
         unsigned char b ,g, r ,a;
         int color;
         int i = 0;
         int x;
         int y;
         for (y = 0; y < abs(height); y++)
         {
             for (x = 0 ;x  < abs(width); x++ ){
                b = p[i++];
                g = p[i++];
                r = p[i++];
                if (depth == 32){
                    a = p[i++];
                }
                else{
         			 a = 0;
                }
                    color = (a << 24) | (r << 16) | (g << 8) | (b);
                    LCD_Draw_Point( width > 0 ? x0 + x : x0 + abs(width) - 1 -x,
                    height > 0 ? y0 + height - 1 - y : y0 + y,
                    color);
                   }
                   i = i + laizi;
         }
         free(p);
         close(fd);
}

int get_zero_num()
{
    int n = 0;
    int i, j;
    for (i = 0; i < ITEM_NUM ;i++){
        for (j = 0; j < ITEM_NUM; j++){
            if (matrix_2048[i][j] == 0){
                n++;
            }
        }
    }
     return n;
}

//随机生成数字
void fill_random(void)
{
         int zero_num = get_zero_num(); //获取数组中值为0的个数
         int pos; //随机的位置的编号，应该要在[0, zero_num)
         pos = random() % zero_num ; // => pos =>[0,zero_num)
         int i,j;
         int n = 0; //第几个0
         for (i = 0; i < ITEM_NUM; i++){
            for (j = 0; j < ITEM_NUM; j++){
                if (matrix_2048[i][j] == 0){
                    if (n == pos){
                        matrix_2048[i][j] = 2;//a[index];
                        return ;
                    }
                     n++;

                 }

             }
        }
}

//清零
void get_zero(){
	for (int i = 0; i < ITEM_NUM ; i++)
	{
		for (int j = 0; j < ITEM_NUM; j++)
		{
			matrix_2048[i][j] = 0;
		}
	}
}

/*
void brush_lcd(int color)
{
	int i,j;
	for(i = 0; i < 100; i++)
	{
		for(j = 0; j < 100; j++)
		{
			LCD_Draw_Point(j, i, color);
		}
	}
}
*/

#define MOVE_UP 1
#define MOVE_DOWN 2
#define MOVE_LEFT 3
#define MOVE_RIGHT 4
//#define SHUA_XIN 5

//屏幕滑动
int get_finger_movemenet(void)
{
    int fd = open("/dev/input/event0", O_RDONLY);
	int res;
	if (fd == -1) {
	printf("open /dev/event0 failed\n");
	return -1;
	}
	int flag;
	int x1 = -1, y1 = -1; // 接触时候的坐标点
	int x2, y2; // 离开后的坐标点
	struct input_event ev;
	while( 1 ){
	res = read( fd , &ev, sizeof(ev) );
	if( res != sizeof(ev) ) continue;
	if( ev.type == EV_ABS && ev.code == ABS_X ) {
	if( x1 == -1 ) x1 = ev.value;
	    x2 = ev.value;
	}
	if (ev.type == EV_ABS && ev.code == ABS_Y) {
        if (y1 == -1) y1 = ev.value;
        y2 = ev.value;
	}
    //实现重新开始游戏
    if(x2>=0&&y2>=0&&x2<=120*800/1024&&y2<=200*479/599){
        for(int i=0;i<4;i++){
            for(int j=0;j<4;j++){
                matrix_2048[i][j]=0;
            }
        }
        fill_random();
        fill_random();
        LCD_Draw_Matrix();
    }

    //if(x2>=0&&y2>=500*479/599&&x2<=120*800/1024&&y2<=480*479/599){
        //show_bmp("jieshao.bmp",0,0);
        //sleep(3);
        //bangzhu(0,0,"jieshao.bmp");
    //}

	if( (ev.type == EV_ABS && ev.code == ABS_PRESSURE && ev.value == 0 ) || ( ev.type == EV_KEY && ev.code == BTN_TOUCH && ev.value == 0 ) ) {
        printf("x2 = %d\ty2 = %d\n",x2,y2);
        printf("flag = %d\n",flag);
        printf("\n\n\n\n");
        if( flag ) return 0;
        printf("x1 = %d\ty1 = %d\nx2 = %d\ty2 = %d\n",x1,y1,x2,y2);
        int opposite_x = abs(x2-x1); // 左右
        int opposite_y = abs(y2-y1); // 上下
        printf("opposite_x = %d\topposite_y = %d\n",opposite_x,opposite_y);
	    if( x2 >= 830 && y2 < 80 && opposite_x <= 40 && opposite_y <= 32 ) {
		    flag = 1;
		    return 0;
	    }
	if( opposite_x <= 40 && opposite_y <= 32 ) {
	    x1 = -1;
	    y1 = -1;
	    continue;
	}
    // if( x2 <= 100 && y2 <=100 ) {
	// 	return SHUA_XIN;
	// }
	if( opposite_x > 2 * opposite_y ){ // 左右移动
        if( x2 > x1 ){ // 方块向右边移动
            close(fd);
            return MOVE_RIGHT;
        }
        else{ // 方块向左边移动
            close(fd);
            return MOVE_LEFT;
        }
	}
	else if( opposite_x < 2* opposite_y ){ // 上下移动
        if( y2 > y1 ){ // 方块向下移动
            close(fd);
            return MOVE_DOWN;
        }
        else{ // 方块向上移动
            close(fd);
            return MOVE_UP;
	    }
	}
	else x1 = -1, y1 = -1;
	    }
	}
	close(fd);
}


//实现上下左右
void move_left(void)
{
    int i, j;
    int x, y;
    for (i = 0; i < ITEM_NUM; i++) {
        for (x = 0; x < ITEM_NUM; ){
            if (matrix_2048[i][x] != 0){
                for (y = x + 1; y < ITEM_NUM; y++){
                    if (matrix_2048[i][y] != 0){
                        if (matrix_2048[i][x] == matrix_2048[i][y]){
                             matrix_2048[i][x] += matrix_2048[i][y];
                             matrix_2048[i][y] = 0;
                            x = y + 1;
                            break;
                        }
                        else{
                             x = y;
						 }
                    }
                }
                if (y >= ITEM_NUM){
                    break;
                }
            }
			else{
                 x++;
			 }
        }
        x = 0;
	    for (y = 0 ; y < ITEM_NUM; y++){
            if (matrix_2048[i][y] != 0){
                if (x != y){
                    matrix_2048[i][x] = matrix_2048[i][y];
                     matrix_2048[i][y] = 0;
                 }
            x++;
            }
        }
    }
}

void move_right(void)
{
         int i, j;
         int x, y;
         for (i = 0; i < ITEM_NUM; i++){
            for (x = ITEM_NUM; x >0; ){
                    if (matrix_2048[i][x] != 0) {
                                for (y = x-1; y>=0; y--){
                                        if (matrix_2048[i][y] != 0){
                                                    if (matrix_2048[i][x] == matrix_2048[i][y]){
                                                         matrix_2048[i][x] += matrix_2048[i][y];
                                                         matrix_2048[i][y] = 0;
                                                         x = y - 1;
                                                         break;
                                                    }
                                                    else{
                                                         x = y;
                                                    }
                                        }
                                }
                                     if (y<0){
                                               break;
                                     }
                    }
                            else{
                                     x--;
                            }
                   }
                   x = ITEM_NUM-1;
                   for (y = ITEM_NUM-1 ; y >= 0; y--){
                            if (matrix_2048[i][y] != 0){
                                if (x != y){
                                    matrix_2048[i][x] = matrix_2048[i][y];
                                     matrix_2048[i][y] = 0;
                                     }
                                     x--;
                            }
                   }
         }
}

void move_down(void)
{
         int i, j;
         int x, y;
         for (i = 0; i < ITEM_NUM; i++){
            for (x = 0; x < ITEM_NUM; ){
                if (matrix_2048[x][i] != 0){
                    for (y = x + 1; y < ITEM_NUM; y++){
                        if (matrix_2048[y][i] != 0){
                            if (matrix_2048[x][i] == matrix_2048[y][i]){
                                     matrix_2048[x][i] += matrix_2048[y][i];
                                     matrix_2048[y][i] = 0;
                                     x = y + 1;
                                      break;
                             }
                             else{
                                 x = y;
                             }
                        }
                    }

                     if (y >= ITEM_NUM){
                        break;

                     }
                }
                else{
                     x++;
                 }

             }
             x = 0;
             for (y = 0; y < ITEM_NUM; y++){
                if (matrix_2048[y][i] != 0){
                    if (x != y){
                        matrix_2048[x][i] = matrix_2048[y][i];
                         matrix_2048[y][i] = 0;
                     }
                     x++;
                 }
            }
         }
}

void move_up(void)
{
         int i, j;
         int x, y;
         for (i = 0; i < ITEM_NUM; i++)
         {
                for (x = ITEM_NUM; x >=0; ) {
                    if (matrix_2048[x][i] != 0){
                            for (y = x - 1; y >= 0; y--){
                                if (matrix_2048[y][i] != 0){
                                    if (matrix_2048[x][i] == matrix_2048[y][i]){
                                        matrix_2048[x][i] += matrix_2048[y][i];
                                        matrix_2048[y][i] = 0;
                                        x = y -1;
                                         break;
                                    }
                                    else {
                                        x = y;
                                    }
                                }
                            }
                            if (y<0){
                                break;
                            }
                    }
                    else{
                      x--;
                     }
                }
                x = ITEM_NUM-1;
                for (y = ITEM_NUM-1 ; y >= 0; y--){
                    if (matrix_2048[y][i] != 0) {
                        if (x != y){
                             matrix_2048[x][i] = matrix_2048[y][i];
                             matrix_2048[y][i] = 0;
                         }
                        x--;
                    }
                }
         }
}

//重新游戏
//void shuaxin(){
    //get_zero();
//}

//游戏结束
int is_gameover(void)
{
    int x,y;
    for(y=0;y<ITEM_NUM;y++){
        for(x=0;x<ITEM_NUM;x++){
            if(matrix_2048[x][y]==0){
                return 0;
			}
			if(x<ITEM_NUM-1 && matrix_2048[x][y]==matrix_2048[x+1][y]){
				return 0;
			}
			if(y<ITEM_NUM-1 && matrix_2048[x][y]==matrix_2048[x][y+1]){
			    return 0;
			}
    	}
    }
 	return 1;
}

//根据手指滑动方向变换矩阵
void change_matrix(int mv)
{
    if (mv == MOVE_LEFT){
        move_left();
    }
    else if (mv == MOVE_RIGHT){
         move_right();
     }
    else if (mv == MOVE_UP){
         move_down();
    }
    else if (mv == MOVE_DOWN){
        move_up();
    }
    //else if (mv == SHUA_XIN){
     //   shuaxin();
    //}
}

int * p = NULL ;
void draw_point(int x,int y,int color)
{
	if(x>=0 && x<800 && y>=0 && y<480 )
	{
		*(p+800*y+x) = color ;
	}
}
/*
函数功能：在屏幕的任意一个位置  显示任意一张  任意大小的bmp图片
函数参数：
		@pathname : 要显示的图片 的路径名
		@x ： 在屏幕X轴值为x的地方开始显示
		@y ：  在屏幕Y轴值为y的地方开始显示
*/
void show_bmp (char * pathname ,int x ,int y)
{
	int fd = open(pathname,O_RDONLY);
	if(fd == -1)
	{
		perror("open error\n");
		return ;
	}
	int fd1 = open("/dev/fb0",O_RDWR);
	if(fd1 == -1)
	{
		perror("open error\n");
		return ;
	}
	printf("open success\n");

	p = mmap(NULL,800*480*4,PROT_READ | PROT_WRITE,MAP_SHARED ,fd1,0);
	if(p == NULL )
	{
		perror("mmap error\n");
		return ;
	}
	int width,height;
	short depth;
	unsigned char buf[4] ;
	//读取宽度
	lseek(fd,0x12,SEEK_SET);
	read(fd,buf,4);
	width = buf[3]<<24 | buf[2]<< 16 | buf[1] << 8 | buf[0];
	//读取高度
	read(fd,buf,4);
	height  = buf[3]<<24 | buf[2]<< 16 | buf[1] << 8 | buf[0];
	//读取色深
	lseek(fd,0x1c,SEEK_SET);
	read(fd,buf,2);
	depth = buf[1] << 8  | buf[0];
	//打印信息
	printf("width = %d  height = %d  depth = %d \n",width,height,depth);
	//像素数组
	int line_valid_bytes = abs(width) * depth / 8 ; //一行本有的有效字节
	int laizi=0;//填充字节
	if( (line_valid_bytes % 4) !=0   )
	{
		laizi =  4 - line_valid_bytes%4;
	}
	int line_bytes = line_valid_bytes  +  laizi ;//一行所有的字节数
	int total_bytes = line_bytes * abs(height) ; //整个像素数组的大小
	unsigned char * p1  = malloc(total_bytes);
	lseek(fd,54,SEEK_SET);
	read(fd,p1,total_bytes);
	//调用draw_point 函数 。
	unsigned char a ,r ,g, b ;
	int i = 0;//用来做指针运动的
	int x0=0,y0=0; //用来循环计数
	int color ;
	for(y0=0;y0<abs(height);y0++)//画满每一列
	{
		for(x0=0;x0<abs(width);x0++)//画满每一行
		{
			//现在开始一个字节一个字节写入颜色
			// i++  先用后加
			// ++i  先加后用
			b = p1[i++];
			g = p1[i++];
			r = p1[i++];
			if(depth == 32){
				a=p1[i++];
			}
			if(depth == 24){
				a = 0;
			}
			color = a << 24 | r << 16 | g << 8 | b ;
			draw_point(width>0?x+x0:abs(width)+x-1-x0,
					height>0? y+height-1-y0 : y+y0,color);
		}
		i = i +laizi ;//每一行后面的癞子数 跳过去。
	}
	free(p1);
	close(fd1);
	munmap(p,800*480*4);
	close(fd);
}

//开始
int start(int x0, int y0,const char *bmp_file)
{
	show_bmp("start.bmp",0,0);
	int fd4 = open ("/dev/input/event0",O_RDWR);
	if(fd4 == -1 ){
		perror("open error\n");
		return -1;
	}
	struct input_event ev4;
	int x4,y4;
	int x_start,y_start,x_stop,y_stop;
	while(1){
		int r4 =read(fd4,&ev4,sizeof(ev4));
		if(r4 != sizeof(ev4)){
			perror("read ev error\n");
			return -1;
		}
		if(ev4.type == EV_ABS && ev4.code ==ABS_X){
			x4 = ev4.value ;
		}
		if(ev4.type == EV_ABS && ev4.code ==ABS_Y){
			y4 = ev4.value ;
		}
		if( ev4.type == EV_KEY  && ev4.code == BTN_TOUCH && ev4.value != 0){
			printf("down(%d,%d)",x4,y4);
			x_start = x4;
			y_start = y4 ;
		}
		if( ev4.type == EV_KEY  && ev4.code == BTN_TOUCH && ev4.value == 0){
			printf("up(%d,%d)",x4,y4);
			x_stop = x4;
			y_stop = y4;
			break;
		}
	}
	if(    abs(x_start - x_stop) -  abs(y_start - y_stop)  > 0  && abs(x_start - x_stop) > 30   ){
		if(x_stop - x_start  > 0 ){
			return 4 ;
		}
		else
			return 3;
	}
}

//帮助
int bangzhu(int x0, int y0,const char *bmp_file)
{
	show_bmp("jieshao.bmp",0,0);
	int fd4 = open ("/dev/input/event0",O_RDWR);
	if(fd4 == -1 ){
		perror("open error\n");
		return -1;
	}
	struct input_event ev4;
	int x4,y4;
	int x_start,y_start,x_stop,y_stop;
	while(1){
		int r4 =read(fd4,&ev4,sizeof(ev4));
		if(r4 != sizeof(ev4)){
			perror("read ev error\n");
			return -1;
		}
		if(ev4.type == EV_ABS && ev4.code ==ABS_X){
			x4 = ev4.value ;
		}
		if(ev4.type == EV_ABS && ev4.code ==ABS_Y){
			y4 = ev4.value ;
		}
		if( ev4.type == EV_KEY  && ev4.code == BTN_TOUCH && ev4.value != 0){
			printf("down(%d,%d)",x4,y4);
			x_start = x4;
			y_start = y4 ;
		}
		if( ev4.type == EV_KEY  && ev4.code == BTN_TOUCH && ev4.value == 0){
			printf("up(%d,%d)",x4,y4);
			x_stop = x4;
			y_stop = y4;
			break;
		}
	}
	if(    abs(x_start - x_stop) -  abs(y_start - y_stop)  > 0  && abs(x_start - x_stop) > 30   ){
		if(x_stop - x_start  > 0 ){
			return 4 ;
		}
		else
			return 3;
	}
}

//计分
/*
unsigned char num[10][16] = {
    {0x00,0x00,0x00,0x18,0x24,0x42,0x42,0x42,0x42,0x42,0x42,0x42,0x24,0x18,0x00,0x00},
	{0x00,0x00,0x00,0x08,0x38,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x3E,0x00,0x00},
	{0x00,0x00,0x00,0x3C,0x42,0x42,0x42,0x02,0x04,0x08,0x10,0x20,0x42,0x7E,0x00,0x00},
	{0x00,0x00,0x00,0x3C,0x42,0x42,0x02,0x04,0x18,0x04,0x02,0x42,0x42,0x3C,0x00,0x00},
	{0x00,0x00,0x00,0x04,0x0C,0x0C,0x14,0x24,0x24,0x44,0x7F,0x04,0x04,0x1F,0x00,0x00},
	{0x00,0x00,0x00,0x7E,0x40,0x40,0x40,0x78,0x44,0x02,0x02,0x42,0x44,0x38,0x00,0x00},
	{0x00,0x00,0x00,0x18,0x24,0x40,0x40,0x5C,0x62,0x42,0x42,0x42,0x22,0x1C,0x00,0x00},
	{0x00,0x00,0x00,0x7E,0x42,0x04,0x04,0x08,0x08,0x10,0x10,0x10,0x10,0x10,0x00,0x00},
	{0x00,0x00,0x00,0x3C,0x42,0x42,0x42,0x24,0x18,0x24,0x42,0x42,0x42,0x3C,0x00,0x00},
	{0x00,0x00,0x00,0x38,0x44,0x42,0x42,0x42,0x46,0x3A,0x02,0x02,0x24,0x18,0x00,0x00},
};

void show_word(char *word, int x, int y, int wordsieze, int width, int color)
{
	int perbyte = width / 8;
	int i,j;
	int x0,y0;
	for(i = 0; i < wordsieze; i++)
	{
		for(j = 7; j >= 0; j-- )
		{
			if(word[i] & (1 << j))
			{
				x0 = (i % perbyte) * 8 + (7 - j);
				y0 = i / perbyte;
				LCD_Draw_Point(x0 + x, y0 + y, color);
			}
		}

	}
}
void show_num(int num1, int x0, int y0, int numsize, int color)
{
	if(num1 / 100)	//��ʾֻ�а� ʮ ��λ������
	{
		//��ʾ��λ ���� 250
		show_word(num[num1 / 100], x0, y0, sizeof(num[num1 / 100]), numsize, color);
		//��ʾʮλ
		show_word(num[num1 % 100 / 10],x0 + numsize + 2, y0, sizeof(num[num1 % 100 / 10]), numsize, color);
		//��ʾ��λ
		show_word(num[num1 % 10], x0 + 2 *(numsize + 2), y0, sizeof(num[num1 % 10]),numsize, color);
	}


}

int get_sum()
{
	int s = 0;
	int i, j;
	for (i = 0; i < ITEM_NUM ; i++)
	{
		for (j = 0; j < ITEM_NUM; j++)
		{
			s+=matrix_2048[i][j];

		}
	}
	return s;
}
*/


int main()
{
    start(0,0,"start.bmp");
    int fd = open("/dev/fb0", O_RDWR);
    if (fd == -1){
        printf("failed to open /dev/fb0\n");
        return -1;
    }
	printf("open /dev/fb0 successfully\n");
         //2. 操作文件
        plcd = mmap(NULL,
        800*480*4,
        PROT_WRITE,
        MAP_SHARED,
        fd,
        0);
    if (plcd == MAP_FAILED){
        printf("failed to mmap\n");
        return -1;
    }
        srandom( time(NULL)) ;//设置随机数种子
        LCD_Draw_JuXing(0, 0, LCD_WIDTH, LCD_HEIGHT, 0x00BBFFFF);
        fill_random();
        fill_random();
        show_bmp("shuaxin.bmp",0,30);
        show_bmp("help.bmp",0,400);
        LCD_Draw_Matrix();
        while (1){
            //计分
            //int sum;
            //sum = get_sum();
            //show_num(100+sum, 50, 230, 8, 0x00FF0000);
            //printf("sum=%d\n",sum);
            //滑动
            int mv = get_finger_movemenet();
            printf("mv = %d\n", mv);
            change_matrix(mv);
            fill_random();
            LCD_Draw_Matrix();
            print_matrix_2048();
            if (is_gameover()){
                show_bmp("restart.bmp",110,0);
                sleep(2);
                start(0,0,"start.bmp");
			    get_zero();
			    int xu = get_zero_num();
			    srandom(time(NULL)) ;//�������������
			    LCD_Draw_JuXing(0, 0, LCD_WIDTH, LCD_HEIGHT, 0x00BBFFFF);
			    fill_random();
                fill_random();
                show_bmp("shuaxin.bmp",0,30);
                show_bmp("help.bmp",0,400);
			    LCD_Draw_Matrix();
                //LCD_Draw_JuXing(0, 0, LCD_WIDTH, LCD_HEIGHT, 0x00BBFFFF);
                //show_bmp("shuaxin.bmp",0,30);
            }
        }

         //3.关闭文件
         munmap(plcd, 800*480*4);
         close(fd);

}

bmp图片大家自己换一下

mg 李
关注
评论 1
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
